OpenUPS2 11-24V Intelligent DC-DC Uninterruptible Power Supply

The OpenUPS2 is an Intelligent DC-DC Uninterruptible Power Supply that provides a regulated 12-24V power output from either a variable 11-24V input or 3x 18650 LiFePO4 batteries when the input power is disconnected (batteries not included).

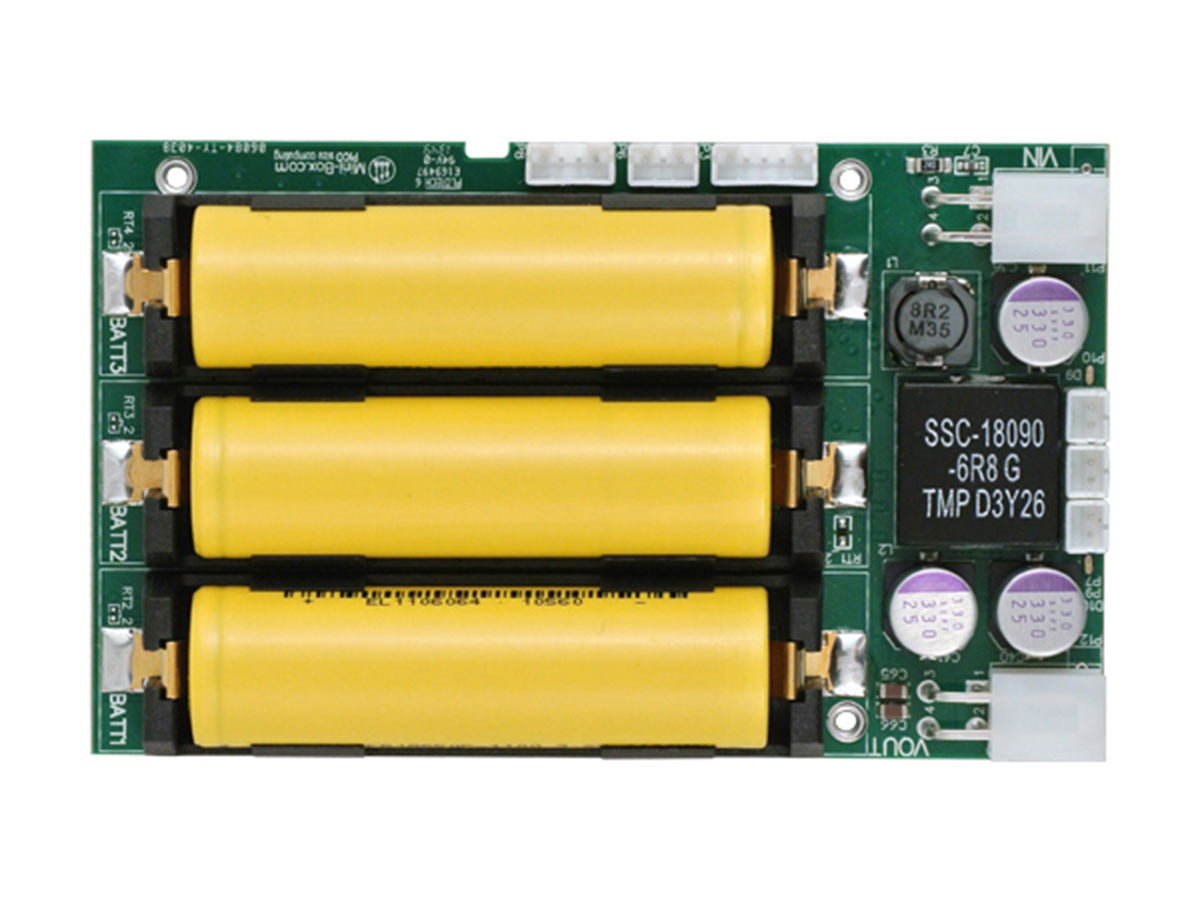

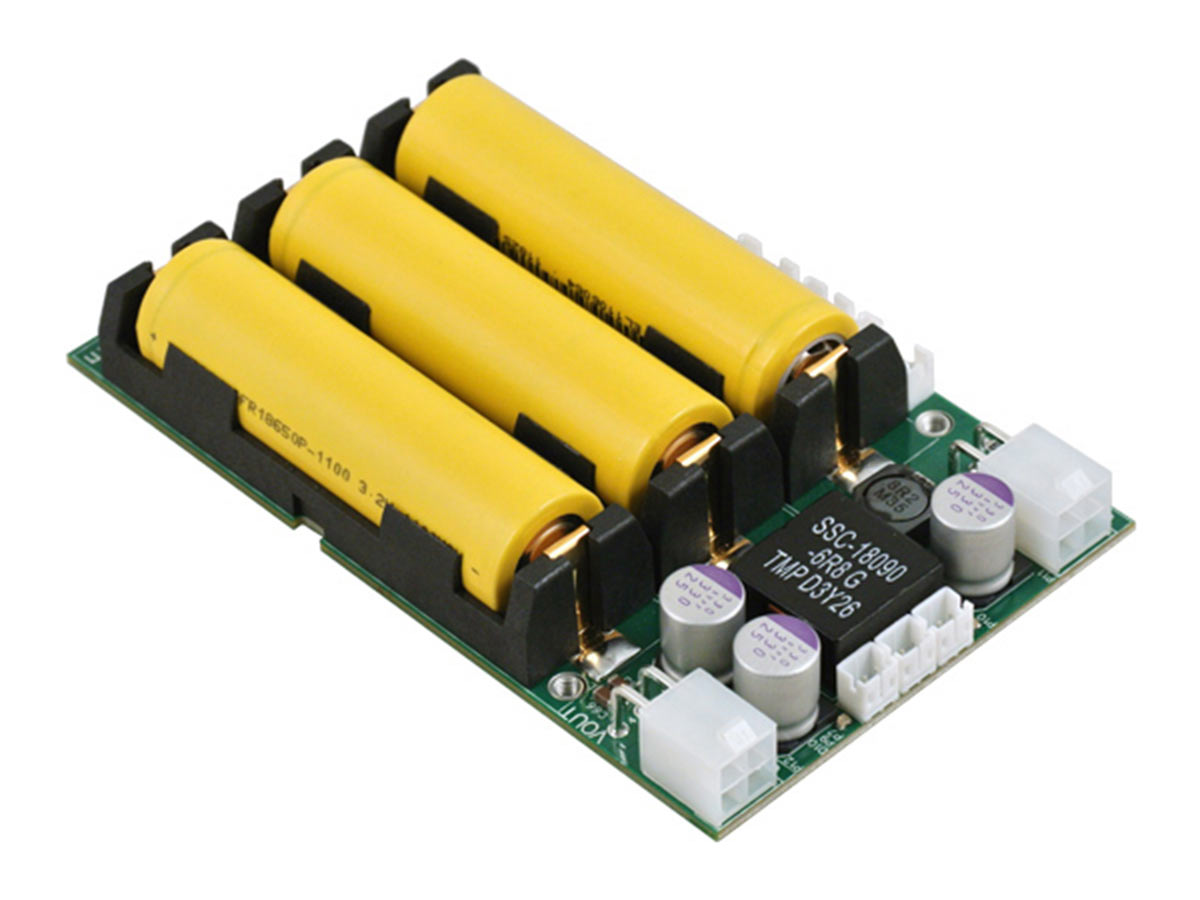

The OpenUPS2 was designed to provide user specified regulated power output from a wide input voltage or battery backup, microprocessor assisted LiFePO4 battery charging and cell balancing in a single PCBA. Battery cells are inserted directly into the device. There is no need for special cabling between cells and UPS. The OpenUPS2 contains a synchronous boost converter with high accuracy voltage and current regulation and automatic power path selection from adapter or battery. It charges the battery in three phases: preconditioning, constant current mode and constant voltage mode.

Fuel Gauge: OpenUPS2 provides accurate fuel gauge capabilities by precisely measuring the input and output current flow. In case of low battery situations, the system can send an ON/OFF pulse (or by reporting remaining battery capacity via USB) to a motherboard in an attempt to gracefully shut down the system.

Intelligent UPS, USB interface, SMBUS slave: Communication can be done over USB and the device has also SMBUS reporting capability. Windows detects OpenUPS as Battery and automatically shows battery in the system tray.

V(In) has to be <= V(Out). If V(In) > V(Out) output will follow V(In).

OpenUPS2 has Windows support and API allowing developers to interface to custom applications. Output and settings can be monitored via custom software applications, 2nd battery status shows on all Windows systems. Windows detects the device as "Battery" - no special drivers are required.

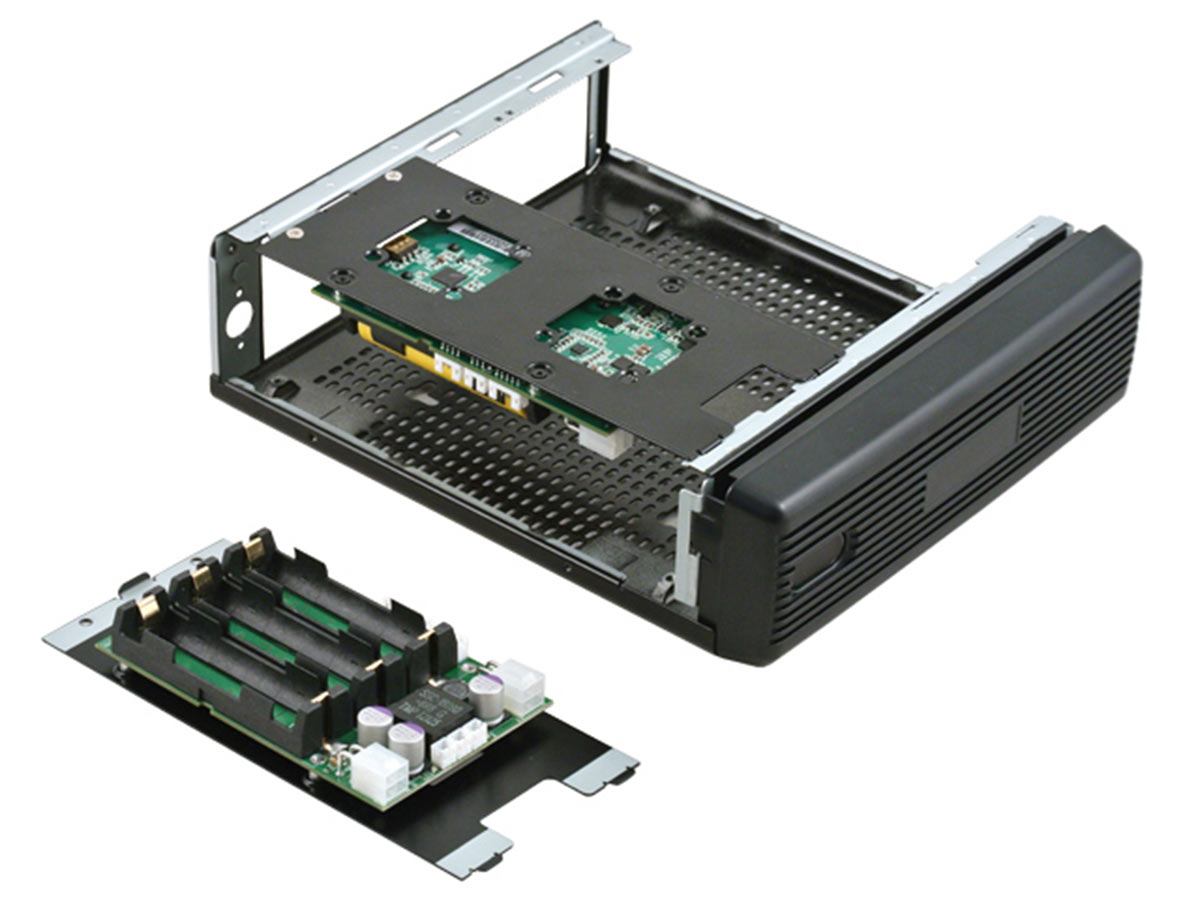

Full Feature List: USB interface, works with Windows devices (Linux API planned); SMBUS slave; Input between 11-24V; Programmable voltage thresholds; Generate any output voltage between 12-24V, booster based design; Supports LiFePO4 battery chemistry; 3 state charger (precharge, constant current, constant voltage); Balances 3 series batteries; Charge voltage 3x3.5V, charge current 1A, precharge current 0.3A; Coulomb counting; Battery temperature monitoring for each cell and temp compensated charge; Start/Stop button; Relay output; External LED connection; Motherboard ON/OFF pulse control; Missing battery cells detection; Ultra low power consumption (1uA- in Deep Sleep mode) or (530uA- in Sleep mode); Windows detects device as "Battery", no special drivers required; Maximum input/output current: 5A (6A for <30s); Dimensions: 115 x 70mm (2.5in drive footprint).
