Incredibly small 12x12cm Nano-ITX integrated motherboard with 1GHz fan-cooled VIA Luke Corefusion™ Processor.

Specifications: 1GHz fan-cooled VIA Luke CoreFusion™ Processor; VIA VT8237R South Bridge; Supports up to 1GB memory at up to 200MHz (DDR 266/333/400 SODIMM); VIA UniChrome™ Pro Integrated AGP Graphics: MPEG-2 Decoder, MPEG-4 Acceleration; 1x 40-pin IDE connector, 1x 44-pin IDE connector; SATA; LVDS/DVI connector (add-on card is required); Pin header to PS/2 mouse and keyboard cable; 12-pin Nano-ITX power connector (& Adapter to 20 pin ATX); Back Panel: RJ-45 10/100 LAN; 2x USB 2.0 (& pin headers for 4 more); VGA; RCA (SPDIF or TV out); S-Video; 3x Audio jacks; Mini-PCI Slot on underside of board.

Memory: You need to use DDR SODIMM memory with this board.

Full Specifications and Review

Cases: We sell two cases that are compatible with the EPIA N Nano-ITX boards: the Silverstone LC07 is ideal for creating a tiny solid state Nano-ITX PC and the Silverstone LC08 supports a slimline optical and 2.5in HDD.

Power supplies (not required with cases): The Nano-ITX boards come with a 12-pin Nano-ITX power to 20-pin ATX power adapter cable. A standard ATX PSU and all our power supplies will work, though we recommend the pico-PSU with an AC Adapter.

Small outline dual inline memory module suitable for EPIA N and NL Nano-ITX motherboards, just 67mm x 25mm. Don't forget these boards have only ONE SODIMM slot!

128MB DDR266 SODIMM, 10 year warranty. Note: DDR400/333 memory is not available in the 128MB size.

Small outline dual inline memory module suitable for EPIA N and NL Nano-ITX motherboards, just 67mm x 25mm. Don't forget these boards have only ONE SODIMM slot!

256MB DDR333 SODIMM, 10 year warranty. Note: DDR400 memory is not available in the 256MB size.

Small outline dual inline memory module suitable for EPIA N and NL Nano-ITX motherboards, just 67mm x 25mm. Don't forget these boards have only ONE SODIMM slot!

512MB DDR400 SODIMM, 10 year warranty.

Small outline dual inline memory module suitable for EPIA N and NL Nano-ITX motherboards, just 67mm x 25mm. Don't forget these boards have only ONE SODIMM slot!

1GB DDR400 SODIMM, 10 year warranty.

Configure a system using this case

Suitable for EPIA N motherboards - Universal 110-240V operation.

Constructed from anodised brushed aluminum and measuring just 217 x 57 x 145mm (WxHxD). The Silverstone LC07 has high structural rigidity and silent running capability with an easily fitted additional heatsink. External 5A/60W (80W peak) Universal AC Adapter, internal DC power board.

Note: There is no HDD or optical drive bay - making the LC07 perfect for a Thin Client device. Just add a TFTP server or an IDE Flash Module and you're ready to go!

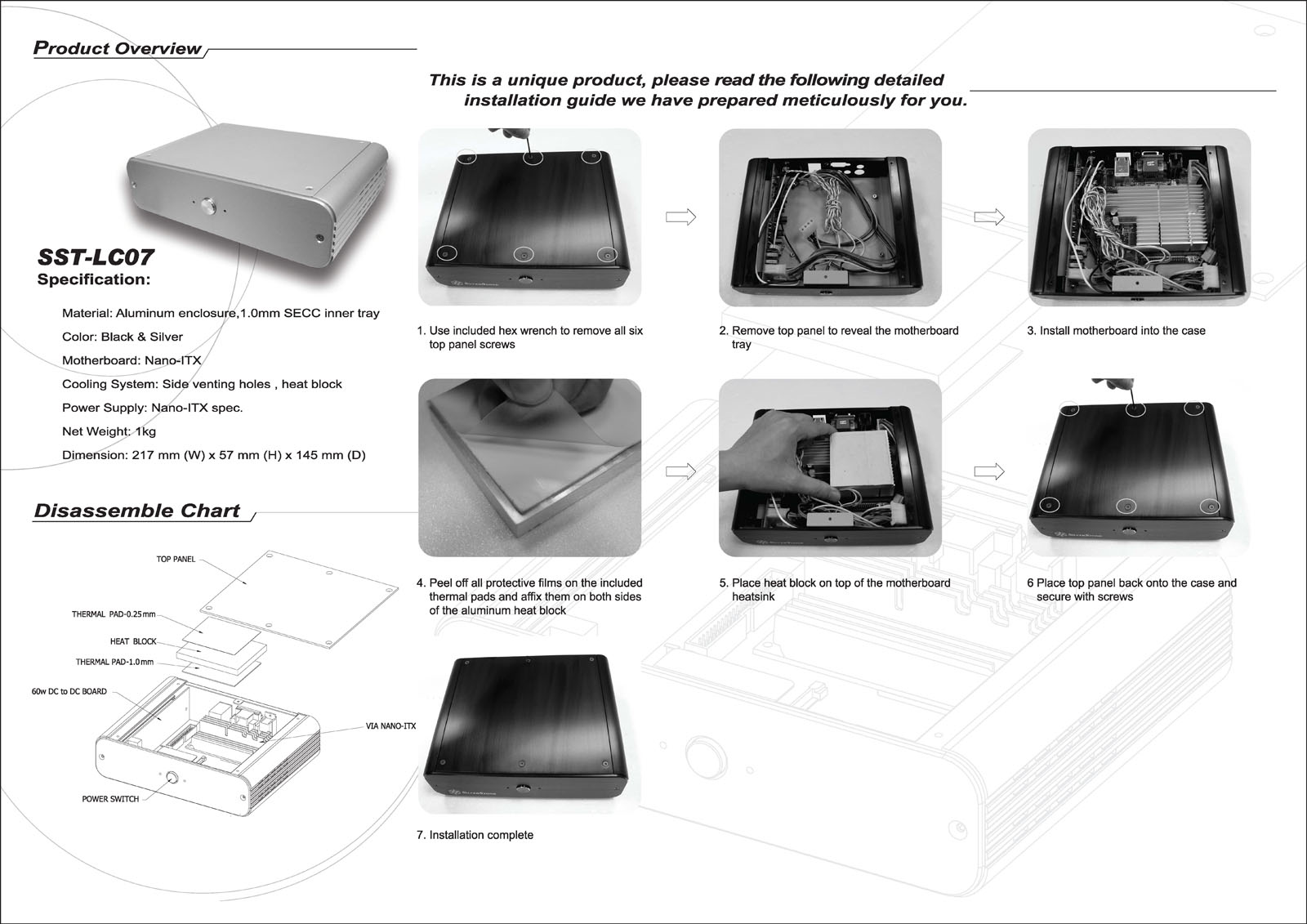

See how easy it is: LC07 manual

Configure a system using this case

Suitable for EPIA N motherboards - Universal 110-240V operation.

Constructed from anodised brushed aluminum and measuring just 302 x 57 x 179mm (WxHxD).

The Silverstone LC08 adds a slimline optical drive slot and 3.5in (or 2.5in) HDD drive bay to the popular LC07 case design. External 5A/60W (80W peak) Universal AC Adapter, internal DC power board.

Note: There are various ways of connecting an optical drive and 2.5in HDD to an EPIA N board. The EPIA N has 1x SATA, 1x 40pin IDE (the 'standard' kind) and 1x 44pin IDE. The LC08 has 2x Molex HDD connectors and 1x Molex Floppy connector. With an IDE 2.5in HDD we recommend one IDE cable, a Slimline CD to Desktop IDE Adapter and a 2.5in Hard Disk IDE Adapter. With a SATA 2.5in HDD you will need a SATA Data and Power Cable and Slimline CD to Desktop IDE Adapter.
