Mini-ITX Compatible Cases
We also stock Pico-ITX cases and Nano-ITX cases
Mini-ITX Case comparison chart
Notes: Volume (Vol) is given in litres.
*Case Specific Notes:
- The M300 supports either 2x 2.5in drives or 1x 3.5in drive.
- The M350 has an optional 2.5in HDD bracket for a 2nd drive.
- Chenbro NAS supports internally mounted PCI cards only.
- Jou Jye 528i has 2x 2.5in HDD bays, 1x 3.5in or Slimline Optical Drive Bay, and supports half height PCI/PCI Express card. Full height PCI card can be fitted with PCI riser card, but 1x 2.5in HDD and the 3.5in/Optical Bay no longer become available.
- ISK 300 supports half height PCI cards.
- Noah 3988 supports 3.5in drive in place of 2.5in drive with no PCI card installed.
- Travla C159 supports 3.5in as standard and an additional 2.5in drive bay only if 0 or 1 PCI card is used.
- Venus 669 Supports 4x 3.5in HDD or 2x 5.25in optical drives, but not at the same time.
- Mini Skeleton volume is approximate due to unusual shape!
Power supplies: 'DC' means an internal fanless DC converter and external AC adapter is provided. 'ATX' means a standard ATX power supply is provided, which will have a cooling fan. 'Various' means no PSU is provided, but several options are available. All cases have at least one internal cooling fan except where stated - these can often be left disconnected with no ill effects. Rules of thumb:
- 60W DC are suitable for VIA based boards (e.g. VIA EPIA, Jetway J7F2/4/5). Intel boards unlikely to work.
- 80W/90W DC suitable for Intel mobile chipset based boards (e.g. Jetway J9F2) and VIA boards with large capacity 3.5in HDDs and/or PCI PVR cards.
- 120W DC suitable for VIA and Intel mobile chipset boards with multiple HDDs and/or video cards.
- ATX PSUs suitable for all boards with multiple HDDs and PCI cards. Full size optical drives can be connected for software installation.
Do not connect full size optical drives to cases with external AC Adapters as this will damage power components - use a spare ATX PSU instead.
Full compatibility notes can be found on the description for each case - check whether a PCI Riser Card or slimline IDE adapter is included. All enclosures with PSUs have universal 110V-240V operation and are supplied with UK plugs. Localised cables provided where possible. Most 3.5in drive bays can support up to 2x 2.5in drives with suitable mounting kits.
Book style cases

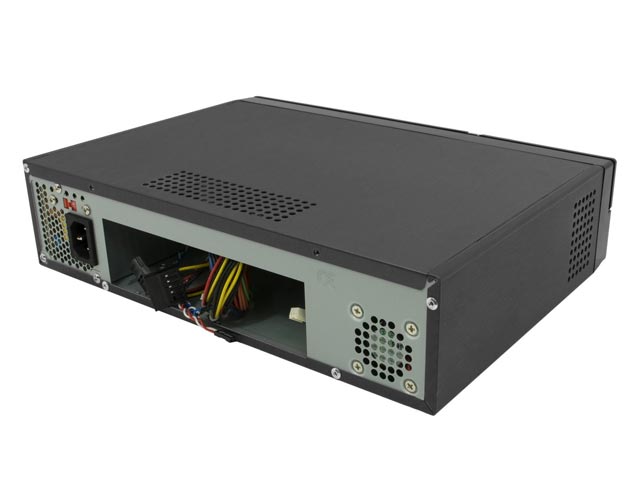

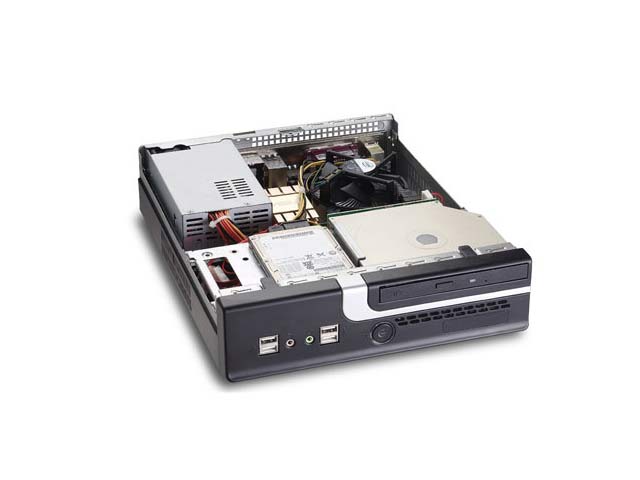

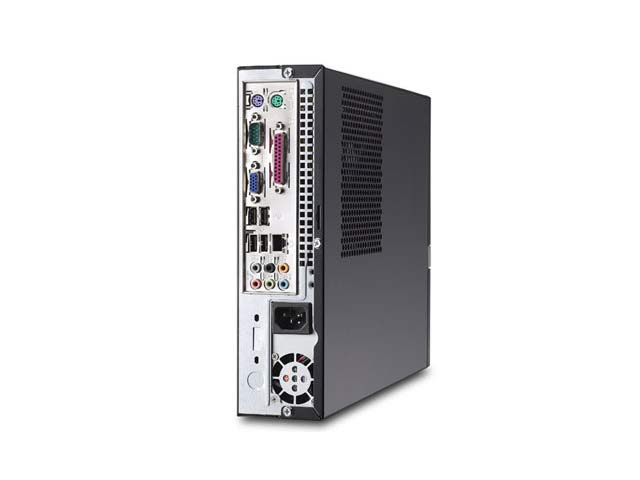

Compucase 8K01 Mini-ITX Case - Black  | | Compucase 8K01 Mini-ITX Case - Black |
| | | | | Lead time approx 3-5 days |
|
|
| UK Power Cord for 8K01 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for 8K01 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for 8K01 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Versatile case with 120W power supply suitable for most Mini-ITX motherboards - Universal 110-240V operation. Identical specification to 8K07, with different front panel design.
Steel frame construction with a solid black plastic front panel.
Bays: 1x 3.5in HDD; 1x Slimline Optical drive.
Front Panel: 2x USB 2.0; Mic and Line Out; 1x eSATA; Power Switch and LED.
Power supply: Internal 120W Universal 110/240V ATX Power Supply. Internal 12V P4 and 20pin ATX power connectors included, with 2x Molex, 1x SATA, 1x Floppy power connectors.
Measurements: 70(H) x 268(W) x 318(D) mm. Volume: 5.97 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks).
Not supported: Socket AM2 boards with standard heatsinks, boards requiring over 120W power.
Compatibility Notes: Additional IDE or SATA cable or adapter may be required if you are using a slimline optical drive, depending on the ports available on your choice of board. This case does not support PCI.
Full case comparison chart |
Compucase 8K07 Mini-ITX Case - Black  | | Compucase 8K01 Mini-ITX Case - Black |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| UK Power Cord for 8K07 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for 8K07 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for 8K07 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Versatile case with 120W power supply suitable for most Mini-ITX motherboards - Universal 110-240V operation. Identical specification to 8K01, with different front panel design.
Steel frame construction with a solid black plastic front panel.
Bays: 1x 3.5in HDD; 1x Slimline Optical drive.
Front Panel: 2x USB 2.0; Mic and Line Out; 1x eSATA; Power Switch and LED.
Power supply: Internal 120W Universal 110/240V ATX Power Supply. Internal 12V P4 and 20pin ATX power connectors included, with 2x Molex, 1x SATA, 1x Floppy power connectors.
Measurements: 70(H) x 268(W) x 318(D) mm. Volume: 5.97 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks).
Not supported: Socket AM2 boards with standard heatsinks, boards requiring over 120W power.
Compatibility Notes: Additional IDE or SATA cable or adapter may be required if you are using a slimline optical drive, depending on the ports available on your choice of board. This case does not support PCI.
Full case comparison chart |

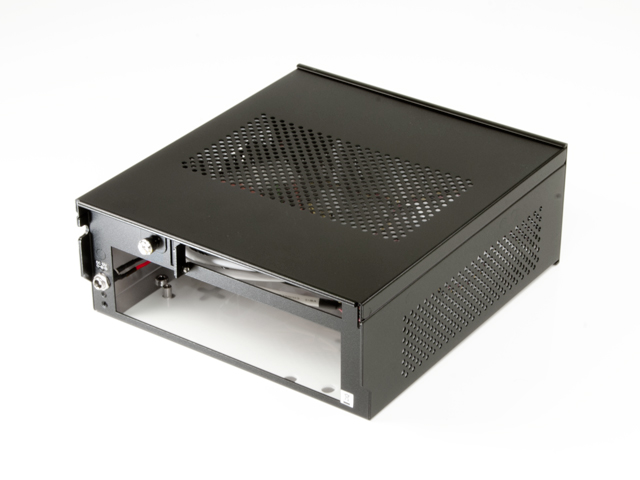

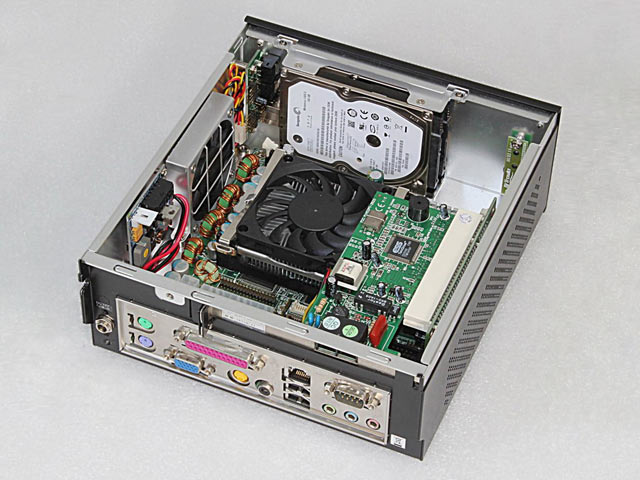

Cubid 2755 Dual PCI Mini-ITX Case  | | Cubid 2755 Dual PCI Mini-ITX Case |
| | |
|
| |
Dual PCI Case suitable for many Mini-ITX motherboards - Universal 110-240V operation.
Very flexible case constructed from steel and aluminimum frame with industrial design.
Bays: 1x 2.5in Hard Drive (2.5in to 3.5in IDE cable or SATA Data/Power cable required); 1x 3.5in Hard Drive; 1x Slimline Optical Drive (slimline IDE Adapter included); 2x PCI (right angled dual PCI riser card provided).
Front Panel (under spring loaded flap): 2x USB 2.0; Mic and Line Out; 1x Firewire.
Power supply: External 60W Universal 110/240V AC adapter and internal 60W DC converter.
Measurements: 63.5(H) x 295(W) x 288(D) mm. (2.5 x 11.6 x 11.3in)
Volume: 5.39 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards. Notes: Due to the size of the EPIA EN heatsink, the front panel USB 2.0 connectors will not reach the pin connectors on that board. Additional IDE cable may be required if you are using a slimline optical drive. Lower PCI card needs to be short length to avoid 3.5in HDD. Active riser card not compatible with this case.
Partially Supported boards: Jetway Atom, Intel D945GCLF2 fit but only one riser card slot will work (due to chipset differences) - locate jumper to 6th row of pins to enable lower slot for Atom.
Not supported: Boards consuming over 45W (e.g J9F2 or other similar Intel chipset).
Full case comparison chart |
Cubid 2799 Dual PCI Mini-ITX Case  | | Cubid 2799 Dual PCI Mini-ITX Case |
| | |
|
| |
Dual PCI Case suitable for many Mini-ITX motherboards - Universal 110-240V operation.
Very flexible case constructed from steel and aluminimum frame with a black plastic front panel.
Bays: 1x 2.5in Hard Drive (2.5in to 3.5in IDE cable or SATA Data/Power cable required); 1x 3.5in Hard Drive; 1x Slimline Optical Drive (slimline IDE Adapter included); 2x PCI (right angled dual PCI riser card provided).
Front Panel (under spring loaded flap): 2x USB 2.0; Mic and Line Out; 1x Firewire.
Power supply: External 60W Universal 110/240V AC adapter and internal 60W DC converter.
Measurements: 63.5(H) x 295(W) x 288(D) mm. (2.5 x 11.6 x 11.3in)
Volume: 5.39 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards. Notes: Due to the size of the EPIA EN heatsink, the front panel USB 2.0 connectors will not reach the pin connectors on that board. Additional IDE cable may be required if you are using a slimline optical drive. Lower PCI card needs to be short length to avoid 3.5in HDD. Active riser card not compatible with this case.
Partially Supported boards: Jetway Atom, Intel D945GCLF2 fit but only one riser card slot will work (due to chipset differences) - locate jumper to 6th row of pins to enable lower slot for Atom.
Not supported: Boards consuming over 45W (e.g J9F2 or other similar Intel chipset).
Full case comparison chart |
Morex Cubid 3877 Mini-ITX Case - Black  | | Morex Cubid 3877 Mini-ITX Case - Black |
| | | | | Lead time approx 1-2 weeks |
|
|
| |
Tiny Case suitable for many Mini-ITX motherboards - Universal 110-240V operation.
The 3877 is an updated version of the earlier 3677, adding compatibility with Atom based motherboards, and with a different front panel design to the 3688 (which is not Atom compatible).
Bays: 1x 2.5in Hard Drive (2.5in to 3.5in IDE cable or SATA Data/Power cable required); 1x Slimline Optical Drive (slimline IDE Adapter included).
Front Panel: 2x USB 2.0.
Power supply: External 60W Universal 110/240V AC adapter and internal 80W DC converter. Connections for Molex, Floppy, 20pin ATX and 12V P4 power.
Measurements: 65(H) x 210(W) x 295(D) (2.6 x 8.3 x 11.6in)
Volume: 4.03 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.
Not supported: Boards consuming over 45W (usually Socket Mini-ITX boards).
Full case comparison chart |

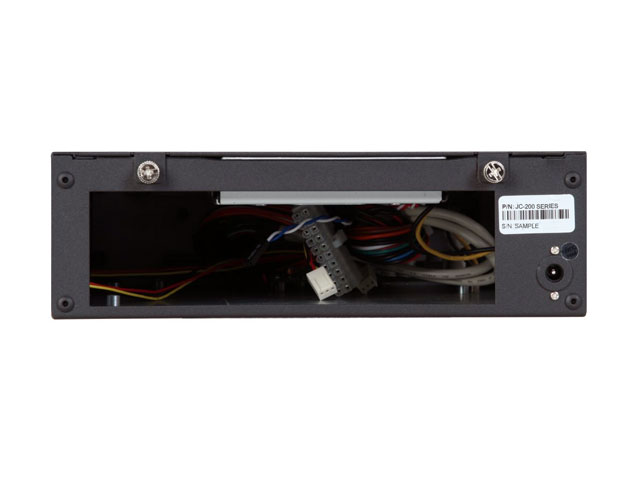

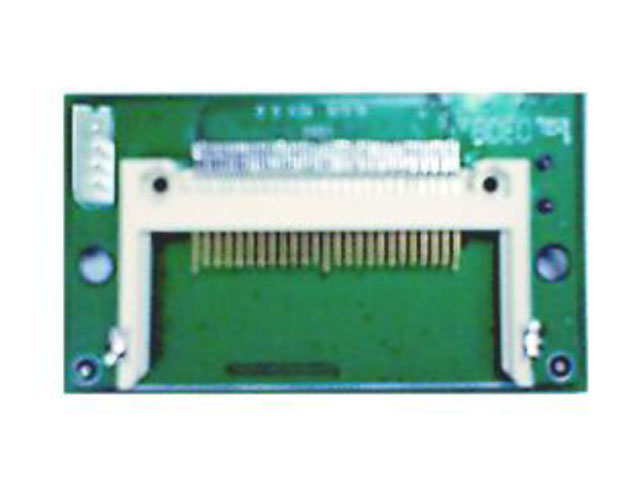

M200 Enclosure with Bootable CF Adapter  | | M200 Mini-ITX Enclosure with Bootable CF Adapter |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Offer Bundle - M200 Enclosure & PicoPSU 120 (requires 12V AC Adapter) |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Highly modular embedded Mini-ITX enclosure constructed from high quality lightweight Aluminium.
Bays: Up to 2x 2.5in Hard Drives* (2.5in to 3.5in IDE cable or SATA Data/Power cable required); Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.
Front Panel: 2x USB 2.0 (under flap), power switch.
No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.
Measurements: 54(H) x 200(W) x 240(D) (2.1 x 16.9 x 10.6in)
Volume: 2.59 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors or DC input and with standard height heatsinks such as Intel D410PT, D510MO, D945GCLF2, D945GSEJT; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B/C; VIA EPIA boards; Socket Mini-ITX boards with 1U heatsinks (with suitable picoPSU, e.g. pico-PSU-150-XT).
*Notes: 2x 2.5in HDD possible with selected boards only due to space constraints. The Compact Flash Adapter requires a board with an IDE interface. Check you have enough power connectors if using a picoPSU. Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.
Full case comparison chart |
M200-LCD Enclosure with Bootable CF Adapter and 20x2 LCD Display  | | M200 Mini-ITX Enclosure with Bootable CF Adapter |
| | | | | Lead time approx 1-2 weeks |
|
|
| |
Highly modular embedded Mini-ITX enclosure constructed from high quality lightweight Aluminium.
Bays: Up to 2x 2.5in Hard Drives* (2.5in to 3.5in IDE cable or SATA Data/Power cable required); Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.
Front Panel: Intelligent USB display with 20 columns and 2 rows (8x5 dots character size) and illuminated 12 button keypad included; 2x USB 2.0 (under flap); Power button.
LCD Documentation and Software download page
No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.
Measurements: 54(H) x 200(W) x 240(D) (2.1 x 16.9 x 10.6in)
Volume: 2.59 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors or DC input and with standard height heatsinks such as Intel D410PT, D510MO, D945GCLF2, D945GSEJT; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B/C; VIA EPIA boards; Socket Mini-ITX boards with 1U heatsinks (with suitable picoPSU, e.g. pico-PSU-150-XT).
*Notes: 2x 2.5in HDD possible with selected boards only due to space constraints. The Compact Flash Adapter requires a board with an IDE interface. Check you have enough power connectors if using a picoPSU. Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.
Full case comparison chart |

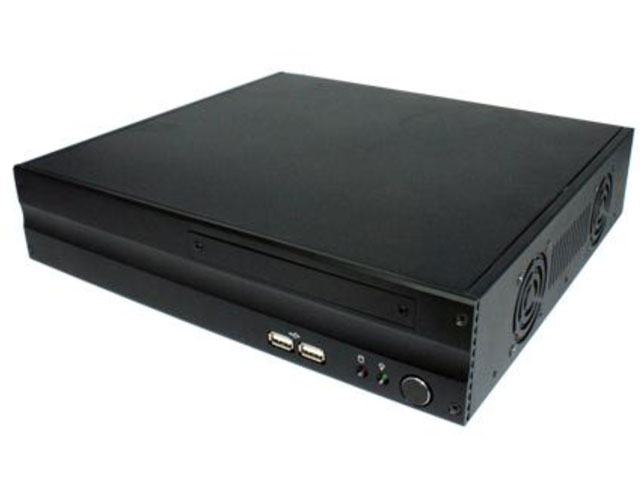

Travla C158 (Desktop/Floor/Wall Mountable)
Travla C158 Mini-ITX Case - 80W  | | Travla C158 Mini-ITX Case - 80W PSU |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for C158 80W Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for C158 80W Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Stylish cold rolled steel Mini-ITX enclosure with extruded aluminum alloy front panel.
Drive Bays: 1x 3.5in Hard Drive (can also accomodate 1x 2.5in drive); 1x side-mounting Slimline Optical Drive (slimline adapter or cable required); 1x PCI (PCI riser card provided); 1x Slot to fit a compatible Bootable Compact Flash Adapter
Front Panel: Power switch; Disk & HDD LEDs; 2x USB 2.0; 3x Audio.
Power supply: External 80W Universal 110/240V 12V AC adapter and internal 12V DC converter. Internal power connectors for 2x Molex, 3x Floppy with additional adapter for SATA power and Molex power.

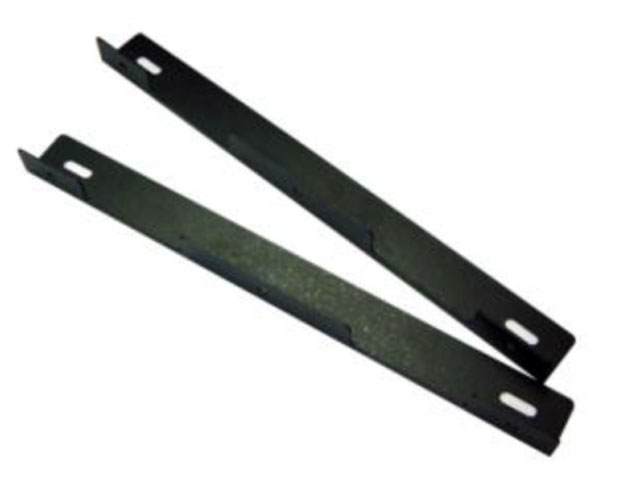

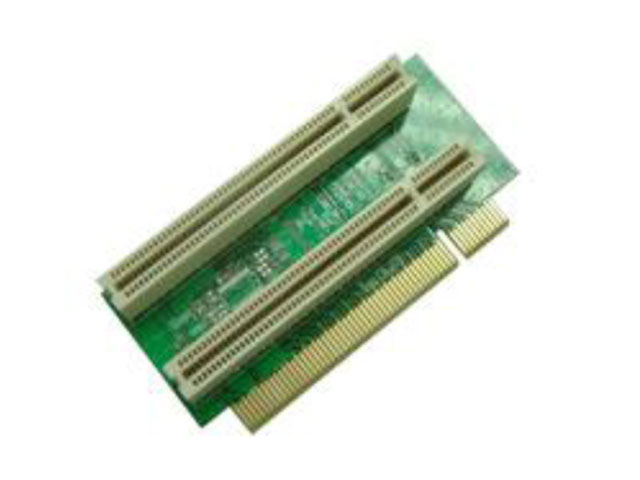

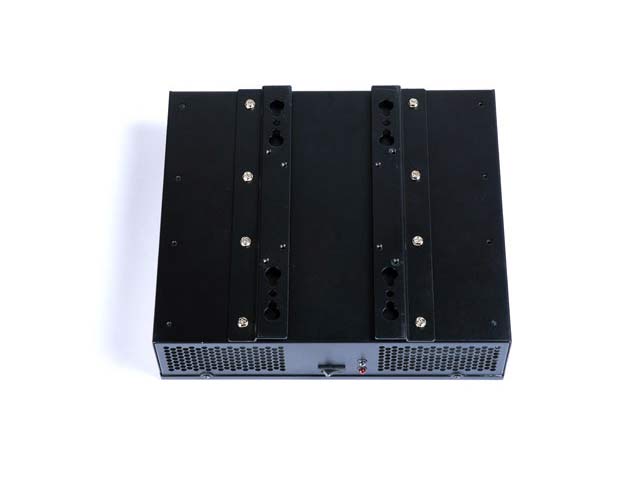

Accessories: 2x L-mounting floor/wall brackets and 1x PCI Riser Card included.
Measurements: 54(H) x 305(W) x 279(D) (2.1 x 12 x 11in)
Volume: 4.60 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards. If using a Jetway board or EPIA LN or EN together with an optical drive, you will require Ultra Low Profile DDR2 Memory due to space restrictions. Boards with 12V P4 connectors will require an adapter cable (e.g. D945GCLF2).
Note: 60W, 90W and 120W versions still available for quantity orders.
Full case comparison chart |
Antec ISK-300-65 Mini-ITX Chassis  | | Antec ISK-300-65 Mini-ITX Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for ISK-300 Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for ISK-300 Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Solidly built and well-featured, with covered slim optical drive slot. The ISK 300-65 has a smart black form with plenty of cooling thanks to a side-mounted 3-speed "TriCool" fan.
Measuring just 96 x 222 x 328mm, the case still has room for a low-profile PCI or PCI Express card.
Bays: 2x 2.5in Hard Drive; 1x Slimline Optical Drive; 1x Low-Profile PCI or PCI-Express.
Front Panel: 1x eSATA, 2x USB 2.0, 2x 3.5mm Audio.
Cooling: 1x 80mm TriCool fan.
Power Supply: External 65 Watt 19V Universal AC adapter with UK plug and internal DC converter. Connections for 20/24pin ATX; 1x 4pin 12V; 2x SATA; 2x Molex HDD; 1x Floppy
Mini SATA Power/Data Cable for SATA Slimline Optical Drives included.
Measurements: 96(H) x 222(W) x 328(D) (3.8 x 8.7 x 12.9in)
Volume: 6.99 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F.
Not supported: Socket Mini-ITX boards.
Mounting: Horizontal Desk Mount or with supplied Vertical Stand
Full case comparison chart |
Cube style cases
Silverstone SUGO SG05B Mini-ITX Chassis  | | Silverstone SUGO SG05B Mini-ITX Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for SG05B Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for SG05B Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|

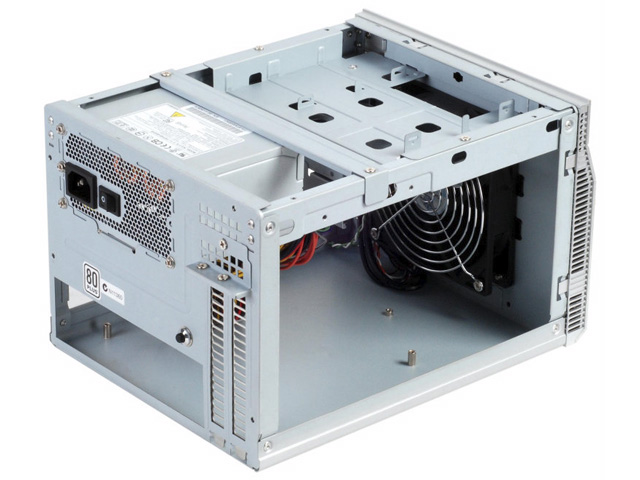

Interior image:
| |
Full featured high quality Mini-ITX case with quiet 300W SFX PSU, and huge front mounted slow moving 120mm cooling fan. Plastic front panel, SECC body.
The SG05 is under 11 litres in volume, but has room for a 9 inch dual slot graphics card and a full height CPU cooler (up to 78mm).
Bays: 1x 3.5in Hard Drive; 1x 2.5in Hard Drive; 1x Slimline Optical Drive (slimline adapter or cable required); 1x PCI or PCI-Express (up to 9 inches long).
Cooling: 1x 120mm 1200 RPM Intake Fan; Overside Side and Top Vents.
Front Panel: 2x USB 2.0, 2x 3.5mm Audio.
Power supply: SFX 300W (80plus certified) - capable of powering a full size dual slot graphics card. Power connectors: 20pin ATX; 2x 4pin 12V; 1x 6pin PCI-E; 3x SATA; 2x Molex; 1x Floppy.
Measurements: 176(H) x 222(W) x 276(D) (6.9 x 8.7 x 10.9in)
Volume: 10.78 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F; Socket Mini-ITX boards with standard retail heatsinks.
Full case comparison chart |

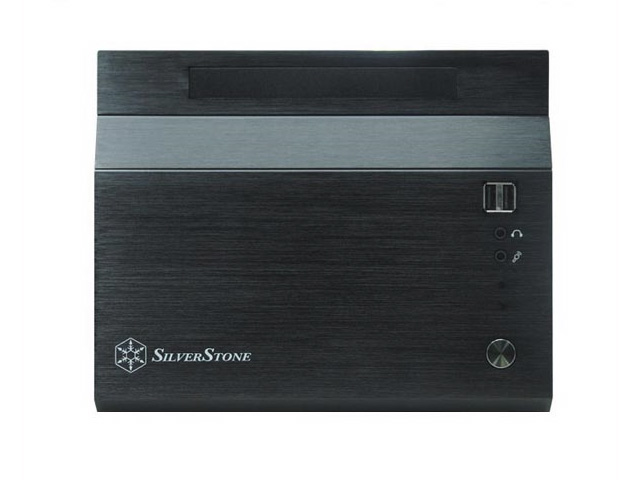

Silverstone SUGO SG06B Mini-ITX Chassis  | | Silverstone SUGO SG05B Mini-ITX Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
More images of the Silverstone SG06
You may also require:
| Euro Power Cord for SG06B Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for SG06B Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Full featured aluminium bodied high quality Mini-ITX case with quiet 300W SFX PSU, and huge front mounted slow moving 120mm cooling fan. High quality aluminium front panel, SECC body.
The SG06 is just 11.14 litres in volume, but has room for a 9 inch dual slot graphics card and a full height CPU cooler (up to 78mm).
Bays: 1x 3.5in Hard Drive; 1x 2.5in Hard Drive; 1x Slimline Optical Drive (slimline adapter or cable required); 1x PCI or PCI-Express (up to 9 inches long).
Cooling: 1x 120mm 1200 RPM Intake Fan; Overside Side and Top Vents.
Front Panel: 2x USB 2.0, 2x 3.5mm Audio.
Power supply: SFX 300W (80plus certified) - capable of powering a full size dual slot graphics card. Power connectors: 20pin ATX; 2x 4pin 12V; 1x 6pin PCI-E; 3x SATA; 2x Molex; 1x Floppy.
Measurements: 177(H) x 220(W) x 286(D) (6.96 x 8.66 x 11.25in)
Volume: 11.14 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F; Socket Mini-ITX boards with standard retail heatsinks.
Full case comparison chart |
Antec Mini Skeleton Open Frame Mini-ITX Chassis  | | Antec Mini Skeleton Open Frame Mini-ITX Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for Mini Skeleton Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for Mini Skeleton Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
Front View:
| |
The Antec Mini-Skleton 90 features an open-frame combined with a uniquely striking design. The Skeleton case is a favourite amongst system-tweakers and is now available in the Mini-ITX form factor.
Cooling: 150mm TricCool Blue LED fan is extremely quiet in use and does a great job of cooling the tnire motherboard area. A 70mm fan is housed at the rear of the 5.25in storage bay for additional cooling.
Front Panel: Power Switch; Reset Switch; 2x USB 2.0 sockets; Audio (AC 97 and HDA compatible) sockets.
Power supply: 90W 19V AC Adapter and Internal DC Converter - capable of powering embedded Mini-ITX and socket boards with up to 45W TDP CPUs. Power connectors: 20+4pin ATX; 1x 4pin 12V P4; 2x SATA; 2x Molex; 1x Floppy. Molex to 2x SATA power cable adapter.
Bays: 1x 5.25in HDD/Optical Drive; 2x 2.5in internal HDD; 2x 2.5in side-mounted HDD.
Measurements: 190(H) x 210(W) x 230(D) (7.5 x 8.3 x 9.1in)
Volume: 9.17 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F; Socket Mini-ITX boards are supported though we recommend 45W TDP maximum as this case only has a 90W PSU. Standard Intel LGA775 heatsinks fit though AMD boards may require a low profile heatsink.
Full case comparison chart |
Jou Jye NU-528i-B Mini-ITX Case 73W with Card Reader
Jou Jye NU-528i-B Mini-ITX Case 220W
Nexus Psile Mini-ITX Case & DVD Writer
M300 Mini-ITX Enclosure with Bootable CF Adapter and 1 PCI Slot  | | M300 Enclosure: Bootable CF Adapter and 1 PCI Slot |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Offer Bundle - M300 Enclosure & PicoPSU 120 (requires 12V AC Adapter) |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Highly modular embedded Mini-ITX enclosure constructed from high quality lightweight Aluminium.
Drive Bays: Supports either 2x 2.5in drives or 1x 3.5in drive; Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.
Accessories included: VIA chipset compatible PCI Riser Card; Compact Flash Adapter
Front Panel: 2x USB 2.0 (under flap), Power Switch.
No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.
Cables required: If 2.5in drives are used, a 2.5in to 3.5in IDE cable/adapter or SATA Data/Power cable will be required (check number of IDE ports on your motherboard if using 2 x 2.5in drives). A standard IDE cable is required to connect the Compact Flash Adapter (usually provided with motherboards)
Measurements: 78(H) x 200(W) x 240(D) (3.1 x 16.9 x 10.6in)
Volume: 3.74 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors or DC input; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks) (with suitable picoPSU, e.g. pico-PSU-150-XT). Notes: Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.
Full case comparison chart |
M300-LCD Enclosure with Bootable CF Adapter, PCI Slot and 20x2 LCD Display  | | M300 Enclosure: Bootable CF Adapter and 1 PCI Slot |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Highly modular embedded Mini-ITX enclosure with LCD display constructed from high quality lightweight Aluminium.
Drive Bays: Supports either 2x 2.5in drives or 1x 3.5in drive; Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.
Accessories included: VIA chipset compatible PCI Riser Card; Compact Flash Adapter
Front Panel: Intelligent USB display with 20 columns and 2 rows (8x5 dots character size) and illuminated 12 button keypad included; 2x USB 2.0 (under flap); Power button.
No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.
Cables required: If 2.5in drives are used, a 2.5in to 3.5in IDE cable/adapter or SATA Data/Power cable will be required (check number of IDE ports on your motherboard if using 2 x 2.5in drives). A standard IDE cable is required to connect the Compact Flash Adapter (usually provided with motherboards)
Measurements: 78(H) x 200(W) x 240(D) (3.1 x 16.9 x 10.6in)
Volume: 3.74 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors or DC input; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks) (with suitable picoPSU, e.g. pico-PSU-150-XT). Notes: Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.
LCD Software: LCD Documentation and Software download page
Full case comparison chart |
Noah 3988 Mini-ITX Case - Silver  | | Noah 3988 Mini-ITX Case - Silver |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for Noah Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for Noah Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
High quality compact case suitable for most Mini-ITX motherboards - Universal 110-240V operation. Black case with Silver brushed metal front panel.
Drive Bays: Supports a slimline optical drive and either 1x 2.5in HDD or 1x 3.5in HDD. With a 3.5in drive fitted, PCI expansion is not possible.
Front Panel: Slot for Slimline Optical Drive with blanking plate; Power switch with embedded power LED; Activity LED. Under front flap: Firewire; 3.5mm Mic and Line Out; 2x USB 2.0.
Power supply: External 80W Universal 110/240V 12V AC adapter with UK power cord and internal 80W 12V DC converter.
Fans: Internal 80mm cooling fan.
PCI: Right angled PCI Riser provided. Due to drive tray positioning a PCI card is only possible in combination with a 2.5in HDD.
Cables required: Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD) and Floppy (slimline optical drive). Adapters provided for SATA power. Slimline IDE adapter provided for a slimline optical drive. You will need a SATA data cable if using a SATA drive (though these are usually provided with motherboards). UK power cord provided. You may add a US or Euro cord using the links on the left.
Measurements: 97mm(H) x 273mm(D) x 202mm(W)
Volume: 5.35 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F.
Full case comparison chart |
Noah 3988 Mini-ITX Case - Black  | | Noah 3988 Mini-ITX Case - Black |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for Noah Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for Noah Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
High quality compact case suitable for most Mini-ITX motherboards - Universal 110-240V operation. Black case with Black brushed metal front panel.
Drive Bays: Supports a slimline optical drive and either 1x 2.5in HDD or 1x 3.5in HDD. With a 3.5in drive fitted, PCI expansion is not possible.
Front Panel: Slot for Slimline Optical Drive with blanking plate; Power switch with embedded power LED; Activity LED. Under front flap: Firewire; 3.5mm Mic and Line Out; 2x USB 2.0.
Power supply: External 80W Universal 110/240V 12V AC adapter with UK power cord and internal 80W 12V DC converter.
Fans: Internal 80mm cooling fan.
PCI: Right angled PCI Riser provided. Due to drive tray positioning a PCI card is only possible in combination with a 2.5in HDD.
Cables required: Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD) and Floppy (slimline optical drive). Adapters provided for SATA power. Slimline IDE adapter provided for a slimline optical drive. You will need a SATA data cable if using a SATA drive (though these are usually provided with motherboards). UK power cord provided. You may add a US or Euro cord using the links on the left.
Measurements: 97mm(H) x 273mm(D) x 202mm(W)
Volume: 5.35 litres.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F.
Full case comparison chart |
Thin client style cases
We also stock the FX5620, Mx1G and M73G thin clients, which come pre-installed with 1GHz and 1.5GHz fanless boards.
Thin Client Mini-ITX Case - Black  | | Thin Client Mini-ITX Case - Black |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| VESA Mounting Bracket for Thin Client Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Thin Client style case suitable for all Jetway and most EPIA Mini-ITX Boards constructed from steel and aluminimum frame with a black and silver plastic shell
Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.
Accessories included: Black plastic case stand. Molex to SATA power cable required if using a SATA HDD
Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.
Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board; Power connectors provided for 20pin ATX; Floppy Power; Molex HDD.
Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.
Note: Molex to SATA power cable required if using a SATA HDD. 12V power connector splitter cable required for Intel D945GCLF and D945GCLF2 boards (available on board page).
Not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.
Full case comparison chart |
Thin Client Mini-ITX Case - Fanless - Black  | | Thin Client Mini-ITX Case - Fanless - Black |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| VESA Mounting Bracket for Thin Client Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Thin Client style case suitable for all Jetway and most EPIA Mini-ITX Boards constructed from steel and aluminimum frame with a black and silver plastic shell
Note: case includes larger venting panels than the original Thin Client case to assist fanless operation - any CPU fans attached to boards are still required however.
Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.
Accessories included: Black plastic case stand.
Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.
Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board. Power connectors provided for 20pin ATX; 4pin 12V; SATA; Molex HDD.
Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.
Not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.
Note: SATA and 12V power connectors added from 20th July 2009
Full case comparison chart |
Compact Wall Mountable Mini-ITX Case  | | Compact Wall Mount Mini-ITX Case - Black |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Compact Wall Mountable case suitable for all non-socket Mini-ITX Boards - Universal 110-240V operation.
Constructed from lightweight aluminimum and measuring just 59 x 260 x 186mm (HxWxD).
This case is ideal for POS or Kiosk applications, or for any application where a discreet and securable case is required. Now includes mounting bracket for 2.5in HDD (SATA recommended). Or why not make a fanless solid state system and boot over a network, or from IDE Flash Module.
Power supply included: 110-240V External Universal 60W AC Adapter and UK power cord; 62W Internal DC power board.
Power connectors: SATA Power; Molex Floppy; Molex HDD; 4pin 12V P4; 20pin ATX
Fans: 2x internal 40mm cooling fans (usually not required).
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.
Full case comparison, size and board compatibility chart |
Lockable Compact Wall Mountable Mini-ITX Case  | | Lockable Compact Wall Mount Mini-ITX Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
More images | | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Lockable Compact Wall Mountable case suitable for all non-socket Mini-ITX Boards - Universal 110-240V operation.
Constructed from lightweight aluminimum and measuring just 66 x 251 x 200mm (HxWxD).
This case is ideal for POS or Kiosk applications, or for any application where a discreet and securable case is required. Strong wire mesh venting on 4 sides provides maximum airflow. Internal mounting bracket for 2.5in HDD. Or why not make a fanless solid state system and boot over a network, or from IDE Flash Module.
Locking system: 200 x 250mm steel tray included with 18 separate Wall/VESA mounting points and 6 notches to 'hang' the case in place. 2 provided keys operate a bolt which secures the case firmly to the tray. The top of the case is screwed in place at the top, bottom and sides. The case must be unlocked from its tray and 11 screws unscrewed to remove the contents.
Rear Panel: DC Input, Key Lock, I/O Shield Slot; Green Power LED; Recessed Power and Reset Buttons (operated by a paper clip). Front, Top and Side Panels: Strong Mesh Venting.
Power supply included: 110-240V External Universal 60W AC Adapter and UK power cord; 62W Internal DC power board.
Power connectors: SATA Power; Molex Floppy; Molex HDD; 4pin 12V P4; 20pin ATX.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F.
Full case comparison, size and board compatibility chart |
C1-RACK 1U Mini-ITX Rackmount Chassis  | | C1-RACK 1U Mini-ITX Chassis |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for C1-RACK Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for C1-RACK Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Suitable for many Mini-ITX motherboards - Universal 110-240V operation, Just 372mm (15in) deep.
Available as part of our Intel Atom 1U Rackmount Server Bundle
This Mini-ITX compatible 1U case is constructed from Heavy-duty pre-plated SPGC cold-rolled steel. It supports up to 2x 3.5in hard drives (2.5in drives can be mounted in the 3.5in bays), and one slimline optical drive bay (IDE adapter provided for a slimline optical drive). Two USB 2.0 ports, power and reset switches and power/HDD LEDs on the front panel.
The C1-RACK measures 482.6 x 377.2 x 43.6mm (19in x 14.8in x 1.75in), and is powered by an internal Universal 250W Flex ATX power supply. One 97mm blower fan provides cooling (does not need to be connected for low power consumption boards). Power and HDD LEDs and Power and reset switches on the front panel.
To use a PCI card (up to 25cm long), add a flexible PCI Riser cable to your shopping basket.
Mounting the C1-RACK: Due to the short length of the C1-RACK, you can mount directly using just the front ears. For added stability in a 600mm deep rack, use the fixed rear mounting brackets. For flexibility in a 600mm to 800mm deep rack, use the 20in sliding rails.
Recommended Motherboards: Jetway JNC91, JNC92 Atom Motherboards; Intel D945GLF2, Zotac 9300 with 1U heatsink; EPIA CN, EN, EK Mini-ITX Motherboards (add correct backplate to basket using links on the left)
Motherboards that will fit (but no backplate provided*): Wide range of Mini-ITX boards including (but not exclusively) J7F2, J7F4K, J7F5M, EPIA M, SP, EX.
Incompatible motherboards: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. EPIA MII, Zotac ION with fan fitted; Socket motherboards with standard heatsinks.
*No backplate provided. Backplates can be manufactured for any motherboard (10 unit minimum, 3 week lead time).
Full case comparison, size and board compatibility chart
|
Fixed Rear Mounting Bracket for C1-RACK 1U Chassis (For 600mm Racks)  | | Fixed Rear Mounting Bracket for C1-RACK |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
8in long rear brackets for the C1-RACK fixes the case solidly in position in a 600mm deep rack. Not suitable for other lengths of rack.
Designed for the C1-RACK, but may work with other 1U rack servers due to their simple design.
|
20in Sliding Rails for C1-RACK 1U Chassis (For 600-800mm Racks)  | | 20in Sliding Rails for C1-RACK |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
20in sliding rails for the C1-RACK designed for 600mm to 800mm deep racks.
Solid Bearings. Designed for the C1-RACK.
|
Travla C146 1U Rackmount Mini-ITX Case  | | Travla C146 1U Dual PCI Mini-ITX Case & CD Slot |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for C146 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for C146 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| IDE Compact Flash Adapter for C146 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| SATA Compact Flash Adapter for C146 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Suitable for all EPIA motherboards apart from the EPIA MII - Universal 110-240V operation.
This Mini-ITX compatible 1U case is constructed from lightweight Aluminium alloy and heavy duty cold-rolled steel, finished in black textured paint. There are 4 x 3.5" internal hard drive bays, one slimline optical drive bay (adapter required for an optical drive), and one front mounted DB9 serial port, two USB 2.0 ports, a power switch and power/HDD LEDs on the front panel.
A bootable compact flash adapter can be mounted on the front panel of the C146.
The enclosure measures 19" x 1.75 " x 15" (482.6 x 44.45 x 381mm WxHxD), and is powered by a Universal internal 180W PSU and cooled by a 75mm 6.5CFM blower fan. You can also fit 2 x 2.5" laptop sized hard drives into each of the 3.5" drive bays. The C146 comes with a dual PCI riser card, allowing 2 x 7" PCI cards (one PCI card may be up to 13" with careful drive bay juggling). VIA chipset boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card. An optional compact reader is available, which is accessed through the front panel.
Supported boards*: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with 1U heatsinks.
InSupported boards: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. EPIA MII, Zotac ION with fan fitted; Socket motherboards with standard heatsinks. Universal I/O shields included as standard (from 1st Jan 2009).
*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports.
Full case comparison, size and board compatibility chart
|
Travla C147 1U Rackmount
Dual Mini-ITX Case  | | Travla C147 1U Dual Mini-ITX Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for C147 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for C147 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| IDE Compact Flash Adapter for C147 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| SATA Compact Flash Adapter for C147 Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Suitable for all EPIA motherboards apart from the EPIA MII - Universal Twin PSU 110-240V operation.
This Mini-ITX compatible 1U case is constructed from lightweight Aluminium alloy and heavy duty cold-rolled steel, with an anodised finish. You can fit two Mini-ITX motherboards inside this case! There are 2 x 3.5" internal hard drive bays, and two front mounted DB9 serial ports, four USB 2.0 ports, two power switches and power/HDD LEDs on the front panel.
Two bootable compact flash adapters can be mounted on the front panel of the C146.
The enclosure measures 19" x 1.75 " x 15" (482.6 x 44.45 x 381mm WxHxD), and is powered by Two Universal internal 180W PSUs. You can fit 2 x 2.5" laptop sized hard drives into each 3.5" drive bay. There is no room inside for PCI cards. An optional compact reader is available, which is accessed through the front panel - one for each motherboard.
Supported boards*: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with 1U heatsinks.
Universal I/O shields included as standard (from 1st Jan 2009).
*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports.
Full case comparison, size and board compatibility chart
|
20 inch sliding rails for Travla C14x cases  | | Travla CT20B Sliding Rail |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Suitable for Travla C146, C147 or TE1160 1U Rackmount Cases.
These sliding rails extend up to 20 inches from a rack. 1 set is two pieces.
|
Travla C159 80W 1U Short Depth Rackmount Mini-ITX Case  | | | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for C159-80W Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for C159-80W Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| IDE Compact Flash Adapter for C159* |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| SATA Compact Flash Adapter for C159* |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Short Depth 19in Rackmount 1U Mini-ITX enclosure constructed from high quality lightweight Aluminium with an anodized front bezel.
Front Panel (under flap): 2x USB 2.0, 2x 3.5mm Audio Sockets; DB9 Serial Port; Power Switch; HDD & Power LEDs.

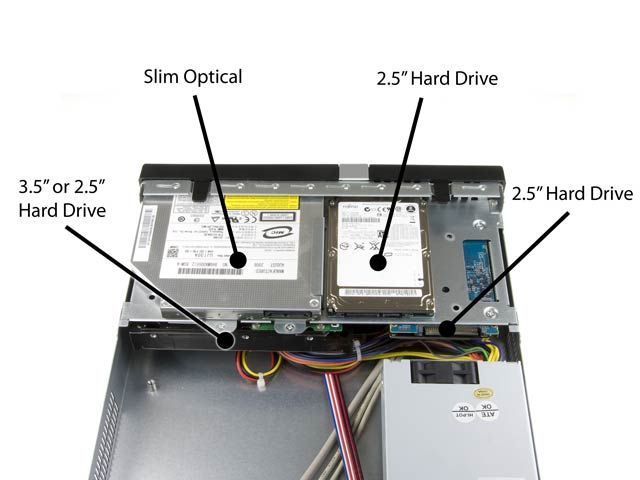

Drive Bays: 1x 3.5in Hard Drive Bay; 1x Slimline Optical Drive or Compact Flash Drive Bay (adapter required); If no PCI card or just 1x PCI card is used, then 1x 2.5in Hard Drive bay is also available.
Measurements: 44.45(H) x 482.6(W) x 254(D) (1.75 x 19 x 10in)
Volume: 5.45 litres.

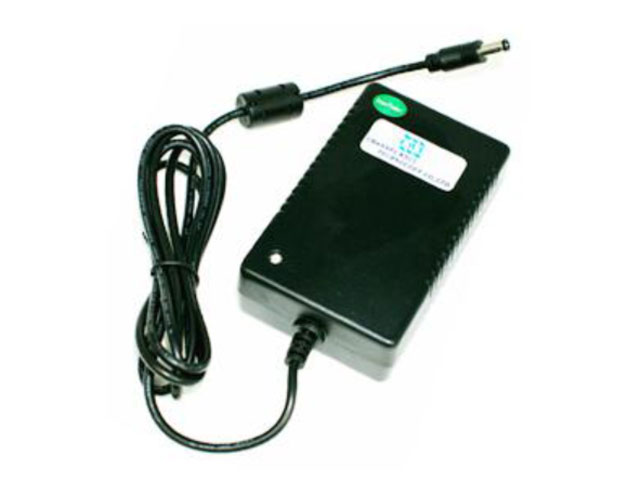

Power Supply: External 80W 12V AC Adapter and Internal 80W DC Converter.
Cooling: 2x 40x20mm 6.28CFM blower fans are included. The internal DC converer and external AC Adapter are silent.
Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards. Universal I/O shield now included as standard.
Boards not supported: Boards with extended height heatsinks including: Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; All Socket Mini-ITX boards (draw too much power).
*PCI Card and 2.in HDD Support: The C159 is provided with a dual PCI riser. VIA chipset boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card. With 0x or 1x PCI card fitted, a 2.5in HDD can be fitted in addition to the 3.5in HDD.
*Slimline Optical or Compact Flash Support: An IDE or SATA Compact Flash Adapter can be fitted in the Slimline Optical Bay, with front access. Tip: remove the metal backplate before fitting. To fit a Slimline Optical Drive you will require an Adapter or cable, depending on which slimline optical drive you choose.
*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports. Not all boards have serial port headers (check board notes)
Larger picture of case
C159-DC Manual
Full case comparison, size and board compatibility chart
|
Travla C159 ATX 1U Short Depth Rackmount Mini-ITX Case | | Travla C159 1U Case 250W ATX |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| Euro Power Cord for C159-ATX Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| US Power Cord for C159-ATX Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| IDE Compact Flash Adapter for C159* |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| SATA Compact Flash Adapter for C159* |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Short Depth 19in Rackmount 1U Mini-ITX enclosure constructed from high quality lightweight Aluminium with an anodized front bezel.
Front Panel (under flap): 2x USB 2.0, 2x 3.5mm Audio Sockets; DB9 Serial Port; Power Switch; HDD & Power LEDs.
Drive Bays: 1x 32.5in Hard Drive Bay; Compact Flash Drive Bay (adapter required); If 2x PCI card is used the 2.5in HDD bay is not available.
Measurements: 44.45(H) x 482.6(W) x 254(D) (1.75 x 19 x 10in)
Volume: 5.45 litres.
Power Supply: Internal 250W Flex ATX PSU with fan.
Cooling: 2x 40x20mm 6.28CFM blower fans are included.
Supported boards*: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with 1U heatsinks. Universal I/O shield now included as standard.
Boards not supported: Boards with extended height heatsinks including: Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; Socket Mini-ITX boards with standard heatsinks.
*PCI Card and 2.in HDD Support: The C159 is provided with a dual PCI riser. VIA boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card. With 0x or 1x PCI card fitted, the 2.5in HDD can be fitted.
*Slimline Optical or Compact Flash Support: An IDE or SATA Compact Flash Adapter can be fitted in the Slimline Optical Bay, with front access. Tip: remove the metal backplate before fitting. To fit a Slimline Optical Drive you will require an Adapter or cable, depending on which slimline optical drive you choose.
*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports. Not all boards have serial port headers (check board notes)
Larger picture of case
C159-ATX Manual
Full case comparison, size and board compatibility chart
|
Vehicle cases
VoomPC Vehicle PC Enclosure  | | VoomPC Vehicle PC Enclosure |
| | | | | Lead time approx 1-2 weeks |
|
|
| |
The VoomPC is a small, rugged Vehicle PC enclosure designed to work in harsh enviroments such as dust and high temperatures. Constructed from 5.5mm extruded aluminum, the VoomPC Vehicle PC enclosure was designed to work with any type of Mini-ITX motherboard (170x170mm) including low power Intel processors. This enclosure is specifically designed to work with the M1-ATX, M2-ATX and M2-ATX-HV intelligent vehicle PC automotive power supplies, sold separately.
The VoomPC Vehicle PC enclosure measures just 210 x 254 x56mm (WxLxH) and can take one or two 2.5" drives mounted on silicone rubber shock-mounts (2.5in to 3.5in cable or adapter required). 40mm brushless fan included, with 2 additional fan slots. Because of the small size of this enclosure, there is no PCI slot available.
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F.
More Pictures of the VoomPC
Full case comparison, size and board compatibility chart |
VoomPC 2 Vehicle PC Enclosure  | | VoomPC 2 Vehicle PC Enclosure |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
The VoomPC 2 is a small, rugged Vehicle PC enclosure designed to work in harsh enviroments such as dust and high temperatures. Constructed from 5.5mm extruded aluminum, the VoomPC 2 Vehicle PC enclosure was designed to work with any type of Mini-ITX motherboard (170x170mm) including low power Intel processors. This enclosure is specifically designed to work with the M1-ATX, M2-ATX and M2-ATX-HV intelligent vehicle PC automotive power supplies, sold separately.
The VoomPC 2 Vehicle PC enclosure measures just 210 x 265 x 66mm (WxLxH) and can take one 2.5" drive and one Slimline Optical Drive
Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. Intel D945GCLF and Zotac ION-ITX-A/D/F.
Connecting Optical Drives: You will need an Adapter or Cable to connect your optical drive, depending on the drive type and your board connectors. For instance:
(1) IDE HDD and IDE Optical. Use a 2.5in to 3.5in IDE Cable for the HDD and an IDE Cable and Slimline CD to IDE Adapter for the Optical Drive.
(2) SATA HDD and IDE Optical. Use a SATA Data/Power Cable for the 2.5in HDD and an IDE cable and Slimline CD to IDE Adapter for the Optical Drive.(3) SATA HDD and SATA Optical Use a SATA Data/Power Cable for the 2.5in HDD and Mini SATA Data/Power Cable for the Optical Drive.
2 x 40mm brushless fans are included on the reverse of the front panel. A port module mounts in the front of the case, providing 2x USB and L/R Phono Audio outputs. Full connecting cables are provided. Because of the small size of this enclosure, there is no PCI slot available.
Note: The MII boards require a case fan extender cable and a slight modification to one end of the provided USB cable to fit - this takes 1 minute with a cutting blade and some care. More Pictures of the VoomPC 2
Full case comparison, size and board compatibility chart |
Travla C158-M2-ATX Mini-ITX Vehicle Case  | | Travla C158-M2-ATX Mini-ITX Case |
| | | | | | | IN STOCK (Checked 13:35 GMT) |
|
|
| |
Stylish cold rolled steel Mini-ITX enclosure with extruded aluminum alloy front panel.
Special Limited Edition of the popular C158 case fitted with a Vehicle Power Supply - perfect for vehicle projects where a PCI card is required.
Bays: 1x 3.5in Hard Drive (or a 1x 2.5in drive may be used); 1x side-mounting Slimline Optical Drive (slimline IDE Adapter required); 1x PCI (PCI riser card provided); 1x Slot to fit a compatible Bootable Compact Flash Adapter
Front Panel: Power switch; Disk & HDD LEDs; 2x USB 2.0; 3x Audio.
Power supply: Internal M2-ATX Intelligent Vehicle Power Supply (6-24V input range, up to 160W output).
Accessories: 2x L-mounting brackets and 1x PCI Riser Card included.
Measurements: 54(H) x 305(W) x 279(D) (2.1 x 12 x 11in)
Volume: 4.60 litres.
Supported boards: Atom boards; Jetway J7F2/4/5 boards; VIA EPIA boards. Notes: Wall/Floor mounting brackets are included. If using a Jetway board or EPIA LN or EN together with an optical drive, you will require Ultra Low Profile DDR2 Memory due to space restrictions.
Full case comparison chart |
Don't see what you want here? Send us an email with as much information as possible, and we'll try and get it for you.
|
Cards accepted directly:
 |
 |
 |
 |
| Additionally with PayPal: |
 |
 |
 |
|
