Updated from 6th Oct 2011 with VIA Nano E-Series processors!

Configure your own ARTiGO Barebone Pico-ITX Kit

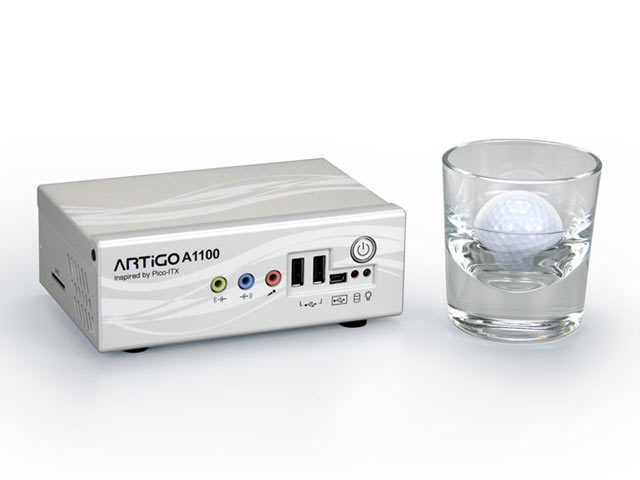

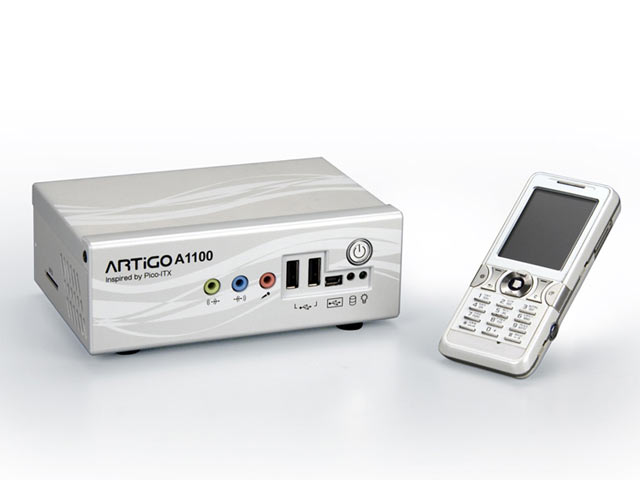

The VIA ARTiGO A1100 Barebone Pico-ITX Kit packs HD Video, HDMI and full 64-bit computing in an Ultra Compact Desktop form factor.

Motherboard specification: VIA EPIA-P820 Pico-ITX with 1.2GHz VIA Nano™ E-Series U3300 64-bit Processor - 800 MHz Front Side Bus and 1MB L2 cache memory; VIA VX855 Unified Digital Media IGP chipset with Integrated VIA Chrome9™ 3D/2D AGP graphics with MPEG-2/4, WMV9 & H.264 video decoding acceleration; VIA VT6122 Gigabit Ethernet controller.

Bays: 1x 2.5in SATA SSD or HDD drive bay (SATA Cable included); 1x 44pin IDE interface for Flash Disk On Module (DOM).

Memory: 1x 200-pin socket supports up to 2GB DDR2 533/667/800 MHz SDRAM SODIMM

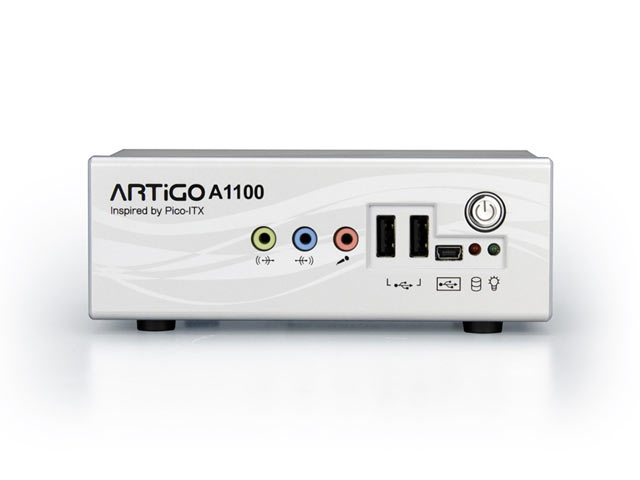

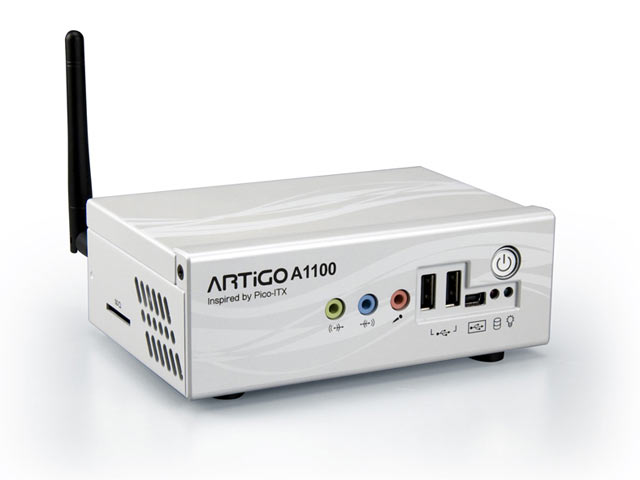

Front Panel: Power switch; Power & HDD LEDs; 2x USB 2.0; 1x Mini USB 2.0; Line-out, Line-in and Mic 3.5mm audio sockets.

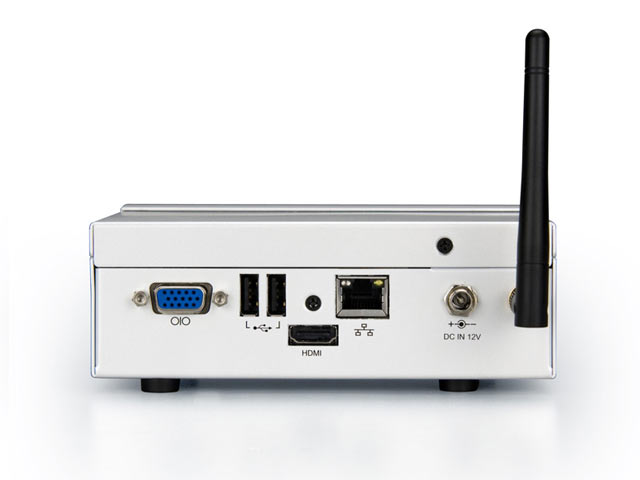

Rear Panel: VGA Output; HDMI Output; 2x USB 2.0; 1x Gigabit Ethernet; DC 12V power input socket.

Power supply: Universal 100-240V External AC Adapter connects to 12V power socket.

Supported operating systems: Windows XP and Windows 7 have so far been tested on the A1100.

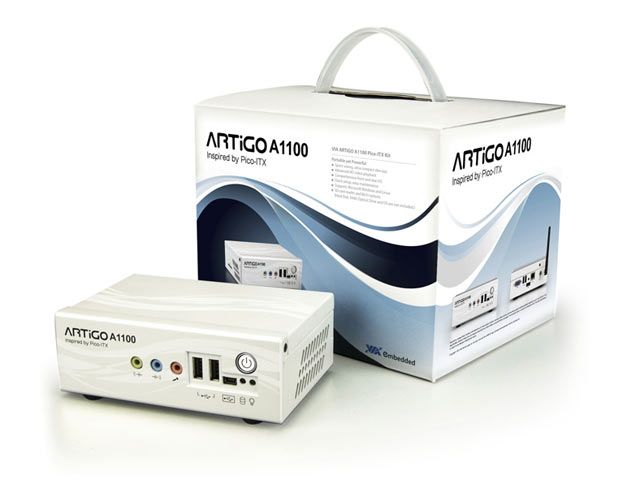

The complete VIA ARTiGO A1100 Package consists of: 1x ARTiGO A1100 (comprising SATA ribbon cable, chassis & VIA EPIA-P820 board); 1x Setup CD disk (comprising software drivers and utilities); 4x HDD screws; 1x Power cord; 1x AC Adapter; 1x Installation guide.

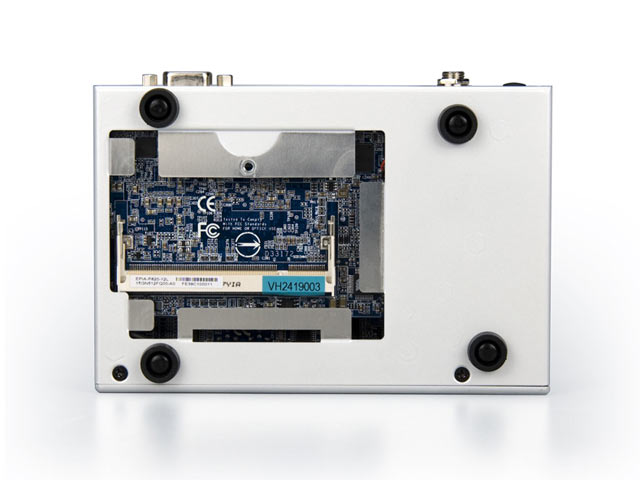

5 Minute Assembly: Unlike the A1000, the A1100 comes pre-assembled. Unscrew a plate underneath the unit to install RAM. Remove the top of the unit to install a 2.5in SATA HDD or SSD.

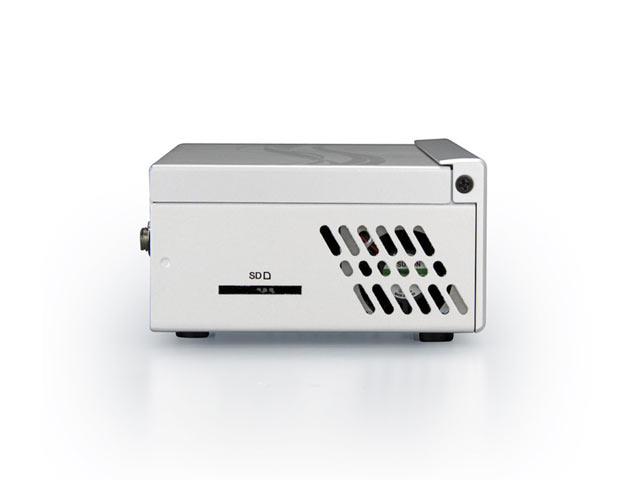

Cooling: The motherboard has a passive heatsink fitted. A quiet 25 x 10mm fan draws air through side of enclosure.

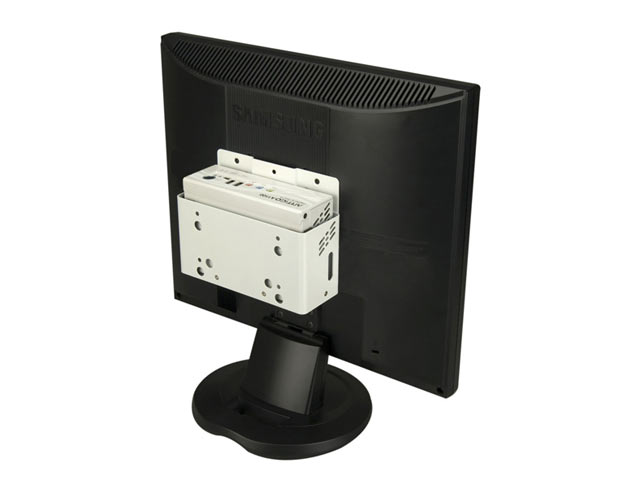

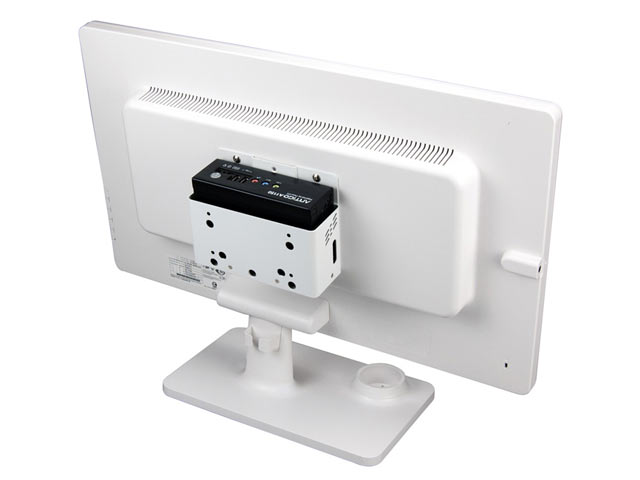

Optional items available separately: VESA Mounting Kit; SD card reader; IEEE 802.11 b/g Wireless module.

Disk On Modules: A 44pin IDE Flash Module can be fitted. This takes the position of the optional SD card reader. Remove the front panel and fan tray/bracket to gain access.

Measurements: 146 x 52 x 99 mm / 5.7 x 2.0 x 3.9in (W x H x D); Volume: 0.75 litres; Weight: 600g / 1.32lbs (without HDD).

Guides and Datasheets

• Datasheet (v110126)
• Quick Guide (v1.02)
• User Manual (v1.01)
• BIOS
• Drivers: XP/XPe
• Drivers: Win7
• Drivers: Linux

Configure your own ARTiGO Barebone Pico-ITX Kit

Due March 2012

Configure your own ARTiGO Barebone Pico-ITX Kit

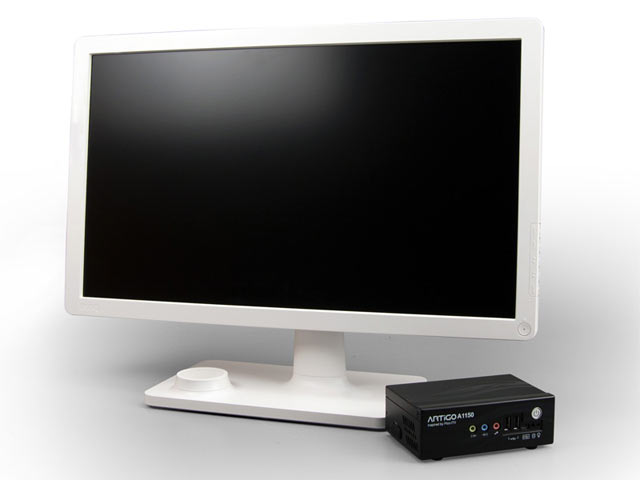

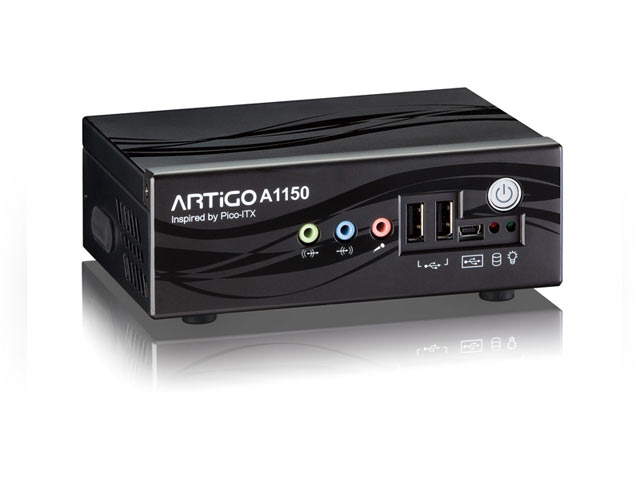

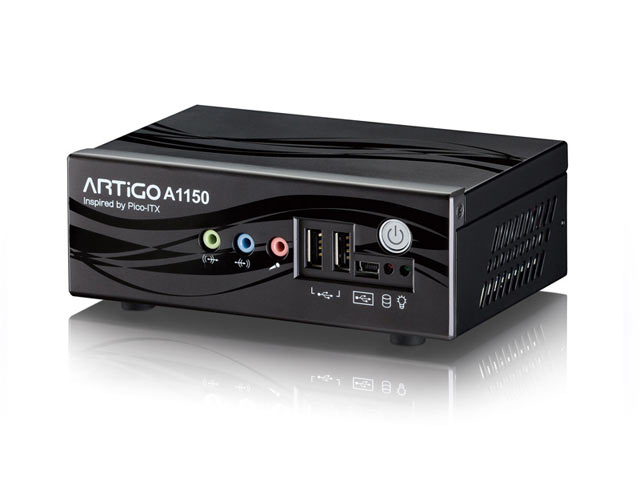

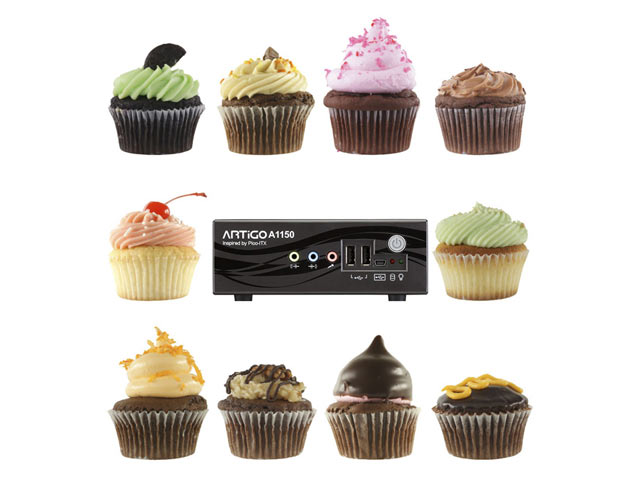

The VIA ARTiGO A1150 Barebone Pico-ITX Kit packs HD Video, HDMI and full Dual Core 64-bit computing in an Ultra Compact Desktop form factor.

Motherboard specification: VIA EPIA-P900 Pico-ITX with 1.0GHz VIA Nano™ X2 64-bit Processor - 800 MHz Front Side Bus and 2MB L2 cache memory; VIA VX900H Media System chipset with Integrated VIA Chrome9™ HD DX9 3D/2D AGP graphics with MPEG-2, WMV9/VC1 & H.264 video decoding acceleration and DirectX 9.0 programmable graphics engine; Dual independent graphics outputs supported (VGA & HDMI); VIA VT2021 High Definition Audio; VIA VT6130G Gigabit Ethernet controller.

Bays: 1x 2.5in SATA SSD or HDD drive bay (SATA Cable included).

Memory: 1x 204-pin socket supports up to 4GB DDR3 1033 MHz SDRAM SODIMM

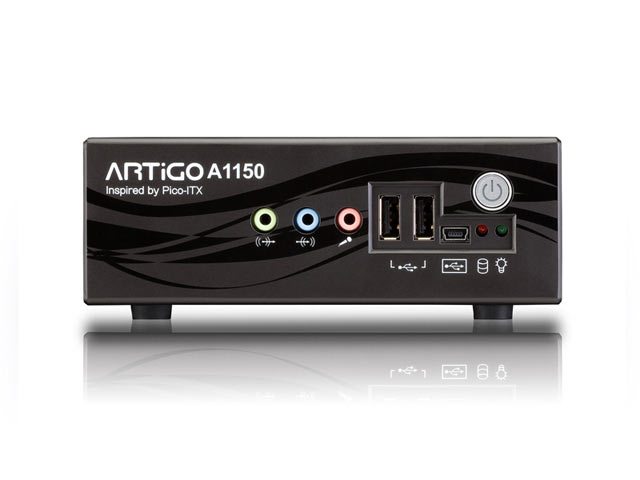

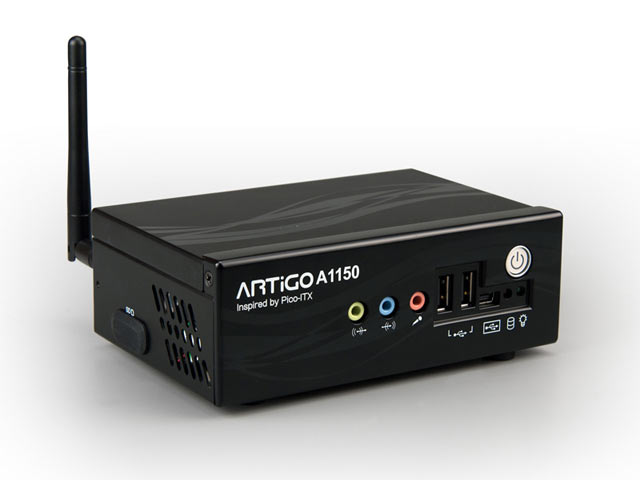

Front Panel: Power switch; Power & HDD LEDs; 2x USB 2.0; 1x Mini USB 2.0; Line-out, Line-in and Mic 3.5mm audio sockets.

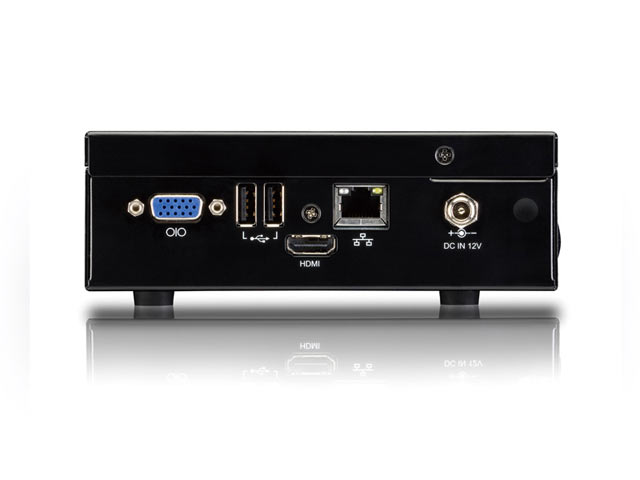

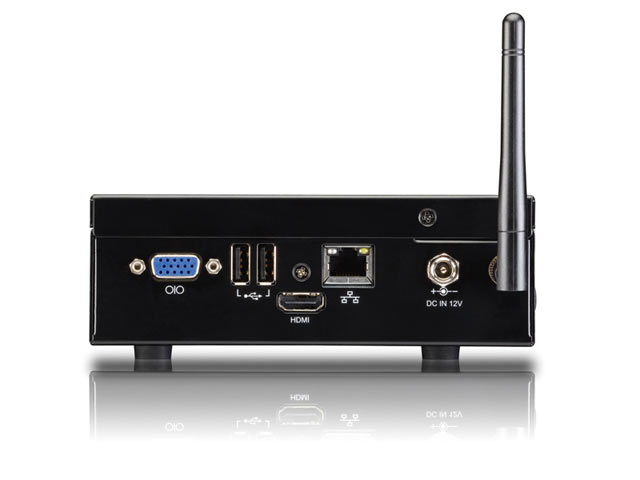

Rear Panel: VGA Output; HDMI Output; 2x USB 2.0; 1x Gigabit Ethernet; DC 12V power input socket.

Power supply: Universal 100-240V External AC Adapter connects to 12V power socket.

Supported operating systems: Windows XP and Windows 7 have so far been tested on the A1150.

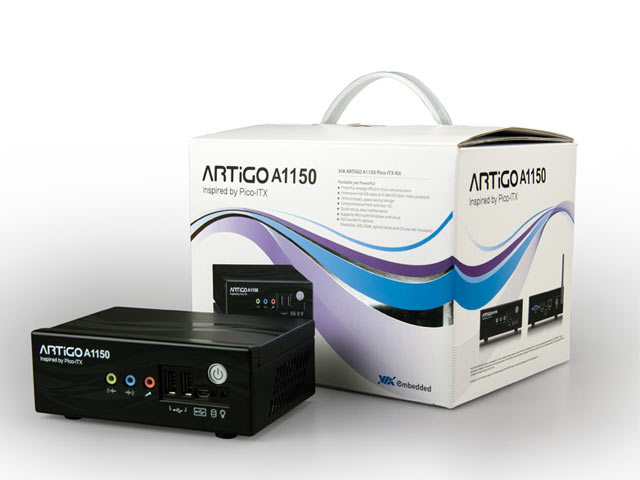

The complete VIA ARTiGO A1150 Package consists of: 1x ARTiGO A1150 (comprising SATA ribbon cable, chassis & VIA EPIA-P900 board); 1x Setup CD disk (comprising software drivers and utilities); 4x HDD screws; 1x Power cord; 1x AC Adapter; 1x Installation guide.

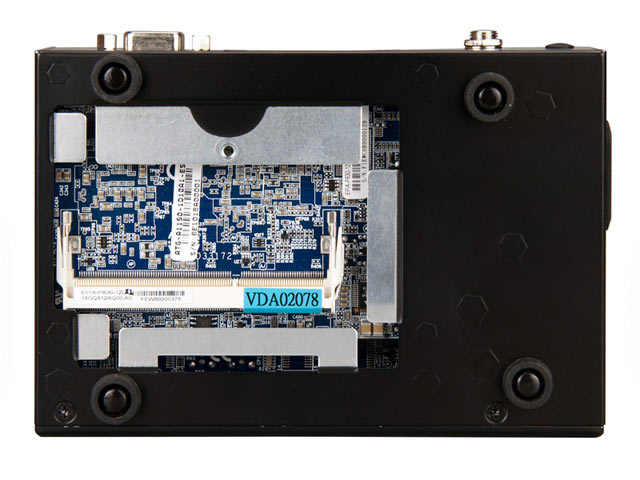

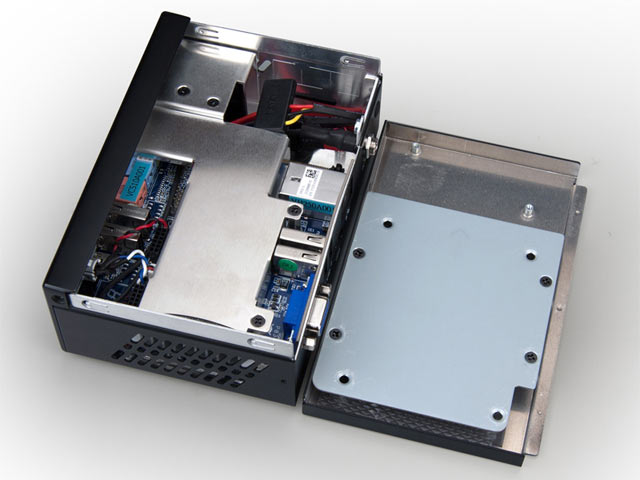

5 Minute Assembly: Unlike the A1000, the A1150 comes pre-assembled. Unscrew a plate underneath the unit to install RAM. Remove the top of the unit to install a 2.5in SATA HDD or SSD.

Cooling: The motherboard has a passive heatsink fitted. A quiet 25 x 10mm fan draws air through side of enclosure.

Optional items available separately: VESA Mounting Kit; SD card reader; IEEE 802.11 b/g Wireless module.

Measurements: 146 x 52 x 99 mm / 5.7 x 2.0 x 3.9in (W x H x D); Volume: 0.75 litres; Weight: 600g / 1.32lbs (without HDD).

Guides and Datasheets

• Datasheet (v111117)
• Quick Guide (v1.01)
• User Manual (v1)
• BIOS
• Drivers: XP/XPe
• Drivers: Windows 7
