Intel DG41MJ Mini-ITX board supporting dual and quad core socket LGA 775 processors with Intel G41 Express chipset, powerful integrated X4500 graphics and 6 channel Realtek ALC888VC audio. Up to 8GB of DDR2 667/800MHz RAM; Gigabit LAN; 3x SATA; VGA & DVI-D graphics outputs; 8x USB 2.0 (inc 4 internal).

Configure an Intel DG41MJ/DG45FC Board, Processor and RAM

Rear Panel Connectors: VGA; DVI-D with HDCP support; 4x USB 2.0; Parallel Port; Realtek RTL 8111D Gigabit LAN; 3x switchable 3.5mm audio connectors; PS/2 Keyboard Port.

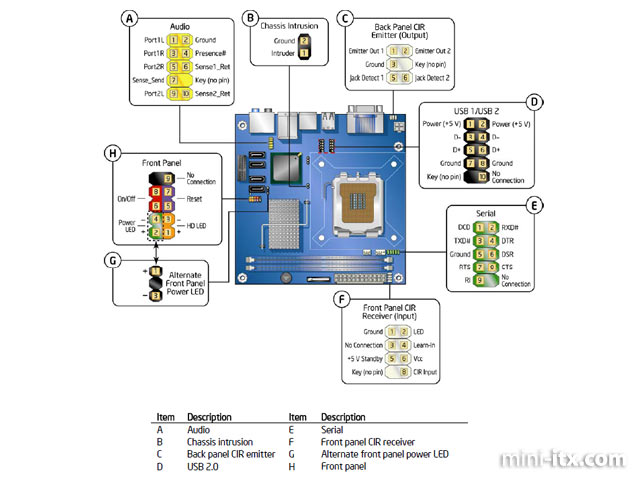

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; Serial header; 2x DDR2 667/800 DIMM sockets; 3x SATA 3GB/s; PCI Slot; 24pin ATX power connector (supports 20pin ATX); 4pin 12V power connector; Front Panel Audio; CIR in; CIR out; BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; Speaker; FPANEL; Alt power LED header.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the DG45FC requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i all work perfectly with the DG41MJ. Most standard Mini-ITX cases will not work due to power supply size.

Note: The DG41MJ uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Processor Compatibility: The DG41MJ is *not* provided with a processor. Compatible LGA 775 dual core processors currently available include: E1200, E1400, E5200, E7300, E7400, E8400, E8500, E8600. A full compatibility list is here.

DG41MJ BIOS, Manuals and Drivers

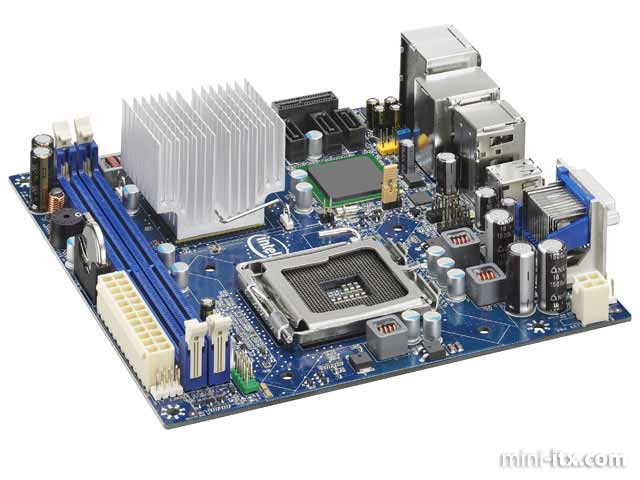

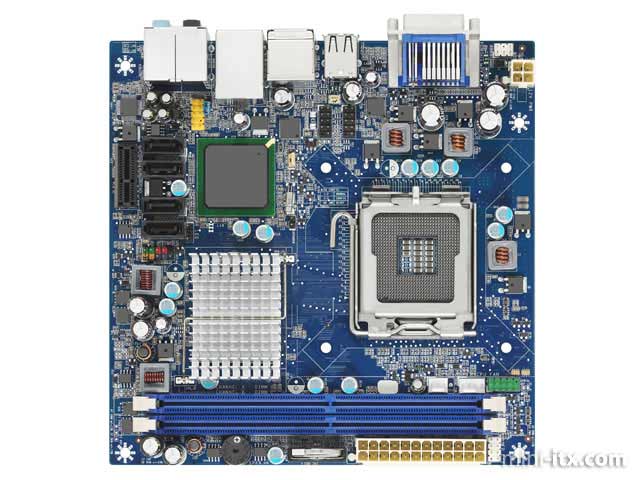

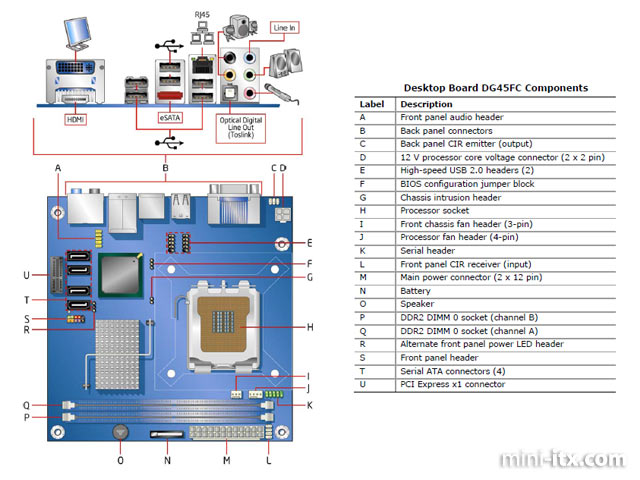

Intel DG45FC Mini-ITX board supporting dual and quad core socket LGA 775 processors with Intel G45 Express chipset, powerful integrated X4500HD graphics and 8 channel audio; Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; 4x SATA; DVI-I & HDMI graphics outputs; S/PDIF; eSATA; 10x USB 2.0 (inc 4 internal).

Configure an Intel DG51MJ/DG45FC Board, Processor and RAM

Rear Panel Connectors: DVI-I; HDMI; 6x USB 2.0; eSATA; Gigabit LAN; 5x switchable 3.5mm audio connectors; S/PDIF optical digital audio out.

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; Serial header; 2x DDR2 667/800 DIMM sockets; 4x SATA 3GB/s supporting ICH10R RAID 0,1,0+1,5; PCI Express x1; 24pin ATX power connector (supports 20pin ATX); 4pin 12V power connector; Front Panel Audio; CIR in; CIR out; BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; Speaker; FPANEL; Alt power LED header.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the DG45FC requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i/568i 220W all work perfectly with the DG45FC. Most standard Mini-ITX cases will not work due to power supply size.

Note: The DG45FC uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Processor Compatibility: The DG45FC is *not* provided with a processor. Compatible LGA 775 dual core processors currently available include: E1200, E1400, E5200, E7300, E7400, E8400, E8500, E8600. A full compatibility list is here.

DG45FC BIOS, Manuals and Drivers

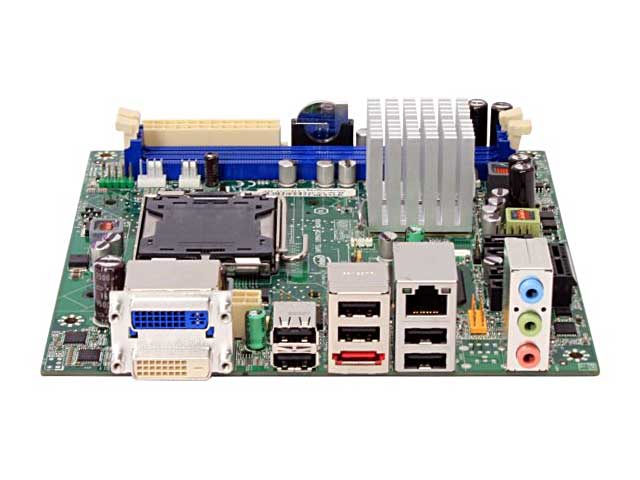

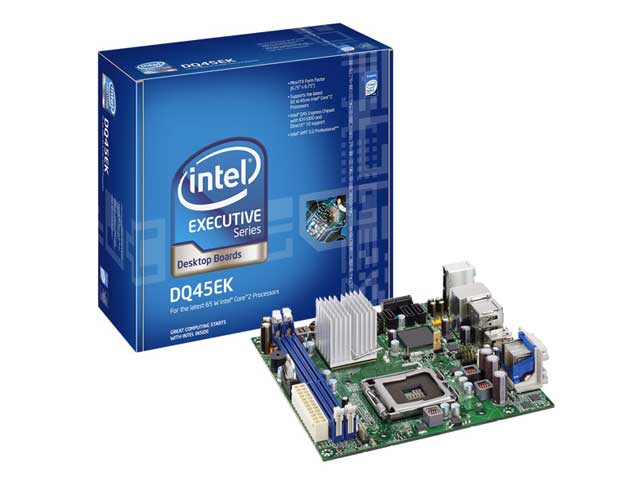

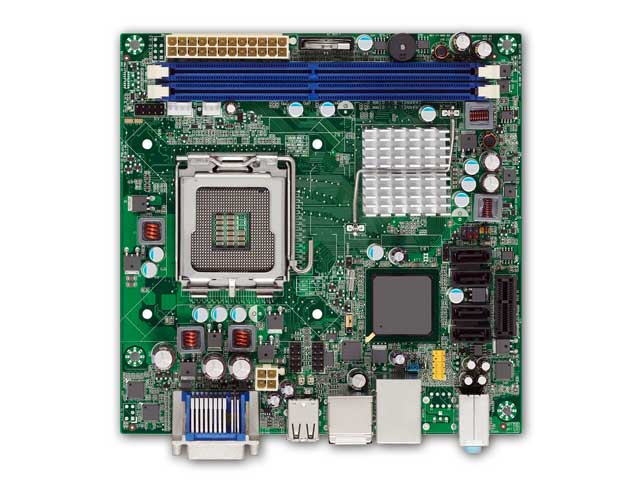

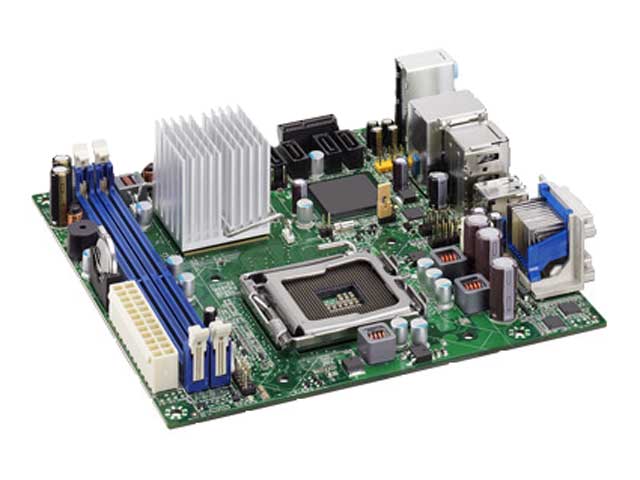

Intel DQ45EK Mini-ITX board supporting Dual and Quad core socket LGA 775 processors with Intel Q45 Express chipset, Integrated Intel 4500 graphics and ADI AD1882 audio; Intel vPRO technology; Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; 4x SATA; eSATA; DVI-I & DVI-D graphics outputs; 10x USB 2.0 (inc 4 internal).

Configure an Intel Board, Processor and RAM

Rear Panel Connectors: DVI-I; HDMI; 6x USB 2.0; eSATA; Gigabit LAN; 5x switchable 3.5mm audio connectors; S/PDIF optical digital audio out.

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; Serial port header; 2x DDR2 667/800 DIMM sockets; 4x SATA 3GB/s supporting RAID 0,1,0+1,5; PCI Express x1; 24pin ATX power connector (supports 20pin ATX); 4pin 12V power connector (must be connected); Front Panel Audio; CIR in; CIR out; BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; Speaker; FPANEL; Alt power LED header.

Remote management: The DQ45EK supports Intel Active Management Technology and Intel vPRO technology which gives users the unprecedented ability to remotely maintain, manage, and protect their business PCs.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the DQ45EK requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i/568i 220W all work perfectly with the DQ45EK. Most standard Mini-ITX cases will not work due to power supply size.

Note: The DQ45EK uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Processor Compatibility: The DQ45EK is *not* provided with a processor. The board supports the following socket 775 processors: Intel Celeron; Intel Pentiuml Intel Core 2 Duo; Up to 65W Intel Core 2 Quad. A full compatibility list is here.

DQ45EK BIOS, Manuals and Drivers

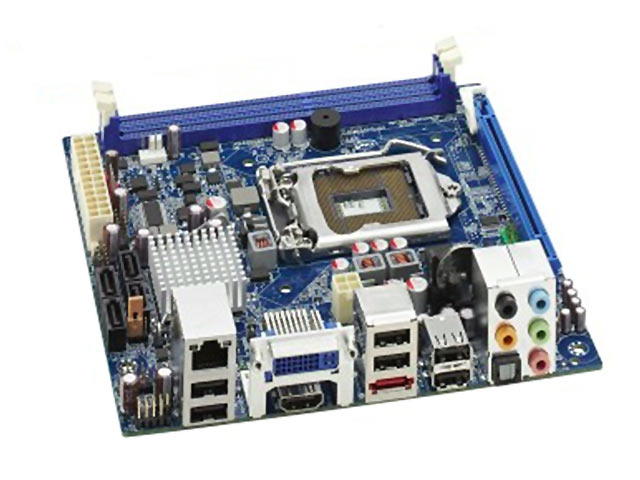

Intel DH57JG Mini-ITX board supporting Intel Core LGA 1156 processors with integrated Intel HD graphics and 10 channel Realtek ALC889 Audio (8 through HDMI); Up to 8GB of DDR3 1066/1333MHz RAM; Gigabit LAN; 4x SATA; DVI-I & HDMI graphics outputs; S/PDIF; eSATA; 12x USB 2.0 (inc 6 internal).

Configure an Intel DH57JG Board, Processor and RAM

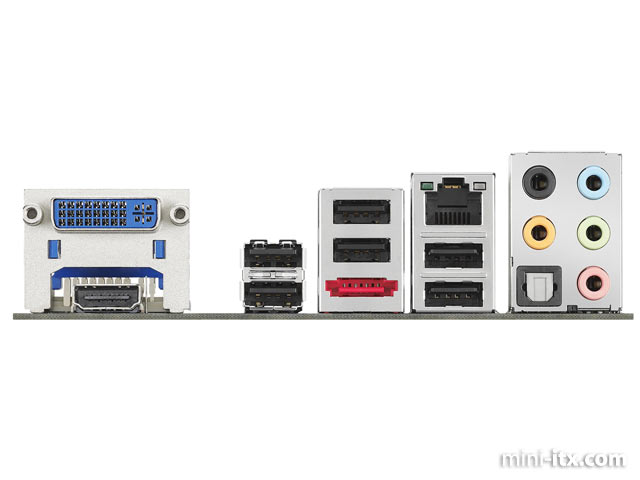

Rear Panel Connectors: DVI-I; HDMI; 6x USB 2.0; eSATA; Intel 82578DC Gigabit LAN; 5x switchable 3.5mm audio connectors; S/PDIF optical digital audio out.

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; Serial header; 2x DDR3 1066/1333MHz DIMM sockets; 4x SATA 3GB/s supporting Rapid Storage Technology for RAID 0,1,0+1,5; PCI Express x16; 24pin ATX power connector (supports 20pin ATX); 4pin 12V power connector (must be connected); Front Panel Audio; CIR in; CIR out; BIOS jumper; Chassis intrusion; LGA 1156 processor socket; Chassis Fan; CPU Fan; Speaker; FPANEL; Alt power LED header.

Suitable cases: The standard Intel LGA 1156 heatsink is considerably taller than most Mini-ITX boards and the DH57JG requires up to 100W under load (considerably more if a graphics card is used). The 150W 2 Bay ES32067 / ES34068 and 180W 4 Bay ES34069 Chenbro NAS Chassis work extremely well with the DH57JG motherboard. The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i/568i 220W all work perfectly with the DH57JG. Most other standard Mini-ITX cases will not work due to power supply size.

Note: The DH57JG uses DDR3 memory. This is not compatible with DDR memory. Fully tested DDR3 DIMMs are available here.

Processor Compatibility: The DH57JG is *not* provided with a processor. Compatible LGA 1156 dual core processors currently available include: Intel Pentium processor in an LGA1156 socket; i3-500 processor series; Intel Core i5-600 processor series. A full compatibility list is here.

DH57JG BIOS, Manuals and Drivers

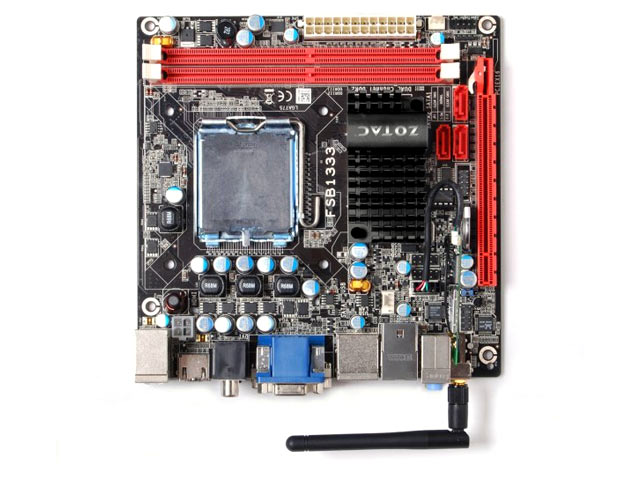

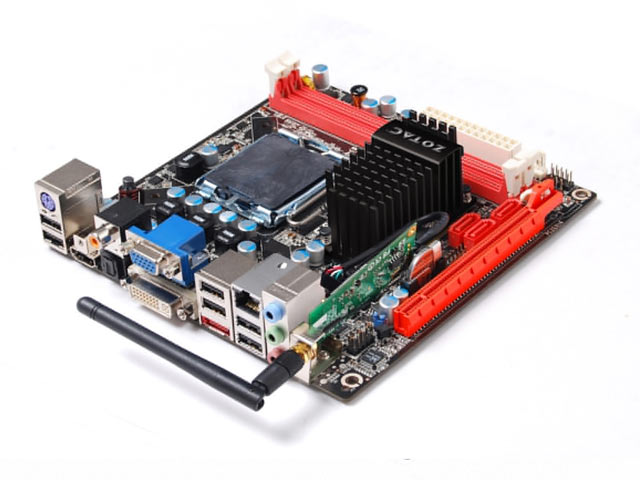

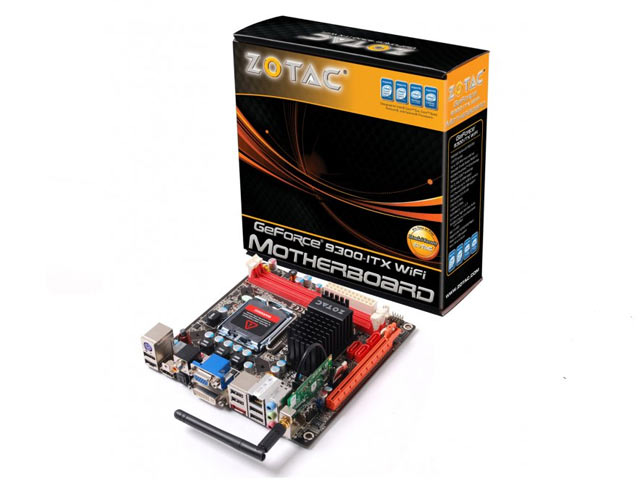

Enhanced version of Zotac GeForce 9300-ITX WiFi with 580MHz GPU clock speed supporting dual and quad core socket LGA 775 processors with nVidia MCP7A chipset, powerful integrated nVidia Geforce 9300 graphics supports PureVideo HD and CUDA H264 acceleration; RAID 0, 1, 0+1, 5; Realtek ALC662 5.1 Audio and Integrated 802.11b/g Wi-Fi. Up to 8GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, DVI-I & HDMI graphics outputs; S/PDIF; eSATA; 12x USB 2.0 (inc 6 internal); Fully Vista Compatible.

New enhanced GF9300-I-E board has the following differences from earlier PCB versions: GPU Core clock running at 580MHz (from 450MHz), shaders at 1400MHz (from 1200MHz); Black GPU heatsink; DVI is Dual-Link, not Single-Link; S/PDIF header added to board; 3x SATA instead of 2x SATA; CPU/RAM undervoltage now possible (overvoltage still possible); RAID 0+1, 5 added to RAID 0, 1; Wake On USB support added; Onboard Power LED added; Clearance under board altered to increase 3rd party CPU heatsink support.

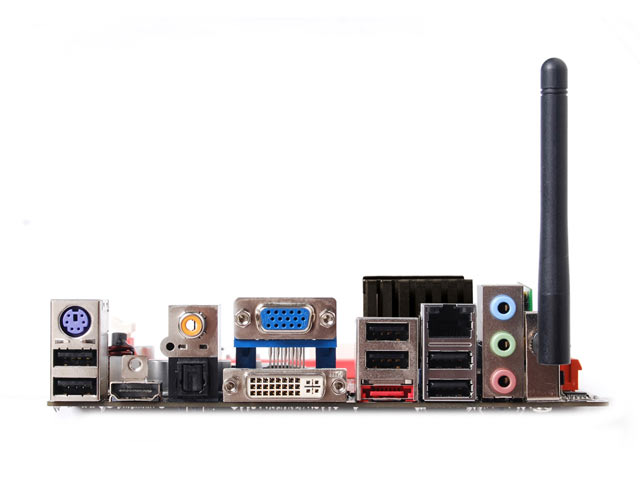

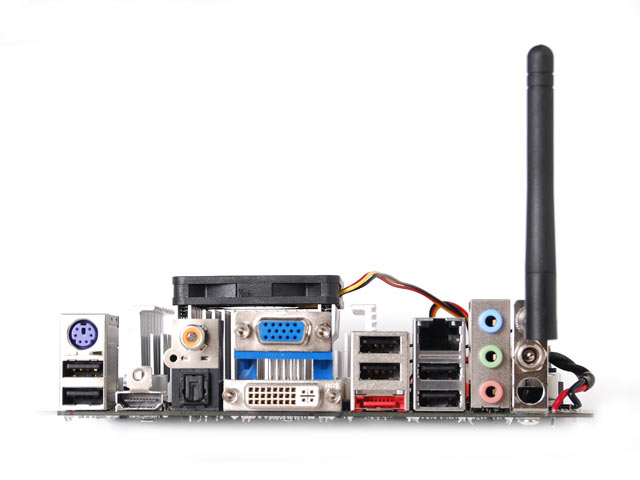

Rear Panel Connectors: PS2 Keyboard, S/PDIF optical digital audio out, S/PDIF coaxial digital audio out (not shown in some photos), VGA, DVI-I; HDMI; 6x USB 2.0; eSATA; Realtek RTL8211CL Gigabit LAN; 3x 3.5mm audio connectors, Antenna Socket for WiFi.

Board connectors: 6x USB 2.0 connectors on 3x 9pin headers; 2x DDR2 667/800 DIMM sockets; 3x SATA 3GB/s ; PCI Express 2.0 x16 (supports Hybrid SLI); S/PDIF; 24pin ATX power connector and 4pin 12V power connector (both must be connected, 24pin ATX can accept 20pin ATX power); BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; FPANEL.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the 9300-ITX requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i all work perfectly with the 9300-ITX. Most standard Mini-ITX cases will not work due to power supply size.

*Heatsinks: To use the 9300-ITX in a low profile case (e.g. M350) please use the Silverstone low profile heatsink, otherwise the standard heatsink provided with the CPU will be enough. You will require a <29mm heatsink if using a 1U chassis.

Note: The 9300-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Processor Compatibility: The 9300-ITX is *not* provided with a processor. The 9300-ITX is compatible with Intel Core 2 Duo, Core 2 Quad, Pentium and Celeron up to 1333 MHz front-side bus. Compatible processors currently available include: E1200, E1400, E5200, E7300, E7400, E8400, E8500, E8600. A full compatibility list is here.

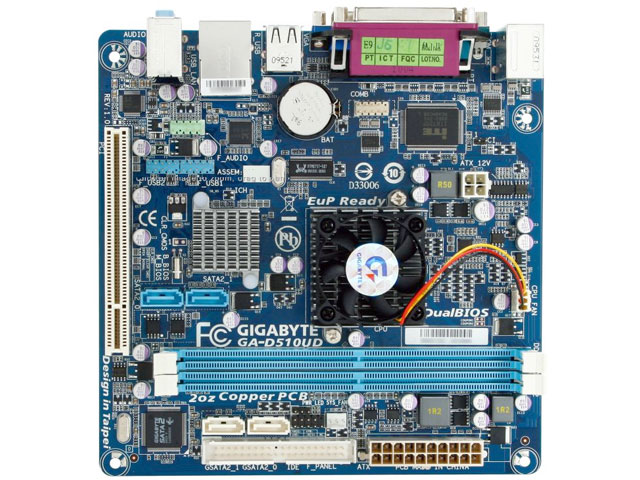

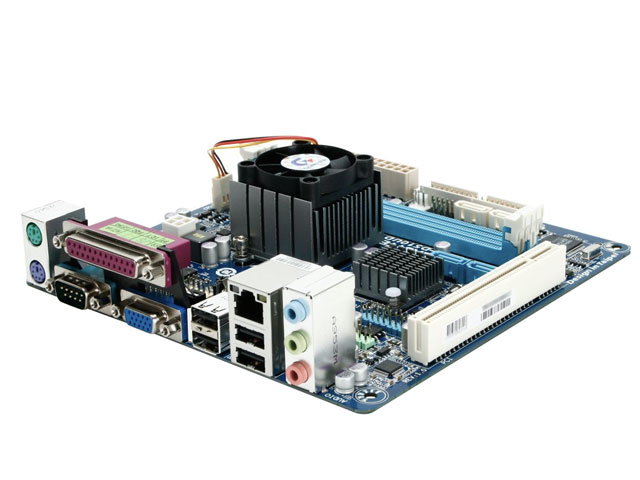

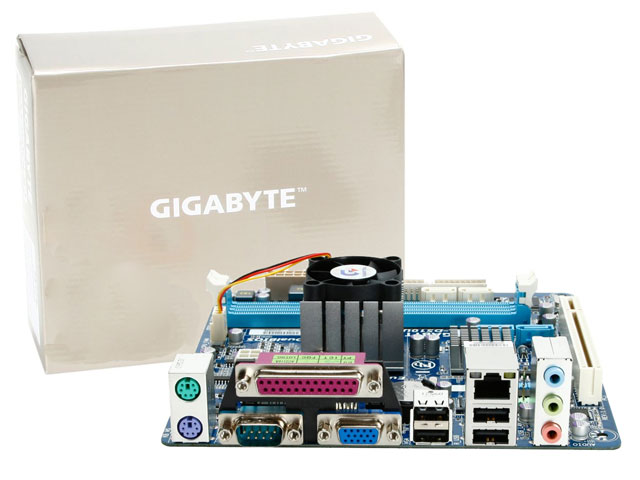

Gigabyte GA-D510UD motherboard with integrated 1.66GHz Intel Atom D510 processor with Intel GMA 3150 video. Intel NM10 Express Platform Controller Hub Chipset. 4x SATA ports. Up to 4GB of system memory. Realtek 8111D 1000Base-T Gigabit Ethernet and High Definition Realtek ALC888 Audio.

Rear Panel: PS2 mouse and keyboard, VGA, 4x USB ports, 1000 Base-T Ethernet, COM Port, Parallel Port, Line in, Line out & Mic in connectors.

Board Connectors: 4x SATA; 1x IDE; 1x PCI; 1x RS232/RS485/RS422; 1x 20pin ATX Power Connector; 1x 4pin 12V P4 Power Connector (must be connected); 1x Chassis Fan Headers; Front Panel Header; 2x Front Panel USB Headers for up to 4 additional USB 2.0 ports; Front Panel Audio header; 1x Chassis Intrusion Header; 2x DDR2 DIMM Sockets.

RAID Functionality: The GSATA2_0 and GSATA2_1 ports (coloured white) support RAID0, RAID1 and JBOD functions with configurable stripe block size.

The GA-510UD sports several features that make it extremely durable: Solid Capacitors which are less prone to failure; Ultra Durable 2oz Copper PCB; 2 Physical BIOS ROMs for instant recovery from damage.

Gigabyte GA-D510UD manufacturer's product and driver pages

Suitable cases: All Mini-ITX cases with a power supply will work. The 4x SATA and 1x IDE makes this a good choice for cases with 4x HDD bays (e.g. ES34069). The heatsink of the GA-D510UD is at the upper end of standard height meaning 1U chassis are a tight fit.

Dual Risers: Dual Riser Cards are designed to work with VIA chipset boards. The VIA branded Dual Riser Card *can* be configured to work with Atom boards. Other Dual Risers (including those in the 2755, 2799, C159 and other cases) only enable one slot

Retail Unit complete with 1x SATA cable, product manual, 1x IDE cable, IDE cable, I/O Shield, driver and software CD-ROM.

Memory: The GA-D510UD supports DDR2 667/800 memory up to 4GB (using 2 x 2GB DIMMs). This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Intel D410PT 1.66GHz Atom 'Pine Trail' motherboard with integrated Passively-cooled 45nm Intel Atom D410 processor running at 1.66GHz with integrated Intel GMA 3150 video. Intel NM10 Express Platform Controller Host (PCH) Chipset. Up to 4GB of system memory; Realtek RTL8103EL 100Base-T Gigabit Ethernet; Realtek ALC662 High Definition Audio.

Retail Unit complete with SATA cable, layout and back-panel stickers, product quide and Intel Express Installer driver and software DVD.

Rear Panel: PS2 mouse and keyboard, VGA with maximum resolution of 2048 x 1536 at 75 Hz (QXGA), 4 x USB ports, 100 Base-T Ethernet, Line in, Line out & Mic in connectors.

Board Connectors: 2 x SATA, 1 x PCI, 2 x Serial Port, Chassis Fan Header, Front Panel Header, 2 x Front Panel USB Header, Front Panel Audio header. 2 x DDR2 DIMM Socket; 24pin ATX Power Connector (supports both 20pin and 24pin ATX Power).

Suitable cases: The D410PT has a standard sized heatsink - all Mini-ITX cases with a power supply will work. The board does not have an IDE port, so IDE devices in cases will not work (e.g. CF reader on M200, M200-LCD, M300, M300-LCD). Dual Risers: Dual Riser Cards are designed to work with VIA chipset boards. The VIA branded Dual Riser Card *can* be configured to work with Atom boards. Other Dual Risers (including those in the 2755, 2799, C159 and other cases) only enable one slot.

Intel D410PT product and driver pages

Note: The D410PT supports DDR2 667/800 memory up to 4GB (using 2 x 2GB DIMMs). This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

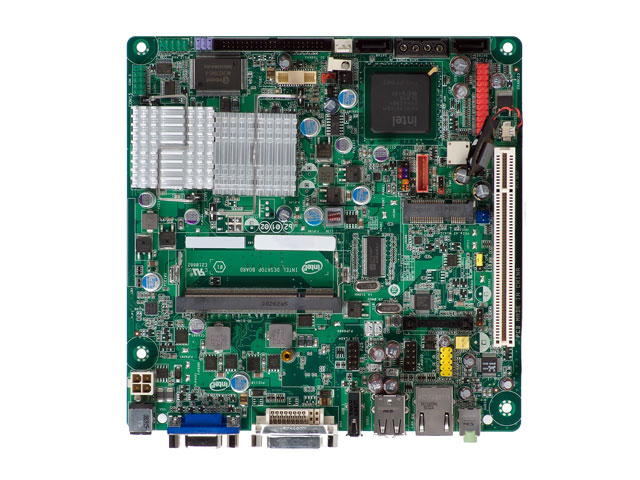

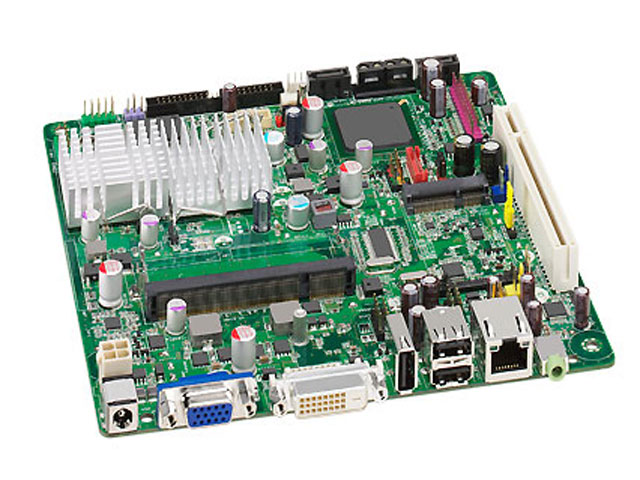

Intel D510MO Atom 'Pine Trail' motherboard with integrated Passively-cooled 45nm Dual Core Intel Atom D510 processor running at 1.66GHz with integrated Intel GMA 3150 video. Intel NM10 Express Platform Controller Host (PCH) Chipset. Up to 4GB of system memory; Realtek 8111DL 1000Base-T Gigabit Ethernet; Realtek ALC662 High Definition Audio; Mini PCI Express.

Retail Unit complete with SATA cable, layout and back-panel stickers, product quide and Intel Express Installer driver and software DVD.

Rear Panel: PS2 mouse and keyboard, VGA with maximum resolution of 2048 x 1536 at 75 Hz (QXGA), 4 x USB ports, 1000 Base-T Ethernet, Line in, Line out & Mic in connectors.

Board Connectors: 2 x SATA, 1 x PCI Express Mini Card, 1 x PCI, 2 x Serial Port, 1 x Parallel port, Chassis Fan Header, Front Panel Header, 2 x Front Panel USB Header, Front Panel Audio header. 2 x DDR2 DIMM Socket, 1 x S/PDIF header; 24pin ATX Power Connector (supports both 20pin and 24pin ATX Power).

Suitable cases: The D510MO has a standard sized heatsink - all Mini-ITX cases with a power supply will work. The board does not have an IDE port, so IDE devices in cases will not work (e.g. CF reader on M200, M200-LCD, M300, M300-LCD).

Dual Risers: Dual Riser Cards are designed to work with VIA chipset boards. The VIA branded Dual Riser Card *can* be configured to work with Atom boards. Other Dual Risers (including those in the 2755, 2799, C159 and other cases) only enable one slot

Intel D510MO product and driver pages

Note: The D510MO supports DDR2 667/800 memory up to 4GB (using 2 x 2GB DIMMs). This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Intel D945GSEJT Atom motherboard with integrated Passively-cooled 45nm Intel Atom N270 processor processor with integrated Intel GMA950 video. Very low power consumption Intel Mobile 945GSE Chipset. Up to 2GB of system memory; Realtek 8111D 1000Base-T Gigabit Ethernet and 82801GBM High Definition Audio. Realtek ALC662 audio codec.

Boxed OEM Unit complete with Product diagrams, 2x SATA data cable, DC Power cable with 1x Molex and 1x SATA Power, I/O Shield, driver and software DVD.

AC Adapters: A 12V AC Adapter is *not* included - these can be found in 60W, 80W and 110W sizes here.

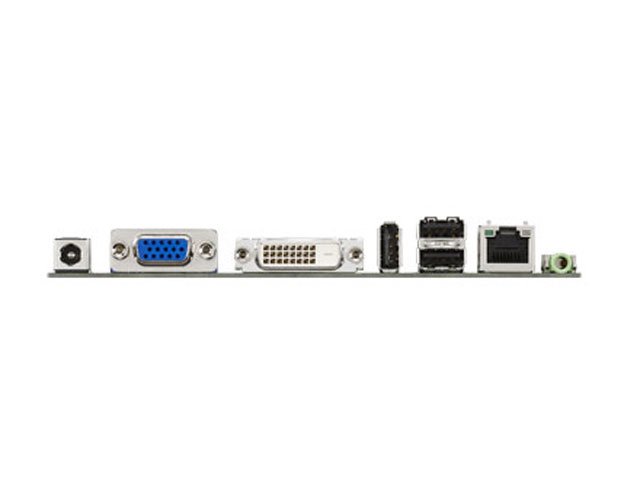

Rear Panel Connectors: VGA, DVI-D, 3 x USB 2.0, Gigabit LAN, 3.5mm Stereo Audio Line-Out.

Internal Connectors: 2x SATA, 1x 44-pin IDE PATA Connector, 1x PCI Express Mini Card, 1x PCI, 2 x Serial Port, 1x Parallel port, Chassis Fan Header, Front Panel Header, 2x Front Panel USB Header, Front Panel Audio header, S/PDIF Header, 1x DDR2 533/667 SODIMM Socket, S/PDIF header, Molex Power Connector, Chassis Intrusion Header, Wireless Activity LED Header.

Powering devices: A cable with Female Molex to 1x Molex and 1x SATA power connectors is provided, suitable for powering a single 2.5in or 3.5in SATA HDD/SSD. Other devices (including additional SATA drives, PATA/SATA slimline optical drives and CF cards) will require additional cables. Please use the cables linked on the left, or email before ordering. Don't forget you can install most Operating Systems from a USB key very easily!

Recommended case: The M350 enclosure works extremely well with the D945GSEJT.

Suitable cases (with PSU): Many cases support the D945GSEJT if the case PSU is bypassed and the D945GSEJT is powered with an AC Adapter. For instance: Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i, NAS Chassis

Partially compatible cases (without PSU): The M200, M300, M200-LCD, M300-LCD can all be used, but have 40pin IDE CF Adapters which is not compatible with the 44pin IDE connector on the D945GSEJT.

Memory: The Intel D945GSEJT uses DDR2 SODIMM memory. We have found the D945GSEJT to be particularly picky with the memory it supports. Fully tested DDR2 667 SODIMMs are available here.

Intel D945GSEJT product page and drivers

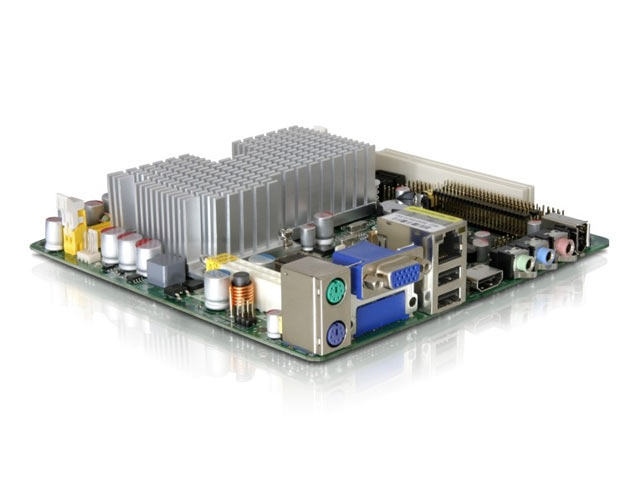

Jetway JNC92 Mini-ITX board with brand new low power consumption 45nm Dual Core Intel Atom 330 processor running at included. Intel 82945G (ICH7) chipset and GMA 950 graphics. Up to 2GB of DDR2 533/667MHz RAM supported; Realtek High Definition Audio; Supports Jetway daughterboard modules.

This board is similar to the JNC91 with several important differences making the board highly versatile: The JNC92-330 has a dual core CPU, it is expandable, supporting standard Jetway daughterboard modules (e.g 3x Gigabit LAN or Mini-PCI); The built-in LAN port is Gigabit Ethernet; The Parallel port is header only.

Rear Panel Connectors: PS2 Mouse & Keyboard; Serial; VGA; 4x USB 2.0; 1x RTL8111C Gigabit LAN; 3x 3.5mm Audio (Line-out, Line-in and Mic-in).

Board connectors: 1x IDE 66/100/133; 2x SATA; 1x Floppy; 20 pin ATX power; 1x DDR2 DIMM socket; 2x additional USB 2.0 connectors on one 9 pin header; 2x Serial Port Headers; 1x Parallel Port Header; 1x PCI slot.

Case compatibility. Suitable cases: Most Mini-ITX cases including Jou Jye 528i, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with any picoPSU), C1-RACK, Travla C146,147,159 (with universal backplate), Thin Client, Travla C158 (CD supported), Travla C137 (CD supported), Compact Wall Mount Case (with HDD). Other cases supporting standard height heatsinks.

Dual Risers: Dual Riser Cards are designed to work with VIA chipset boards. The VIA branded Dual Riser Card *can* be configured to work with Atom boards. Other Dual Risers (including those in the 2755, 2799, C159 and other cases) only enable one slot, though they *may* be configurable in future.

Note: The JNC92 supports DDR2 memory up to 2GB. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Jetway JNC96-510 Atom motherboard with 12V DC Input. Integrated fan-cooled 45nm Intel Atom D510 processor with integrated Intel GMA 3150 Video. Intel NM10 Express Platform Controller Host (PCH) Chipset. Up to 4GB of DDR2 system memory; Realtek 8111DL 1000Base-T Gigabit Ethernet and High Definition Audio. Realtek ALC662 audio subsystem.

Box contents include motherboard, 2x SATA cables, Product Manual, Molex to 2x SATA power cable, IDE cable, I/O Shield, Driver and Software DVD. 12V AC Adapter not included - these can be found here.

Rear Panel Connectors: PS2 mouse and keyboard, VGA, 4 x USB ports, 1000 Base-T Ethernet, RS-232, 12 Volts DC in, Parallel Port, Line in, Line out & Mic in connectors.

Board Connectors: 4x SATA, 1x IDE, 1x Mini PCI Express, 1x PCI, 1x RS232/RS485/RS422, 2x Chassis Fan Headers, Front Panel Header, 3x Front Panel USB Header, Front Panel Audio header. 2x DDR2 DIMM Socket, 1x LVDS header, 1x Inverter header, 1x GPIO.

Important! This board has a DC Power input and is not designed for use with a standard ATX PSU: The Jetway JNC96-510 is requires a 12V AC Adapter to power the board directly and feeds power to up to 2 other SATA devices through an on-board male Molex connector. We sell several enclosures without power supplies, or you can bypass the PSU on any other compatible Mini-ITX case. 80W is enough to power 2x HDDs or Slimline Optical Drives*, but we *do not* recommend powering a full size optical drive.

Powering devices: A cable with female Molex to 2x SATA power connectors is provided, suitable for powering up to 2x SATA 2.5in or 3.5in HDD/SSD. Other devices (including PATA/SATA slimline optical drives and CF cards) will require additional cables. Please use the cables linked on the left, or email before ordering. Don't forget you can install Vista from a USB key very easily!

Suitable cases (without PSU): The following enclosures come without an internal PSU and are fully compatible with the JNC96-510: M350 (highly recommended), Nexus Psile.

Partially compatible cases (without PSU): M200, M300, M200-LCD, M300-LCD include IDE CF Adapters which cannot be used - this board only has SATA ports.

Suitable cases (with PSU): The following enclosures have a PSU which can be bypassed and are compatible with the JNC96-510: , Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i, NAS Chassis (up to 2 drives)

Unsuitable/untested cases: Some cases are currently untested though they are likely to work if the PSU is bypassed, including Travla C158, Thin Client, Compact Wall Mount and all Cubid cases.

Note: The JNC96 supports 4GB DDR2 memory up to 2GB per DIMM. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

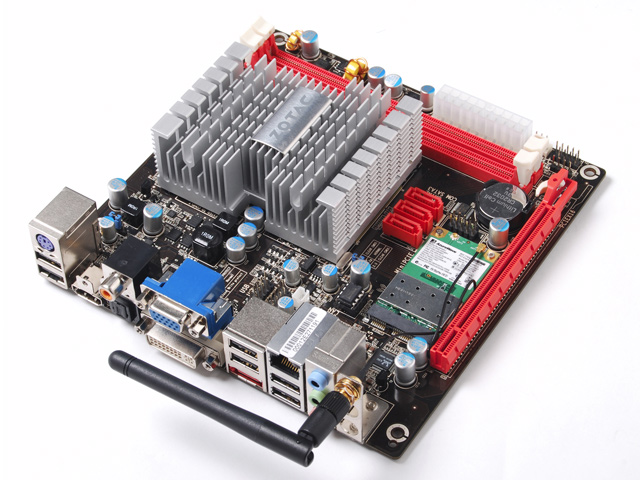

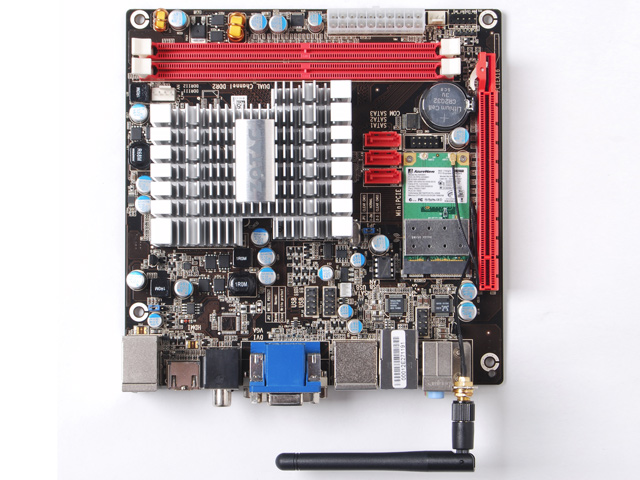

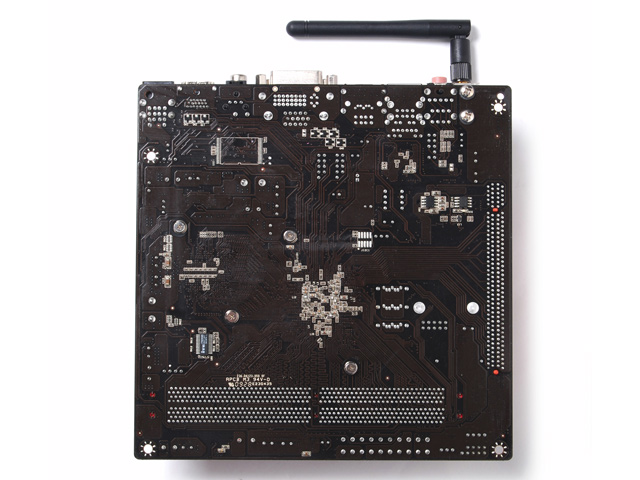

Dual core 1.6GHz Atom N330 processor and powerful but low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated 5.1 Audio and 802.11/n Wi-Fi. Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, DVI & HDMI graphics outputs; S/PDIF (optical and coaxial); 3x SATA 3Gbps, eSATA; 10x USB 2.0 (inc 4 internal); Fully Vista and Windows 7 Compatible. Approx 25W power consumption.

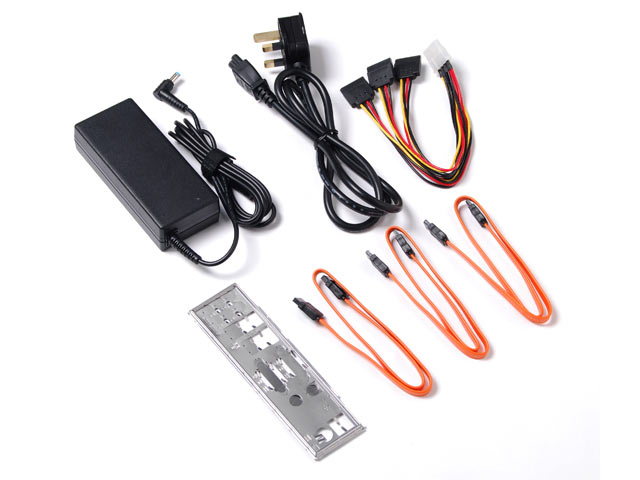

Available as part of our Zotac ION-ITX-A Wi-Fi / M350 Case / RAM Offer Bundle

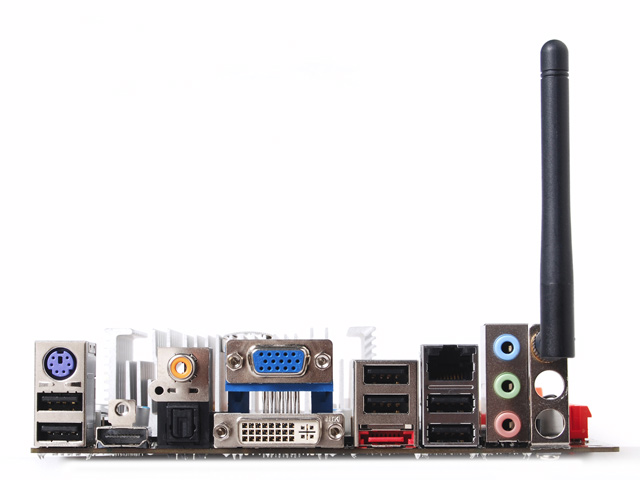

Rear Panel Connectors: PS2 Keyboard, 6x USB 2.0; HDMI, S/PDIF digital audio out (both optical and coaxial), VGA, DVI; eSATA; Gigabit LAN; 3x 3.5mm audio connectors, Antenna Socket for Wi-Fi, 19V DC Power Input.

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; Mini PCI Express x1 (used by Wi-Fi card); 3x SATA 3Gbps (RAID 0, 1, 0+1 and NVidia MediaShield support); Serial header; Male Molex power connector (3x SATA HDD cable provided); BIOS jumper; CPU Fan; FPANEL.

Important! This board has a DC Power input and is not designed for use with a standard ATX PSU: The ION-ITX-A is provided with a 90W AC Adapter which powers the board directly and feeds power to up to 3 other devices through an on-board male Molex connector. We sell several enclosures without power supplies, or you can bypass the PSU on any other compatible Mini-ITX case. 90W is enough to power 3x HDDs or Slimline Optical Drives*, but we *do not* recommend powering a full size optical drive.

Powering devices: A cable with female Molex to 3x SATA power connectors is provided, suitable for powering up to 3x SATA 2.5in or 3.5in HDD/SSD. Other devices (including PATA/SATA slimline optical drives and CF cards) will require additional cables. Please use the cables linked on the left, or email before ordering. Don't forget you can install most Operating Systems from a USB key very easily!

Suitable cases (without PSU): The following enclosures come without an internal PSU and are fully compatible with the ION-ITX-A: M350 (highly recommended - currently available in a bundle), VoomPC, VoomPC 2. Note: VoomPCs are not provided with a power switch.

Partially compatible cases (without PSU): M200, M300, M200-LCD, M300-LCD include IDE CF Adapters which cannot be used - these boards only have SATA ports.

Suitable cases (with PSU): The following enclosures have a PSU which can be bypassed and are compatible with the ION-ITX-A: Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i, NAS Chassis

Unsuitable/untested cases: Lower profile cases cannot accommodate the slightly larger heatsink of the ION-ITX-A, e.g. 1U Rackmount and Low Profile Media Case. Many cases are currently untested and may not work, including Travla C158, Thin Client, Compact Wall Mount and all Cubid cases. Please wait for us to update this section or email if you are unsure.

Notes: ION-ITX-A Rev 2 now supports wake-on-USB (from 28th July 2009). The ION-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

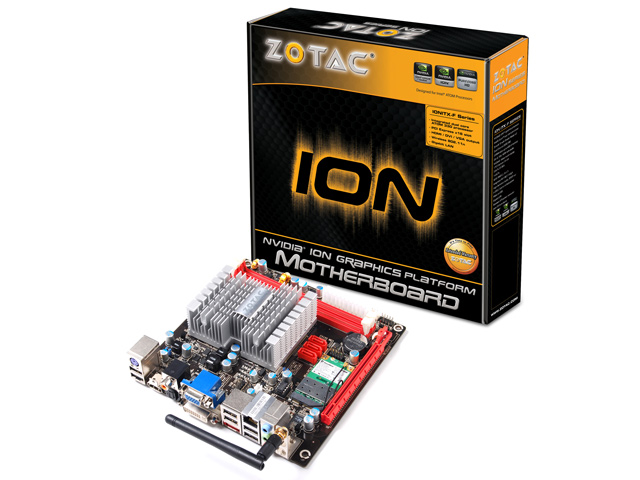

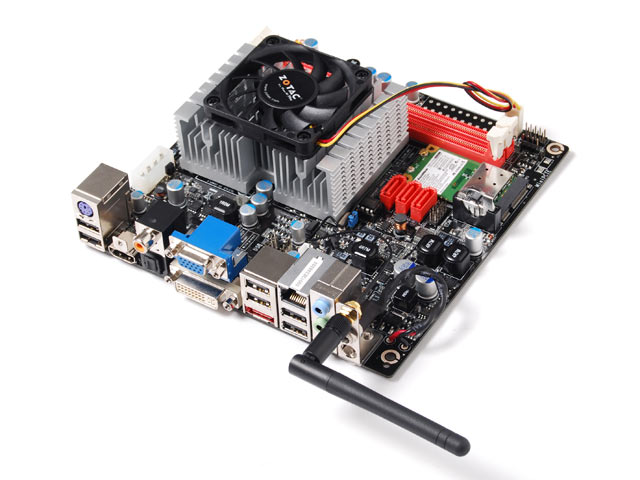

Dual Core 1.6GHz Atom N330 processor and powerful but low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated 5.1 Audio and 802.11/n Wi-Fi. Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, Dual-Link DVI & HDMI graphics outputs; S/PDIF (optical and coaxial); 3x SATA 3Gbps, eSATA; 10x USB 2.0 (inc 4 internal); Fully Vista and Windows 7 Compatible. Approx 21W power consumption.

Rear Panel Connectors: PS2 Keyboard, 6x USB 2.0; HDMI, S/PDIF digital audio out (both optical and coaxial), VGA, DVI; eSATA; Gigabit LAN; 3x 3.5mm audio connectors.

Board connectors: PCI Express x16 Slot; 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; Mini PCI Express x1 (right angle connector); 3x SATA 3Gbps (RAID 0, 1, 0+1 and NVidia MediaShield support); Serial header; 20pin ATX power connector; BIOS jumper; CPU Fan; FPANEL.

Suitable cases: The ION-ITX-F has a slightly taller heatsink once the (non optional) fan is connected so 1U cases will not work. The M350 will work, but with only one HDD. Also compatible: Lockable Wall Mount Case, Mini Skeleton, ISK300, Jou Jye 528i 73W and 220W, Psile, Noah 3988. The board does not have an IDE port, so IDE devices in cases will not work (e.g. CF reader on M200, M200-LCD, M300, M300-LCD). Not all cases can take advantage of the PCI Express slot.

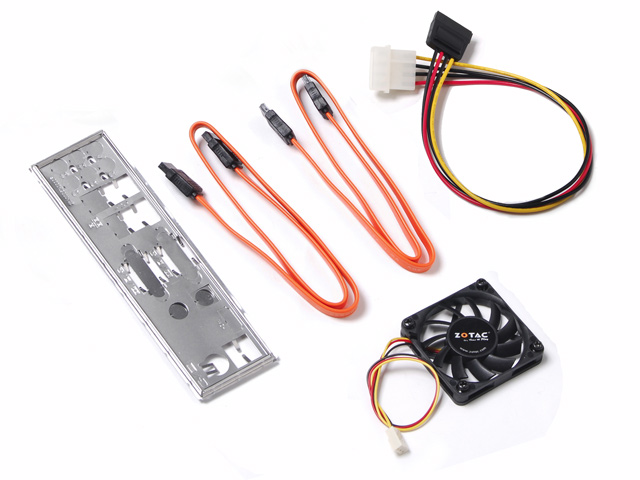

*Note: Non-optional 60mm fan included in package. Zotac decided to exclude the fan in their publicity photos.

Note: The ION-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

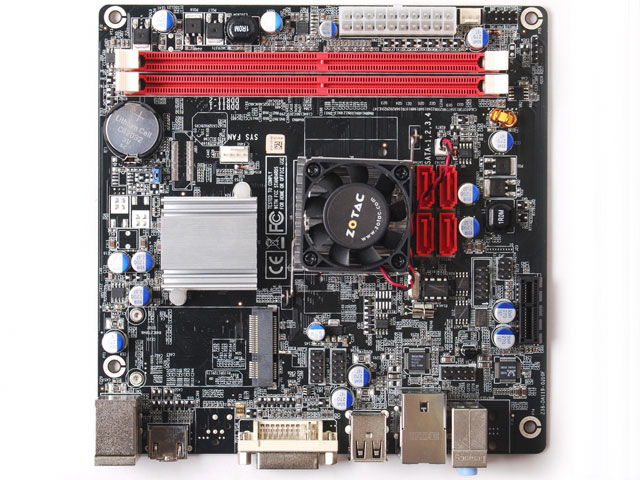

Dual Core 1.6GHz Atom N330 processor and powerful but low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated 5.1 Audio. Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; DVI & HDMI graphics outputs; 4x SATA 3Gbps, 10x USB 2.0 (inc 4 internal); Fully Vista and Windows 7 Compatible. Approx 21W power consumption.

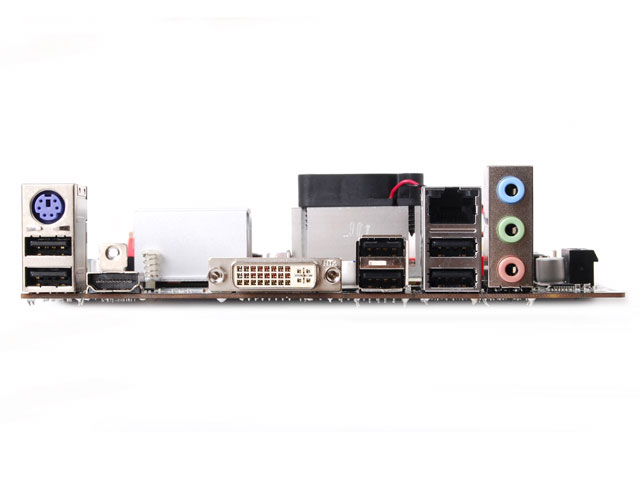

Rear Panel Connectors: PS/2 Keyboard, 6x USB 2.0; HDMI, DVI; Gigabit LAN; 3x 3.5mm audio connectors.

Board connectors: PCI Express x1; Mini PCI Express x1 (right angle connector); 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; 4x SATA 3Gbps (RAID 0, 1, 0+1 and NVidia MediaShield support); Serial header; 20pin ATX power connector; BIOS jumper; CPU Fan; System Fan; Front Panel Header, Front Panel Audio Header.

Suitable cases: The ION-ITX-G has a standard height heatsink with a 40mm fan - all our Mini-ITX enclosures will fit. The ION-ITX-G has 4x SATA so is particularly suitable for use with chassis supporting 4x HDD (Chenbro ES34069, TE-1160). The board does not have an IDE port, so IDE devices in cases will not work (e.g. CF reader on M200, M200-LCD, M300, M300-LCD). Not all cases can take advantage of the PCI Express slot.

Note: The ION-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

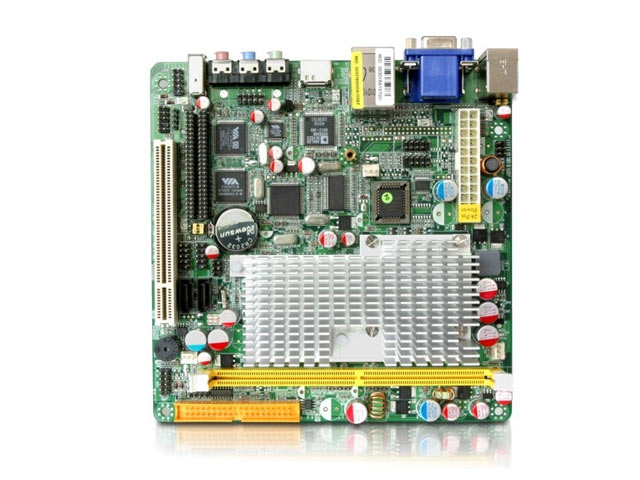

1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CN700 chipset, 1x VIA VT6103CL 10/100 LAN, 2x SATA with RAID 0/1, 2x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

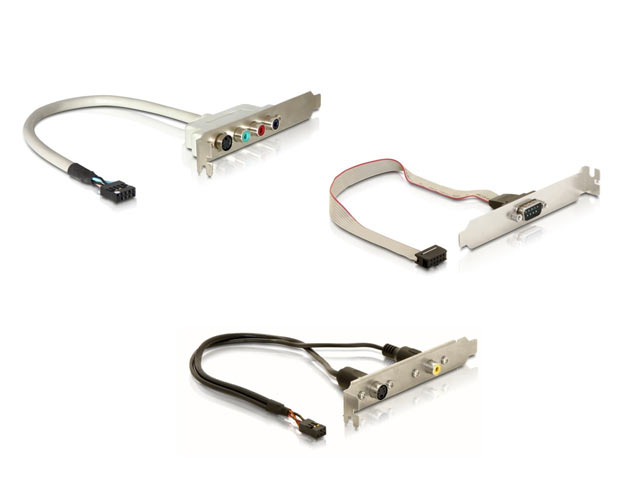

Configure a Jetway J7F2 Board and Daughterboard Module

Jetway J7F2 Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality. DVI output, up to 3x Gigabit LAN, 4x Serial Ports and PC Card Slots are all available.

Specifications: 1.2GHz C7 Eden CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.

Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 2x USB 2.0; 1x 10/100 LAN; 1x S-Video Out; 1x RCA Composite Video Out; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 6x additional USB 2.0 connectors on 3x headers; 1x Firewire connector; F_AUDIO; F_PANEL; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F2 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

New lower power consumption 12W 1.5GHz board replaces previous C7-D version

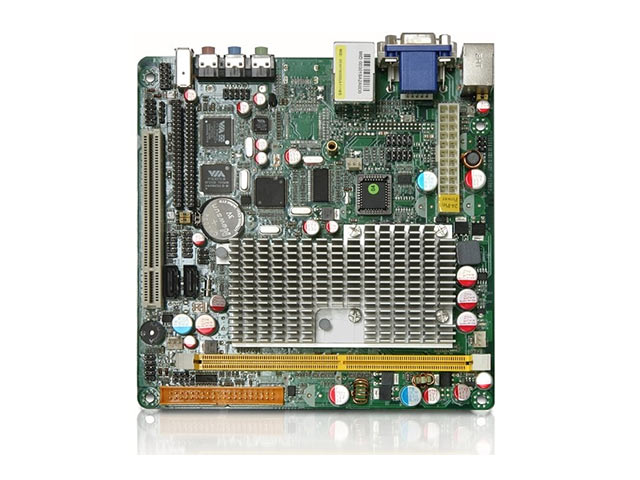

1.5GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CN700 chipset, 1x VIA VT6103CL 10/100 LAN, 2x SATA with RAID 0/1, 2x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2 Board and Daughterboard Module

Jetway J7F2 Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality. DVI output, up to 3x Gigabit LAN, 4x Serial Ports and PC Card Slots are all available.

Specifications: 1.5GHz C7 CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.

Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 2x USB 2.0; 1x 10/100 LAN; 1x S-Video Out; 1x RCA Composite Video Out; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 6x additional USB 2.0 connectors on 3x headers; 1x Firewire connector; F_AUDIO; F_PANEL; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F2 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

2.0GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CN700 chipset, 1x VIA VT6103CL 10/100 LAN, 2x SATA with RAID 0/1, 2x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2 Board and Daughterboard Module

Jetway J7F2 Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality. DVI output, up to 3x Gigabit LAN, 4x Serial Ports and PC Card Slots are all available. Expansion Module Selector and full descriptions.

Specifications: 2.0GHz C7 CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.

Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 2x USB 2.0; 1x 10/100 LAN; 1x S-Video Out; 1x RCA Composite Video Out; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 6x additional USB 2.0 connectors on 3x headers; 1x Firewire connector; F_AUDIO; F_PANEL; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F2 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CN700 chipset, 2x RealteK RTL8110SC Gigabit LAN, 2x SATA with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 4x USB 2.0 Ports. RoHS compliant.

Specifications: 1.2GHz C7 Eden CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.

Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 4x USB 2.0; 2x Gigabit LAN; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; F_AUDIO; F_PANEL; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: Picture is of 1.5GHz model - this board is fanless! The J7F4 does *not* have motherboard module expansion. The J7F4 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here. Latest version in stock, with larger heatsink design and A07 BIOS.

1.5GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CN700 chipset, 2x RealteK RTL8110SC Gigabit LAN, 2x SATA with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 4x USB 2.0 Ports. RoHS compliant.

Specifications: 1.5GHz C7D CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.

Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 4x USB 2.0; 2x Gigabit LAN; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; F_AUDIO; F_PANEL; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F4 does *not* have motherboard module expansion. The J7F4 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

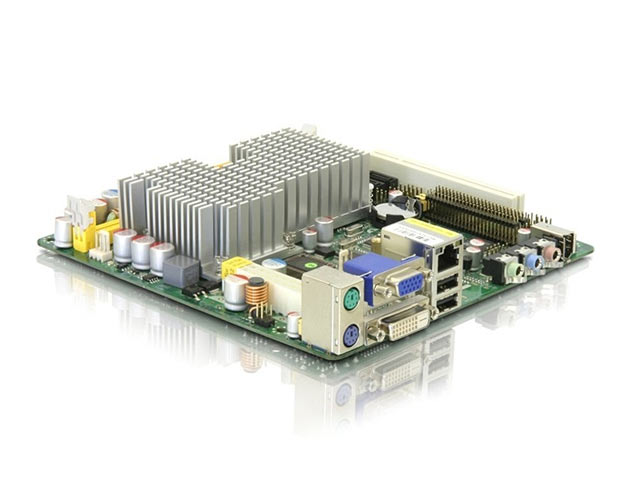

1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 1.2GHz C7 Eden CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

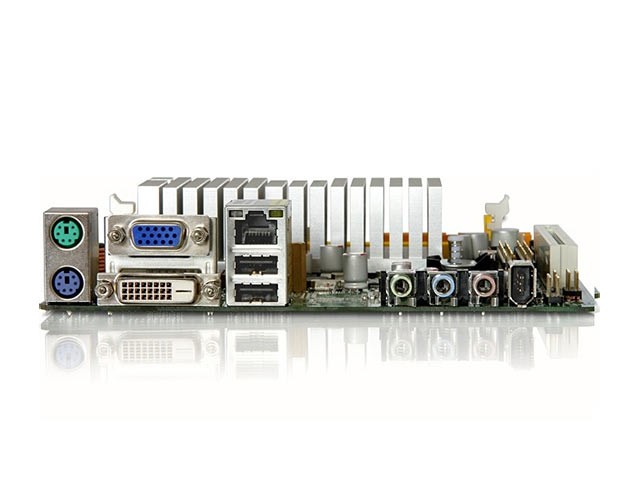

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

Limited Stocks!

Special Edition Fanless 1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

2.0GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 2.0GHz C7 CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 1.2GHz C7 Eden CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

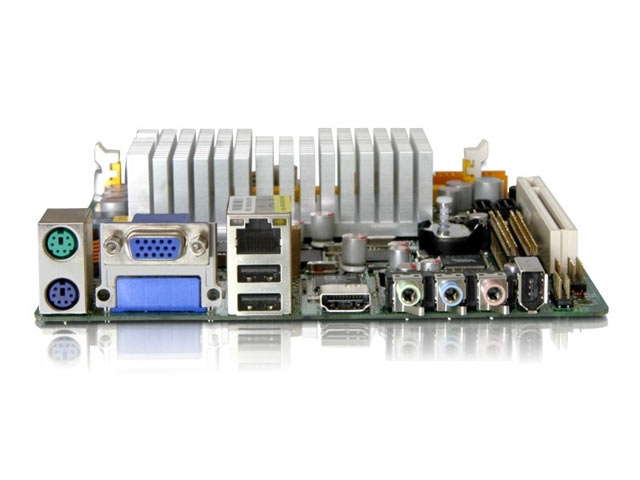

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

Limited Stocks!

Special Edition Fanless 1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

2.0GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.

Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module

Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available..

Specifications: 2.0GHz C7 CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).

Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.

Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.

Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.

800MHz Fanless Mini-ITX motherboard with IDE and SATA connectivity and MPEG-4 Acceleration. OEM board comes without box, I/O shield or accessories.

Recommended replacement board for projects previously using C3 CPUs / DDR RAM. Long term quantities in stock.

800MHz Fanless VIA Eden (C3) powered 17x17cm Mini-ITX motherboard with CN400 + VT8237 chipset, 10/100 LAN, 2x SATA, 2x IDE, One DDR DIMM slot, TV outputs and 4x USB 2.0 Ports. RoHS compliant.

Specifications: 1.0GHz Fanless C7 CPU; CN400 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration and DuoView+ (simultaneous VGA and TV outputs).

Rear Panel Connectors: PS2 Mouse & Keyboard; Serial; VGA; 2x USB 2.0; 10/100 LAN (VT6103); Firewire; S-Video; RCA S/PDIF or Composite Video (switchable output); 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs).

Onboard I/O connectors: 3x USB connector for 6 additional USB 2.0 ports; 1394 connector for Firewire port; Serial port connector for a second COM port; VIP connector; Front-panel audio connector (Mic-in and Line-out); CD audio-in connector; FIR; CIR connector (Switchable for KB/MS); LPT port connector; Wake-on-LAN connector; 2x Fan connectors: CPU/Sys FAN; I2C connector; 1 LVDS/TTL module connector (Optional); 1 +12V power connector; ATX power connector; 1x PCI slot.

The EPIA SPs support DDR266 (PC2100), DDR333 (PC2700), and DDR400 (PC3200) DIMMs. Suitable fully tested DIMMs are available here.

Full Specifications, Operating Guide, Manual.

Bargain Page: This product may be available cheaper on our bargain page.

1.0GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with the latest CN896 chipset, 4GB Memory Support, bootable Compact Flash, Dual LAN, PCI Express, Mini-PCI; TPM, Vista and WHS Support and 4x SATA II connectors.

Specifications: 1.0GHz Fanless C7 CPU; CN896 chipset; Supports up to 4GB on 2x 240-pin DDR2 400/533/667 DIMM sockets; 6 channel audio (VIA VT1708A High Definition Audio Codec); VIA Chrome9™HC Integrated Graphics with 2D/3D and Video acceleration.

Rear Panel Connectors: VGA; 2x RJ45 10/100 LAN (1x VT6130 Gigabit and 1x VT6103L 10/100); 4x USB 2.0; PS2 Keyboard and Mouse; Serial; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs).

Connectors on Underside of board: Compact Flash type I connector (shared with IDE); 32-Bit mini-PCI slot

Board pin headers and connectors: 16-Lane PCI-E slot; 4x SATA II connectors (RAID and AHCI supported if IDE is disabled in the BIOS); 1x IDE; 2x FAN; USB pin connector for 2 additional USB 2.0 ports (2mm pitch); LVDS/DVI module connectors; Serial port pin connector for COM2 (2mm pitch, 5V/12V); LPC; CIR (KB/MS); SIR (IRDA 1.0); SMBUS; Digital I/O; S/PDIF out; FPANEL, FAUDIO; 20pin ATX power connector.

*The EPIA SN has 2mm pitch USB port pin headers. 99% of enclosures have 2.54mm pitch connectors. Add the "EPIA SN USB Adapter Cable" to the shopping basket to add compatibility. Email us for reduced postage if you have already purchased your EPIA SN from us.
EPIA SN USB Cable Manual

Compatible cases: Compucase 8K01, 8K07, Chenbro NAS Chassis, Psile, Voom PC, VoomPC 2, Venus, Thin Client Case (list will grow as we test more cases - please email if you have a case not listed here)

Partially compatible cases: Cubid 3677, 3688, 2688, 2699, Noah, M200/300, C158, C137 are a very snug fit due to lower standoffs and position of CF/Mini-PCI on underside of board. These cases can *just* be made to fit if board is not screwed at one corner. Do NOT screw all 4 corners with these cases.

Please Note: The EPIA SN is the first EPIA to feature PCI-Express, which is not backwards compatible with PCI. Cases that support PCI through a riser card will NOT be compatible with PCI-Express. Please also consider power consumption if using a PCI-E graphics card to prevent power supply damage. Please note the USB 2.0 pin headers on the SN are 2mm pitch, and cases commonly have 2.54mm pitch front panel connectors. The board has 4 x USB 2.0 ports on its rear panel however. To use Vista you may need to update the BIOS to the latest version - email us for details. Jumper WD drives to "Opt1" to use RAID effectively. The EPIA SN uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

1.8GHz VIA C7 powered 17x17cm Mini-ITX motherboard with the latest CN896 chipset, 4GB Memory Support, bootable Compact Flash, Dual LAN, PCI Express, Mini-PCI; TPM, Vista and WHS Support and 4x SATA II connectors.

Specifications: 1.8GHz C7 CPU; CN896 chipset; Supports up to 4GB on 2x 240-pin DDR2 400/533/667 DIMM sockets; 6 channel audio (VIA VT1708A High Definition Audio Codec); VIA Chrome9™HC Integrated Graphics with 2D/3D and Video acceleration.

Rear Panel Connectors: VGA; 2x RJ45 10/100 LAN (1x VT6130 Gigabit and 1x VT6103L 10/100); 4x USB 2.0; PS2 Keyboard and Mouse; Serial; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs).

Connectors on Underside of board: Compact Flash type I connector (shared with IDE); 32-Bit mini-PCI slot

Board pin headers and connectors: 16-Lane PCI-E slot; 4x SATA II connectors (RAID and AHCI supported if IDE is disabled in the BIOS); 1x IDE; 2x FAN; USB pin connector for 2 additional USB 2.0 ports (2mm pitch); LVDS/DVI module connectors; Serial port pin connector for COM2 (2mm pitch, 5V/12V); LPC; CIR (KB/MS); SIR (IRDA 1.0); SMBUS; Digital I/O; S/PDIF out; FPANEL, FAUDIO; 20pin ATX power connector.

*The EPIA SN has 2mm pitch USB port pin headers. 99% of enclosures have 2.54mm pitch connectors. Add the "EPIA SN USB Adapter Cable" to the shopping basket to add compatibility. Email us for reduced postage if you have already purchased your EPIA SN from us.
EPIA SN USB Cable Manual

Compatible cases: Compucase 8K01, 8K07, Chenbro NAS Chassis, Psile, Voom PC, VoomPC 2, Venus, Thin Client Case (list will grow as we test more cases - please email if you have a case not listed here)

Partially compatible cases: Cubid 3677, 3688, 2688, 2699, Noah, M200/300, C158, C137 are a very snug fit due to lower standoffs and position of CF/Mini-PCI on underside of board. These cases can *just* be made to fit if board is not screwed at one corner. Do NOT screw all 4 corners with these cases

Please Note: The EPIA SN is the first EPIA to feature PCI-Express, which is not backwards compatible with PCI. Cases that support PCI through a riser card will NOT be compatible with PCI-Express. Please also consider power consumption if using a PCI-E graphics card to prevent power supply damage. Please note the USB 2.0 pin headers on the SN are 2mm pitch, and cases commonly have 2.54mm pitch front panel connectors. The board has 4 x USB 2.0 ports on its rear panel however. To use Vista you may need to update the BIOS to the latest version - email us for details. Jumper WD drives to "Opt1" to use RAID effectively. The EPIA SN uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs DIMMs are available here.
