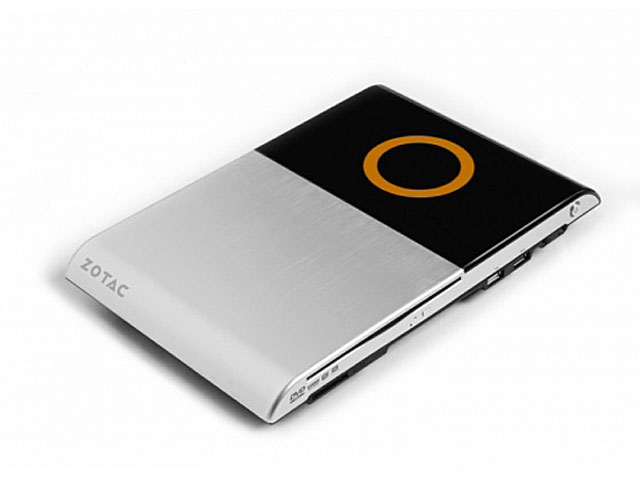

Tiny Barebones Mini PC with Next-Generation NVIDIA ION graphics - just add RAM and a HDD/SSD.

Dual core 1.8GHz Atom D525 processor and powerful but low power consumption Next-Generation NVIDIA ION graphics processor with 512MB DDR3 graphics memory, featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors.

Integrated Slot Loading DVD Drive (8x DVD±R/RW / 24x CD±R/RW read/write); 8 Channel Audio and built-in 802.11b/g/n Wi-Fi. Supports up to 4GB of DDR2 800MHz RAM; 2.5in HDD/SSD Drive Bay; Gigabit LAN; HDMI; Dual Link DVI-I (DVI to VGA adapter included); VESA Mount;2x Mini-PCI Slots (1 used by Wi-Fi module); Windows XP, Vista, 7 and Linux Ready.

Adding RAM and HDD: The side of the ZBOX can be removed to add your choice of DDR2 SODIMM and 2.5in SATA HDD or 2.5in SATA SSD. Use the Zbox Configurator to select the components you require.

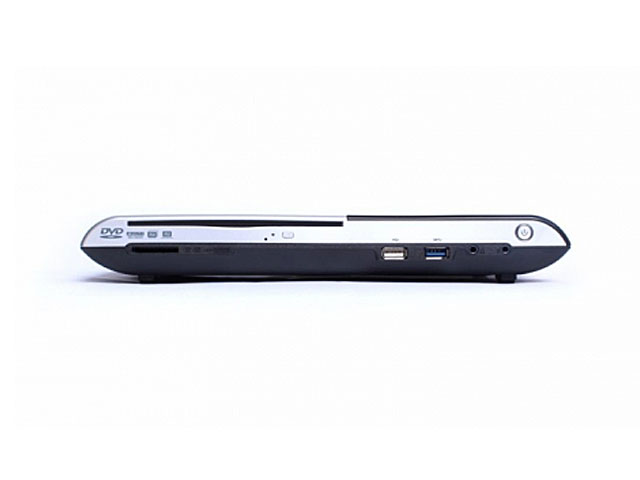

Front Panel: Power Button; HDD and WiFi LEDs; USB 2.0; USB 3.0; 6-in-1 MMC/SD/SDHC/MS/MS Pro/xD Memory Card Reader; 3.5mm Mic and Phone jacks.

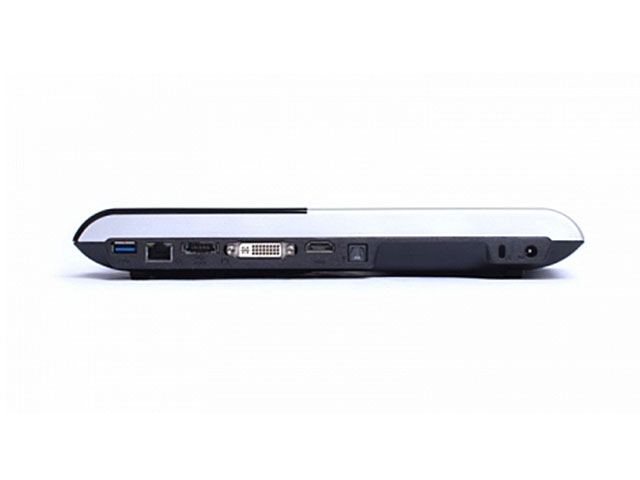

Rear Panel: Combo eSATA/USB 2.0; USB 3.0; Gigabit LAN; DVI; HDMI (HDCP w/8-channel digital audio); S/PDIF Optical Out; 19V DC Power Input (External 65W Universal AC Adapter Provided).

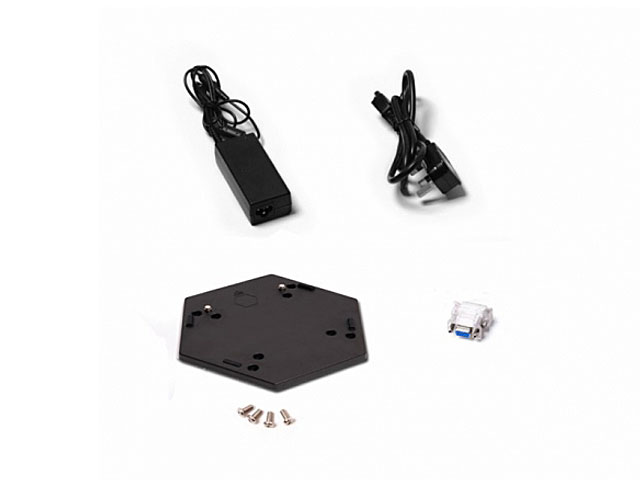

Versatile mounting options: Can be laid flat, or Wall/Monitor mounted with the provided VESA Monitor Mount.

Dimensions: 280 x 147 x 40mm (11.02x 5.79 x 1.57in) - just 1.64 litres.

Tiny Barebones Mini PC with Next-Generation NVIDIA ION graphics, 1GB RAM (expandable to 4GB) and a 250GB 2.5in HDD.

Dual core 1.8GHz Atom D525 processor and powerful but low power consumption Next-Generation NVIDIA ION graphics processor with 512MB DDR3 graphics memory, featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors.

Integrated Slot Loading DVD Drive (8x DVD±R/RW / 24x CD±R/RW read/write); 8 Channel Audio and built-in 802.11b/g/n Wi-Fi. Supports up to 4GB of DDR2 800MHz RAM; 2.5in HDD/SSD Drive Bay; Gigabit LAN; HDMI; Dual Link DVI-I (DVI to VGA adapter included); VESA Mount;2x Mini-PCI Slots (1 used by Wi-Fi module); Windows XP, Vista, 7 and Linux Ready.

Upgrading RAM and HDD: The side of the ZBOX can be removed to ugrade your choice of DDR2 SODIMM and 2.5in SATA HDD or 2.5in SATA SSD.

Front Panel: Power Button; HDD and WiFi LEDs; USB 2.0; USB 3.0; 6-in-1 MMC/SD/SDHC/MS/MS Pro/xD Memory Card Reader; 3.5mm Mic and Phone jacks.

Rear Panel: Combo eSATA/USB 2.0; USB 3.0; Gigabit LAN; DVI; HDMI (HDCP w/8-channel digital audio); S/PDIF Optical Out; 19V DC Power Input (External 65W Universal AC Adapter Provided).

Versatile mounting options: Can be laid flat, or Wall/Monitor mounted with the provided VESA Monitor Mount.

Dimensions: 280 x 147 x 40mm (11.02x 5.79 x 1.57in) - just 1.64 litres.

Dual core 1.6GHz Atom N330 processor and powerful but low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated 5.1 Audio and 802.11/n Wi-Fi. Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, DVI & HDMI graphics outputs; S/PDIF (optical and coaxial); 3x SATA 3Gbps, eSATA; 10x USB 2.0 (inc 4 internal); Fully Vista and Windows 7 Compatible. Approx 25W power consumption.

Available as part of our Zotac ION-ITX-A Wi-Fi / M350 Case / RAM Offer Bundle

Rear Panel Connectors: PS2 Keyboard, 6x USB 2.0; HDMI, S/PDIF digital audio out (both optical and coaxial), VGA, DVI; eSATA; Gigabit LAN; 3x 3.5mm audio connectors, Antenna Socket for Wi-Fi, 19V DC Power Input.

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; Mini PCI Express x1 (used by Wi-Fi card); 3x SATA 3Gbps (RAID 0, 1, 0+1 and NVidia MediaShield support); Serial header; Male Molex power connector (3x SATA HDD cable provided); BIOS jumper; CPU Fan; FPANEL.

Important! This board has a DC Power input and is not designed for use with a standard ATX PSU: The ION-ITX-A is provided with a 90W AC Adapter which powers the board directly and feeds power to up to 3 other devices through an on-board male Molex connector. We sell several enclosures without power supplies, or you can bypass the PSU on any other compatible Mini-ITX case. 90W is enough to power 3x HDDs or Slimline Optical Drives*, but we *do not* recommend powering a full size optical drive.

Powering devices: A cable with female Molex to 3x SATA power connectors is provided, suitable for powering up to 3x SATA 2.5in or 3.5in HDD/SSD. Other devices (including PATA/SATA slimline optical drives and CF cards) will require additional cables. Please use the cables linked on the left, or email before ordering. Don't forget you can install most Operating Systems from a USB key very easily!

Suitable cases (without PSU): The following enclosures come without an internal PSU and are fully compatible with the ION-ITX-A: M350 (highly recommended - currently available in a bundle), VoomPC, VoomPC 2. Note: VoomPCs are not provided with a power switch.

Partially compatible cases (without PSU): M200, M300, M200-LCD, M300-LCD include IDE CF Adapters which cannot be used - these boards only have SATA ports.

Suitable cases (with PSU): The following enclosures have a PSU which can be bypassed and are compatible with the ION-ITX-A: Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i, NAS Chassis

Unsuitable/untested cases: Lower profile cases cannot accommodate the slightly larger heatsink of the ION-ITX-A, e.g. 1U Rackmount and Low Profile Media Case. Many cases are currently untested and may not work, including Travla C158, Thin Client, Compact Wall Mount and all Cubid cases. Please wait for us to update this section or email if you are unsure.

Notes: ION-ITX-A Rev 2 now supports wake-on-USB (from 28th July 2009). The ION-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Dual Core 1.6GHz Atom N330 processor and powerful but low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated 5.1 Audio and 802.11/n Wi-Fi. Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, Dual-Link DVI & HDMI graphics outputs; S/PDIF (optical and coaxial); 3x SATA 3Gbps, eSATA; 10x USB 2.0 (inc 4 internal); Fully Vista and Windows 7 Compatible. Approx 21W power consumption.

Rear Panel Connectors: PS2 Keyboard, 6x USB 2.0; HDMI, S/PDIF digital audio out (both optical and coaxial), VGA, DVI; eSATA; Gigabit LAN; 3x 3.5mm audio connectors.

Board connectors: PCI Express x16 Slot; 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; Mini PCI Express x1 (right angle connector); 3x SATA 3Gbps (RAID 0, 1, 0+1 and NVidia MediaShield support); Serial header; 20pin ATX power connector; BIOS jumper; CPU Fan; FPANEL.

Suitable cases: The ION-ITX-F has a slightly taller heatsink once the (non optional) fan is connected so 1U cases will not work. The M350 will work, but with only one HDD. Also compatible: Lockable Wall Mount Case, Mini Skeleton, ISK300, Jou Jye 528i 73W and 220W, Psile, Noah 3988. The board does not have an IDE port, so IDE devices in cases will not work (e.g. CF reader on M200, M200-LCD, M300, M300-LCD). Not all cases can take advantage of the PCI Express slot.

*Note: Non-optional 60mm fan included in package. Zotac decided to exclude the fan in their publicity photos.

Note: The ION-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Dual Core 1.6GHz Atom N330 processor and powerful but low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated 5.1 Audio. Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; DVI & HDMI graphics outputs; 4x SATA 3Gbps, 10x USB 2.0 (inc 4 internal); Fully Vista and Windows 7 Compatible. Approx 21W power consumption.

Rear Panel Connectors: PS/2 Keyboard, 6x USB 2.0; HDMI, DVI; Gigabit LAN; 3x 3.5mm audio connectors.

Board connectors: PCI Express x1; Mini PCI Express x1 (right angle connector); 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; 4x SATA 3Gbps (RAID 0, 1, 0+1 and NVidia MediaShield support); Serial header; 20pin ATX power connector; BIOS jumper; CPU Fan; System Fan; Front Panel Header, Front Panel Audio Header.

Suitable cases: The ION-ITX-G has a standard height heatsink with a 40mm fan - all our Mini-ITX enclosures will fit. The ION-ITX-G has 4x SATA so is particularly suitable for use with chassis supporting 4x HDD (Chenbro ES34069, TE-1160). The board does not have an IDE port, so IDE devices in cases will not work (e.g. CF reader on M200, M200-LCD, M300, M300-LCD). Not all cases can take advantage of the PCI Express slot.

Note: The ION-ITX uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

ION board featuring 4x SATA, 1x eSATA and PCI Slot.

Dual core 1.6GHz Atom N330 processor and low power consumption NVidia ION graphics processor featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors. Integrated HD 5.1 Audio. Up to 3.5GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, DVI-I & HDMI graphics outputs; S/PDIF audio (optical and coaxial); 4x SATA 3Gbps with RAID 0,1; 1x eSATA; 8x USB 2.0 (inc 2 internal); PCI slot; Fully Vista Compatible. Approx 25W power consumption.

Rear Panel Connectors: PS2 Keyboard, 6x USB 2.0; HDMI, S/PDIF digital audio out (both optical and coaxial), VGA, DVI-I; Gigabit LAN; 3x 3.5mm audio connectors.

Board connectors: 24pin ATX connector; 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR2 667/800 DIMM sockets; PCI; Mini PCI-E (on underside of board); 4x SATA 3Gbps; Serial COM header; 4pin Audio connector; S/PDIF Out Header; BIOS jumper; 3pin CPU Fan; 4pin SYS Fan; FPANEL.

Suitable cases: The following enclosures are compatible with the ION-MB330: Nexus Psile, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i 73W and 220W, NAS Chassis

Unsuitable/untested cases: Lower profile cases cannot accommodate the slightly larger heatsink of the ION-MB330, e.g. 1U Rackmount and Low Profile Media Case. Many cases are currently untested and may not work, including Travla C158, Thin Client, Compact Wall Mount and all Cubid cases. Please wait for us to update this section or email if you are unsure.

Note: The ION-MB330-1 uses DDR2 DIMM memory. The other versions of the board used SODIMMs. Fully tested DDR2 DIMMs are available here.
