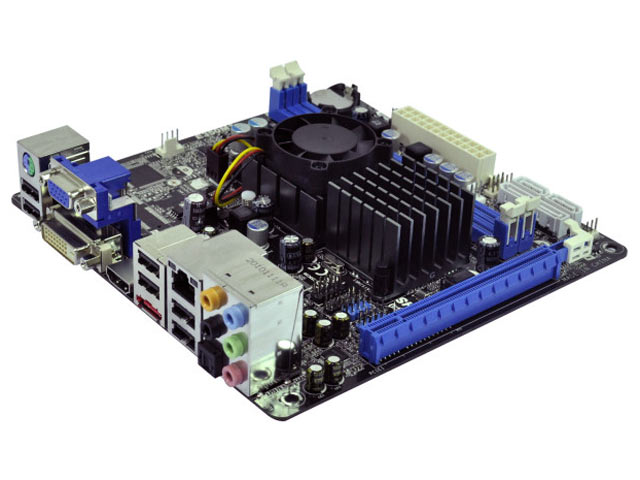

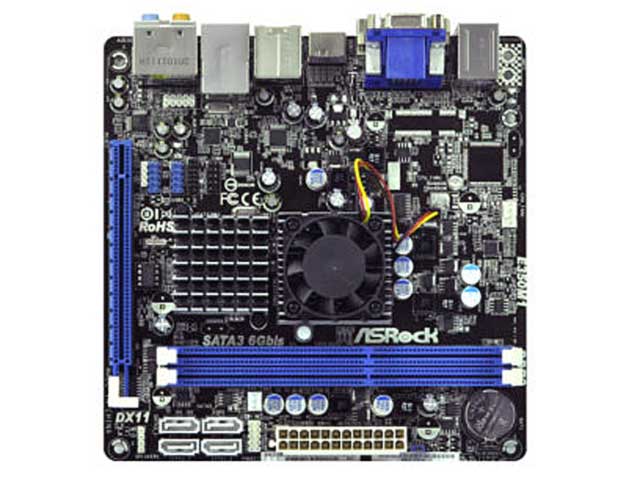

ASRock E350M1 AMD Fusion motherboard with Dual-Core 1.6GHz AMD E-350 processor. Featuring integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Realtek 8111E Gigabit Ethernet; Realtek ALC892 High Definition 7.1 Channel Audio.

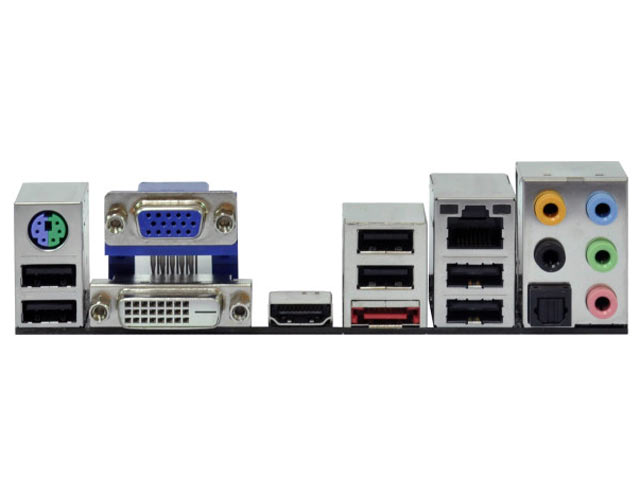

Rear Panel: Combined Mouse/Keyboard PS/2 port; 6x USB 2.0 ports; Optical S/PDIF digital audio out; VGA; DVI-I; HDMI; 1x eSATA; Gigabit Ethernet; 6x 3.5mm audio connectors.

Board Connectors: PCI Express x16 slot (x4 bandwidth); 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR3 DIMM sockets; 4x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x Front Panel Connector; 1x 3pin System Fan Header; 1x 3pin Processor Fan Header; 1x Serial Port header; CIR header.

Case compatibility. The ASRock E350M1 has a standard height heatsink and low power requirements. All our Mini-ITX cases will work including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU), Travla C146,T1200,C159, Thin Clients, Travla C158 (CD supported), Compact and Lockable Wall Mount Cases.

ASRock Unique Features: Instant Boot; ASRock Instant Flash; ASRock AIWI; ASRock APP Charger; SmartView; Hybrid Booster; ASRock U-COP; Boot Failure Guard (B.F.G.)

Multiple outputs: Number of displays possible at any one time: 2. Resolutions supported: DVI: 1920 x 1200 @ 75Hz; VGA: 2048 x 1536 @ 85Hz; HDMI: 1920 x 1200.

Box contents: Motherboard, 2x SATA cables, Installation Guide, I/O Shield.

Downloads: available at ASRock site

Memory: The ASRock E350M1 supports up to 8GB DDR3 memory on 2x DDR3 DIMMS. This is not compatible with DDR2 memory. Fully tested DDR3 DIMMs are available here.

Sapphire Pure Fusion Mini E350 Motherboard with Dual-Core 1.6GHz AMD E-350 processor. Featuring integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Marvell 88E8057 Gigabit Ethernet; Realtek ALC892 High Definition 8 Channel Audio.

Rear Panel: 4x USB 2.0 ports; Bluetooth 2.1 + EDR (Atheros AR3011); 1x e-SATA; Gigabit Ethernet; 2x USB 3.0 ports; VGA; DVI (single link); HDMI; 5x 3.5mm audio connectors; Optical S/PDIF digital audio out.

Board Connectors: PCI Express x16 slot (x4 bandwidth); Mini-PCI Express 2.0 Slot; 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR3 SODIMM 800/1066 sockets; 5x SATA 6Gb/s ports (3 vertical, 2 horizontal); 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 12v P4 connector (needs to be connected); 1x Front Panel Connector; 1x Serial Port Header; 1x S/PDIF In/Out Header; 1x 3pin System Fan Header; 1x 4pin PWM Processor Fan Header.

Case compatibility. The Pure Fusion Mini E350 has a standard height heatsink and low power requirements. A 20pin or 24pin ATX connector can be used but the 12V P4 connector must also be connected. Check individual case descriptions and add the Molex to P4 Power Cable option where necessary. All our Mini-ITX cases will fit the board including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU fitted with a 12V P4 output), Travla C146, T1200, C159, Thin Clients, Travla C158 (inc CD drive), Compact and Lockable Wall Mount Cases.

Box contents: Motherboard, Driver CD, 2x SATA cables, Product Guide, I/O Shield.

Memory: The Pure Fusion Mini E350 supports up to 8GB DDR3 memory on 2x DDR3 SODIMMS. This is not compatible with standard DDR2/DDR3 memory. Fully tested DDR3 SODIMMs are available here.

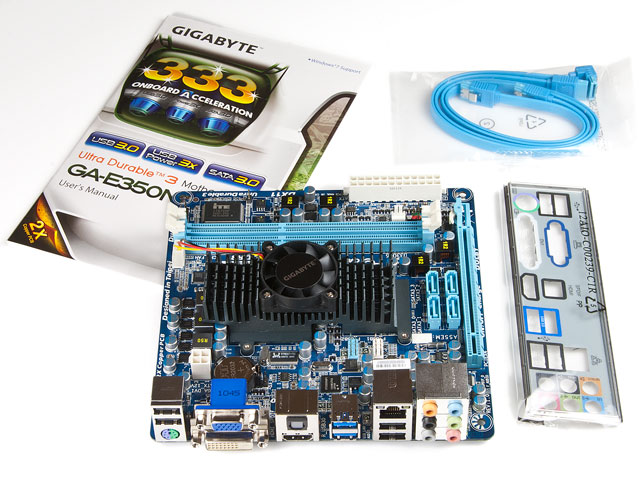

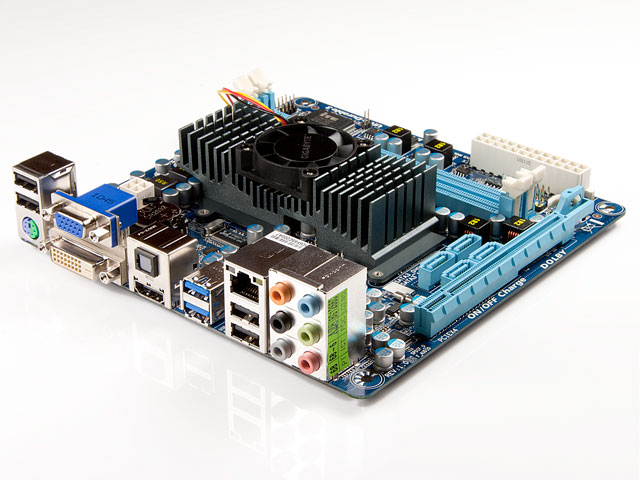

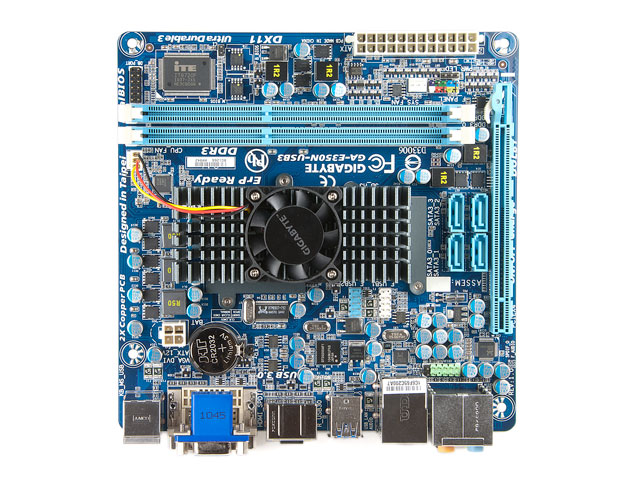

Gigabyte E350N-USB3 AMD Fusion motherboard with Dual-Core 1.6GHz AMD E-350 processor. Featuring integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Realtek 8111E Gigabit Ethernet; Realtek ALC892 High Definition 7.1 Channel Audio.

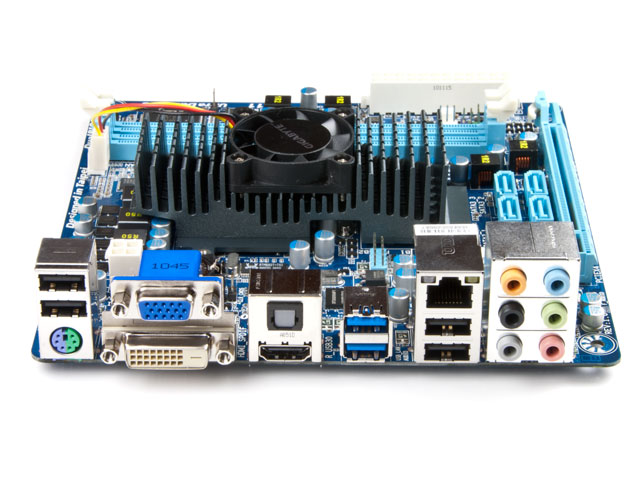

Rear Panel: Combined Mouse/Keyboard PS/2 port; 4x USB 2.0 ports; 2x USB 3.0 ports; VGA; DVI; HDMI; Optical S/PDIF digital audio out; Gigabit Ethernet; 6x 3.5mm configurable audio connectors.

Board Connectors: PCI Express x16 slot (x4 bandwidth); 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR3 DIMM sockets; 4x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 12v P4 connector (needs to be connected); 1x Front Panel Connector; 1x Coaxial S/PDIF header; 1x System Fan Header; 1x Processor Fan Header; 1x Chassis Intrusion header.

Case compatibility. The E350N-USB3 has a standard height heatsink and low power requirements. A 20pin or 24pin ATX connector can be used but the 12V P4 connector must also be connected. Check individual case descriptions and add the Molex to P4 Power Cable option where necessary. All our Mini-ITX cases will fit the board including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU fitted with a 12V P4 output), Travla C146, T1200, C159, Thin Clients, Travla C158 (inc CD drive), Compact and Lockable Wall Mount Cases.

Box contents: Motherboard, 2x SATA cables, Product Guide, I/O Shield.

Memory: The E350N-USB3 supports up to 8GB DDR3 memory on 2x DDR3 DIMMS. This is not compatible with DDR2 memory. Fully tested DDR3 DIMMs are available here.

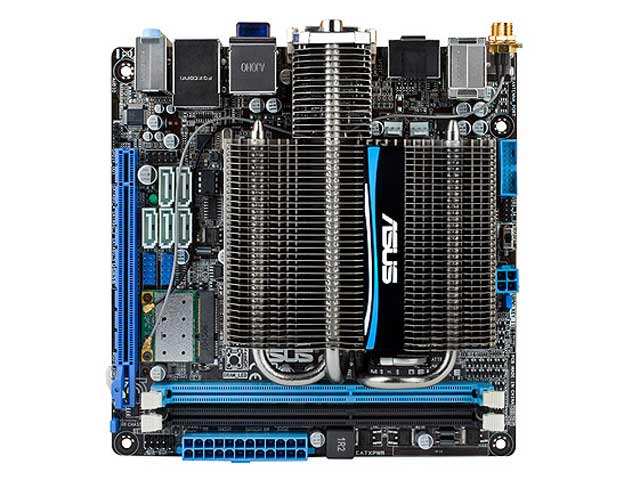

Asus E35M1-I Deluxe AMD Fusion motherboard with Dual-Core 1.6GHz AMD E-350 processor and fanless heatsink. Featuring integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Realtek 8111E Gigabit Ethernet supporting WOL; Realtek ALC892 High Definition 7.1 Channel Audio; 802.11n WiFi.

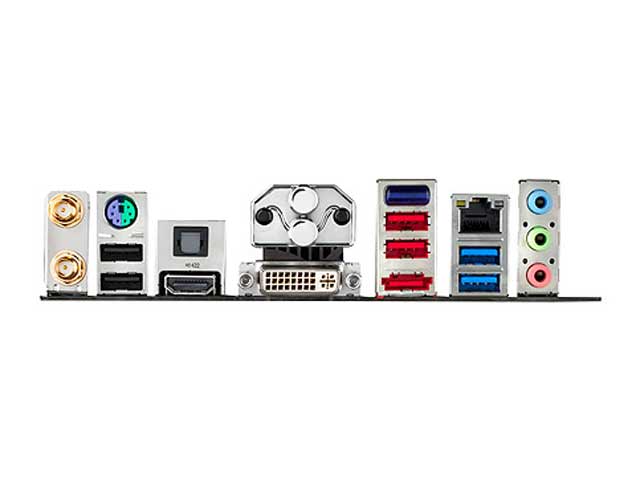

Rear Panel: 2x WiFi Antenna; Combined Mouse/Keyboard PS/2 port; 4x USB 2.0 ports (2 black, 2 blue); Optical S/PDIF digital audio out; DVI-I; HDMI; Bluetooth Antenna; 2x USB 3.0 ports (red); 1x eSATA; Gigabit Ethernet; 3x 3.5mm audio connectors.

Board Connectors: PCI Express x16 slot (x4 bandwidth); 4x USB 2.0 connectors on 2x 9pin headers; 2x USB 3.0 connectors on 9pin header; 2x DDR3 DIMM sockets; 5x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 12v P4 connector (needs to be connected); 1x Front Panel Connector; 1x S/PDIF Out header; 1x 3pin System Fan Header; 1x 3pin Processor Fan Header; 1x Chassis Intrusion header; MemOK! Switch and DRAM LED (optimise memory settings); Turbo Key II switch and LED (CPU overclocking in the BIOS).

ASUS AI Lifestyle Features: ASUS CrashFree BIOS 3; AI Suite II; TurboKey II; Mem OK!; Q-FAN; Anti-surge; DTS Surround Sensation UltraPC; ASUS@Vibe Support.

Case compatibility. The E35M1-I Deluxe has a standard height heatsink and low power requirements. A 20pin or 24pin ATX connector can be used but the 12V P4 connector must also be connected. Check individual case descriptions and add the Molex to P4 Power Cable option where necessary. All our Mini-ITX cases will fit the board including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU fitted with a 12V P4 output), Travla C146, T1200, C159, Thin Clients, Travla C158 (inc CD drive), Compact and Lockable Wall Mount Cases.

M350/picoPSU Compatibility: The picoPSU-80 with 12V P4 Extender Cable will not reach the P4 connector on this board - please use the picoPSU-90 or above. It is not possible to use the USB front panel on the M350 chassis with this board (because the ATX connector on the E35M1-I Deluxe is positioned directly underneath the USB front panel connector).

Multiple outputs: Number of displays possible at any one time: 2. Resolutions supported: DVI: 1920 x 1200 @ 60Hz; HDMI: 1920 x 1080 @ 60Hz.

Box contents: Motherboard, 2x SATA cables, Product Guide, I/O Shield.

Memory: The E35M1-I Deluxe supports up to 8GB DDR3 memory on 2x DDR3 DIMMS. This is not compatible with DDR2 memory. Fully tested DDR3 DIMMs are available here.

Asus E45M1-I Deluxe AMD Fusion motherboard with Dual-Core 1.65GHz AMD E-450 processor and fanless heatsink. Featuring integrated AMD Radeon HD 6320 DirectX 11 / OpenGL 4.1 graphics (approx 1/3 faster than E-350/HD 6310 boards) and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Realtek 8111E Gigabit Ethernet supporting WOL; Realtek ALC892 High Definition 7.1 Channel Audio; 802.11n WiFi.

Rear Panel: 2x WiFi Antenna; Combined Mouse/Keyboard PS/2 port; 4x USB 2.0 ports (2 black, 2 blue); Optical S/PDIF digital audio out; DVI-I; HDMI; Bluetooth Antenna; 2x USB 3.0 ports (red); 1x eSATA; Gigabit Ethernet; 3x 3.5mm audio connectors.

Board Connectors: PCI Express x16 slot (x4 bandwidth); 4x USB 2.0 connectors on 2x 9pin headers; 2x USB 3.0 connectors on 9pin header; 2x DDR3 DIMM sockets; 5x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 12v P4 connector (needs to be connected); 1x Front Panel Connector; 1x S/PDIF Out header; 1x 3pin System Fan Header; 1x 3pin Processor Fan Header; 1x Chassis Intrusion header; MemOK! Switch and DRAM LED (optimise memory settings); Turbo Key II switch and LED (CPU overclocking in the BIOS).

ASUS AI Lifestyle Features: ASUS CrashFree BIOS 3; AI Suite II; TurboKey II; Mem OK!; Q-FAN; Anti-surge; DTS Surround Sensation UltraPC; ASUS@Vibe Support.

Case compatibility. The E45M1-I Deluxe has a standard height heatsink and low power requirements. A 20pin or 24pin ATX connector can be used but the 12V P4 connector must also be connected. Check individual case descriptions and add the Molex to P4 Power Cable option where necessary. All our Mini-ITX cases will fit the board including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU fitted with a 12V P4 output), Travla C146, T1200, C159, Thin Clients, Travla C158 (inc CD drive), Compact and Lockable Wall Mount Cases.

M350/picoPSU Compatibility: The picoPSU-80 with 12V P4 Extender Cable will not reach the P4 connector on this board - please use the picoPSU-90 or above. It is not possible to use the USB front panel on the M350 chassis with this board (because the ATX connector on the E35M1-I Deluxe is positioned directly underneath the USB front panel connector).

Multiple outputs: Number of displays possible at any one time: 2. Resolutions supported: DVI: 1920 x 1200 @ 60Hz; HDMI: 1920 x 1080 @ 60Hz.

Box contents: Motherboard, 2x SATA cables, Product Guide, I/O Shield.

Memory: The E45M1-I Deluxe supports up to 8GB DDR3 memory on 2x DDR3 DIMMS. This is not compatible with DDR2 memory. Fully tested DDR3 DIMMs are available here.

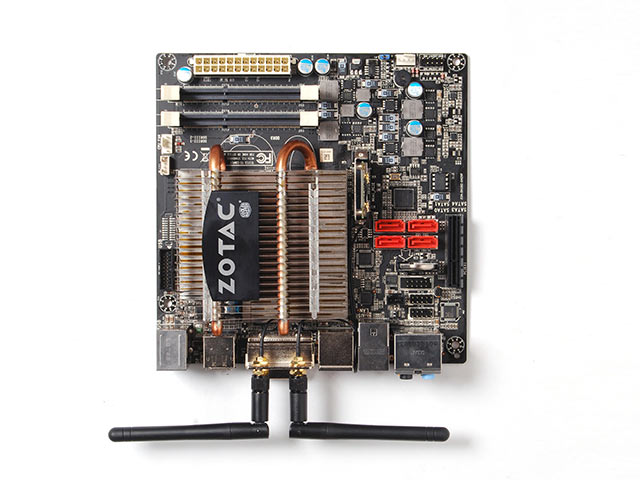

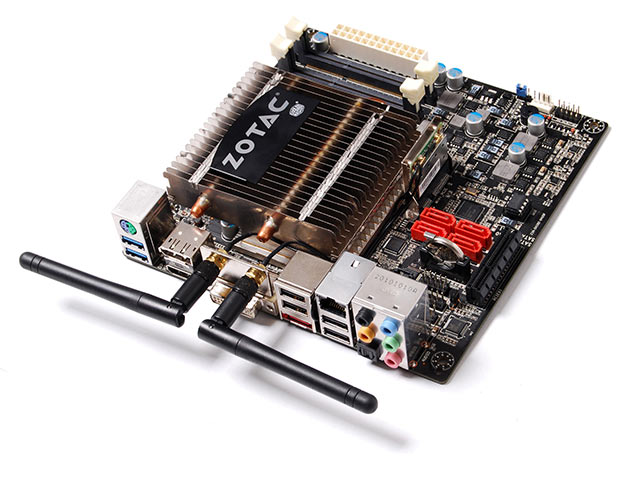

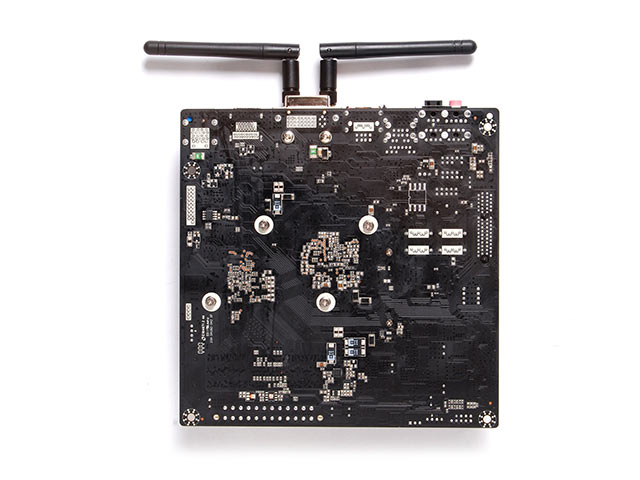

Zotac E350-A-E Wi-Fi AMD Fusion motherboard with Dual-Core 1.6GHz AMD E-350 processor and fanless heatsink by Coolermaster. Featuring integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Gigabit Ethernet; High Definition 7.1 Channel Audio; 802.11n WiFi.

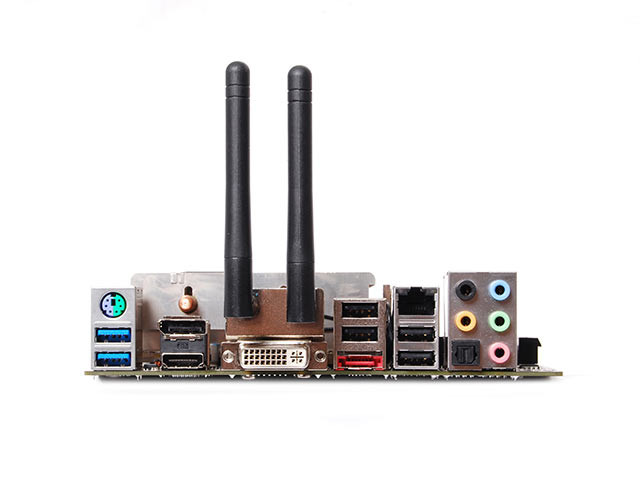

Rear Panel: Combined Mouse/Keyboard PS/2 port; 2x USB 3.0 ports; HDMI, Displayport, DVI (VGA adapter supplied); 2x WiFi Antenna; 4x USB 2;0 ports; 1x eSATA port; Optical S/PDIF digital audio out; Gigabit Ethernet; 5x 3.5mm audio connectors.

Board Connectors: PCI Express x4 slot (open ended); 1x vertical Mini-PCI Express slot (occupied by short-height WiFi card); 2x USB 3.0 connectors on 1x 9pin header; 2x USB 2.0 connectors on 1x 9pin header; 2x DDR3 SODIMM sockets; 4x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x Front Panel Connector; 1x 4pin System Fan Header; 1x 4pin Processor Fan Header.

Case compatibility. The E350N-USB3 has a standard height heatsink and low power requirements. All our Mini-ITX cases will work including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with any picoPSU), Travla C146,T1200,C159, Thin Clients, Travla C158 (CD may not be supported), Compact and Lockable Wall Mount Cases.

Multiple outputs: Number of displays possible at any one time: 2. Resolutions supported: DVI: 1920 x 1200; VGA: 2048 x 1536; HDMI: 1920 x 1200.

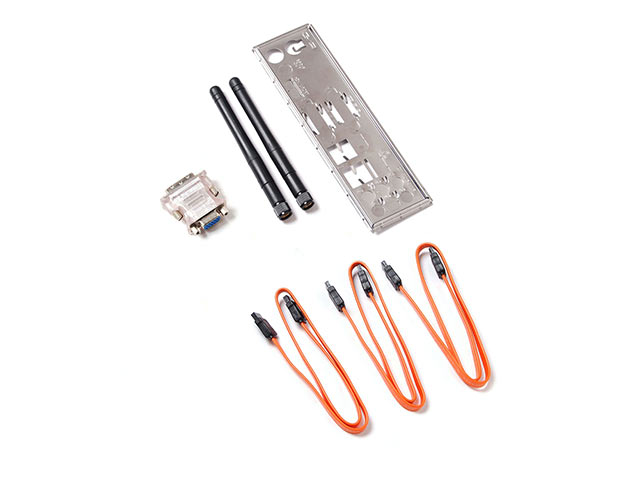

Box contents: Motherboard, 3x SATA cables, Product Guide, I/O Shield, 2x WiFi Antenna, DVI to VGA adapter.

Memory: The E350N-USB3 supports up to 8GB DDR3 memory on 2x DDR3 SODIMMS running at 1066MHz. This is not compatible with DDR2 memory. Fully tested DDR3 SODIMMs are available here.

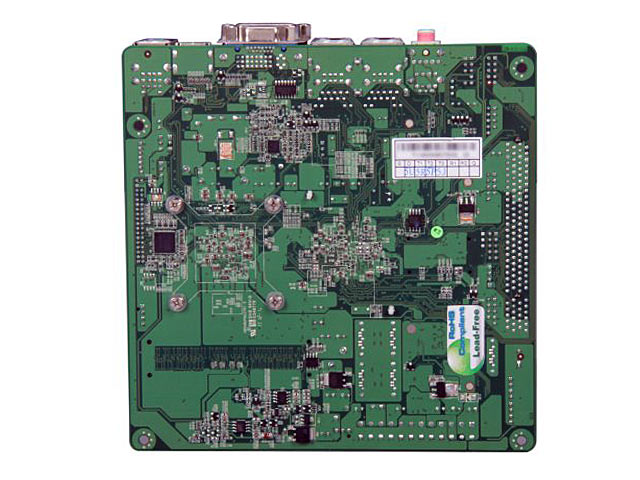

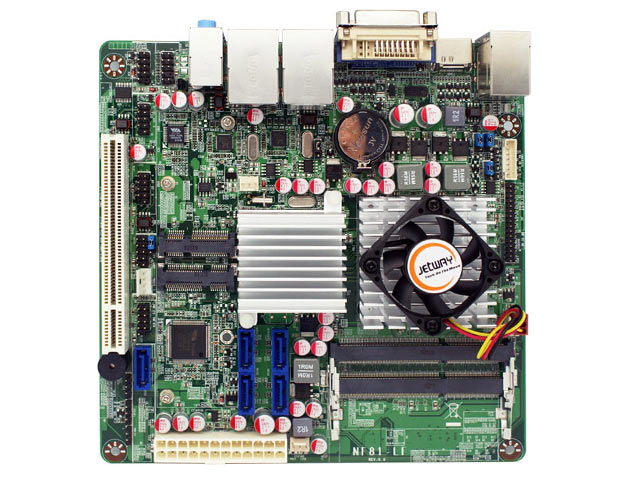

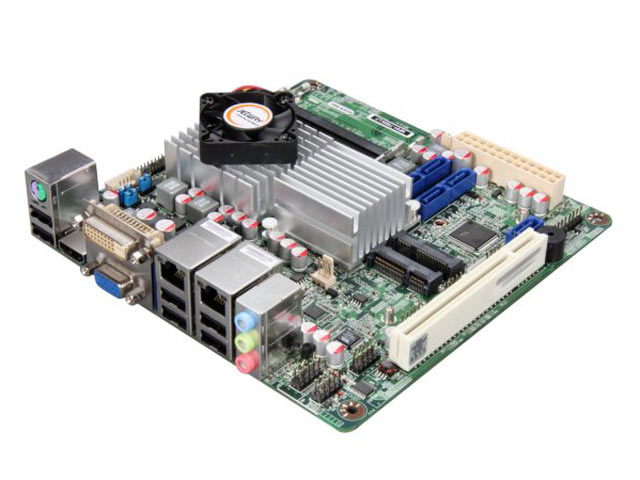

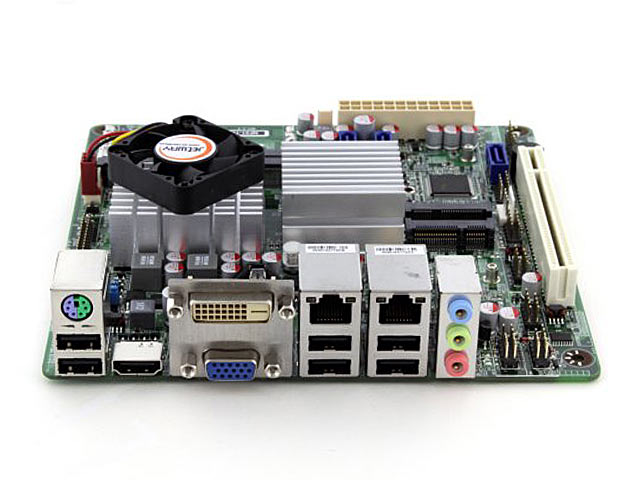

Jetway JNF81-T56N Dual LAN AMD Fusion motherboard with Dual-Core 1.6GHz AMD (long life) T56N processor and dual Gigabit LAN. Featuring integrated AMD Brazos eOntario + Hudson E1 Chipset. Up to 8GB of system memory; 2x Realtek RTL8111E Gigabit Ethernet; VIA VT1705 6 Channel Audio; 5x SATA 6Gb/s with RAID 0,1,5,10 support.

Rear Panel: Combined Mouse/Keyboard PS/2 port; 6x USB 2.0 ports; HDMI, DVI. VGA; 2x Gigabit Ethernet; 3x 3.5mm audio connectors.

Board Connectors: PCI slot; Mini-PCI Express slot; mSATA connector (for mSATA SSDs); 4x USB 2.0 connectors on 2x 9pin header; 2x DDR3 SODIMM sockets; 5x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 24 bit Dual Channel LVDS header; 1x COM port header; 1x GPIO header; 1x CIR header; 1x Front Panel Connector; 1x 3pin System Fan Header; 1x 3pin Processor Fan Header.

Case compatibility. The JNF81-T56N has a standard height heatsink and low power requirements. All our Mini-ITX cases will work including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, M200/M300/M350 (with any picoPSU), Travla C146,T1200,C159, Thin Clients, Travla C158 (CD may not be supported), Compact and Lockable Wall Mount Cases.

Operating temperature: Operates within 0~50 centigrade (Storage within -20~+85 centigrade).

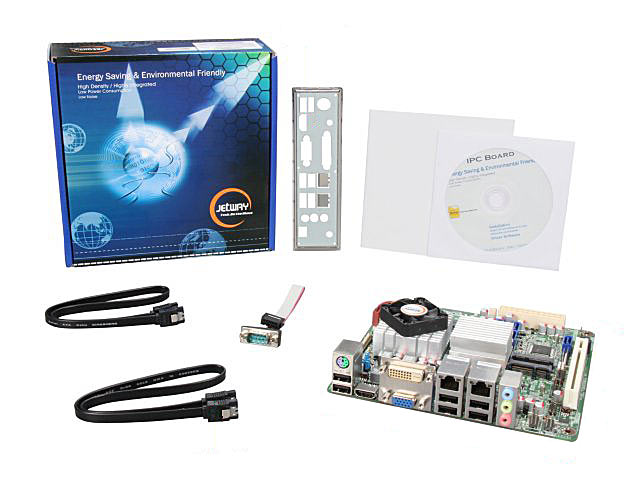

Box contents: Motherboard, 3x SATA cables, Product Guide, I/O Shield, 2x WiFi Antenna, DVI to VGA adapter.

Memory: The JNF81-T56N supports up to 8GB DDR3 memory on 2x DDR3 SODIMMS running at 1066MHz. This is not compatible with DDR2 memory. Fully tested DDR3 SODIMMs are available here.
