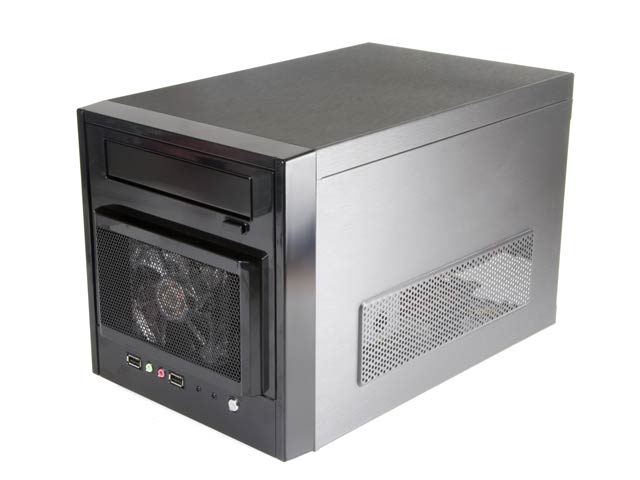

2-Bay NAS Chassis suitable for all Mini-ITX motherboards. Featuring brushed-steel effect panels and high-gloss front, this case provides 2x hot-swap 3.5in SATA drive bays. One full-height PCI or PCI-Express slot is also available.

Bays: 2x 3.5in Hot-Swap Caddies; 1x 5.25in Optical Drive Bay; 1x Internal 3.5in/2.5in HDD/SSD Bay. 1x PCI or PCI-Express card.

Cooling: 80mm Illuminated Front Fan, 2x 60mm Rear Fans.

Front Panel: 2x USB; 1x Power Button; Power and Storage LEDs; 1x Headphone; 1x Microphone.

Power supply: Internal 220W ATX PSU with 80mm cooling fan. UK power cord provided as standard. Power connectors: 1x 20/24pin ATX; 1x 12V P4; 2x Molex HDD; 4x SATA Power.

Measurements: 200mm (W) x 212mm (H) x 344mm (D) (7.9in x 8.3in x 13.5in).
Volume: 14.6 litres

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Intel Socket Mini-ITX boards with standard retail heatsinks, or AMD Socket Mini-ITX boards with low profile heatsinks.

Full case comparison chart

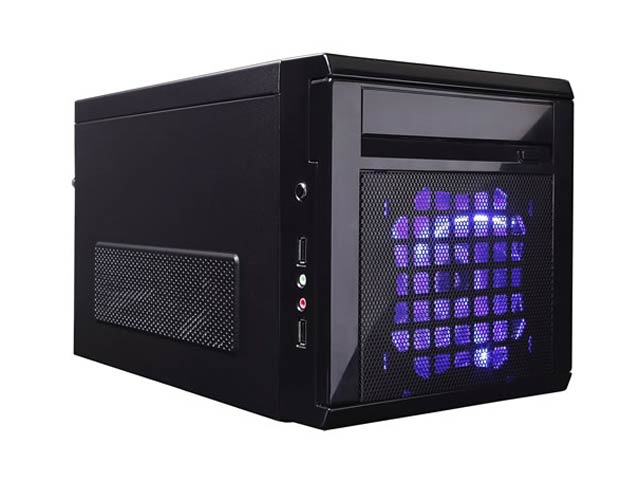

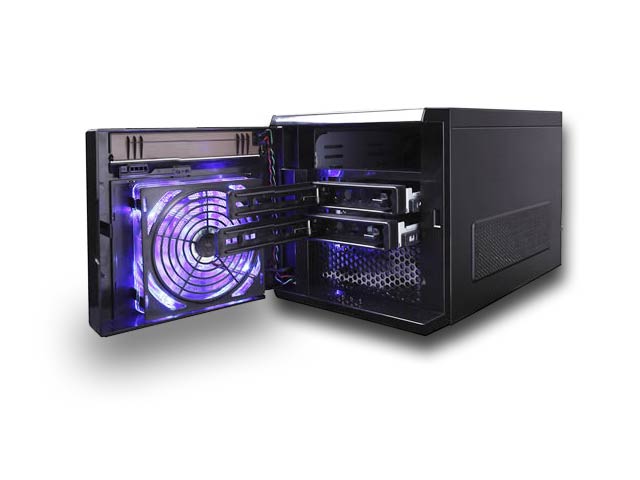

2-Bay NAS Chassis suitable for all Mini-ITX motherboards. Featuring brushed-steel effect panels and high-gloss front, this case provides 2x hot-swap 3.5in SATA drive bays. One full-height PCI or PCI-Express slot is also available.

Bays: 2x 3.5in Hot-Swap Caddies; 1x 5.25in Optical Drive Bay; 1x Internal 3.5in/2.5in HDD/SSD Bay. 1x PCI or PCI-Express card.

Cooling: 120mm Illuminated (Blue) Front Fan, 1x 80mm Rear Fan.

Side Panel Controls: 2x USB; 1x Power Button; Power and Storage LEDs; 1x Headphone; 1x Microphone.

Power supply: Internal 300W ATX PSU with 80mm cooling fan. UK power cord provided as standard. Power connectors: 1x 20/24pin ATX; 2x 12V P4; 1x 6pin PCI-Express 12V; 2x Molex HDD; 4x SATA Power.

Measurements: 200mm (W) x 210mm (H) x 345mm (D) (7.9in x 8.27in x 13.58in).
Volume: 14.49 litres

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Intel Socket Mini-ITX boards with standard retail heatsinks, or AMD Socket Mini-ITX boards with low profile heatsinks.

Full case comparison chart

Versatile and stylish case with 2 removable 3.5in drive bays and 1 internal 2.5in bay. Suitable for a Home Server or NAS Chassis - Universal 110-240V Operation.

Metallic black coating. ABS-HB plastic front panel. Removable motherboard carrier for excellent thermal performance and ease of cabling. 70mm fans on rear and 60mm fan on front. Kensington lock supported.

Bays: 2x removable 3.5in SATA/SATA II Hard Drive bays (SAS/SATAII compatible, cold swappable); 1x 2.5in SSD/HDD bay.

Front Panel: Power, Reset switches; 8x LEDs (Power, Boot, LAN, 5x HDD Activity); 2x USB 2.0.

Power supply: 150W Universal 110/240V Flex ATX PSU (FSP150-50LE), US Power Cord.

Measurements: 260(H) x 140(W) x 260(D) (10.2 x 5.5 x 10.2in)
Volume: 9.46 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1155/1156 boards with standard Intel heatsinks, or AMD Socket boards with low profile heatsinks).

Recommended software: Openfiler or Windows Home Server.

Full case comparison chart

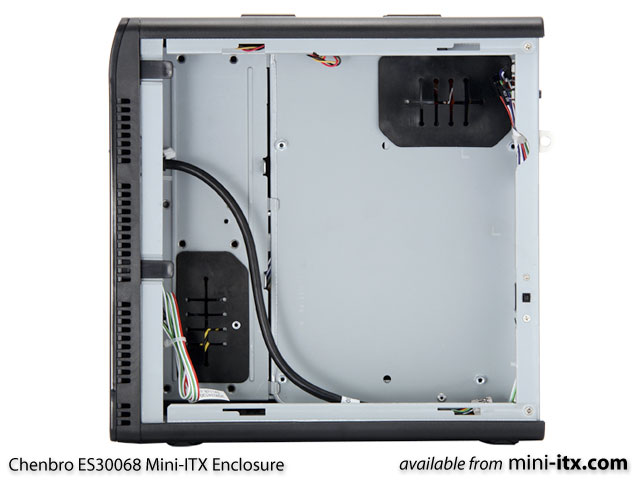

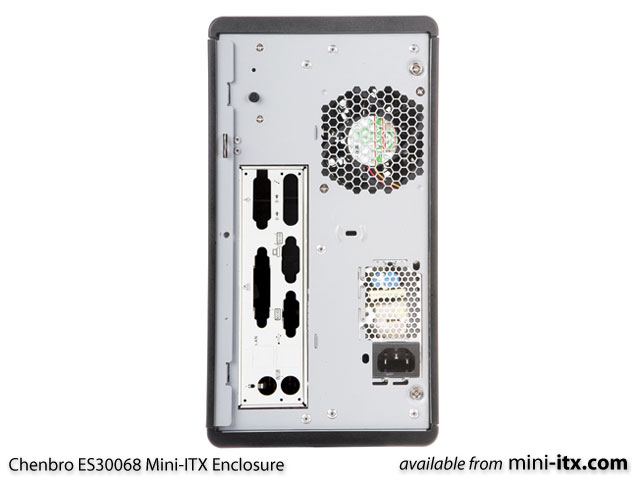

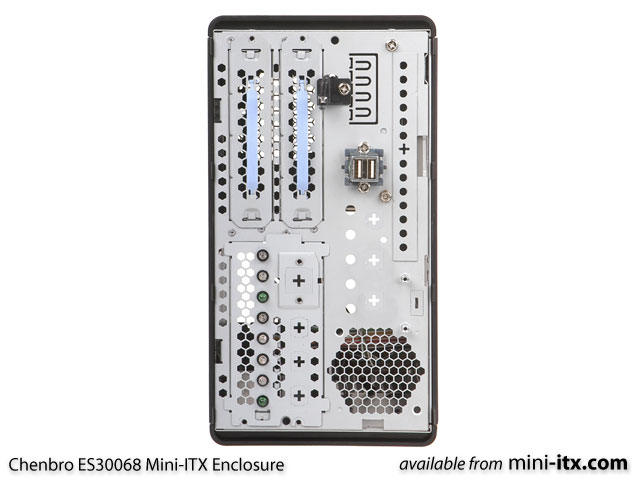

Versatile and stylish case with 2 removable 3.5in drive bays and 1 internal 2.5in bay. Suitable for a Home Server or NAS Chassis - Universal 110-240V Operation.

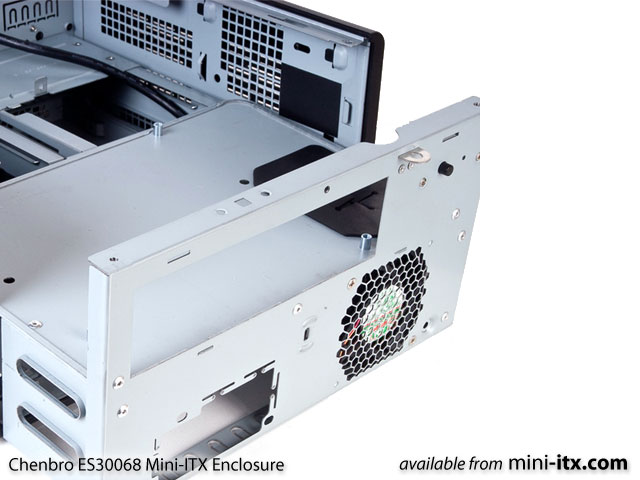

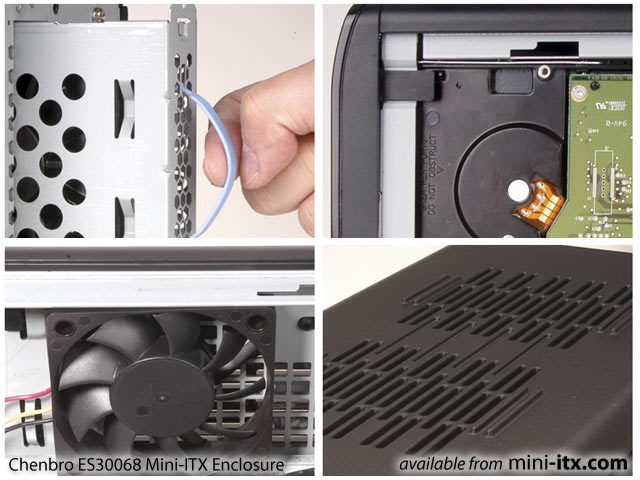

Metallic black coating. ABS-HB plastic sliding front panel. Removable motherboard carrier for excellent thermal performance and ease of cabling. 70mm fans on rear and 60mm fan on front. Kensington lock supported.

Drive Bays: 2x removable 3.5in SATA/SATA II Hard Drive bays (SAS/SATAII compatible, hot swappable - if supported by motherboard); 1x 2.5in SSD/HDD bay.

Front Panel: Power, Reset switches; 8x LEDs (Power, Boot, LAN, 5x HDD Activity); 2x USB 2.0.

Power supply: 150W Universal 110/240V Flex ATX PSU (FSP150-50LE), US Power Cord.

Measurements: 260(H) x 140(W) x 260(D) (10.2 x 5.5 x 10.2in)
Volume: 9.46 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1155/1156 boards with standard Intel heatsinks, or AMD Socket boards with low profile heatsinks).

Recommended software: Openfiler or Windows Home Server.

Full case comparison chart

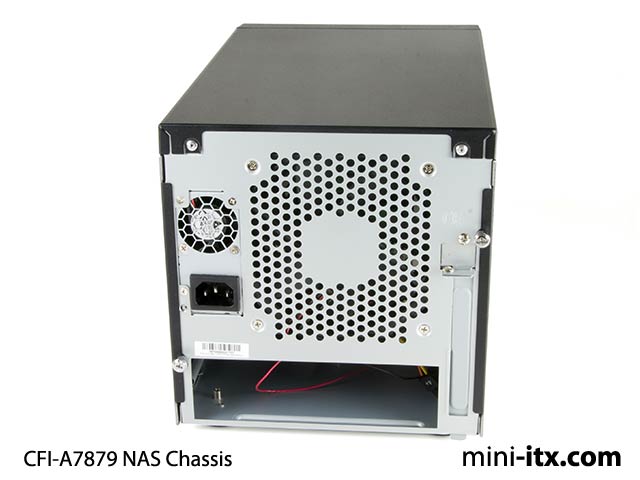

This solidly constructed steel chassis has 4 individually lockable hot-swap/removable drive bays suitable for either 2.5in or 3.5in hard drives. A further 2.5" bay is available internally. Full height PCI/PCI-Express cards are supported.

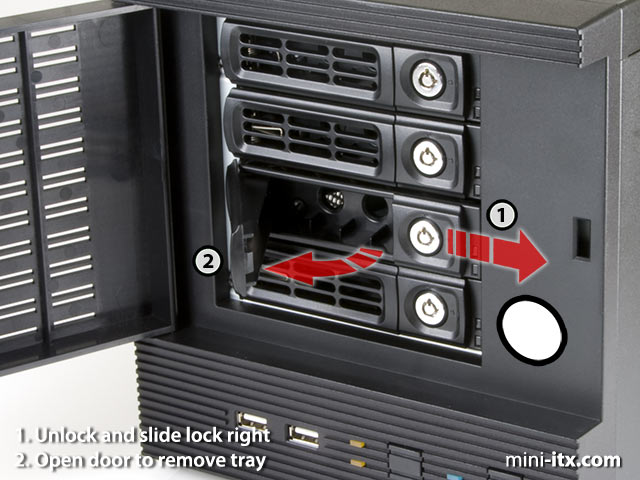

Bays: 4x 2.5/3.5in SATA HDD/SDD in Lockable Hot-Swap/Removable Caddies; 1x Internal 2.5in drive bay.

Cooling: 1x 120mm Rear Fan.

Front Panel: 2x USB Sockets; Power Button; Reset Button; Power and Storage Activity LEDs; Each Drive Caddy has Power and Activity Indicators.

Power supply: Internal 200 Watt AC Adapter with quiet 40mm Fan. UK power cord provided as standard. Power connectors: 1x 20/24pin ATX; 1x 12v P4; 2x Molex (to power 4x drive bays); 1x SATA Power.

Measurements: 200mm (W) x 250mm (H) x 298mm (D) (7.9in x 9.84in x 11.73in).
Volume: 14.9 litres

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with *low profile* heatsinks fitted (e.g. Intel boards fitted with the Akasa 7106HP low profile heatsink).

Full case comparison chart

Versatile and stylish case with 4 removable drive bays, and 2 internal bays. Suitable for a Home Server or NAS Chassis - Universal 110-240V Operation.

Silver-grey powder coating. Removable motherboard carrier for excellent thermal performance and easy cabling. External AC Adapter to reduce noise. 2x 70mm fans on rear with room for additional 60mm fan on front. Kensington lock supported. Hinged lockable ABS-HB plastic front panel with keys.

Drive Bays:

• 4x Removable 3.5in SATA HDD bays (SAS/SATAII compatible, can be hot swappable)
• 1x 2.5in SATA/IDE HDD bay. If using IDE HDD, a 2.5in to 3.5in IDE cable will be required.
• 1x Slimline Optical Drive bay. Slimline IDE Adapter included, Mini SATA cable required for SATA drives.

Front Panel: Power, Mute, Reset switches; 5x LEDs (PWR, HDD, LAN1, LAN2, FAULT); 2x USB 2.0; Space for IR Receiver. Note: Standard front panel does not include 'Chenbro' badge.

Power supply: External 120W Universal 110/240V 19V AC adapter and internal 180W DC converter, ATX wiring loom with ATX, 12V P4 and connectors for all drive bays.

Measurements: 260(H) x 140(W) x 260(D) (10.2 x 5.5 x 10.2in)
Volume: 9.46 litres.

Socket motherboard compatibility: We recommend fitting a maximum 73W TDP CPU on a socket motherboard with the Chenbro ES34069 120W chassis. Modern Intel CPU heatinks will fit in the ES34069.

Recommended boards: almost all Mini-ITX boards will fit in the ES34069 chassis, but the 4-6 drive bays are better suited to boards with 4+ SATA ports. IDE connectors can also be useful for additional drive support.

Recommended boards (1): Powerful - The Gigabyte GA-H67N-USB3-B3, Intel DH67CFB3 and Intel DQ67EP are Socket 1155 boards with on-board RAID, 4x SATA connectors and a wide selection of graphic outputs and board features. The DQ67EP has the advantage of remote management functionality. Combine with up to a 65W TDP CPU for an extremely powerful Core i3/i5 machine.

Recommended board (2): Low Power Consumption, 4x SATA and up to 4x LAN - The Dual Core Jetway Atom JNC9C-550 has 4x SATA connectors and can support 4x LAN with an additional daughterboard.

Recommended board (3): Low Power Consumption, 6x SATA and up to 5x LAN - The Dual Core Jetway Atom JNF99-525 has 6x SATA connectors and 2x LAN as standard, and can support 5x LAN with an additional daughterboard.

Recommended board (4): Low Power Consumption, Great Value - The Gigabyte GA-D525TUD has a 1.8GHz Atom D525 processor, 4x SATA and 1x IDE connectors, and is keenly priced.

Recommended board (5): Low Power Consumption, Powerful Graphics - The Zotac E350-A-E has 4x SATA and powerful AMD Fusion graphics.

Slimline optical drives and RAM height: Some boards require ULP (ultra low profile) RAM under 30mm high in one/both of their DIMM slots if a slimline optical drive is used. These boards include: EPIA SN (1 slot), Jetway J7F2, J7F5M, Intel DG45FC. Boards with very large/wide heatsinks may not support slimline optical drives (e.g. EPIA EN, some larger AMD heatsinks).

Recommended software: Openfiler or Windows Home Server.

User Manual

Full case comparison chart

High quality Aluminimum Mini-ITX NAS chassis suitable for all Mini-ITX motherboards. Supports up to 7 hard drives and a PCI or PCI Express card.

Bays: 6x Internal 3.5in Hard Drive Silicone Mounted Bays in a Removable HDD cage; 1x 2.5in HDD/SSD Bay; 1x PCI or PCI Express (Low Profile/Half Height, up to 140mm long - 2 slots available on Mini-DTX boards).

Cooling: Silent, temperature controlled 140mm fan (9 dB, 600 RPM) with washable filter.

Front Panel: Power Switch with LED.

Power supply: Quiet 80 PLUS rated SFX 300W PSU. Euro power cord provided as standard. Power connectors: 20/24pin ATX; 1x 4pin 12V P4; 1x Molex; 7x SATA.

Measurements: 200(H) x 250(W) x 350(D) (7.8 x 9.8 x 13.8in)
Volume: 17.5 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Intel Socket Mini-ITX boards with standard retail heatsinks, or AMD Socket Mini-ITX boards with low profile heatsinks. Maximum height available for socket board coolers: approx 90mm.

Recommended boards: Boards with at least 6x SATA, e.g. Zotac H55 or Jetway JNC92-330 with SATA daughterboard. Or use another Mini-ITX board combined with a PCI or PCI Express internal SATA card.
