Built from lightweight construction, the C294 chassis is wall-mountable and compatible with our optional VESA-mount kit. The chassis features great ventilation and is manufactured from aluminium alloy to further aid system cooling. The C294 chassis features an integrated 60W power supply suitable for Atom and Fusion boards. The simple, featureless front panel gives this chassis a rugged industrial look.

Bays: 1x 2.5in HDD/SSD bay.

Cooling: Integrated 40mm Internal Cooling fan.

Front Panel: No Controls or Indicators.

Rear Panel: 12V power Inlet, Power Button and Power Indicator LED.

Power supply: 110-240V Universal 60W AC Adapter and UK power cord. 80W Integrated DC-DC Converter.

Internal Power Connectors: 20-Pin ATX Power Connector, 12V P4 Connector, 1x SATA Power, 1x Molex, 1x Floppy Power.

Measurements (Body): 196.8mm (W) x 63.8mm (H) x 193.3mm (D) (7.75in x 2.51in x 7.61in). Volume: 2.43 litres

Measurements (Including Mounting): 228mm (W) x 63.8mm (H) x 193.3 mm (D) (8.98in x 2.51in x 7.61in). Volume: 2.81 litres

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Full case comparison chart

The M350 Universal Mini-ITX Enclosure measures just 62 x 192 x 210mm (2.5 litres) and is capable of housing both embedded and socket Mini-ITX boards. Fanless operation possible using natural air convection through hundreds of tiny holes for CPUs with TDP < 10W; CPU Fan only operation possible for CPUs with TDP <= 65W.

Full Product Page

Provided without a power supply. Many plug in DC-DC PSUs and AC Adapters are available, or use with a motherboard with embedded DC PSU (e.g. Zotac ION-ITX-A)

Drive Bays: Up to 2x 2.5in HDD or SSD.

Many additional accessories available including:

• 2nd HDD drive plate
• Wall mounting bracket
• VESA mounting screws
• VESA/Wall mounting bracket
• DIN mounting kit
• Many power supply options

Measurements: 62(H) x 192(W) x 210(D) (2.7 x 7.6 x 8.3in)
Volume: 2.5 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors or DC input, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with <30mm 1U heatsinks (with suitable heatsink and power supply, usually the pico-PSU-150-XT).

Full Product Page

Full case comparison chart

Now available in Silver!

All the same features as the original Black version, in a delightful Silver finish.

Full Product Page

Built from lightweight construction, the C293 chassis has optional VESA and wall-mounting options. This chassis features great ventilation and is manufactured from aluminium alloy to further aid system cooling. The C293 chassis features an integrated 60 Watt power supply suitable for Atom and Fusion boards.

Bays: 1x 2.5in HDD/SSD bay.

Cooling: Integrated 60mm Internal Cooling fan. An extra slim 60mm fan can be installed internally.

Front Panel: Single Power Button and Power Indicator LED.

Rear Panel: 2x USB ports with, 2x DB9 blanking holes (compatible with COM header to RS232 cables), 12V power inlet, Antenna cutoff hole.

Power supply: 110-240V Universal 60W AC Adapter and UK power cord. 80W Integrated DC-DC Converter.

Internal Power Connectors: 20/24pin ATX Power Connector, 12V P4 Connector, 1x SATA Power, 1x Molex, 1x Floppy Power.

Measurements: 232.4mm (W) x 56.8mm (H) x 191.2mm (D) (9.15in x 2.24in x 7.53in). Volume: 2.52 litres

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Full case comparison chart

Thin Client style case suitable for wide variety of Embedded Mini-ITX boards constructed from steel and aluminimum frame with a black and silver plastic shell.

Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.

Accessories included: Black plastic case stand.

Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.

Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board. Power connectors provided for 20pin ATX; 4pin 12V; SATA; Molex HDD.

Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D2700DC, D2700MUD, D425KT, D525MW, D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION; Fusion Boards; VIA EPIA Boards.

Boards not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.

Notes: Case includes larger venting panels than the original Thin Client case to assist fanless operation - any CPU fans attached to boards are still required however. SATA and 12V power connectors added from 20th July 2009.

Cooling: Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. If considering pairing this chassis with a fanless board please read our motherboard notes - a fan may be required.

Full case comparison chart

Thin Client style case suitable for wide variety of Embedded Mini-ITX boards constructed from steel and aluminimum frame with a black and silver plastic shell.

Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.

Accessories included: Black plastic case stand.

Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.

Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board. Power connectors provided for 20pin ATX; 4pin 12V; SATA; Molex HDD.

Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D2700DC, D2700MUD, D425KT, D525MW, D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION; Fusion Boards; VIA EPIA Boards.

Boards not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.

Notes: Case includes larger venting panels than the original Thin Client case to assist fanless operation - any CPU fans attached to boards are still required however. SATA and 12V power connectors added from 20th July 2009.

Cooling: Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. If considering pairing this chassis with a fanless board please read our motherboard notes - a fan may be required.

Full case comparison chart

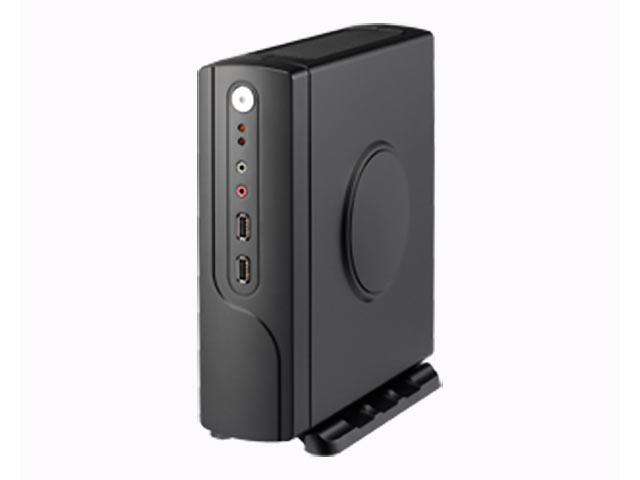

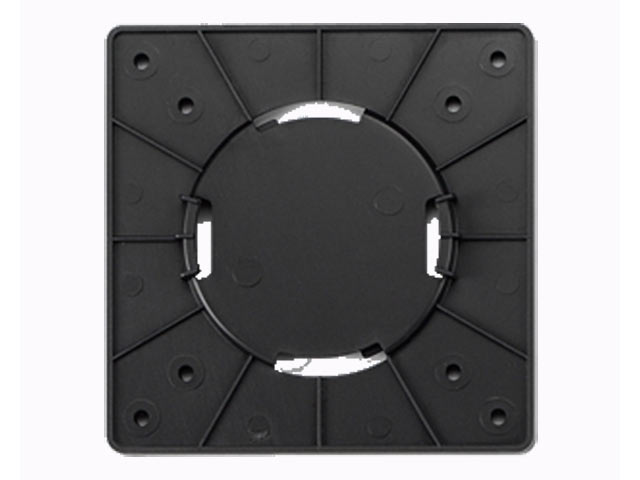

Thin Client style case with VESA mount suitable for wide variety of Embedded Mini-ITX boards constructed from steel and aluminimum frame with a black and silver plastic shell.

Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.

Accessories included: Black plastic case stand.

Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.

Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board. Power connectors provided for 20pin ATX; 4pin 12V; SATA; Molex HDD.

Measurements: 64(H) x 233(W) x 207.5(D) (2.5 x 9.2 x 8.2in)
Volume: 3.09 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D2700DC, D2700MUD, D425KT, D525MW, D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION; Fusion Boards; VIA EPIA Boards.

Boards not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.

Notes: Case includes larger venting panels than the original Thin Client case to assist fanless operation - any CPU fans attached to boards are still required however.

Cooling: Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. If considering pairing this chassis with a fanless board please read our motherboard notes - a fan may be required.

Full case comparison chart

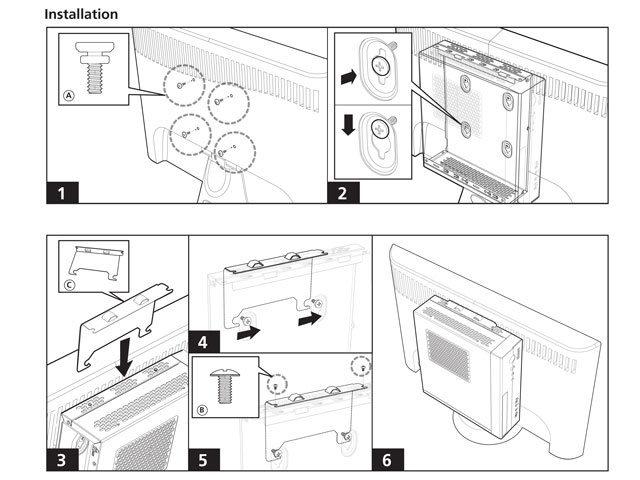

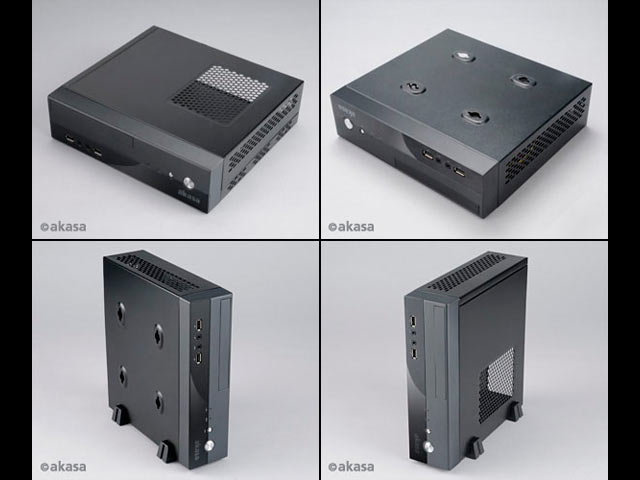

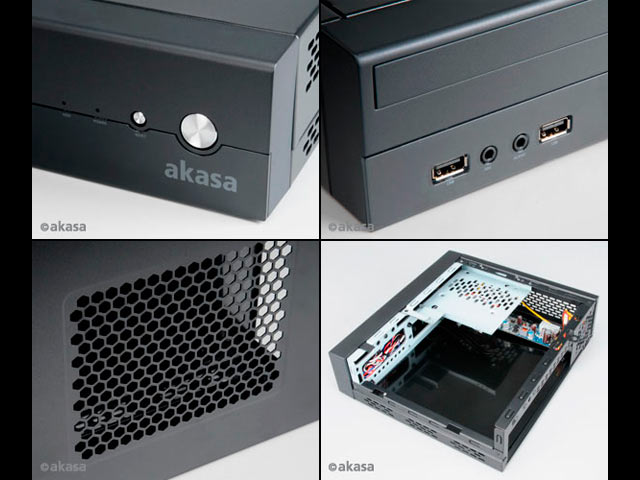

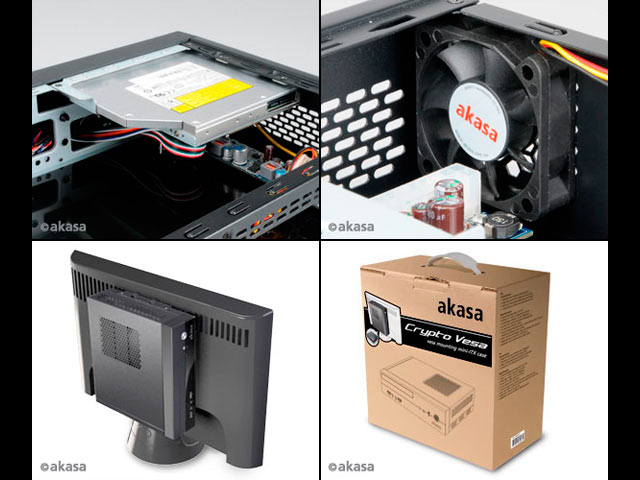

Compact case with optical drive support and 100mm x 100mm VESA mount, suitable for all embedded Mini-ITX motherboards. Constructed from a steel frame with ABS front panel.

Front Panel: 2x USB 2.0, Mic-In, Audio-Out, Power button.

Drive Bays: 1x 2.5in HDD/SSD drive bay; Slimline Optical Drive bay.

Measurements: 245(W) x 227(D) x 68(H)mm (9.65 x 8.94 x 2.68 in). Volume 3.78 Litres.

Power Supply and Cables: 60W External Universal 110-240V AC Adapter and UK Plug, Internal DC power board; Power Connectors Provided for 20pin ATX, 4pin P4 12V, SATA Power, Molex HDD, Floppy Power. Mini-SATA Cable Provided for SATA Slimline Optical Drive.

Cooling: Supplied with a very quiet 4000 RPM 50x50x15mm fan.

Included Accessories: Vertical Stand, 100mm x 100mm VESA Mount, Mini-SATA Cable, 60 Watt 12V AC Adapter, UK Power Cord, Screws.

Supported Boards: All Embedded Mini-ITX boards with ATX power connectors and standard/tall heatsinks e.g. Intel D425KT, D525MW, Jetway C7 & Atom; Most ION and Fusion Mini-ITX boards; VIA EPIA boards etc.

Not Supported: Socket Mini-ITX boards (due to size of power supply).

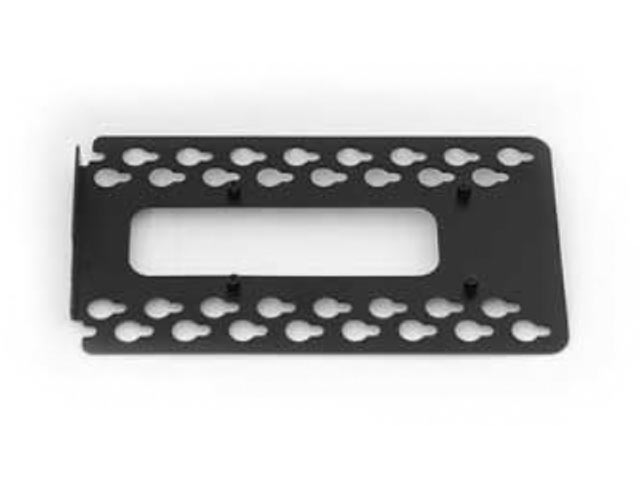

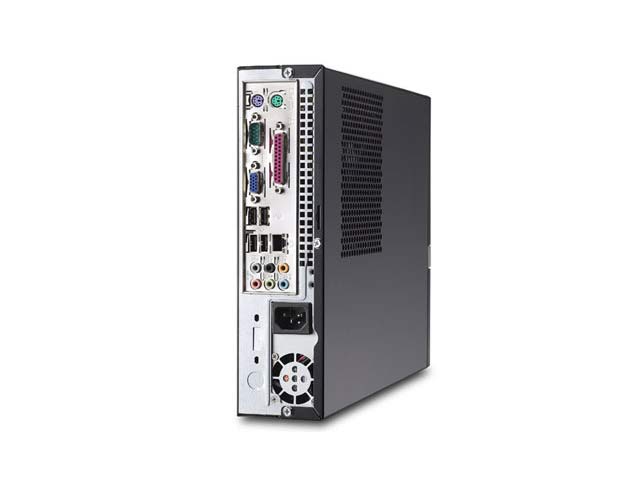

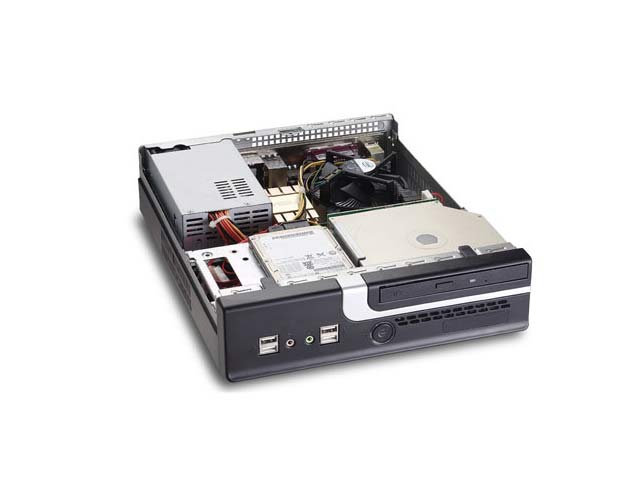

High quality Mini-ITX enclosure with flexible drive bay support and built in VESA mount. Internal 180W AC power supply capable of powering all Mini-ITX boards. Strong steel construction with solid plastic front panel.

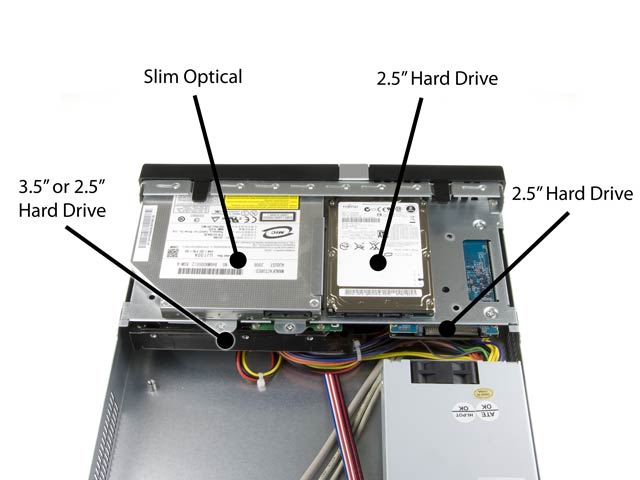

Drive Bays: Supports 3x 2.5in HDD/SSD (or 2x 2.5in HDD/SSD and 1x 3.5in HDD) and 1x Slimline Optical Drive

VESA Mount: Strong black painted metal VESA mount on top of case supports many sizes up to 100mm x 200mm including 75mm x 75mm; 100mm x 100mm; 100mm x 200mm.

Front Panel: Illuminated Power Switch with Blue LED; 2x USB 2.0; 2x 3.5mm Front Audio; Slimline Optical Drive Slot with Blanking Plate.

Power Supply and Cooling: Internal 180W Universal 110/240V Flex-ATX PSU. Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD), SATA Power and Floppy (slimline optical drive). A 60mm fan can optionally be fitted on the right side of the case if board component positioning allows - not required in 99% of situations.

Slimline Optical Drives: You will require an adapter or cable to connect your slimline optical drive.

Measurements: 69(H) x 318(W) x 260(D) (2.7 x 12.5 x 10.2in)
Volume: 5.7 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1155/1156 boards with standard Intel heatsinks, or AMD Socket boards with low profile heatsinks). Note: Front USB cable not long enough to reach USB connector on Zotac-H55-ITX board.

Building Tip: Remove the Power Supply, Front Panel and Drive Tray to install your motherboard and drives.

Full case comparison chart

The NU-057WI Wall/VESA Chassis has an industrial style and is wholly constructed from steel.

Wall/VESA Mounting: Wall Mount Kit included and VESA Holes provided.

Drive Bays: 1 x 2.5in HDD, 1 x Slimline Optical (slimline adapter or cable required).

Front Panel: 4x USB 2.0, Power Button and LED.

Power Supply: 220W Internal AC Adapter Included.

Measurements: 65(H) x 265(W) x 230(D) (2.6 x 10.4 x 9 in). Volume 3.96 litres.

Accessories Included: Screw Pack, VESA Mounting Plate, Wall Mounting Rails.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1155/1156 boards with standard Intel heatsinks, or AMD Socket boards with low profile heatsinks)
