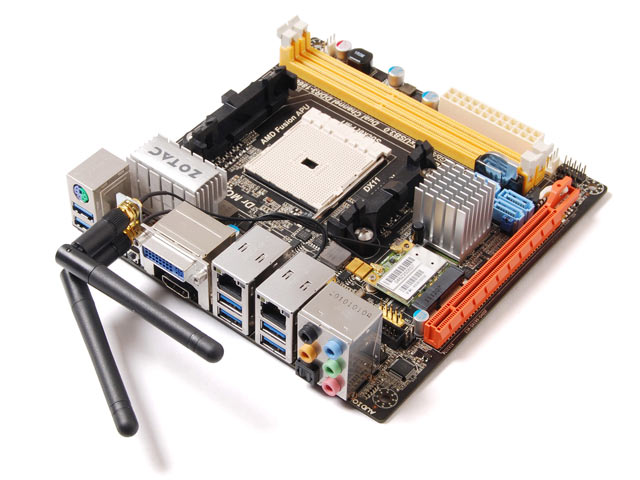

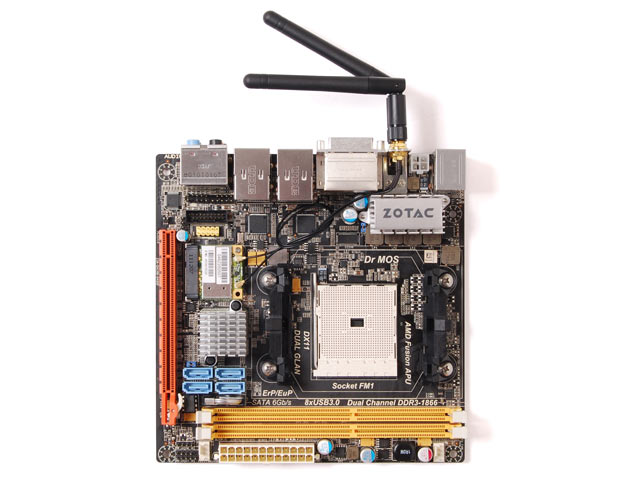

Zotac A75-ITX-A-E WiFi Mini-ITX board supporting AMD Socket FM1 APUs with integrated AMD Radeon HD 6000 series graphics processors; 7.1-channel Audio; Up to 8GB of DDR3 1333-1866MHz RAM; 2x Gigabit LAN; 4x SATA 6Gb/s ports with RAID 0, 1, 0+1; DVI & HDMI graphics outputs; S/PDIF Optical output; 8x USB 3.0 (inc 2 internal); 2x USB 2.0 on internal header, Bluetooth 3.0, 802.11n/g/b (300 Mb/s) WiFi and 2x Antenna.

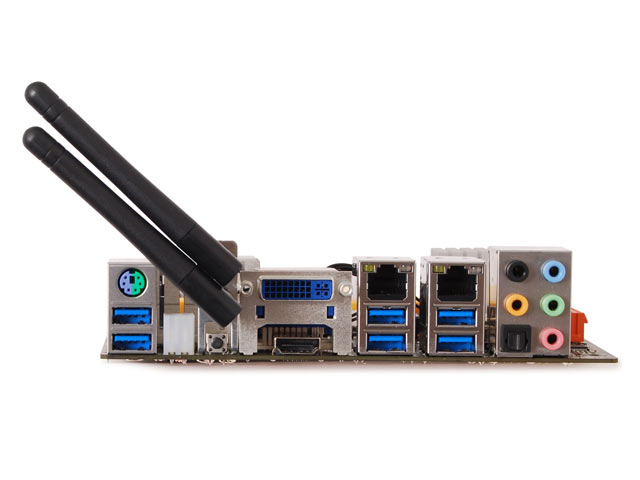

Rear Panel Connectors: PS/2 Mouse/Keyboard port; 6x USB 3.0; 2x Wifi Antenna Connectors (Antennas provided); Clear CMOS Switch; DVI-I; HDMI; 2x Gigabit LAN; 5x 3.5mm audio jacks; Optical S/PDIF Out.

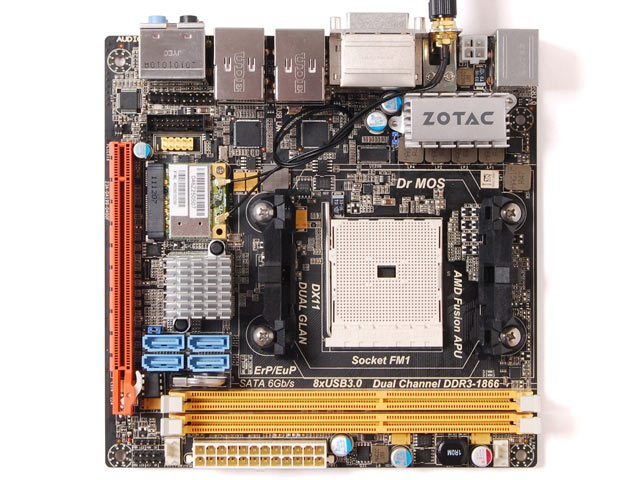

Board connectors: 1x FM1 ZIF Socket; 1x PCI-Express 2.0 x16 port; 4x SATA 6Gb/s; 1x USB 3.0 Header supporting 2 additional ports, 1x USB 2.0 Header supporting 2 additional ports; 2x DDR3 1333-1866 DIMM sockets; 1x COM Header; 1x Mini-PCI-Express x1 socket (populated with WiFi card); 1x 20/24 Pin ATX Power Connector; 1x 12v P4 Connector; 1x Front Panel Audio Header; 1x S/PDIF header; 1x CPU fan header; 1x System fan header.

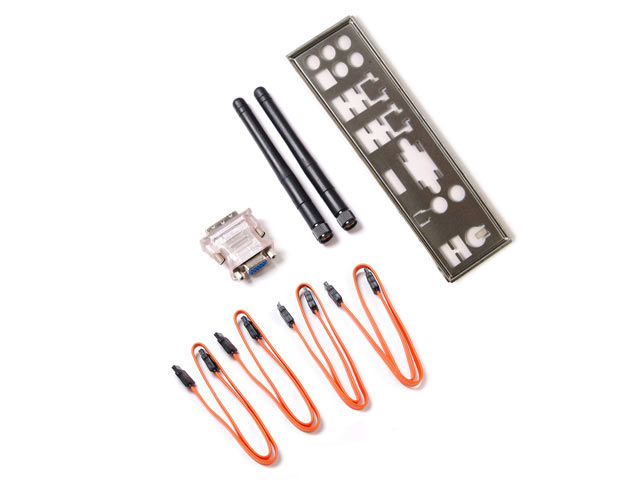

Package Contents: 3x SATA cables; 1x DVI-to-VGA adapter; 1x I/O back plate; 2x WiFi antennas.

Suitable Processors: The Zotac A75-ITX-A-E WiFi is *not* provided with a processor. At product launch, this desktop board supports up to 100W TDP AMD Socket FM1 processors. Suitable processors are available here

Suitable Cases: All our Mini-ITX chassis with at least a 120W power supply, and an appropriate low profile heatsink if necessary. If using a larger than 65W TDP processor, a larger power supply than 120W may be required.

Suitable Power Supplies: The picoPSU-160-XT & 192W AC Adapter or picoPSU-150-XT & 150W AC Adapter combinations are both suitable for this motherboard.
Power Supplies

Suitable Memory: The Zotac A75-ITX-A-E WiFi uses DDR3 DIMM memory. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 DIMMs are available here.
