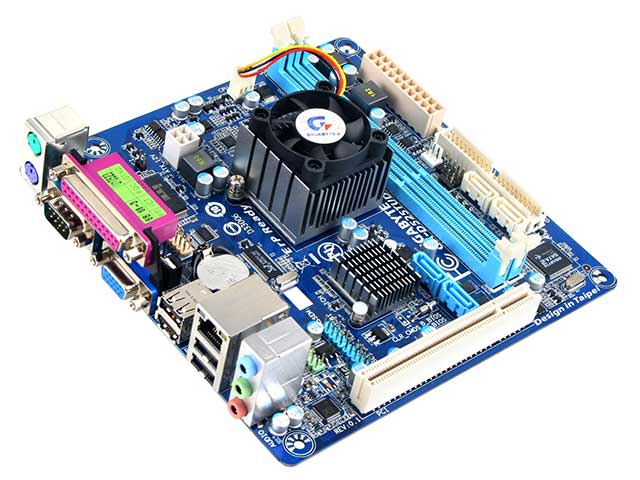

Gigabyte GA-D525TUD motherboard with integrated 1.8GHz Intel Atom D525 processor and Intel GMA 3150 video. Intel NM10 Express Platform Controller Hub Chipset. 4x SATA ports. Up to 4GB of DDR3 system memory. Realtek RTL8111E 1000Base-T Gigabit Ethernet and High Definition Realtek ALC888 Audio.

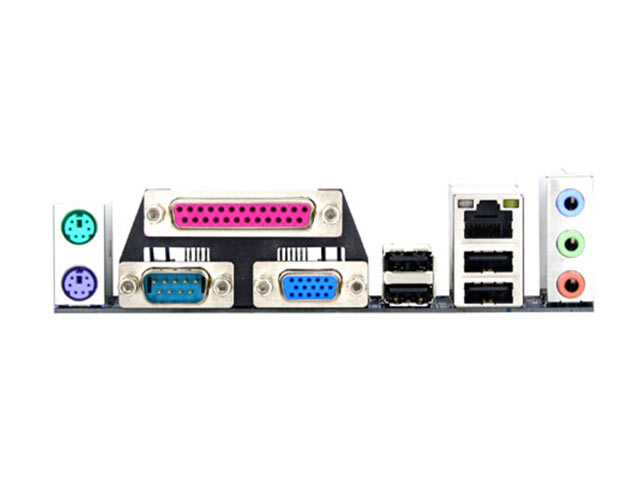

Rear Panel: PS2 mouse and keyboard, VGA, 4x USB ports, 1000 Base-T Ethernet, Serial (COM) Port, Parallel Port, 3.5mm Line in, Line out & Mic in connectors.

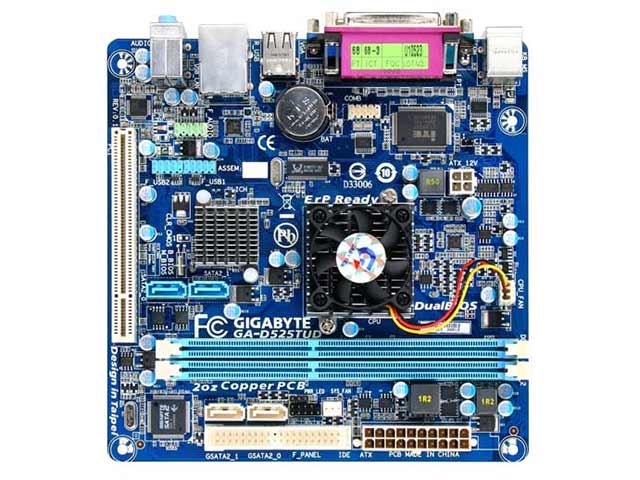

Board Connectors: 4x SATA 3Gbps; 1x 40pin IDE; 1x PCI; 1x Serial Port Header; 2x DDR3 DIMM Sockets; 1x 20pin ATX Power Connector; 1x 4pin 12V P4 Power Connector (must be connected); 2x Front Panel USB Headers for up to 4 additional USB 2.0 ports; 1x Chassis Fan Headers; Front Panel Header; Front Panel Audio header; 1x Chassis Intrusion Header.

RAID Functionality: The GSATA2_0 and GSATA2_1 ports (coloured white) support RAID0, RAID1 and JBOD functions with configurable stripe block size.

The GA-D525TUD sports several features that make it extremely durable: Solid Capacitors which are less prone to failure; Ultra Durable 2oz Copper PCB; 2 Physical BIOS ROMs for instant recovery from damage.

Gigabyte GA-D525TUD manufacturer's product and driver pages

Suitable cases: All Mini-ITX cases with a power supply will work. The 4x SATA and 1x IDE makes this a good choice for cases with 4x HDD bays (e.g. ES34069). The heatsink of the GA-D525TUD is at the upper end of standard height meaning 1U chassis are a tight fit (not suitable for the TE-1160 chassis).

Retail Unit complete with 1x SATA cable, product manual, 1x IDE cable, IDE cable, I/O Shield, driver and software CD-ROM.

Note: This board replaces the GA-D510UD, adding DDR3 support and a slightly faster processor.

Memory: The GA-D525TUD supports DDR3 memory running at 800MHz up to 4GB (using 2 x 2GB DIMMs). This is not physically or electrically compatible with DDR/DDR2 memory. Fully tested DDR3 DIMMs are available here.
