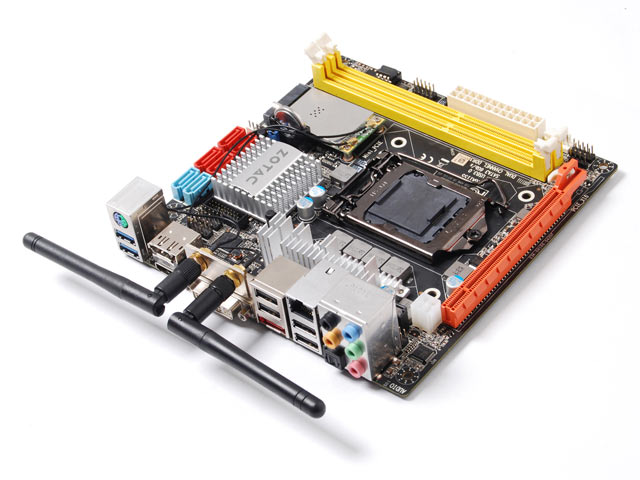

Zotac H67-ITX-C-E Mini-ITX board supporting Intel 2nd Gen Core FCLGA1155 processors with integrated Intel HD graphics and 7.1-channel Audio; Up to 16GB of DDR3 1066/1333MHz RAM; Gigabit LAN; 7 SATA ports: 1x eSATA, 2x SATA 6Gb/s and 4x SATA with RAID 0, 1, 0+1, 5; VGA, DVI, HDMI graphics outputs; S/PDIF Optical; 4x USB 3.0 (inc 2 internal); 8x USB 2.0 (inc 4 internal), 802.11n/g/b (300 Mb/s) WiFi and Antenna.

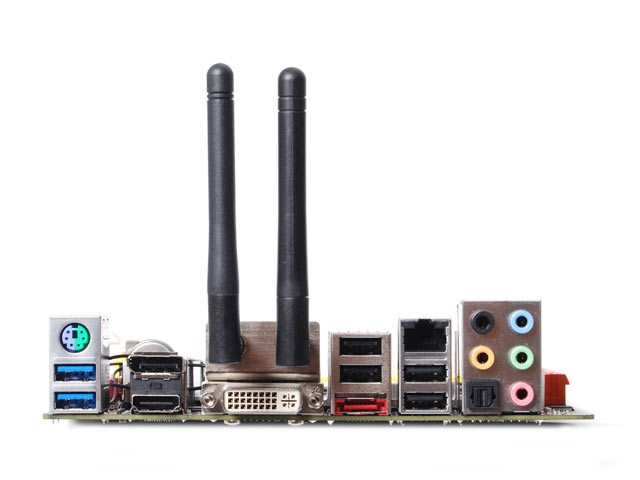

Rear Panel Connectors: 2x USB 3.0; Combined PS2 Mouse or Keyboard port; Displayport; HDMI 1.4a; 2x Wifi Antenna Connectors (Antenna provided); DVI-I with VGA adapter; 4x USB 2.0; 1x eSATA; Gigabit LAN; Optical S/PDIF Out; 5x 3.5mm audio jacks.

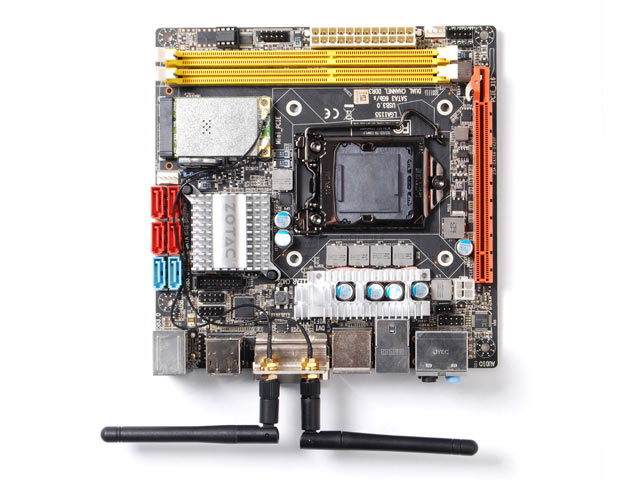

Board connectors: Processor core power connector (12V 4pin P4); 1x USB 3.0 header (for 2 ports); 2x USB 2.0 headers (for 4 ports); Clear CMOS Switch; SATA connectors: 2x 6Gb/s, 4x 3Gb/s with RAID; Main power connector (24pin ATX); Front panel header; Front panel audio header; 2x 240-pin DDR3 DIMM Sockets; Processor fan header; Mini-PCI Express slot (occupied by WiFi card); PCI Express x16 bus add-in card connector; System fan header; Front panel audio header; Battery.

Onboard RAID: The Zotac H67-ITX-C-E supports Intel Rapid Storage Technology which provides the following RAID levels via the Intel H67 Express Chipset: RAID 0 - data striping; RAID 1 - data mirroring; RAID 0+1 (or RAID 10) - data striping and mirroring; RAID 5 - distributed parity

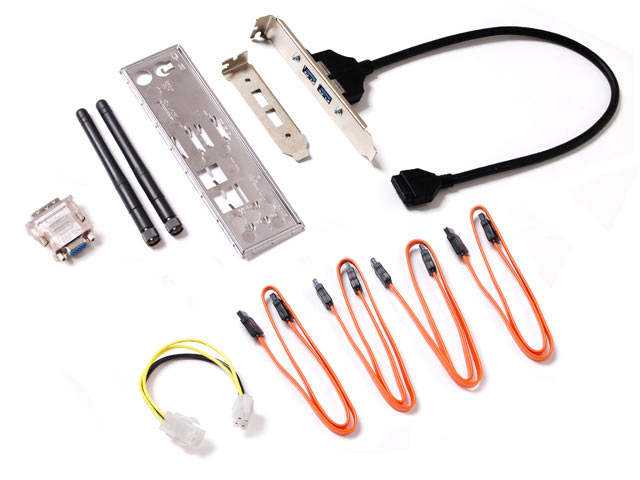

Package Contents: 4x SATA cables, 1x DVI-to-VGA adapter, 1x I/O back plate, 2x WiFi antennas, 1x 4-pin power extension cable, 1x USB 3.0 header (full-size bracket), 1x USB 3.0 low-profile bracket

Suitable Cases: All our Mini-ITX chassis with at least a 120W power supply, and an appropriate low profile heatsink if necessary. If using a larger than 65W TDP processor, a larger power supply than 120W may be required. Some suitable cases that will work with the H67-ITX-C-E with a standard Intel Socket 1155 heatsink: The ES32067, ES30068, ES34069, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05, Jou Jue NU-528i 220W and Jou Jue NU-568i 220W.

Suitable Processors: The Zotac H67-ITX-C-E is *not* provided with a processor. At product launch, this desktop board supports up to 130W TDP Intel i3, i5 and i7 2nd Gen Core processors. Zotac's tested processor list. Suitable processors are available here

Heatsinks: The standard heatsink provided with the CPU will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink. To use this board in a 1U case please use the Dynatron K2 1U Side blower heatsink.

Suitable Memory: The Zotac H67-ITX-C-E uses DDR3 memory. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 DIMMs are available here.
