Jetway JNF99-525 Long Life Fanless Dual Core Atom Mini-ITX Board with Dual LAN, 6x SATA and Daughterboard Expansion

Jetway JNF99 Dual LAN Fanless Expandable Mini-ITX Board
Long Lead Time

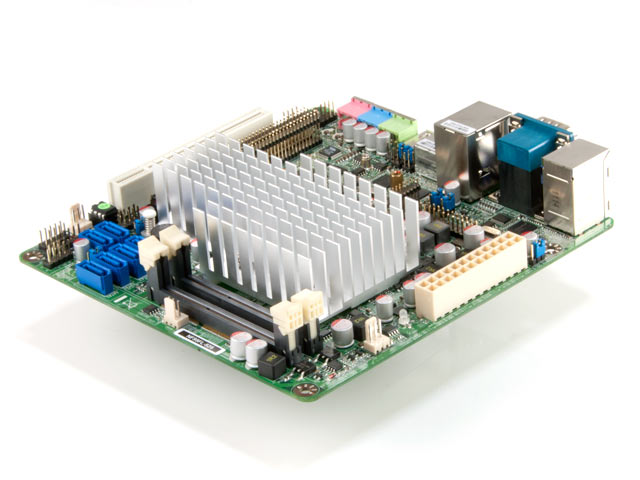

More images of the Jetway JNF99-525

You may also require:

2GB DDR3 1333 SODIMM for JNF99-525
£22.00
  £26.40 inc. VAT
Lead time usually 1-3 days

3x Gigabit LAN Daughterboard Module
£45.00
  £54.00 inc. VAT
Lead time usually 1-2 weeks

3x Gigabit LAN Daughterboard Module (Intel 82541PI chipset)
£55.00
  £66.00 inc. VAT
Lead time usually 1-2 weeks

JNF99 Backplate for C1/C2-RACK
£18.50
  £22.20 inc. VAT
Lead time usually 3-4 weeks

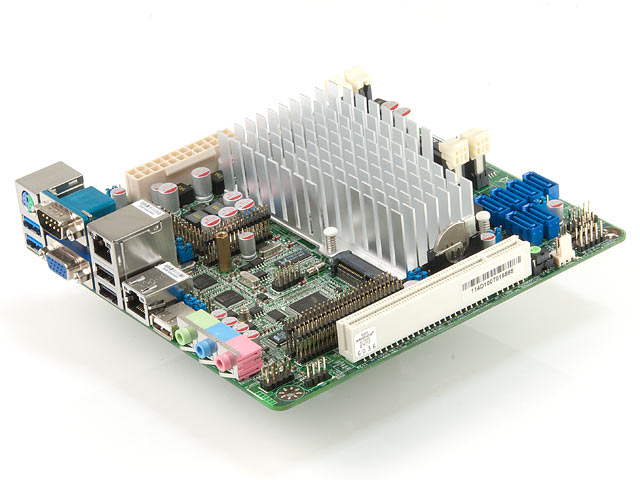

Extremely versatile Jetway JNF99-525-LF Dual Core 1.8GHz 64-bit Intel Atom D525 powered Mini-ITX motherboard with Fanless operation, Jetway Daughterboard Expansion, Intel ICH9R Chipset, Integrated Graphics and VIA VT1705 6-Channel Audio Codec. Supports up to 4GB of DDR3 1066/1333MHz SODIMM memory. Ports available include: 2x Intel 82574L 10/100/1000 Base-T Gigabit LAN, 6x SATA 3Gb/s (supporting RAID 0, 1, 5, 10 & JBOD), USB 3.0, PCI and Mini-PCI Express.

Long Life: Product availability forecasted at least to End 2014, provisionally to End 2016.

Jetway JNF99 Mini-ITX motherboards have a unique expansion module slot to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports and more are all available.

Expandable with a Jetway Daughterboard Module

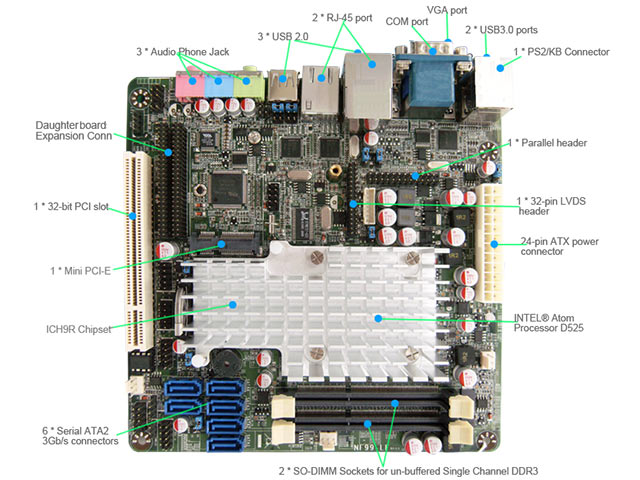

Rear Panel Connectors: 1x Combined PS/2 Keyboard or Mouse; 2x USB 3.0; 1x VGA Port; 1x Serial COM Port; 2x 10/100/1000 Intel 82574L Gigabit LAN; 3x USB 2.0 Ports; 3x 3.5mm Audio (Line-in; Mic-In; Stereo-Out).

Board connectors: 1x 24pin ATX Connector (works with 20pin or 24pin); 2x DDR3 SODIMM slots (2x 2GB max); 6x SATA 3Gb/s ports (with RAID 0, 1, 5, 10 & JBOD support); 3x 9pin USB Connectors for 6x additional USB 2.0 Ports; 1x RS422/RS485 COM (Serial) Header; 1x Parallel Header; 1x 32bit LVDS; 1x GPIO; 1x Audio; 1x Front-Panel Connector; 1x CPU Smart Fan; 1x DC Fan Connector.

Expansion: 1x 32-bit PCI slot; 1x Mini-PCI Express Slot; 1x 120pin Jetway Embedded PCI Daughterboard Expansion Slot.

Suitable cases & power supplies: The JNF99 has a standard sized heatsink and can be powered by 20pin and 24pin ATX power connectors. Compatible with all our picoPSUs and Mini-ITX cases.

Box contents: Motherboard, Manual, Driver CD, I/O shield, 6x SATA data cables, Serial port to pin header cable.

Operating/Storage: 0~60 centigrade operating temperature. -20~85 centigrade storage temperature.

Cooling: This board has no fan and will get quite warm under load. Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. We recommend always connecting any existing case fans, and strongly suggest adding a fan if using a fanless case with this board (such as the M350 or Thin Client cases).

Memory Note: The JNF99 uses DDR3 SODIMM memory. This is not compatible with other types of memory. Fully tested DDR3 SODIMMs are available here.

Don't see what you want here? Send us an email with as much information as possible, and we'll try and get it for you.
