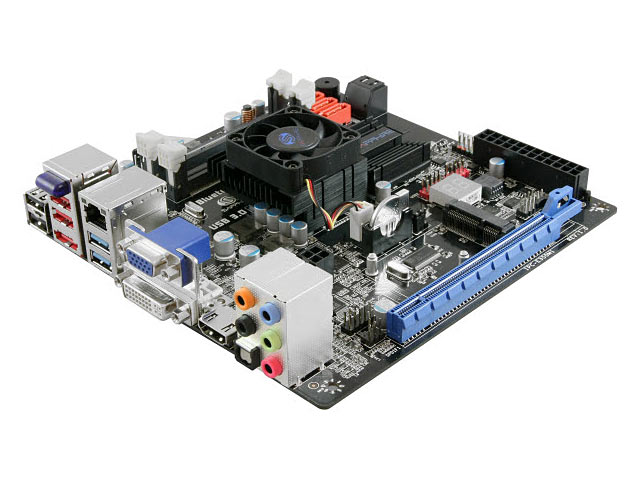

Sapphire Pure Fusion Mini E350 Motherboard with Dual-Core 1.6GHz AMD E-350 processor. Featuring integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD Hudson-M1 FCH (Fusion Controller Hub) chipset. Up to 8GB of system memory; Marvell 88E8057 Gigabit Ethernet; Realtek ALC892 High Definition 8 Channel Audio.

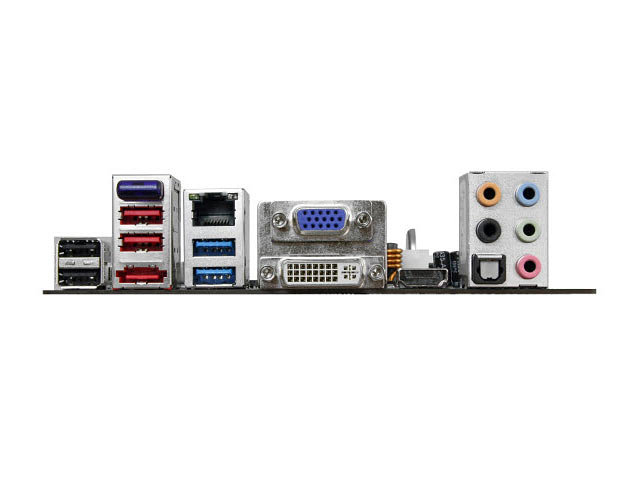

Rear Panel: 4x USB 2.0 ports; Bluetooth 2.1 + EDR (Atheros AR3011); 1x e-SATA; Gigabit Ethernet; 2x USB 3.0 ports; VGA; DVI (single link); HDMI; 5x 3.5mm audio connectors; Optical S/PDIF digital audio out.

Board Connectors: PCI Express x16 slot (x4 bandwidth); Mini-PCI Express 2.0 Slot; 4x USB 2.0 connectors on 2x 9pin headers; 2x DDR3 SODIMM 800/1066 sockets; 5x SATA 6Gb/s ports (3 vertical, 2 horizontal); 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 12v P4 connector (needs to be connected); 1x Front Panel Connector; 1x Serial Port Header; 1x S/PDIF In/Out Header; 1x 3pin System Fan Header; 1x 4pin PWM Processor Fan Header.

Case compatibility. The Pure Fusion Mini E350 has a standard height heatsink and low power requirements. A 20pin or 24pin ATX connector can be used but the 12V P4 connector must also be connected. Check individual case descriptions and add the Molex to P4 Power Cable option where necessary. All our Mini-ITX cases will fit the board including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU fitted with a 12V P4 output), Travla C146, T1200, C159, Thin Clients, Travla C158 (inc CD drive), Compact and Lockable Wall Mount Cases.

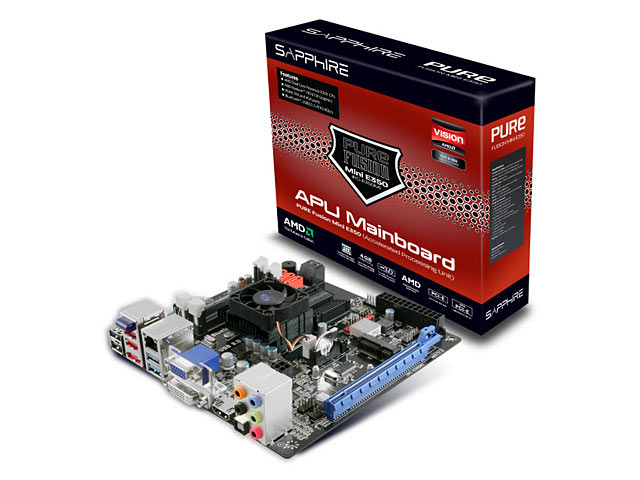

Box contents: Motherboard, Driver CD, 2x SATA cables, Product Guide, I/O Shield.

Memory: The Pure Fusion Mini E350 supports up to 8GB DDR3 memory on 2x DDR3 SODIMMS. This is not compatible with standard DDR2/DDR3 memory. Fully tested DDR3 SODIMMs are available here.
