Jetway JNC9C-550 Fanless Dual Core Atom Mini-ITX Board with Dual LAN, 4x SATA and Daughterboard Expansion

Jetway JNC9C Dual LAN Fanless Expandable Mini-ITX Board
Long Lead Time


More images of the Jetway JNC9C-550

You may also require:

2GB DDR3 1333 SODIMM for JNC9C-550*
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 11:03 BST)

3x Gigabit LAN Daughterboard Module
£29.00
  £34.80 inc. VAT
  IN STOCK (Checked 11:03 BST)

3x Gigabit LAN Daughterboard Module (Intel 82541PI chipset)
£45.00
  £54.00 inc. VAT
  IN STOCK (Checked 11:03 BST)

JNC9C Backplate for C1/C2-RACK
£10.00
  £12.00 inc. VAT
  IN STOCK (Checked 11:03 BST)



End of Life due to Intel's discontinuation of N550 CPU. Please consider JNC9C-455 or JNC9E-525

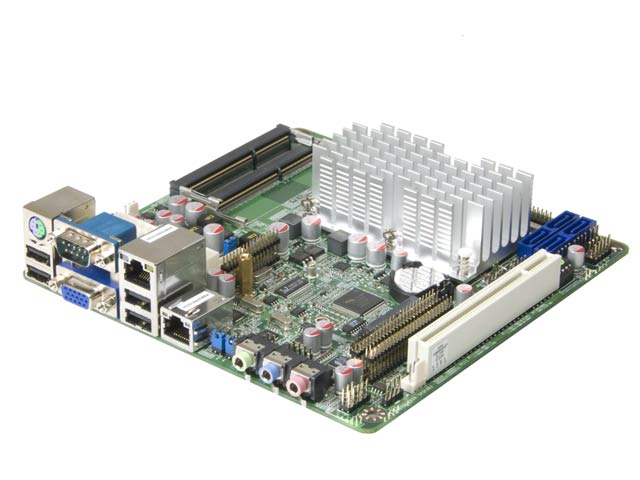

Extremely versatile Jetway JNC9C-550-LF Dual Core 1.5GHz 64-bit Intel Atom N550 powered Mini-ITX motherboard with Fanless operation, Jetway Daughterboard Expansion, Intel NM10 Express Chipset, Integrated Intel GMA3150 Graphics and Realtek ALC662 6-Channel Audio Codec. Supports up to 2GB of DDR3 1333MHz SODIMM memory. Ports available include: 2x Realtek 10/100/1000 Base-T Gigabit LAN, 4x SATA 3Gb/s (2 ports have RAID 0/1), 1x 44pin IDE.

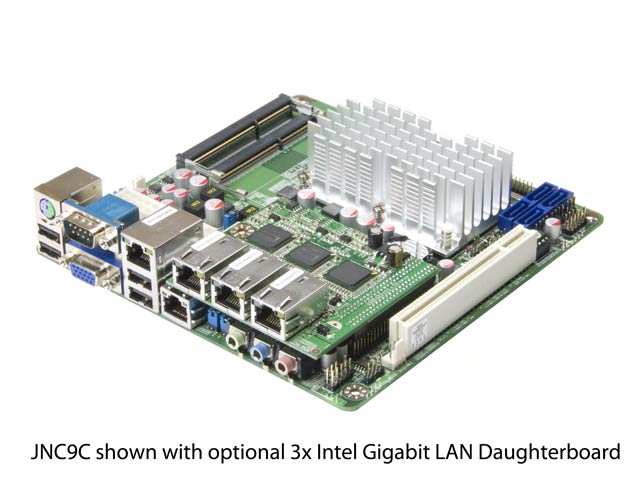

Jetway JNC9C Mini-ITX motherboards have a unique expansion module slot to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports and more are all available.

Expandable with a Jetway Daughterboard Module

JNC9C/JNC9E range differences: The JNC9C-455, JNC9C-550 and JNC9E-525 range are mechanically identical but with different CPUs. The low power consumption N455 CPU in the JNC9C-455 runs at about 60% of the speed of the N550 in the JNC9C-550. The N550 runs at 80% of the speed of the D525 in the JNC9E-525. The JNC9E-525 can additionally support 4GB RAM.

Rear Panel Connectors: 1x Combined PS/2 Keyboard or Mouse; 2x 10/100/1000 Realtek 8111E Gigabit LAN; 1x VGA Port; 1x Serial COM Port; 3x 3.5mm Audio (Line-in; Mic-In; Stereo-Out); 4x USB 2.0 Ports.

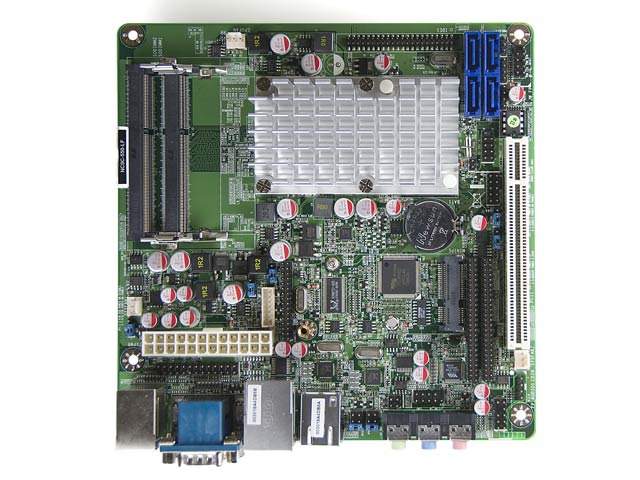

Board connectors: 1x 24pin ATX Connector (works with 20pin or 24pin); 2x DDR3 SODIMM slots (2GB max on the board); 4x SATA ports up to 3GB/s (2x Intel NM10 integrated SATA controller, 2x JMB363 SATA Controller with RAID 0,1 support); 1x 44pin IDE Connector; 2x 9pin USB Connectors for 4x USB 2.0 Ports; 1x RS232/RS422/RS485 COM (Serial) Header; 1x Parallel Header; 1x 18bit LVDS; 1x GPIO; 1x Front-Panel Connector; 1x CPU Smart Fan; 1x DC Fan Connector.

Expansion: 1x 32-bit PCI slot; 1x Mini-PCI Express Slot; 1x 120pin Jetway Embedded PCI Daughterboard Expansion Slot.

Graphics: Integrated Intel GMA3150 Graphic Engine with Core Frequency of 400MHz. DirectX 9.0c and OpenGL 1.4 compliant Hardware Pixel Shader 2.0. Supports VGA output resolution up to 2048 x 1536.

*Memory Configurations: The Jetway JNC9C board supports 2GB maximum across both slots: valid JNC9C DDR3 SODIMM configurations are 1GB + 0GB, 1GB + 1GB and 2GB + 0GB.

Suitable cases & power supplies: The JNC9C has a standard sized heatsink and can be powered by 20pin and 24pin ATX power connectors. Compatible with all our picoPSUs and Mini-ITX cases.

Box contents: Motherboard, I/O shield, SATA data cable, Serial port to pin header cable, 44pin to 44pin IDE cable.

Operating/Storage: 0~60 centigrade operating temperature. -20~85 centigrade storage temperature.

Cooling: This board has no fan and will get quite warm under load. Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. We recommend always connecting any existing case fans, and strongly suggest adding a fan if using a fanless case with this board (such as the M350 or Thin Client cases).

Memory Note: The JNC9C uses DDR3 SODIMM memory. This is not compatible with other types of memory. Fully tested DDR3 SODIMMs are available here.
