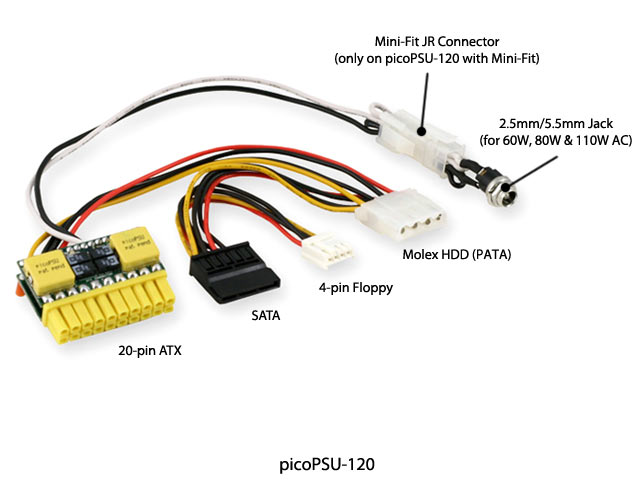

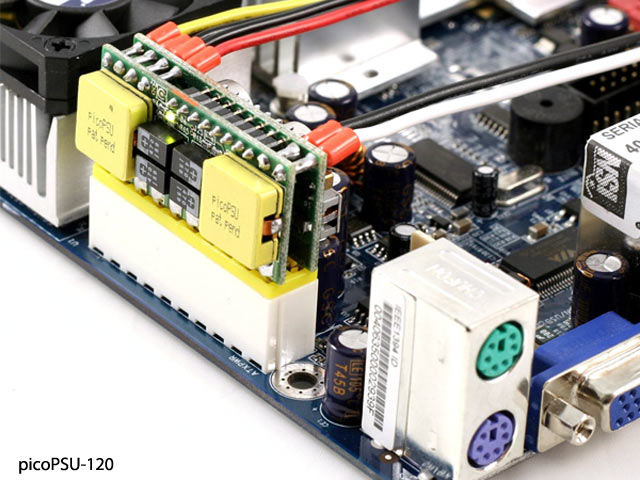

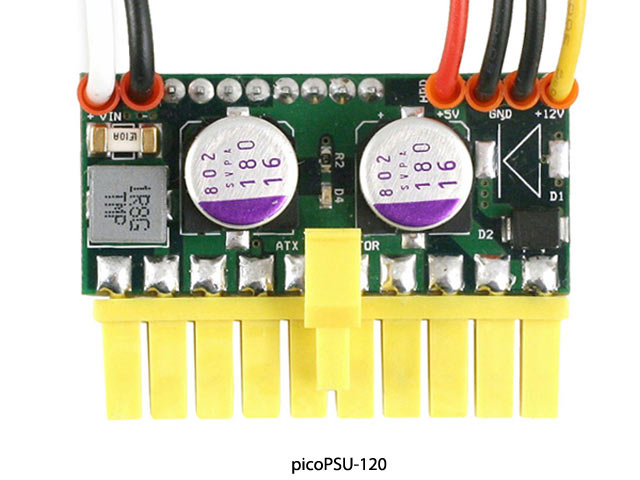

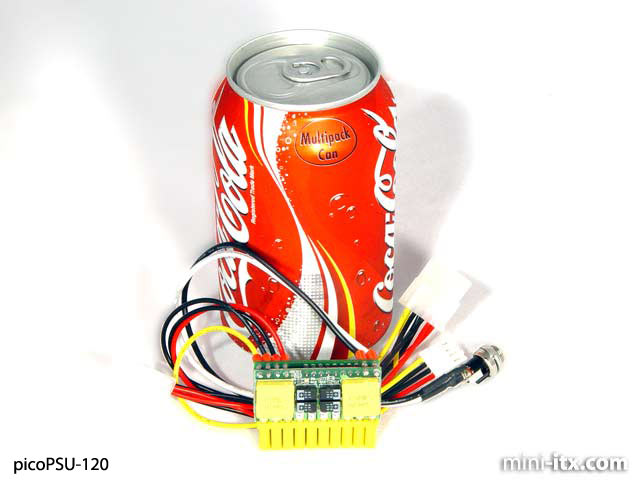

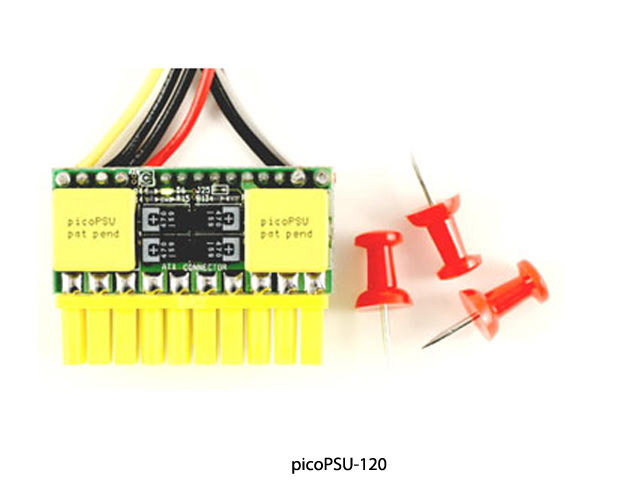

The picoPSU-120 plugs directly into a motherboard ATX connector. Measures just 31x45x20mm, about the size of two AA batteries. Generates up to 120 Watts of power from a 12V DC supply connected by a 2.5mm/5.5mm Jack, at over 96% efficiency. An attached cable harness provides: - 20pin ATX Connector
- SATA Power Connector
- Molex (ATA) HDD Power
- Molex Floppy Power
Compatibility: The picoPSU-120 can power all our Mini-ITX boards with Geode, C3, C7, Atom and Fusion processors. Additionally most lower power consumption Mini-ITX boards with Intel and AMD processors up to around 65W TDP can be powered. More powerful picoPSUs offer more headroom for additional devices. If you are considering using with a board not on our site, please email us to check compatibility.
12V AC Adapter Required: You will need a 12V AC Adapter to use this picoPSU. Please read their product listings to determine which is most suitable for you. Compatible Universal AC Adapters:
Adding more SATA drives: The picoPSU-120 has one SATA connector and a Molex connector. To power more SATA drives use a Molex to SATA or 2x SATA cable.
P4 Power Connectors: If your board has a 4-pin 12V P4 power connector, you will need to use a Molex to 12V P4 Power Cable, or a picoPSU-90 or 150/160-XT.
Notes: Not suitable for use with batteries, unstable power sources or voltages other than 12V. Cable lengths: from board to 12V DC connector is approx 25cm (9.75in); cable harness is approx 40cm (15.75in) long.
CE / FCC / VCCI Certifications: EN55024, EN55022 Class B (CE certification), Australia/New Zealand (using CISPR 22, EN55022), Japan (VCCI: using CISPR 22, ANSI C63.4), United States (FCC Part 15, Subpart B, Class B), Canada (ICES-003 using CISPR 22, ANSI C63.4).
 Installation Guide
|
