Dynatron A42 Side Blower Cooler with Copper Base suitable for 1U Chassis with AMD Socket AM4/AM5
Dynatron A42 1U Side Blower Cooler for AMD Socket AM4 & AM5 | |
£52.80 inc. VAT | |
IN STOCK (Checked 12:04) |

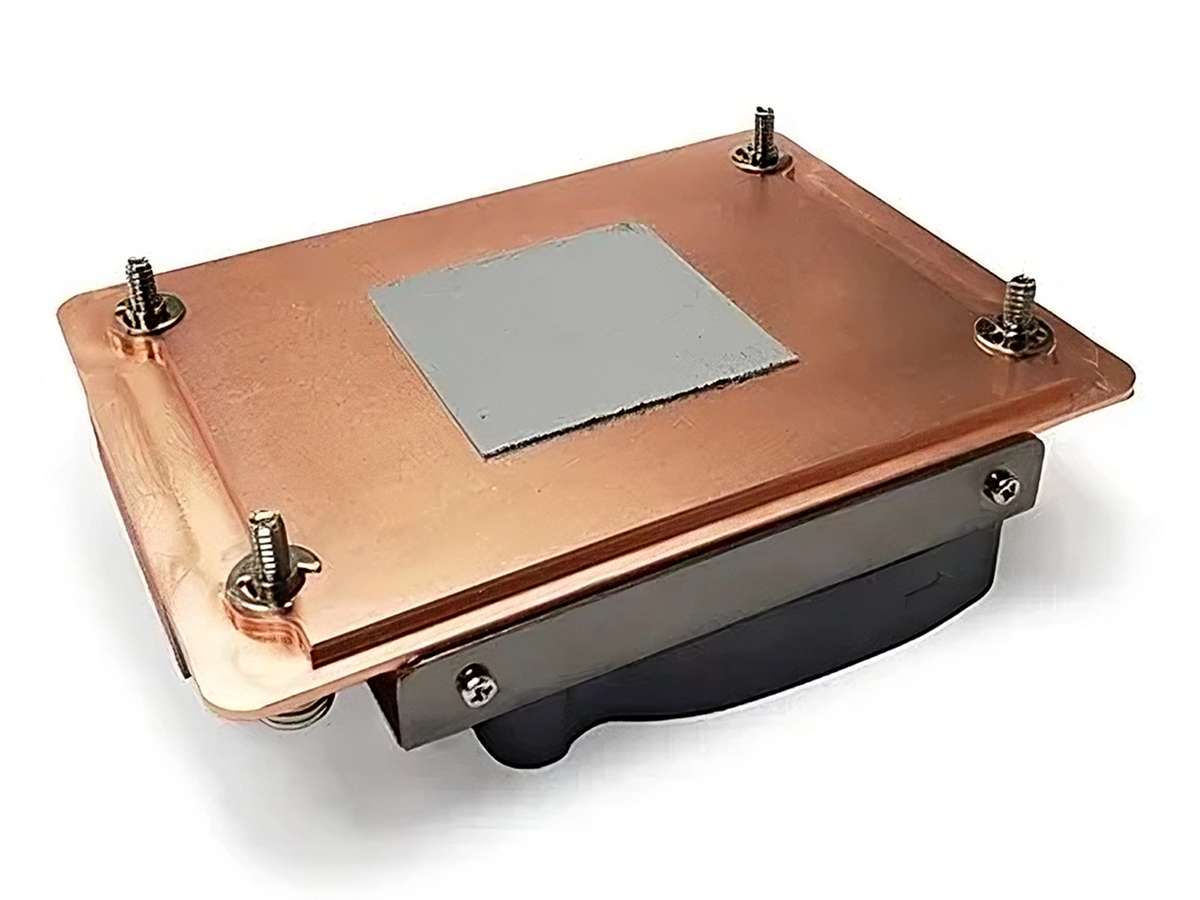

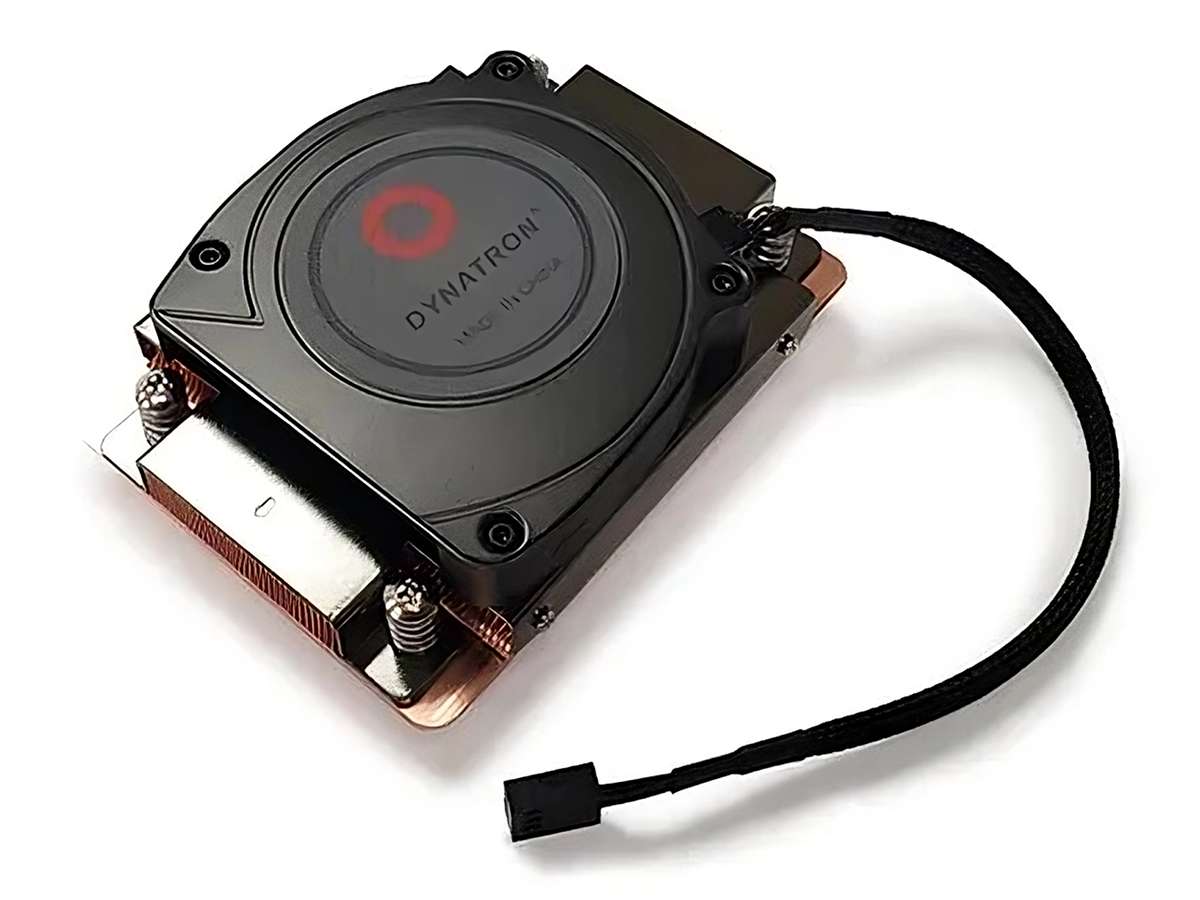

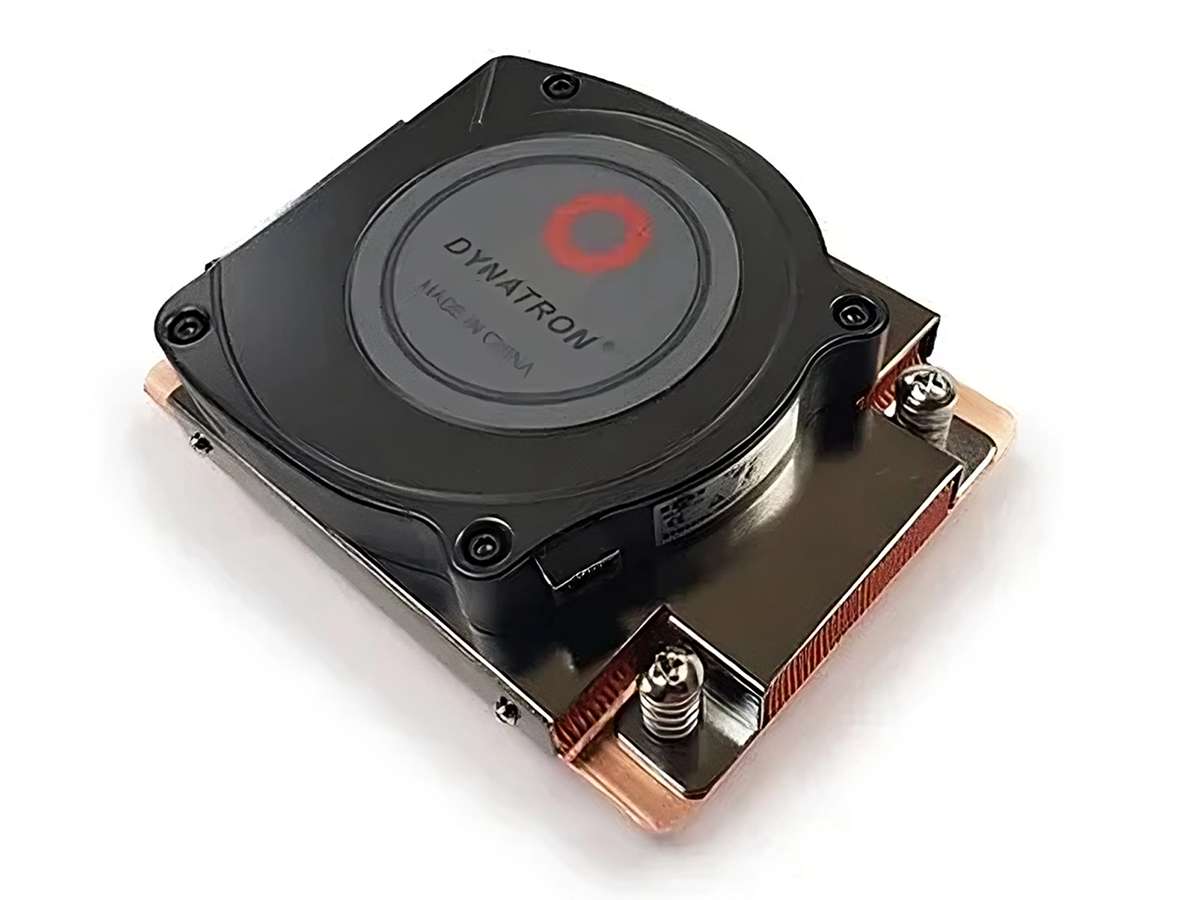

Dynatron A42 Cooler with Copper base suitable for cooling AMD Socket AM4 & AM5 motherboards in a 1U Chassis
Long life two-ball bearing fan draws the cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.
Case Compatibility: Side Blower design suitable for use in a 1U chassis. Tip: angle the A42 to force air out of the rear of the chassis.
Compatible Boards and CPUs: AMD Socket AM4 and AM5 Motherboards fitted with a processor producing up to 140 CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 2000 RPM (at 0-20% Duty Cycle); 4900 RPM (at 50%); 8600 RPM (at 100%); Airflow: 5.595 CFM (at 0-20%), 14.76 CFM (at 50%), 26.25 CFM (at 100%); Air Pressure: 3.69 mm-H2O (at 0-20%); 25.28 mm-H2O (at 50%); 89.80 mm-H2O (at 100%); Noise level: 23.3 dBA (at 0-20%), 43.5 dBA (at 50%), 62.2 dbA (at 100%); Power Consumption: 1.08 W (at 0-20%); 4.7 W (at 50%); 23.45 W (at 100%); Weight: 416g; Fan Dimensions: 80 x 80 x 13mm; Overall Dimensions: 110 x 85 x 27.3 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | A42 1U Side Blower Cooler for AMD Socket AM4 & AM5 |
Maximum CPU Power | 140 W |
Connector Type | 4-pin PWM |
Socket Types | AM4, AM5 |
Construction | Copper1100 Heatsink |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 1.08 W |
Power @ 50% | 4.7 W |
Power @ 100% | 23.45 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 2000 RPM |
Fan Speed @ 50% | 4900 RPM |
Fan Speed @ 100% | 8600 RPM |
Airflow @ 20% | 5.59 CFM |
Airflow @ 50% | 14.76 CFM |
Airflow @ 100% | 26.25 CFM |
Air Pressure @ 20% | 3.69 mm-H2O |
Air Pressure @ 50% | 25.28 mm-H2O |
Air Pressure @ 100% | 89.8 mm-H2O |
Noise Level @ 20% | 23.3 dB(A) |
Noise Level @ 50% | 43.5 dB(A) |
Noise Level @ 100% | 62.2 dB(A) |
Dimensions | |
Fan Size | 80 x 80 x 13mm (W x H x D) | Heatsink Height | 27.3mm |
W x D x H | 110 x 85 x 27.3mm |
Volume | 0.26 litres |
Weight | 416g |
