Dynatron B13 Cooler suitable for 2U Chassis with Intel Socket FCLGA 3647 Square ILM
Dynatron B13 2U Cooler for FCLGA 3647 Square ILM | |
£46.80 inc. VAT | |
IN STOCK (Checked 12:20) |

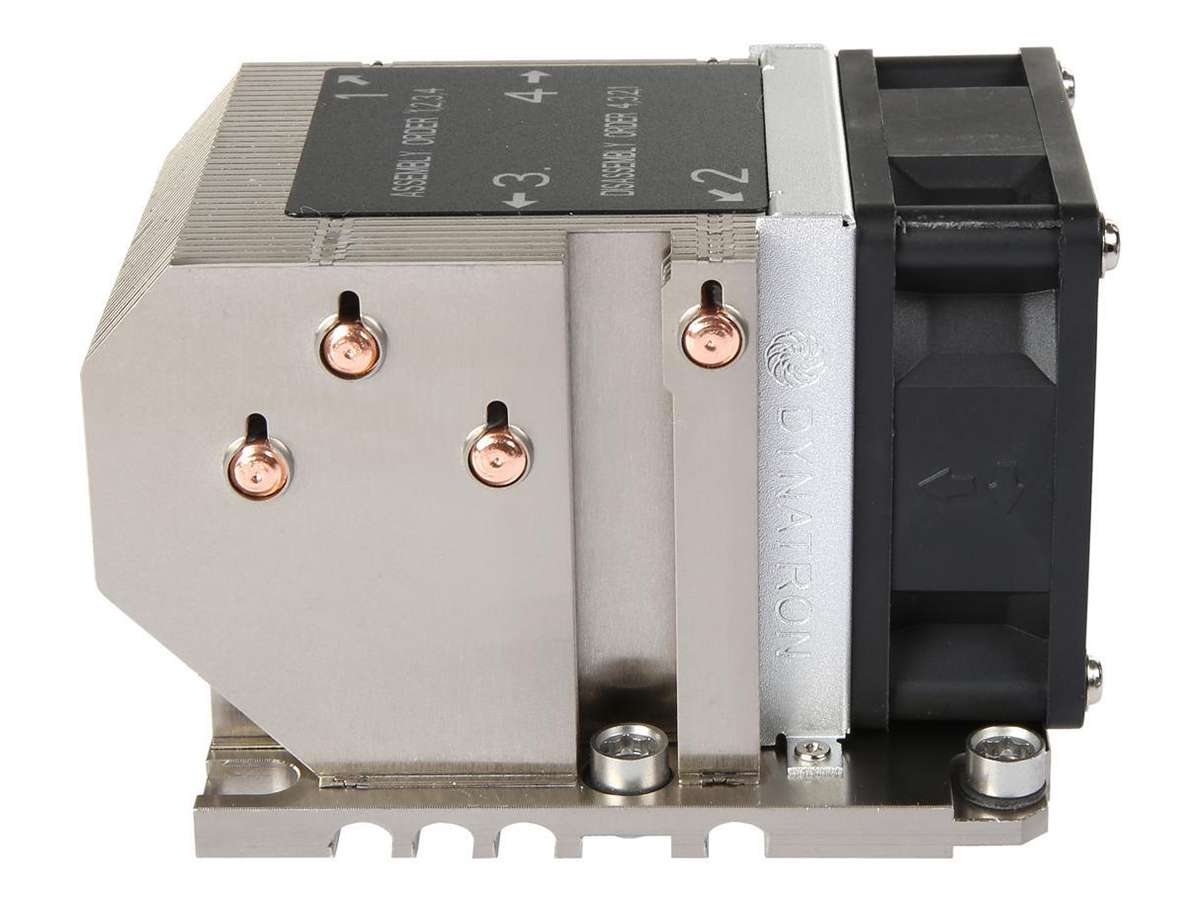

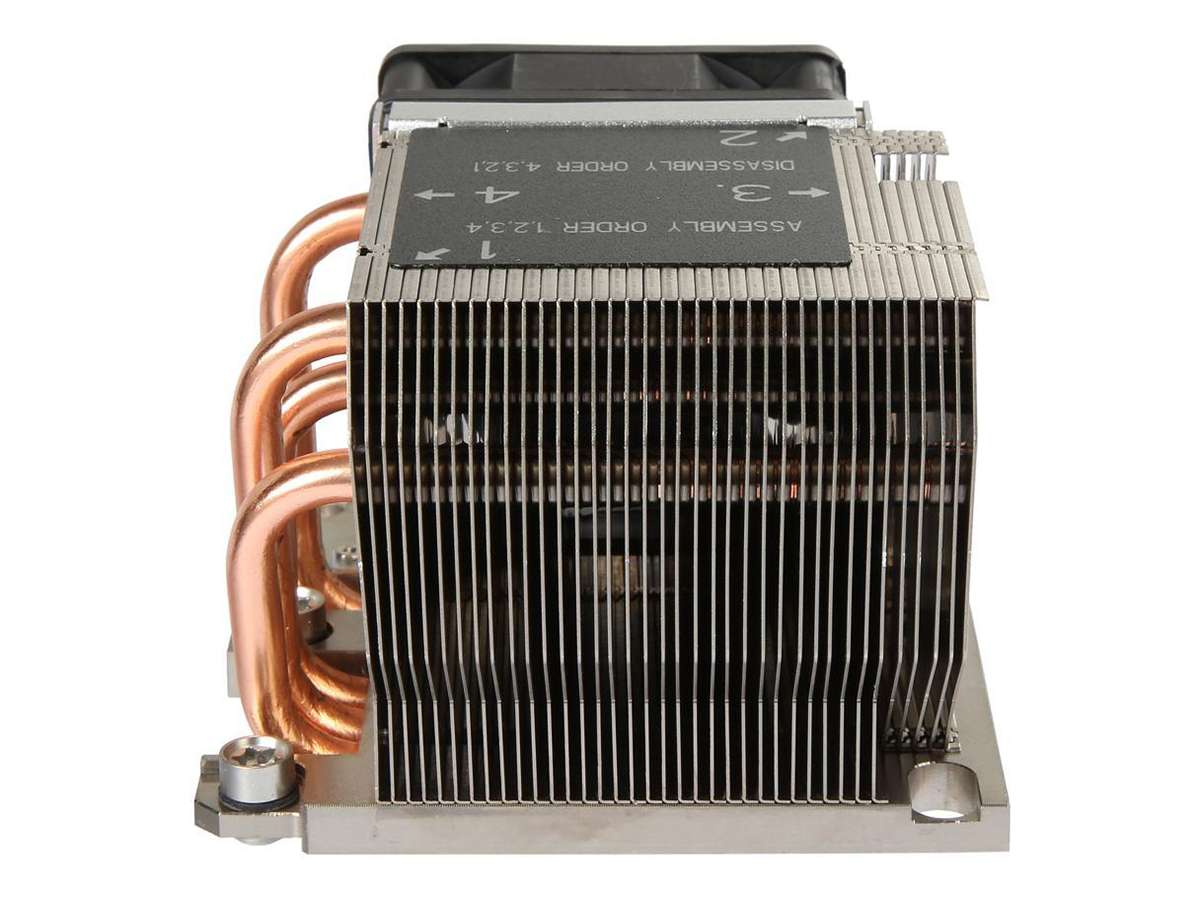

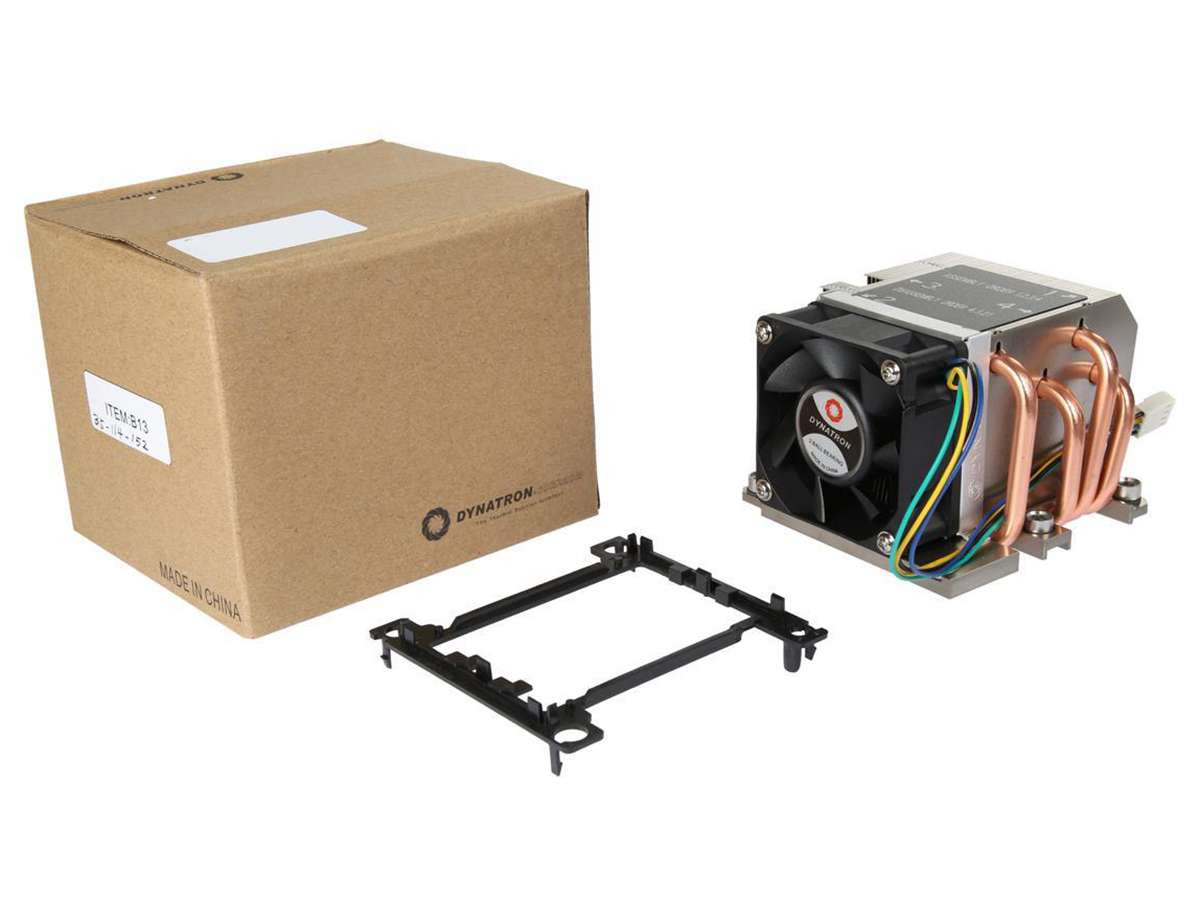

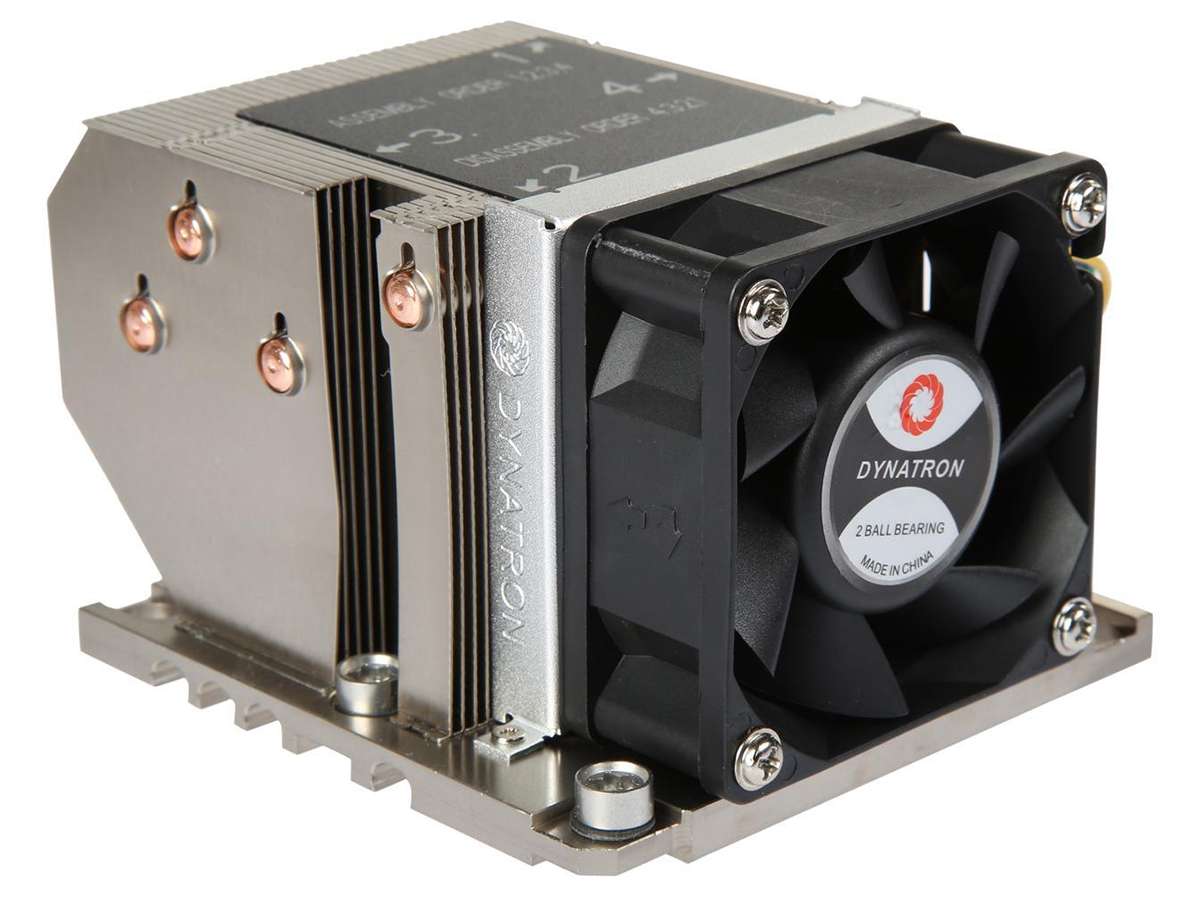

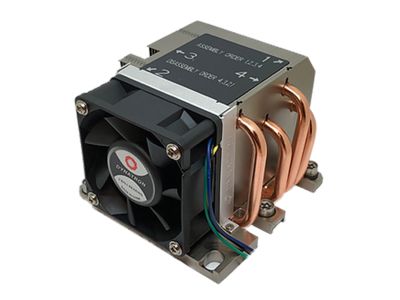

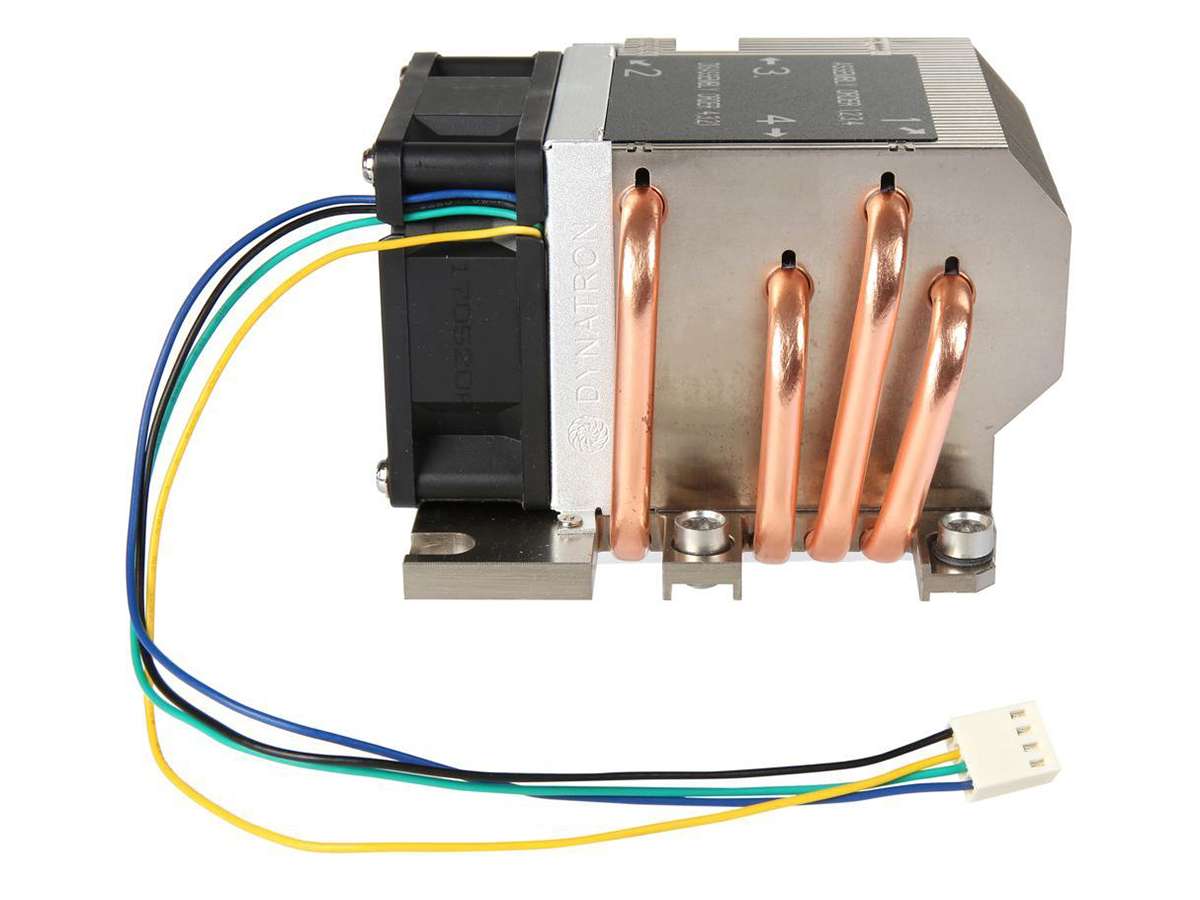

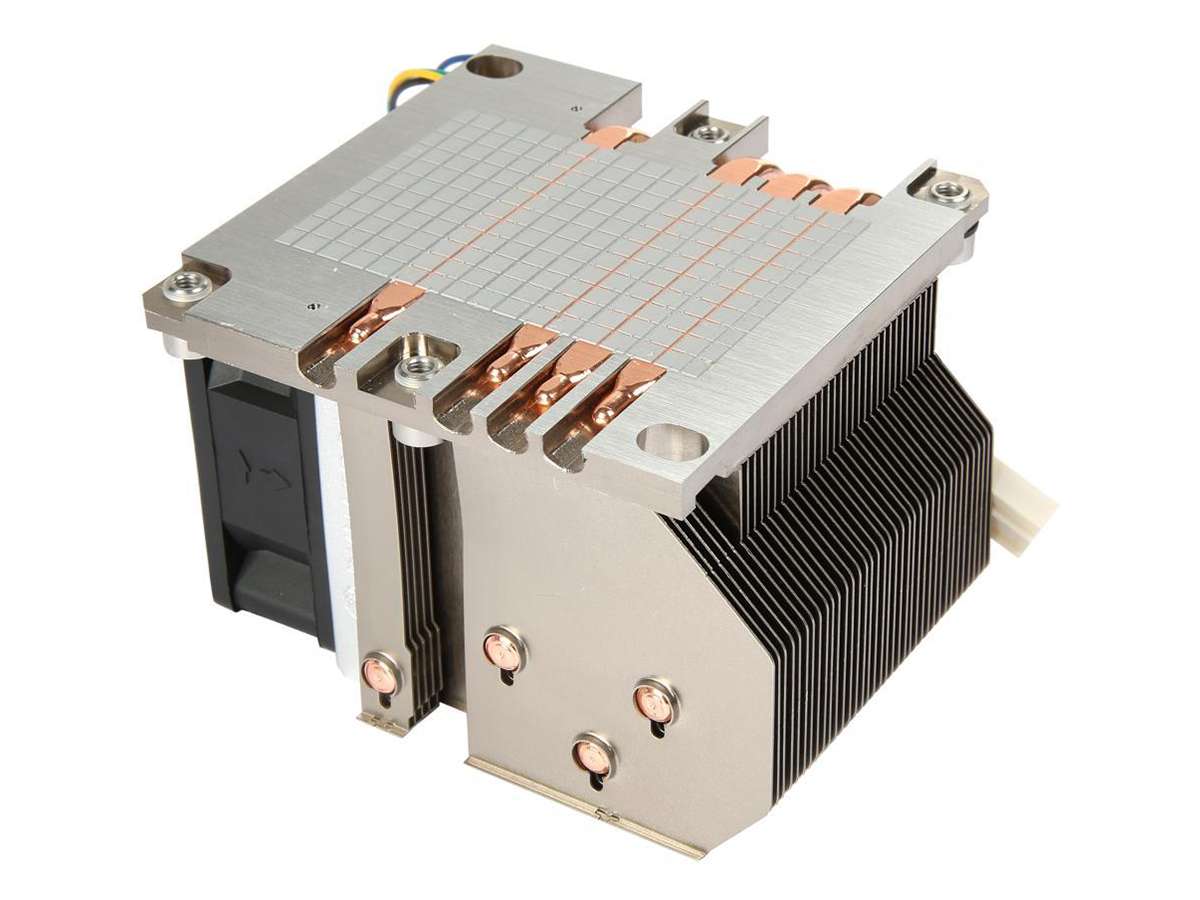

Dynatron B13 Cooler with aluminum heatsink with embedded heatpipes suitable for cooling Intel Socket FCLGA 3647 Square ILM motherboards in a 2U Chassis.

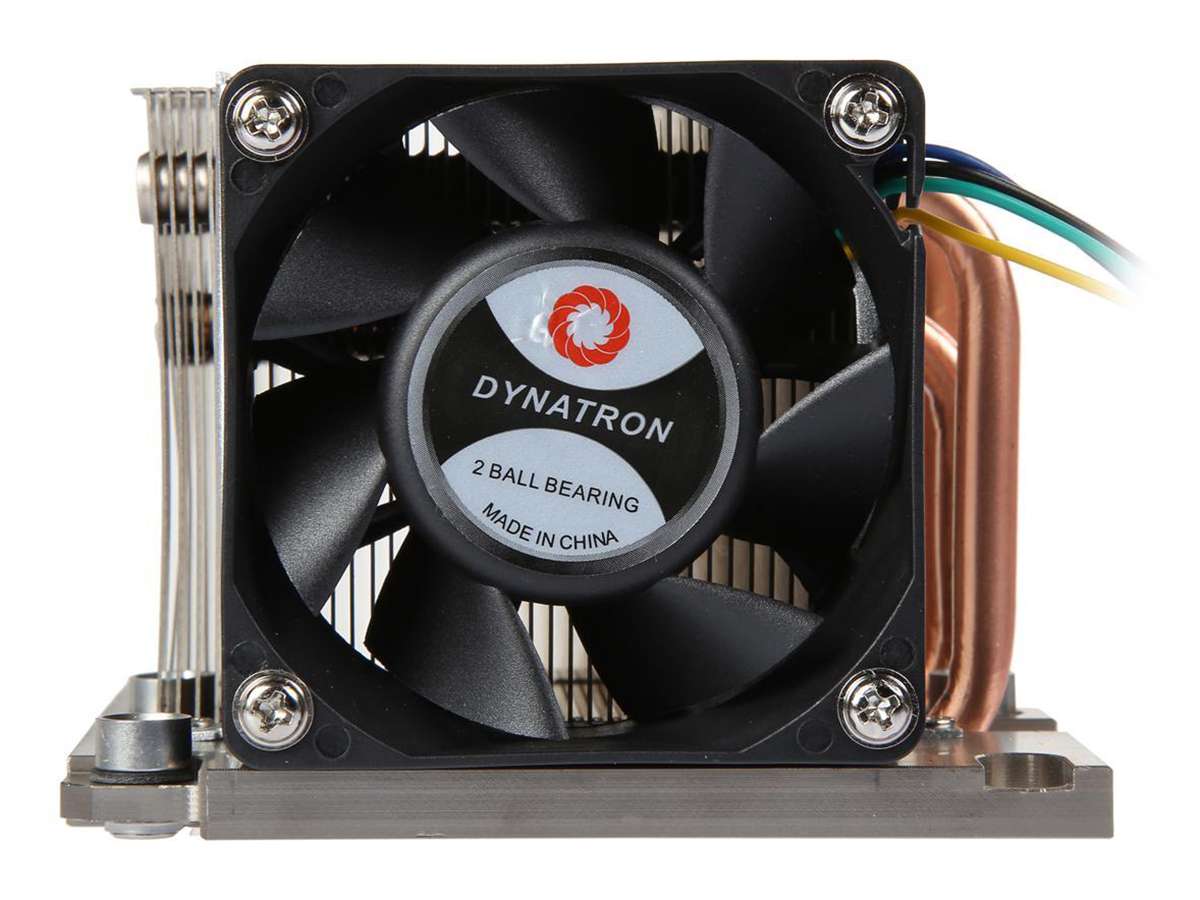

Dynatron 6025 long life two-ball bearing axial fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.
Case Compatibility: Side blower design suitable for use in a 2U chassis. Tip: angle the B13 to force air out of the rear of the chassis.
Screw Fit: M4 Nuts surrounded by compression springs screw through Intel package carrier to motherboard.
Compatible Boards and CPUs: Intel Socket FCLGA 3647 Square ILM Motherboards fitted with a processor producing up to 205W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 1400 RPM (at 0-20% Duty Cycle); 3400 RPM (at 50%); 7000 RPM (at 100%); Airflow: 8.12 CFM (at 0-20%), 20.31 CFM (at 50%), 40.6 CFM (at 100%); Air Pressure: 0.58 mm-H2O (at 0-20%); 3.65 mm-H2O (at 50%); 14.58 mm-H2O (at 100%); Noise level: 16 dBA (at 0-20%), 35 dBA (at 50%), 50 dbA (at 100%); Power Consumption: 0.9 W (at 0-20%); 2.04 W (at 50%); 5.4 W (at 100%); Weight: 430g; Fan Dimensions: 60 x 60 x 25mm; Overall Dimensions: 90 x 90 x 66 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | B13 2U Cooler for FCLGA 3647 Square ILM |
Maximum CPU Power | 205 W |
Connector Type | 4-pin PWM |
Socket Types | 3647 |
Construction | Aluminum Heatsink with Embedded Heatpipe |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 0.9 W |
Power @ 50% | 2.04 W |
Power @ 100% | 5.4 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 1400 RPM |
Fan Speed @ 50% | 3400 RPM |
Fan Speed @ 100% | 7000 RPM |
Airflow @ 20% | 8.12 CFM |
Airflow @ 50% | 20.31 CFM |
Airflow @ 100% | 40.6 CFM |
Air Pressure @ 20% | 0.58 mm-H2O |
Air Pressure @ 50% | 3.65 mm-H2O |
Air Pressure @ 100% | 14.58 mm-H2O |
Noise Level @ 20% | 16 dB(A) |
Noise Level @ 50% | 35 dB(A) |
Noise Level @ 100% | 50 dB(A) |
Dimensions | |
Fan Size | 60 x 60 x 25mm (W x H x D) | Heatsink Height | 66mm |
W x D x H | 90 x 90 x 66mm |
Volume | 0.53 litres |
Weight | 430g |
