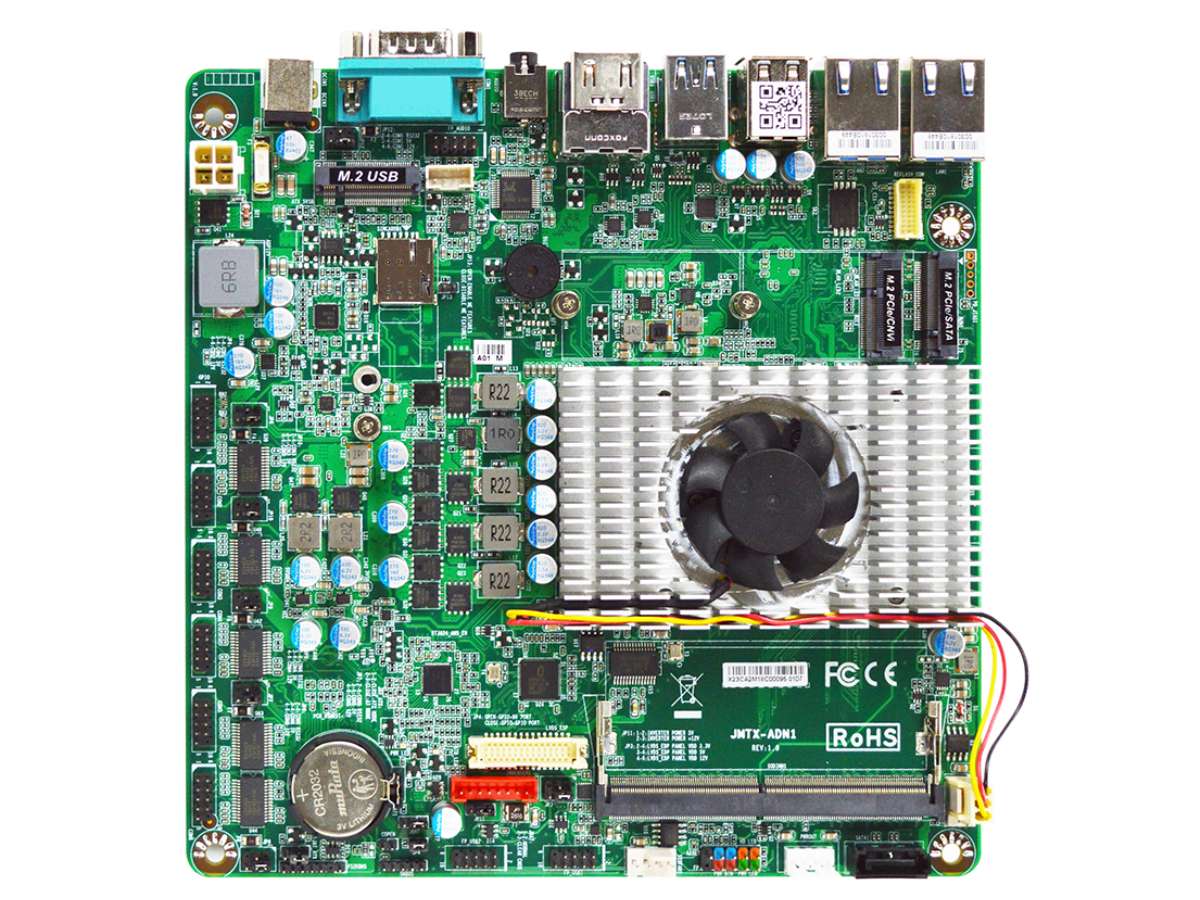

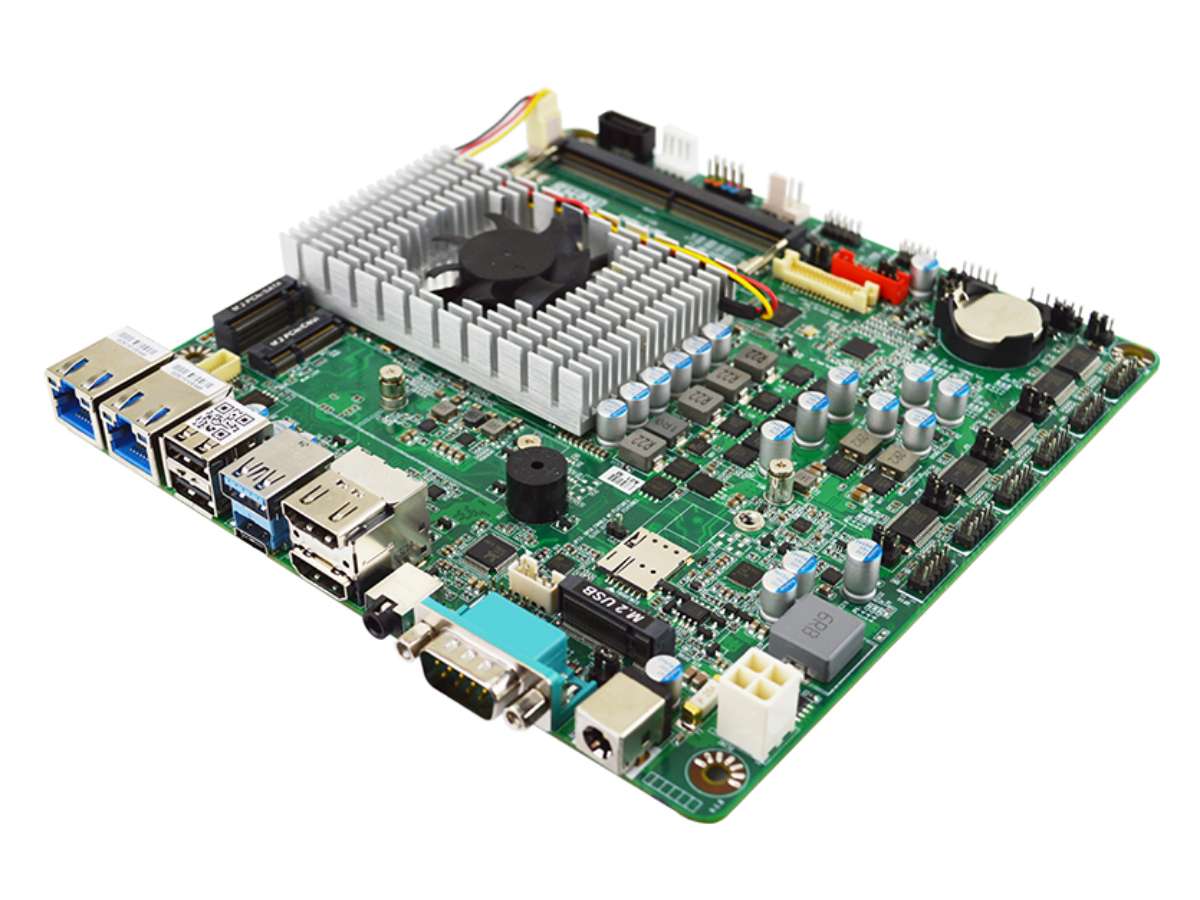

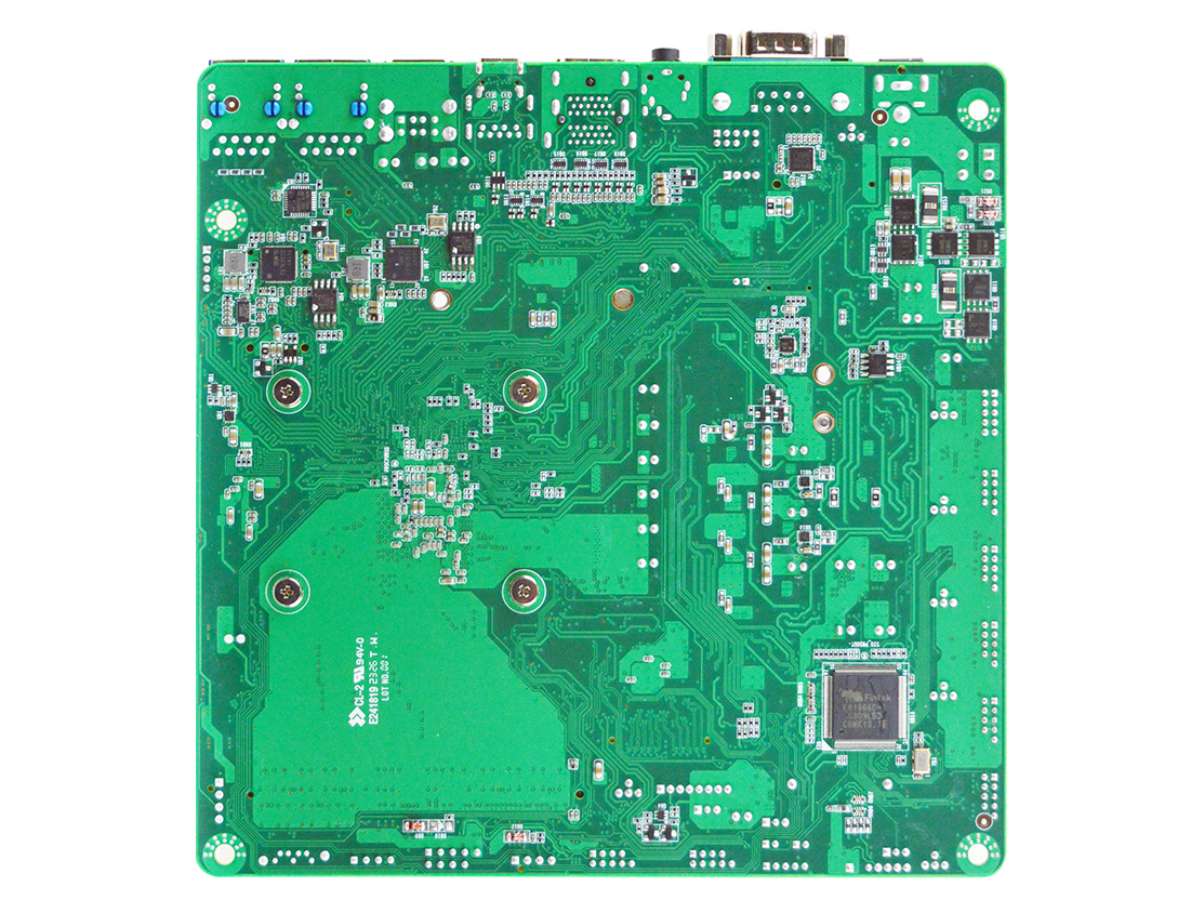

JMTX-ADN1 Thin-ITX Board with up to 3.6GHz N97 Alder-Lake N Processor, 2x i226V 2.5Gbps LAN, M.2 & SATA Storage, M.2 WiFi & M.2 WWAN, up to 6x COM ports, up to 32GB DDR5 RAM, Wide 12-28V Protected DC Input

2.5Gb-Ready board with ultra-low profile form factor (20mm high) powered by powerful up to 3.6GHz Intel 4C4T 12W TDP N97 Alder-Lake N processor and integrated Intel UHD Graphics. 2x Intel i226V 2.5Gb Ethernet Ports; Support for up to 32GB DDR5 SODIMM memory; M.2 NVMe/SATA and SATA storage; M.2 Type E Slot (WiFi) and Type B Slot (WWAN) and up to 6 COM ports each 5V/12V selectable.

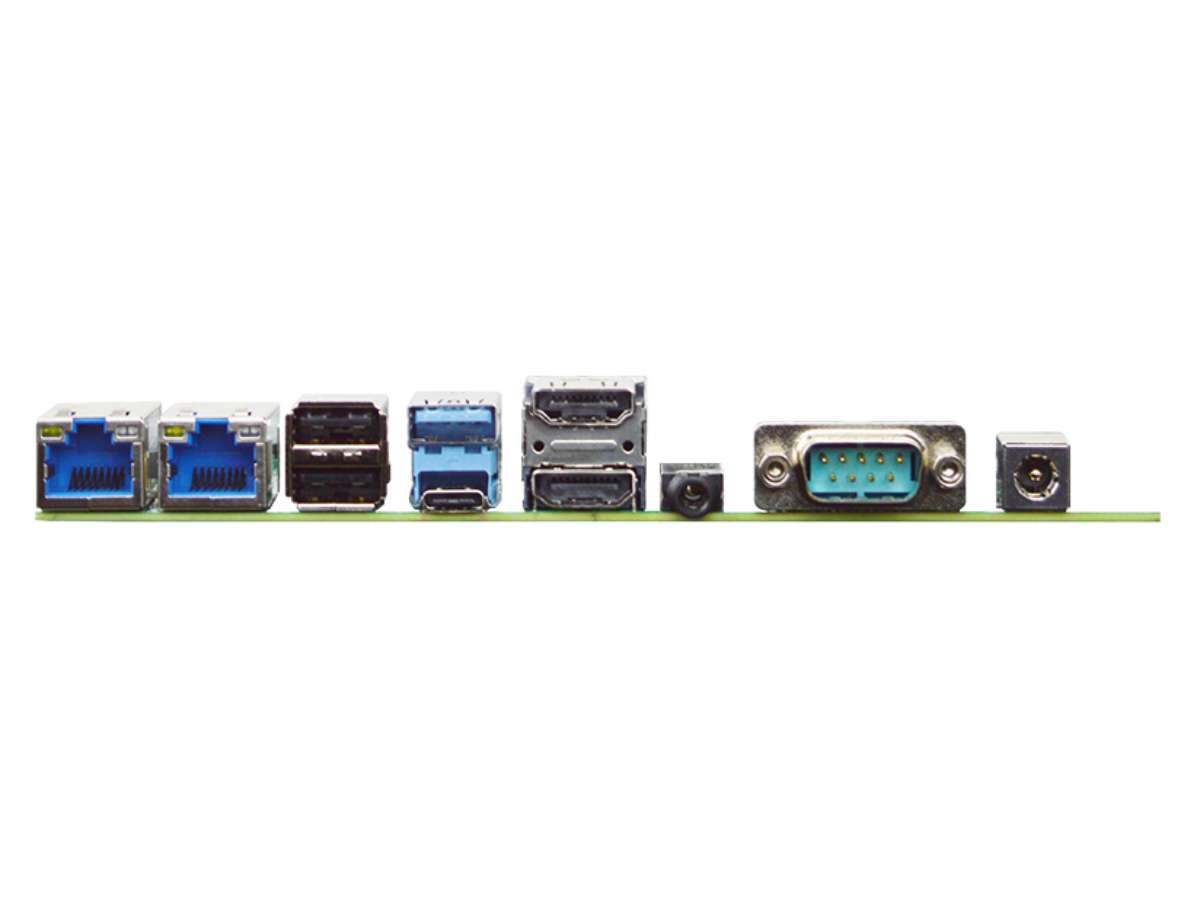

Rear Panel Connectors: 2x Intel i226V 2.5Gb Ethernet Ports; 2x Type-A USB 2.0 Ports; 1x Type-A USB 3.2 Gen2 Port; 1x Type-C USB 3.2 Gen2 Port with PD and DisplayPort Out (4096x2048 @60Hz max res); 2x HDMI 2.0b Ports (4096x2048 @60Hz max res); 1x 3.5mm Line-Out/Mic Port; 1x RS232/422/485 COM Port (5V/12V selectable); 12-28V Protected Wide DC Input.

Storage and Expansion: 1x M.2 2242/2280 Type-M Socket (supports NVMe at PCIe3.0 x2 and SATA); 1x SATA Port (6Gbps); 1x M.2 Type-E Socket (unpopulated, for Wi-Fi card, supports CNVi); 1x M.2 Type-B Socket (unpopulated, for USB 3.2 Gen1/USB 2.0 3042/3052 4G/5G WWAN card, works with Nano SIM slot); 1x DDR5 SODIMM Socket (4800MHz, up to 32GB).

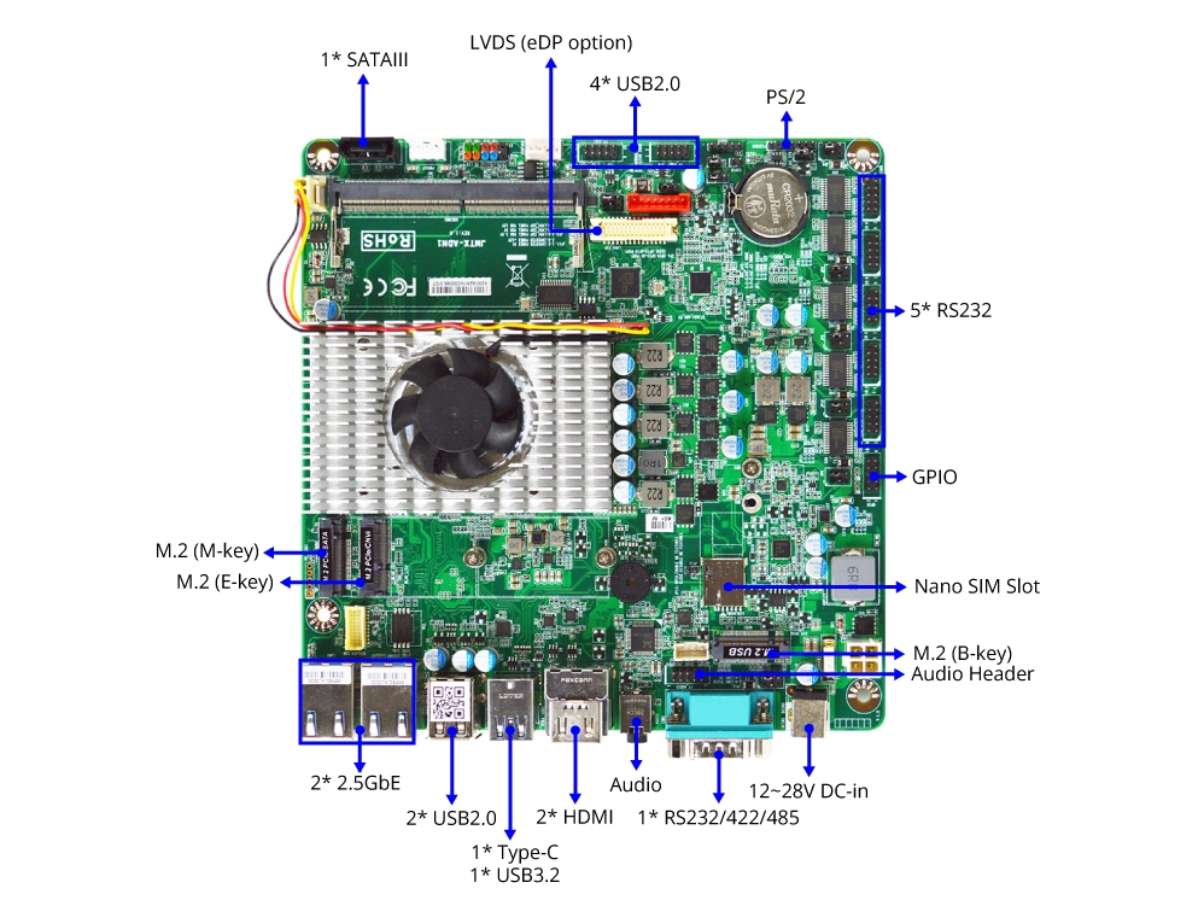

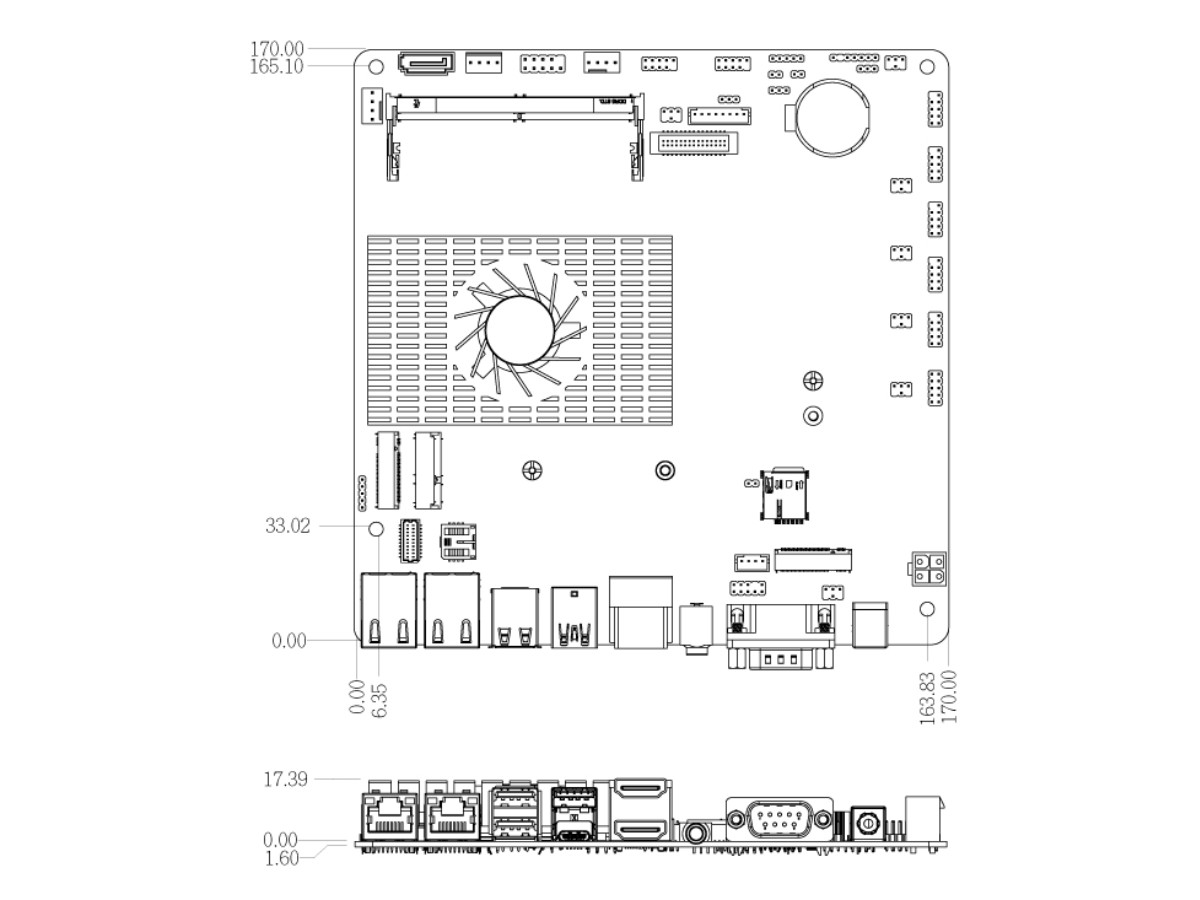

Board Connectors: 1x 4pin 12-28V alternate Mini Fit-JR power connector (must not be used at the same time as the external DC input); 1x AT/ATX Power Mode Jumper; 1x SATA Power Out (Cable included); 5x RS232 Headers (1x COM to header cable provided, 2mm pitch, 5V/12V selectable); 1x SMBUS Header; 1x 8-bit GPIO Header (80 port selectable, 2mm pitch); 1x LVDS/eDP Header (1920x1080 @ 60Hz max res.); 4x USB 2.0 headers on 2x 9pin connectors; 1x 4-pin CPU Fan Header; 1x 4-pin System Fan Header; 1x Front Panel Audio Header; 1x 3W Speaker Header; 1x FPANEL Header.

Cooling: The Intel N97 processor on the JMTX-ADN1 is cooled by a 87x54x16mm heatsink with embedded fan.

Protected DC Input: The JMTX-ADN1 features Reverse Voltage Protection, Overvoltage Protection, and Overcurrent Protection.

Important! This board has a 12-28V DC Power input and is not designed for use with a standard ATX PSU: The JMTX-ADN1 requires a 12-28V AC Adapter to power the board and feed power to a SATA device through an on-board 4pin power output connector (cable included). There is an alternate 12-28V input on a 4pin Molex 5566 connector which can also be used (though not at the same time as the rear input). We sell several enclosures without power supplies, or you can bypass the PSU on any other compatible Mini-ITX case.

Suitable cases (without PSU): The following enclosures come without an internal PSU and are compatible with the JMTX-ADN1: M350 and M5X.

Suitable cases (with PSU): The M5XP is supplied with a compatible 12V AC Adapter and can be used if the internal DC board is removed. All standard Mini-ITX Chassis can be used with the JMTX-ADN1 if their PSU is bypassed and a 60W minimum 12 to 28V external AC Adapter is used. Alternatively an ATX Bridging Plug can be connected to the ATX connector of an ATX PSU, and the 12V P4 plug (Black/Yellow cables) is connected to the motherboard. Use the AT/ATX Mode jumper to control power up behaviour (AT Mode = power on immediately, ATX Mode = power when power switch pressed).

*Memory The JMTX-ADN1 supports up to 32GB DDR5 memory on 1x 32GB DDR5 SODIMM, running at 4800MHz. This is not compatible with other types of SODIMM memory. We will always provide compatible memory if purchased directly from this motherboard page.

Box contents: Motherboard, COM Port Cable (2mm pitch), SATA Data Cable, SATA Power Y-Cable, Standard I/O Shield.

Drivers and Manual: Manual; Windows 10/11 64-bit: Chipset, Graphics, Audio, LAN, ME, SIO.
