Dynatron K199 Side Blower Cooler suitable for 1U Chassis with Intel Socket LGA 1150, 1151, 1155, 1156 and 1200
Dynatron K199 1U Side Blower Cooler for Intel Socket 115X & 1200 | |
£44.40 inc. VAT | |
IN STOCK (Checked 12:37) |

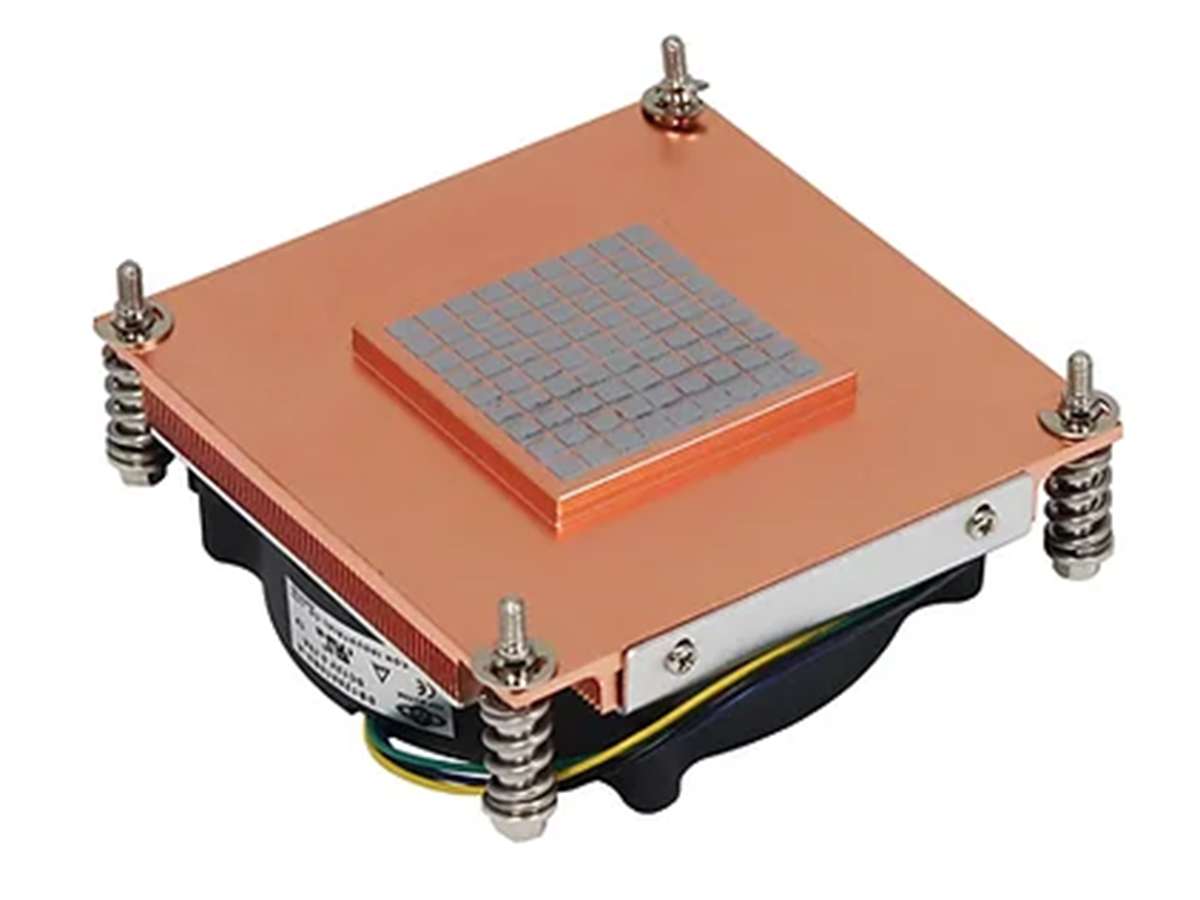

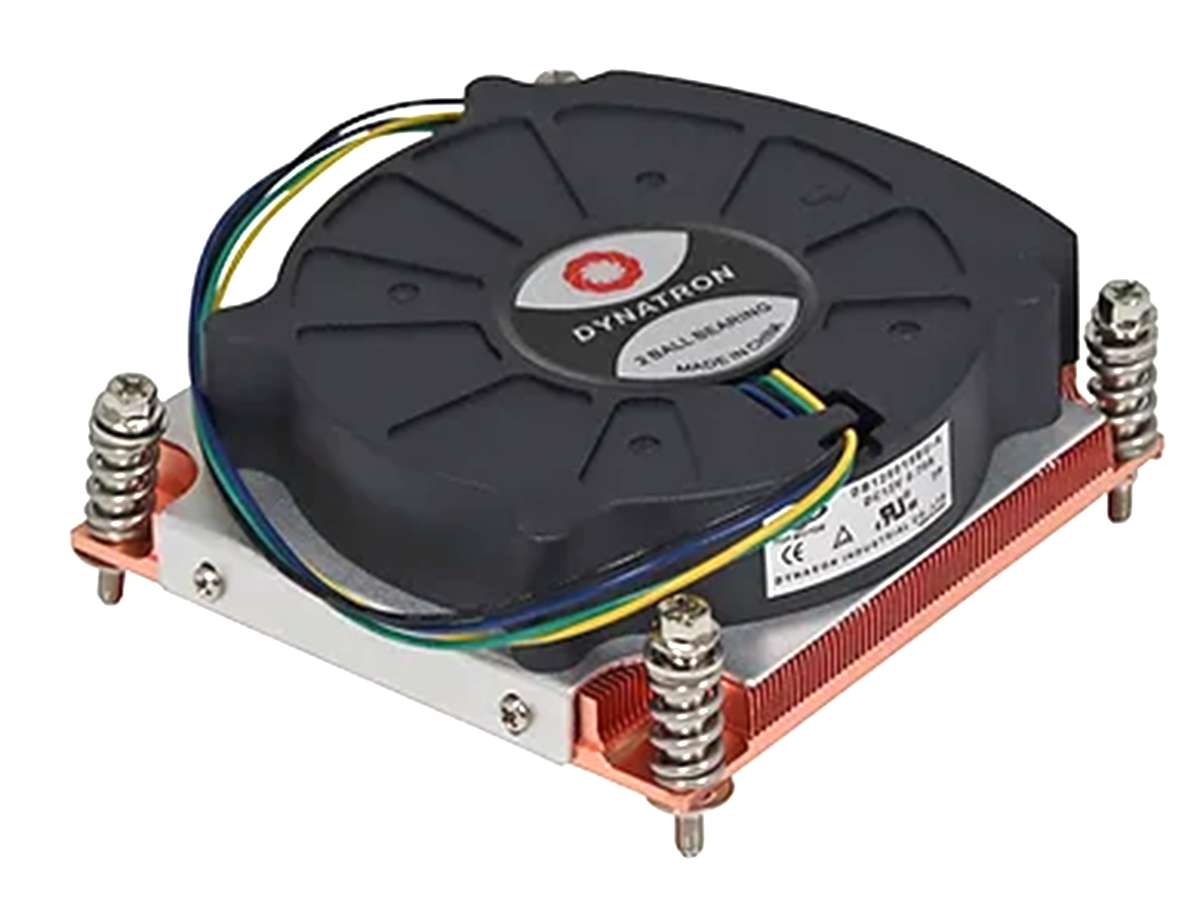

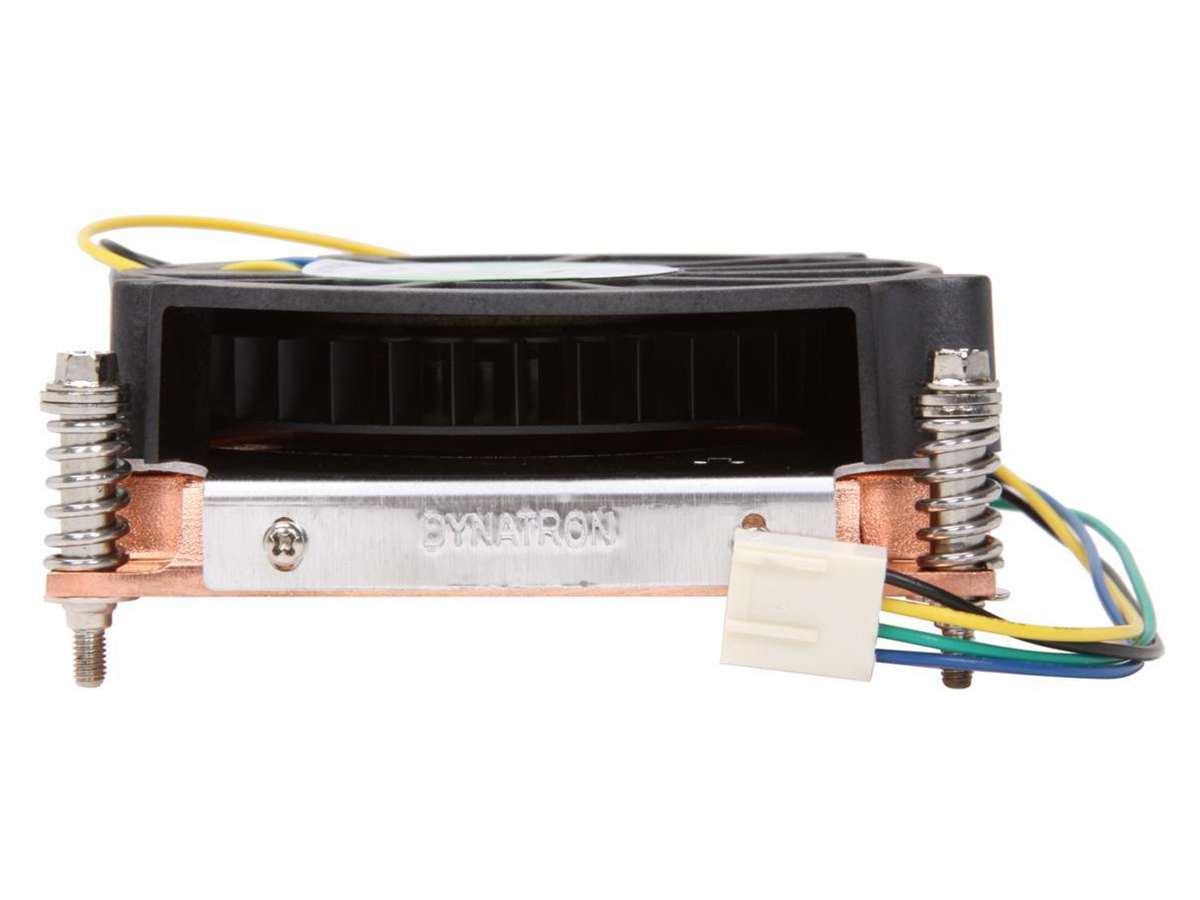

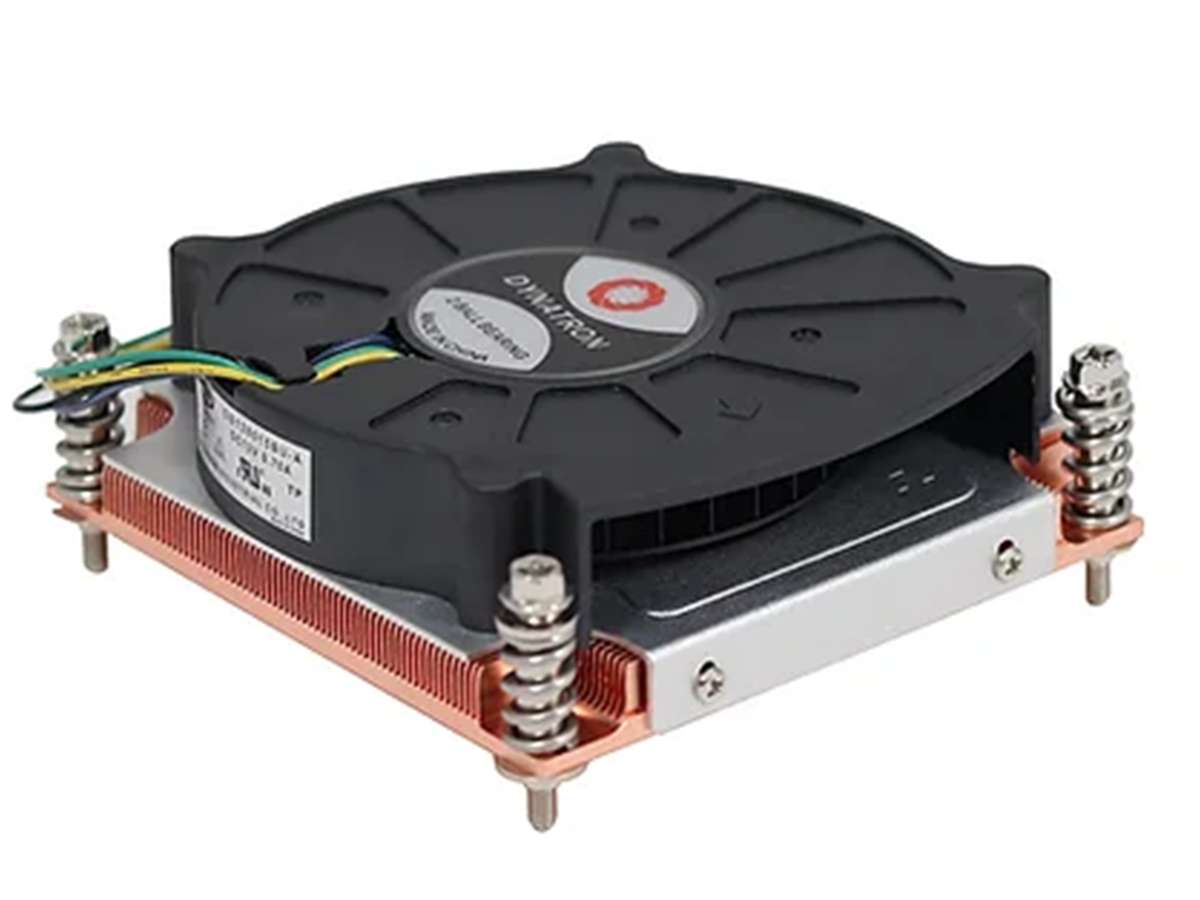

Dynatron K199 Low Profile, 28.5mm High Side Blower Cooler with copper heatsink suitable for cooling Intel Socket LGA 1150, 1151, 1155, 1156 and 1200 motherboards in a 1U Chassis.
Long life two-ball bearing fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance GE-Toshiba TIG830SP thermal grease ensures clean and easy installation.
Case Compatibility: Side Blower design suitable for use in a 1U chassis. Tip: angle the K199 to force air out of the rear of the chassis.

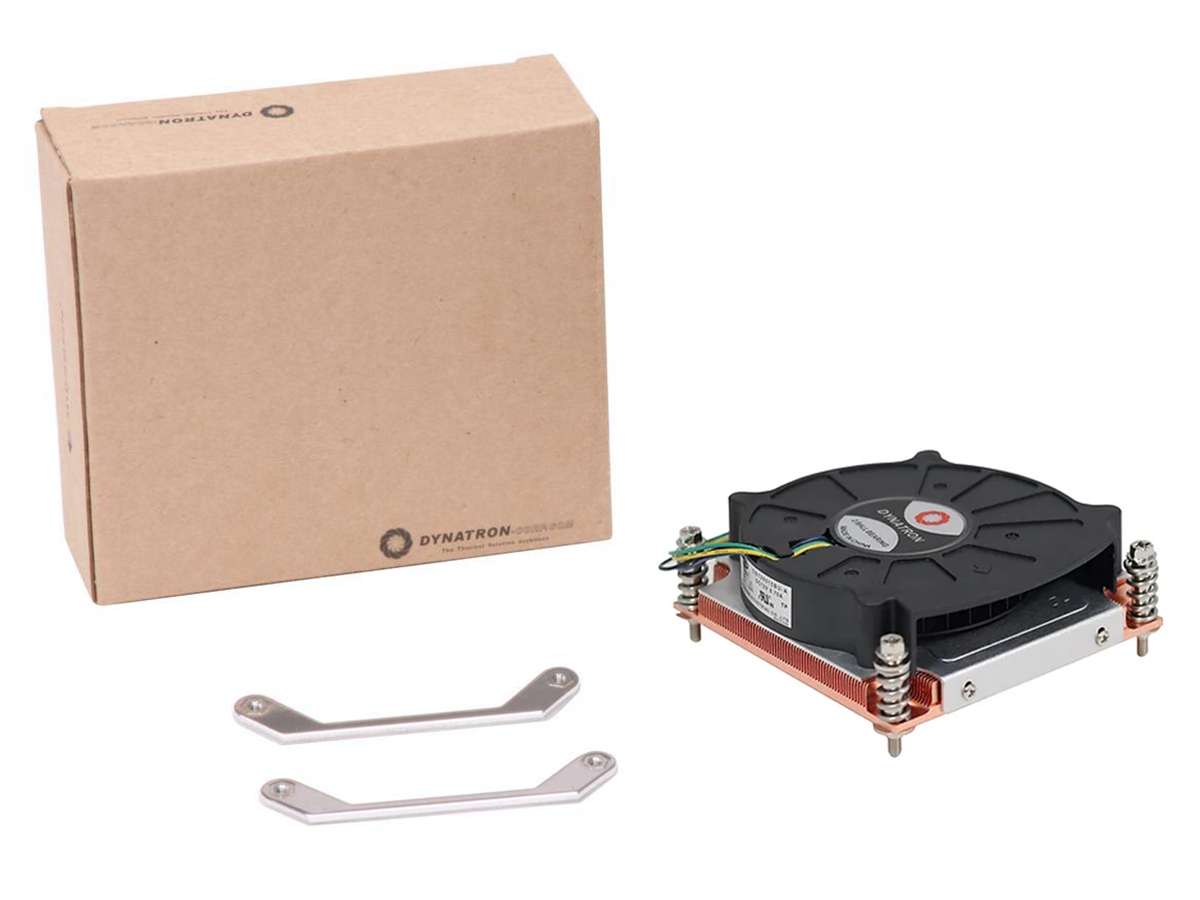

Screw Fit: Screws surrounded by compression springs attach to the provided base plates fitted underneath the motherboard. Base plates fit on top of existing motherboard socket. It is not necessary to remove any components before fitting.
Compatible Boards and CPUs: Intel Socket 115X/1200 Motherboards fitted with a processor producing up to 125W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 1200 RPM (at 0-20% Duty Cycle); 2600 RPM (at 50%); 5000 RPM (at 100%); Airflow: 3.533 CFM (at 0-20%), 7.645 CFM (at 50%), 14.719 CFM (at 100%); Air Pressure: 2.083 mm-H2O (at 0-20%); 9.78 mm-H2O (at 50%); 36.168 mm-H2O (at 100%); Noise level: 20.71 dBA (at 0-20%), 37.5 dBA (at 50%), 51.7 dbA (at 100%); Power Consumption: 0.6 W (at 0-20%); 1.44 W (at 50%); 9.6 W (at 100%); Weight: 355g; Fan Dimensions: 80 x 80 x 15mm; Overall Dimensions: 85 x 81.5 x 28.5 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | K199 1U Side Blower Cooler for Intel Socket 115X & 1200 |
Maximum CPU Power | 125 W |
Connector Type | 4-pin PWM |
Socket Types | 115X, 1200 |
Construction | Copper Heatsink with Skiving Fins |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 0.6 W |
Power @ 50% | 1.44 W |
Power @ 100% | 9.6 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 1200 RPM |
Fan Speed @ 50% | 2600 RPM |
Fan Speed @ 100% | 5000 RPM |
Airflow @ 20% | 3.533 CFM |
Airflow @ 50% | 7.645 CFM |
Airflow @ 100% | 14.719 CFM |
Air Pressure @ 20% | 2.083 mm-H2O |
Air Pressure @ 50% | 9.78 mm-H2O |
Air Pressure @ 100% | 36.168 mm-H2O |
Noise Level @ 20% | 20.71 dB(A) |
Noise Level @ 50% | 37.5 dB(A) |
Noise Level @ 100% | 51.7 dB(A) |
Dimensions | |
Fan Size | 80 x 80 x 15mm (W x H x D) | Heatsink Height | 28.5mm |
W x D x H | 85 x 81.5 x 28.5mm |
Volume | 0.20 litres |
Weight | 355g |
