Dynatron K666R1 Cooler suitable for 2U Chassis with Intel Socket LGA 1150, 1151, 1155, 1156 and 1200
Dynatron K666R1 2U Cooler for Intel Socket 115X & 1200 | |
£46.80 inc. VAT | |
IN STOCK (Checked 12:35) |

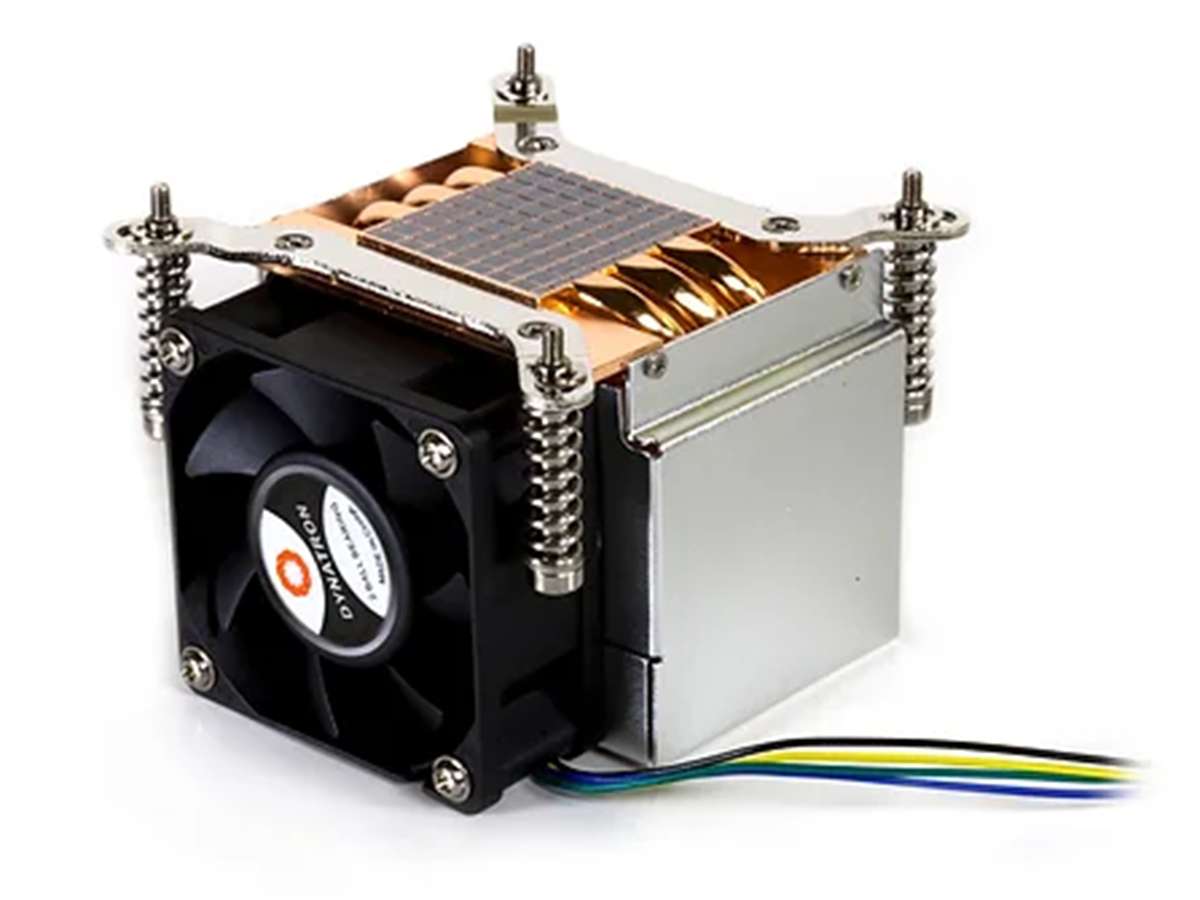

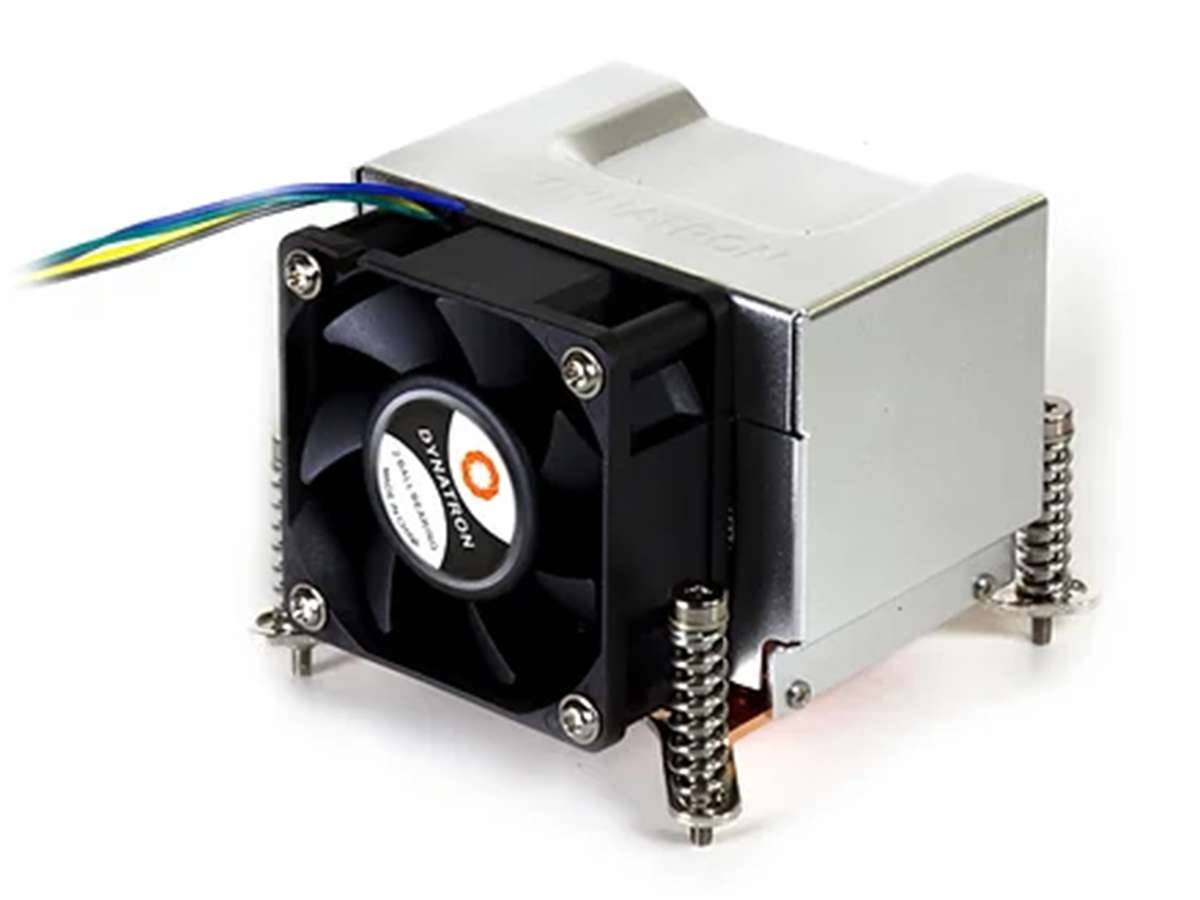

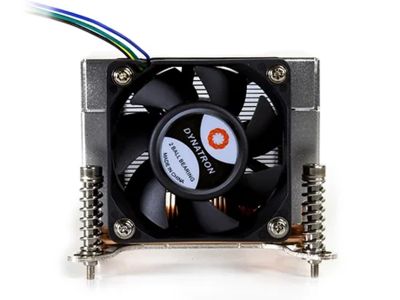

Dynatron K666R1 Cooler with copper base and aluminium fins suitable for cooling Intel Socket LGA 1150, 1151, 1155, 1156 and 1200 motherboards in a 2U Chassis.
Dynatron 6025 long life two-ball bearing fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance GE-Toshiba TIG830SP thermal grease ensures clean and easy installation.
Case Compatibility: Side Blower design suitable for use in a 2U chassis. Tip: angle the K666R1 to force air out of the rear of the chassis.

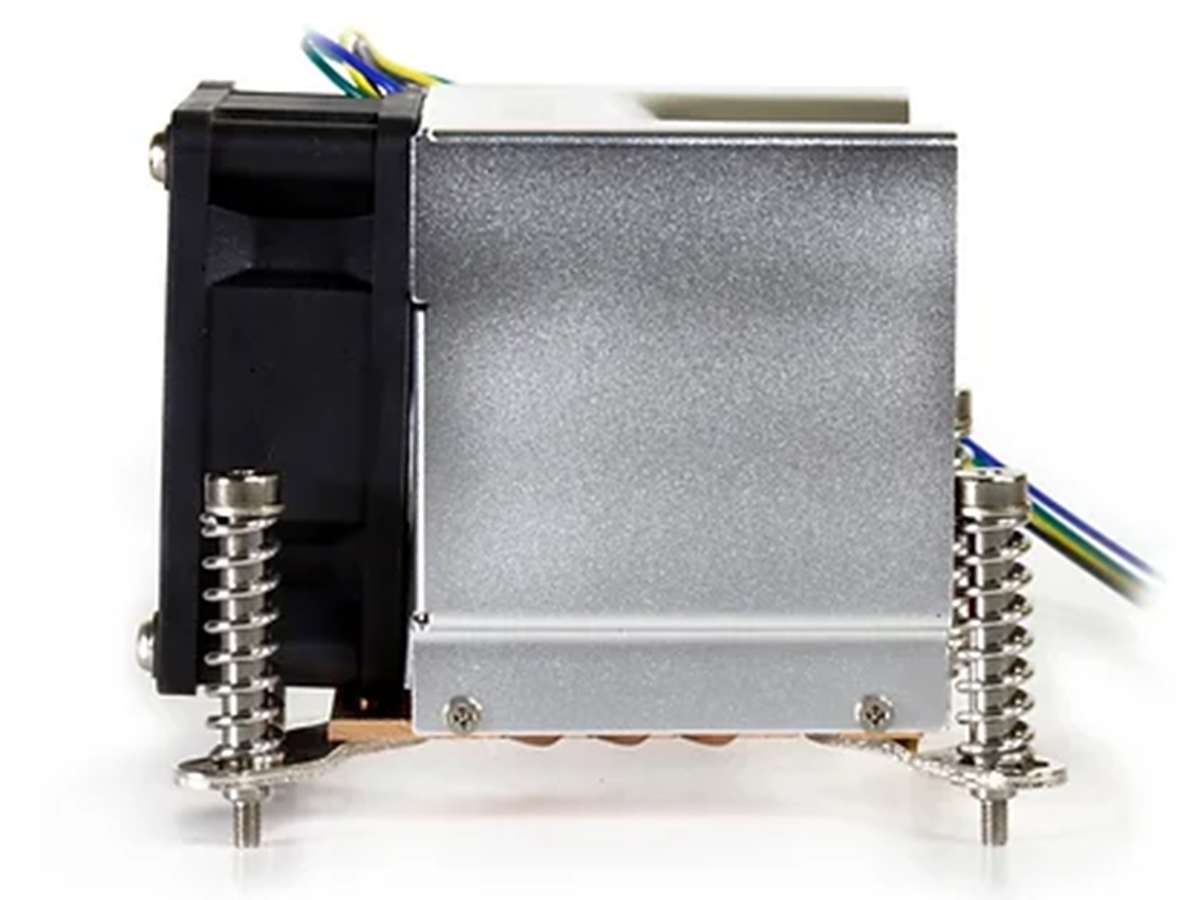

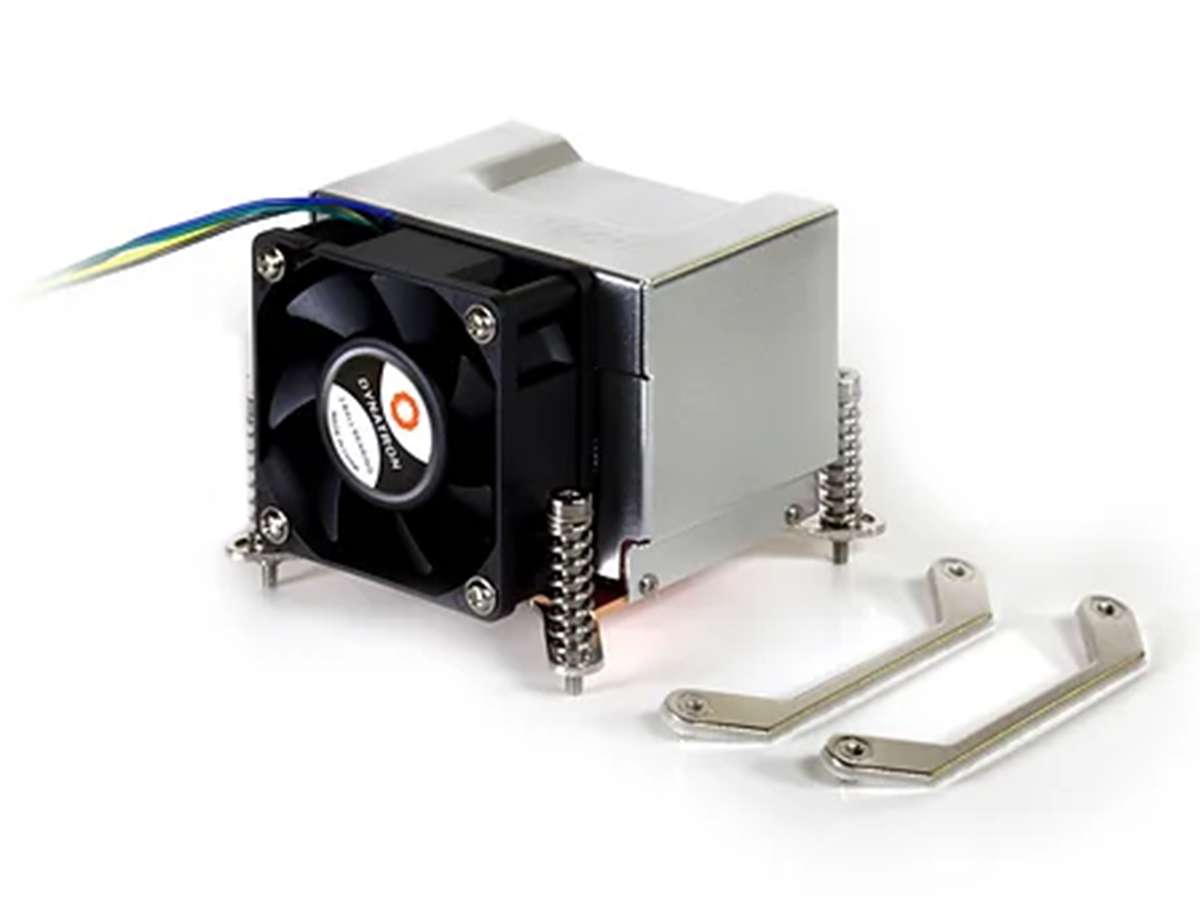

Screw Fit: Screws surrounded by compression springs attach to the provided base plates fitted underneath the motherboard. Base plates fit on top of existing motherboard socket. It is not necessary to remove any components before fitting.
Compatible Boards and CPUs: Intel Socket 115X/1200 Motherboards fitted with a processor producing up to 125W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 1600 RPM (at 0-20% Duty Cycle); 2300 RPM (at 50%); 5000 RPM (at 100%); Airflow: 8.5 CFM (at 0-20%), 12.2 CFM (at 50%), 26.45 CFM (at 100%); Air Pressure: 0.75 mm-H2O (at 0-20%); 1.55 mm-H2O (at 50%); 7.32 mm-H2O (at 100%); Noise level: 13.8 dBA (at 0-20%), 21.8 dBA (at 50%), 38.7 dbA (at 100%); Power Consumption: 0.72 W (at 0-20%); 1.2 W (at 50%); 3 W (at 100%); Weight: 500g; Fan Dimensions: 60 x 60 x 25mm; Overall Dimensions: 90.7 x 85 x 64 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | K666R1 2U Cooler for Intel Socket 115X & 1200 |
Maximum CPU Power | 125 W |
Connector Type | 4-pin PWM |
Socket Types | 115X, 1200 |
Construction | Copper Base & Aluminum Fins with Embedded Heat Pipe |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 0.72 W |
Power @ 50% | 1.2 W |
Power @ 100% | 3 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 1600 RPM |
Fan Speed @ 50% | 2300 RPM |
Fan Speed @ 100% | 5000 RPM |
Airflow @ 20% | 8.5 CFM |
Airflow @ 50% | 12.2 CFM |
Airflow @ 100% | 26.45 CFM |
Air Pressure @ 20% | 0.75 mm-H2O |
Air Pressure @ 50% | 1.55 mm-H2O |
Air Pressure @ 100% | 7.32 mm-H2O |
Noise Level @ 20% | 13.8 dB(A) |
Noise Level @ 50% | 21.8 dB(A) |
Noise Level @ 100% | 38.7 dB(A) |
Dimensions | |
Fan Size | 60 x 60 x 25mm (W x H x D) | Heatsink Height | 64mm |
W x D x H | 90.7 x 85 x 64mm |
Volume | 0.49 litres |
Weight | 500g |
