Dynatron L25-1 All-in-one Liquid Cooler suitable for 1U Chassis with Intel Socket LGA1700, LGA1200, LGA115x, LGA2011/2066 Square ILM, AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2
| Dynatron L25-1 All-in-one Liquid Cooler for 1U Servers | |
| £118.80 inc. VAT | |
| IN STOCK (Checked 09:12) |
Dynatron L25-1 All-in-one Liquid Cooler suitable for cooling Intel Socket LGA 115x, LGA 1200, LGA 1700, LGA 2011/2066 Square ILM and AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2 motherboards in a 1U Chassis.
Also available: L3 All-in-one Liquid Cooler with 3x Fans

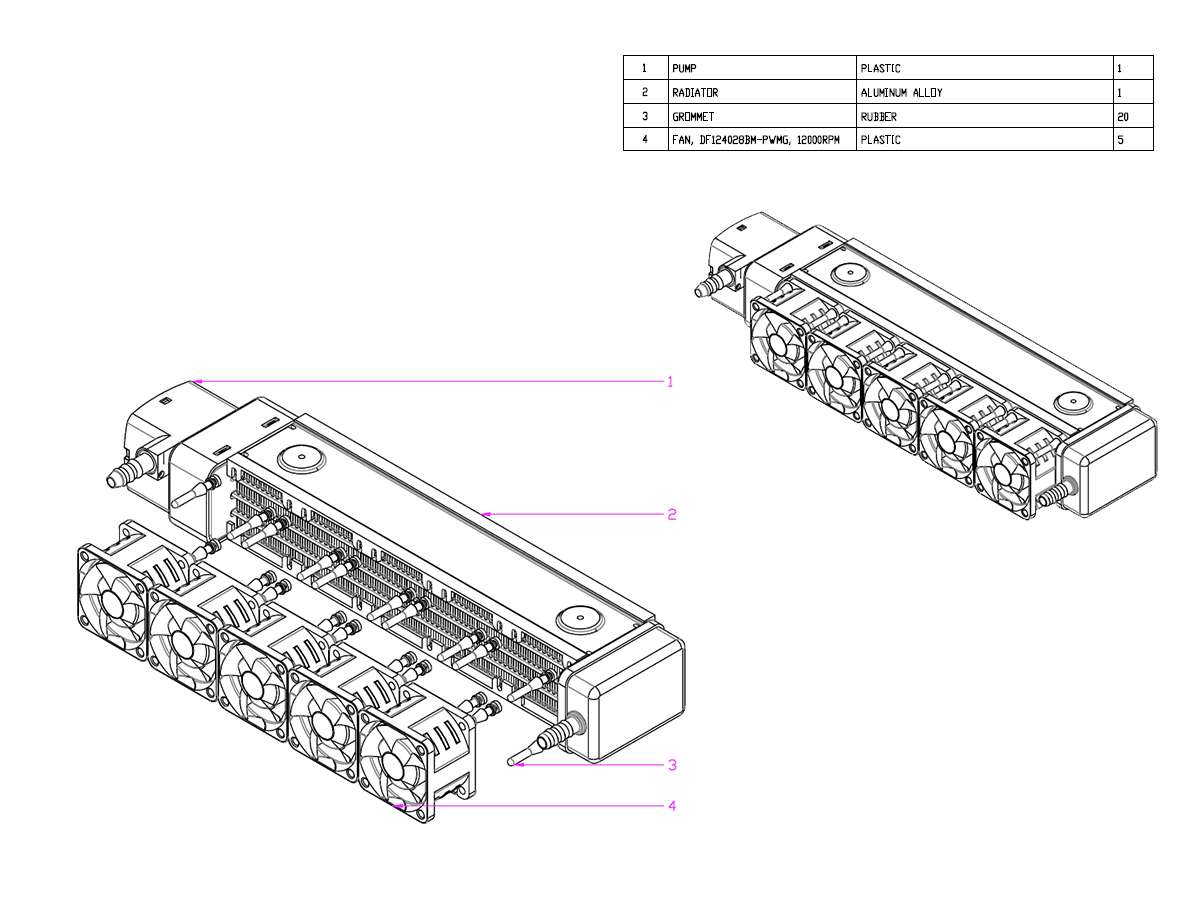

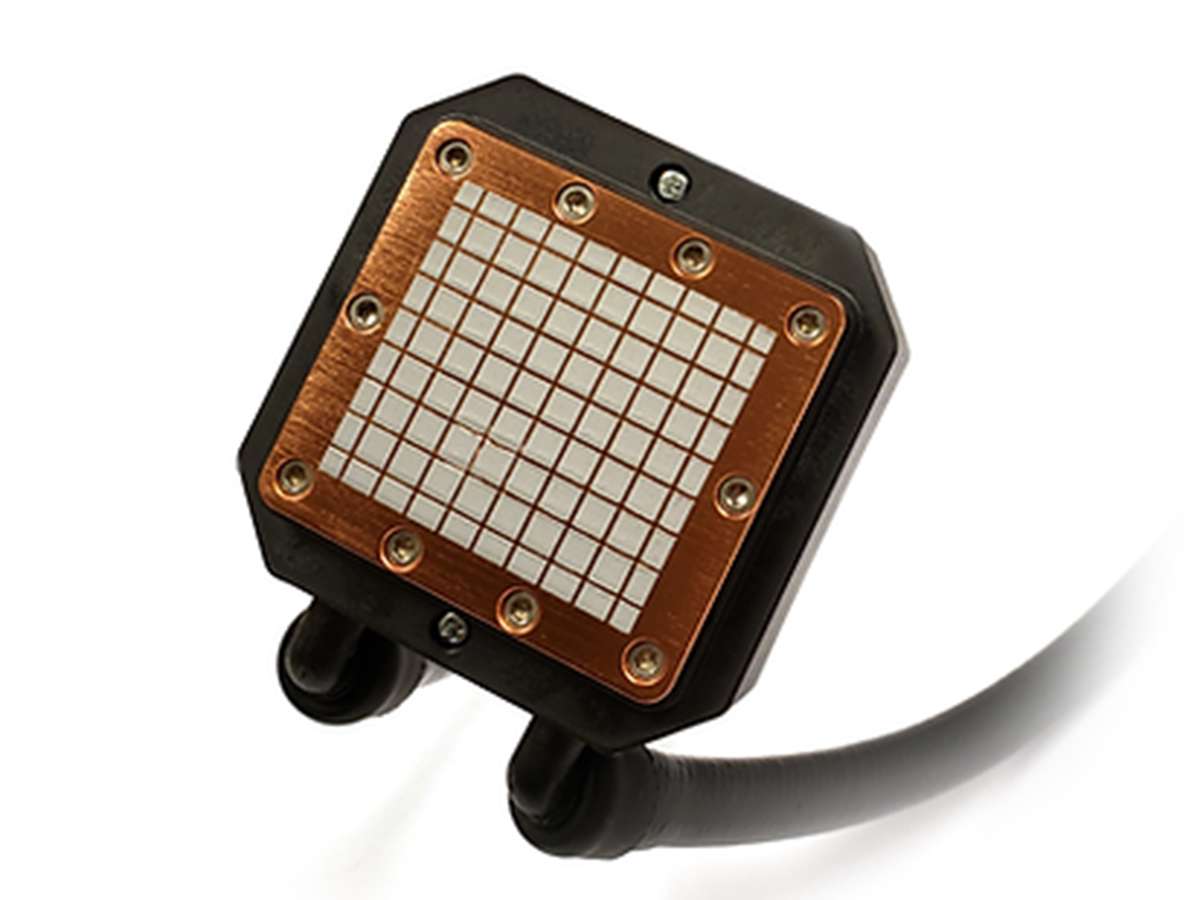

5x Dynatron DF124028BM-PWMG long life two-ball bearing fans cool the radiator which extracts heat through water pumped from the copper 1100 based cold-plate attached to the CPU. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.

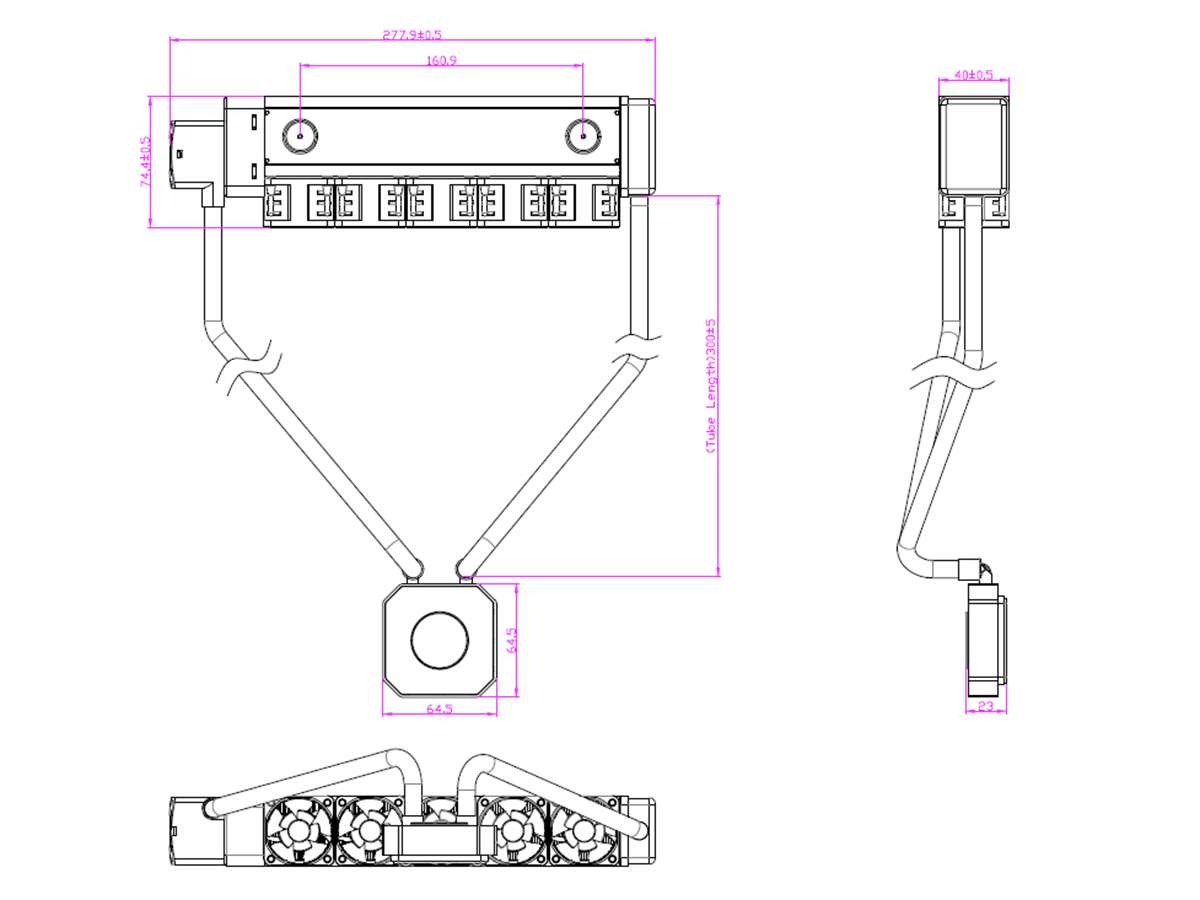

Case Compatibility: 1U chassis with enough space inside to mount radiator and tubing. Please consult diagrams to determine fit. Radiator measures 277.9 x 74.4 x 40 (H) mm.

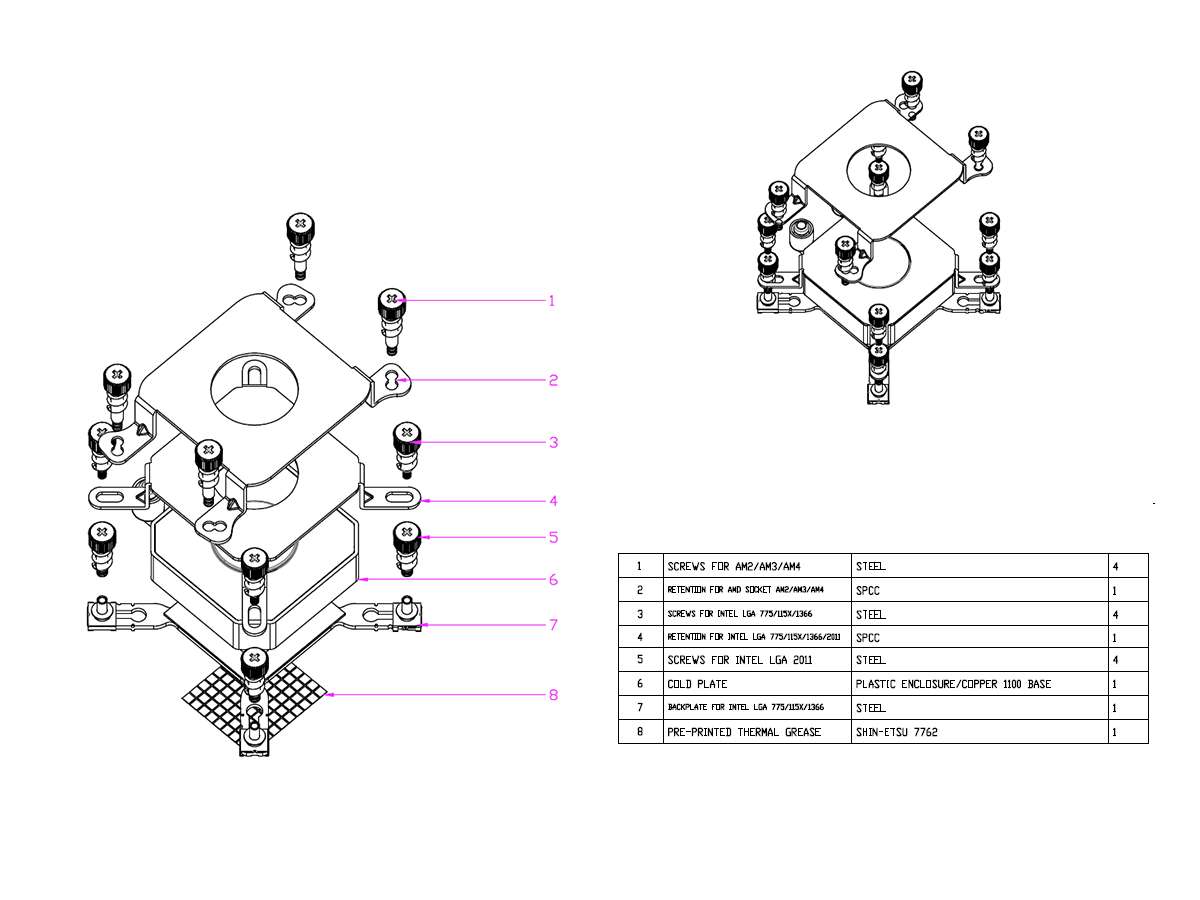

Fitting: Screws surrounded by compression springs attach the cold plate using the retention bracket to the backplate underneath the motherboard. Radiator is then positioned within chassis. Power connectors attach to motherboard's PUMP and CPU fan headers.

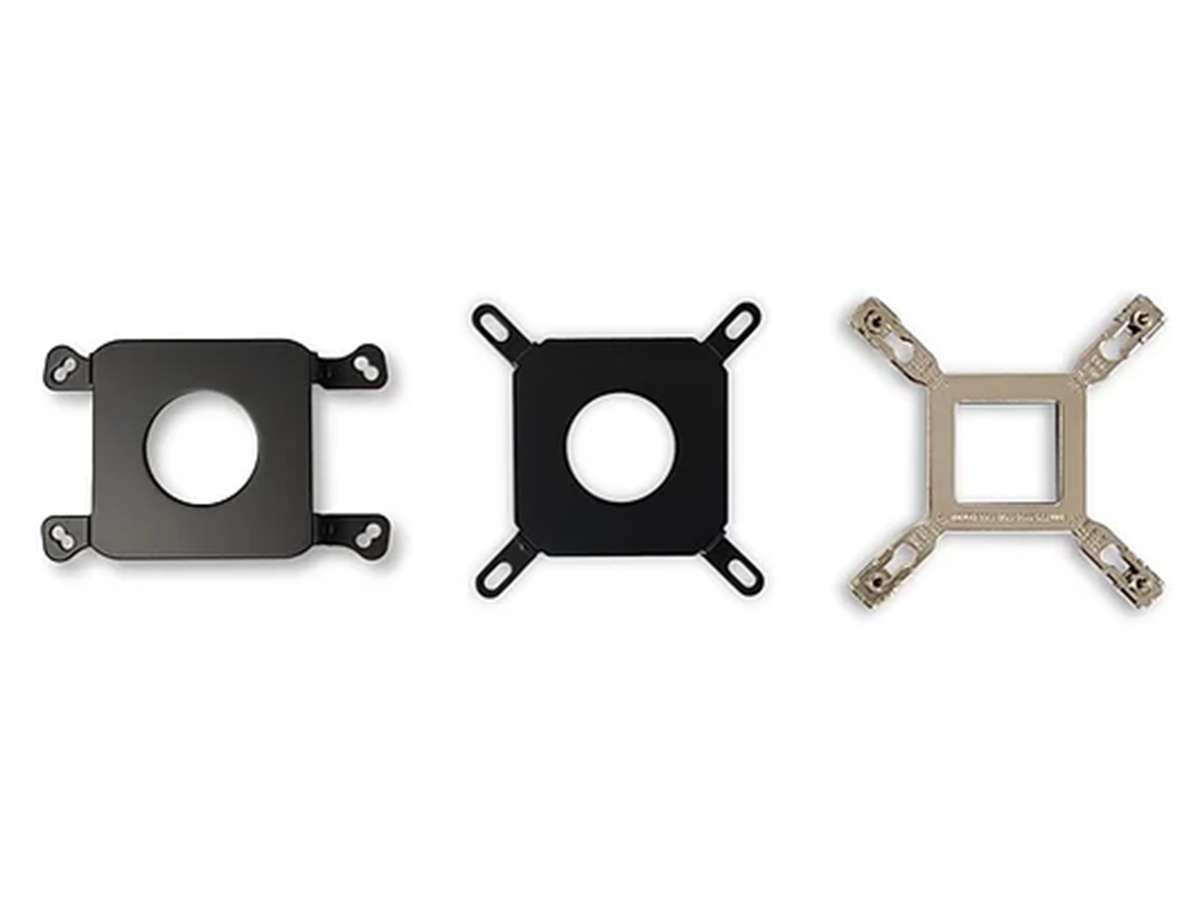

Box Contents: Pre-Assembled pre-filled L25-1 Liquid Cooler with Copper Base Cold Plate Module, Light Weight Radiator, Water Pump with 2.9 litre/minute flow rate; 30cm Black EPDM Tubes; 2x Power Connectors; Full Mounting Accessories: Intel Backplate; Intel Retention Bracket; AMD Retention Bracket; AMD Screws; 2 sets of Intel Screws.
Compatible Boards and CPUs: Intel Socket 115X, 1200, 1700, 2011/2066 Square ILM and AMD FM1/2, AM2,3,4,5 Motherboards fitted with a processor producing up to 250W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Product Specifications with Diagrams
Specifications: PWM controlled Fan speed: 3300 RPM (at 0-20% Duty Cycle); 5700 RPM (at 50%); 12000 RPM (at 100%); Airflow: 5.92 CFM (at 0-20%), 10.225 CFM (at 50%), 21.526 CFM (at 100%); Air Pressure: 1.733 mm-H2O (at 0-20%); 5.17 mm-H2O (at 50%); 22.912 mm-H2O (at 100%); Noise level: 25.93 dBA (at 0-20%), 37.8 dBA (at 50%), 53.96 dbA (at 100%); Power Consumption: 0.72 W (at 0-20%); 1.56 W (at 50%); 8.4 W (at 100%); Fan Dimensions: 40 x 40 x 28mm; Overall Dimensions: 277.9 x 74.4 x 40 (H) mm.
| Specifications | |
|---|---|
| Brand | Dynatron |
| Model | L25-1 All-in-one Liquid Cooler for 1U Servers |
| Maximum CPU Power | 250 W |
| Connector Type | 4-pin PWM |
| Socket Types | 115X, 1200, 1700, 2011, 2066, AM4, AM5 |
| Construction | All in One Liquid Cooler for 1U Server |
| Fan Bearing Type | 2 Ball Bearing |
| Power @ 20% | 0.72 W |
| Power @ 50% | 1.56 W |
| Power @ 100% | 8.4 W |
| Voltage | 12 V |
| Cooling | |
| Fan Speed @ 20% | 3300 RPM |
| Fan Speed @ 50% | 5700 RPM |
| Fan Speed @ 100% | 12000 RPM |
| Airflow @ 20% | 5.92 CFM |
| Airflow @ 50% | 10.225 CFM |
| Airflow @ 100% | 21.526 CFM |
| Air Pressure @ 20% | 1.733 mm-H2O |
| Air Pressure @ 50% | 5.17 mm-H2O |
| Air Pressure @ 100% | 22.912 mm-H2O |
| Noise Level @ 20% | 25.93 dB(A) |
| Noise Level @ 50% | 37.8 dB(A) |
| Noise Level @ 100% | 53.96 dB(A) |
| Dimensions | |
| Fan Size | 40 x 40 x 28mm (W x H x D) | Heatsink Height | 40mm |
| W x D x H | 277.9 x 74.4 x 40mm |
| Volume | 0.83 litres |
