Dynatron L35 All-in-one Liquid Cooler suitable for 2U Chassis with Intel Socket LGA1700, LGA1200, LGA115x, LGA2011/2066 Square ILM, AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2
Dynatron L35 All-in-one Liquid Cooler for 2U Servers | |
£154.80 inc. VAT | |
BACK SOON
~3 week lead time, can be back-ordered |

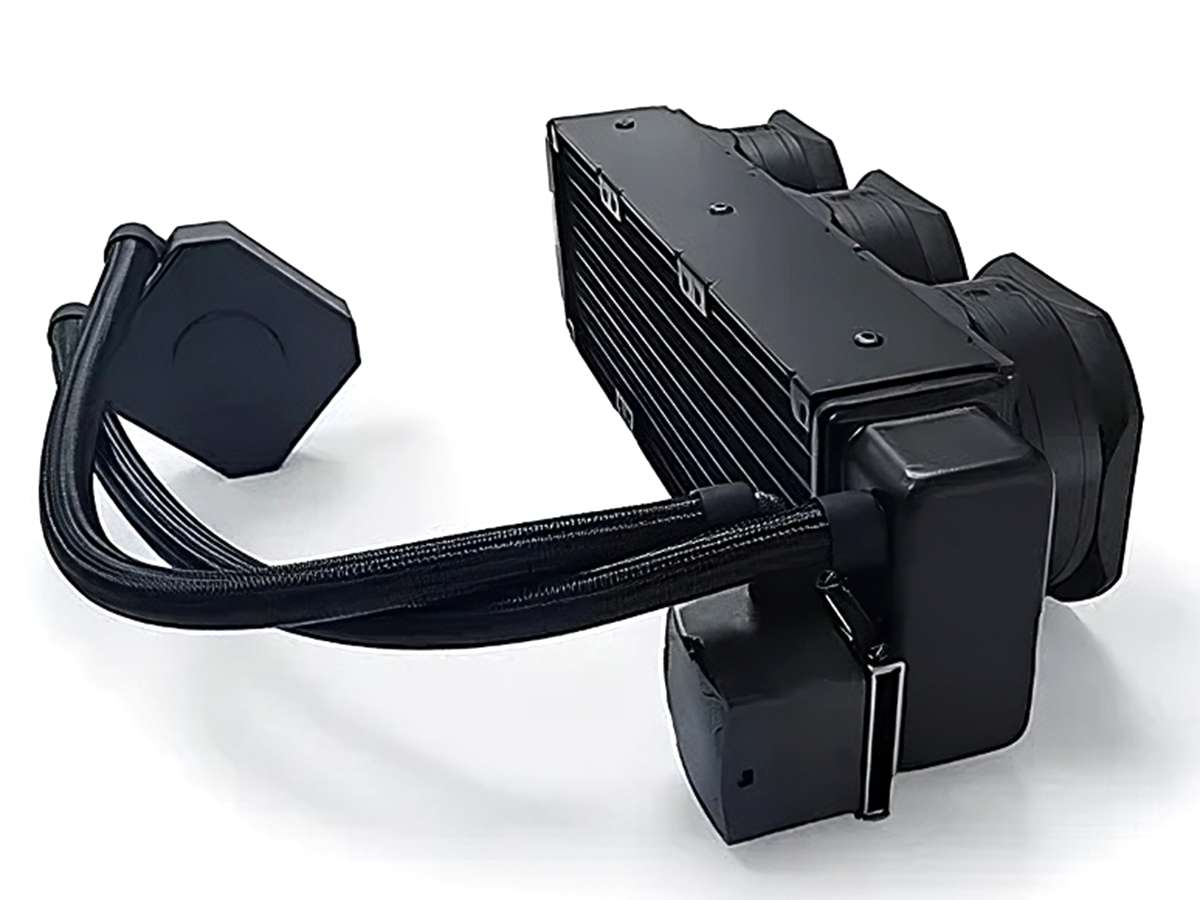

Dynatron L35 All-in-one Liquid Cooler suitable for cooling Intel Socket LGA 1700, LGA 1200,LGA 115x, LGA 2011/2066 Square ILM and AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2 motherboards in a 2U Chassis.

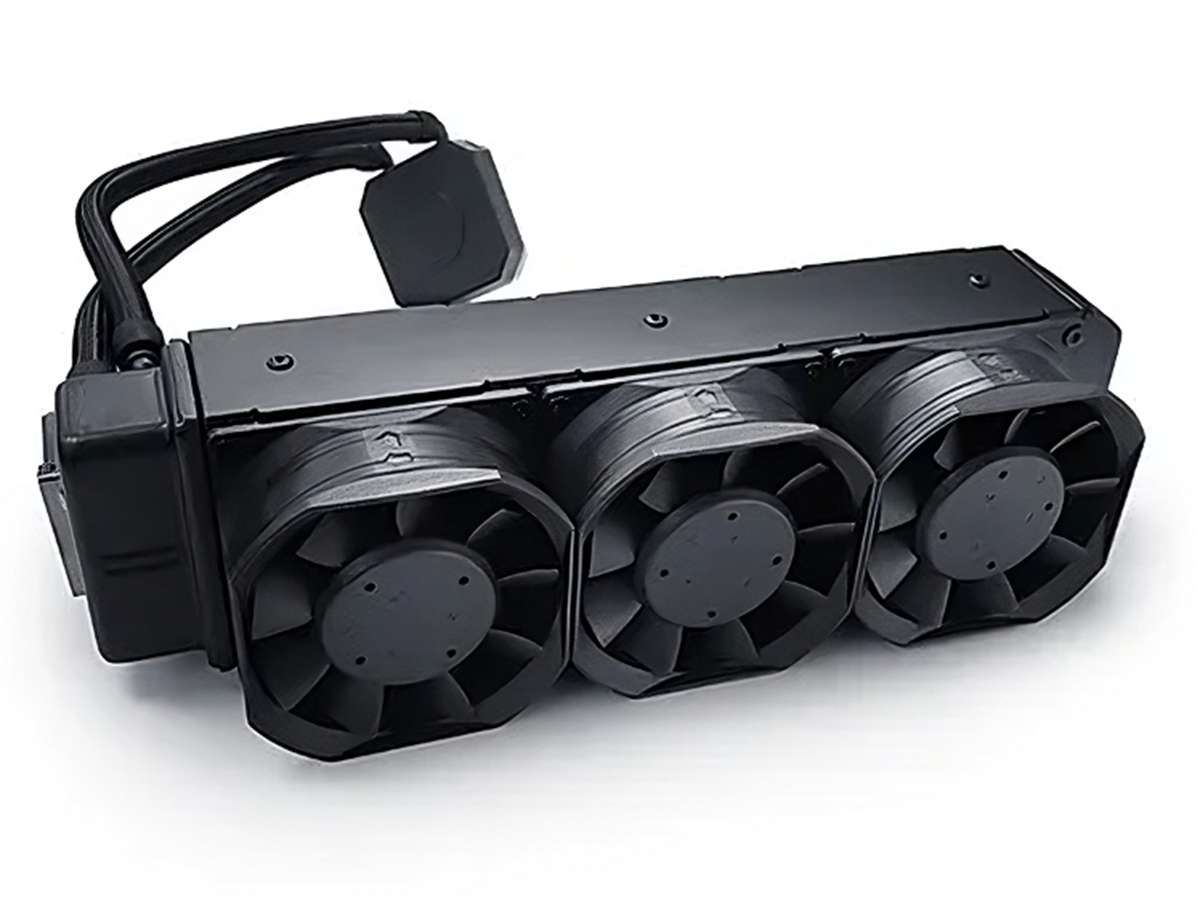

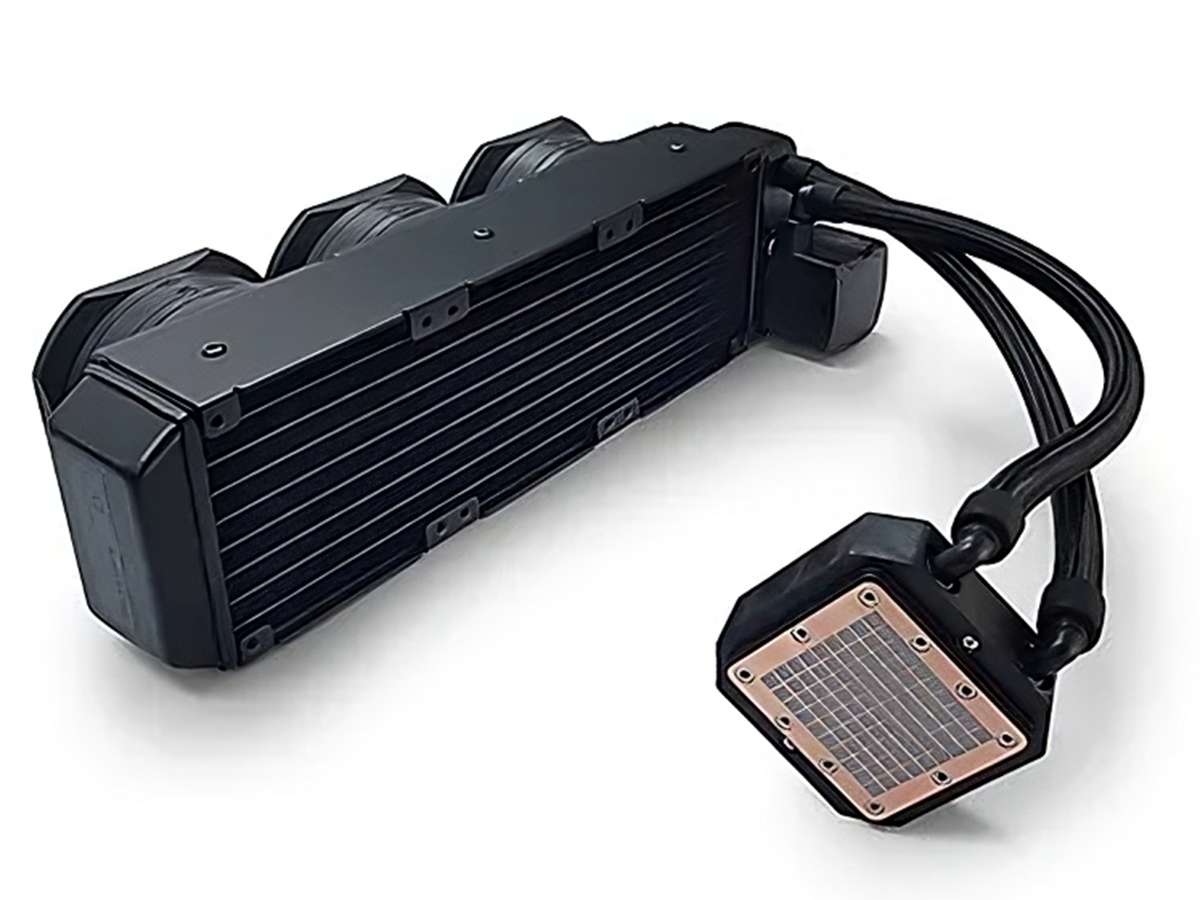

3x Dynatron DB128038BX-PWMG long life two-ball bearing 80x80x38mm fans cool the radiator which extracts heat through water pumped from the copper 1100 based cold-plate attached to the CPU. Pre-applied high performance Shin-Etsu thermal grease ensures clean and easy installation.
Case Compatibility: 2U chassis with enough space inside to mount radiator and tubing. Please consult diagrams to determine fit. Radiator measures 323.3 (L) x 82.05 (W) x 85.15 (H) mm.

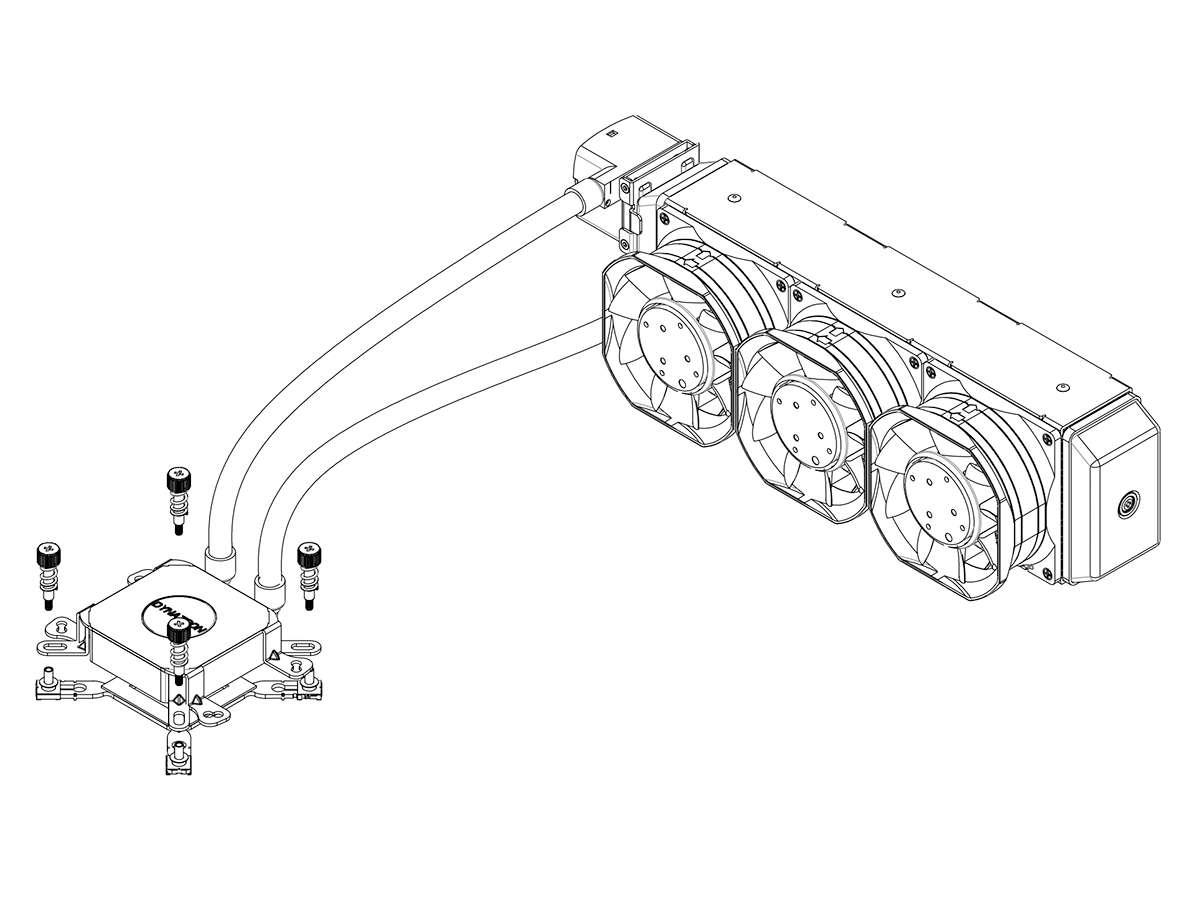

Fitting: Screws surrounded by compression springs attach the cold plate using the retention bracket to the backplate underneath the motherboard. Radiator is then positioned within chassis. Power connectors attach to motherboard's PUMP and CPU fan headers.

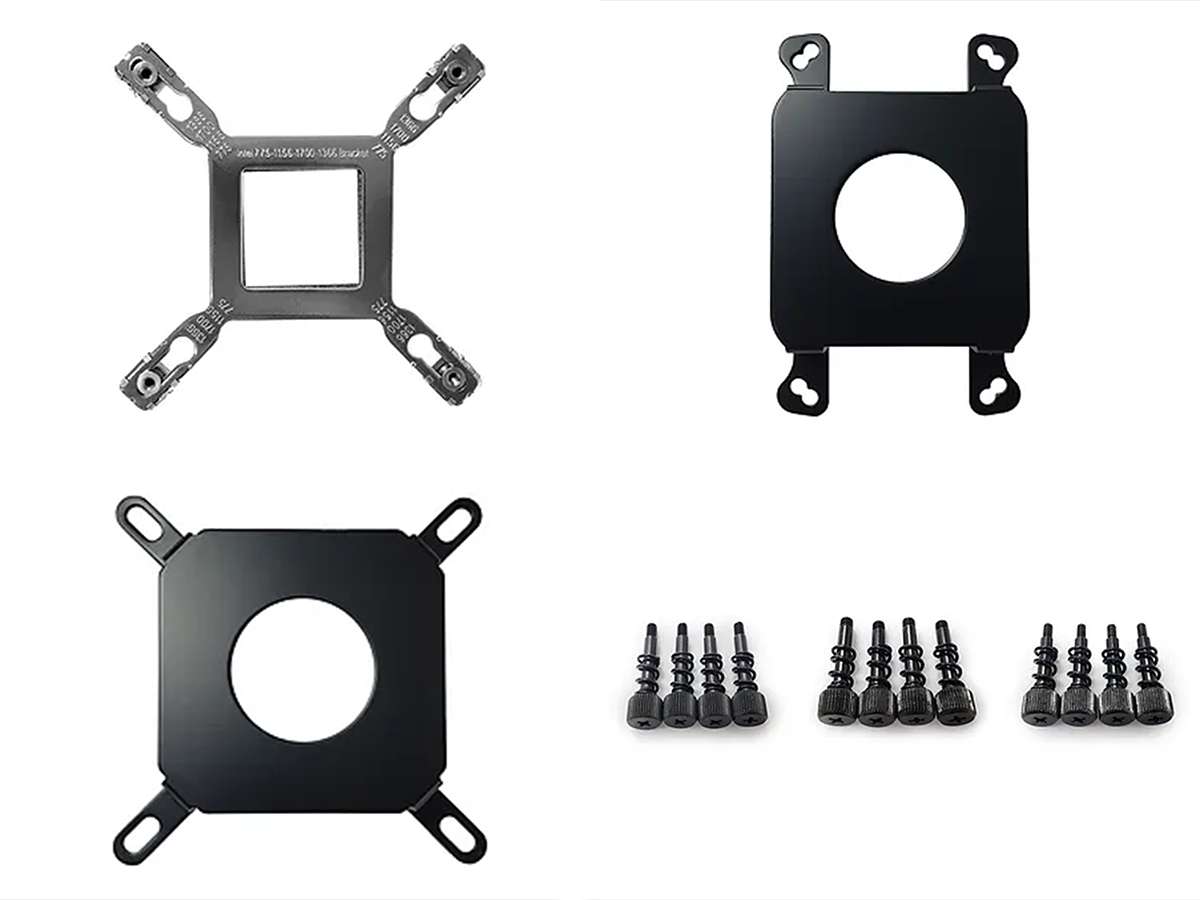

Box Contents: Pre-Assembled pre-filled L35 Liquid Cooler with Copper Base Cold Plate Module, Light Weight Radiator, Water Pump with 2.9 litre/minute flow rate; 30cm Black EPDM Tubes; 2x Power Connectors; Full Mounting Accessories: Intel Backplate; Intel Retention Bracket; AMD Retention Bracket; AMD Screws; 2 sets of Intel Screws.
Compatible Boards and CPUs: Intel Socket 1700, 1200, 115X, 2011/2066 Square ILM and AMD FM1/2, AM2,3,4,5 Motherboards fitted with a processor producing up to 250W (AMD) and 305W (Intel) CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.

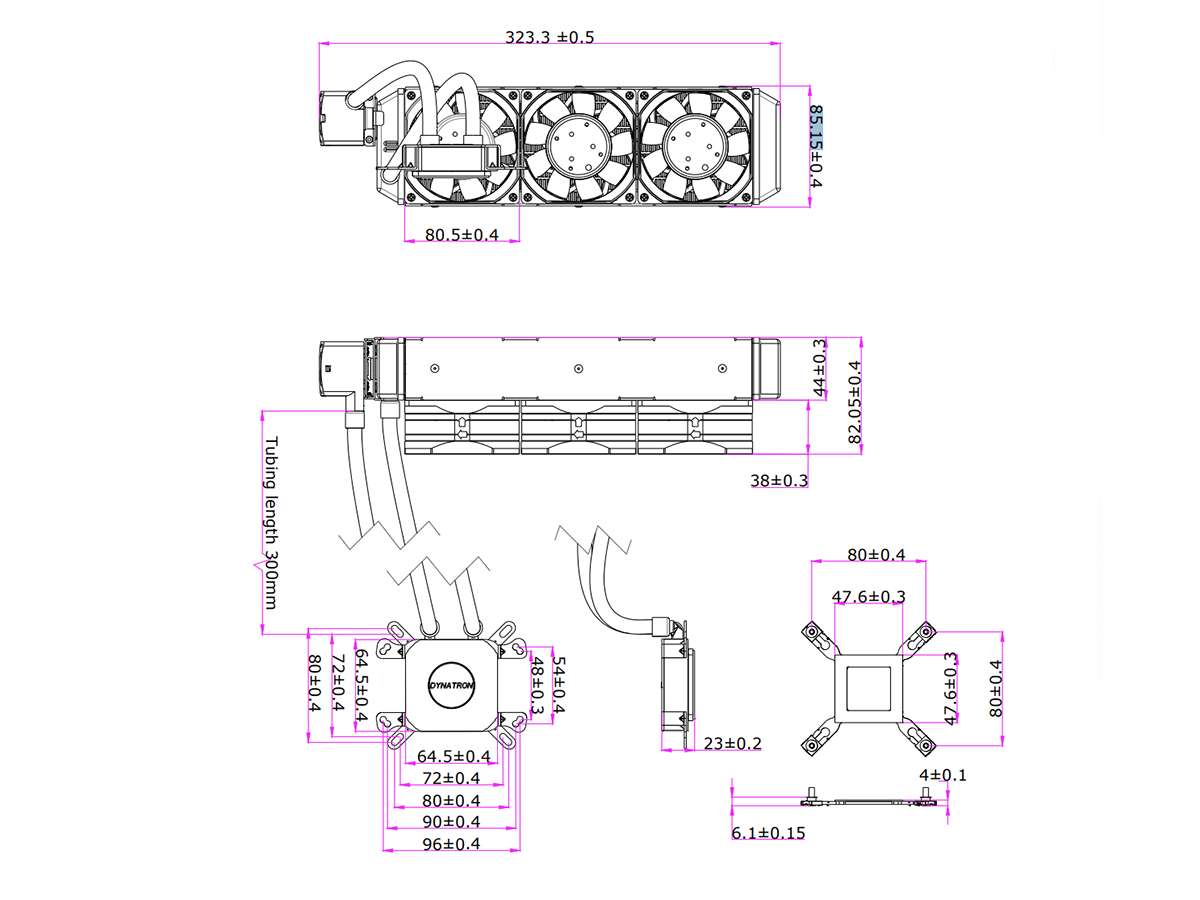

Product Specifications with Diagrams
Specifications: PWM controlled Fan speed: 2400 RPM (at 0-20% Duty Cycle); 4800 RPM (at 50%); 8000 RPM (at 100%); Airflow: 35.52 CFM (at 0-20%), 67.24 CFM (at 50%), 115.61 CFM (at 100%); Air Pressure: 1.733 mm-H2O (at 0-20%); 1.39 mm-H2O (at 50%); 34.06 mm-H2O (at 100%); Noise level: 25.63 dBA (at 0-20%), 47.85 dBA (at 50%), 64.4 dbA (at 100%); Power Consumption: 1.2 W (at 0-20%); 5.52 W (at 50%); 24.72 W (at 100%); ; Fan Dimensions: 80 x 80 x 38mm (3 fans); Overall Dimensions: 323.3 (L) x 82.05 (W) x 85.15 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | L35 All-in-one Liquid Cooler for 2U Servers |
Maximum CPU Power (AMD) | 230 W |
Maximum CPU Power (Intel) | 305 W |
Connector Type | 4-pin PWM |
Socket Types | 115X, 1200, 1700, 2011, 2066, AM4, AM5 |
Construction | All in One Liquid Cooler for 2U Server |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 1.2 W |
Power @ 50% | 5.52 W |
Power @ 100% | 24.72 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 2400 RPM |
Fan Speed @ 50% | 4800 RPM |
Fan Speed @ 100% | 8000 RPM |
Airflow @ 20% | 35.52 CFM |
Airflow @ 50% | 67.24 CFM |
Airflow @ 100% | 115.61 CFM |
Air Pressure @ 20% | 1.733 mm-H2O |
Air Pressure @ 50% | 1.39 mm-H2O |
Air Pressure @ 100% | 34.06 mm-H2O |
Noise Level @ 20% | 25.63 dB(A) |
Noise Level @ 50% | 47.85 dB(A) |
Noise Level @ 100% | 64.4 dB(A) |
Dimensions | |
Fan Size | 80 x 80 x 38mm (W x H x D) | Heatsink Height | 85.15mm |
W x D x H | 323.3 x 82.05 x 85.15mm |
Volume | 2.26 litres |
