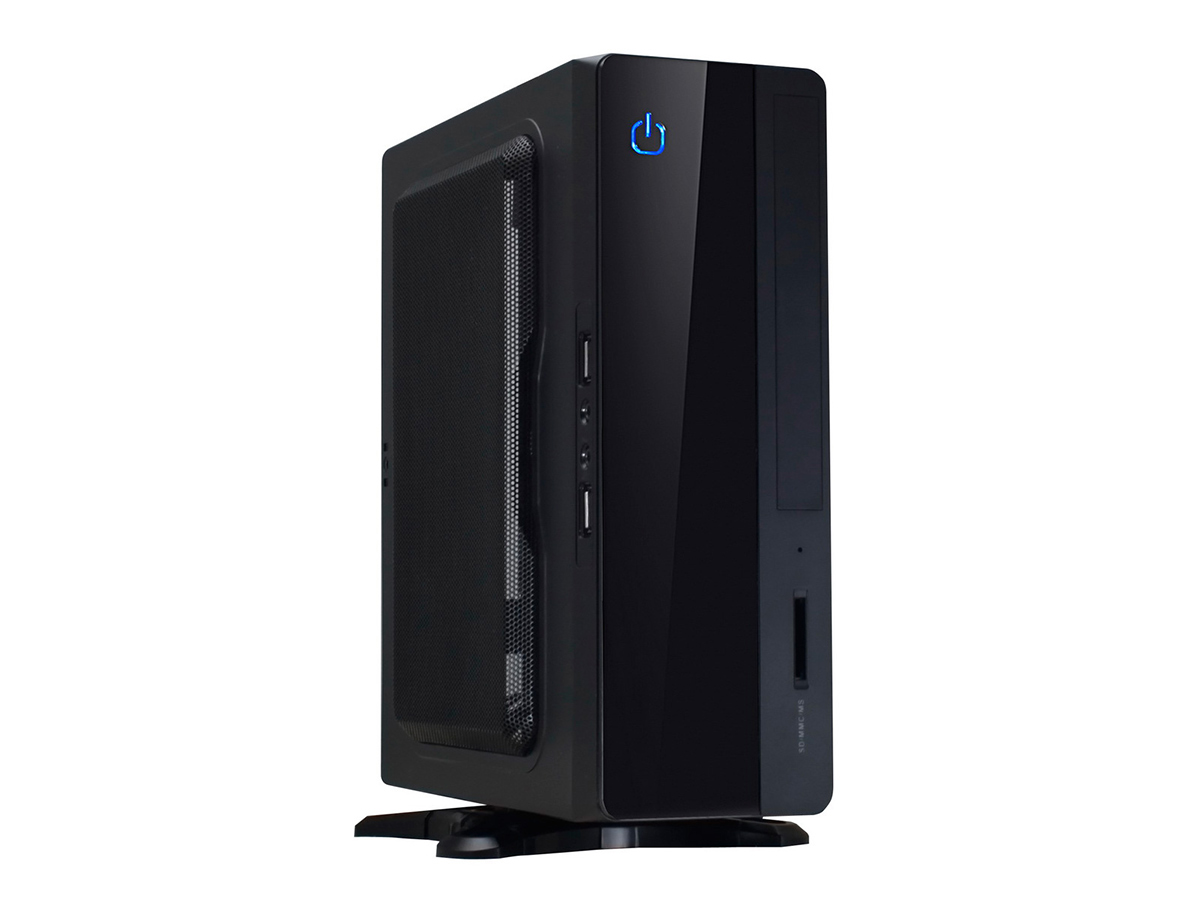

Black Vesa Mountable MTX7 Mini-ITX Case with 180W PSU and Card Reader
CIT MTX7 Chassis 180W | |
£60.00 inc. VAT | |
IN STOCK (Checked 09:02) |

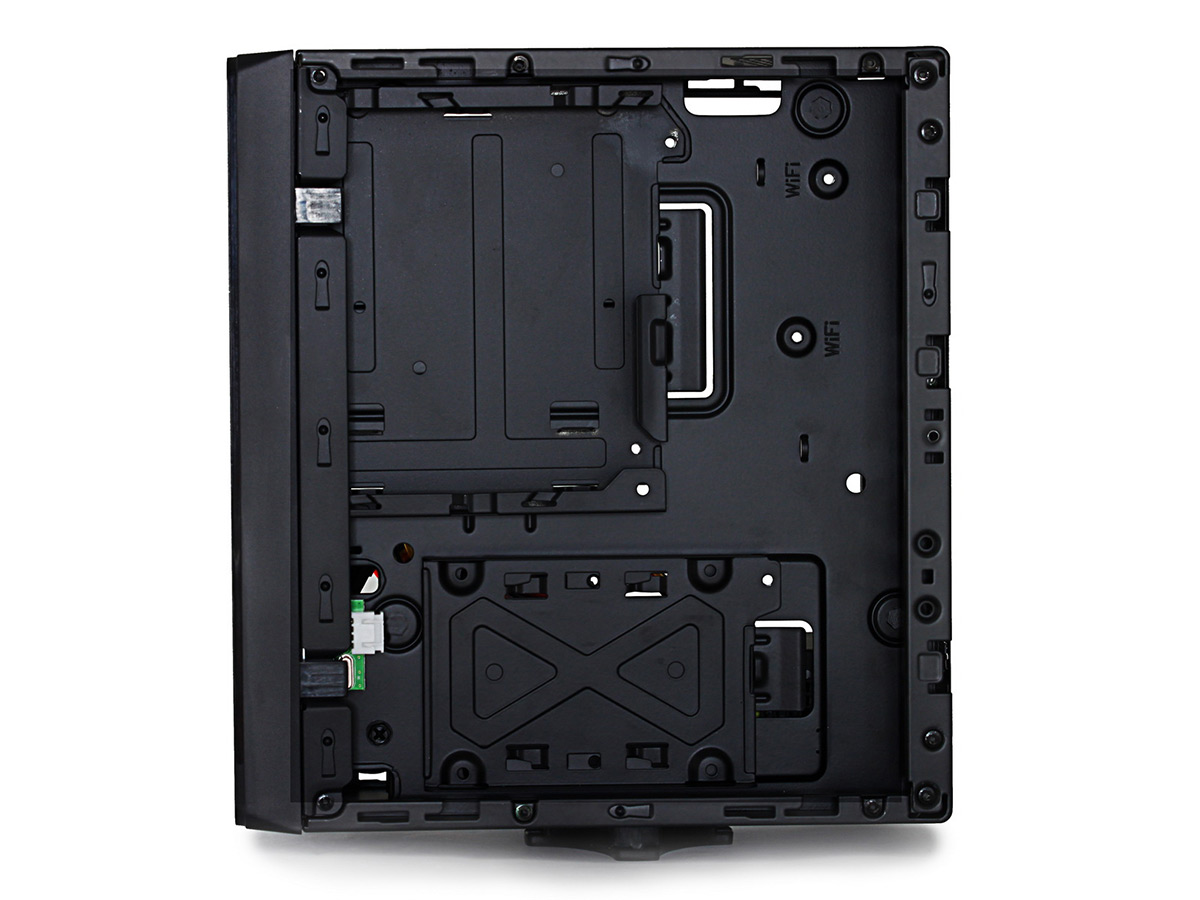

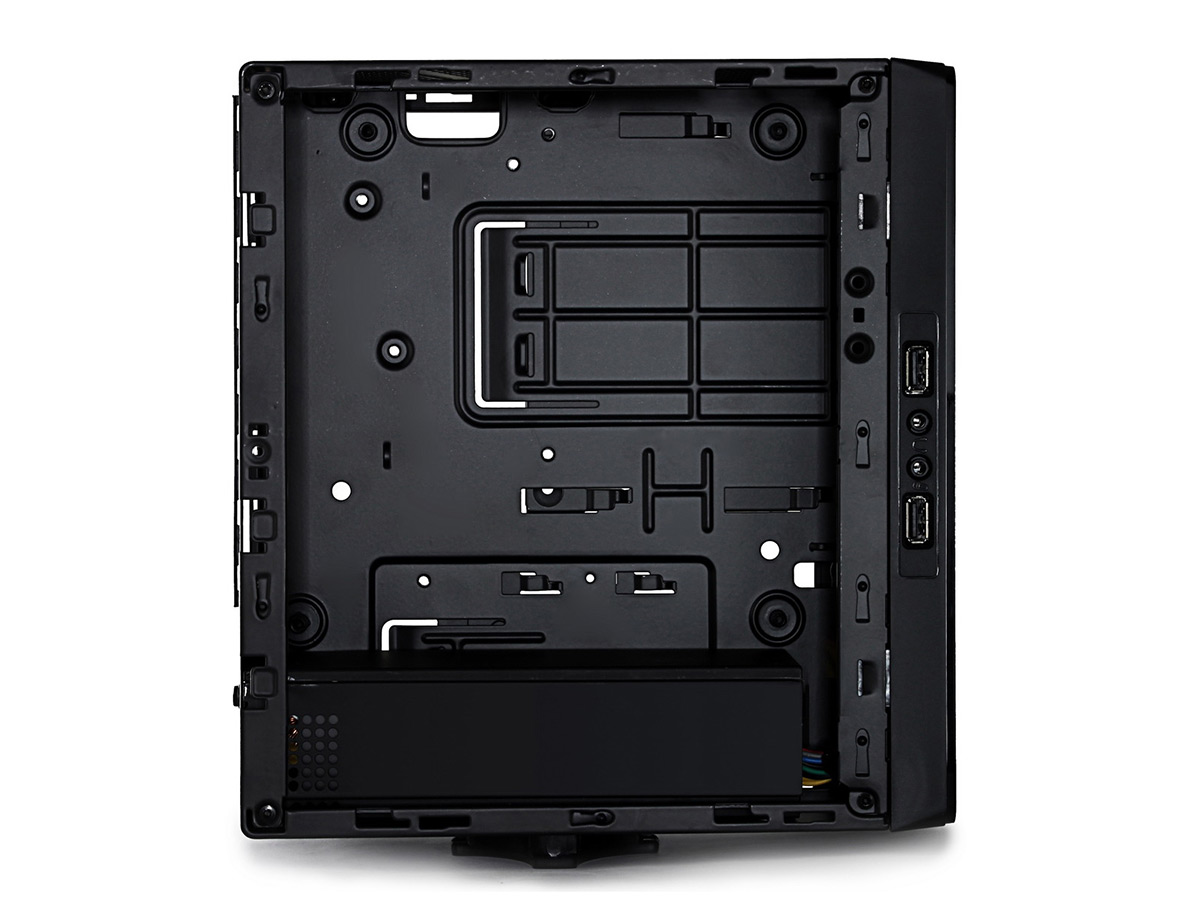

The MTX7 packs a 180W power supply into a well ventilated 4.7 litre chassis. Suitable for all Mini-ITX motherboards, the MTX7 can be VESA mounted onto the rear of a monitor or used as a more traditional desktop chassis. Dual Layer internal structure separates the motherboard (top) and drives (bottom).
Bays: 1x Internal 2.5in HDD/SSD; 1x Slimline Optical Bay (Mini SATA cable required) or additional 2.5in HDD/SSD.

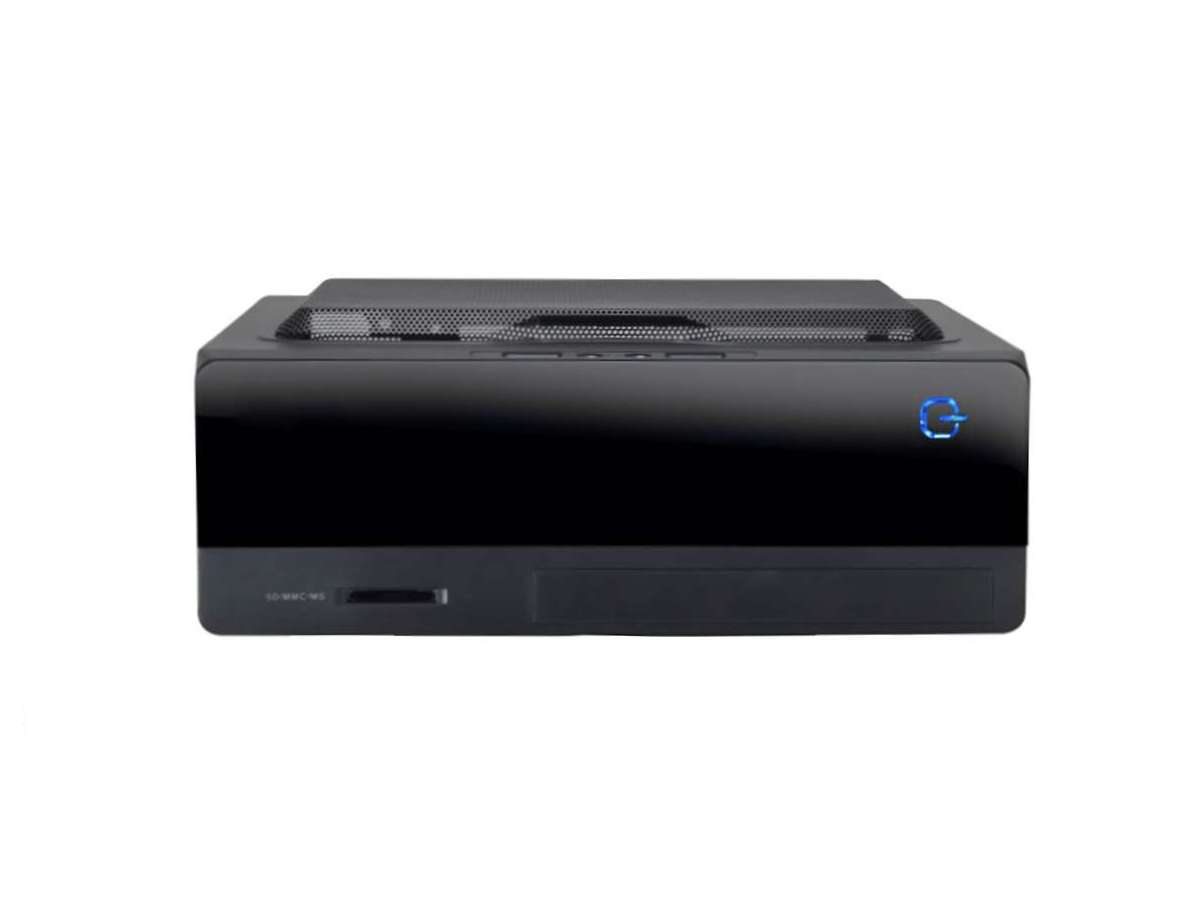

Front Panel: 1x Illuminated Power Button; Card Reader supporting SD/MMC, CF/MD, XD, TF, MS/M2 (connects to USB header on motherboard).

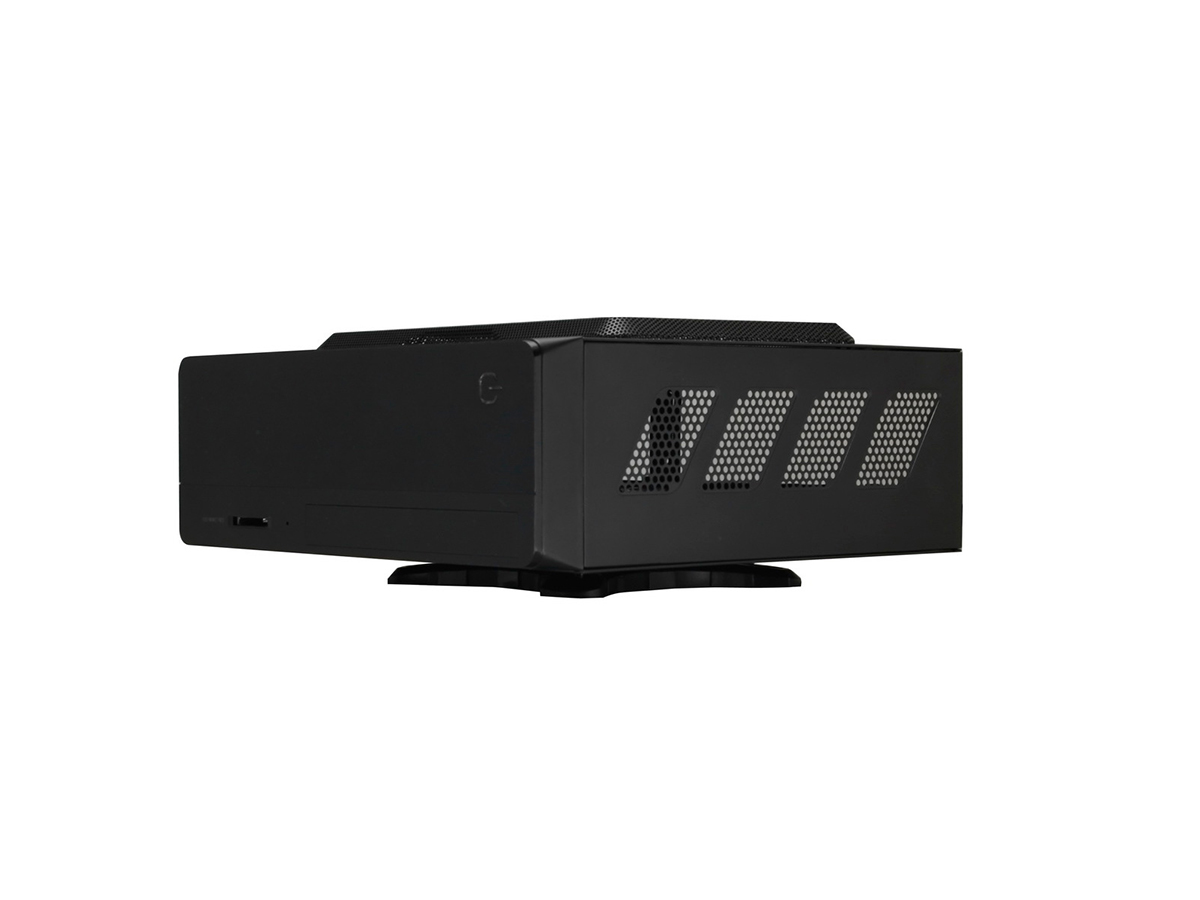

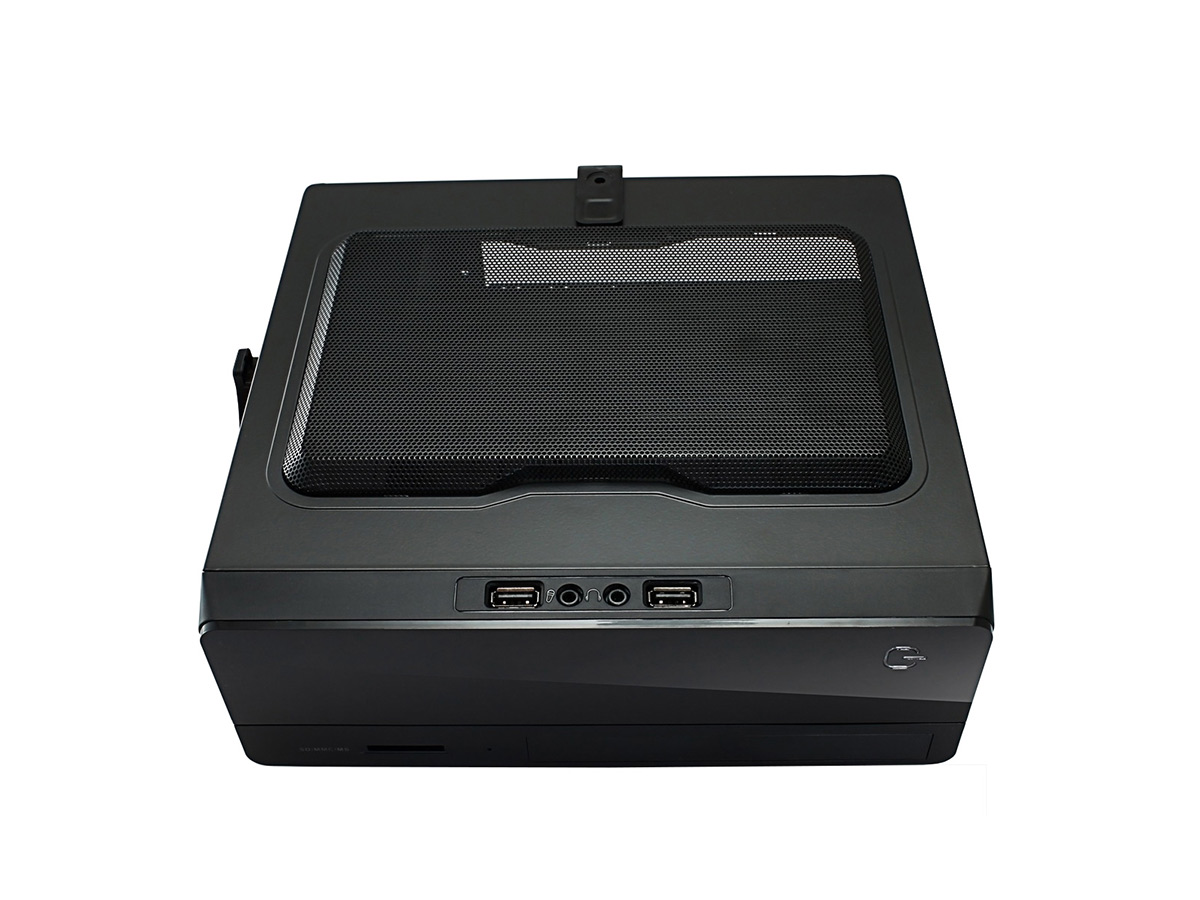

Side Panel: 2x USB 2.0; 1x Headphone; 1x Microphone; Vented Side Panel design.
Rear Panel: Punch-out for DB9 connector.
Power supply: Internal 180W ATX PSU with quiet cooling fan.

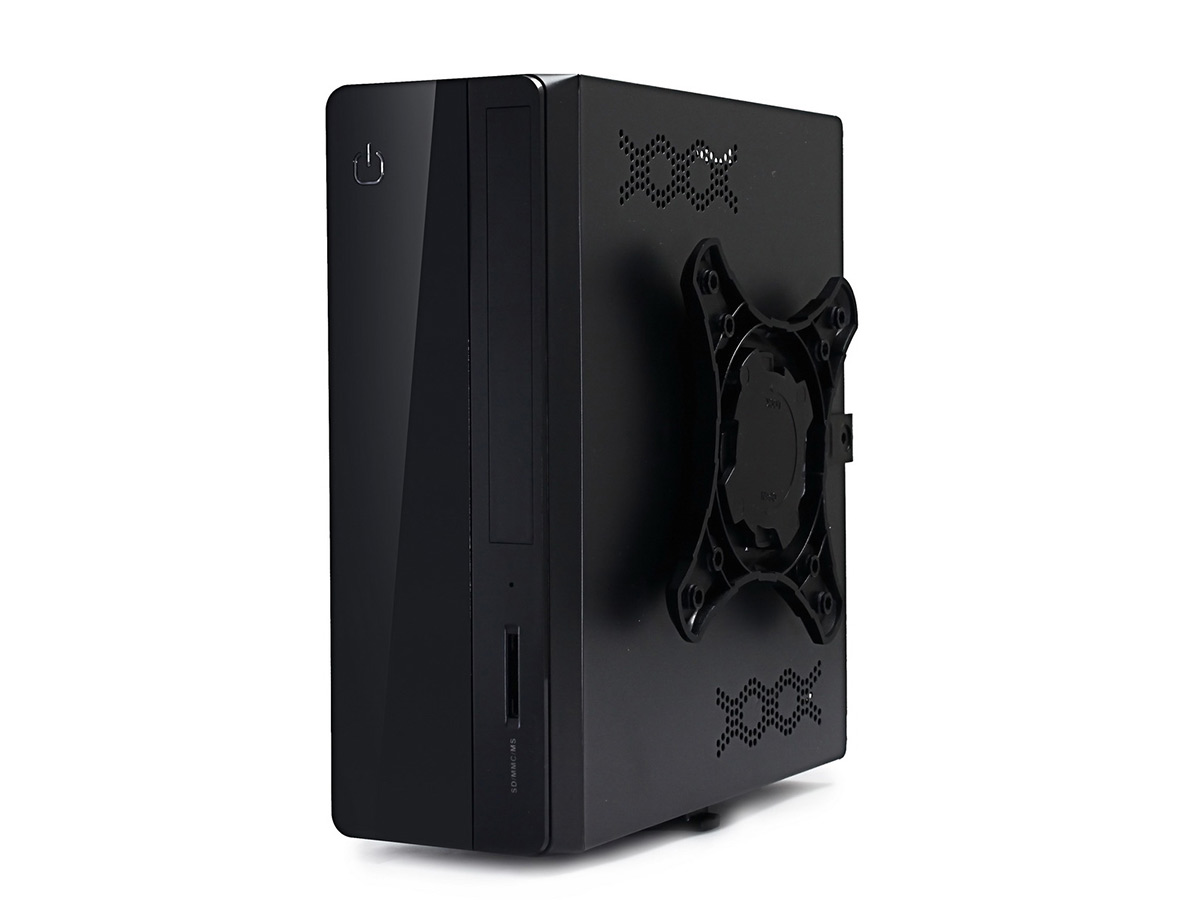

VESA mount: VESA mount can be positioned on the rear or side of the chassis, or removed altogether.
Measurements: Without VESA: 90mm (W) x 235mm (H) x 221mm (D) (3.7in x 9.6in x 8.7in). Volume: 4.67 litres. VESA mount adds approx 15mm to width or depth.
Supported boards: All Mini-ITX boards with ATX connectors including Intel Socket Mini-ITX boards with standard retail heatsinks.
Building Tips: Use an M.2 or mSATA drive fitted directly to the board instead of a 2.5in drive to reduce internal cabling.
Alternative Heatsinks: CPU coolers up to ~55mm in height are supported. We recommend the Noctua NH-L9i for Intel boards. The stock heatsink provided with the AMD Ryzen 2200G and 2400G can be fitted if the plastic guard is removed before installation, and a small notch is cut into the cooler. If you do not want to cut a notch, the Chopin is a very similar case.
Specifications | ||
---|---|---|
Model | CIT MTX-007B Black 180W | |
Case Type | Compact | |
Colour | Black | |
Cooling | ||
Fanless | Yes | |
CPU Cooler | 55mm | Max height |
I/O | ||
USB Connectors | 2 | |
2x USB 2.0 Type A | Side | |
SD | SD/MMC, CF/MD, XD | |
Audio | 1x 3.5mm Mic
1x 3.5mm Headphone |
Side
Side |
Port Cut-Outs |
|
|
Power Supply | ||
Included | Yes | |
Power | 180W | |
Size | ATX | |
VESA Support | ||
75x75mm | ||
100x100mm | ||
Dimensions | ||
W x D x H | 90 x 221 x 235 mm | |
Volume | 4.67 litres |
