Dynatron N11 Cooler suitable for 2U Chassis with Intel LGA 4189

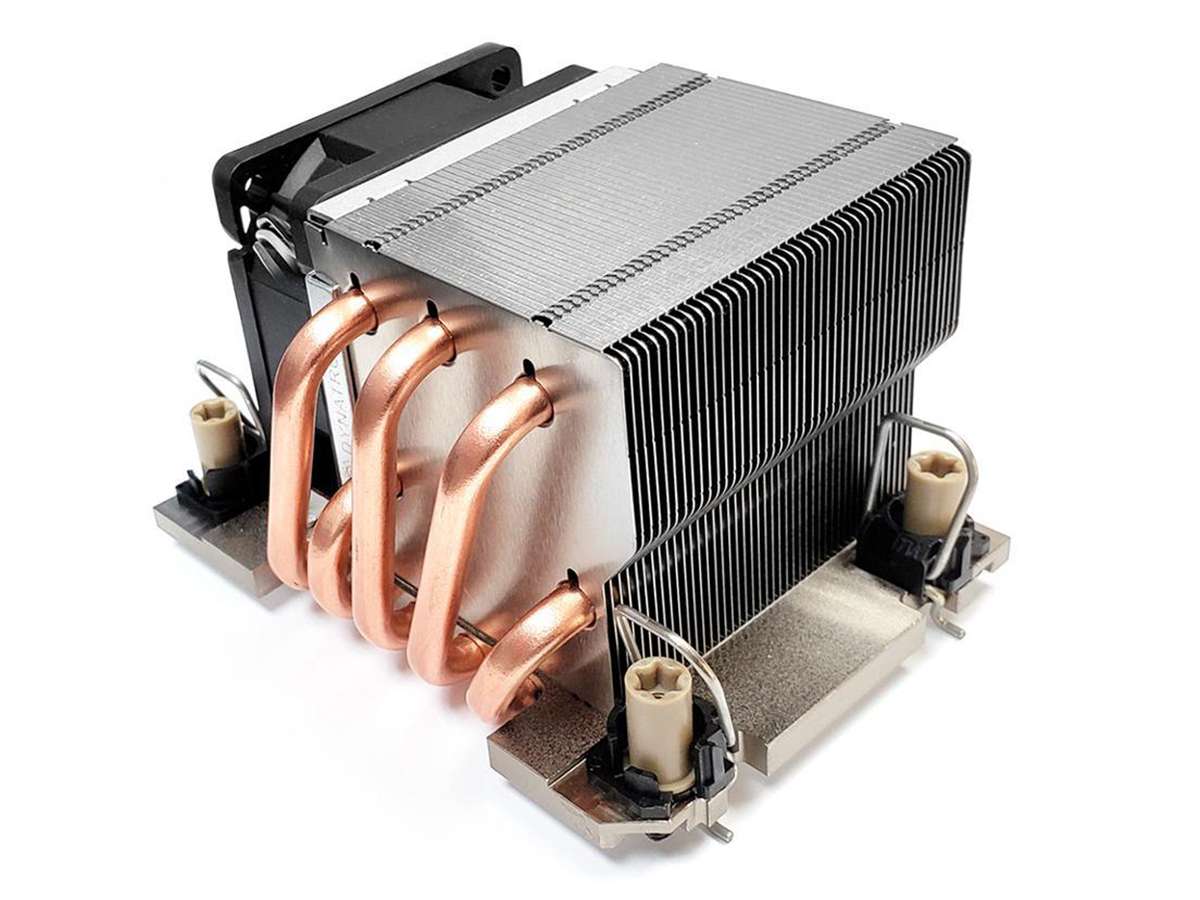

Dynatron N11 Cooler with aluminum stacked fins with embedded heat pipes directly contacting CPU suitable for cooling Intel Socket LGA 4189-4/5 (Socket P4/P5 or P+) motherboards in a 2U Chassis.

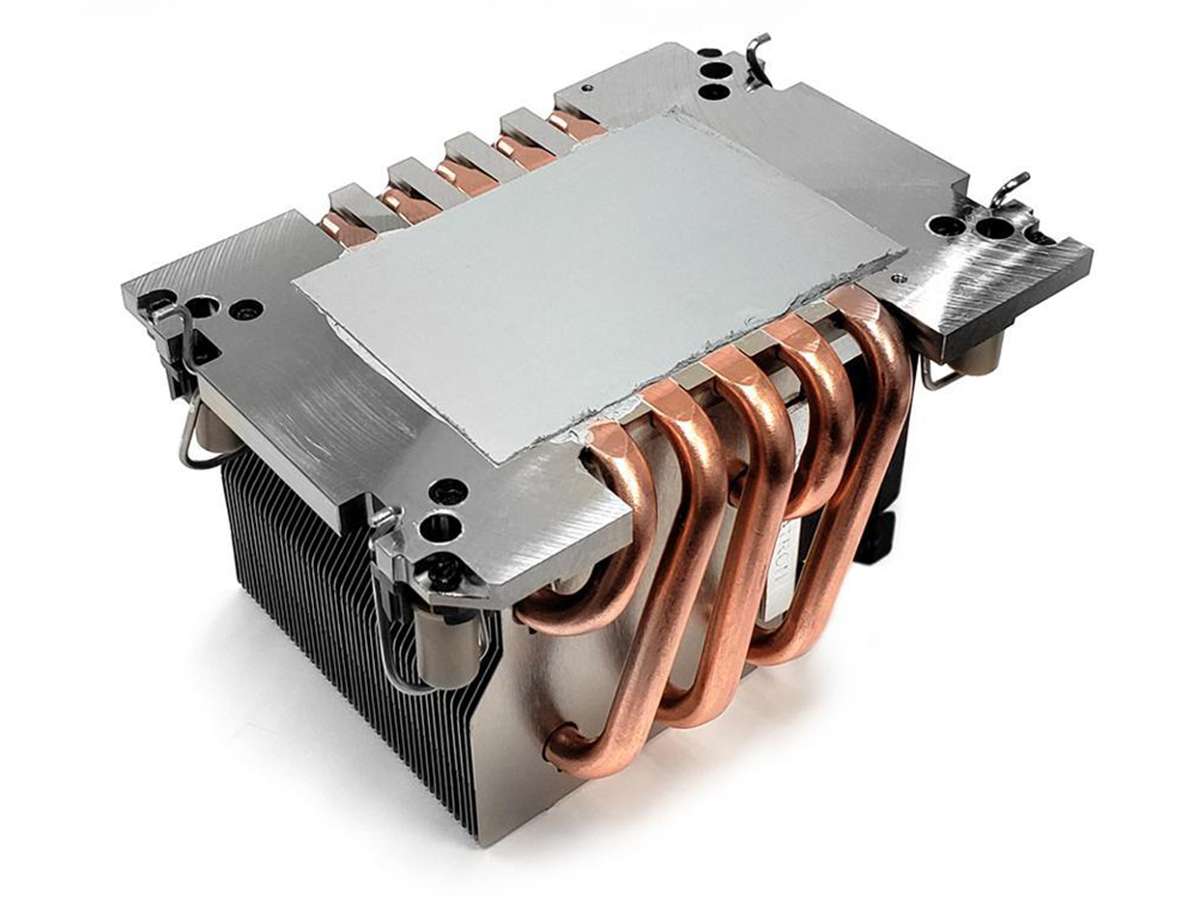

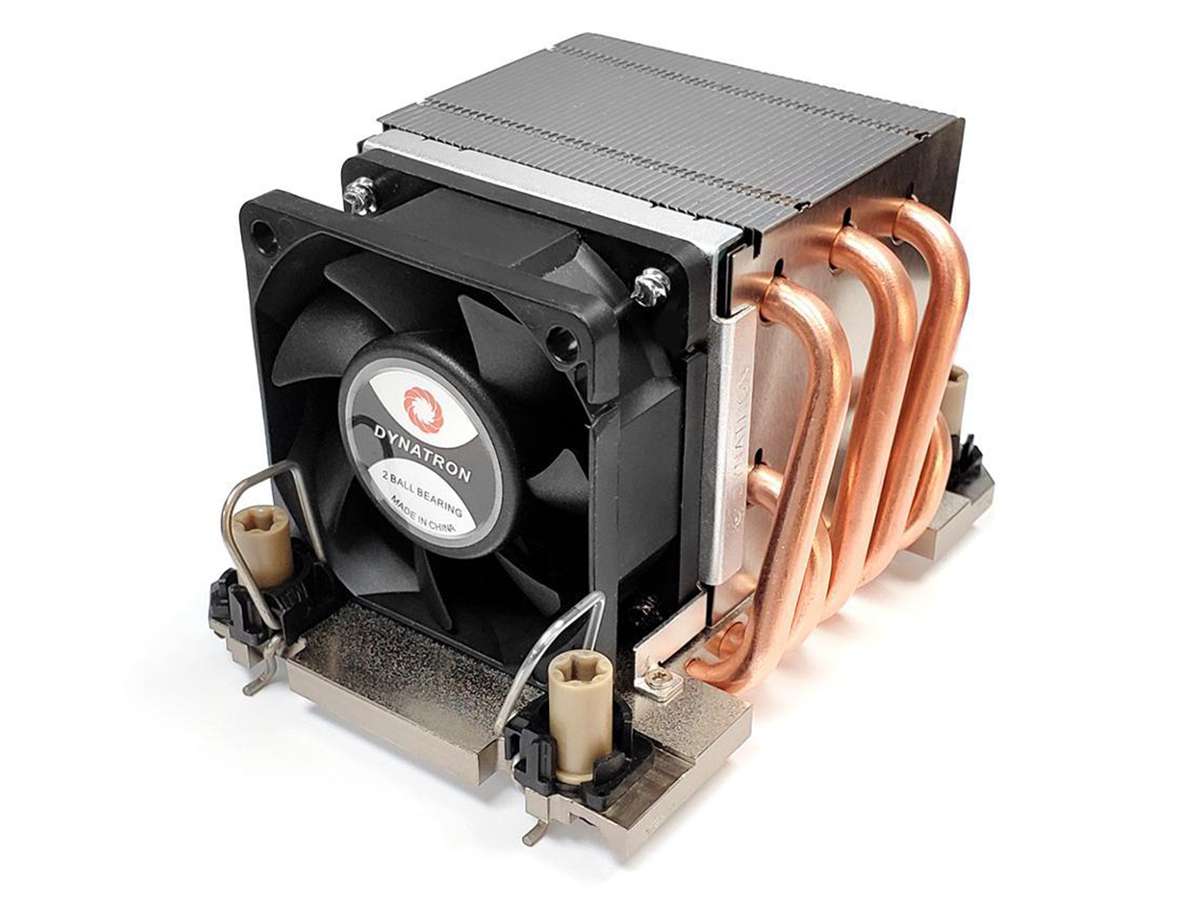

Dynatron 6025 long life two-ball bearing axial fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.

Case Compatibility: Side blower design suitable for use in a 2U chassis. Tip: angle the N11 to force air out of the rear of the chassis.

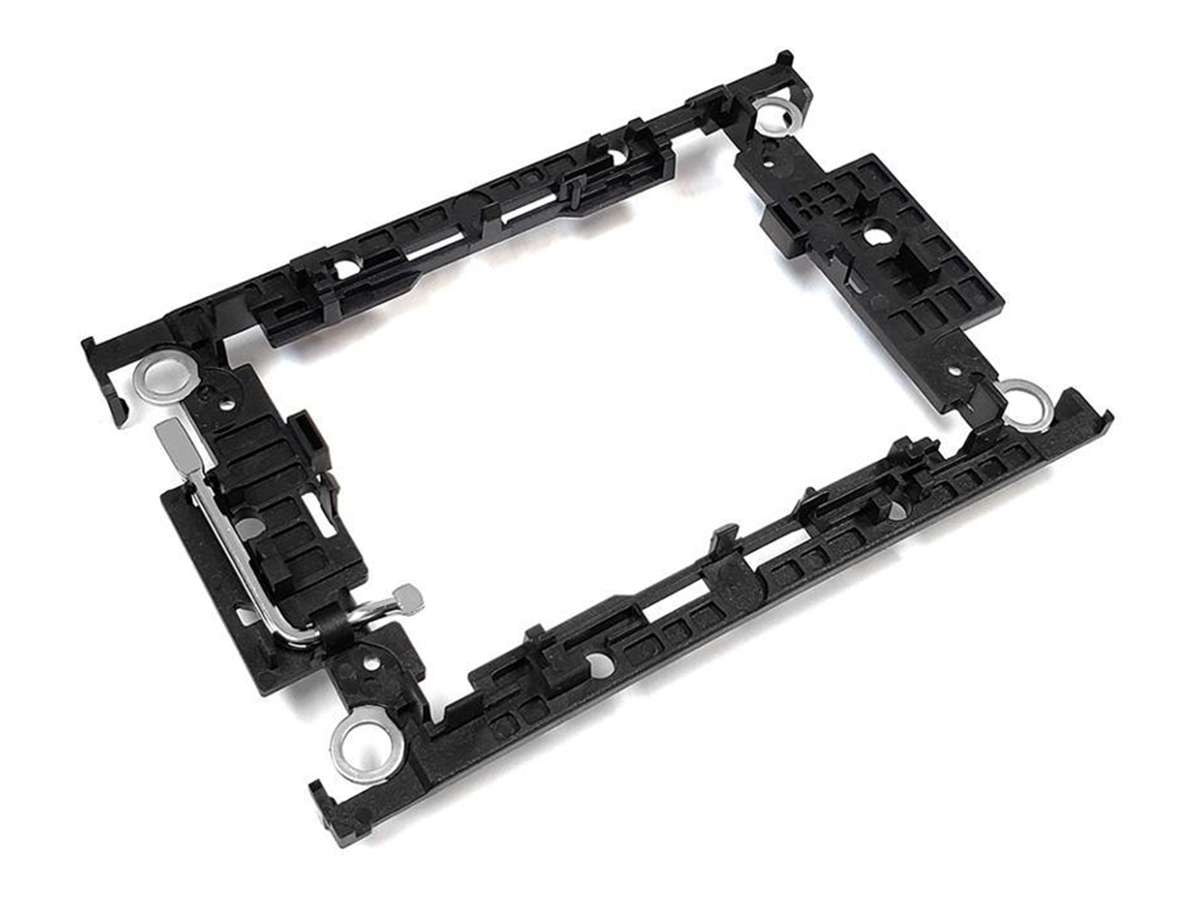

Screw Fit: Torx Nuts surrounded by compression springs screw through Intel package carrier to motherboard.

Installation Video: How to install Dynatron LGA4189 Cooler

Compatible Boards and CPUs: Intel Socket LGA 4189-4/5 (Socket P4/P5 or P+) Motherboards fitted with a processor producing up to 270W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.

Specifications: PWM controlled Fan speed: 1700 RPM (at 0-20% Duty Cycle); 4000 RPM (at 50%); 8500 RPM (at 100%); Airflow: 9.86 CFM (at 0-20%), 23.21 CFM (at 50%), 49.43 CFM (at 100%); Air Pressure: 0.86 mm-H2O (at 0-20%); 4.76 mm-H2O (at 50%); 21.5 mm-H2O (at 100%); Noise level: 19.3 dBA (at 0-20%), 37.9 dBA (at 50%), 54.3 dbA (at 100%); Power Consumption: 1.2 W (at 0-20%); 2.52 W (at 50%); 9.6 W (at 100%); Weight: 460g; Fan Dimensions: 60 x 60 x 25mm; Overall Dimensions: 113 x 82 x 66 (H) mm.
