Dynatron Q5 Cooler suitable for 2U Chassis with Intel Socket 1700 (Intel 12th, 13th Gen Core)
Dynatron Q5 2U Side Blower Cooler for Intel Socket 1700 | |
£54.00 inc. VAT | |
IN STOCK (Checked 17:03) |

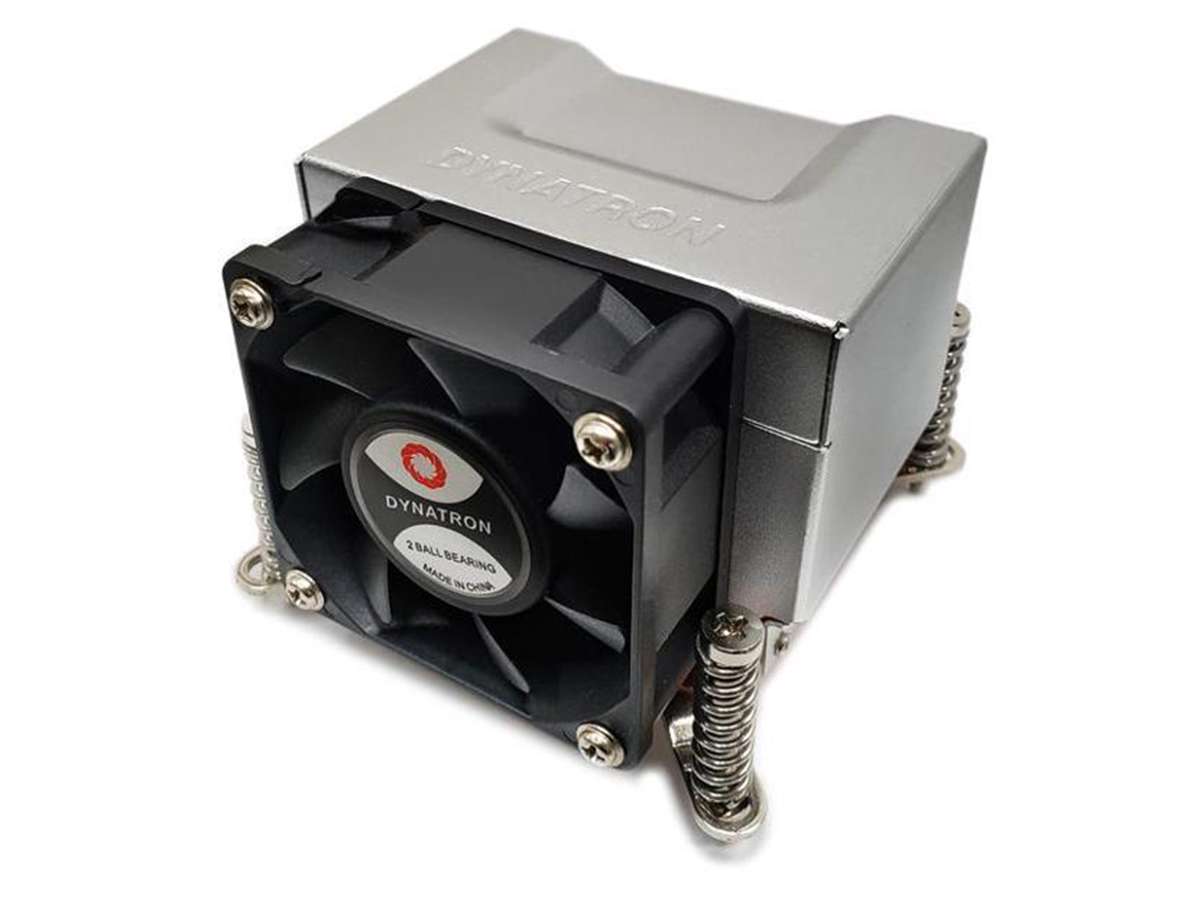

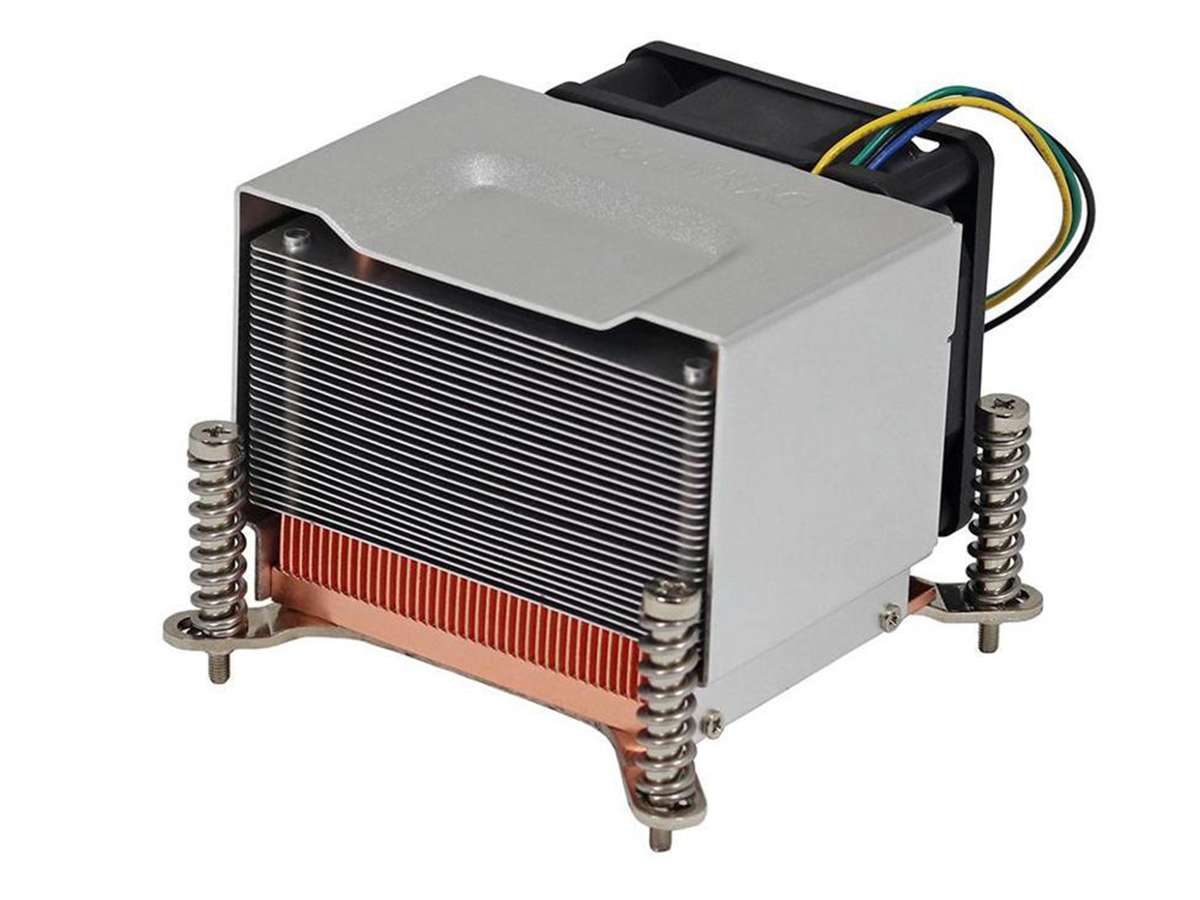

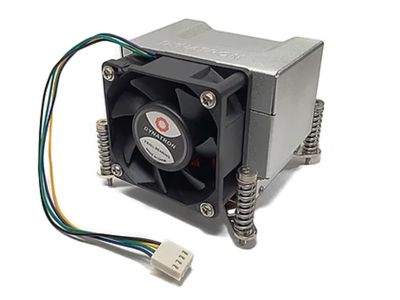

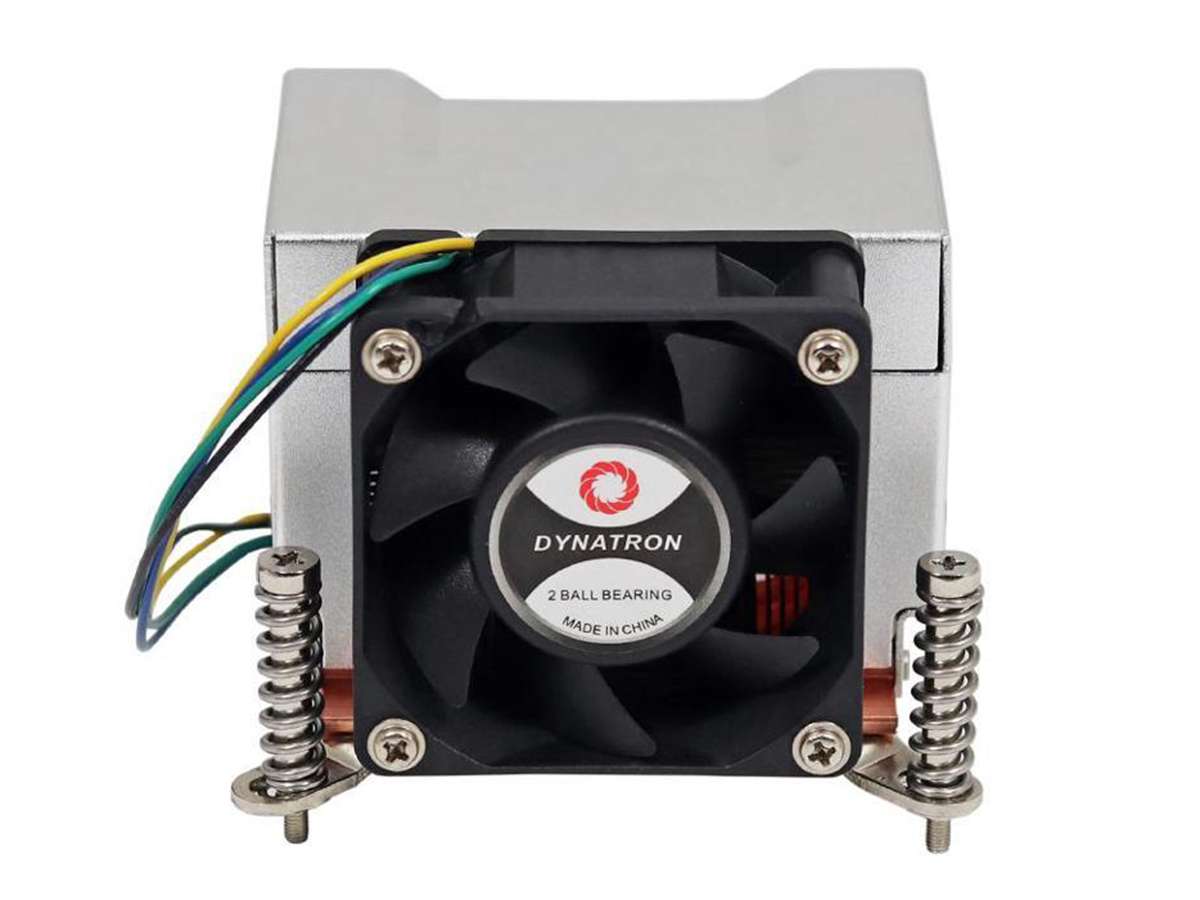

Dynatron Q5 Cooler with copper base and aluminium fins with embedded heatpipes suitable for cooling Intel Socket LGA 1700 motherboards motherboards (12th and 13th Gen Core) in a 2U Chassis.
Dynatron 6025 long life two-ball bearing fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance GE-Toshiba TIG830SP thermal grease ensures clean and easy installation.
Case Compatibility: Side Blower design suitable for use in a 2U chassis. Tip: angle the Q5 to force air out of the rear of the chassis.

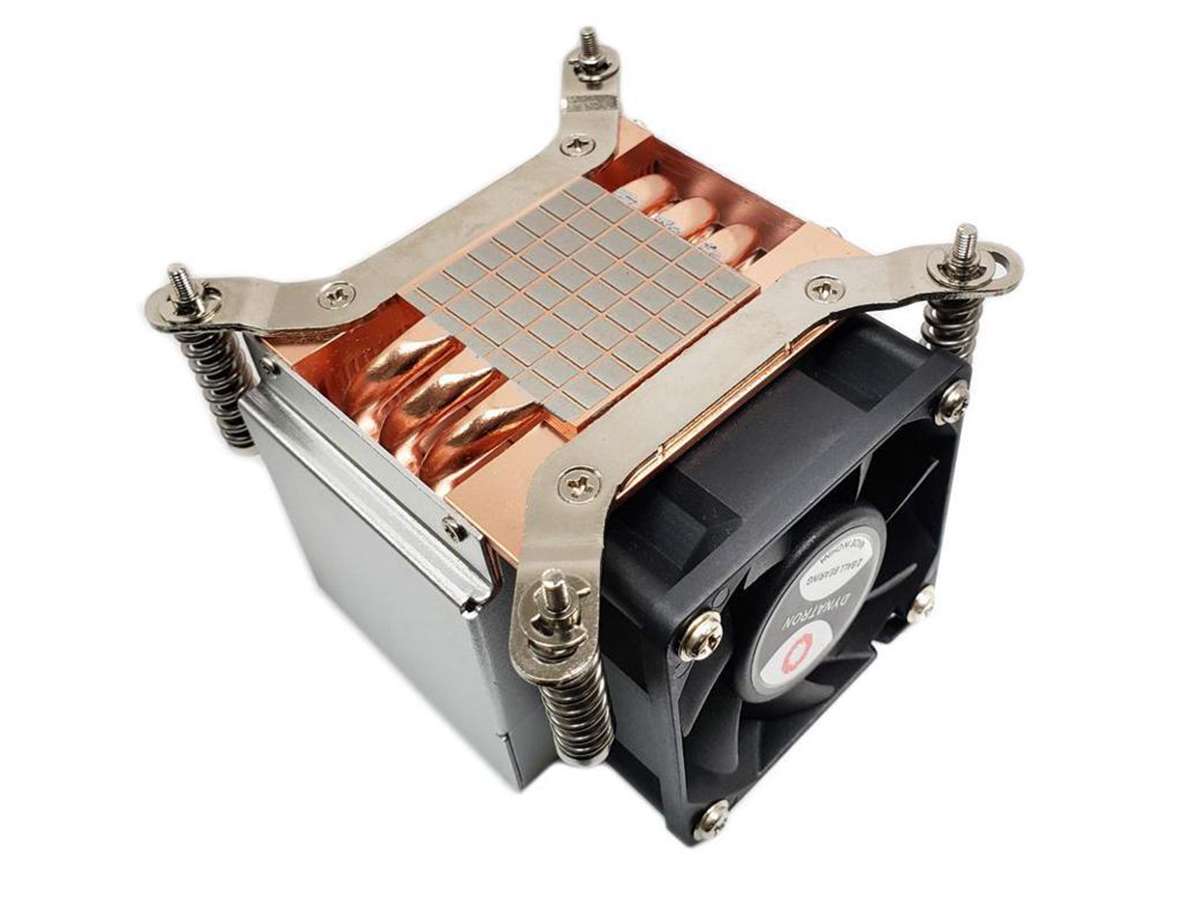

Screw Fit: Screws surrounded by compression springs attach to the provided base plates fitted underneath the motherboard. Base plates fit on top of existing motherboard socket. It is not necessary to remove any components before fitting.
Compatible Boards and CPUs: Intel Socket 1700 Motherboards fitted with a processor producing up to 125W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 1600 RPM (at 0-20% Duty Cycle); 4000 RPM (at 50%); 8000 RPM (at 100%); Airflow: 9.28 CFM (at 0-20%), 23.21 CFM (at 50%), 46.41 CFM (at 100%); Air Pressure: 0.76 mm-H2O (at 0-20%); 4.76 mm-H2O (at 50%); 19.04 mm-H2O (at 100%); Noise level: 18 dBA (at 0-20%), 37.89 dBA (at 50%), 52.94 dbA (at 100%); Power Consumption: 1.2 W (at 0-20%); 2.28 W (at 50%); 7.2 W (at 100%); Weight: 515.2g; Fan Dimensions: 60 x 60 x 25mm; Overall Dimensions: 90.7 x 85 x 65.1 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | Q5 2U Side Blower Cooler for Intel Socket 1700 |
Maximum CPU Power | 125 W |
Connector Type | 4-pin PWM |
Socket Types | 1700 |
Construction | Copper Base & Aluminum Fins with Embedded Heat Pipe |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 1.2 W |
Power @ 50% | 2.28 W |
Power @ 100% | 7.2 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 1600 RPM |
Fan Speed @ 50% | 4000 RPM |
Fan Speed @ 100% | 8000 RPM |
Airflow @ 20% | 9.28 CFM |
Airflow @ 50% | 23.21 CFM |
Airflow @ 100% | 46.41 CFM |
Air Pressure @ 20% | 0.76 mm-H2O |
Air Pressure @ 50% | 4.76 mm-H2O |
Air Pressure @ 100% | 19.04 mm-H2O |
Noise Level @ 20% | 18 dB(A) |
Noise Level @ 50% | 37.89 dB(A) |
Noise Level @ 100% | 52.94 dB(A) |
Dimensions | |
Fan Size | 60 x 60 x 25mm (W x H x D) | Heatsink Height | 65.1mm |
W x D x H | 90.7 x 85 x 65.1mm |
Volume | 0.50 litres |
Weight | 515.2g |
