Fractal Design Terra Mini-ITX Chassis - Silver

Fractal Design Fractal Design Terra Mini-ITX Chassis - Silver
£178.80 inc. VAT
IN STOCK (Checked 13:45)

The Fractal Design Terra is a small form factor Mini-ITX case with style and capability. Its anodized aluminum and solid walnut structure echo modern gamer living spaces. It features a built-in PCIe 4.0 riser cable and a moveable central spine for customisation of hardware clearance, accommodating GPUs up to 322mm.

Color: Silver. Also available in Jade, and Graphite.

Drive Bays: The Terra supports up to 2x 2.5in HDD/SSD fitted at the front and bottom of the chassis. Fitting SSDs.

Cooling: A 120mm fan can be fitted at the bottom of the chassis. This will lower the maximum PSU length by the thickness of the fan. Fitting a Fan.

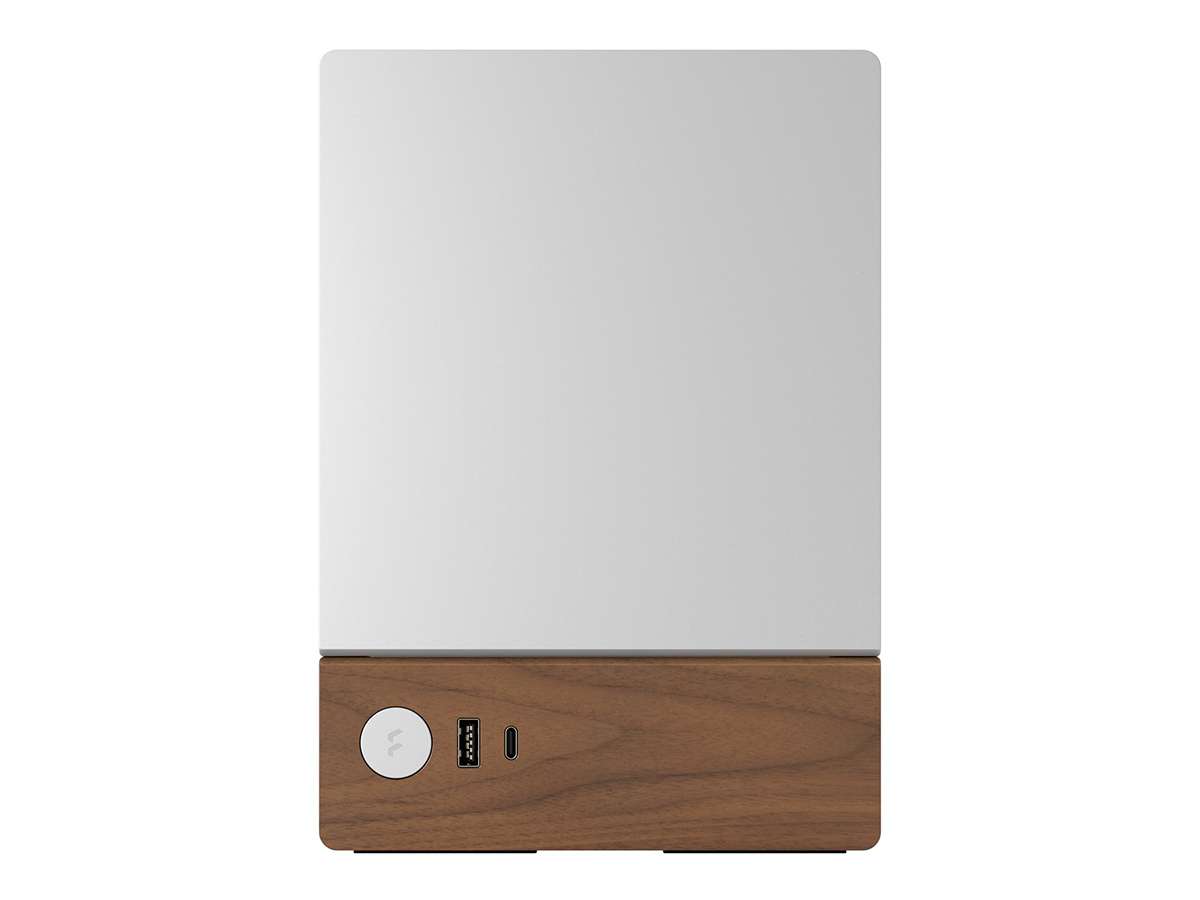

Front Panel: Solid sustainably sourced walnut front panel with aluminum power button and two USB ports: 1x USB 3.2 Gen 2x2 Type-C (20Gbps) and 1x USB 3.0 Type-A (5Gbps).

Power Supply not Included: Requires an SFX or SFX-L PSU, up to 130mm in length. If a fan is fitted, maximum PSU length is lowered by the thickness of the fan. Fitting a PSU.

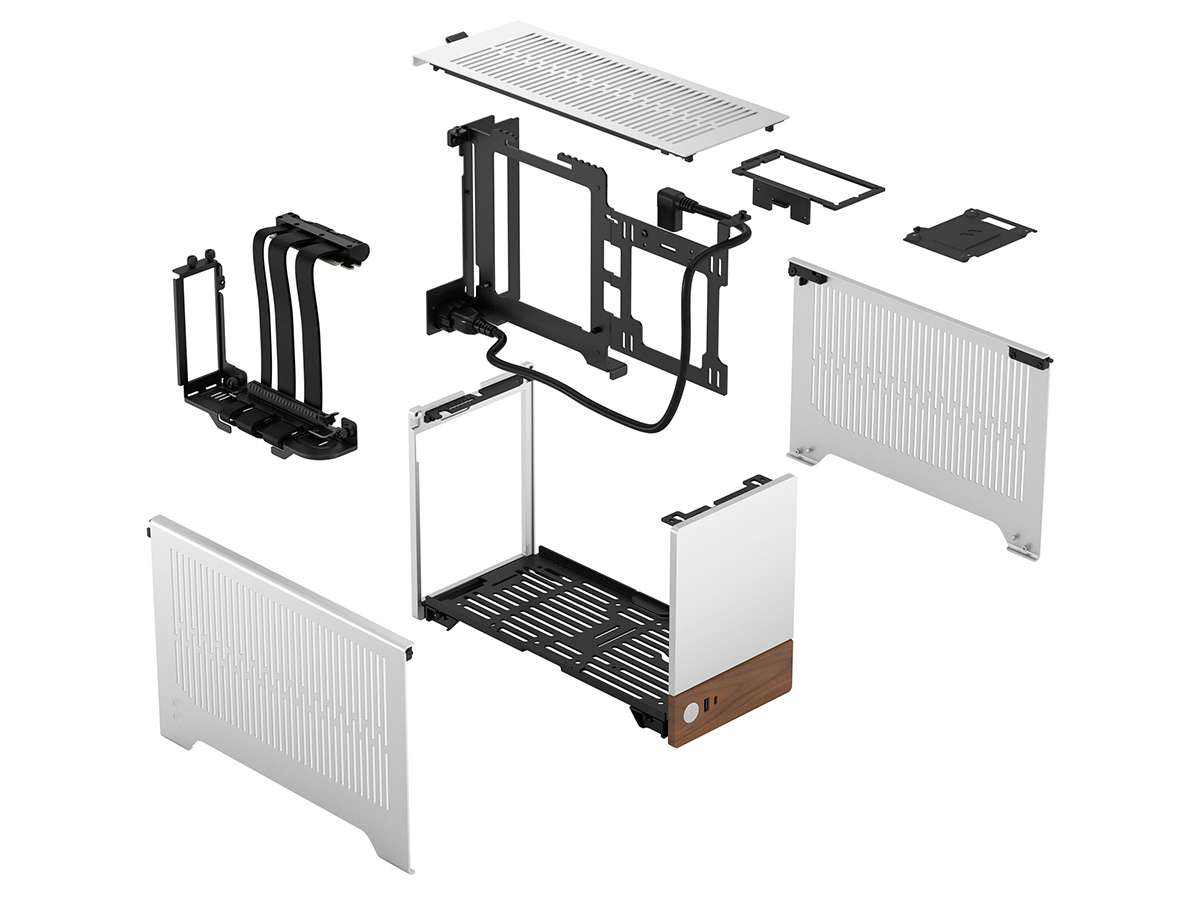

Adjustable Spine: The Terra has a movable motherboard plate, aka "spine", which can be adjusted sideways allowing you to increase the relative size of the CPU chamber or GPU chamber. Maximum CPU heatsink height can therefore range between 48mm and 77mm, and GPU width can range between 33mm and 72mm. GPU height also needs to be considered due to the shape of the side panel.

Please refer to this support article for detailed information. If in doubt, please contact us to help.

Graphics Card Support: Triple Slot Graphics cards up to 322mm in length can be fitted. Different height (up to 145mm) and width GPUs (up to 72mm) are supported depending on the choice of CPU heatsink. Fitting a CPU/GPU.

Radiator Support: A 120 x 120mm AIO water cooler can be fitted at the front of the chassis, restricting maximum GPU length to 200mm and width to 53mm. Maximum CPU block height depends on GPU width (up to 67mm possible).

Motherboard Support: Mini-ITX boards with ATX power connectors. CPU Heatsink choice will depend on the size of GPU fitted, and the position of the adjustable spine. Fitting a CPU/GPU.

Manual and Builder's Guide: Available here (PDF).

Measurements: (W x H x D): 153 x 218 x 343mm (11.4 litres) or x 153 x 198 x 343mm without protruding parts (10.4 litres)

Model Fractal Design Fractal Design Terra Mini-ITX Chassis - Silver
Case Type Cube
Colour Silver
Max Length 322mm
Max Width Card 72mm
Fans Supported 1x 120mm Bottom
Radiator Support Yes
CPU Cooler 77mm Max height
USB Connectors 2
1x USB 3.0 Type A Front
1x USB 3.2 Gen2x2 (20Gb/s) Type C Front
Power Supply
Form Factor SFX SFX-L PSU supported
W x D x H 153 x 343 x 218 mm
Volume 11.44 litres
