The M350 Universal Mini-ITX Enclosure measures just 62 x 192 x 210mm (2.5 litres) and is capable of housing both embedded and socket Mini-ITX boards. Fanless operation possible using natural air convection through hundreds of tiny holes for CPUs with TDP < 10W; CPU Fan only operation possible for CPUs with TDP <= 65W.

Full Product Page

Provided without a power supply. Many plug in DC-DC PSUs and AC Adapters are available, or use with a motherboard with embedded DC PSU (e.g. Zotac ION-ITX-A)

Drive Bays: Up to 2x 2.5in HDD or SSD.

Many additional accessories available including:

• 2nd HDD drive plate
• Wall mounting bracket
• VESA mounting screws
• VESA/Wall mounting bracket
• DIN mounting kit
• Many power supply options

Measurements: 69(H) x 192(W) x 210(D) (2.7 x 7.6 x 8.3in)
Volume: 2.59 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors or DC input, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with <30mm 1U heatsinks (with suitable heatsink and power supply, usually the pico-PSU-150-XT).

Full Product Page

Full case comparison chart

Now available in Silver!

All the same features as the original Black version, in a delightful Silver finish.

Full Product Page

Highly modular embedded Mini-ITX enclosure constructed from high quality lightweight Aluminium.

Drive Bays: Up to 2x 2.5in Hard Drives* (2.5in to 3.5in IDE cable or SATA Data/Power cable required); Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.

Front Panel: 2x USB 2.0 (under flap), power switch.

No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.

Measurements: 54(H) x 200(W) x 240(D) (2.1 x 16.9 x 10.6in)
Volume: 2.59 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors or DC input and with standard height heatsinks such as Intel D410PT, D510MO, later model D945GCLF, D945GCLF2, D945GSEJT; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B/C; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks (with suitable picoPSU, e.g. pico-PSU-150-XT).

Notes: 2x 2.5in HDD possible with selected boards only due to space constraints. The Compact Flash Adapter requires a board with an IDE interface. Check you have enough power connectors if using a picoPSU. Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.

Full case comparison chart

Highly modular embedded Mini-ITX enclosure constructed from high quality lightweight Aluminium.

Drive Bays: Up to 2x 2.5in Hard Drives* (2.5in to 3.5in IDE cable or SATA Data/Power cable required); Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.

Front Panel: Intelligent USB display with 20 columns and 2 rows (8x5 dots character size) and illuminated 12 button keypad included; 2x USB 2.0 (under flap); Power button.

LCD Documentation and Software download page

No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.

Measurements: 54(H) x 200(W) x 240(D) (2.1 x 16.9 x 10.6in)
Volume: 2.59 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors or DC input and with standard height heatsinks such as Intel D410PT, D510MO, later model D945GCLF, D945GCLF2, D945GSEJT; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B/C; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks (with suitable picoPSU, e.g. pico-PSU-150-XT).

Notes: 2x 2.5in HDD possible with selected boards only due to height constraints. The Compact Flash Adapter requires a board with an IDE interface. Check you have enough power connectors if using a picoPSU. Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.

Full case comparison chart

Thin Client style case suitable for wide variety of Embedded Mini-ITX boards constructed from steel and aluminimum frame with a black and silver plastic shell.

Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.

Accessories included: Black plastic case stand. Molex to SATA power cable required if using a SATA HDD

Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.

Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board; Power connectors provided for 20pin ATX; Floppy Power; Molex HDD.

Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.

Notes: Molex to SATA power cable required if using a SATA HDD. 12V power connector splitter cable required for Intel D945GCLF and D945GCLF2 boards (available on board page).

Full case comparison chart

Thin Client style case suitable for wide variety of Embedded Mini-ITX boards constructed from steel and aluminimum frame with a black and silver plastic shell.

Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.

Accessories included: Black plastic case stand.

Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.

Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board. Power connectors provided for 20pin ATX; 4pin 12V; SATA; Molex HDD.

Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.

Notes: case includes larger venting panels than the original Thin Client case to assist fanless operation - any CPU fans attached to boards are still required however. SATA and 12V power connectors added from 20th July 2009.

Full case comparison chart

Thin Client style case suitable for wide variety of Embedded Mini-ITX boards constructed from steel and aluminimum frame with a black and silver plastic shell.

Drive Bays: Supports 1x 2.5in HDD or 2.5in SSD.

Accessories included: Black plastic case stand.

Front Panel: 2x USB 2.0 (under flap); 3.5mm Mic In and Line Out; Power button.

Power supply included: 110-240V External Universal AC Adapter and UK plug; 62W Internal DC power board. Power connectors provided for 20pin ATX; 4pin 12V; SATA; Molex HDD.

Measurements: 60(H) x 230(W) x 205(D) (2.4 x 9 x 8.1in)
Volume: 2.82 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: J7F2/J7F5M with CF/PCMCIA daughterboard if a HDD is used; EPIA CN 13000.

Notes: case includes larger venting panels than the original Thin Client case to assist fanless operation - any CPU fans attached to boards are still required however. SATA and 12V power connectors added from 20th July 2009.

Full case comparison chart

Compact Wall Mountable case suitable for all non-socket Mini-ITX Boards - Universal 110-240V operation.

Constructed from lightweight aluminimum and measuring just 59 x 260 x 186mm (HxWxD).

This case is ideal for POS or Kiosk applications, or for any application where a discreet and securable case is required. Now includes mounting bracket for 2.5in HDD (SATA recommended). Or why not make a fanless solid state system and boot over a network, or from IDE Flash Module.

Power supply: 110-240V External Universal 60W AC Adapter and UK power cord; 62W Internal DC power board.

Power connectors: SATA Power; Molex Floppy; Molex HDD; 4pin 12V P4; 20pin ATX

Fans: 2x internal 40mm cooling fans (usually not required).

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Full case comparison, size and board compatibility chart

Lockable Compact Wall Mountable case suitable for all non-socket Mini-ITX Boards - Universal 110-240V operation.

Constructed from lightweight aluminimum and measuring just 66 x 251 x 200mm (HxWxD).

This case is ideal for POS or Kiosk applications, or for any application where a discreet and securable case is required. Strong wire mesh venting on 4 sides provides maximum airflow. Internal mounting bracket for 2.5in HDD. Or why not make a fanless solid state system and boot over a network, or from IDE Flash Module.

Locking system: 200 x 250mm steel tray included with 18 separate Wall/VESA mounting points and 6 notches to 'hang' the case in place. 2 provided keys operate a bolt which secures the case firmly to the tray. The top of the case is screwed in place at the top, bottom and sides. The case must be unlocked from its tray and 11 screws unscrewed to remove the contents.

Rear Panel: DC Input, Key Lock, I/O Shield Slot; Green Power LED; Recessed Power and Reset Buttons (operated by a paper clip). Front, Top and Side Panels: Strong Mesh Venting.

Power supply included: 110-240V External Universal 60W AC Adapter and UK power cord; 62W Internal DC power board.

Power connectors: SATA Power; Molex Floppy; Molex HDD; 4pin 12V P4; 20pin ATX.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Full case comparison, size and board compatibility chart

The NU-057WI Wall/VESA Chassis has an industrial style and is wholly constructed from steel.

Wall/VESA Mounting: Wall Mount Kit included and VESA Holes provided.

Drive Bays: 1 x 2.5in HDD, 1 x Slimline Optical (slimline adapter or cable required).

Front Panel: 4x USB 2.0, Power Button and LED.

Power Supply: 220W Internal AC Adapter Included.

Measurements: 65(H) x 265(W) x 230(D) (2.6 x 10.4 x 9 in). Volume 3.96 litres.

Accessories Included: Screw Pack, VESA Mounting Plate, Wall Mounting Rails.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks)

Full case comparison chart

Quality Mini-ITX enclosure with solid steel construction supporting up to 2x 2.5in HDDs or a 2.5in HDD and slimline optical drive.

Construction: Heavy duty cold-rolled steel. Black wet paint with texture coat.

Front Panel: Power Switch; HDD & Power LEDs. Under flap: 2x USB 2.0.

Drive Bays: 1x 2.5in HDD drive bay; Slimline Optical Drive or Second 2.5in HDD bay.

Back Panel: 12V Power Socket.

Measurements: 65(H) x 257(W) x 210(D) (2.56 x 10.12 x 8.27in)
Volume: 3.51 litres.

Power Supply: 60W External AC Adapter with UK Plug; 100W Internal DC Converter with 20pin ATX connector, Floppy, 2x Molex power connectors.

Slimline Optical Drives: A Slimline IDE Adapter with Floppy power connector is provided for ATA drives and motherboards. A cable or adapter will be required for SATA drives or SATA motherboards.

SATA HDDs: Use a Molex to SATA power adapter to give the correct power connector.

Cooling: 2x 60x60mm Ball Bearing System fans.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: Boards with extended height heatsinks including: Early Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; All Socket Mini-ITX boards (as they draw too much power).

Full case comparison, size and board compatibility chart

Quality Mini-ITX enclosure with solid steel construction supporting up to 2x 2.5in HDDs or a 2.5in HDD and slimline optical drive.

Construction: Heavy duty cold-rolled steel. Black wet paint with texture coat.

Front Panel: Power Switch; HDD & Power LEDs. Under flap: 2x USB 2.0; Compact Flash Adapter.

Drive Bays: 1x 2.5in HDD drive bay; Slimline Optical Drive or Second 2.5in HDD bay. Compact Flash Slot under flap in front panel.

Back Panel: 12V Power Socket.

Measurements: 65(H) x 257(W) x 210(D) (2.56 x 10.12 x 8.27in)
Volume: 3.51 litres.

Power Supply: 60W External AC Adapter with UK Plug; 100W Internal DC Converter with 20pin ATX connector, Floppy, 2x Molex power connectors.

Slimline Optical Drives: A Slimline IDE Adapter with Floppy power connector is provided for ATA drives and motherboards. A cable or adapter will be required for SATA drives or SATA motherboards.

SATA HDDs: Use a Molex to SATA power adapter to give the correct power connector.

Cooling: 2x 60x60mm Ball Bearing System fans.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: Boards with extended height heatsinks including: Early Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; All Socket Mini-ITX boards (as they draw too much power).

Compact Flash Support: A USB Compact Flash Adapter is provided with the enclosure. This connects to a spare USB header on your motherboard.

Full case comparison, size and board compatibility chart

Highly modular embedded Mini-ITX enclosure constructed from high quality lightweight Aluminium.

Drive Bays: Supports either 2x 2.5in drives or 1x 3.5in drive; Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.

Accessories included: VIA chipset compatible PCI Riser Card; Compact Flash Adapter

Front Panel: 2x USB 2.0 (under flap), Power Switch.

No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.

Cables required: If 2.5in drives are used, a 2.5in to 3.5in IDE cable/adapter or SATA Data/Power cable will be required (check number of IDE ports on your motherboard if using 2 x 2.5in drives). A standard IDE cable is required to connect the Compact Flash Adapter (usually provided with motherboards)

Measurements: 78(H) x 200(W) x 240(D) (3.1 x 16.9 x 10.6in)
Volume: 3.74 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors or DC input; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks) (with suitable picoPSU, e.g. pico-PSU-150-XT). Notes: Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.

Full case comparison chart

Highly modular embedded Mini-ITX enclosure with LCD display constructed from high quality lightweight Aluminium.

Drive Bays: Supports either 2x 2.5in drives or 1x 3.5in drive; Bootable IDE Compact Flash adapter under front flap, powered by a Molex HDD connector.

Accessories included: VIA chipset compatible PCI Riser Card; Compact Flash Adapter

Front Panel: Intelligent USB display with 20 columns and 2 rows (8x5 dots character size) and illuminated 12 button keypad included; 2x USB 2.0 (under flap); Power button.

No PSU included! - Designed for use with the entire range of picoPSU DC power supplies, together with a 12V AC Adapter, or with motherboards with DC Input.

Cables required: If 2.5in drives are used, a 2.5in to 3.5in IDE cable/adapter or SATA Data/Power cable will be required (check number of IDE ports on your motherboard if using 2 x 2.5in drives). A standard IDE cable is required to connect the Compact Flash Adapter (usually provided with motherboards)

Measurements: 78(H) x 200(W) x 240(D) (3.1 x 16.9 x 10.6in)
Volume: 3.74 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors or DC input; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks) (with suitable picoPSU, e.g. pico-PSU-150-XT). Notes: Supplied in a white OEM box. Enclosure has a small area for logo, allowing system integrators to re-brand the unit.

LCD Software: LCD Documentation and Software download page

Full case comparison chart

Versatile case suitable for wide range of Mini-ITX motherboards - Universal 110-240V operation.

Drive Bays: 1x 2.5in Hard Drive (2.5in to 3.5in IDE cable or SATA Data/Power cable required); 1x Slimline Optical Drive (slimline IDE Adapter included).

Front Panel: 2x USB 2.0.

Power supply: External 60W Universal 110/240V AC adapter and internal 80W DC converter. Connections for Molex, Floppy, 20pin ATX and 12V P4 power.

Measurements: 65(H) x 210(W) x 295(D) (2.6 x 8.3 x 11.6in)
Volume: 4.03 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: All Socket Mini-ITX boards.

Full case comparison chart

Versatile case suitable for wide range of Mini-ITX motherboards - Universal 110-240V operation.

Drive Bays: 1x 2.5in Hard Drive (2.5in to 3.5in IDE cable or SATA Data/Power cable required); 1x Slimline Optical Drive (slimline IDE Adapter included).

Front Panel: 2x USB 2.0.

Power supply: External 60W Universal 110/240V AC adapter and internal 80W DC converter. Connections for Molex, Floppy, 20pin ATX and 12V P4 power.

Measurements: 65(H) x 210(W) x 295(D) (2.6 x 8.3 x 11.6in)
Volume: 4.03 litres.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards.

Boards not supported: All Socket Mini-ITX boards.

Full case comparison chart

Compact fanless mesh-style case, suitable for all embedded Mini-ITX motherboards. Constructed from a steel and aluminium frame with black plastic bezel. A favourite case amongst enthusiasts - unique drive positioning underneath the motherboard allows for maximum airflow through the top of the case.

Front Panel: 2x USB 2.0, Mic-In, Audio-Out, Power button.

Drive Bays: 1x 2.5in HDD/SSD drive bay; Slimline Optical Drive bay.

Measurements: 92(H) x 200(W) x 235(D) (3.6 x 7.9 x 9.3 in). Volume 4.32 Litres.

Power Supply: 110-240V External Universal AC Adapter and UK Plug, 60W Internal DC power board; Power Connectors Provided for 20pin ATX, 4pin P4 12V, SATA Power, Molex HDD, Floppy Power.

Cooling: Mesh top and sides.

Included Accessories: Vertical Stand, 60 Watt 12V AC Adapter, UK Power Cord, Screws.

Supported Boards: Embedded Mini-ITX boards with ATX connectors and standard/tall heatsinks e.g. Intel D410PT, D510MO, D945GCLF, D945GCLF2; Jetway C7 & Atom; Asus & Zotac ION-ITX boards; VIA EPIA boards etc.

Not Supported: Socket Mini-ITX boards (due to size of power supply) - please choose the 142W version of this case instead.

Compact fanless mesh-style case, suitable for all embedded Mini-ITX motherboards. Constructed from a steel and aluminium frame with black plastic bezel. A favourite case amongst enthusiasts - unique drive positioning underneath the motherboard allows for maximum airflow through the top of the case.

Front Panel: 2x USB 2.0, Mic-In, Audio-Out, Power button.

Drive Bays: 1x 2.5in HDD/SSD drive bay; Slimline Optical Drive bay.

Measurements: 92(H) x 200(W) x 235(D) (3.6 x 7.9 x 9.3 in). Volume 4.32 Litres.

Power Supply: 142W External Universal 110-240V AC Adapter and UK Plug, 150W Internal DC power board; Power Connectors Provided for 20/24pin ATX, 4pin P4 12V, SATA Power, Molex HDD, Floppy Power.

Cooling: Mesh top and sides.

Included Accessories: Vertical Stand, 60 Watt 12V AC Adapter, UK Power Cord, Screws.

Supported Boards: Socket Mini-ITX boards with appropriate low-profile heatsinks; Embedded Mini-ITX boards with ATX connectors and standard/tall heatsinks e.g. Intel D410PT, D510MO, D945GCLF, D945GCLF2; Jetway C7 & Atom; Asus & Zotac ION-ITX boards; VIA EPIA boards etc.

Stylish cold rolled steel Mini-ITX enclosure with extruded aluminum alloy front panel.

Drive Bays: 1x 3.5in Hard Drive (can also accomodate 1x 2.5in drive); 1x side-mounting Slimline Optical Drive (slimline adapter or cable required); 1x PCI (PCI riser card provided); 1x Slot to fit a compatible Bootable Compact Flash Adapter

Front Panel: Power switch; Disk & HDD LEDs; 2x USB 2.0; 3x Audio.

Power supply: External 80W Universal 110/240V 12V AC adapter and internal 12V DC converter. Internal power connectors for 2x Molex, 3x Floppy with additional adapter for SATA power and Molex power.

Accessories: 2x L-mounting floor/wall brackets and 1x PCI Riser Card included.

Measurements: 54(H) x 305(W) x 279(D) (2.1 x 12 x 11in)
Volume: 4.60 litres.

Supported Boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards. Boards with 12V P4 connectors will require an adapter cable (e.g. D945GCLF2). Heatsink size and position on Intel D410PT, D510MO, Zotac ION-ITX-A/D/F and NM-10 boards prevents slimline optical drive use. Some boards will require Ultra Low Profile DDR2 Memory if a slimline optical drive is used (the list includes most Jetway boards, EPIA LN and EN).

Other Versions: 60W, 90W and 120W versions also available for quantity orders.

Full case comparison chart

High quality Mini-ITX enclosure with extremely quiet internal 73W AC power supply capable of powering all Embedded Mini-ITX boards (i.e. boards with CPUs attached - Intel Atom, VIA C3, C7, Nano etc.). Strong steel construction with solid plastic front panel.

Please choose the 220W version if you are planning on using or upgrading to a Socket board.

Drive Bays: Supports a 2.5in HDD, Slimline Optical Drive and a Half Height PCI/PCI Express Card as standard.

Flexible Drive Bay Options: Many more drive and PCI/PCI Express bay options are possible using the optional PCI card and/or the optional Front 2.5in/3.5in Mounting Kits. The table below summarises what is possible. If fitting 2x HDDs a Molex to SATA power adapter will be required. If fitting an optical drive an appropriate optical adapter or cable will be required.

Front Panel: Illuminated Power Switch with Blue LED; 2x USB 2.0; 2x 3.5mm Front Audio; Slimline Optical Drive Slot with Blanking Plate.

Power Supply and Cooling: Extremely Quiet Internal 73W Universal 110/240V Flex-ATX PSU. Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD), SATA Power and Floppy (slimline optical drive). A 60mm fan can optionally be fitted on the right side of the case if board component positioning allows - not required in 99% of situations.

Card Reader in front panel: two slots support MS DUO, MS PRO DUO, MS, MS PRO and SD, MINI SD, MMC, RS MMC. If a 2.5in HDD is front-mounted, the card reader module must be removed.

Measurements: 88(H) x 254(W) x 218.8(D) (3.5 x 10 x 8.6in)
Volume: 4.89 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10. Socket Intel/AMD boards require a larger PSU - please choose the 220W version below.

Building Tip: Remove the Power Supply to install your motherboard.

Instructions:
- Assembly
- 3.5in HDD Cage
- PCI Riser and 2nd 2.5in HDD

Full case comparison chart

High quality Mini-ITX enclosure with extremely quiet internal 220W AC power supply capable of powering all Mini-ITX boards. Strong steel construction with solid plastic front panel.

Drive Bays: Supports a 2.5in HDD, Slimline Optical Drive and a Half Height PCI/PCI Express Card as standard.

Flexible Drive Bay Options: Many more drive and PCI/PCI Express bay options are possible using the optional PCI card and/or the optional Front 2.5in/3.5in Mounting Kits. The table below summarises what is possible. If fitting 2x HDDs a Molex to SATA power adapter will be required. If fitting an optical drive an appropriate optical adapter or cable will be required.

Front Panel: Illuminated Power Switch with Blue LED; 2x USB 2.0; 2x 3.5mm Front Audio; Slimline Optical Drive Slot with Blanking Plate.

Power Supply and Cooling: Extremely Quiet Internal 220W Universal 110/240V Flex-ATX PSU. Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD), SATA Power and Floppy (slimline optical drive). A 60mm fan can optionally be fitted on the right side of the case if board component positioning allows - not required in 99% of situations.

Card Reader in front panel: two slots support MS DUO, MS PRO DUO, MS, MS PRO and SD, MINI SD, MMC, RS MMC. If a 2.5in HDD is front-mounted, the card reader module must be removed.

Measurements: 88(H) x 254(W) x 218.8(D) (3.5 x 10 x 8.6in)
Volume: 4.89 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks). Socket boards require a 1U or Low Profile heatsink only if a 3.5in HDD is to be used (3.5in HDD drive cage also required). Note: Front USB cable not long enough to reach USB connector on Zotac-H55-ITX board.

Building Tip: Remove the Power Supply to install your motherboard.

Instructions:
- Assembly
- 3.5in HDD Cage
- PCI Riser and 2nd 2.5in HDD

Full case comparison chart

High quality Mini-ITX enclosure with extremely quiet internal 220W AC power supply capable of powering all Mini-ITX boards. Strong steel construction with solid plastic front panel.

The 568i 220W is identical internally to the 528i 220W, but with a fully black front panel.

Drive Bays: Supports a 2.5in HDD, Slimline Optical Drive and a Half Height PCI/PCI Express Card as standard.

Flexible Drive Bay Options: Many more drive and PCI/PCI Express bay options are possible using the optional PCI card and/or the optional Front 2.5in/3.5in Mounting Kits. The table below summarises what is possible. If fitting 2x HDDs a Molex to SATA power adapter will be required. If fitting an optical drive an appropriate optical adapter or cable will be required.

Front Panel: Illuminated Power Switch with Blue LED; 2x USB 2.0; 2x 3.5mm Front Audio; Slimline Optical Drive Slot with Blanking Plate.

Power Supply and Cooling: Extremely Quiet Internal 220W Universal 110/240V Flex-ATX PSU. Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD), SATA Power and Floppy (slimline optical drive). A 60mm fan can optionally be fitted on the right side of the case if board component positioning allows - not required in 99% of situations.

Card Reader in front panel: two slots support MS DUO, MS PRO DUO, MS, MS PRO and SD, MINI SD, MMC, RS MMC. If a 2.5in HDD is front-mounted, the card reader module must be removed.

Measurements: 88(H) x 254(W) x 218.8(D) (3.5 x 10 x 8.6in)
Volume: 4.89 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks). Socket boards require a 1U or Low Profile heatsink only if a 3.5in HDD is to be used (3.5in HDD drive cage also required). Note: Front USB cable not long enough to reach USB connector on Zotac-H55-ITX board.

Building Tip: Remove the Power Supply to install your motherboard.

Instructions:
- Assembly
- 3.5in HDD Cage
- PCI Riser and 2nd 2.5in HDD

Full case comparison chart

Quality Mini-ITX enclosure with solid steel construction supporting up to 3 HDDs and 2x PCI cards.

Construction: Heavy duty cold-rolled steel. Black wet paint with texture coat.

Front Panel: Power Switch; HDD & Power LEDs; 2x USB 2.0; Compact Flash Adapter.

Drive Bays: 1x 3.5in HDD drive bay; 1x 2.5in HDD drive bay; Slimline Optical Drive or second 2.5in HDD bay.

Back Panel: 2x PCI Slots; 12V Power Socket.

Measurements: 65(H) x 300(W) x 273(D) (2.56 x 11.81 x 10.75in)
Volume: 5.32 litres.

Power Supply: 60W External AC Adapter with UK Plug; 100W Internal DC Converter with 20pin ATX connector, Floppy, 2x Molex power connectors.

Slimline Optical Drives: A Slimline IDE Adapter with Floppy power connector is provided for ATA drives and motherboards. A cable or adapter will be required for SATA drives or SATA motherboards.

SATA HDDs: Use a Molex to SATA power adapter to give the correct power connector.

Cooling: 2x 50x50mm Ball Bearing System fans.

Wall Mounting: Wall Mount Brackets included.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Boards not supported: Mini-ITX boards with Socket CPUs.

PCI Card Support: The JC100 is provided with a dual PCI Riser with PCI Bus Arbiter. VIA chipset and Jetway JNC91/92 boards support 2x PCI cards with this riser. Other chipset boards (including Intel) may only support 1x PCI card.

Full case comparison, size and board compatibility chart

Quality Mini-ITX enclosure with solid steel construction supporting up to 3 HDDs and 2x PCI cards.

Construction: Heavy duty cold-rolled steel. Black wet paint with texture coat.

Front Panel: Power Switch; HDD & Power LEDs; 2x USB 2.0; Compact Flash Adapter.

Drive Bays: 1x 3.5in HDD drive bay; 1x 2.5in HDD drive bay; Slimline Optical Drive or second 2.5in HDD bay. Compact Flash Slot in front panel.

Back Panel: 2x PCI Slots; 12V Power Socket.

Measurements: 65(H) x 300(W) x 273(D) (2.56 x 11.81 x 10.75in)
Volume: 5.32 litres.

Power Supply: 60W External AC Adapter with UK Plug; 100W Internal DC Converter with 20pin ATX connector, Floppy, 2x Molex power connectors.

Slimline Optical Drives: A Slimline IDE Adapter with Floppy power connector is provided for ATA drives and motherboards. A cable or adapter will be required for SATA drives or SATA motherboards.

SATA HDDs: Use a Molex to SATA power adapter to give the correct power connector.

Cooling: 2x 50x50mm Ball Bearing System fans.

Wall Mounting: Wall Mount Brackets included.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Boards not supported: Mini-ITX boards with Socket CPUs.

PCI Card Support: The JC103 is provided with a dual PCI Riser with PCI Bus Arbiter. VIA chipset and Jetway JNC91/92 boards support 2x PCI cards with this riser. Other chipset boards (including Intel) may only support 1x PCI card.

Compact Flash Support: A USB Compact Flash Adapter is provided with the enclosure. This connects to a spare USB header on your motherboard.

Full case comparison, size and board compatibility chart

High quality compact case suitable for most Mini-ITX motherboards - Universal 110-240V operation. Black case with Black brushed metal front panel.

Drive Bays: Supports a slimline optical drive and either 1x 2.5in HDD or 1x 3.5in HDD. With a 3.5in drive fitted, PCI expansion is not possible.

Front Panel: Slot for Slimline Optical Drive with blanking plate; Power switch with embedded power LED; Activity LED. Under front flap: Firewire; 3.5mm Mic and Line Out; 2x USB 2.0.

Power supply: External 80W Universal 110/240V 12V AC adapter with UK power cord and internal 80W 12V DC converter.

Fans: Internal 80mm cooling fan.

PCI: Right angled PCI Riser provided. Due to drive tray positioning a PCI card is only possible in combination with a 2.5in HDD.

Cables required: Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD) and Floppy (slimline optical drive). Adapters provided for SATA power. Slimline IDE adapter provided for a slimline optical drive. You will need a SATA data cable if using a SATA drive (these are usually provided with motherboards). UK power cord provided.

Measurements: 97mm(H) x 273mm(D) x 202mm(W)
Volume: 5.35 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Boards not supported: All Socket Mini-ITX boards.

Full case comparison chart

High quality compact case suitable for most Mini-ITX motherboards - Universal 110-240V operation. Black case with Silver brushed metal front panel.

Drive Bays: Supports a slimline optical drive and either 1x 2.5in HDD or 1x 3.5in HDD. With a 3.5in drive fitted, PCI expansion is not possible.

Front Panel: Slot for Slimline Optical Drive with blanking plate; Power switch with embedded power LED; Activity LED. Under front flap: Firewire; 3.5mm Mic and Line Out; 2x USB 2.0.

Power supply: External 80W Universal 110/240V 12V AC adapter with UK power cord and internal 80W 12V DC converter.

Fans: Internal 80mm cooling fan.

PCI: Right angled PCI Riser provided. Due to drive tray positioning a PCI card is only possible in combination with a 2.5in HDD.

Cables required: Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD) and Floppy (slimline optical drive). Adapters provided for SATA power. Slimline IDE adapter provided for an IDE slimline optical drive. You will need a SATA data cable if using a SATA drive (these are usually provided with motherboards). UK power cord provided.

Measurements: 97mm(H) x 273mm(D) x 202mm(W)
Volume: 5.35 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Boards not supported: All Socket Mini-ITX boards.

Full case comparison chart

High quality Mini-ITX enclosure with flexible drive bay support and quiet internal 180W AC power supply capable of powering all Mini-ITX boards. Strong steel construction with solid plastic front panel.

Drive Bays: Supports 3x 2.5in HDD/SSD (or 2x 2.5in HDD/SSD and 1x 3.5in HDD) and 1x Slimline Optical Drive

Front Panel: Illuminated Power Switch with Blue LED; 2x USB 2.0; 2x 3.5mm Front Audio; Slimline Optical Drive Slot with Blanking Plate.

Power Supply and Cooling: Quiet Internal 180W Universal 110/240V Flex-ATX PSU. Internal power loom provides power connectors for 20pin ATX, 12V P4, 4pin Molex (IDE HDD), SATA Power and Floppy (slimline optical drive). A 60mm fan can optionally be fitted on the right side of the case if board component positioning allows - not required in 99% of situations.

Slimline Optical Drives: You will require an adapter or cable to connect your slimline optical drive.

Measurements: 69(H) x 318(W) x 260(D) (2.7 x 12.5 x 10.2in)
Volume: 5.7 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks). Note: Front USB cable not long enough to reach USB connector on Zotac-H55-ITX board.

Building Tip: Remove the Power Supply and Drive Tray to install your motherboard and drives.

Full case comparison chart

Versatile case with 120W power supply suitable for most Mini-ITX motherboards - Universal 110-240V operation. Identical specification to 8K07, with different front panel design.

Steel frame construction with a solid black plastic front panel.

Bays: 1x 3.5in HDD; 1x Slimline Optical drive.

Front Panel: 2x USB 2.0; Mic and Line Out; 1x eSATA; Power Switch and LED.

Power supply: Internal 120W Universal 110/240V ATX Power Supply. Internal 12V P4 and 20pin ATX power connectors included, with 2x Molex, 1x SATA, 1x Floppy power connectors.

Measurements: 70(H) x 268(W) x 318(D) mm. Volume: 5.97 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks).

Not supported: Socket AM2 boards with standard heatsinks, boards requiring over 120W power.

Compatibility Notes: Additional IDE or SATA cable or adapter may be required if you are using a slimline optical drive, depending on the ports available on your choice of board. This case does not support PCI.

Full case comparison chart

Versatile case with 120W power supply suitable for most Mini-ITX motherboards - Universal 110-240V operation. Identical specification to 8K01, with different front panel design.

Steel frame construction with a solid black plastic front panel.

Drive Bays: 1x 3.5in HDD; 1x Slimline Optical drive.

Front Panel: 2x USB 2.0; Mic and Line Out; 1x eSATA; Power Switch and LED.

Power supply: Internal 120W Universal 110/240V ATX Power Supply. Internal 12V P4 and 20pin ATX power connectors included, with 2x Molex, 1x SATA, 1x Floppy power connectors.

Measurements: 70(H) x 268(W) x 318(D) mm. Volume: 5.97 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with lower profile heatsinks (i.e. LGA775 or LGA1156 boards with standard Intel heatsinks, or AM2 boards with low profile heatsinks).

Not supported: Socket AM2 boards with standard heatsinks, boards requiring over 120W power.

Compatibility Notes: Additional IDE or SATA cable or adapter may be required if you are using a slimline optical drive, depending on the ports available on your choice of board. This case does not support PCI.

Full case comparison chart

Solidly built and well-featured, with covered slim optical drive slot. The ISK 300-65 has a smart black form with plenty of cooling thanks to a side-mounted 3-speed "TriCool" fan.

Drive Bays: 2x 2.5in Hard Drive; 1x Slimline Optical Drive; 1x Low-Profile PCI or PCI-Express.

Front Panel: 1x eSATA, 2x USB 2.0, 2x 3.5mm Audio.

Cooling: 1x 80mm TriCool fan.

Power Supply: External 65 Watt 19V Universal AC adapter with UK plug and internal DC converter. Connections for 20/24pin ATX; 1x 4pin 12V; 2x SATA; 2x Molex HDD; 1x Floppy

Optical Drives: Mini SATA Power/Data Cable for SATA Slimline Optical Drives included.

Measurements: 96(H) x 222(W) x 328(D) (3.8 x 8.7 x 12.9in)
Volume: 6.99 litres.

PCI Support: The ISK-300 has room for a low-profile (half-height) PCI or PCI Express card.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10.

Boards not supported: Socket Mini-ITX boards.

Mounting: Horizontal Desk Mount or with supplied Vertical Stand

Full case comparison chart

The Antec Mini-Skleton 90 features an open-frame combined with a uniquely striking design. The Skeleton case is a favourite amongst system-tweakers and is now available in the Mini-ITX form factor.

Cooling: 150mm TricCool Blue LED fan is extremely quiet in use and does a great job of cooling the tnire motherboard area. A 70mm fan is housed at the rear of the 5.25in storage bay for additional cooling.

Front Panel: Power Switch; Reset Switch; 2x USB 2.0 sockets; Audio (AC 97 and HDA compatible) sockets.

Power supply: 90W 19V AC Adapter and Internal DC Converter - capable of powering embedded Mini-ITX and socket boards with up to 45W TDP CPUs. Power connectors: 20+4pin ATX; 1x 4pin 12V P4; 2x SATA; 2x Molex; 1x Floppy. Molex to 2x SATA power cable adapter.

Bays: 1x 5.25in HDD/Optical Drive; 2x 2.5in internal HDD; 2x 2.5in side-mounted HDD.

Measurements: 190(H) x 210(W) x 230(D) (7.5 x 8.3 x 9.1in)
Volume: 9.17 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards are supported though we recommend 45W TDP maximum as this case only has a 90W PSU. Standard Intel LGA775 heatsinks fit though AMD boards may require a low profile heatsink.

Full case comparison chart

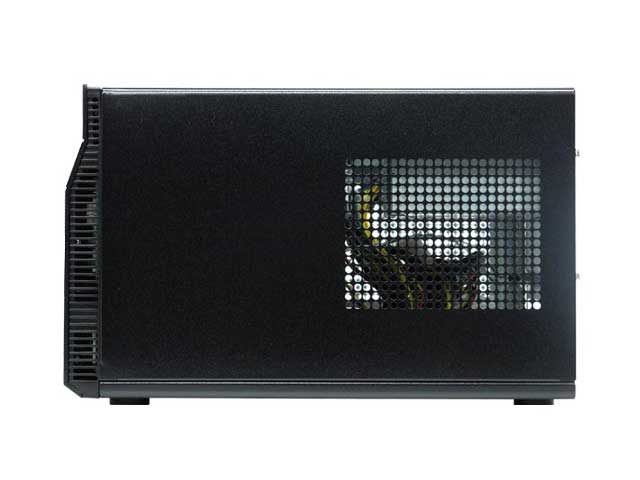

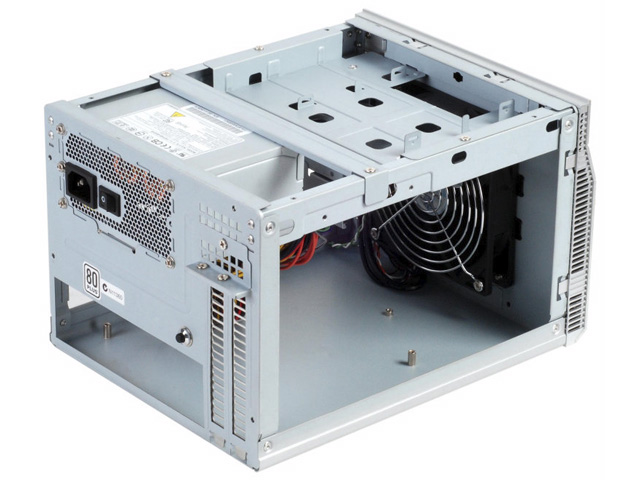

Full featured high quality Mini-ITX case with quiet 300W SFX PSU, and huge front mounted slow moving 120mm cooling fan. Plastic front panel, SECC body.

The SG05 is under 11 litres in volume, but has room for a 9 inch dual slot graphics card and a full height CPU cooler (up to 78mm).

Drive Bays: 1x 3.5in Hard Drive; 1x 2.5in Hard Drive; 1x Slimline Optical Drive (slimline adapter or cable required); 1x PCI or PCI-Express (up to 9 inches long).

Cooling: 1x 120mm 1200 RPM Intake Fan; Overside Side and Top Vents.

Front Panel: 2x USB 2.0, 2x 3.5mm Audio.

Power supply: SFX 300W (80plus certified) - capable of powering a full size dual slot graphics card. Power connectors: 20pin ATX; 2x 4pin 12V; 1x 6pin PCI-E; 3x SATA; 2x Molex; 1x Floppy.

Measurements: 176(H) x 222(W) x 276(D) (6.9 x 8.7 x 10.9in)
Volume: 10.78 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with standard retail heatsinks.

Full case comparison chart

Full featured aluminium bodied high quality Mini-ITX case with quiet 300W SFX PSU, and huge front mounted slow moving 120mm cooling fan. High quality aluminium front panel, SECC body.

The SG06 is just 11.14 litres in volume, but has room for a 9 inch dual slot graphics card and a full height CPU cooler (up to 78mm).

Drive Bays: 1x 3.5in Hard Drive; 1x 2.5in Hard Drive; 1x Slimline Optical Drive (slimline adapter or cable required); 1x PCI or PCI-Express (up to 9 inches long).

Cooling: 1x 120mm 1200 RPM Intake Fan; Overside Side and Top Vents.

Front Panel: 2x USB 2.0, 2x 3.5mm Audio.

Power supply: SFX 300W (80plus certified) - capable of powering a full size dual slot graphics card. Power connectors: 20pin ATX; 2x 4pin 12V; 1x 6pin PCI-E; 3x SATA; 2x Molex; 1x Floppy.

Measurements: 177(H) x 220(W) x 286(D) (6.96 x 8.66 x 11.25in)
Volume: 11.14 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with standard retail heatsinks.

Full case comparison chart

High quality Mini-ITX case suitable for all Mini-ITX motherboards. Supports multiple drive sizes including standard 5.25in Optical drives and full size PCI or PCI Express cards.

Bays: 2x 5.25in Drive Bays; 1x Internal 3.5in Hard Drive Bay; 1x Floppy Drive Bay (can accept an additional 3.5in HDD); 1x PCI or PCI Express (up to 11 inches long).

Cooling: Quiet Fan-Cooled PSU; 2x Internal 40mm Extraction Fans.

Front Panel: 2x USB 2.0, 2x 3.5mm Audio, Firewire.

Power supply: Internal Switchable 110/230V ATX 220W PSU. UK and Euro power cords provided as standard. Power connectors: 20pin ATX; 2x 4pin 12V; 2x Molex; 2x SATA; 1x Floppy. For additional SATA power connectors use a Molex to SATA Power Connector.

Measurements: 225(H) x 200(W) x 330(D) (8.8 x 7.9 x 13in)
Volume: 14.8 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with standard retail heatsinks.

Full case comparison chart

High quality Aluminimum Mini-ITX NAS chassis suitable for all Mini-ITX motherboards. Supports up to 7 hard drives and a PCI or PCI Express card.

Bays: 6x Internal 3.5in Hard Drive Silicone Mounted Bays in a Removable HDD cage; 1x 2.5in HDD/SSD Bay; 1x PCI or PCI Express (up to 140mm long - 2 slots available on Mini-DTX boards).

Cooling: Silent, temperature controlled 140mm fan (9 dB, 600 RPM) with washable filter.

Front Panel: Power Switch with LED.

Power supply: Quiet 80 PLUS rated SFX 300W PSU. Euro power cord provided as standard. Power connectors: 20/24pin ATX; 1x 4pin 12V P4; 1x Molex; 7x SATA.

Measurements: 200(H) x 250(W) x 350(D) (7.8 x 9.8 x 13.8in)
Volume: 17.5 litres.

Supported boards: All Embedded Mini-ITX boards with ATX connectors, including those with taller height heatsinks e.g. early model Intel D945GCLF and Zotac ION-ITX-A/D/F and NM-10; Socket Mini-ITX boards with standard retail heatsinks. Maximum height available for socket board coolers: approx 90mm.

Recommended boards: Boards with at least 6x SATA, e.g. Zotac H55 or Jetway JNC92-330 with SATA daughterboard. Or use another Mini-ITX board combined with a PCI or PCI Express internal SATA card.

Full case comparison chart
