Condition: Small number of brand new units available at this reduced price.

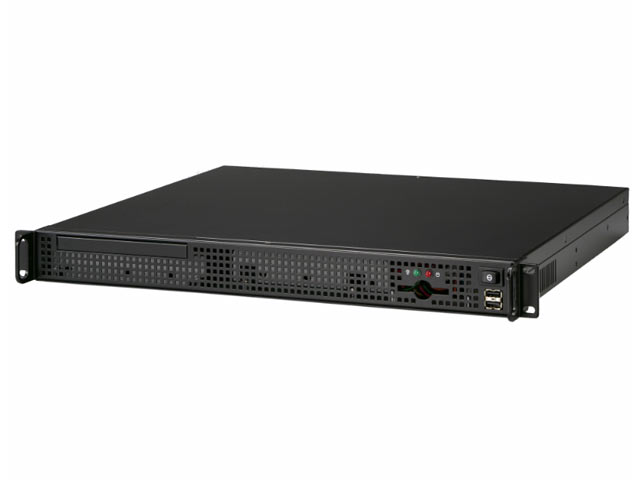

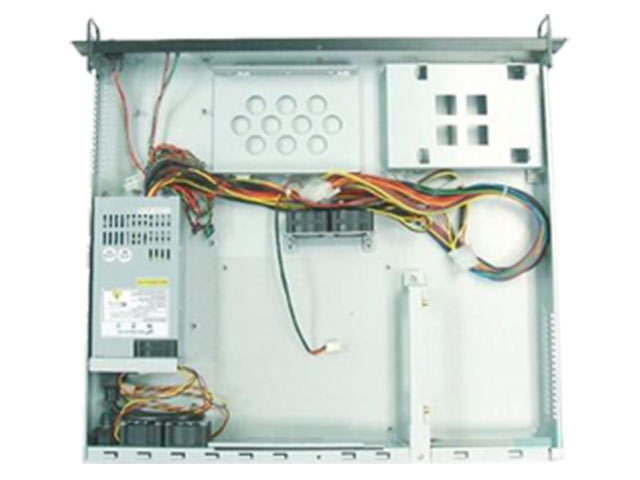

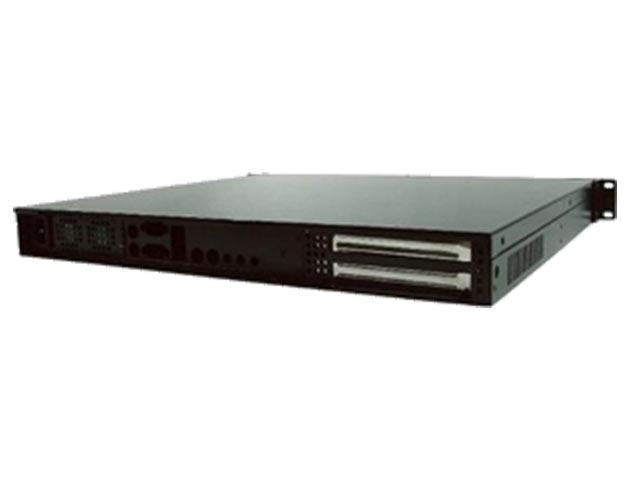

19in Rackmount 1U Mini-ITX enclosure constructed from high quality steel with black finish.

Front Panel: 2x USB 2.0, Power Switch; HDD & Power LEDs.

Drive Bays: 2x 3.5in Hard Drive Bay; 1x Slimline Optical Drive Bay (optical drive and adapter/cable required).

Measurements: 45(H) x 484(W) x 400(D) (1.77 x 19 x 15.74in)
Volume: 8.71 litres.

Power Supply: Internal 200W Flex ATX PSU with fan.

PCI Support: 2x PCI Riser card included. Due to chipset incompatibilities, Atom boards are likely only to support 1x PCI card using this riser.

Supported boards*: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks - please read note below regarding I/O shields.

Boards not supported: Boards with extended height heatsinks including: Early Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; Socket Mini-ITX boards with standard heatsinks.

*I/O Shields: The 7677 comes with 3x I/O shields compatible with EPIA CL/PD/EK; EPIA M and EPIA VB7001 motherboards. A wide range of other motherboards can be used if no I/O shield is fitted at the rear of the enclosure. We are unable to supply alternative I/O shields for this case.

Full case comparison, size and board compatibility chart

Suitable for many Mini-ITX motherboards - Universal 110-240V operation, Just 372mm (15in) deep.

Available as part of our
Intel Atom C1-RACK 1U Bundle

Our own Mini-ITX compatible 1U case is constructed from Heavy-duty pre-plated SPGC cold-rolled steel. It supports up to 2x 3.5in hard drives (2.5in drives can be mounted in the 3.5in bays), and one slimline optical drive bay (IDE adapter provided for a slimline optical drive). Two USB 2.0 ports, power and reset switches and power/HDD LEDs on the front panel.

The C1-RACK measures 482.6 x 377.2 x 43.6mm (19in x 14.8in x 1.75in), and is powered by an internal Universal 250W Flex ATX power supply. One 97mm blower fan provides cooling (does not need to be connected for low power consumption boards). Power and HDD LEDs and Power and reset switches on the front panel.

To use a PCI card (up to 25cm long), add a flexible PCI Riser cable or solid PCI Riser card to your shopping basket.

Power Supply: Internal Universal 250W Flex ATX power supply with 2x Molex, 2x SATA, 20+4pin ATX, 8pin 12V and Molex to Floppy Adapter. Boards that have 12V P4 connectors will require a Molex to 12V P4 Adapter Cable.

Mounting the C1-RACK: Due to the short length of the C1-RACK, you can mount directly using just the front ears. For added stability in a 600mm deep rack, use the fixed rear mounting brackets. For flexibility in a 600mm to 800mm deep rack, use the 20in sliding rails.

Recommended Embedded Motherboards: Jetway JNC91, JNC92 Atom Motherboards; Intel D945GLF2, EPIA CN, EN, EK Mini-ITX Motherboards. Add correct backplate to basket using links on the left.

Recommended Socket Motherboards (<30mm 1U heatsink required): Zotac 9300 rev A,D,G but not I, Intel DG45FC. Add correct backplate to basket using links on the left.

Motherboards that will fit (but no backplate provided*): Wide range of Mini-ITX boards including (but not exclusively) J7F2, J7F4K, J7F5M, EPIA M, SP, EX.

Incompatible motherboards: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. EPIA MII, Zotac ION with fan fitted; Socket motherboards with standard heatsinks.

*No backplate provided. Backplates can be manufactured for any motherboard (10 unit minimum, 3 week lead time).

Full case comparison, size and board compatibility chart

Suitable for many Mini-ITX motherboards - Universal 110-240V operation, Just 423mm (16.6in) deep.

Available as part of our
Intel Atom C2-RACK 1U Bundle

Our own Mini-ITX compatible 1U case is constructed from Heavy-duty pre-plated SPGC cold-rolled steel, and was designed from the start to be as quiet, energy efficient and flexible as possible. The C2-RACK is by far the quietest rackmount we sell supporting multiple HDDs.

Drive Bays: 4x 2.5in or 3.5in Internal Hard Drive Bays (no adapter required for 2.5in HDDs); 1x IDE/SATA Slimline Optical Drive Bay (Blanking plate pre-fitted; Adapter provided for IDE optical; Use a Mini SATA cable for SATA optical); 2x Internal USB 2.0 Sockets (cable connects to USB header on motherboard).

Front Panel: Power Switch and Embedded Reset Switch, HDD, 2x LAN, Power LEDs; 4x USB 2.0 Sockets.

Power supply: The C2-RACK features a very high quality 80 PLUS-certified 300W PSU, which can accept any AC voltage from 100-240V. The PSU is near-silent and has the following outputs: 1x 20/24-Pin ATX Power, 1x P4 12v Power, 4x SATA Power, 1x Molex, 1x Floppy, 4x FAN Power Headers. The PSU is compatible with our C1-RACK chassis and will be available separately.

Measurements: 43.6(H) x 482.6(W) x 423(D) (1.75 x 19 x 16.6in)
Volume: 8.9 litres.

PCI Support: A PCI card up to 175mm (6.9in) can be fitted with the optional Flexible PCI Riser Cable or Solid PCI Riser Card/Extender. Internal USB 2.0 sockets may obstruct deep (vertically) cards - these can be unscrewed and removed.

Cooling: Supplied with 2x 40x40x20mm, 6.3 CFM @ 5200 RPM, 18 dBA ball bearing fans fitted in fan brackets. Up to 2 more fans can be fitted. All fans can be powered directly from the internal PSU. Tip: Use a Rheostat (e.g. Zalman Fan Mate II) to adjust your 40mm fan speeds from quiet to barely audible.

Mounting: The C2-RACK can be mounted directly using just the front ears. For added stability in a 600mm deep rack, use the fixed rear mounting brackets. For flexibility in a 600mm to 800mm deep rack, use the 20in sliding rails.

Recommended boards:
(1) The Jetway JNC92-330 is a low power consumption Atom board that can be fitted with 3x additional LAN or 4x additional SATA making it a perfect companion for the C2-RACK. Available as part of our C2-RACK bundle.
(2) The Zotac ION-ITX-G Synergy is a dual core Atom with 4x SATA as standard and has the excellent ION chipset enabling 1080p playback.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks. Due to the near-silent nature of the C2-RACK, additional fans may be required for Socket 775/AM2/AM3 motherboards.

Backplates: To date we have designed backplates for the following boards: Jetway JNC91, JNC92, Intel D945GCLF, D945GCLF2, DG45FC, Zotac 9300 (not I-E), Zotac ION-ITX-B, Zotac ION-ITX-G, EPIA CN, EN, CL, PD, EK. Backplates are not required to mount motherboards securely but do reduce dust ingress and improve airflow. Backplates can be manufactured for any motherboard (10 unit minimum, 3 week lead time).

Not supported: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. EPIA MII, Zotac ION with fan fitted; Socket motherboards with heatsinks taller than 30mm.

Custom Coloured Front Panels: Possible for volume orders. Please email if required.

Full case comparison, size and board compatibility chart

8in long rear brackets for the C1-RACK/C2-RACK fixes the case solidly in position in a 600mm deep rack. Not suitable for other lengths of rack.

Designed for the C1-RACK, but may work with other 1U rack servers due to their simple design.

20in sliding rails for the C1-RACK/C2-RACK designed for 600mm to 800mm deep racks.

Solid Bearings. Designed for the C1-RACK.

Replacement 300W Ultra Quiet 80 PLUS FlexATX PSU.

Suitable as an extremely low noise upgrade for our C1-RACK chassis, or as a spare part for our C2-RACK chassis. Not suitable for any other 1U chassis we stock due to dimension differences.

Power Connectors: 20pin ATX; 4pin ATX; 4pin 12V P4; 4x SATA; 1x Molex; 1x Floppy; 4x 3pin Chassis Fan.

Specifications: MTBF: 100,000 hours on maximum load at +25°C; Efficiency: typical up to 84%; Leakage Current: Less than 3.5mA at 264Vac, 50Hz; Temperature Range: Operating: 0°C to +50°C full load; storage & shipping: -20°C to +80°C; Dimensions: 190 x 100 x 41mm

Input Characteristics: Input Range: 90 - 264Vac; Full Range Input Frequency: 47 - 63Hz; Input Current: Max 5A @ 115Vac, 3A@ 230Vac

Output Characteristics:

Certifications: RoHS Compliant; Complies with FCC part 15 subpart J class B 115Vac operation and CISPR 22 class B at 230Vac operation; Approved by UL/CUL6095-1, TUV EN60950-1, CB,EMC,FCC; Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances); Active Power Factor Correction (PFC) meets EN61000-3-2.

19in Rackmount 1U Mini-ITX enclosure supporting up to 4x 3.5in removable SATA HDDs, Slimline Optical and 2x 2.5in internal IDE/SATA HDDs.

Construction: Heavy duty cold-rolled steel. Black wet paint with texture coat.

Front Panel: Power Switch; HDD & Power LEDs; 2x 3.5mm Audio Sockets; DB9 Serial Port; 2x USB 2.0.

Drive Bays: Slimline Optical Drive in front panel; Compact Flash Slot in front panel (requires Compact Flash Reader); 4x Removable SATA HDD Trays; 2x 2.5in IDE/SATA HDD Brackets.

Back Panel: 2x PCI Slots; Patented nickel-plated plastic Universal I/O shield included.

Measurements: 44.45(H) x 482.6(W) x 381(D) (1.75 x 19 x 15in)
Volume: 8.17 litres.

Power Supply: Internal Universal Auto-Switching 110-240V 250W Flex ATX PSU with fan. UK Plug provided as standard.

Cooling: 2x 40x20mm 6.28CFM blower fans are included.

Supported boards*: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks.

Boards not supported: Boards with extended height heatsinks including: Early model Intel D945GCLF, Zotac ION-ITX-A/D/F; Socket Mini-ITX boards without 1U heatsinks fitted.

*PCI Card and 2.in HDD Support: The TE-1160 is provided with a dual PCI riser. VIA boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card.

*Compact Flash Support: An IDE or SATA Compact Flash Adapter can be fitted in the enclosure, with front access. Tip: remove the metal backplate before fitting.

*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports. Not all boards have serial port headers (check board notes)

Full case comparison, size and board compatibility chart

The Travla C146 1U Rackmount Mini-ITX Case supports up to 4x 2.5in or 3.5in HDDs, an optical drive and CF Adapter.

Construction:: Lightweight Aluminium alloy and heavy duty cold-rolled steel, finished in black textured paint.

Front Panel: Power Switch; HDD & Power LEDs; DB9 Serial Port; 2x USB 2.0; Compact Flash Slot (requires Compact Flash Adapter).

Drive Bays: 4x Internal 2.5in or 3.5in HDD Bays; Slimline Optical Drive in front panel; Compact Flash Slot (requires Compact Flash Adapter).

Back Panel: 2x PCI Slots; Patented nickel-plated plastic Universal I/O shield included (from 1st Jan 2009).

Measurements: 44.45(H) x 482.6(W) x 381(D) (1.75 x 19 x 15in)
Volume: 8.17 litres.

Power Supply: Internal Universal Auto-Switching 110-240V 250W Flex ATX PSU with fan. UK Plug provided as standard.

Cooling: 2x 40x40mm fans are included.

Compact Flash: An optional IDE or SATA Compact Flash Adapter is available, which is accessed through the front panel.

Optical Drives: An cable or adapter will be required to use a slimline optical driver.

PCI Cards: The C146 comes with a dual PCI riser card, allowing 2 x 7" PCI cards (one PCI card may be up to 13" with careful drive bay juggling). VIA chipset boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks.

Boards not supported: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. EPIA MII, Zotac ION A/D/F; Socket motherboards with standard heatsinks.

Front mounted Serial and USB 2.0 port compatibility: Serial port connects to serial header on motherboard. EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports.

Full case comparison, size and board compatibility chart

The Travla T1200 1U Rackmount Mini-ITX Case supports *TWO* Mini-ITX Motherboards and up to 2x 2.5in or 3.5in HDDs, and 2x Compact Flash Adapters. Previously called the C147 Mini-ITX Chassis.

Construction:: Lightweight Aluminium alloy and heavy duty cold-rolled steel, finished in black textured paint.

Front Panel: 2x Power Switch; 2x HDD & 2x Power LEDs; 2x DB9 Serial Port; 4x USB 2.0; 2x Compact Flash Slot (each requires Compact Flash Adapter).

Drive Bays: 2x Internal 2.5in or 3.5in HDD Bays (1 per motherboard); Compact Flash Slot (each requires Compact Flash Adapter).

Back Panel: 2x Patented nickel-plated plastic Universal I/O shields included (from 1st Jan 2009).

Measurements: 44.45(H) x 482.6(W) x 381(D) (1.75 x 19 x 15in)
Volume: 8.17 litres.

Power Supply: 2x Internal Universal Auto-Switching 110-240V 250W Flex ATX PSUs with fan. UK Plugs provided as standard.

Cooling: 2x 40x40mm fans are included.

Compact Flash: Two optional IDE or SATA Compact Flash Adapters can be fitted (one per motherboard) and accessed through the front panel.

Optical Drives: An cable or adapter will be required to use a slimline optical driver.

PCI Cards: No PCI Cards are supported due to lack of space.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks.

Boards not supported: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. EPIA MII, Zotac ION A/D/F; Socket motherboards with standard heatsinks.

Front mounted Serial and USB 2.0 port compatibility: Serial port connects to serial header on motherboard. EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports.

Full case comparison, size and board compatibility chart

Suitable for Travla C146, T1200 or TE-1160 1U Rackmount Cases.

These sliding rails extend up to 20 inches from a rack. 1 set is two pieces.

Short Depth 19in Rackmount 1U Mini-ITX enclosure constructed from high quality lightweight Aluminium with an anodized front bezel.

Front Panel (under flap): 2x USB 2.0, 2x 3.5mm Audio Sockets; DB9 Serial Port; Power Switch; HDD & Power LEDs.

Drive Bays: 1x 3.5in Hard Drive Bay; 1x Slimline Optical Drive or Compact Flash Drive Bay (adapter required); If no PCI card or just 1x PCI card is used, then 1x 2.5in Hard Drive bay is also available.

Measurements: 44.45(H) x 482.6(W) x 254(D) (1.75 x 19 x 10in)
Volume: 5.45 litres.

Power Supply: External 80W 12V AC Adapter and Internal 80W DC Converter.

Cooling: 2x 40x20mm 6.28CFM blower fans are included. The internal DC converter and external AC Adapter are silent.

Supported boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards. Universal I/O shield now included as standard.

Boards not supported: Boards with extended height heatsinks including: Early Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; All Socket Mini-ITX boards (draw too much power).

*PCI Card and 2.in HDD Support: The C159 is provided with a dual PCI riser. VIA chipset boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card. With 0x or 1x PCI card fitted, a 2.5in HDD can be fitted in addition to the 3.5in HDD.

*Slimline Optical or Compact Flash Support: An IDE or SATA Compact Flash Adapter can be fitted in the Slimline Optical Bay, with front access. Tip: remove the metal backplate before fitting. To fit a Slimline Optical Drive you will require an Adapter or cable, depending on which slimline optical drive you choose.

*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports. Not all boards have serial port headers (check board notes)

Larger picture of case

C159-DC Manual

Full case comparison, size and board compatibility chart

Short Depth 19in Rackmount 1U Mini-ITX enclosure constructed from high quality lightweight Aluminium with an anodized front bezel.

Front Panel (under flap): 2x USB 2.0, 2x 3.5mm Audio Sockets; DB9 Serial Port; Power Switch; HDD & Power LEDs.

Drive Bays: 1x 2.5in Hard Drive Bay; Compact Flash Drive Bay (adapter required); If 2x PCI card is used the 2.5in HDD bay is not available.

Measurements: 44.45(H) x 482.6(W) x 254(D) (1.75 x 19 x 10in)
Volume: 5.45 litres.

Power Supply: Internal 250W Flex ATX PSU with fan.

Cooling: 2x 40x20mm 6.28CFM blower fans are included.

Supported boards*: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks e.g. Intel D410PT, D510MO, later model D945GCLF, D945GCLF2; Jetway Atom & J7F2/4K/5M; Zotac ION-ITX-B; VIA EPIA boards; Socket Mini-ITX boards with <30mm 1U heatsinks. Universal I/O shield now included as standard.

Boards not supported: Boards with extended height heatsinks including: Early Intel D945GCLF, Zotac ION-ITX-A, Zotac ION-ITX-D; Socket Mini-ITX boards with standard heatsinks.

*PCI Card and 2.in HDD Support: The C159 is provided with a dual PCI riser. VIA boards support 2x PCI cards with this riser. Intel chipset boards support 1x PCI card. With 0x or 1x PCI card fitted, the 2.5in HDD can be fitted.

*Compact Flash Support: An IDE or SATA Compact Flash Adapter can be fitted in the enclosure, with front access. Tip: remove the metal backplate before fitting. The ATX version of the C159 does not support a Slimline Optical Drive, due to space limitations..

*Front mounted Serial and USB 2.0 port compatibility: EPIA CN and SN have non-standard serial port headers (see board descriptions). EPIA 5000 and 800 have USB 1.1 ports. Not all boards have serial port headers (check board notes)

Larger picture of case

C159-ATX Manual
