Jetway Mini-ITX Motherboards
In this section...
| J7F2 |
1.2GHz Fanless, 1.5GHz 12W and 2.0GHz C7 CN700 Chipset Mini-ITX Motherboards. Compatible with daughterboard modules to add DVI, 3x LAN, Serial and more. |
 |
| J7F4K |
Dual Gigabit LAN 1.2GHz Fanless and 1.5GHz C7 CN700 Chipset Mini-ITX Motherboards. |
|
| J7F5M |
Dual Output (VGA & DVI or HDMI) 1.2GHz Fanless, 1.5GHz, Special Edition 1.5GHz Fanless DVI or HDMI and 2.0GHz C7 CX700M Chipset Mini-ITX Motherboards. Compatible with daughterboard modules to add 3x LAN, 4x SATA, Serial and more. |
|
| JNC91 |
1.6GHz Atom and 1.6GHz Dual Core Atom Intel ICH7 Chipset Mini-ITX Motherboards. |
|
| JNC92 |
1.6GHz Atom and 1.6GHz Dual Core Atom Intel ICH7 Chipset Mini-ITX Motherboards. Compatible with daughterboard modules to add 3x LAN, 4x SATA, Serial and more. |
|
| Daughterboard Modules for J7F2, J7F5M & JNC92 |
Daughterboard modules for J7F2, J7F5M and JNC92. Add LAN, DVI, Serial, Compact Flash and more. |
|
| JNC62K |
JNC62K Mini-ITX Motherboard supporting AMD Socket AM2/AM2+ CPUs; NVidia 8200 chipset; up to 2GB RAM; PCI; 2x Gigabit LAN; VGA and DVI-I. |
|
| JNC81 |
JNC81 Mini-ITX Motherboard supporting AMD Socket AM2/AM2+ CPUs; AMD 780G chipset with Radeon HD 3200 Graphics; up to 4GB RAM; PCI; 2x Gigabit LAN; VGA, DVI and HDMI. |
|
Jetway J7F2 C7 Mini-ITX Motherboards with Daughterboard Expansion
Jetway J7F2 Mini-ITX motherboards with TV output, Firewire, Motherboard expansion modules (including DVI output) and the latest VIA C7 processors and CN700 chipsets.
Drivers available here
Jetway J7F2 1.2GHz Fanless Eden C7 Mini-ITX Motherboard  | | Jetway 1.2GHz Fanless Eden C7 Mini-ITX Motherboard |
| | | | | Lead time approx 6-10 days |
|
|
| |
1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CN700 chipset, 1x VIA VT6103CL 10/100 LAN, 2x SATA with RAID 0/1, 2x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2 Board and Daughterboard Module
Jetway J7F2 Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality. DVI output, up to 3x Gigabit LAN, 4x Serial Ports and PC Card Slots are all available./p> Specifications: 1.2GHz C7 Eden CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.
Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 2x USB 2.0; 1x 10/100 LAN; 1x S-Video Out; 1x RCA Composite Video Out; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 6x additional USB 2.0 connectors on 3x headers; 1x Firewire connector; F_AUDIO; F_PANEL; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F2 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F2 1.5GHz 12W C7 Mini-ITX Motherboard  | | Jetway 1.5GHz C7D Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
New lower power consumption 12W 1.5GHz board replaces previous C7-D version
1.5GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CN700 chipset, 1x VIA VT6103CL 10/100 LAN, 2x SATA with RAID 0/1, 2x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2 Board and Daughterboard Module
Jetway J7F2 Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality. DVI output, up to 3x Gigabit LAN, 4x Serial Ports and PC Card Slots are all available./p>
Specifications: 1.5GHz C7 CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.
Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 2x USB 2.0; 1x 10/100 LAN; 1x S-Video Out; 1x RCA Composite Video Out; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 6x additional USB 2.0 connectors on 3x headers; 1x Firewire connector; F_AUDIO; F_PANEL; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F2 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F2 2.0GHz C7 Mini-ITX Motherboard | | Jetway 2.0GHz C7 Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
2.0GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CN700 chipset, 1x VIA VT6103CL 10/100 LAN, 2x SATA with RAID 0/1, 2x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2 Board and Daughterboard Module
Jetway J7F2 Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality. DVI output, up to 3x Gigabit LAN, 4x Serial Ports and PC Card Slots are all available. Expansion Module Selector and full descriptions.
Specifications: 2.0GHz C7 CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.
Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 2x USB 2.0; 1x 10/100 LAN; 1x S-Video Out; 1x RCA Composite Video Out; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 6x additional USB 2.0 connectors on 3x headers; 1x Firewire connector; F_AUDIO; F_PANEL; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F2 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F4 C7 Mini-ITX Motherboards with Dual Gigabit LAN
Jetway J7F4 Mini-ITX motherboards with 2x RealteK RTL8110SC Gigabit LAN sockets and the latest VIA C7 processors and CN700 chipsets.
Drivers available here
Jetway J7F4 Dual Gigabit LAN 1.2GHz Fanless Eden C7 Mini-ITX Motherboard  | | Jetway Dual LAN 1.2GHz Eden Mini-ITX Motherboard |
| | | | | Lead time approx 3-5 days |
|
|
| |
1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CN700 chipset, 2x RealteK RTL8110SC Gigabit LAN, 2x SATA with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 4x USB 2.0 Ports. RoHS compliant.
Specifications: 1.2GHz C7 Eden CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.
Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 4x USB 2.0; 2x Gigabit LAN; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; F_AUDIO; F_PANEL; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: Picture is of 1.5GHz model - this board is fanless! The J7F4 does *not* have motherboard module expansion. The J7F4 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here. Latest version in stock, with larger heatsink design and A07 BIOS.
|
Jetway J7F4 Dual Gigabit LAN 1.5GHz C7D Mini-ITX Motherboard | | Jetway Dual LAN 1.5GHz C7 Mini-ITX Motherboard |
| | | | | Lead time approx 6-10 days |
|
|
| |
1.5GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CN700 chipset, 2x RealteK RTL8110SC Gigabit LAN, 2x SATA with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 4x USB 2.0 Ports. RoHS compliant.
Specifications: 1.5GHz C7D CPU; CN700 chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel Realtek ALC655 audio; Integrated Unichrome Pro graphics with MPEG-2 decoder acceleration.
Rear Panel Connectors: PS2 Mouse & Keyboard; 1x Serial; VGA; 4x USB 2.0; 2x Gigabit LAN; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 2x IDE 66/100/133; 2x SATA with RAID 0/1; 20 pin ATX power; 1x DDR2 DIMM socket; 1x 26-pin Parallel connector; 1x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; F_AUDIO; F_PANEL; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F4 does *not* have motherboard module expansion. The J7F4 uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M C7 Mini-ITX Motherboards with Dual Display Support and Daughterboard Expansion
Jetway J7F5M Mini-ITX motherboards with VGA and DVI or HDMI outputs and multiple monitor support, motherboard expansion modules and the latest VIA C7 processors and CX700M chipsets.
Drivers available here
Jetway J7F5M Fanless 1.2GHz Eden C7 VGA and DVI Motherboard  | | Jetway 1.2GHz Fanless VGA+DVI Mini-ITX Board |
| | | | | Lead time approx 6-10 days |
|
|
| |
1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 1.2GHz C7 Eden CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M 1.5GHz C7D VGA and DVI Motherboard  | | Jetway 1.5GHz C7 VGA+DVI Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M Fanless 1.5GHz C7D VGA and DVI Motherboard (Special Edition)  | | Jetway 1.5GHz C7 VGA+DVI Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
More images of the J7F5M Fanless 1.5GHz SE
| |
Limited Stocks!
Special Edition Fanless 1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M 2.0GHz C7 VGA and DVI Motherboard | | Jetway 2.0GHz C7 VGA+DVI Mini-ITX Motherboard |
| | | | | Lead time approx 6-10 days |
|
|
| |
2.0GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 2.0GHz C7 CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; DVI-D; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway Fanless 1.2GHz Eden C7 VGA and HDMI Motherboard  | | Jetway 1.2GHz Fanless VGA+HDMI Mini-ITX Board |
| | | | | Lead time approx 3-5 days |
|
|
| |
1.2GHz Fanless VIA Eden (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 1.2GHz C7 Eden CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M 1.5GHz C7D VGA and HDMI Motherboard | | Jetway 1.5GHz C7 VGA+HDMI Mini-ITX Motherboard |
| | | | | Lead time approx 6-10 days |
|
|
| |
1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M Fanless 1.5GHz C7D VGA and HDMI Motherboard (Special Edition)  | | Jetway 1.5GHz C7 VGA+HDMI Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
More images of the J7F5M Fanless 1.5GHz SE
| |
Limited Stocks!
Special Edition Fanless 1.5GHz VIA C7-D (C7) powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 1.5GHz C7-D CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Jetway J7F5M 2.0GHz C7 VGA and HDMI Motherboard | | Jetway 2.0GHz C7 VGA+HDMI Mini-ITX Motherboard |
| | | | | Lead time approx 6-10 days |
|
|
| |
2.0GHz VIA C7 powered 17x17cm Mini-ITX motherboard with CX700M chipset, 1x VIA VT6122 Gigabit LAN, 2x SATA II with RAID 0/1, 1x IDE, One DDR2 DIMM slot and 2x USB 2.0 Ports. RoHS compliant.
Configure a Jetway J7F2/J7F5M/JNC92 Board and Daughterboard Module
Jetway J7F5M Mini-ITX motherboards have a unique expansion module slot, to add additional ports and functionality - up to 3x Gigabit LAN, 4x Serial Ports, Bootable Compact Flash and PC Card Slots are all available.. Specifications: 2.0GHz C7 CPU; CX700M chipset; Supports up to 1GB on 240-pin DDR2 400/533 DIMM socket; 6 channel VIA VT1708A 6 channel audio; Integrated Unichrome Pro II graphics with MPEG-2 decoder acceleration (supports up to 128MB Shared Memory).
Rear Panel Connectors: PS2 Mouse & Keyboard; VGA; HDMI; 2x USB 2.0; 1x Gigabit LAN; 1x Firewire; 3x 3.5mm Audio (Line-out, Line-in and Mic-in, can be configured as 5.1 outputs). Board connectors: 1x IDE 66/100/133; 2x SATA with RAID 0/1; 20/24 pin ATX power; 1x DDR2 DIMM socket; 2x 9-pin Serial connector; 4x additional USB 2.0 connectors on 2x headers; CD/AUX Audio In and SPK out; F_PANEL; 1x HDTV Out connector; 1x IrDA (SIR); 1x 6-pin Video Input Connector; 1x PCI 120-pin adapter for daughterboard expansion modules; 1x 32-bit PCI slot.
Suitable cases: All our cases apart from Travla C134, C156. Compatible backplate not available for rack cases, though the board does fit. See our case compatibility chart for more information.
Notes: The J7F5M uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 533 DIMMs are available here.
|
Configure a Jetway J7F2, J7F5M or JNC92 and Expansion Module
Jetway Motherboard Modules
Jetway J7F2, J7F5M and JNC92 motherboards can be expanded with optional Motherboard Modules (daughterboards) to give a DVI output, 3x Gigabit LAN, additional serial ports and more. These modules are not compatible with the J7F4K motherboards.
Jetway 1x LAN Motherboard Module  | | Jetway 1x LAN Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds an additional 10/100 LAN Port.
The module comes with a motherboard I/O shield with the correct cutouts.
|
Jetway 3x LAN Motherboard Module  | | Jetway 3x LAN Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds an additional 3 x 10/100 LAN Ports.
The module comes with a motherboard I/O shield with the correct cutouts.
|
Jetway 1x Gigabit LAN Motherboard Module | | Jetway 1x Gigabit Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds an additional Gigabit LAN Port.
The module comes with a motherboard I/O shield with the correct cutouts.
|
Jetway 3x Gigabit LAN Motherboard Module | | Jetway 3x Gigabit LAN Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds an additional 3 x Gigabit LAN Ports.
Chipset: 3 x Realtek RTL8110SC.
The module comes with a motherboard I/O shield with the correct cutouts.
|
Jetway DVI Output Motherboard Module for J7F2  | | Jetway DVI Output Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 motherboards adds a DVI Output. Supported resolutions depend on the BIOS version of the board.
The module comes with a motherboard I/O shield with the correct cutouts (not shown in this picture).
Note: This module is not J7F5M or JNC92 compatible due to chipset incompatibilites.
|
Jetway Compact Flash Reader / PC Card Adapter Motherboard Module  | | Jetway CF / PC Card Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds a Type I/II Compact Flash Reader and PC Card Adapter. A bootable Compact Flash Adapter is available below.
The module comes with a motherboard I/O shield with the correct cutouts.
|
Jetway 2x Serial Port Motherboard Module  | | Jetway 2x Serial Port Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds 2 additional Serial Ports.
The module comes with a motherboard I/O shield with the correct cutouts.
|
Jetway 4x Serial Port Motherboard Module (2 Port+2 Header)  | | Jetway 4x Serial Port Motherboard Module (2+2) |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds 2 additional Serial Ports and 2 additinal Serial Port pin headers with 2 serial ports on fly leads, which connect directly to those headers.
The module comes with a motherboard I/O shield with the correct cutouts (not shown in this picture.
|
Jetway Mini-PCI Motherboard Module  | | Jetway Mini-PCI Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds a Mini-PCI interface.
The adapter is connected using and IDE socket and powered with a standard floppy-sized Molex power connector.
The module comes with a motherboard I/O shield with the correct cutouts (not shown in this picture.
|
Jetway 4x SATA Motherboard Module  | | Jetway 4x SATA Motherboard Module |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
This motherboard module for the Jetway J7F2 and J7F5M and JNC92 motherboards adds 4x additional SATA 3Gb/s ports.
The Marvell 88SE6145 chipset supports RAID 0, 1, 0+1 and 5 across its 4 SATA ports.
The 2 SATA ports on the motherboards can still be used separately, giving 6 available in total. A replacement I/O shield is not required, as the 4 additional SATA ports are internal.
Drivers are available here
|

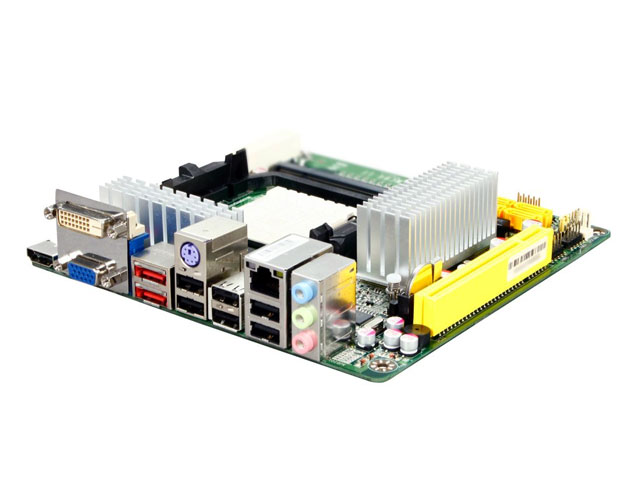

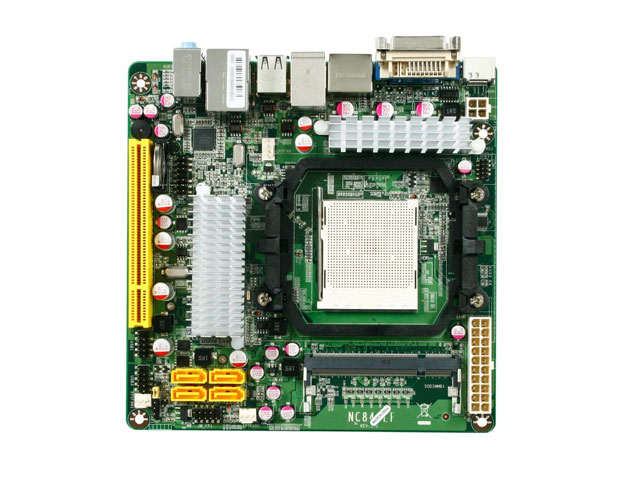

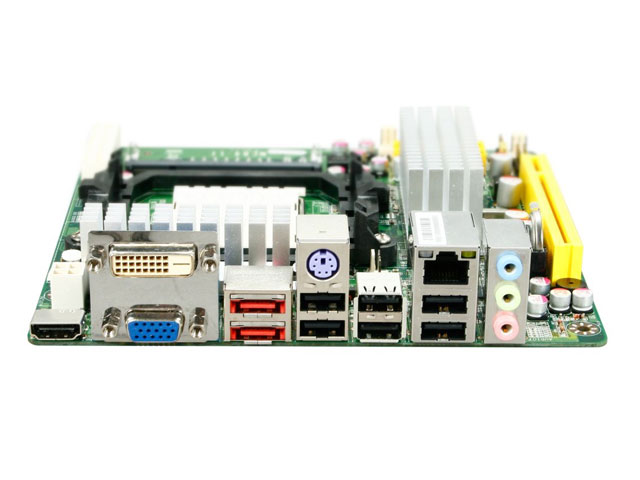

Jetway JNC62K Socket AM2/AM2+ Mini-ITX Motherboard with integrated GeForce 8200  | | Jetway JNC62K Socket AM2/AM2+ Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| AMD Athlon II X2 240 AM3 Dual Core 2.8GHz CPU & Heatsink |
| | | | | Lead time approx 1-3 days |
|
|
| AMD Athlon II X2 250 AM3 Dual Core 3.0GHz CPU & Heatsink |
| | | | | Lead time approx 1-3 days |
|
|
| Low Profile AM2 Heatsink (*see notes) |
| | | | | Lead time approx 6-10 days |
|
|
| |
nVidia NF-8200 (MCP78S) Chipset AMD socket AM2/AM2+ Quad Core Opteron™ & Phenom™ 17x17cm Mini-ITX motherboard with 2x Gigabit LAN, VGA, DVI-I, IDE, 4x SATA II, 6 channel ALC883 Audio, 8x USB 2.0 Ports and integrated DirectX 10 graphics with HD-DVD, BluRay, Full bitrate H264, VC-1 and MPEG2 video decoding. Expansion possible through 32-bit PCI slot. Supports HTT 3000MHz. Supports up to 2GB in one 240-pin DIMM socket for unbuffered Dual DDR2 667/800 SDRAM. 1x 20pin ATX Power Connector and 1x 12V 4pin ATX Power connector (both are required).
Configure an Jetway JNC62K Board, Processor and RAM
Rear Panel I/O Ports: 6x USB 2.0; 1x DVI-I (supports audio over DVI); 1x VGA; 2x Gigabit LAN RJ45 (RTL8211B PHY & RTL8111C PCI-E); 6x 3.5mm Audio Jacks; 2x RS232 Serial; PS/2 Keyboard.
Motherboard I/O: 1x 32-bit PCI slot. Connector for 2 additional USB 2.0 Ports; 3x Fan connectors; 1x CD / AUX Audio in & Speaker Out; 1x S/PDIF Connector.
Accessories: 2x SATA II Cable, DVI-HDMI (Video & Audio) Dongle, IDE Cable, User's Manual, CD and I/O Shield
CPU and Heatsink *not* included. A large heatsink is generally provided with AMD Retail Boxes. Compatible CPUs: AM2+ Phenom Quad Core: 9100e; AM2 Athlon64 x2: 5400+, 5200+, 5000+, 4800+, 4600+, 4400+, 4200+; AM2 Athlon x2: BE2400, BE2350, BE2300; AM2 Athlon: 4850e, 4450e, 4050e: AM2 Sempron x2: 2300+, 2200+, 2100+; Athlon 64 (embedded): 3100+, 2600+, 2000+. For full BluRay 1080p playback the AM2+ Phenom, AM2 Athlon 64 x2, BE2400, 4450e, 4850e and 5050e only are recommended.
Compatible cases: Chenbro NAS Chassis, Nexus Psile, Venus 669, additionally Jou Jye (with low profile heatsink). Other cases may work but you will need at least a 120W power supply, and a low profile heatsink.
Case compatibility and Power Consumption: The JNC62K is likely to draw up to 80-110W with a 45W CPU and additional components and 100-130W with a 65W CPU and components. Heat sink size will also need to be considered.
|
Jetway JNC81 Socket AM2/AM2+ Mini-ITX Motherboard with integrated ATI HD 3200  | | Jetway JNC81 Socket AM2/AM2+ Mini-ITX Motherboard |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| Jetway Wireless LAN Module for JNC81 |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| AMD Athlon II X2 240 AM3 Dual Core 2.8GHz CPU & Heatsink |
| | | | | Lead time approx 1-3 days |
|
|
| AMD Athlon II X2 250 AM3 Dual Core 3.0GHz CPU & Heatsink |
| | | | | Lead time approx 1-3 days |
|
|
| Low Profile AM2 Heatsink (*see notes) |
| | | | | Lead time approx 6-10 days |
|
|
| |
AMD 780G + SB700 Chipset AMD socket AM2/AM2+ Quad Core Opteron™ & Phenom™ 17x17cm Mini-ITX motherboard with 2x Gigabit LAN, VGA, DVI, HDMI, IDE, 4x SATA II with RAID 0,1,10; 6 channel ALC662 Audio; 8x USB 2.0 Ports and integrated DirectX 10 ATI Radeon HD 3200 Graphics with dedicted 128MB DDR2 RAM. Expansion possible through 32-bit PCI slot. Supports up to 4GB in two DDR2 SODIMM sockets. 1x 20pin ATX Power Connector and 1x 12V 4pin ATX Power connector (both are required).
Configure an Jetway JNC81 Board, Processor and RAM
Rear Panel I/O Ports: 4x USB 2.0; 1x VGA; 1x DVI; 1x HDMI; 2x Gigabit LAN RJ45 (Realtek RTL8111C); 3x 3.5mm Audio Jacks; 2x e-SATA ports.
Motherboard I/O: 1x 32-bit PCI slot. 2x connectors for 4 additional USB 2.0 Ports; 2x Fan connectors; 1x Serial header; 1x COM header; 1x 12pin WiFi header; 2x DDR2 533/667/800 Unbuffered SODIMM sockets (1 on top, 1 on underside of board).
Accessories: 1x SATA II Cable, IDE Cable, User's Manual, CD and I/O Shield
CPU and Heatsink *not* included. A large heatsink is generally provided with AMD Retail Boxes. Compatible CPUs: AM2+ Phenom Quad Core: 9100e; AM2 Athlon64 x2: 5400+, 5200+, 5000+, 4800+, 4600+, 4400+, 4200+; AM2 Athlon x2: BE2400, BE2350, BE2300; AM2 Athlon: 4850e, 4450e, 4050e: AM2 Sempron x2: 2300+, 2200+, 2100+; Athlon 64 (embedded): 3100+, 2600+, 2000+. For full BluRay 1080p playback the AM2+ Phenom, AM2 Athlon 64 x2, BE2400, 4450e, 4850e and 5050e only are recommended.
Compatible cases: Chenbro NAS Chassis, Nexus Psile, Venus 669, additionally Jou Jye (with low profile heatsink). Other cases may work but you will need at least a 120W power supply, and a low profile heatsink.
Case compatibility and Power Consumption: The JNC81 is likely to draw up to 80-110W with a 45W CPU and additional components and 100-130W with a 65W CPU and components. Heat sink size will also need to be considered.
|
Silverstone Low Profile Cooler suitable for JNC62K  | | Silverstone Low Profile Cooler suitable for JNC62K |
| | | | | | | IN STOCK (Checked 15:15 GMT) |
|
|
| |
Silverstone Low Profile 31mm High Cooler suitable for JNC62K and most other AM2 motherboards (though not the JNC81). Only 31mm high, supports Socket AM2/AM3 CPUs up to 65W TDP.
Improved fan blade design offers quieter and better performance. Quick thermal absorbing extruded aluminium fins. Easy installation design.
1U case Compatibility: Please use the even lower but slightly noisier Jetway cooler when using a 1U case.
|
Jetway Ultra Low Profile Cooler suitable for JNC81 & JNC62K  | | Low Profile Cooler suitable for JNC81 |
| | | | | Lead time approx 6-10 days |
|
|
| |
Low Profile 25mm High Cooler designed for JNC81 and JNC62K motherboards. Supports Socket AM2/AM3 CPUs up to 65W TDP.
1U case Compatibility: The JNC81 & JNC62K can be mounted in our 1U cases using this heatsink.
Specifications: Supports Socket AM2 CPUs up to 65W; Fan speed: 4000 RPM +/- 10%; Voltage: 12V DC; Noise: <36 dBA; Dimensions: 106 x 72 x 25mm.
|
Configure a Jetway JNC62K, CPU and RAM You may use the form below to add compatible items to your shopping basket. Configure a Jetway JNC81, CPU and RAM You may use the form below to add compatible items to your shopping basket.
Don't see what you want here? Send us an email with as much information as possible, and we'll try and get it for you.
|
Cards accepted directly:
 |
 |
 |
 |
| Additionally with PayPal: |
 |
 |
 |
|
