Zotac Mini-ITX Motherboards

D2550-ITX-A Wi-Fi Supreme Wi-Fi Dual Core Mini-ITX Board
D2550-ITX-B Wi-Fi Supreme Wi-Fi Mini-ITX Board with DC In
Zotac E2-1800ITX Wi-Fi Fanless Dual LAN Mini-ITX Motherboard
Zotac H87-ITX WiFi 4th Gen Core Socket 1150 Board with dual LAN

Zotac D2550-ITX Wi-Fi Supreme 1.86GHz Atom Mini-ITX Board with onboard NVidia GT610 graphics

Zotac D2550-ITX Wi-Fi Supreme Mini-ITX Motherboard
£115.00
  £138.00 inc. VAT
  IN STOCK (Checked 16:51 BST)


More images of the Zotac D2550-ITX Wi-Fi Supreme

You may also require:

2GB DDR3 1333 SODIMM for D2550-ITX Wi-Fi Supreme
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 16:51 BST)

4GB DDR3 1333 SODIMM for D2550-ITX Wi-Fi Supreme
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 16:51 BST)



Our most powerful Atom board! Replaces the D2700 Supreme

Dual core 1.86GHz Atom D2550 processor and powerful but low energy consumption Next-Generation NVIDIA GT610 graphics processor featuring hardware video decode acceleration for Blu-ray 3D, streaming Internet video and native 1080p24 output: NVIDIA PureVideo™ HD technology; NVIDIA CUDA™ Ready; Adobe Flash Hardware Acceleration capable; Microsoft DirectX 11; Integrated 7.1 Audio and 802.11b/g/n WiFi & Bluetooth 3.0. Up to 8GB of DDR3 SODIMM RAM; Windows 7 Ready.

Rear Panel Connectors: PS2 Keyboard, 4x USB 2.0; DisplayPort; HDMI; DVI-I (adapter provided for VGA); 2x USB 3.0; Realtek RTL-8110SC Gigabit LAN; S/PDIF Optical Audio Out, 5x 3.5mm audio connectors, 2x Antenna Sockets for Wi-Fi.

Board connectors: 24pin ATX power connector and 4pin ATX 12V power connector (it is OK to connect with 20pin ATX, 4pin ATX is usually required*); PCI Express x16; Vertical Mini-PCI Express x1 (occupied by half-height Intel Centrino N-130 Wi-Fi card); mSATA connector (for mSATA SSDs - please read our important note below); 2x DDR3 SODIMM sockets; 2x SATA 3Gb/s; 2x USB 2.0 connectors on 9pin header; Audio header; S/PDIF header; Serial header; Power switch; Reset switch; 6x Board LEDs: BIOS jumper; 4pin CPU Fan; 4pin System Fan; FPANEL.

Package Contents: Motherboard, 2x SATA data cables; 1x I/O back plate; 2x WiFi antennas; 1x DVI to VGA adapter.

Cooling: The D2550-ITX Wi-Fi Supreme is cooled by an extremely quiet (and replaceable) 80mm fan, which sits on top of the heatsink.

Suitable picoPSUs: The picoPSU-80 and picoPSU-90 fit this board. Other picoPSU (including WI, M3-ATX, particularly XT) do not fit due to the close position of the primary SODIMM socket to the ATX connector. We recommend the 80W AC Adapter and picoPSU-90 combination for most installations. The P4 connector is not required with this particular board when using a picoPSU.

Suitable cases: The D2550-ITX Wi-Fi Supreme has a standard sized heatsink - all of our standard Mini-ITX cases (including the M350) will work. Slimline Optical Drive is not supported if C158-80W is used (due to SODIMM position). We have not yet tested the D2550-ITX Wi-Fi Supreme with any 1U chassis.

mSATA Note: mSATA disables SATA port 1 and is not possible with the WiFi card connected.

SSD Compatiblity: Not recommended for use with Sandisk Pulse SSDs.

Notes: The D2550-ITX Wi-Fi Supreme supports DDR3 SODIMM memory, up to 4GB per SODIMM. 8GB is supported and guaranteed to work. DDR3 is not compatible with DDR or DR2 memory. Fully tested DDR3 SODIMMs are available here.

Extended Warranty: Since Feb 2008, Zotac have provided an extended 5 year warranty on their motherboards. Please register with Zotac here within 28 days of purchase to qualify and for further details.

Zotac D2550-ITX-B Wi-Fi Supreme 1.86GHz Atom Mini-ITX Board with onboard NVidia GT610 graphics and AC Adapter

Zotac D2550-ITX-B Wi-Fi Supreme Mini-ITX Motherboard with AC Adapter, UK and Euro Cables
£139.00
  £166.80 inc. VAT
  IN STOCK (Checked 16:51 BST)


More images of the Zotac D2550-ITX-B Wi-Fi Supreme

You may also require:

2GB DDR3 1333 SODIMM for D2550-ITX Wi-Fi Supreme
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 16:51 BST)

4GB DDR3 1333 SODIMM for D2550-ITX Wi-Fi Supreme
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 16:51 BST)

US Power Cord for D2550-ITX-B
£3.00
  £3.60 inc. VAT
  IN STOCK (Checked 16:51 BST)



Our most powerful Atom board! Includes External AC Adapter.

Available as part of our Zotac M350 Supreme Offer Bundle

Dual core 1.86GHz Atom D2550 processor and powerful but low energy consumption Next-Generation NVIDIA GT610 graphics processor featuring hardware video decode acceleration for Blu-ray 3D, streaming Internet video and native 1080p24 output: NVIDIA PureVideo™ HD technology; NVIDIA CUDA™ Ready; Adobe Flash Hardware Acceleration capable; Microsoft DirectX 11; Integrated 7.1 Audio and 802.11b/g/n WiFi & Bluetooth 3.0. Up to 8GB of DDR3 SODIMM RAM; Windows 7 Ready.

Rear Panel Connectors: 19V DC Power Input, PS2 Keyboard, 4x USB 2.0; DisplayPort; HDMI; DVI-I (adapter provided for VGA); 2x USB 3.0; Realtek RTL-8110SC Gigabit LAN; S/PDIF Optical Audio Out, 5x 3.5mm audio connectors, 2x Antenna Sockets for Wi-Fi.

Board connectors: 24pin ATX power connector and 4pin ATX 12V power connector (it is OK to connect with 20pin ATX, 4pin ATX is usually required*); PCI Express x16; Vertical Mini-PCI Express x1 (occupied by half-height Intel Centrino N-130 Wi-Fi card); mSATA connector (for mSATA SSDs - please read our important note below); 2x DDR3 SODIMM sockets; 2x SATA 3Gb/s; 2x USB 2.0 connectors on 9pin header; Audio header; S/PDIF header; Serial header; Power switch; Reset switch; 6x Board LEDs: BIOS jumper; 4pin CPU Fan; 4pin System Fan; FPANEL.

Package Contents: Motherboard, 2x SATA data cables; 1x I/O back plate; 2x WiFi antennas; 1x DVI to VGA adapter; 19V AC Adapter with both UK and Euro power cables; Female Molex to 3x SATA Power Cable.

Cooling: The D2550-ITX Wi-Fi Supreme is cooled by an extremely quiet (and replaceable) 80mm fan, which sits on top of the heatsink.

Important! This board has a 19V DC Power input and is not designed for use with a standard ATX PSU: The D2550-ITX-B Supreme is provided with a 90W 19V AC Adapter which powers the board directly and feeds power to up to 3 other devices through an on-board male Molex connector. We sell several enclosures without power supplies, or you can bypass the PSU on any other compatible Mini-ITX case. 90W is enough to power 3x HDDs or Slimline Optical Drives*, but we *do not* recommend powering a full size optical drive. Don't forget you can install most Operating Systems from a USB key very easily!

Recommended case: The M350 Universal Enclosure comes without an internal PSU and is fully compatible with the D250-ITX-B Supreme: M350 (highly recommended - currently available in our Zotac M350 Supreme Offer Bundle).

Using other cases: Many enclosures have a PSU which can be bypassed and are therefore compatible with the D2550-ITX-B Supreme, however the 'A' version of this board (without the built-in power supply) is much better suited for these.

mSATA Note: mSATA disables SATA port 1 and is not possible with the WiFi card connected.

SSD Compatiblity: Not recommended for use with Sandisk Pulse SSDs.

Notes: The D2550-ITX-B Wi-Fi Supreme supports DDR3 SODIMM memory, up to 4GB per SODIMM. 8GB is supported and guaranteed to work. DDR3 is not compatible with DDR or DR2 memory. Fully tested DDR3 SODIMMs are available here.

Extended Warranty: Since Feb 2008, Zotac have provided an extended 5 year warranty on their motherboards. Please register with Zotac here within 28 days of purchase to qualify and for further details.

Zotac E2-1800ITX Wi-Fi Fanless Dual LAN Mini-ITX Motherboard

Zotac E2-1800 Wi-Fi Mini-ITX Motherboard
  SPECIAL OFFER - was £119.00
£89.00
  £106.80 inc. VAT
  IN STOCK (Checked 16:51 BST)


More images of the Zotac E2-1800 Wi-Fi

You may also require:

2GB DDR3 1333 SODIMM for E2-1800
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 16:51 BST)

4GB DDR3 1333 SODIMM for E2-1800
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 16:51 BST)

8GB DDR3 1333 SODIMM for E2-1800
£57.00
  £68.40 inc. VAT
Lead time approx 3-5 days

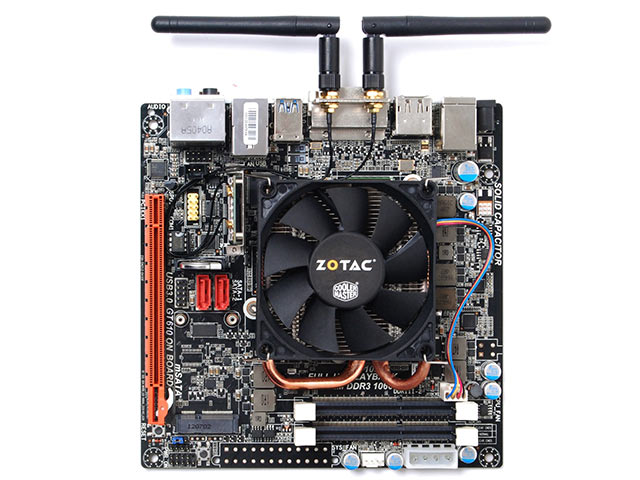

Zotac E2-1800ITX-A Wi-Fi Mini-ITX motherboard with Dual-Core 1.7GHz AMD E2-1800 APU/processor and Fanless Heatsink by Coolermaster. Featuring integrated AMD Radeon HD 7340 DirectX 11 / OpenGL 4.1 graphics and AMD M3L chipset. Up to 16GB of system memory; Dual Gigabit Ethernet; High Definition 5.1 Channel Audio; 802.11g/n WiFi & Bluetooth 4.0.

Rear Panel: 2x WiFi Antenna; Reset Switch; Combined Mouse/Keyboard PS/2 port; 4x USB 2.0 ports; DVI (VGA adapter supplied); HDMI, 2x Gigabit Ethernet; 2x USB 3.0 ports;3x 3.5mm audio connectors.

Board Connectors: PCI Express x16 slot; 1x vertical Mini-PCI Express slot (occupied by short-height WiFi card); 1x Full Length Mini-PCI Express Slot with mSATA support; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 2x SATA 6Gb/s ports; 2x DDR3 SODIMM sockets; 1x RS232 Serial Port Connector on 9pin header; 2x USB 2.0 connectors on 1x 9pin header; 1x Front Panel Connector; 1x 4pin System Fan Header.

Case compatibility. The E2-1800 has a standard height heatsink and low power requirements. All our Mini-ITX cases will work including but not exclusively M350, M5XP, Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, Thin Clients, Travla C158 (CD may not be supported), Compact and Lockable Wall Mount Cases.

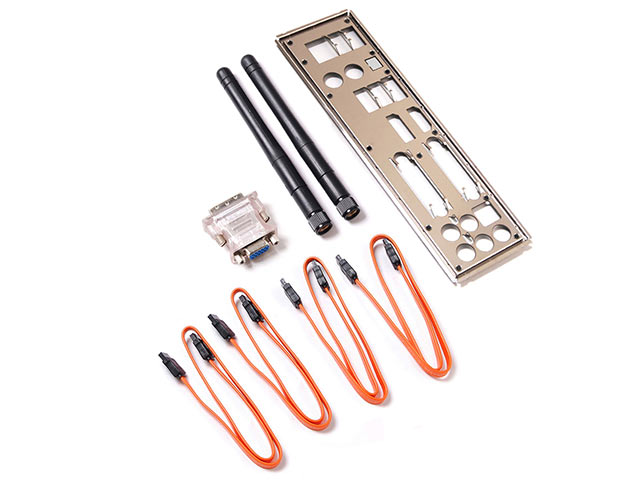

Box contents: Motherboard, 2x SATA cables, Product Guide, I/O Shield, 1x mini-Optical Adapter; 2x WiFi Antenna, DVI to VGA adapter.

Memory: The E2-1800 supports up to 8GB DDR3 memory on 2x DDR3 SODIMMS running at 1066MHz. This is not compatible with DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Extended Warranty: Since Feb 2008, Zotac have provided an extended 5 year warranty on their motherboards. Please register with Zotac here within 28 days of purchase to qualify and for further details.

Zotac H87-ITX WiFi 4th Gen Core Socket 1150 Mini-ITX Motherboard with 802.11n WiFi and Dual LAN

Zotac H87-ITX WiFi 4th Gen Core Socket 1150 Mini-ITX Motherboard
  SPECIAL OFFER - was £89.00
£79.00
  £94.80 inc. VAT
  IN STOCK (Checked 16:51 BST)



More images of the H87-ITX WiFi

You may also require:

2GB DDR3 1333 DIMM for H87-ITX
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 16:51 BST)

4GB DDR3 1333 DIMM for H87-ITX
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 16:51 BST)

4GB DDR3 1600 DIMM for H87-ITX
£35.00
  £42.00 inc. VAT
  IN STOCK (Checked 16:51 BST)

8GB DDR3 1333 DIMM for H87-ITX
£57.00
  £68.40 inc. VAT
  IN STOCK (Checked 16:51 BST)

8GB DDR3 1600 DIMM for H87-ITX
£59.00
  £70.80 inc. VAT
  IN STOCK (Checked 16:51 BST)

Add a Processor:

Full CPU list here

Akasa 7106HP Low Profile Heatsink (not 84W TDP CPUs)
£15.00
  £18.00 inc. VAT
  IN STOCK (Checked 16:51 BST)

Dynatron K2 1U Heatsink
£29.00
  £34.80 inc. VAT
  IN STOCK (Checked 16:51 BST)

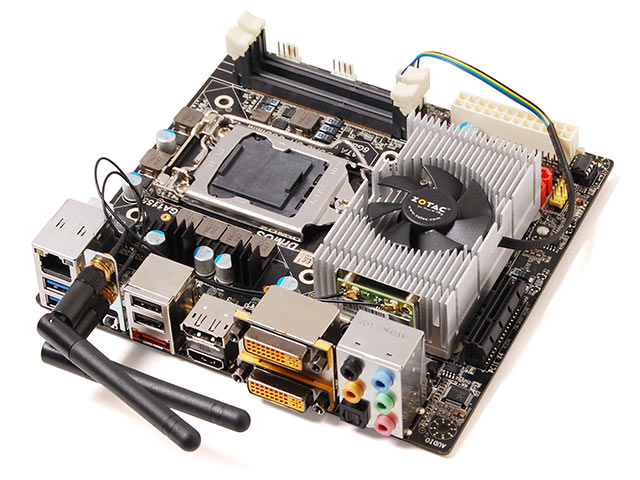

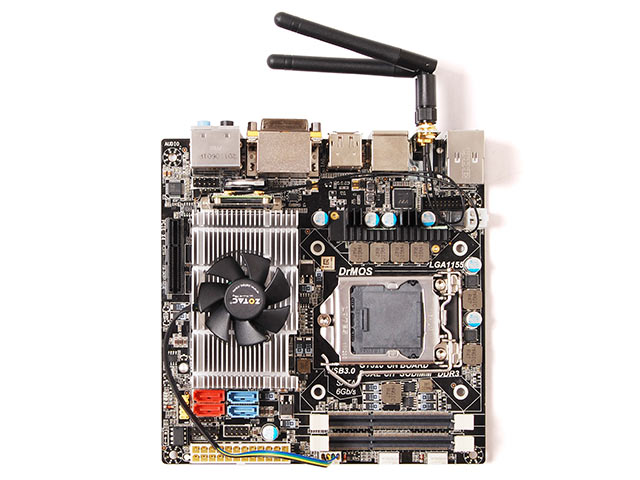

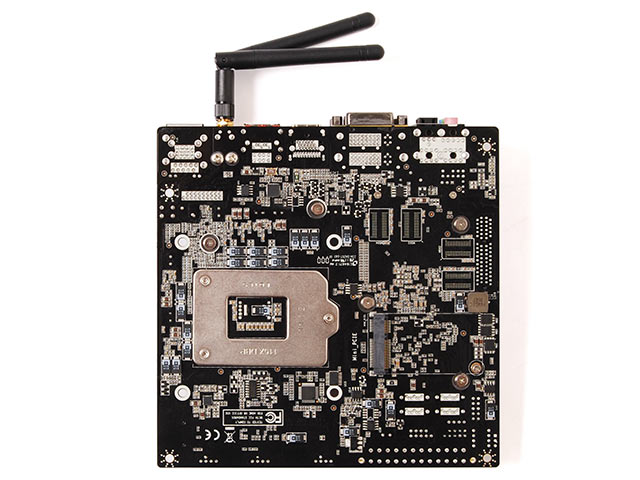

Zotac H87-ITX WiFi Mini-ITX board supporting Intel 4th Gen Core (Haswell) processors: 7.1-channel Audio; Up to 16GB of DDR3 RAM; 2x Gigabit LAN; 4x SATA 6.0 Gb/s ports with RAID 0, 1, 0+1, 5; 1x mSATA 6.0Gb/s; 1x HDMI 1.4a, 1x DisplayPort, 1x DVI graphics outputs; S/PDIF Optical output; 6x USB 3.0 (inc 2 internal); 6x USB 2.0 (inc 4 internal); Mini-PCI Express 802.11n WiFi & Bluetooth 4.0 Module and 2x Antennas.

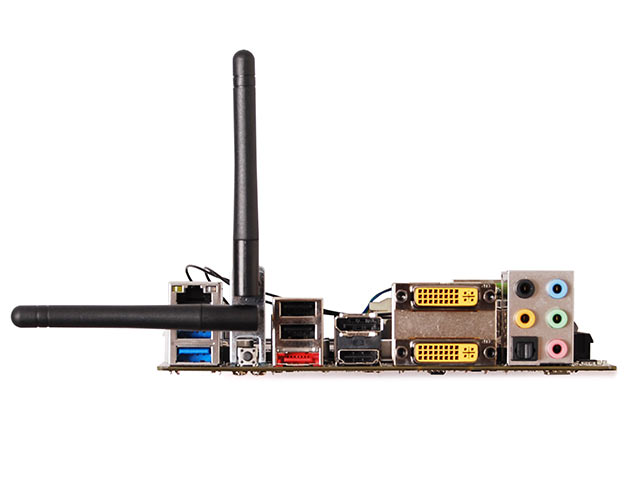

Rear Panel Connectors: 4x USB 3.0 (blue); Display Port; HDMI; 2x Wifi Antenna Connectors (Antennas provided); DVI port; 2x Gigabit LAN; 2x USB 2.0; 5x 3.5mm audio jacks; Optical S/PDIF Out.

Board connectors: 24pin ATX power connector and 4pin ATX 12V power connector; 1x USB 3.0 header (for 2 additional ports); 2x USB 2.0 headers (for 4 additional ports); Clear CMOS Jumper; 4x 6Gb/s SATA connectors; Serial Port (COM) header; Front panel header; Front panel audio header; Speaker header; 2x 240-pin DDR3 DIMM Sockets; CPU fan header; SYS Fan header; Half Height Mini-PCI Express slot (occupied by WiFi card, can also be used as an mSATA slot if the WiFi card is removed); 1x Full Length Mini-PCI Express Slot (mSATA compatible); PCI Express x16 Slot (3.0 compatible).

Onboard RAID: The Zotac H87-ITX WiFi supports Intel Rapid Storage Technology which provides the following RAID levels via the Intel Z68 Express Chipset: RAID 0 - data striping; RAID 1 - data mirroring; RAID 0+1 (or RAID 10) - data striping and mirroring; RAID 5 - distributed parity.

Suitable Processors: The Zotac H87-ITX WiFi is *not* provided with a processor. At product launch, this desktop board supports up to 130W TDP Intel i3, i5 and i7 4th Gen Core processors. Suitable processors are available here

Suitable Cases: All our Mini-ITX chassis with at least a 120W power supply, and an appropriate low profile heatsink if necessary. If using a larger than 65W TDP processor, a larger power supply than 120W may be required. Some example cases that will work with the Zotac H87-ITX WiFi with a standard Intel Socket 1150 heatsink: The ES32067, ES30068, ES34069, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05, Jou Jue NU-528i 220W and Jou Jue NU-568i 220W.

picoPSU support: Due to the proximity of the ATX connector to the DIMM slots, it is only possible to fit one stick of memory into this board if a picoPSU is used.

Suitable Power Supplies: The picoPSU-160-XT & 192W AC Adapter or picoPSU-150-XT & 4pin 150W AC Adapter or 2.5mm Jack plug 150W AC Adapter combinations are both suitable for this motherboard. Only 4pin 12V needs to be connected to the 8pin ATX 12V connector.

Heatsinks: The standard heatsink provided with the CPU will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink. To use this board in a 1U case please use the Dynatron K2 1U Side blower heatsink.

Suitable Memory: The Zotac H87-ITX WiFi uses DDR3 DIMM memory. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 DIMMs are available here.

Extended Warranty: Since Feb 2008, Zotac have provided an extended 5 year warranty on their motherboards. Please register with Zotac here within 28 days of purchase to qualify and for further details.

Don't see what you want here? Send us an email with as much information as possible, and we'll try and get it for you.
