Tiny barebones Nettop with Next-Generation NVIDIA ION graphics. Zbox Configurator
Quality Piano Black Finish. Dual core 1.6GHz Atom D510 processor and powerful but low power consumption Next-Generation NVIDIA ION graphics processor with 512MB DDR3 graphics memory, featuring PureVideo™ HD Blu-Ray/HD DVD acceleration, CUDA™, PhysX™ and nView™ multiple display support for up to 2 monitors.
Integrated 8 Channel Audio and built-in 802.11b/g/n Wi-Fi. Supports up to 2GB of DDR2 800MHz RAM; 2.5in HDD/SSD Drive Bay; Gigabit LAN; VGA, HDMI graphics outputs; Windows XP, Vista, 7 and Linux Ready.

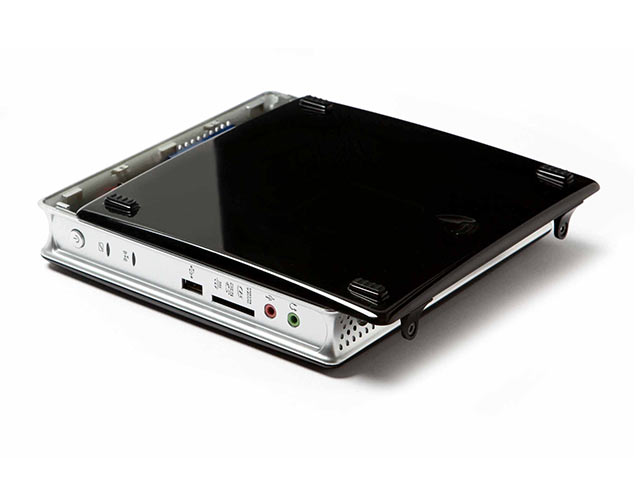

Adding RAM and HDD: The side of the ZBOX can be removed to add your choice of DDR2 SODIMM and 2.5in SATA HDD or 2.5in SATA SSD. Use the Zbox Configurator to select the components you require.

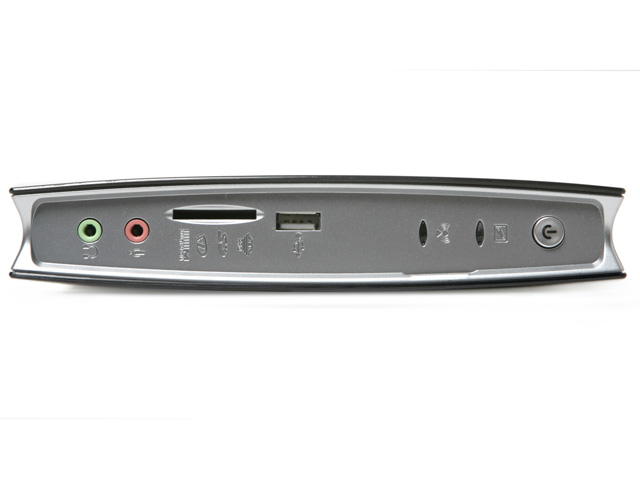

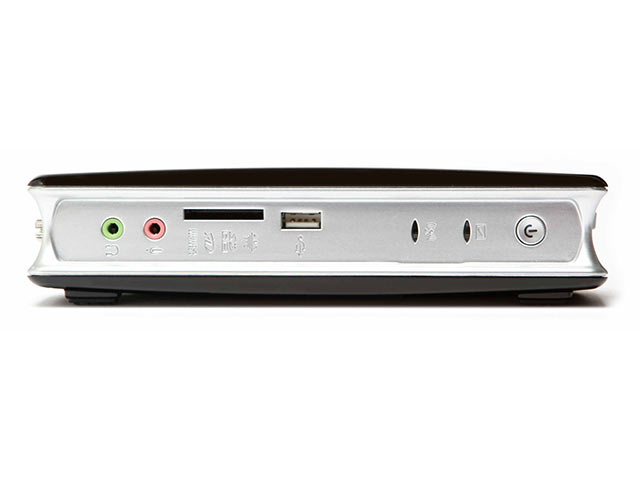

Front Panel: Power Button; HDD and WiFi LEDs; USB 2.0, 6-in-1 MMC/SD/SDHC/MS/MS Pro/xD Memory Card Reader; 3.5mm Mic and Phone jacks.

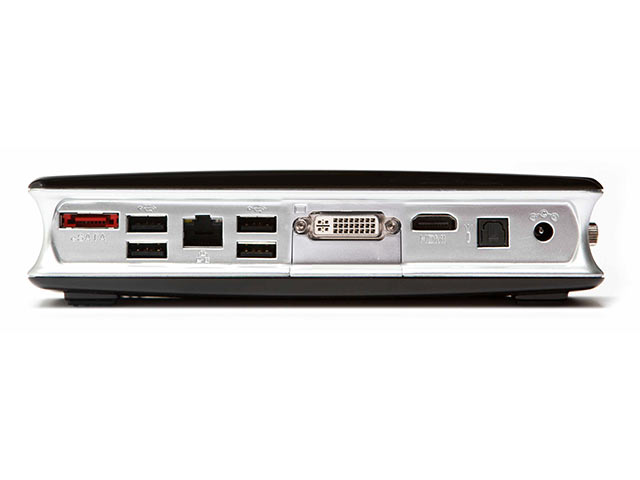

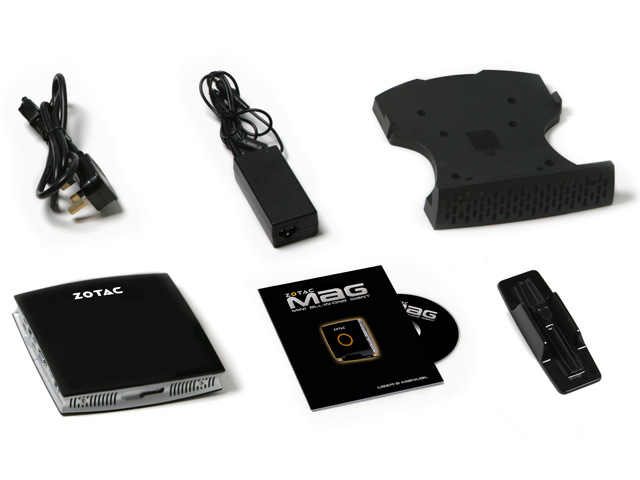

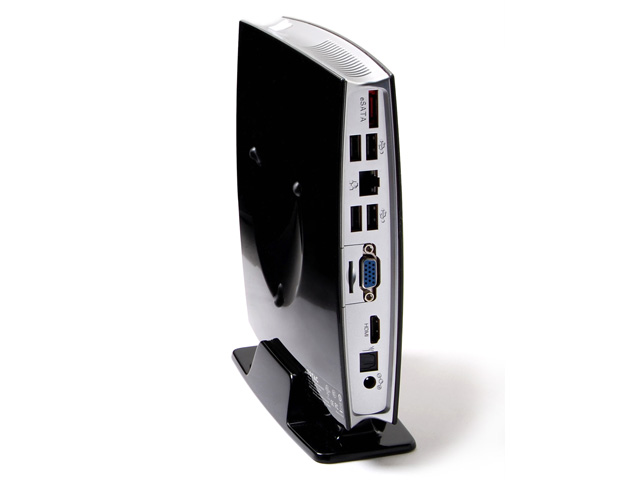

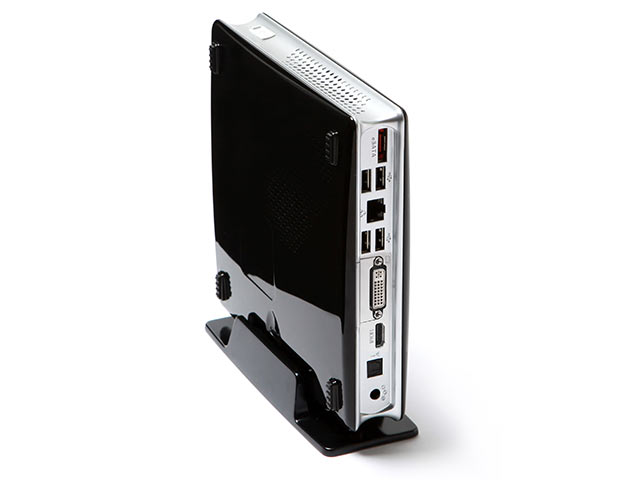

Rear Panel: eSATA; 4x USB 2.0; Gigabit LAN; DVI; HDMI (HDCP w/8-channel digital audio); S/PDIF Optical Out; 19V DC Power Input (External 65W Universal AC Adapter Provided).

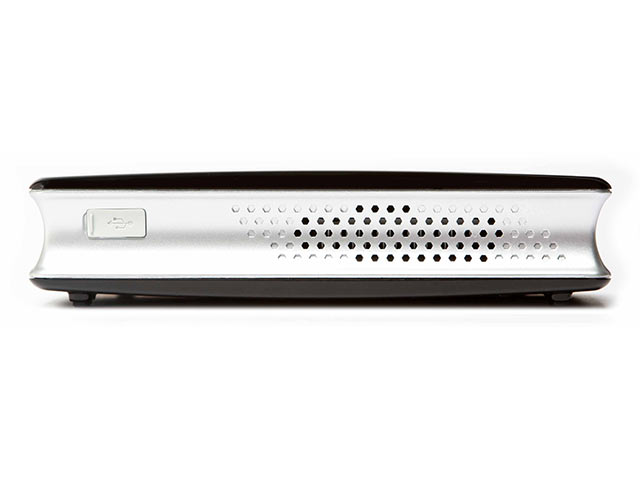

Top of Case: Additional USB 2.0 connector under rubberised cover.

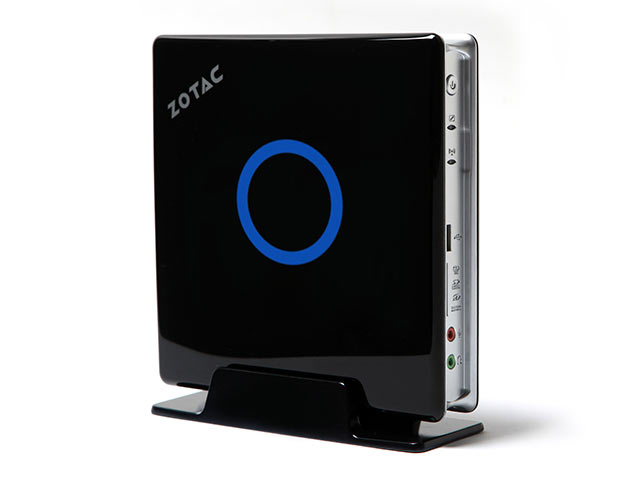

Side Of Case: Blue circular power LED pulses whilst in standby, disappears when powered off.
No OS installed: Use an external USB Optical drive or install Vista or Windows 7 directly from USB Memory Stick; or convert a Linux ISO to USB Memory Stick using Unetbootin.

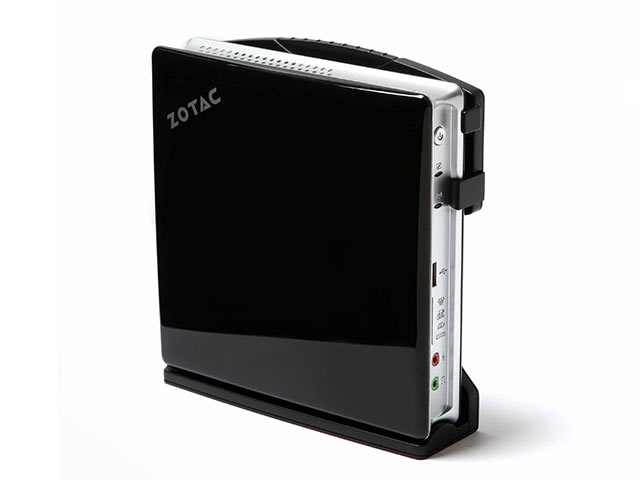

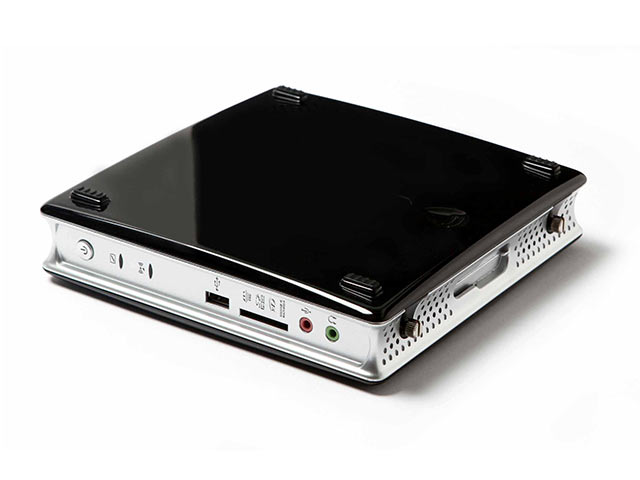

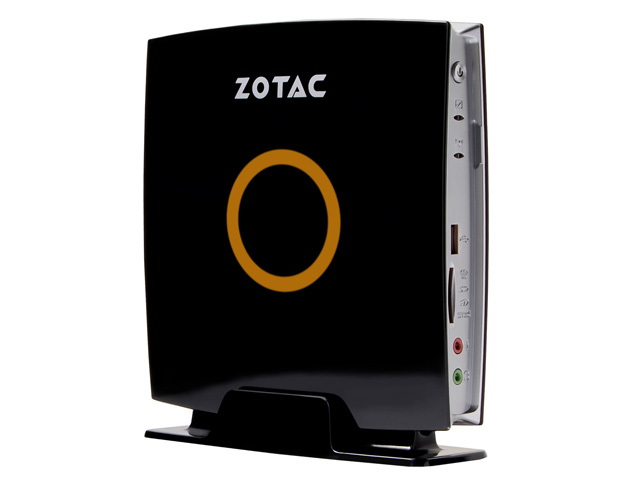

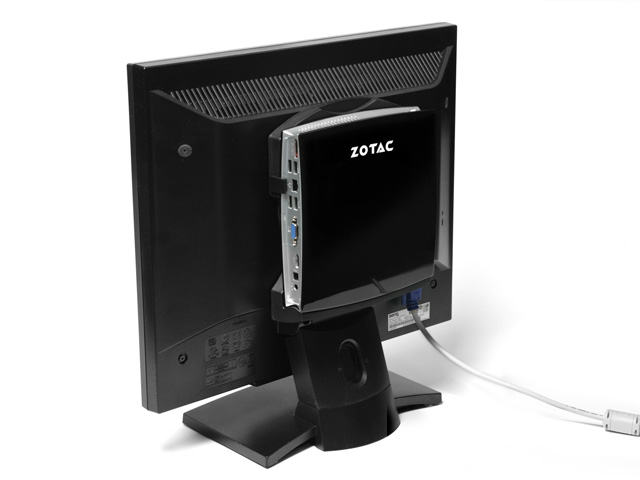

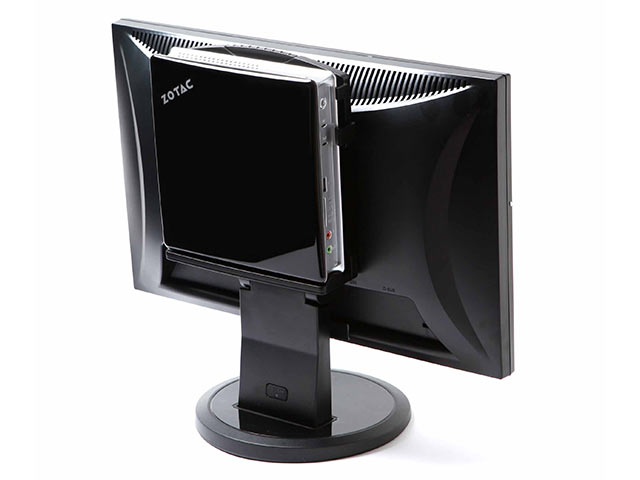

Versatile mounting options: Can be laid flat, or used with the provided upright stand or VESA Monitor Mount.
Dimensions: 186 x 189 x 38mm (7.32x 7.44 x 1.5in) - just 1.33 litres.
|
