Intel D2500HN 'Cedar Trail' motherboard with passively-cooled dual core Intel Atom D2500 processor running at 1.86GHz and Intel NM10 Express chipset. Integrated Intel GMA 3650 Video with VGA output; Up to 8GB of system memory (*see our note below regarding 64-bit video drivers); Intel 82574L Gigabit Ethernet Controller; 2+2 Channel Intel High Definition Audio; PCI connector.

This board can be considered a replacement/upgrade for the Intel D410MO and D425KT boards (though please consider the port and chipset differences).

Retail Unit complete with SATA cable, layout and back-panel stickers, product guide, Intel Express Installer driver and software DVD.

Rear Panel: VGA, Serial, Parallel, Combined PS/2 Keyboard or Mouse port, 4x USB 2.0, Gigabit Ethernet supporting LAN Wake with ACPI (Ping & Magic Packet), 3.5mm Line in, Line out & Mic in connectors.

Board Connectors: 24pin ATX Power connector (supports both 20pin and 24pin connectors), 2x DDR3 SODIMM Sockets; 2x SATA 3.0 Gb/s; 1x 32-bit PCI Slot; 2x 9-pin Front Panel USB Headers (supporting 4 additional USB 2.0 ports); Front Panel Header; Front Panel Audio header, S/PDIF out header, 1x Serial Port Header.

Suitable Cases: The D2500HN has a standard sized heatsink - all Mini-ITX cases with a power supply will fit. The board does not have an IDE port, so IDE devices cannot be connected (e.g. the CF reader on M200, M200-LCD, M300, M300-LCD).

C1/C2/C3-RACK compatibility: Backplates are available designed for use with the C1-RACK, C2-RACK and C3-RACK (Dynatron K2 1U Side blower heatsink recommended).

Recommended picoPSUs: All our picoPSUs will work with this board. If using one HDD, the picoPSU-80/90 and 60W/80W AC Adapter combination will be sufficient. A picoPSU with a 24pin ATX connector is not required.

Intel GMA 3600 Graphics: 400 MHz core frequency; High quality texture engine: DX9.3 and OpenGL 3.0 compliant, Hardware Pixel Shader 4.1, Vertex Shader Model 4.1; Video: Blu-ray 2.0, H.264 & VC1 hardware decoder, PAVP 1.1c, HDCP1.3.

*Support for 64-bit OS and 8GB Memory: This board operates in 64-bit mode and can address 8GB of memory. Intel's official support for this board is limited to 32-bit Windows (which can only address 3.5GB memory). No 64-bit video drivers are available, so 64-bit installations will have limited screen resolutions and no video acceleration. Screenshot of Linux operating in 64-bit mode here.

Drivers: Intel D2500HN product and driver pages.

Cooling: This board has no fan and will get quite warm under load. Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. We recommend always connecting any existing case fans, and strongly suggest adding a fan if using a fanless case with this board (such as the M350 or Thin Client cases).

Memory Notes: The D2500HN supports up to 8GB DDR3 1333/1066 memory running at 1066MHz on 2x DDR3 SODIMMs. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Intel D2550MUD2 'Cedar Trail' motherboard with passively-cooled dual core Intel Atom D2550 processor running at 1.86GHz and Intel NM10 Express chipset. Integrated Intel GMA 3650 Video with dual independent VGA and DVI-D interfaces and internal LVDS connector; Up to 8GB of system memory (*see our note below regarding 64-bit video drivers); Intel 82574L Gigabit Ethernet Controller; 5.1 Channel Intel High Definition Audio (Realtek ALC662 audio codec); PCI & Mini-PCI Express connectors.

This board can be considered a replacement/upgrade for the Intel D510MO and D525MW boards (though please consider the port and chipset differences). It directly replaces the D2700MUD board.

Retail Unit complete with SATA cable, layout and back-panel stickers, product guide, Intel Express Installer driver and software DVD.

Rear Panel: VGA, DVI-D (both outputs support up to 1920 x 1200 at 60 Hz), Parallel, Combined PS/2 Keyboard or Mouse port, 4x USB 2.0, Gigabit Ethernet supporting LAN Wake with ACPI (Ping & Magic Packet), 3.5mm Line in, Line out & Mic in connectors.

Board Connectors: 24pin ATX Power connector (supports both 20pin and 24pin connectors), 2x DDR3 SODIMM Sockets; 2x SATA 3.0 Gb/s; 1x 32-bit PCI Slot; 1x Mini-PCI Express connector (support half and full length cards); 2x 9-pin Front Panel USB Headers (supporting 3 additional USB 2.0 ports); 2x 9-pin Serial Port Headers; Front Panel Header; Front Panel Audio header, Front Panel Wireless Activity LED header, Trusted Platform Module (TPM) Header, BIOS setup configuration jumper block, LVDS Flat Panel Interface supporting panels up to WXGA+ (1440 x 900), 25 MHz to 112 MHz single channel at 18 or 24 bpp, LVDS inverter power and panel voltage selection jumpers, FPD brightness connector, S/PDIF out header.

Suitable Cases: The D2550MUD2 has a standard sized heatsink - all Mini-ITX cases with a power supply will fit. The board does not have an IDE port, so IDE devices cannot be connected (e.g. the CF reader on M200, M200-LCD, M300, M300-LCD).

C1/C2/C3-RACK compatibility: Backplates are available designed for use with the C1-RACK, C2-RACK and C3-RACK (Dynatron K2 1U Side blower heatsink recommended).

Recommended picoPSUs: All our picoPSUs will work with this board. If using one HDD, the picoPSU-80/90 and 60W/80W AC Adapter combination will be sufficient. A picoPSU with a 24pin ATX connector is not required.

Intel GMA 3650 Graphics: 640 MHz core frequency; High quality texture engine: DX9.3 and OpenGL 3.0 compliant, Hardware Pixel Shader 4.1, Vertex Shader Model 4.1; Video: Blu-ray 2.0, H.264 & VC1 hardware decoder, PAVP 1.1c, HDCP1.3.

*Support for 64-bit OS and 8GB Memory: This board operates in 64-bit mode and can address 8GB of memory. Intel's official support for this board is limited to 32-bit Windows (which can only address 3.5GB memory). No 64-bit video drivers are available, so 64-bit installations will have limited screen resolutions and no video acceleration. Screenshot of Linux operating in 64-bit mode here.

Drivers: Intel D2550MUD2 product and driver pages.

Cooling: This board has no fan and will get quite warm under load. Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. We recommend always connecting any existing case fans, and strongly suggest adding a fan if using a fanless case with this board (such as the M350 or Thin Client cases).

Memory Notes: The D2550MUD2 supports up to 8GB DDR3 1333/1066 memory running at 1066MHz on 2x DDR3 SODIMMs. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Intel D2700DC 'Cedar Trail' motherboard with passively-cooled dual core Intel Atom D2700 processor running at 2.13GHz and Intel NM10 Express chipset. Integrated Intel GMA 3650 Video with dual independent HDMI and DVI-D interfaces; Up to 8GB of system memory (*see our note below regarding 64-bit video drivers); Intel 82574L Gigabit Ethernet Controller; 5.1 Channel Intel High Definition Audio (Realtek ALC662 audio codec); PCI & Mini-PCI Express connectors.

This board can be considered a replacement/upgrade for the Intel D510MO and D525MW boards (though please consider the port and chipset differences).

Retail Unit complete with SATA cable, layout and back-panel stickers, product guide, Intel Express Installer driver and software DVD.

Rear Panel: S/PDIF optical audio out, HDMI, DVI-D (both outputs support up to 1920 x 1200 at 60 Hz), 4x USB 2.0, Gigabit Ethernet supporting LAN Wake with ACPI (Ping & Magic Packet), 3.5mm Line in, Line out & Mic in connectors.

Board Connectors: 24pin ATX Power connector (supports both 20pin and 24pin connectors), 2x DDR3 SODIMM Sockets; 2x SATA 3.0 Gb/s; 1x 32-bit PCI Slot; 1x Mini-PCI Express connector (support half and full length cards); 2x 9-pin Front Panel USB Headers (supporting 3 additional USB 2.0 ports); Front Panel Header; Front Panel Audio header, BIOS setup configuration jumper block.

Suitable Cases: The D2700DC has a standard sized heatsink - all Mini-ITX cases with a power supply will fit. The board does not have an IDE port, so IDE devices cannot be connected (e.g. the CF reader on M200, M200-LCD, M300, M300-LCD).

C1/C2/C3-RACK compatibility: Backplates are available designed for use with the C1-RACK, C2-RACK and C3-RACK (Dynatron K2 1U Side blower heatsink recommended).

Recommended picoPSUs: All our picoPSUs will work with this board. If using one HDD, the picoPSU-80/90 and 60W/80W AC Adapter combination will be sufficient. A picoPSU with a 24pin ATX connector is not required.

Intel GMA 3650 Graphics: 640 MHz core frequency; High quality texture engine: DX9.3 and OpenGL 3.0 compliant, Hardware Pixel Shader 4.1, Vertex Shader Model 4.1; Video: Blu-ray 2.0, H.264 & VC1 hardware decoder, PAVP 1.1c, HDCP1.3.

*Support for 64-bit OS and 8GB Memory: This board operates in 64-bit mode and can address 8GB of memory. Intel's official support for this board is limited to 32-bit Windows (which can only address 3.5GB memory). No 64-bit video drivers are available, so 64-bit installations will have limited screen resolutions and no video acceleration. Screenshot of Linux operating in 64-bit mode here.

Drivers: Intel D2700DC product and driver pages.

Cooling: This board has no fan and will get quite warm under load. Successful motherboard and case cooling is a combination of external environment, internal airflow, heatsink size, chassis design and workload. We recommend always connecting any existing case fans, and strongly suggest adding a fan if using a fanless case with this board (such as the M350 or Thin Client cases).

Memory Notes: The D2700DC supports up to 8GB DDR3 1333/1066 memory running at 1066MHz on 2x DDR3 SODIMMs. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Intel DN2800MT 'Cedar Trail' motherboard with extremely low "Thin-ITX" profile and passively-cooled dual core Intel Atom N2800 processor running at 1.86GHz and Intel NM10 Express chipset. Dual independent VGA and HDMI interfaces and internal LVDS connector; Up to 8GB of system memory (*see our note below regarding 64-bit video drivers); Intel 82574L Gigabit Ethernet Controller; 2+2 Channel Intel High Definition Audio (Realtek ALC888S audio codec); 8-channel (7.1) Intel High Definition Audio via the HDMI interface; PCI Express x1 and 2x Mini-PCI Express connectors.

Retail Unit complete with half-height and standard-height I/O shield; SATA cable, layout and back-panel stickers, product guide, Intel Express Installer driver and software DVD.

Rear Panel: 8-19V DC Input, 2x USB 2.0, Gigabit LAN, VGA, HDMI (both outputs support up to 1920 x 1200 at 60 Hz), 2x High-current/fast charging USB ports, 3.5mm Analog line out and Mic In connectors.

DC Input: The DN2800MT can be powered with a *regulated* 8-19V DC external power supply though the DC jack on the back panel board or via the internal 1 x 2 power connector. Not suitable for use connected directly to a battery or variable voltage. Compatible Universal AC Adapters:

• 60W AC Adapter
• 80W AC Adapter
• 110W AC Adapter
• 150W AC Adapter

Board Connectors: Internal power connector (1 x 2 pin); 2x DDR3 SODIMM sockets; 2x 9pin USB headers for 4x USB 2.0 ports; 2x SATA 3Gb/s data connectors; 1x SATA power connector; Custom Solutions header; Debug connector; DMIC header; 1x Serial port header; Parallel port header; Front panel audio header; Internal stereo speakers connector; 1x S/PDIF output header; Front panel header; System fan header; Standby power LED; BIOS Setup configuration jumper block.

Board Connectors (Expansion): PCI Express Full/Half-Mini card slot (supports mSATA), PCI Express Half-Mini Card slot, PCI Express 1.0a x1 connector.

Board Connectors (Flat Panel): Backlight inverter voltage selection header, Flat panel voltage selection header, FPD brightness connector, LVDS connector, 40pin eDP (Embedded DisplayPort) connector (on underside of board).

Multiple outputs: The DN2800MT can simultaneously support up to two of the three integrated graphics interfaces: VGA, HDMI, and Flat Panel Display. Flat Panel Display is supported by eDP and LVDS interfaces, however only one can be used at a time.

Suitable cases (without PSU): The following enclosures come without an internal PSU and are fully compatible with the DN2800MT: M350 (highly recommended), Nexus Psile.

Partially compatible cases (without PSU): M200, M300, M200-LCD, M300-LCD include IDE CF Adapters which cannot be used - these boards only have SATA ports.

M350 & PCI Express x1 Support: The M350 Enclosure supports a PCI Express x1 card with this board. Choose the 'PCI Express x1 Riser Card and I/O Shield for DN2800MT and M350 Chassis' option on the left.

Suitable cases (with PSU): The following enclosures have a PSU which can be bypassed and are compatible with the DN2800MT: , Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i, NAS Chassis (up to 4 drives, with additional power cables). Most of our other cases can also be used in a similar way.

Intel GMA 3650 Graphics: 640 MHz core frequency; High quality texture engine: DX9.3 and OpenGL 3.0 compliant, Hardware Pixel Shader 4.1, Vertex Shader Model 4.1; Video: Blu-ray 2.0, H.264 & VC1 hardware decoder, PAVP 1.1c, HDCP1.3.

Drivers: Intel DN2800MT product and driver pages.

*Support for 64-bit OS and 8GB Memory: This board operates in 64-bit mode and can address 8GB of memory. Intel's official support for this board is limited to 32-bit Windows (which can only address 3.5GB memory). No 64-bit video drivers are available, so 64-bit installations will have limited screen resolutions and no video acceleration. Screenshot of Linux operating in 64-bit mode here.

Memory Notes: The DN2800MT supports up to 8GB DDR3 1333/1066 memory running at 1066MHz on 2x DDR3 SODIMMs. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 SODIMMs are available here.

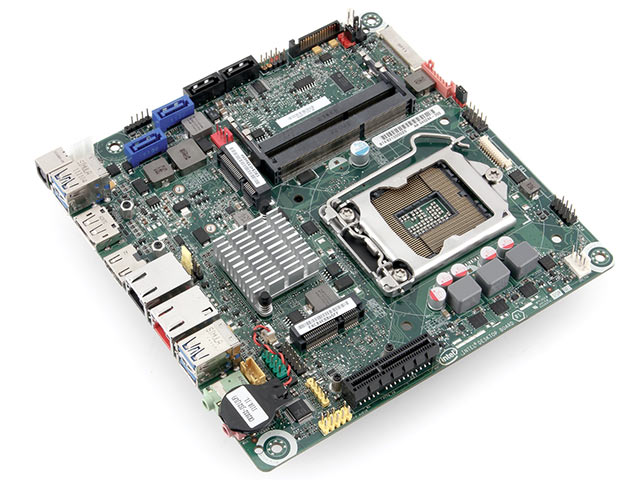

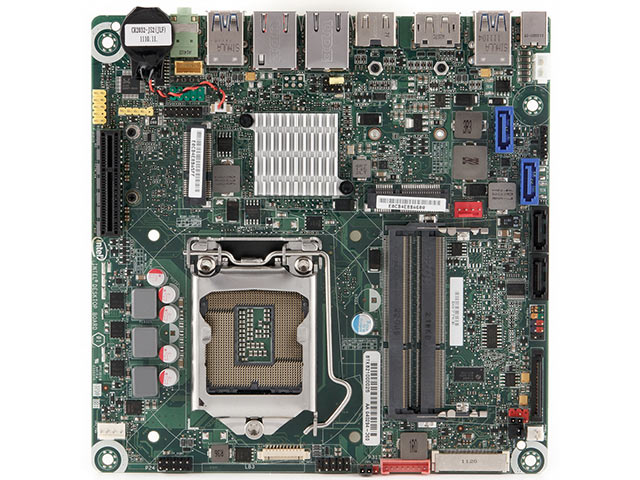

Intel DQ77KB motherboard with extremely low "Thin-ITX" profile Intel Q77 Express chipset. Dual independent DisplayPort and HDMI interfaces and internal LVDS connector; Up to 16GB of system memory; Dual Gigabit Ethernet Controller; AMT Support; 4+2 Channel Intel High Definition Audio (Realtek ALC892 audio codec); 8-channel (7.1) Intel High Definition Audio via the HDMI interface; PCI Express x4 3.0 and 2x Mini-PCI Express connectors (one with mSATA compatibility).

Retail Unit complete with half-height and standard-height I/O shield; SATA cable, layout and back-panel stickers, product guide, Intel Express Installer driver and software DVD.

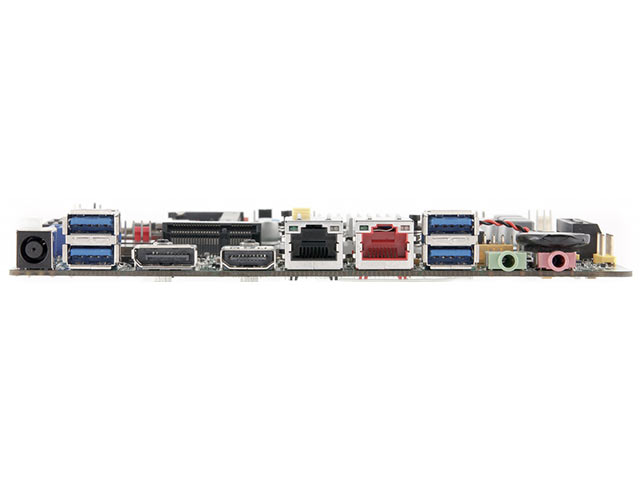

Rear Panel: 19V DC Input Connector, 2x USB 3.0, DisplayPort connector, HDMI connector, 1x Intel 82574L Gigabit LAN; 1x Intel 82579LM Gigabit LAN (in Red: supports Intel AMT), 2x (high-current) USB 3.0, Line out, Mic in.

DC Input: The DQ77KB can be powered with a *regulated* 19V DC external power supply though the DC jack on the back panel board or via the internal 1 x 2 power connector. Not suitable for use connected directly to a battery or variable voltage.

Board Connectors: Internal power connector (1 x 2 pin); 2x DDR3 SODIMM sockets; 2x 9pin USB headers for 3x USB 2.0 ports; 2x SATA 6Gb/s data connectors (blue); 2x SATA 3Gb/s data connectors (black); 1x SATA power connector; Custom Solutions header; LPC Debug connector; DMIC header; 1x Serial port header; Front panel audio header; Internal stereo speakers connector; Front panel header; System fan header; Processor fan header; Standby power LED; Chassis intrusion header; BIOS Setup configuration jumper block; Intel Management Engine BIOS Extension Reset header;

Board Connectors (Expansion): PCI Express Full/Half-Mini card slot (supports mSATA), PCI Express Half-Mini Card slot, PCI Express x4 add-in card connector (3.0 graphics cards supported only with 3rd Gen Core processor).

Board Connectors (Flat Panel): Backlight inverter voltage selection header, Flat panel voltage selection header, FPD brightness connector, LVDS connector, 40pin eDP (Embedded DisplayPort) connector (on underside of board).

Remote Management: The DQ77KB supports Intel AMT (Active Management Technology, part of vPro) on the Red Ethernet Connector, if used with a vPro compatible Intel Processor and appropriate software.

Onboard RAID: The DQ77KB supports Intel Rapid Storage Technology which provides the following RAID levels via the Intel Q77 Express Chipset: RAID 0 - data striping; RAID 1 - data mirroring; RAID 0+1 (or RAID 10) - data striping and mirroring; RAID 5 - distributed parity.

Suitable Cases: The DQ77KB can be used with any Mini-ITX case by bypassing the internal power supply but is most suited to chassis without a power supply (such as the M350) or for purpose-built customer chassis.

mSATA support: The DQ77KB supports mSATA through a compatible Mini-PCI Express slot. Suitable mSATA drives are available in the 'you may also require' section.

Suitable Processors: The DQ77KB board supports both 2nd and 3rd Gen Core processors up to 65W TDP. The DQ77KB is *not* provided with a processor. Full processor compatibility list. Suitable 2nd and 3rd processors are available here

Heatsinks: A low profile heatsink may be required - check cases for compatibility. The default heatsink provided with a 35W TDP Intel CPU is low profile. To use this board in a 1U case please use the Dynatron K2 1U Side blower heatsink and a 35W or 65W TDP CPU.

Typical M350 configuration: To use this board in the M350, use our 160W AC Adapter 19V together with a 65W TDP CPU and low profile Akasa 7106HP or K25 heatsink or a 35W TDP CPU and default heatsink, plus Extended Power/LED and USB Cables for M350 Chassis, DDR3 SODIMM RAM and a 2.5in HDD/SSD (add an M350 HDD tray to use 2x HDD/SSDs).

M350 Cabling: The position of the FPANEL pins on this board is too far for the standard M350 power/LED cables to reach. Please purchase the extended M350 cables if this chassis is to be used.

DQ77KB Download Center: BIOS, Documentation and Drivers

Memory Notes: The DQ77KB supports up to 16GB DDR3 1333/1066 on 2x SODIMMs. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Intel DQ67EP Mini-ITX board with Q67 Express Chipset supporting Intel 2nd Gen Core FCLGA1155 processors and with integrated Intel HD graphics and 8 channel Realtek ALC 888 Audio; Up to 16GB of DDR3 1066/1333MHz RAM; Intel vPRO remote management technology; Intel 82579LM Gigabit LAN; 2x SATA 6Gb/s, 2x SATA 3Gb/s, 2x eSATA 3Gb/s; RAID 0, 1, 0+1, 5; DisplayPort, DVI-D & DVI-I graphics outputs; 2x USB 3.0; 8 USB 2.0 (inc 4 internal).

Rear Panel Connectors: Gigabit LAN; 2x USB 3.0; 4x USB 2.0; 2x eSATA; DVI-I; DVI-D; DisplayPort; 3x 3.5mm audio connectors.

Board connectors: Processor core power connector (12V 4pin P4); 3x Front panel USB 2.0 headers (for 6 ports); 2x 6Gb/s and 2x 3Gb/s SATA connectors; Serial Port Header; Main power connector (24pin ATX); Front panel header; 2x 240-pin DDR3 DIMM Sockets; Alternate front panel power LED header; Internal mono speaker header; Intel MEBX reset header; Intel FCFH header; LPC Debug connector; Processor fan header; System fan header; S/PDIF out header; PCI Express x16 bus add-in card connector; Mini-PCI Express connector; Chassis intrusion header; Front panel audio header; Battery.

Intel Technologies: Intel Advanced Management Technology (Intel AMT) 7.0; Intel Trusted Execution Technology (Intel TXT); Intel Fast Call for Help (Intel FCFH); Intel Virtualization Technology (Intel VT); Intel Virtualization for Directed I/O (Intel VT-d); KVM Remote Control. Note: vPro functionality requires a vPro compatible processor such as the i5-2400S.

Onboard RAID: The DQ67EP supports Intel Rapid Storage Technology which provides the following RAID levels via the Intel H67 Express Chipset: RAID 0 - data striping; RAID 1 - data mirroring; RAID 0+1 (or RAID 10) - data striping and mirroring; RAID 5 - distributed parity

Suitable Cases: All our Mini-ITX chassis with at least a 120W power supply, and an appropriate low profile heatsink if necessary. If using a larger than 65W TDP processor, a larger power supply than 120W may be required. Some suitable cases that will work with the Intel DQ67EP with a standard Intel Socket 1155 heatsink: The ES32067, ES30068, ES34069, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05, Jou Jue NU-528i 220W and Jou Jue NU-568i 220W.

Suitable Processors: The DQ67EP is *not* provided with a processor. Full processor compatibility list
Suitable 2nd Gen processors are available here

Heatsinks: The standard heatsink provided with the CPU will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink. To use this board in a 1U case please use the Dynatron K2 1U Side blower heatsink.

DQ67EP Download Center: BIOS, Documentation and Drivers

Suitable Memory: The DQ67EP uses DDR3 memory. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 DIMMs are available here.

Intel DH77DF Mini-ITX board supporting Intel 2nd and 3rd Gen Core FCLGA1155 processors with integrated Intel HD graphics and 10 channel Audio (8 through HDMI); PCI Express 3.0 x16; Up to 16GB of DDR3 RAM; Gigabit LAN; 4x SATA, 1x eSATA, 1x mSATA; RAID 0, 1, 0+1, 5; DisplayPort (up to 2560 x 1600, with 8 channel audio), DVI-I (up to 1900 x 1200) & HDMI (up to 1920 x 1200, with 8 channel audio) graphics outputs; S/PDIF; 2x USB 3.0; 10x USB 2.0 (inc 6 internal).

Rear Panel Connectors: Intel 82579V Gigabit LAN; 2x USB 3.0 (coloured blue); 4x USB 2.0 (2x support high current - coloured yellow); 1x IEEE 1394a (Firewire) connector; 1x eSATA port; DVI-I; HDMI; DisplayPort; 5x switchable 3.5mm audio connectors; S/PDIF optical digital audio out.

Board connectors: 24pin ATX Main power connector (20pins can be connected, but the 12V P4 connector must be connected); Processor core power connector (12V 4pin P4); SATA connectors: 2x SATA 6Gb/s (coloured blue), 2x SATA 3Gb/s (coloured black); 2x Front panel USB 2.0 headers (for 4 ports, 2 support high current - coloured orange); 1x Front Panel USB 3.0 header (19pin, for 2 ports); 1x IEEE 1394a front panel header; 2x 240-pin DDR3 DIMM Sockets (not 4 as incorrectly shown in Intel documentation at launch); PCI Express 3.0 x16 bus add-in card connector (3.0 graphics cards supported only with 3rd Gen Core processor); Mini-PCI Express card slot (supports Half/Mini sizes, also supports mSATA); Consumer IR receiver (input) header; Consumer IR transmitter (output) header; S/PDIF out header (yellow); Front panel audio header (yellow); HTPC header; Alternate front panel power LED header; System and Processor fan headers; Low Pin Count (LPC) Debug connector (on rear of board).

Onboard RAID: The DH77DF supports Intel Rapid Storage Technology which provides the following RAID levels via the Intel H77 Express Chipset: RAID 0 - data striping; RAID 1 - data mirroring; RAID 0+1 (or RAID 10) - data striping and mirroring; RAID 5 - distributed parity.

Suitable Cases: All our Mini-ITX chassis with at least a 120W power supply, and an appropriate low profile heatsink if necessary. If using a larger than 65W TDP processor, a larger power supply than 120W may be required. Some suitable cases that will work with the Intel DH77DF with a standard Intel Socket 1155 heatsink: The CFI-A7879, ES32067, ES30068, ES34069, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05, Jou Jue NU-528i 220W and Jou Jue NU-568i 220W.

C1/C2/C3-RACK compatibility: Backplates are available designed for use with the C1-RACK, C2-RACK and C3-RACK (Dynatron K2 1U Side blower heatsink recommended).

mSATA support: The DH77DF supports mSATA through a compatible Mini-PCI Express slot. Suitable mSATA drives are available in the 'you may also require' section.

Suitable Processors: The DH77DF board supports both 2nd and 3rd Gen Core processors. The DH77DF is *not* provided with a processor. Full processor compatibility list. Suitable 2nd and 3rd processors are available here

Heatsinks: The standard heatsink provided with 65W and 95W TDP CPUs will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink with a 65W TDP CPU, or the default heatsink provided with a 35W TDP CPU. To use this board in a 1U case please use the Dynatron K2 1U Side blower heatsink and a 35W or 65W TDP CPU.

Typical M350 configuration: To use this board in the M350, we recommend the 150W AC Adapter and picoPSU-150-XT or picoPSU-160-XT together with a 65W TDP CPU and Akasa 7106HP heatsink or 35W TDP CPU and default heatsink, plus DDR3 RAM and a 2.5in HDD/SSD (add an M350 HDD tray to use 2x HDD/SSDs).

M350 Cabling: The position of the FPANEL pins on this board is too far for the standard M350 power/LED cables to reach. Please purchase the extended M350 cables if this chassis is to be used.

DH77DF Download Center: BIOS, Documentation and Drivers

Suitable Memory: The DH77DF uses 1066/1333/1600MHz DDR3 memory. This is not compatible with DDR/DDR2 memory. Fully tested DDR3 DIMMs are available here.
