AMD APU Mini-ITX Motherboards

Gigabyte E350N Dual Core Mini-ITX Board with Radeon HD 6310
Jetway JNF81-T56N Dual LAN AMD Fusion Mini-ITX Motherboard
Zotac E2-1800ITX Wi-Fi Fanless Dual LAN Mini-ITX Motherboard

Gigabyte E350N Dual Core Mini-ITX Board with Radeon HD 6310 and 4x SATA

Gigabyte E350N Dual Core Mini-ITX Board with Radeon HD 6310
  SPECIAL OFFER - was £59.00
£49.00
  £58.80 inc. VAT
  IN STOCK (Checked 14:52 BST)


More images of the Gigabyte E350N

You may also require:

2GB DDR3 1333 DIMM for E350N
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 14:52 BST)

4GB DDR3 1333 DIMM for E350N
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 14:52 BST)

8GB DDR3 1333 DIMM for E350N
£57.00
  £68.40 inc. VAT
  IN STOCK (Checked 14:52 BST)

Short Molex HDD to 12V P4 Power Cable
£3.50
  £4.20 inc. VAT
  IN STOCK (Checked 14:52 BST)


Excellent value Gigabyte E350N motherboard with Dual-Core 1.6GHz AMD E-350D processor and integrated AMD Radeon HD 6310 DirectX 11 / OpenGL 4.1 graphics and AMD A45 FCH (Fusion Controller Hub) chipset. Up to 16GB of system memory; 4x SATA 3Gb/s; PCI Slot; Realtek Gigabit Ethernet; Realtek High Definition 7.1 Channel Audio.

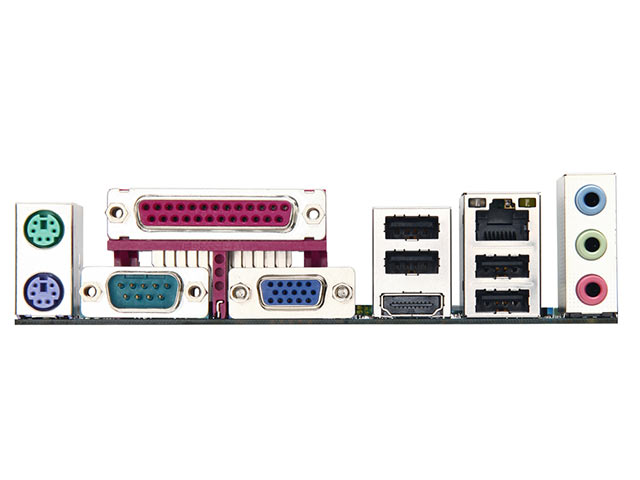

Rear Panel: Mouse PS/2 port; Keyboard PS/2 port; 1x Parallel port; 1x Serial port; VGA; HDMI (supporting up to 1920 x 1200); 4x USB 2.0 ports; 1x Gigabit Ethernet; 3x 3.5mm configurable audio connectors.

Board Connectors: 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 12v P4 connector (needs to be connected); 4x SATA 3Gb/s ports; 4x USB 2.0 connectors on 2x 9pin headers; 32-bit PCI slot; 2x DDR3 DIMM sockets (up to 8GB per socket); 1x System Fan Header; 1x Processor Fan Header; 1x Front Panel Connector; 1x S/PDIF Out header; 1x Chassis Intrusion header.

Unique Features: 60mm x 60mm fan; Support for @BIOS; Q-Flash; Xpress Install; Xpress Recovery2; EasyTune; Smart Recovery; Auto Green; ON/OFF Charge; Q-Share. Bundled Norton Internet Security (OEM version).

Case compatibility. The E350N has a standard height heatsink and low power requirements. A 20pin or 24pin ATX connector can be used but the 12V P4 connector must also be connected. Check individual case descriptions and add the Molex to P4 Power Cable option where necessary. All our Mini-ITX cases will fit the board including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, M200/M300/M350 (with a picoPSU fitted with a 12V P4 output, no front panel USB), Travla C146, T1200, C159, Thin Clients, Travla C158 (inc CD drive), Compact and Lockable Wall Mount Cases.

M350 Compatibility: The E350N will work with the M350 (picoPSU-90, 60W or 80W AC Adapter recommended) though the 2x USB connectors behind the front panel of the M350 cannot be fitted due to close proximity of the picoPSU and USB header cable.

Box contents: Motherboard, 2x SATA cables, Product Guide, I/O Shield.

Memory: The E350N supports up to 16GB DDR3 memory on 2x DDR3 DIMMS. This is not compatible with DDR2 memory. Fully tested DDR3 DIMMs are available here.

Jetway JNF81-T56N Dual LAN AMD Fusion Mini-ITX Motherboard

Jetway JNF81-T56N Dual LAN AMD Fusion Mini-ITX Motherboard
£139.00
  £166.80 inc. VAT
Lead time approx 3-5 days


More images of the Jetway JNF81-T56N Dual LAN

You may also require:

2GB DDR3 1333 SODIMM for JNF81-T56N
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 14:52 BST)

4GB DDR3 1333 SODIMM for JNF81-T56N
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 14:52 BST)

Intel 525 30GB mSATA SSD for JNF81-T56N
£45.00
  £54.00 inc. VAT
  IN STOCK (Checked 14:52 BST)

Intel 525 60GB mSATA SSD for JNF81-T56N
£75.00
  £90.00 inc. VAT
Lead time approx 3-5 days

Intel 525 120GB mSATA SSD for JNF81-T56N
£125.00
  £150.00 inc. VAT
Lead time approx 3-5 days


Jetway JNF81-T56N Dual LAN AMD Fusion motherboard with Dual-Core 1.6GHz AMD (long life) T56N processor and dual Gigabit LAN. Featuring integrated AMD Brazos eOntario + Hudson E1 Chipset. Up to 8GB of system memory; 2x Realtek RTL8111E Gigabit Ethernet; VIA VT1705 6 Channel Audio; 5x SATA 6Gb/s with RAID 0,1,5,10 support.

Long Life: Product availability forecasted at least to Mid 2016, provisionally to End 2016.

Rear Panel: Combined Mouse/Keyboard PS/2 port; 6x USB 2.0 ports; HDMI, DVI. VGA; 2x Gigabit Ethernet; 3x 3.5mm audio connectors.

Board Connectors: PCI slot; Mini-PCI Express slot; mSATA connector (for mSATA SSDs); 4x USB 2.0 connectors on 2x 9pin header; 2x DDR3 SODIMM sockets; 5x SATA 6Gb/s ports; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 1x 24 bit Dual Channel LVDS header; 1x COM port header; 1x GPIO header; 1x CIR header; 1x Front Panel Connector; 1x 3pin System Fan Header; 1x 3pin Processor Fan Header.

Case compatibility. The JNF81-T56N has a standard height heatsink and low power requirements. All our Mini-ITX cases will work including but not exclusively Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, M200/M300/M350 (with any picoPSU), Travla C146,T1200,C159, Thin Clients, Travla C158 (CD may not be supported), Compact and Lockable Wall Mount Cases.

Operating temperature: Operates within 0~50 centigrade (Storage within -20~+85 centigrade).

Box contents: Motherboard, 3x SATA cables, Product Guide, I/O Shield, 2x WiFi Antenna, DVI to VGA adapter.

Memory: The JNF81-T56N supports up to 8GB DDR3 memory on 2x DDR3 SODIMMS running at 1066MHz. This is not compatible with DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Zotac E2-1800ITX Wi-Fi Fanless Dual LAN Mini-ITX Motherboard

Zotac E2-1800 Wi-Fi Mini-ITX Motherboard
Long Lead Time


More images of the Zotac E2-1800 Wi-Fi

You may also require:

2GB DDR3 1333 SODIMM for E2-1800
£20.00
  £24.00 inc. VAT
  IN STOCK (Checked 14:52 BST)

4GB DDR3 1333 SODIMM for E2-1800
£32.00
  £38.40 inc. VAT
  IN STOCK (Checked 14:52 BST)

8GB DDR3 1333 SODIMM for E2-1800
£57.00
  £68.40 inc. VAT
  IN STOCK (Checked 14:52 BST)



Zotac E2-1800ITX-A Wi-Fi Mini-ITX motherboard with Dual-Core 1.7GHz AMD E2-1800 APU/processor and Fanless Heatsink by Coolermaster. Featuring integrated AMD Radeon HD 7340 DirectX 11 / OpenGL 4.1 graphics and AMD M3L chipset. Up to 16GB of system memory; Dual Gigabit Ethernet; High Definition 5.1 Channel Audio; 802.11g/n WiFi & Bluetooth 4.0.

Rear Panel: 2x WiFi Antenna; Reset Switch; Combined Mouse/Keyboard PS/2 port; 4x USB 2.0 ports; DVI (VGA adapter supplied); HDMI, 2x Gigabit Ethernet; 2x USB 3.0 ports;3x 3.5mm audio connectors.

Board Connectors: PCI Express x16 slot; 1x vertical Mini-PCI Express slot (occupied by short-height WiFi card); 1x Full Length Mini-PCI Express Slot with mSATA support; 1x 24pin ATX Power Connector (either 20pin or 24pin ATX will work); 2x SATA 6Gb/s ports; 2x DDR3 SODIMM sockets; 1x RS232 Serial Port Connector on 9pin header; 2x USB 2.0 connectors on 1x 9pin header; 1x Front Panel Connector; 1x 4pin System Fan Header.

Case compatibility. The E2-1800 has a standard height heatsink and low power requirements. All our Mini-ITX cases will work including but not exclusively M350, M5XP, Jou Jye 528i/568i/526i, CFI Chassis, Noah 3988, Chenbro NAS, Venus 669, Nexus Psile, Thin Clients, Travla C158 (CD may not be supported), Compact and Lockable Wall Mount Cases.

Box contents: Motherboard, 2x SATA cables, Product Guide, I/O Shield, 1x mini-Optical Adapter; 2x WiFi Antenna, DVI to VGA adapter.

Memory: The E2-1800 supports up to 16GB DDR3 memory on 2x 8GB DDR3 SODIMMS running at 1333MHz. This is not compatible with DDR2 memory. Fully tested DDR3 SODIMMs are available here.

Extended Warranty: Since Feb 2008, Zotac have provided an extended 5 year warranty on their motherboards. Please register with Zotac here within 28 days of purchase to qualify and for further details.

Don't see what you want here? Send us an email with as much information as possible, and we'll try and get it for you.
