NA800 1U Short Depth 8x 2.5Gb LAN Server Appliances available as components only or as fully built and tested systems with extended 3 year warranty.
Socket 1700 system powered by your choice of 12th/13th/14th Gen* Processor with 1x Intel i225-LM & 7x Intel i225-V 2.5Gb Ethernet Ports (expandable to 12 ports), up to 64GB DDR5 memory, 2x M.2 sockets, 2x 2.5in drive bays and compatibility with a wide range of Linux and Windows Operating Systems. *14th Gen currently supported only in pre-built machines.
Also available: NA200 4 or 8 LAN N2930 Network Server Appliances, NA500 6 or 10 LAN J6412 Network Server Appliances.

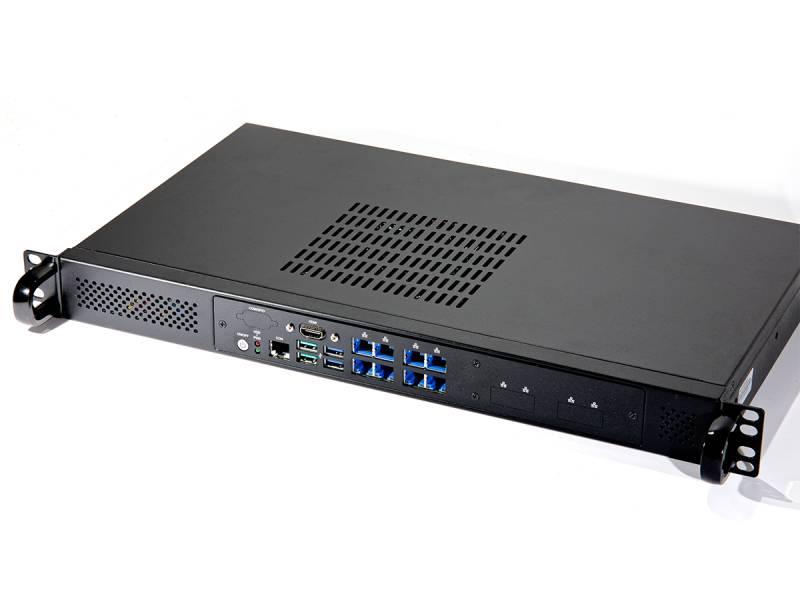

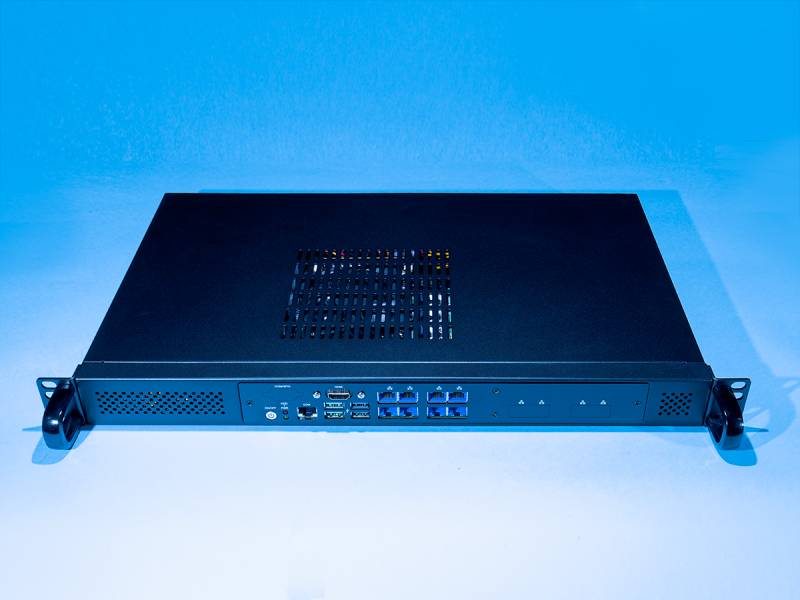

Short Depth 1U Chassis
- 25cm (9.84in) Deep 1U Rackmount Chassis
- Premium Grade Steel Construction
- Unbranded Front and Rear Panels
- Front Mounted Connector 'Appliance' Design
- 2x Internal Drive Bays supports 2x 2.5in HDD or SSDs (up to 9.5mm z-height)
- High Quality 400W FSP Flex-ATX PSU with 40mm cooling fan
- 430 x 250 x 42.5mm (W x D x H), 4.57 Litres, 4 Kg

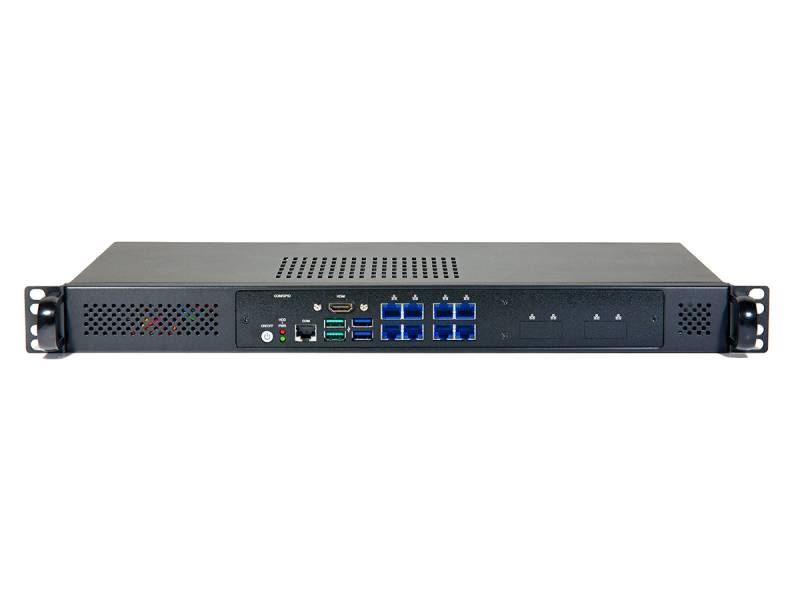

Front Panel Connectors
- 1x Intel i225-LM & 7x Intel i225-V 2.5Gb Ethernet Ports on Front of Chassis
- 1x RS232 Serial on RJ45 Connector
- 2x USB 3.2 Gen2 Connectors
- 2x USB 3.2 Gen1 Connectors
- HDMI Graphics Out Connector (1920 x 1080 @ 60Hz)
- Power & HDD Activity LEDs on Front Panel
- 8 bit GPIO Connector can be fitted (cable provided)
- Alternate Power Switch on Rear

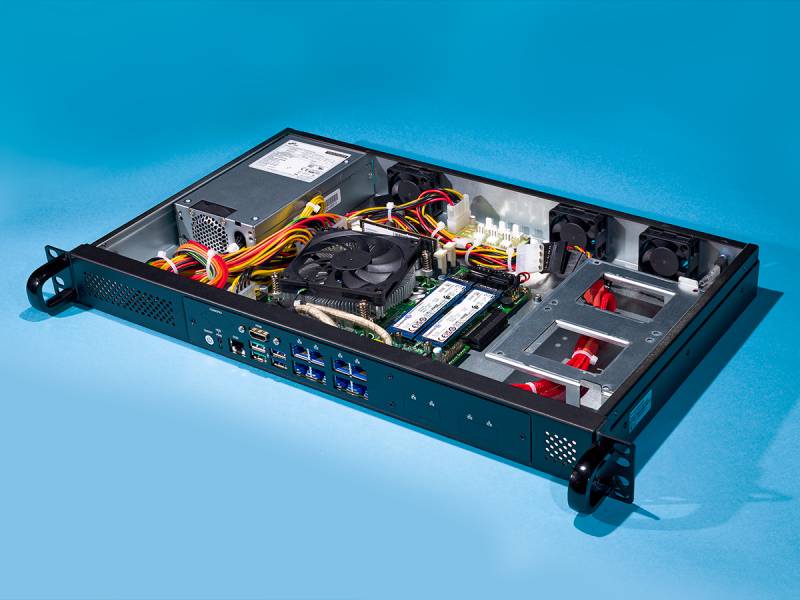

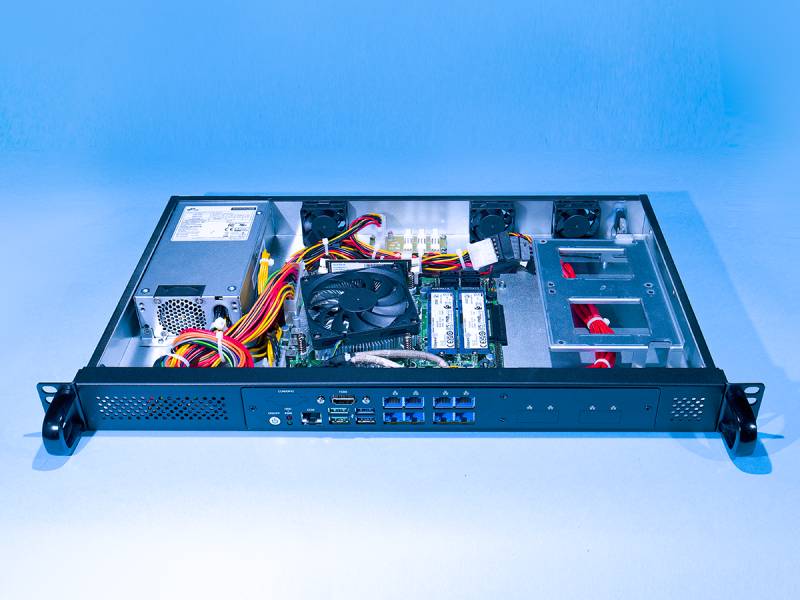

Cooling
- 1U Low Profile Socket 1700 Heatsink
- 40mm cooling fan on Flex-ATX PSU
- 3x 40x20mm 8CFM 7000RPM chassis fans for demanding environments
Options
- Additional 4x Intel i211AT Gigabit Ethernet Ports
- 3 way fan splitter cable to control speed of all 3 fans from motherboard

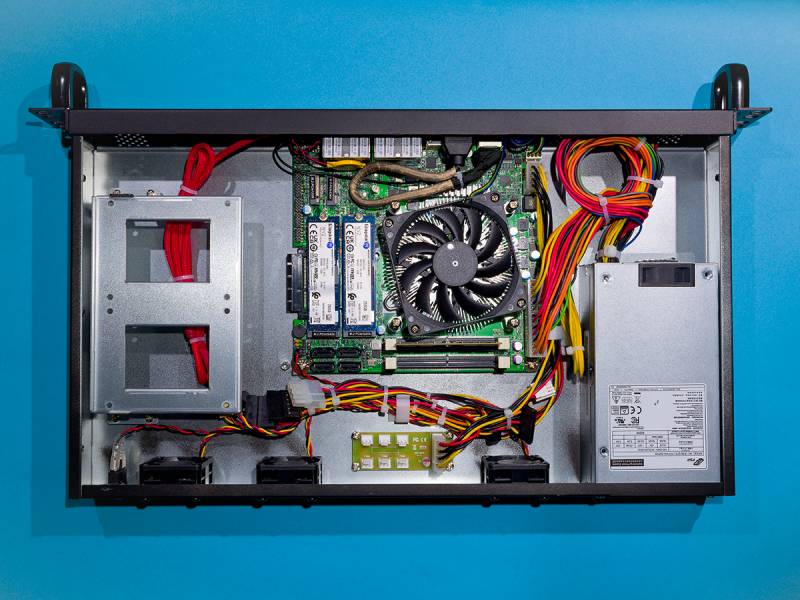

Motherboard
- Long availability MI23-Q6700 industrial motherboard
- Intel Q670E Chipset
- Up to 64GB DDR5 4800MHz System Memory (runs at 5600MHz with i7-14700)
- M.2 2280 Type M Socket (PCIe Gen4x4 NVMe/SATA)
- M.2 2242/2280 Type M Socket (PCIe Gen4x4 NVMe/SATA)
- 4x SATA 6Gb/s Connectors with RAID 0, 1, 5, 10 (2 drive bay locations in chassis)
- M.2 2230 Type E Socket (USB2.0/PCIe x1) WiFi Connector supports CNVi
- M.2 3042 Type B Socket (USB3.2 Gen.1/USB2.0/PCIe x1) supports 4G Module
- SIM Card Slot underneath board for use with 4G Module
- 2x RS232, 1x GPIO, 1x SMBUS, 1x PS/2 on pin-headers
OS Support
- UEFI Win10 64-bit (Build 10.0.19044.1288)
- Win 10 IoT Enterprise 64-bit LTSC 2019 (Build 17763.107)
- Win 10 IoT Enterprise 64-bit LTSC 2021 (Build 19044.1288)
- UEFI Win 11 64-bit (Build 22000.318)
- UEFI Win 11 IoT Enterprise (Build 22621.1)
- CentOS 7 (Version 7)
- CentOS 8 (Version 8-latest)
- CentOS 9 (Version 9)
- Debian 11 (Version 11.4)
- Fedora-LXDE (Version 36-1.5)
- Fedora Workstation (Version 36-1.5)
- Fedora Server (Version 36-1.5)
- OpenSUSE (Version 15.4)
- OpenBSD (Version 7.1)
- Ubuntu Standard / LTS (Version 22.04)
- Ubuntu Server (Version 22.04)
- Vmware ESXi (Version 8).
Windows Drivers
All built systems are provided with Full 3 Year No-Quibble RTB Warranty.
