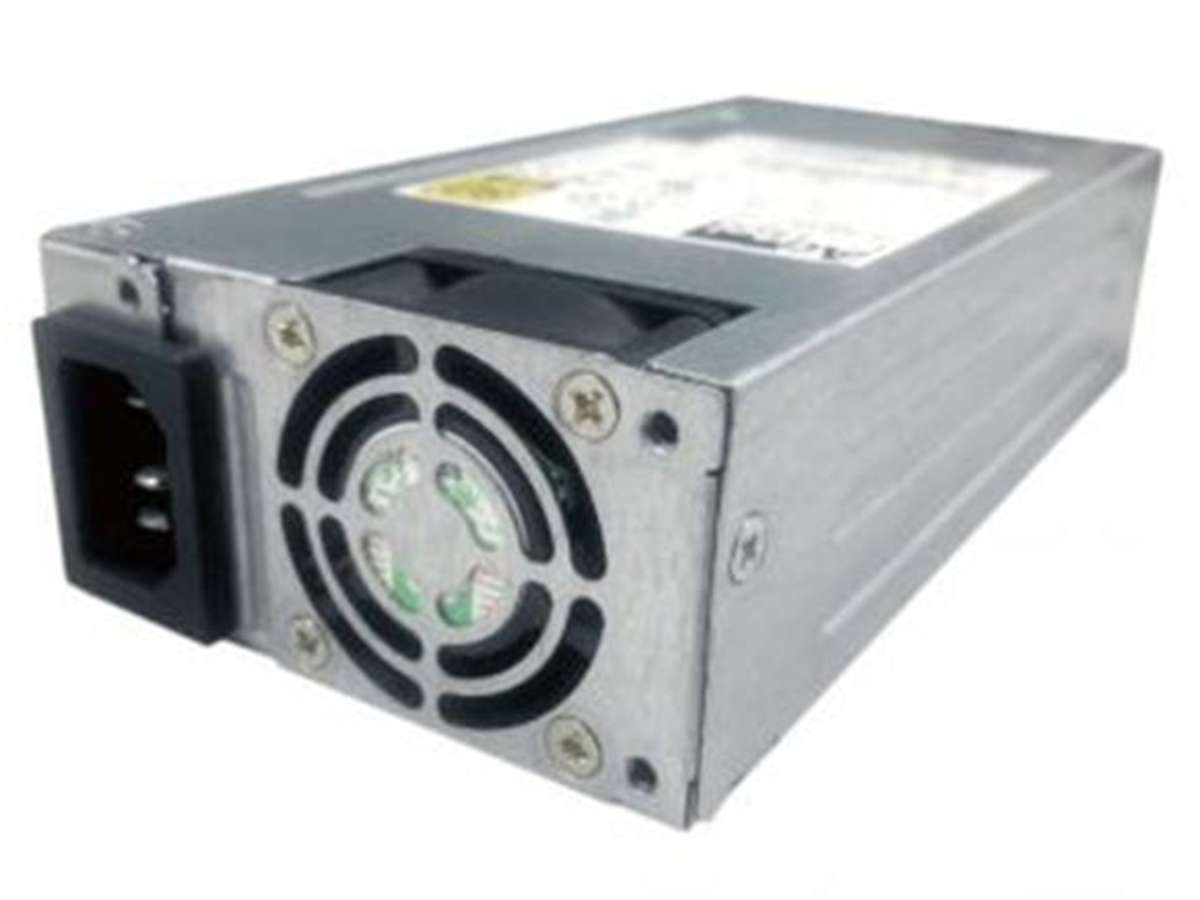

250W Industrial 80 PLUS Gold Flex-ATX Power Supply

This is an 80 PLUS Gold level efficient 250W Flex-ATX Industrial power supply designed for 24/7 operation at 0 - 55C. This Flex-ATX PSU is a reasonably quiet drop-in upgrade/replacement for the PSU in all of our rackmount chassis, and will also fit in several our other Mini-ITX and server cases.

Connectors:

• 1 x 24-Pin motherboard connector（300mm）
• 1 x 2-Pin connector (300mm）
• 1 x 4/8-Pin EPS / ATX 12V connector（300mm）
• 2 x 4-Pin Peripheral connector（100mm / 100mm）
• 4 x SATA connector（100mm / 200mm / 650mm / 750mm)

Output Voltage and Ripple Noise:

• +5V: 4.75V-5.25V, ±5% regulation, 50mV ripple
• +3.3V: 3.135V-3.465V, ±5% regulation, 50mV ripple
• +12V: 11.4V-12.6V, ±5% regulation, 120mV ripple
• -12V: 10.8V-13.2V, ±10% regulation, 120mV ripple
• +5Vs: 4.75V-5.25V, ±5% regulation, 50mV ripple

Protection: Over current protection; Over voltage protection; Short circuit protection; Over temperature protection. The protection latch resets after the fault has been removed and the on/off signal has switched state.

Safety standards: TUV + CB; UL/CUL; CCC 5000M; CE UL60950-1, 62368; BSMI; RCM; BIS; KC; FCC.
