Dynatron A18 Side Blower Cooler suitable for 1U Chassis with AMD Socket AM4
| Dynatron A18 1U Side Blower Cooler for AMD Socket AM4 & AM5 | |
| £51.60 inc. VAT | |
| IN STOCK (Checked 04:20) |

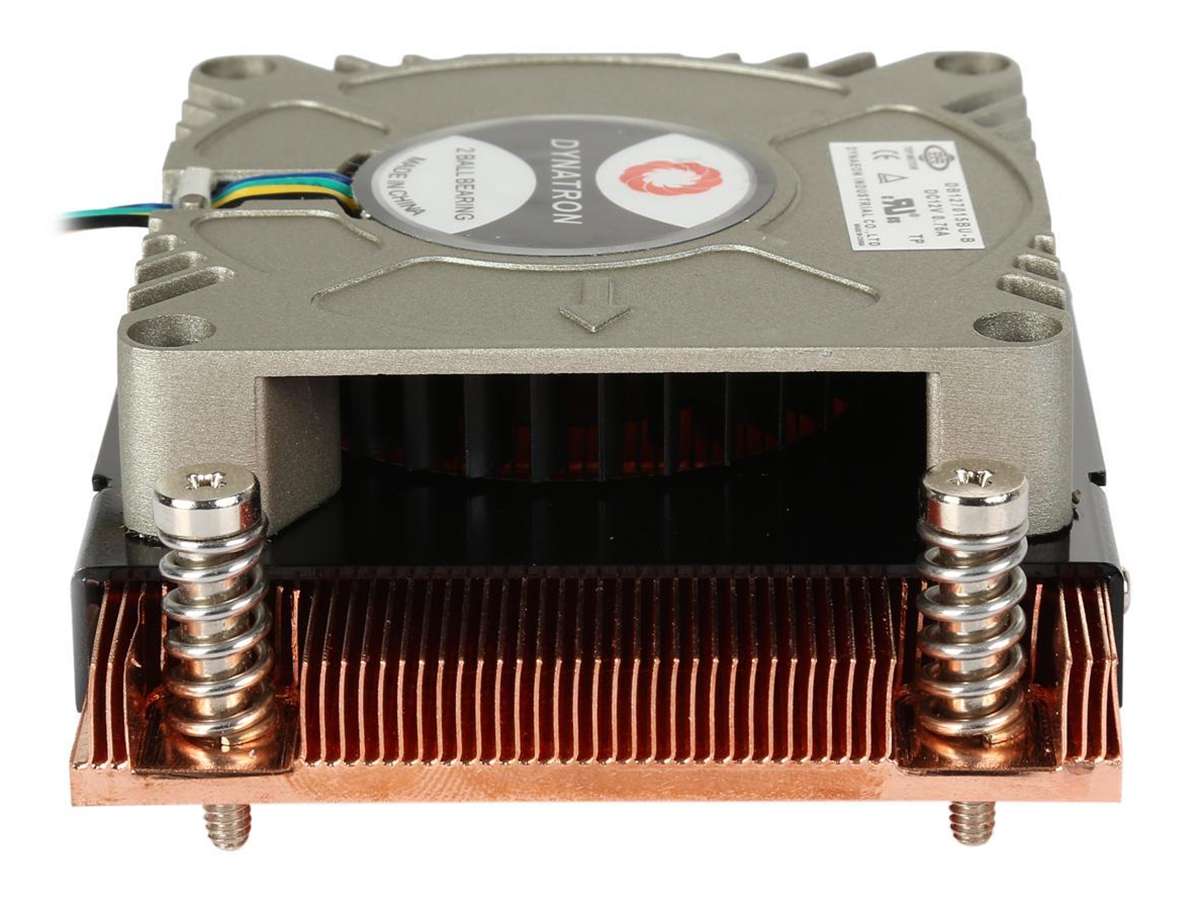

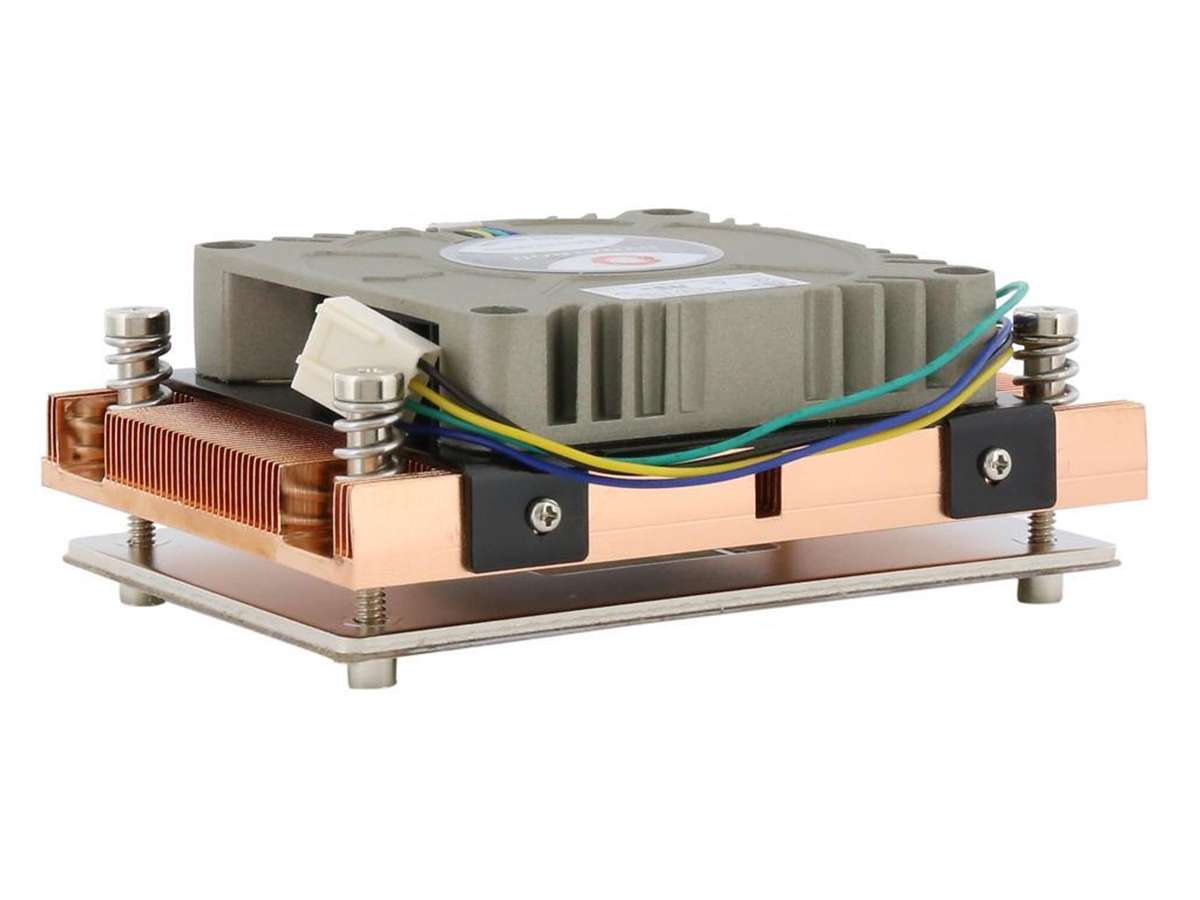

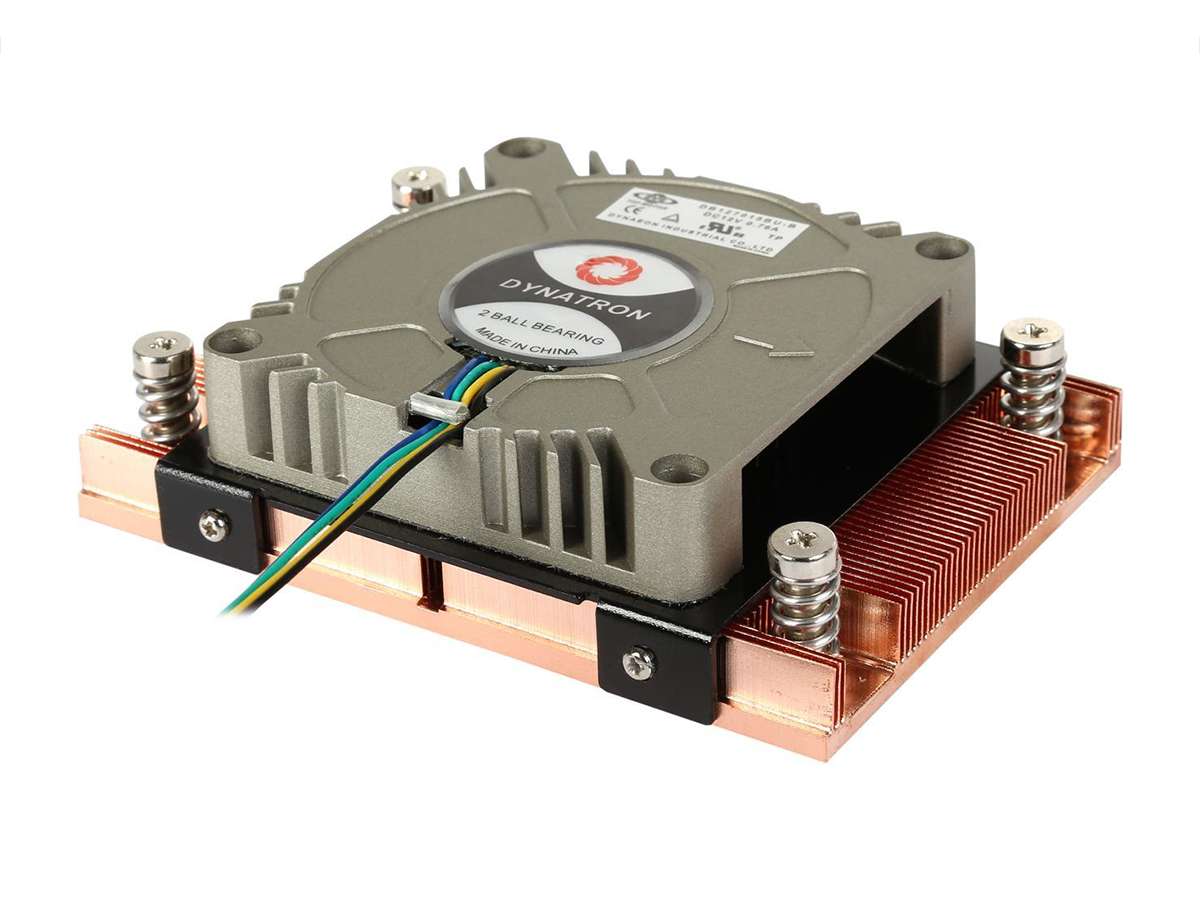

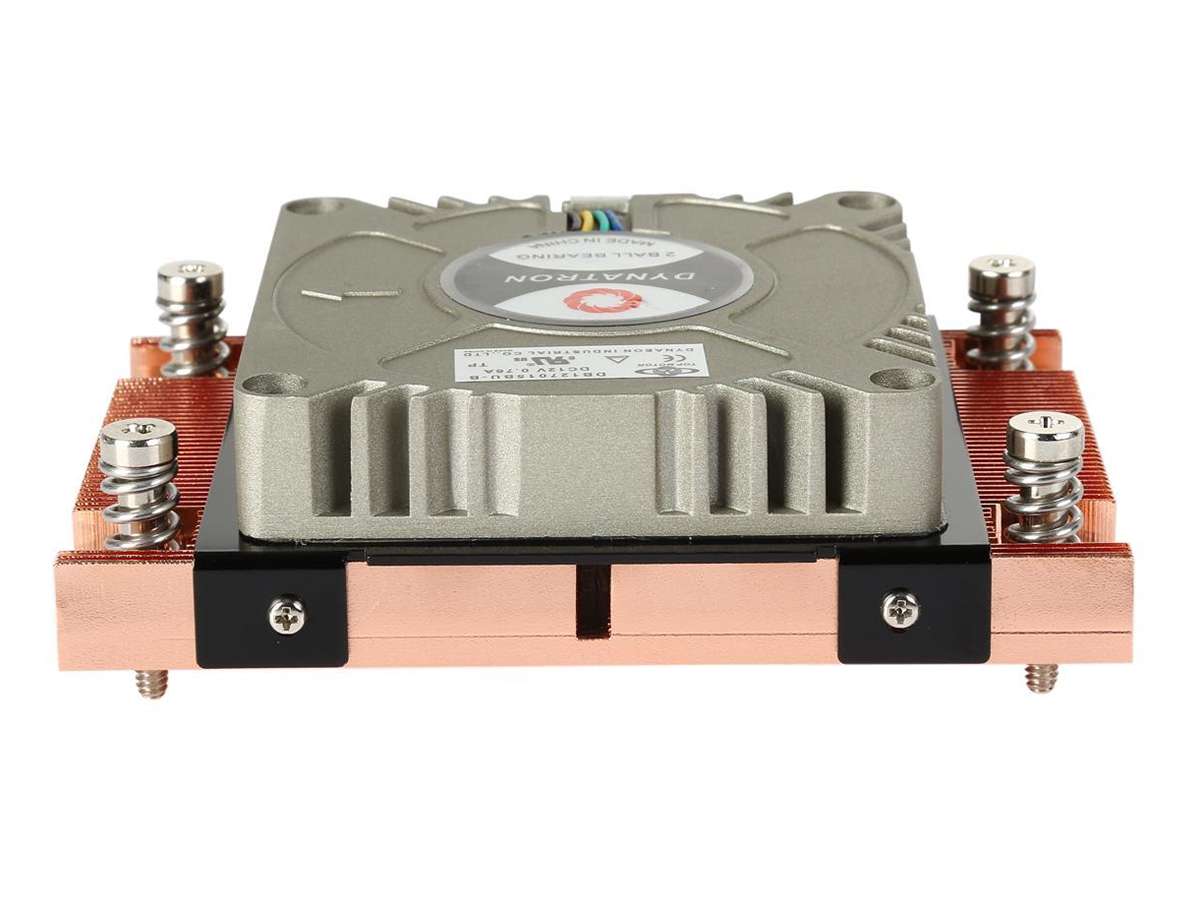

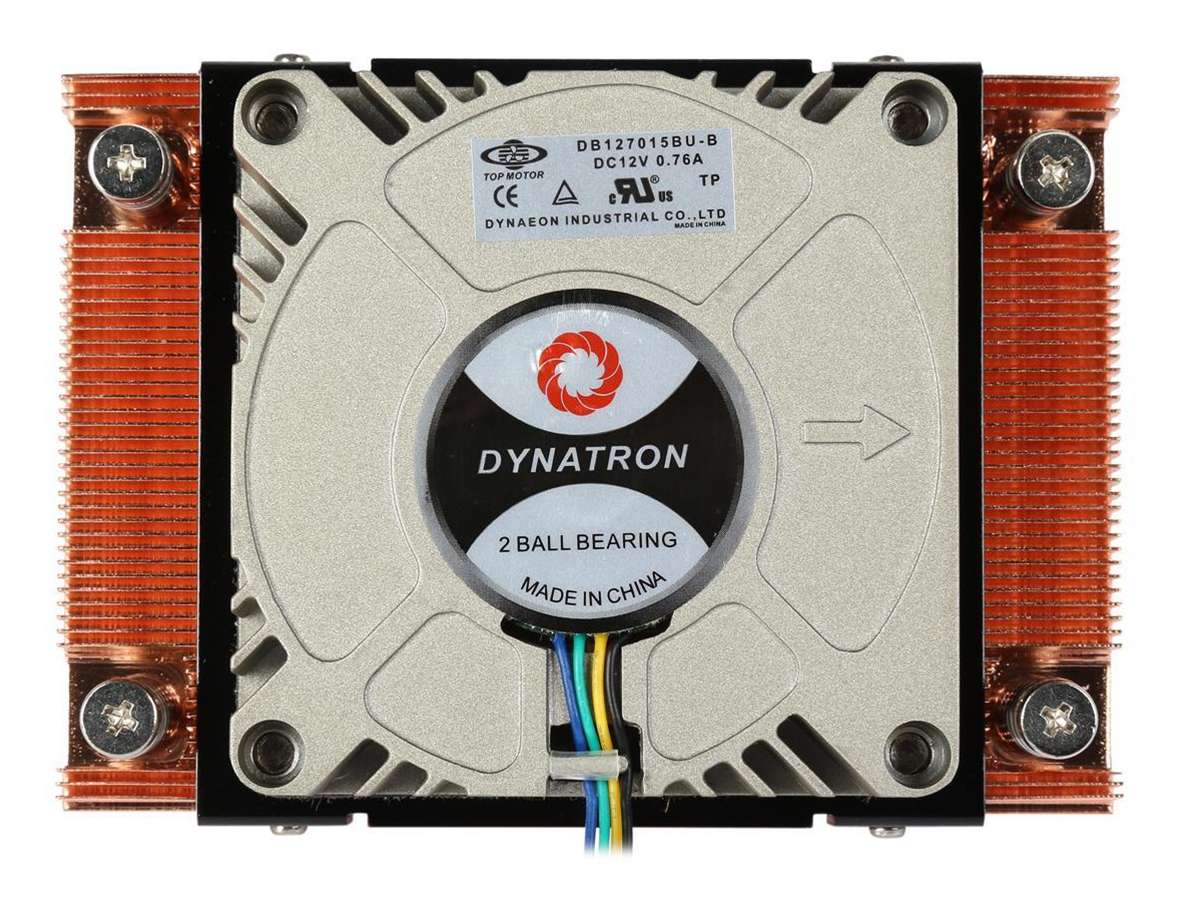

Dynatron A18 Low Profile, 27.5mm High Side Blower Cooler suitable for cooling AMD Socket AM4 & AM5 motherboards in a 1U Chassis.

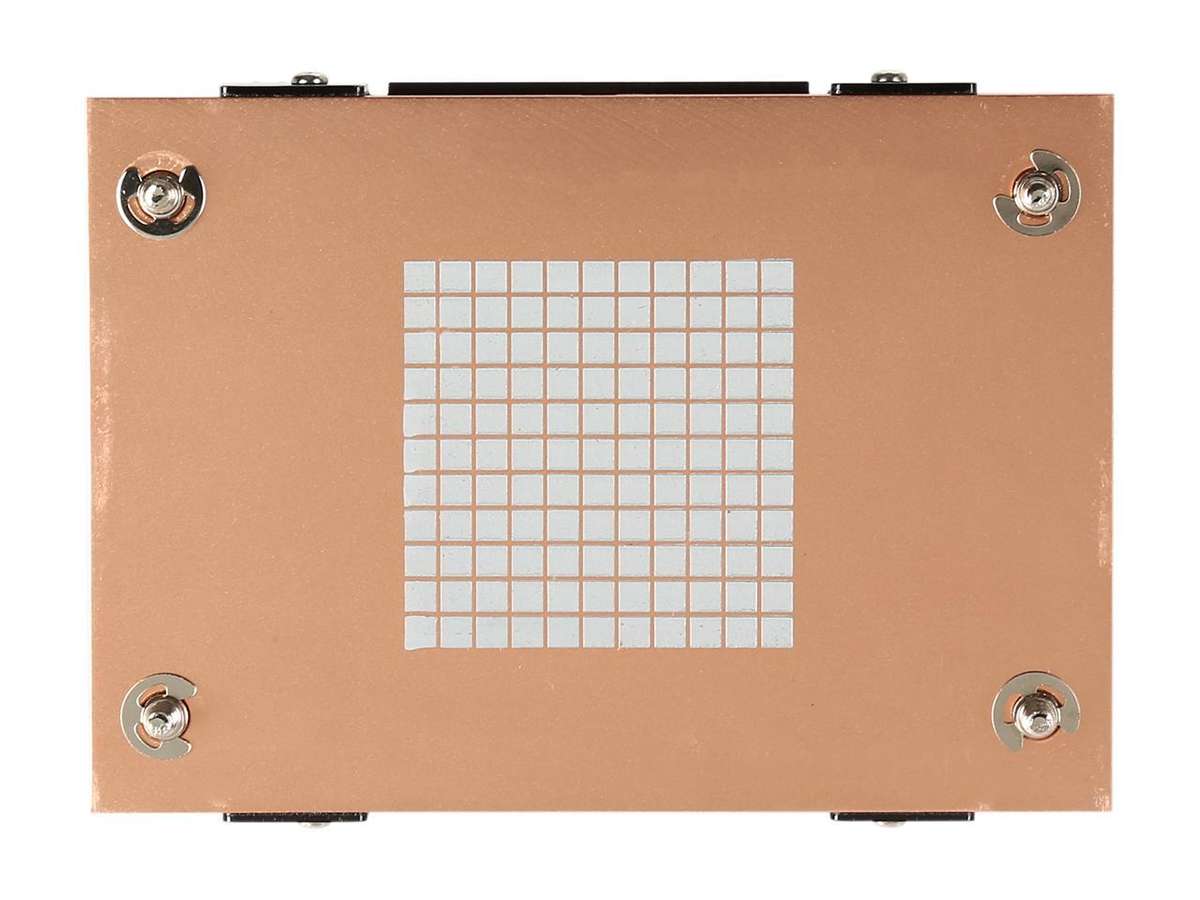

Long life two-ball bearing fan draws the cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.
Case Compatibility: Side Blower design suitable for use in a 1U chassis. Tip: angle the A18 to force air out of the rear of the chassis.
Compatible Boards and CPUs: AMD Socket AM4 and AM5 Motherboards fitted with a processor producing up to 105W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 1100 RPM (at 0-20% Duty Cycle); 2600 RPM (at 50%); 6000 RPM (at 100%); Airflow: 2.5 CFM (at 0-20%), 5.8 CFM (at 50%), 14.3 CFM (at 100%); Air Pressure: 1.25 mm-H2O (at 0-20%); 7 mm-H2O (at 50%); 50.46 mm-H2O (at 100%); Noise level: 19.1 dBA (at 0-20%), 34.2 dBA (at 50%), 53.8 dbA (at 100%); Power Consumption: 0.6 W (at 0-20%); 1.2 W (at 50%); 8.8 W (at 100%); Weight: 502g; Fan Dimensions: 70 x 70 x 15mm; Overall Dimensions: 106 x 76 x 27.5 (H) mm.
| Specifications | |
|---|---|
| Brand | Dynatron |
| Model | A18 1U Side Blower Cooler for AMD Socket AM4 & AM5 |
| Maximum CPU Power | 105 W |
| Connector Type | 4-pin PWM |
| Socket Types | AM4, AM5 |
| Construction | Copper 1100 with Skived Fins |
| Fan Bearing Type | 2 Ball Bearing |
| Power @ 20% | 0.6 W |
| Power @ 50% | 1.2 W |
| Power @ 100% | 8.8 W |
| Voltage | 12 V |
| Cooling | |
| Fan Speed @ 20% | 1100 RPM |
| Fan Speed @ 50% | 2600 RPM |
| Fan Speed @ 100% | 6000 RPM |
| Airflow @ 20% | 2.5 CFM |
| Airflow @ 50% | 5.8 CFM |
| Airflow @ 100% | 14.3 CFM |
| Air Pressure @ 20% | 1.25 mm-H2O |
| Air Pressure @ 50% | 7 mm-H2O |
| Air Pressure @ 100% | 50.46 mm-H2O |
| Noise Level @ 20% | 19.1 dB(A) |
| Noise Level @ 50% | 34.2 dB(A) |
| Noise Level @ 100% | 53.8 dB(A) |
| Dimensions | |
| Fan Size | 70 x 70 x 15mm (W x H x D) | Heatsink Height | 27.5mm |
| W x D x H | 106 x 76 x 27.5mm |
| Volume | 0.22 litres |
| Weight | 502g |
