Dynatron A24 Cooler suitable for 2U Chassis with AMD Socket AM4 & AM5
Dynatron A24 2U Cooler for AMD AM4 & AM5 | |
£40.80 inc. VAT | |
IN STOCK (Checked 06:33) |

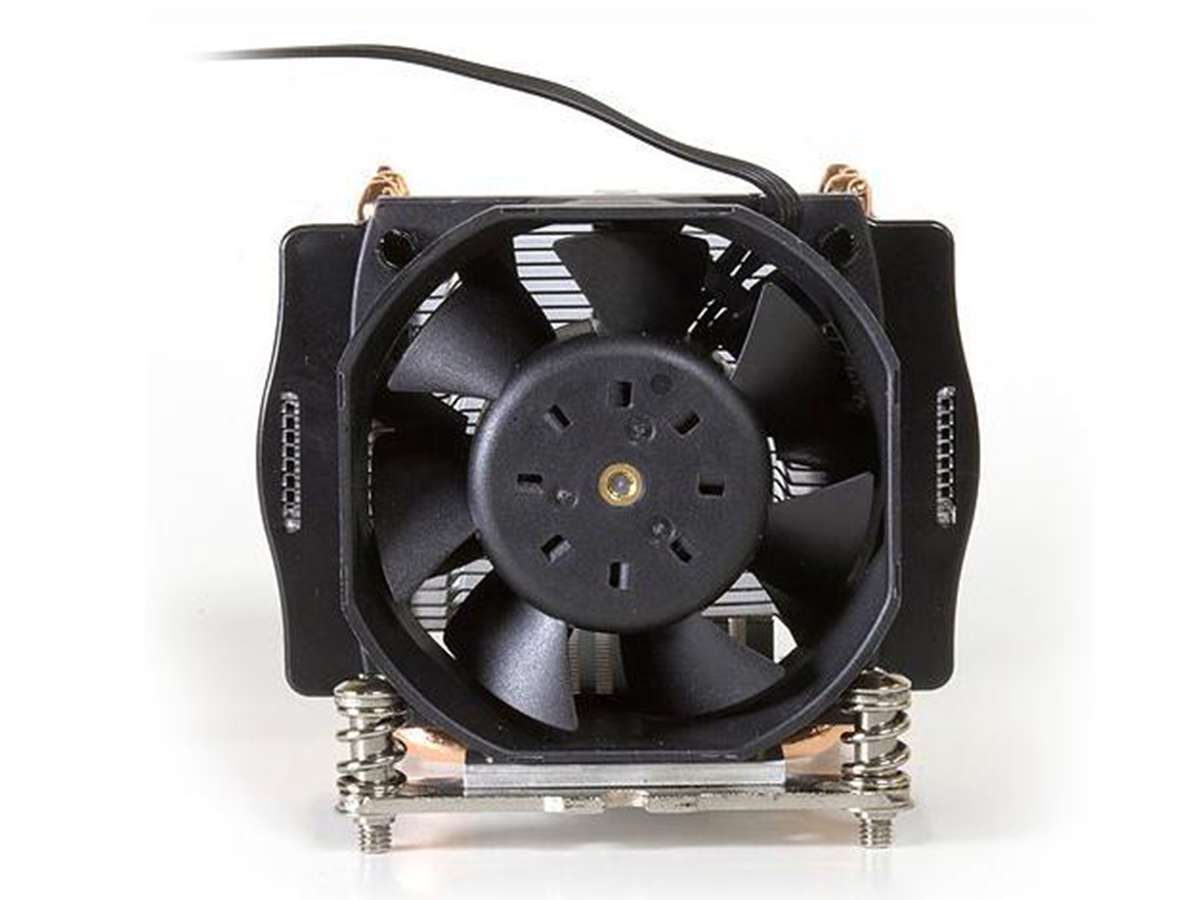

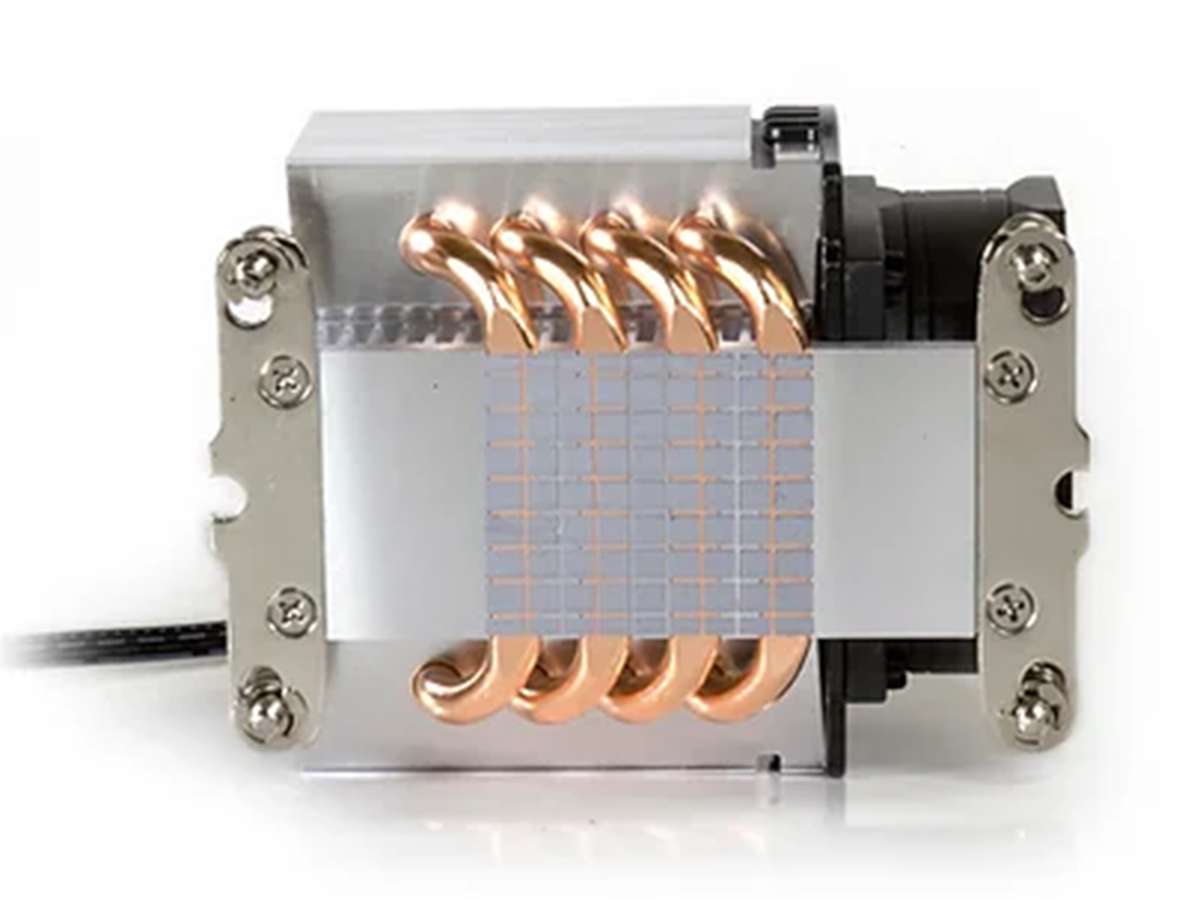

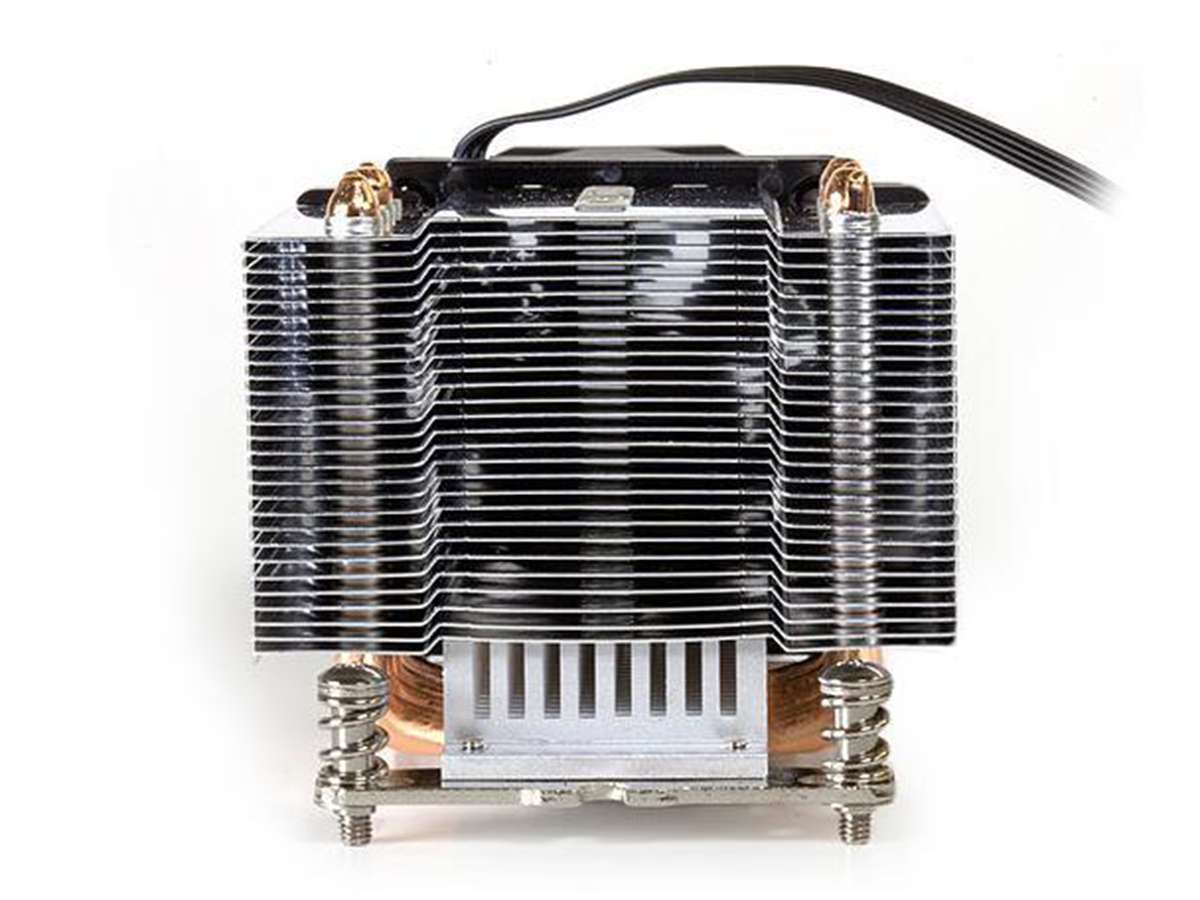

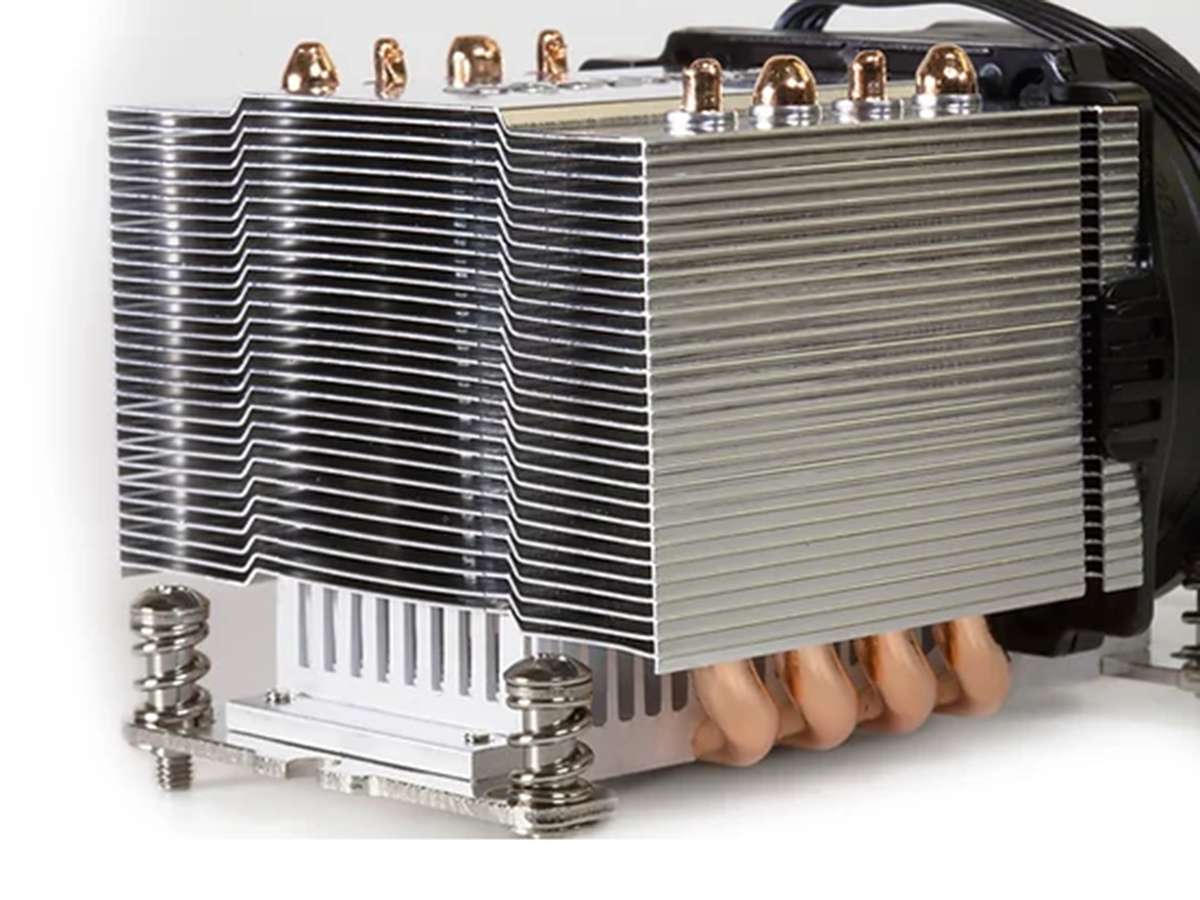

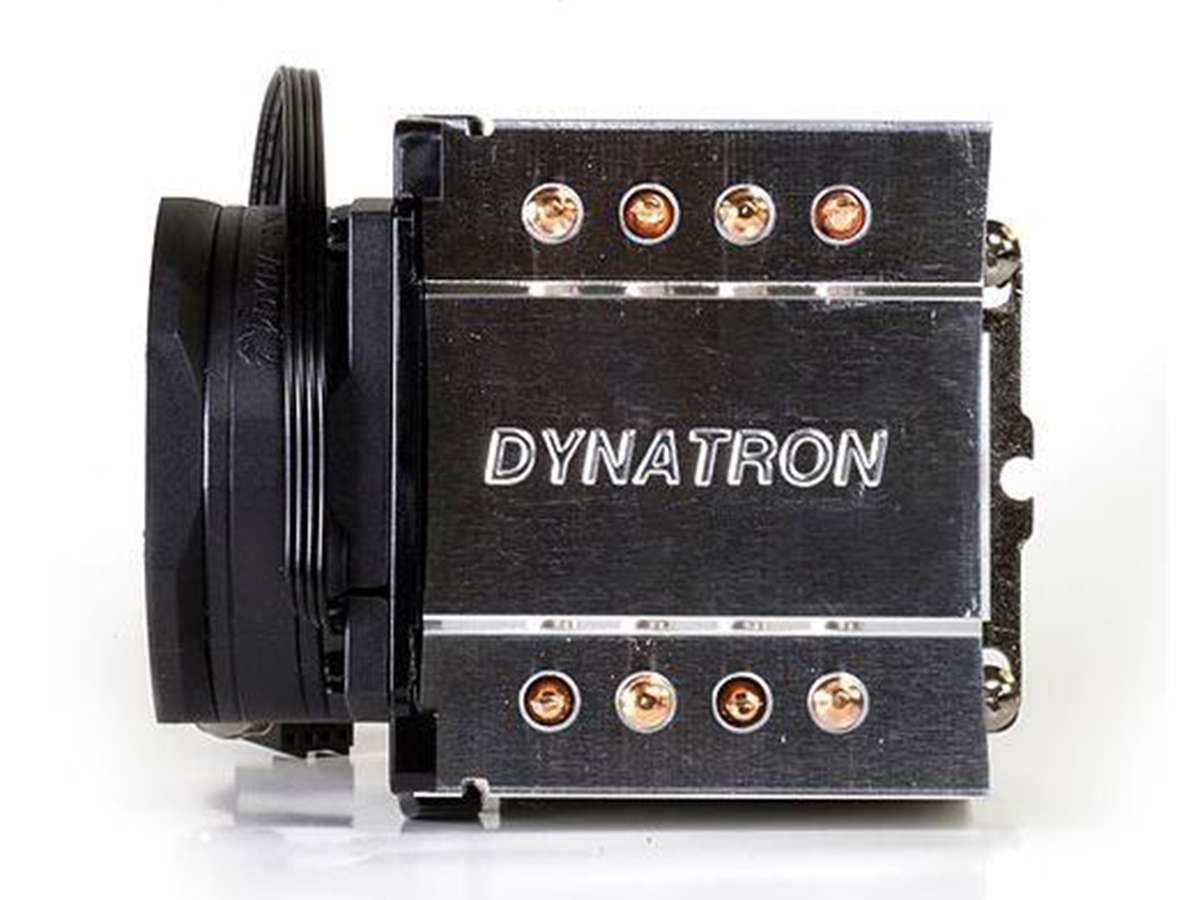

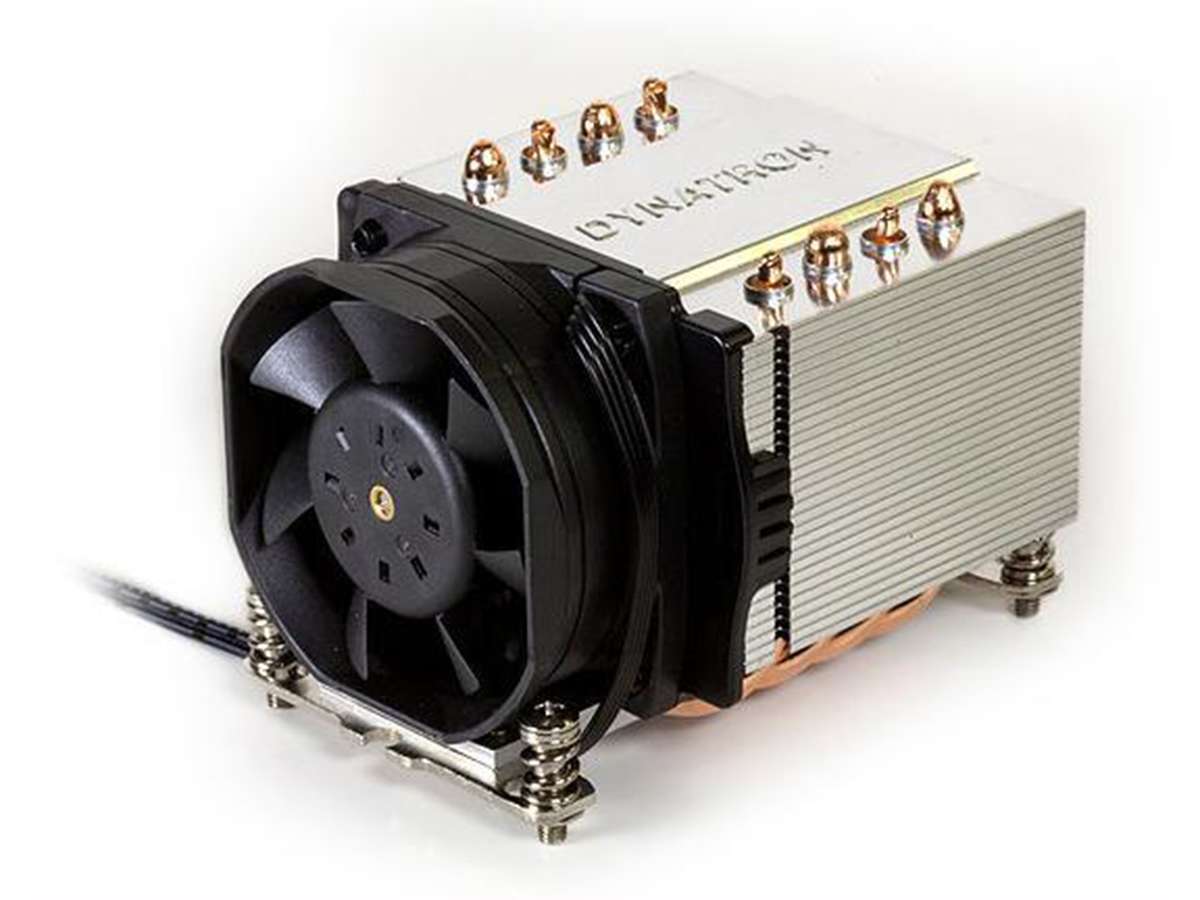

Dynatron A24 Cooler with aluminium fins and heatpipes directly contacting CPU suitable for cooling AMD Socket AM4 and AM5 motherboards in a 2U Chassis.
Dynatron 6028 long life two-ball bearing fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.
Case Compatibility: Side Blower design suitable for use in a 2U chassis. Tip: angle the A24 to force air out of the rear of the chassis.
Screw Fit: Screws surrounded by compression springs attach to standard motherboard socket plate.
Compatible Boards and CPUs: AMD Socket AM4 and AM5 Motherboards fitted with a processor producing up to 170W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 1500 RPM (at 0-20% Duty Cycle); 3500 RPM (at 50%); 7000 RPM (at 100%); Airflow: 8.8 CFM (at 0-20%), 20.3 CFM (at 50%), 40.5 CFM (at 100%); Air Pressure: 0.7 mm-H2O (at 0-20%); 3.6 mm-H2O (at 50%); 14.3 mm-H2O (at 100%); Noise level: 16 dBA (at 0-20%), 32.9 dBA (at 50%), 47.5 dbA (at 100%); Power Consumption: 0.6 W (at 0-20%); 2.16 W (at 50%); 7.2 W (at 100%); Weight: 400g; Fan Dimensions: 60 x 60 x 28mm; Overall Dimensions: 108 x 78 x 67 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | A24 2U Cooler for AMD AM4 & AM5 |
Maximum CPU Power | 170 W |
Connector Type | 4-pin PWM |
Socket Types | AM4, AM5 |
Construction | Aluminum Stacked Fins with Heat Pipes directly contacting CPU |
Fan Bearing Type | Double-Ball |
Power @ 20% | 0.6 W |
Power @ 50% | 2.16 W |
Power @ 100% | 7.2 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 1500 RPM |
Fan Speed @ 50% | 3500 RPM |
Fan Speed @ 100% | 7000 RPM |
Airflow @ 20% | 8.8 CFM |
Airflow @ 50% | 20.3 CFM |
Airflow @ 100% | 40.5 CFM |
Air Pressure @ 20% | 0.7 mm-H2O |
Air Pressure @ 50% | 3.6 mm-H2O |
Air Pressure @ 100% | 14.3 mm-H2O |
Noise Level @ 20% | 16 dB(A) |
Noise Level @ 50% | 32.9 dB(A) |
Noise Level @ 100% | 47.5 dB(A) |
Dimensions | |
Fan Size | 60 x 60 x 28mm (W x H x D) | Heatsink Height | 67mm |
W x D x H | 108 x 78 x 67mm |
Volume | 0.56 litres |
Weight | 400g |
