Be Quiet! BN320 80+ Bronze 300W SFX Power Supply

The Be Quiet! BN320 SFX Power 3 is a 100mm long 300W SFX PSU. The BN320 is compatible with chassis that use SFX and SFX-L power supplies. The BN320 has 80 PLUS Bronze efficiency, and a high-quality temperature-controlled 80mm fan operating at a max of just 29.4dB(A). The BN320 has a strong 12V rail with 300W of continuous power; 3x SATA connectors; 2x PATA; 1x FDD; PCIe 6+2 pin, P4 and 20+2pin ATX Connectors. Product conception, design and quality control in Germany

Specififications: 300W Continuous Power; 350W Peak Power; SFX12V Version 3.42 Form Factor; EPS 12V Version 2.92 Form Factor; DC/DC Topology; 100-240 Vac; 50-60 Hz; > 0.98 Power factor @ 100% load; Modern Standby; <0.11W standby consumption; 100,000h average lifetime @ 25C; Up to 40C operating temperature.

Output: 12V single rail operation. 16A @ 3.3V; 16A @ 5.5V; 25A @ 12V; 0.3A @ -12V@ 2.5A @ +5Vsb. 300W Max combined power @ 12V; 85W Max. combined power @ 3.3V + 5V; 26.8ms Hold-up time @ 100% load; 100-150ms Power good signal.

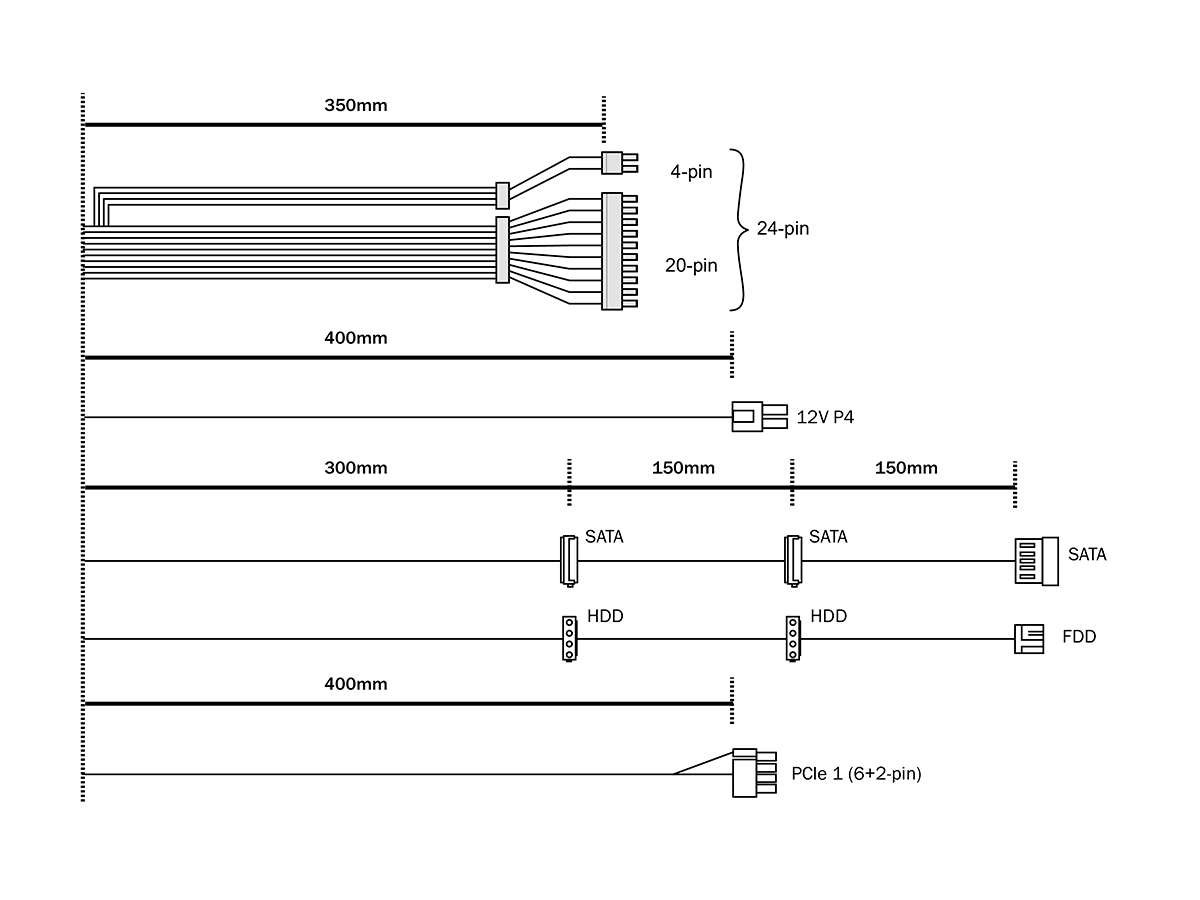

Cables included:

• 1x 24-pin ATX
• 1x 4-pin ATX 12V (CPU)
• 1x 6+2-pin PCIe (GPU)
• 3x SATA Power
• 2x PATA Peripheral
• 1x FDD (Floppy)

Cooling Fan: High Quality 80mm Fan; 4-pole motor, rifle bearings; Max 1979 RPM; 14.4 db(A) @ 10% load; 14.4 db(A) @ 20% load; 14.4 db(A) @ 50% load; 29.4 db(A) @ 100% load.

Efficiency: 75.9% @ 10% load; 84.4% @ 20% load, 89.2% @ 50% load; 88.1% @ 100% load. 80 Plus Bronze Certification.

Protection: Over Power Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection, Under Voltage Protection, Surge & Inrush Protection.

Warranty: The BN320 comes with a 3 year manufacturer's warranty.

Dimensions: L x W x H: 100 x 64 x 125 mm (100mm length). Weight: 0.84Kg
