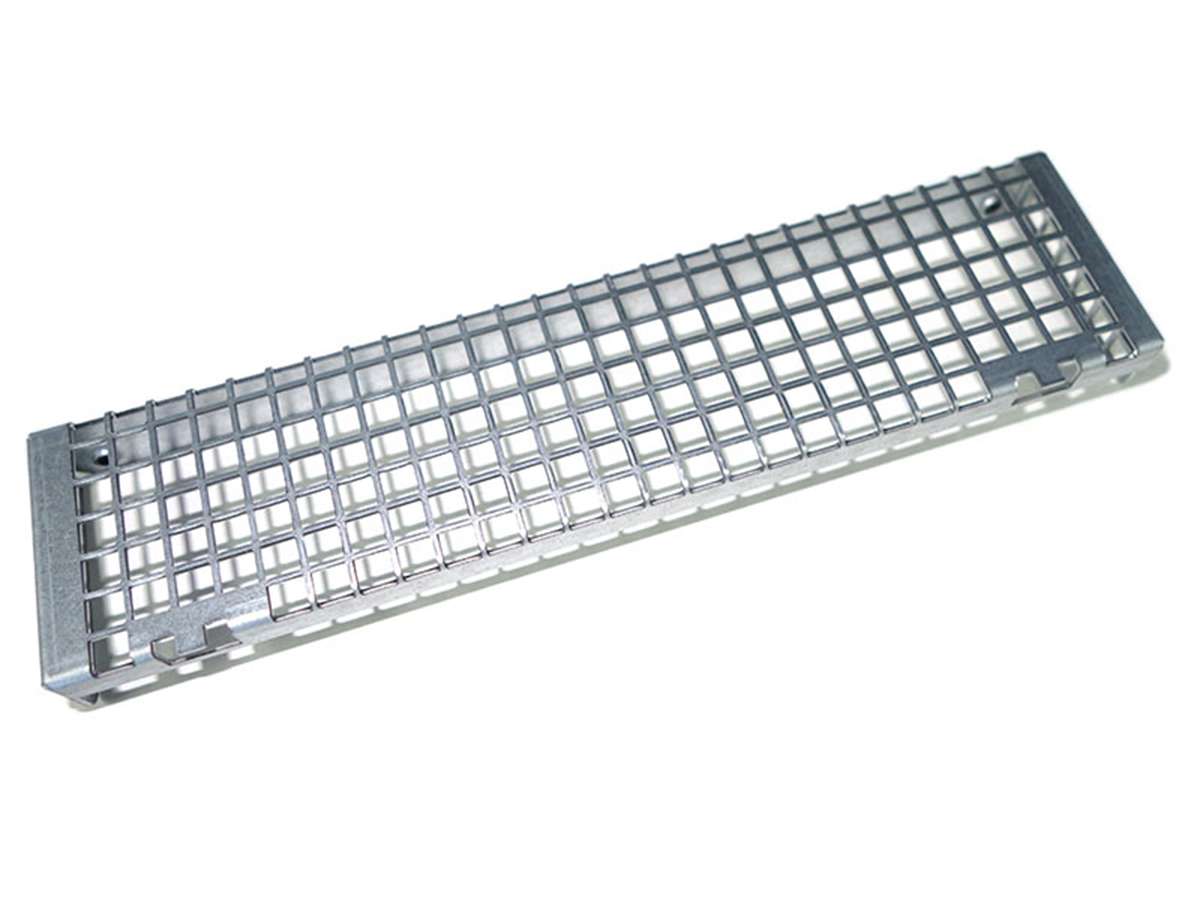

Universal Backplate for C1/C2/C3-RACK 1U Chassis
Universal backplate design for C1-RACK, C2-RACK and C3-RACK chassis only. This backplate can be cut to fit any motherboard IO shield design.
How To Use: Fit backplate into case. The screw holes and metal tabs will align if correctly positioned. Place motherboard in position, offset slightly until backplate is cut. Mark location of motherboard IO shield components onto backplate (pencil or dry wipe marker recommended). Remove backplate and cut using using strong metal snips or rotary tool. Fit backplate and motherboard into position.
