MSI Cubi N ADL S N100 Barebones Mini PC with 4C Intel N100 Processor, Dual LAN, WiFi, M.2 Storage, HDMI, DisplayPort, 3x USB 3.2 inc Type-C with DisplayPort, 2x USB 2.0, Up to 16GB RAM
| MSI Cubi N ADL S N100 Barebones Mini PC | |
| £202.80 inc. VAT | |
|
PRE ORDER
Lead time could be 3+ weeks |
Choose everything you need at once, or we can build and install for you:
Fanless MSI Cubi N ADL S Barebones Mini PC with a 0.8GHz up to 3.4GHz Quad Core Core Intel N100 processor, 2x Gigabit LAN & WiFi, HDMI, DisplayPort, 3x USB 3.2 Gen2 inc 1x Type-C, 2x USB 2.0 Type-A.
Barebones or Fully Built: simply add a stick of DDR4 SODIMM memory and an M.2 storage drive to complete the internals of the Cubi N, or we can build and install it for you.
Bays: 1x M.2 Storage Slot (Type 2280, NVMe PCIe Gen3 x2 / SATA); 1x Half Size Mini-PCI Express Slot occupied by Intel AC WiFi Card.
Memory: 1x 260-pin socket supports up to 16GB DDR4 1.2V SODIMM.

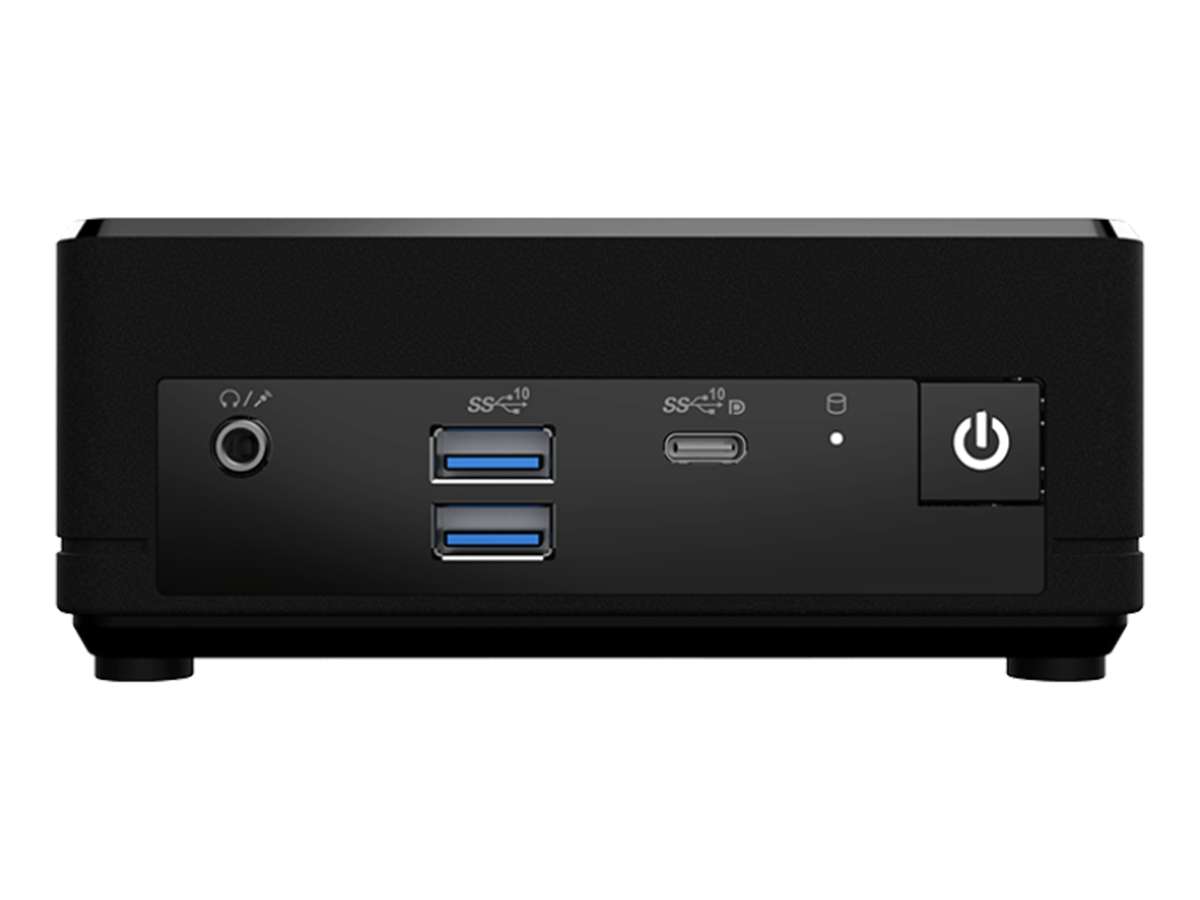

Front Panel: 3.5mm Mic/Headphone Socket; 2x USB 3.2 Gen2 Type-A Port; 1x USB 3.2 Gen2 Type-C Port supporting 3840x2160 @ 60Hz; HDD LED; Combined Power switch & Power LED.

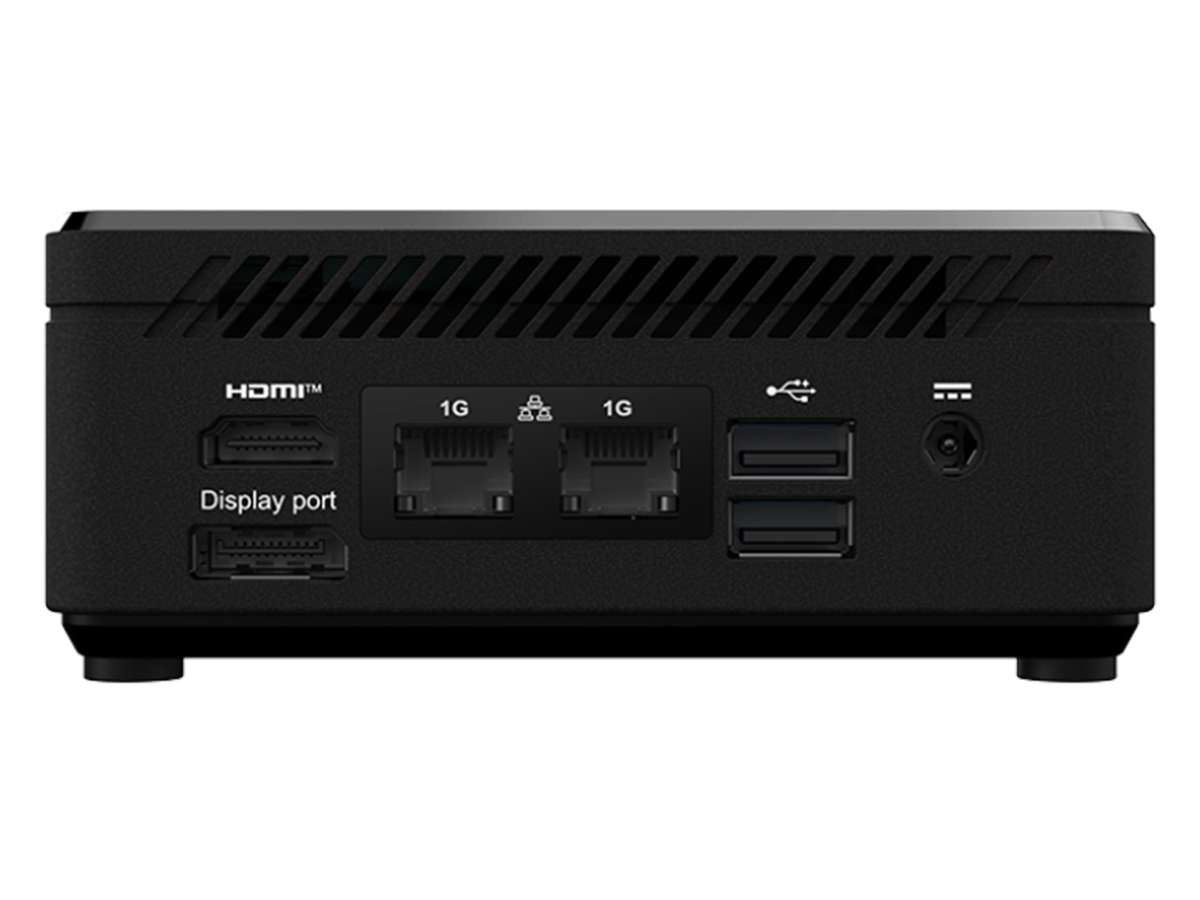

Rear Panel: HDMI (up to 3840x2160 @ 60Hz); Display Port (up to 3840x2160 @ 60Hz); 2x Realtek RTL8111H Gigabit Ethernet RJ45 LAN ports; 2x USB 2.0 Type-A. 19V Power Socket (connects to supplied 65W AC Adapter).
3 Graphics Outputs: The Cubi N has 1x HDMI, 1x Display Port and 1x USB Type-C output, which can each display 4K@60Hz independently.
Power supply: Universal 100-240V External 65W AC Adapter with UK power cord connects to 19V power socket.
Accessories: AC Adapter; UK Power Cord (other power cords available); M.2 Screw.
WiFi: Intel AC Card fitted to motherboard provides WiFi 5 and Bluetooth support.
Measurements: 124 x 53.7 x 124 mm / 4.88 x 2.11 x 4.88in (W x H x D); Volume: 0.826 litres.
Drivers and Manual: Windows 11 64-bit Drivers; Full Specifications (PDF); Manual.
*Note: The Cubi N supports up to 16GB DDR4 memory on a 1.2V DDR4 SODIMM. If purchased through this page or the configure page, we will provide guaranteed compatible memory.
| Specifications | ||
|---|---|---|
| Model | MSI Cubi N ADL S N100 Barebones | |
| Processor | Intel N100 4C4T, Up to 3.4GHz | |
| Architecture | Alder Lake N | |
| Cooling | ||
| Fanless | Yes | |
| Memory | ||
| Maximum | 16GB | |
| Socket | 1x SODIMM | |
| Type | DDR4 | 3200MHz |
| Graphics | ||
| Displays | 3 | |
| Outputs | 1x USB-C (1.4) | 3840x2160 @ 60Hz max res. |
| 1x DisplayPort (1.4) | 3840x2160 @ 60Hz max res. | |
| 1x HDMI (2.1) | 3840x2160 @ 60Hz max res. | |
| Audio | ||
| Connectors | 1x 3.5mm Mic/Headphone Jack | (Front) |
| Storage | ||
| Bays | 1 | |
| Type | 1x M.2 (NVMe/SATA) 2280 Slot | |
| Network | ||
| LAN Ports | 2 | |
| LAN 0: | Realtek RTL8111H | |
| LAN 1: | Realtek RTL8111H | |
| USB | ||
| Connectors | 5 | |
| Type | 2x USB 2.0 Type A | (Rear) |
| 2x USB 3.2 Gen2 (10Gb/s) Type A | (Front) | |
| 1x USB 3.2 Gen2 (10Gb/s) Type C | (Front) | |
| Expansion | ||
| Mini PCI-Express | 1x Mini PCI-E (occupied by WiFi card) | Half Length |
| Power Supply | ||
| Type | External | |
| Input | 100-240 AC | C6 Power Connector |
| Output | 19V DC | |
| Power | 65W | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 11 64-bit
|
|
| Dimensions | ||
| W x D x H | 124 x 124 x 53.7 mm | |
| Volume | 0.826 litres | |
