Silverstone DS380 12 Bay NAS Chassis with 8x 2.5/3.5 Hot Swap and 4x Internal Bays
Silverstone DS380 12 Bay Desktop NAS Chassis | |
£214.80 inc. VAT | |
PRE ORDER
Lead time usually 6-10 days |

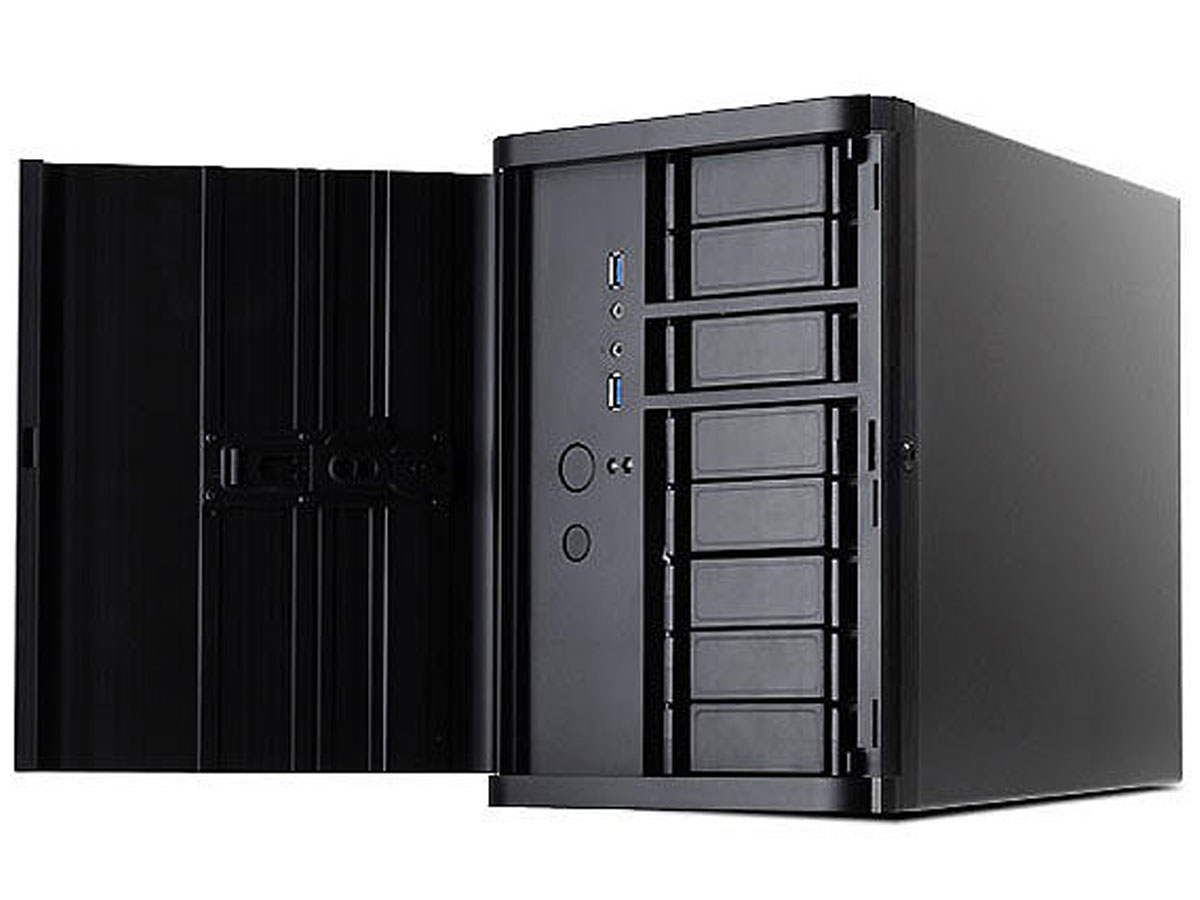

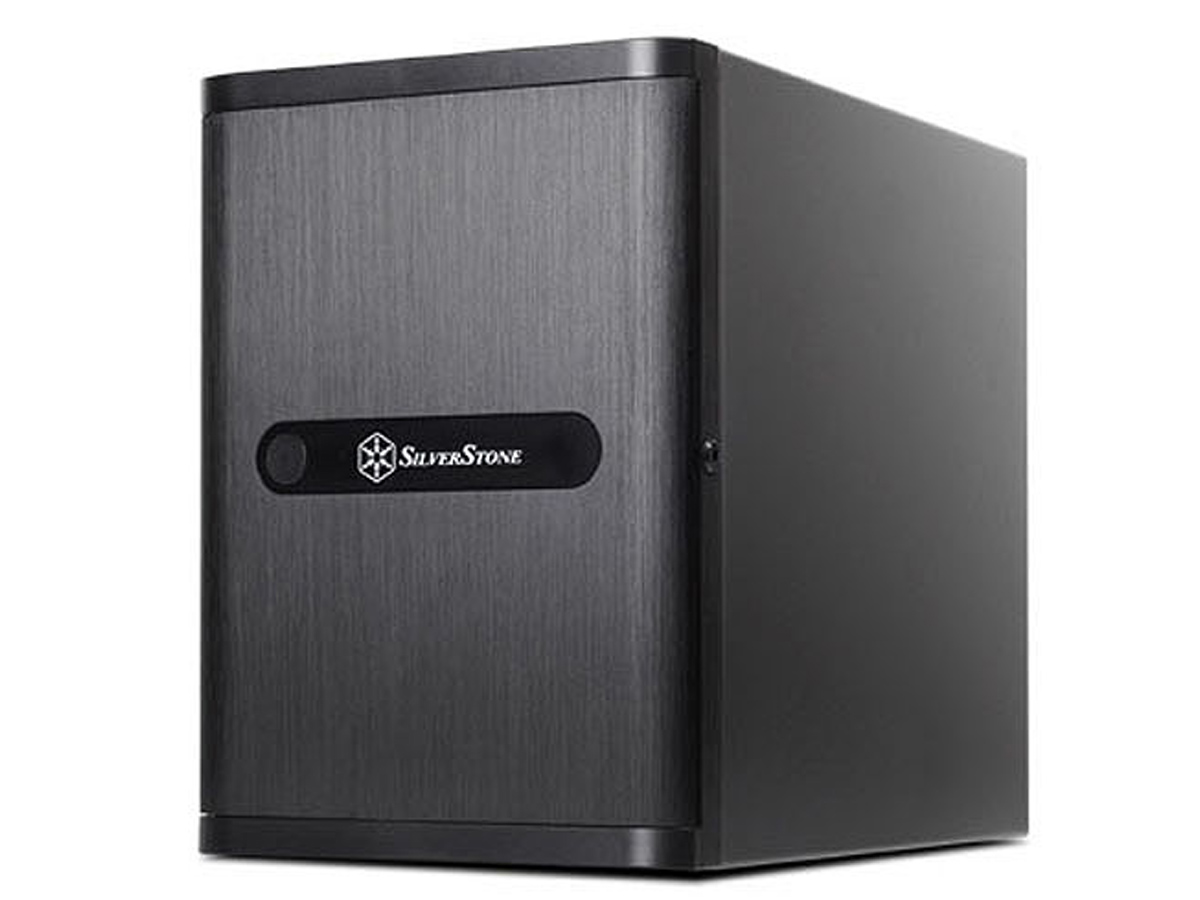

The Silverstone DS380 chassis offers 4 Hot Swap 2.5/3.5in Bays and 4 internal 2.5in Drive Bays and is suitable for all Mini-ITX motherboards. The DS380 has a premium brushed aluminum front door with Lockable power button design and adjustable LED. The DS380 is well ventilated with 3x 120mm fans with filtered intake vents include and supports dual-slot graphics cards up to 11in deep. This durable, storage-centric, chassis is perfect for any home or office.
Construction: Aluminum front door, SECC body, black finish.

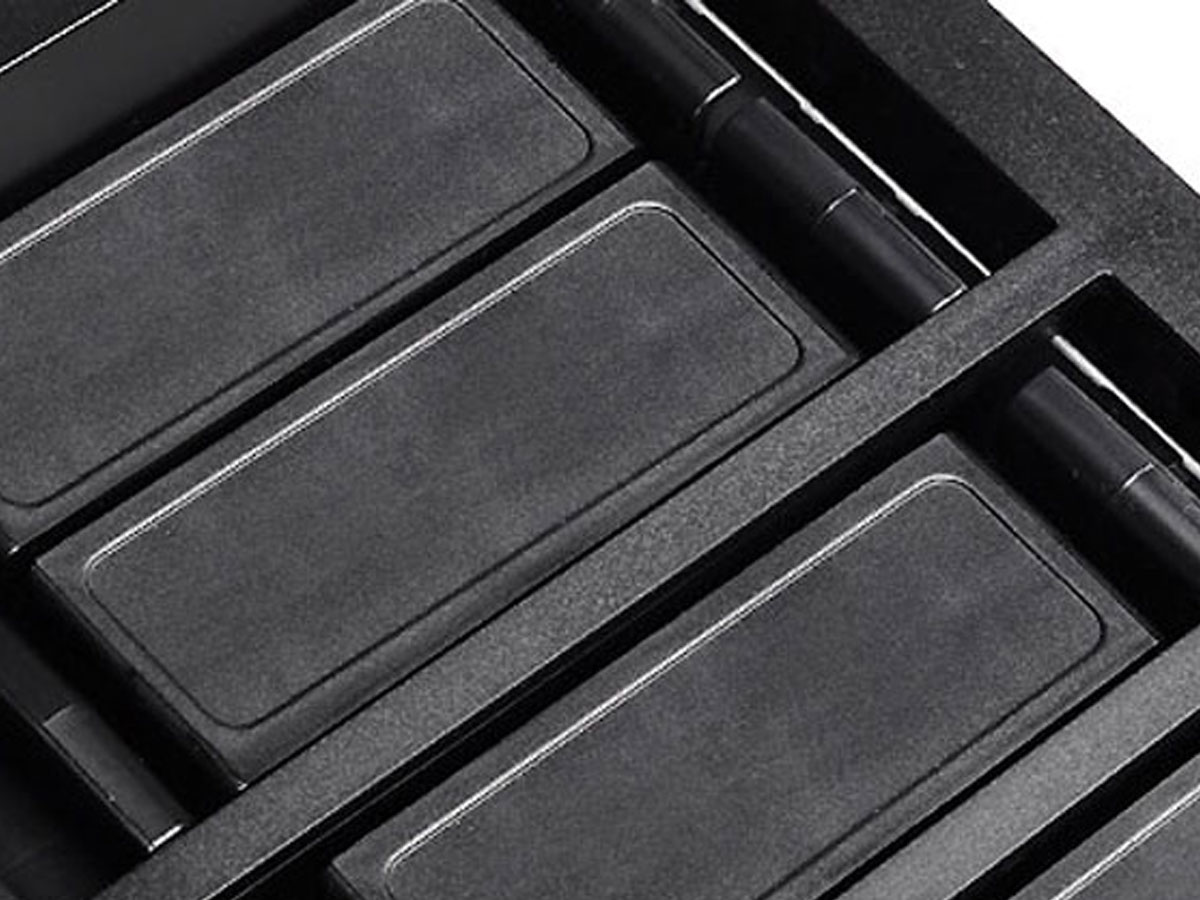

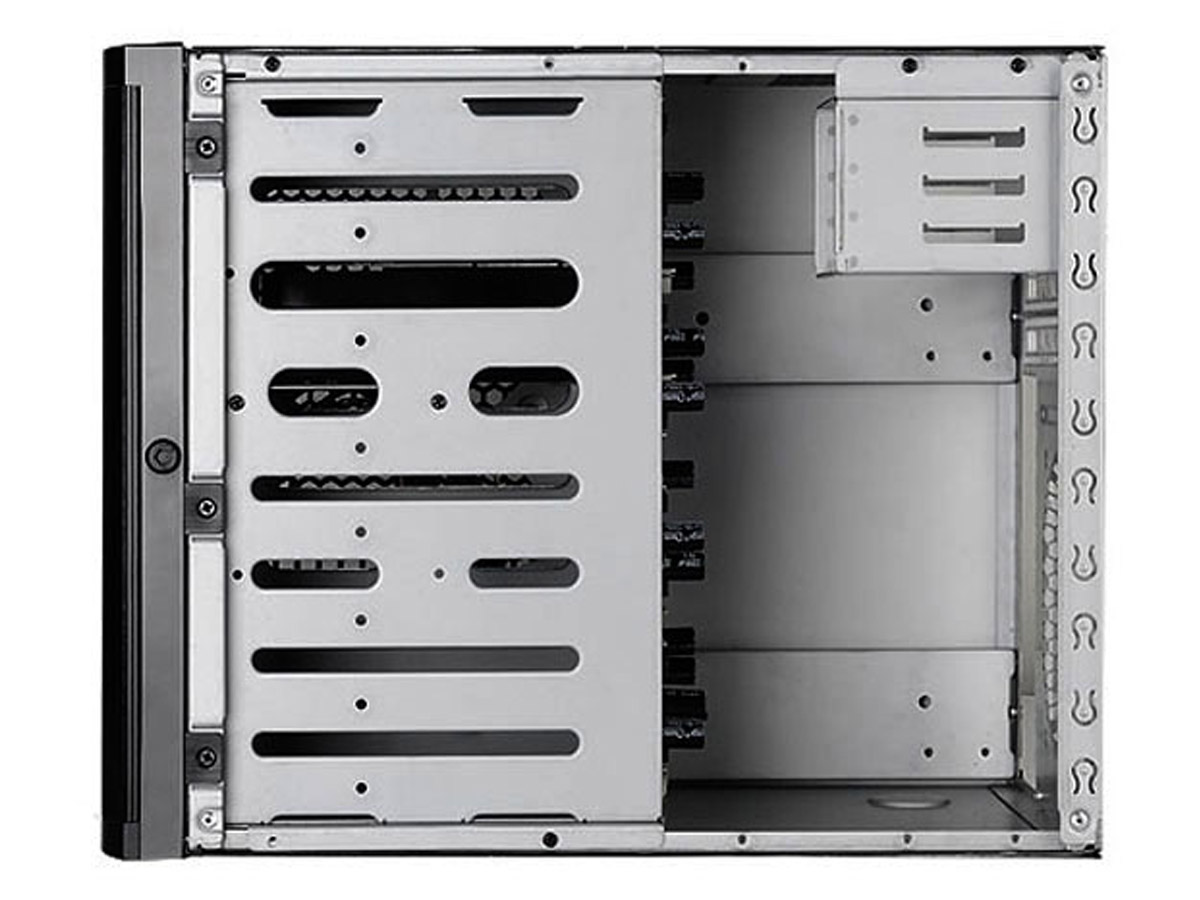

Drive Bays: 8x External 2.5in/3.5in SAS/ SATA hot swap bays; 4x Internal 2.5in bays.

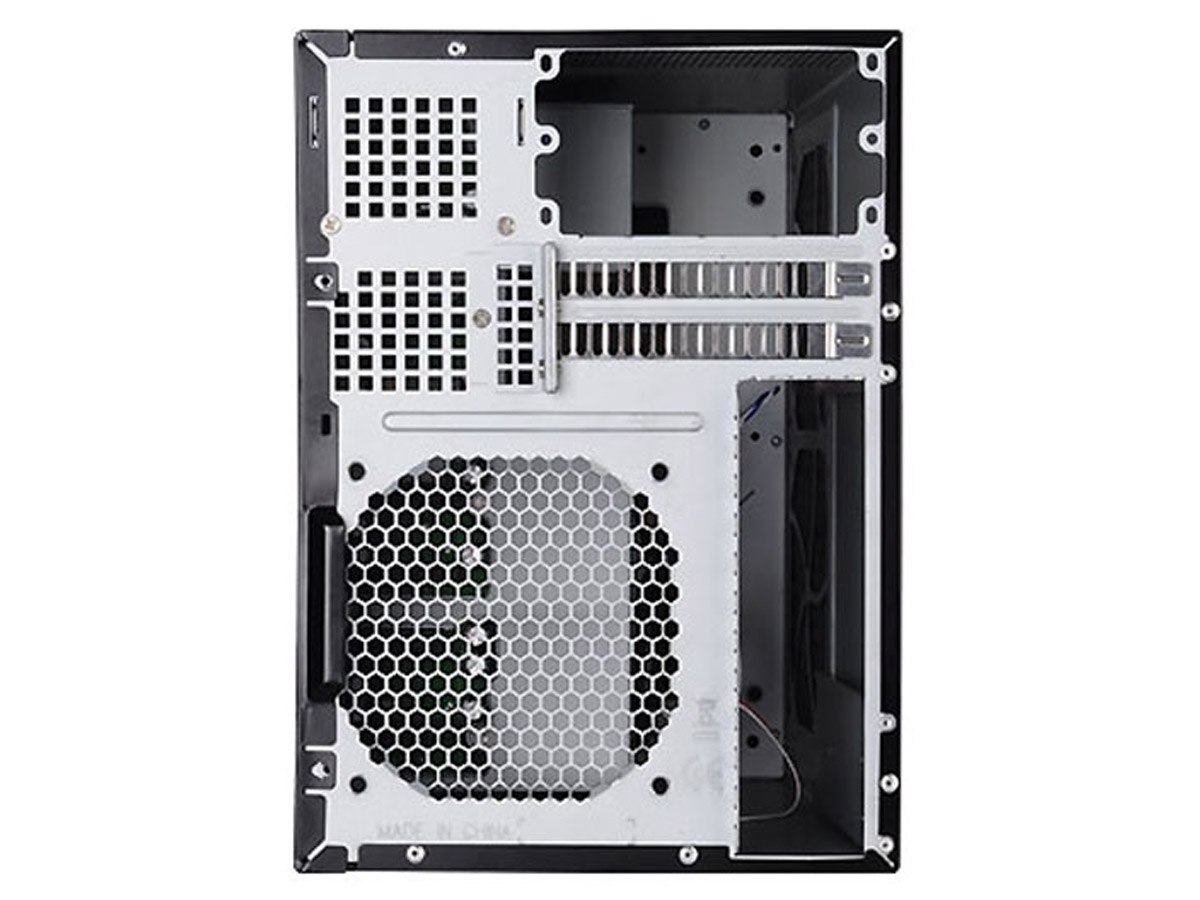

Graphics Card Support: 2x Expansion slots (Compatible with cards up to 11in (279mm) long, width 4.38in (111mm)).

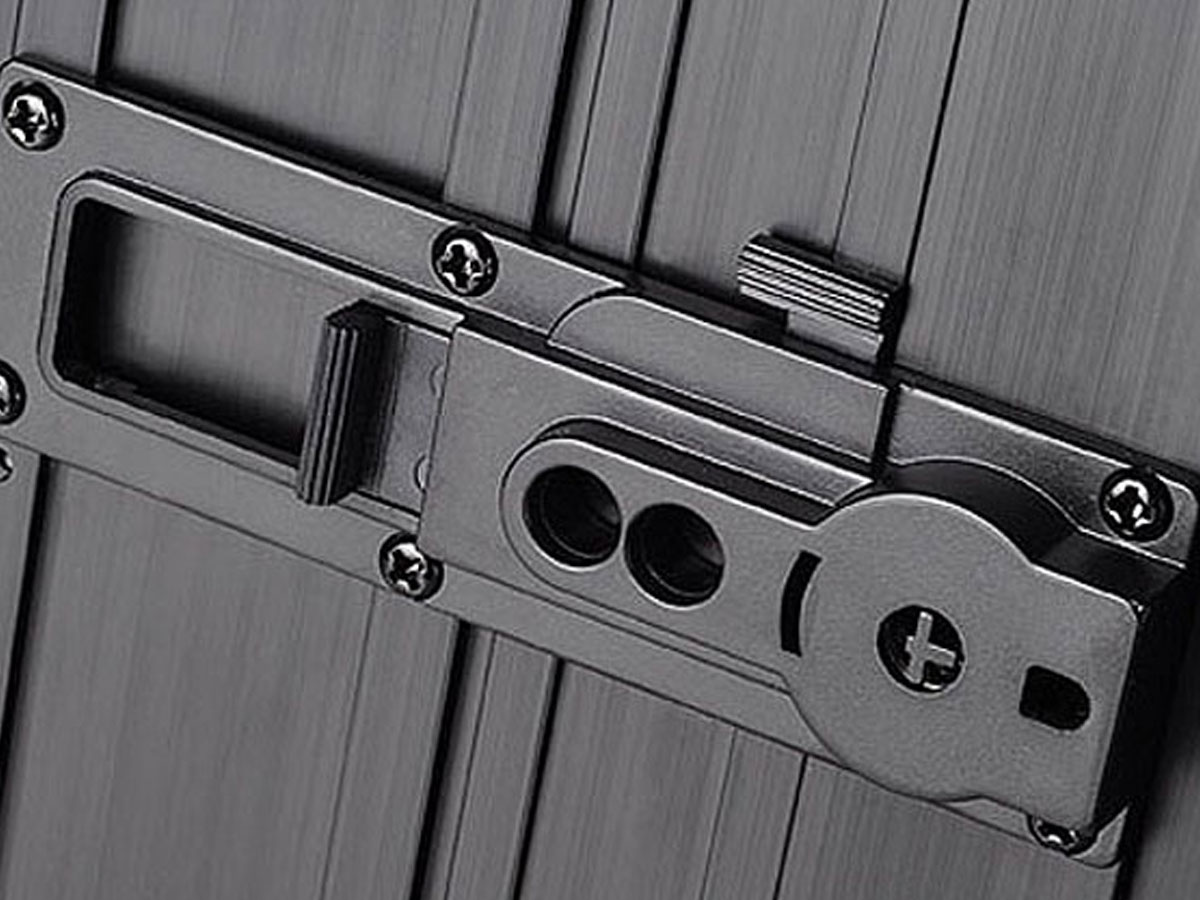

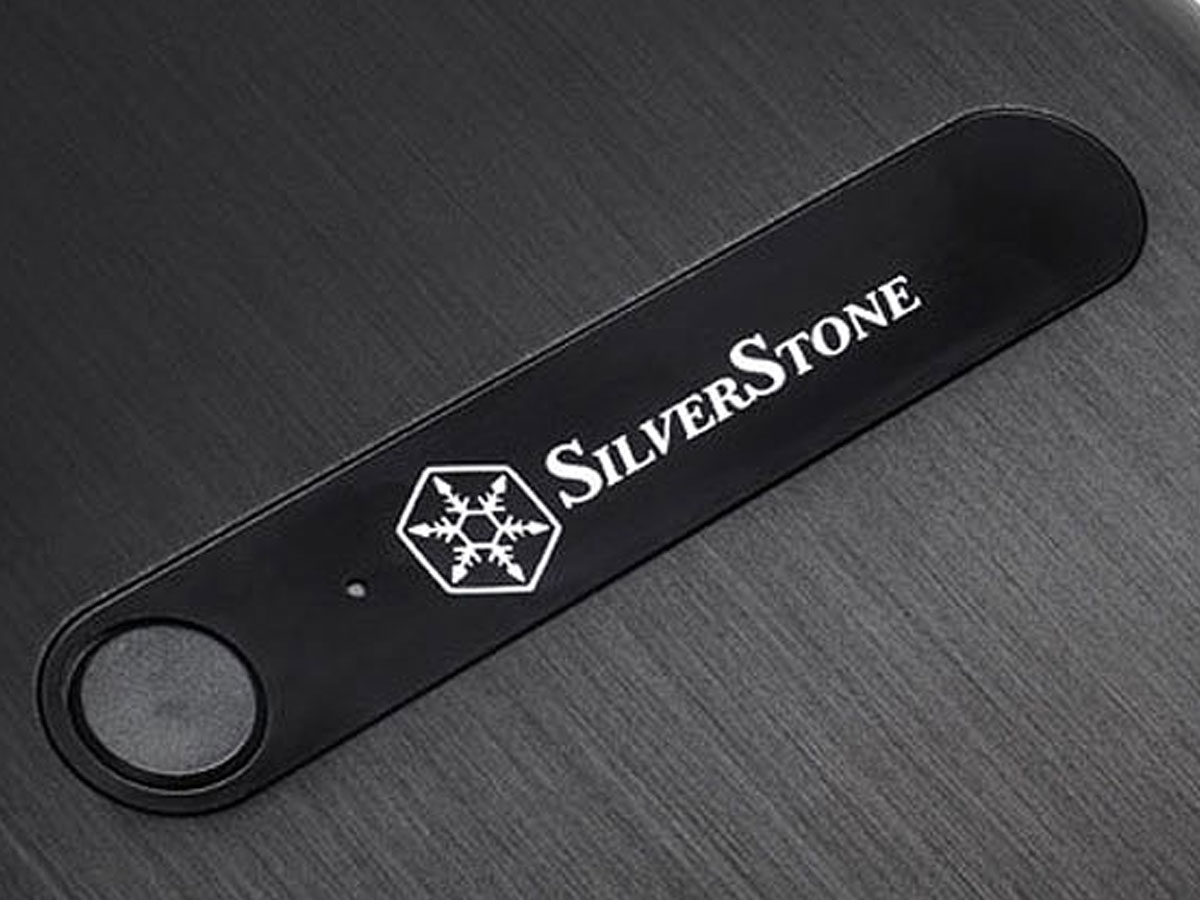

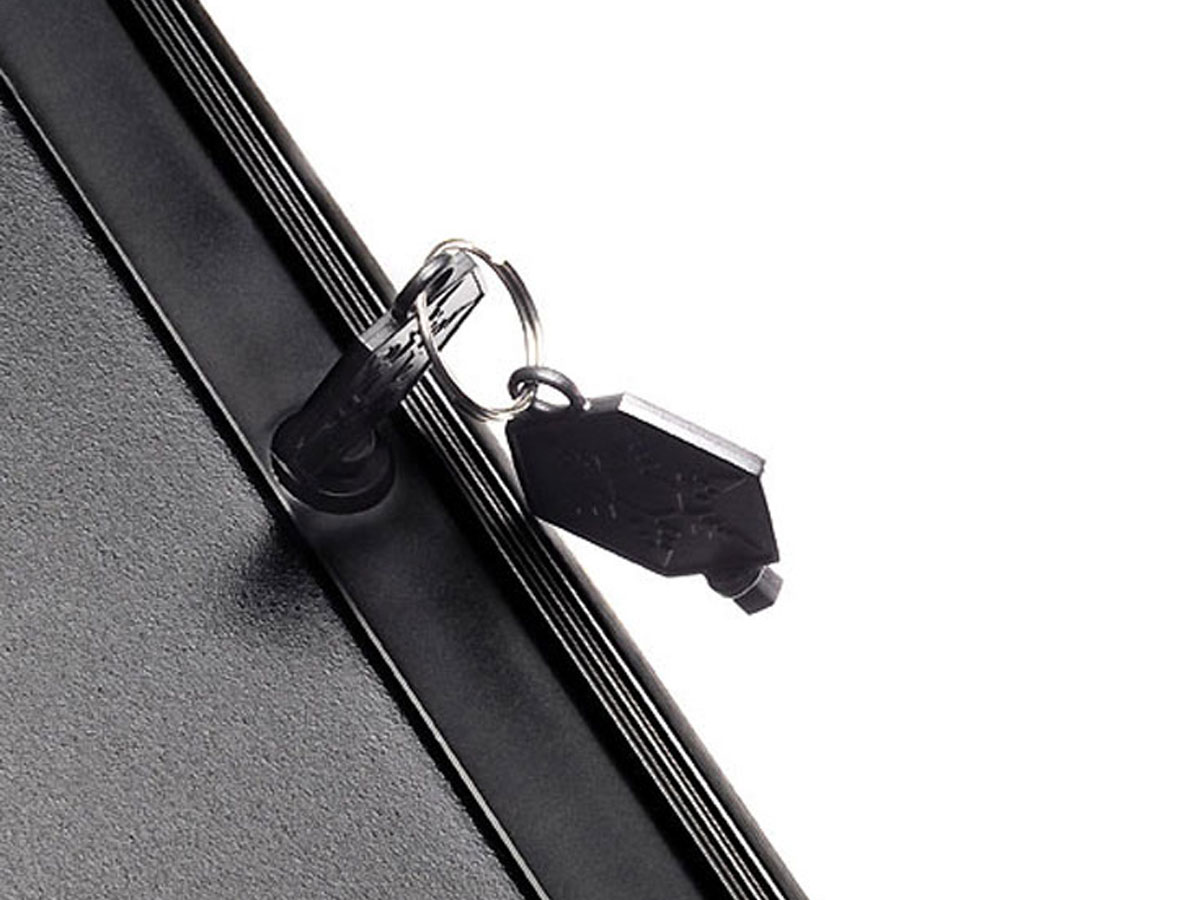

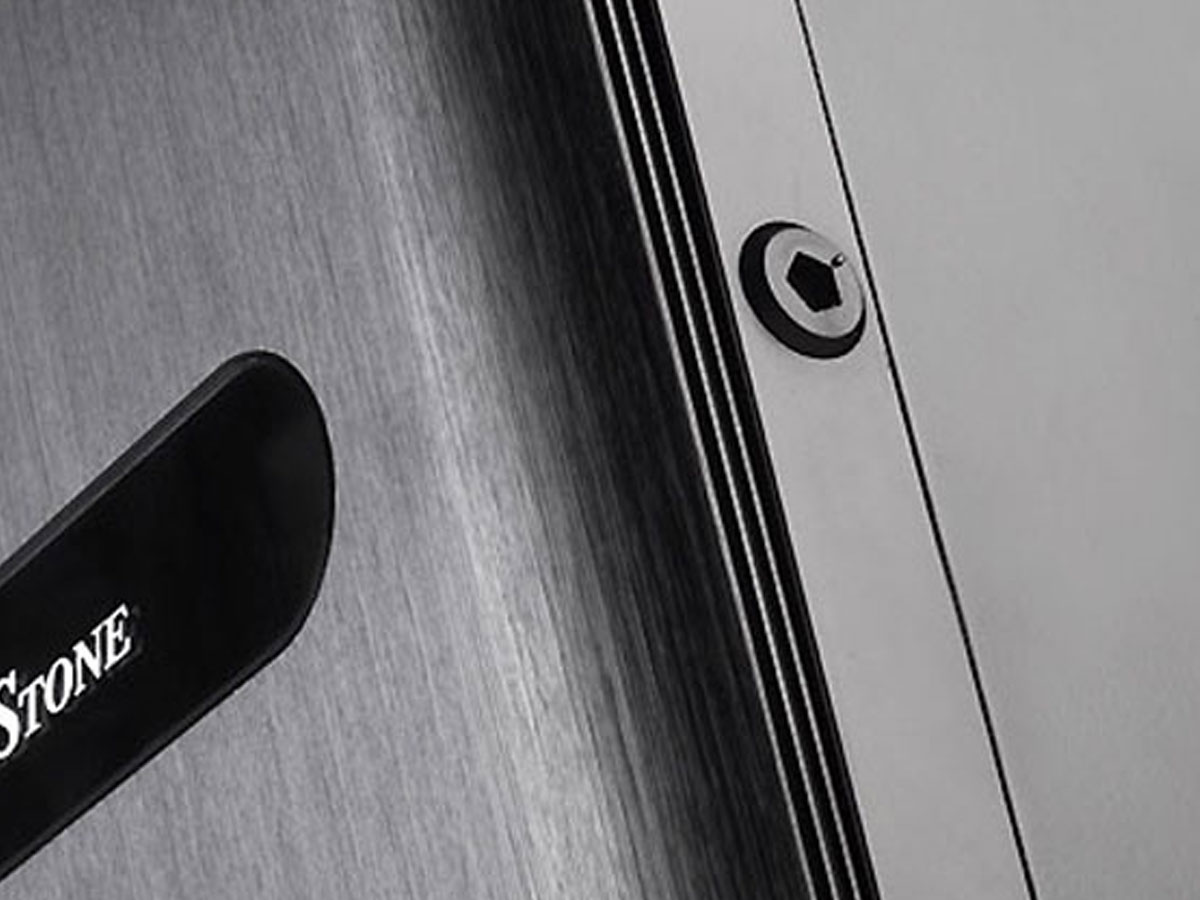

External Front Panel: Lockable front panel; Externally accessible Power Button with adjustable LED.

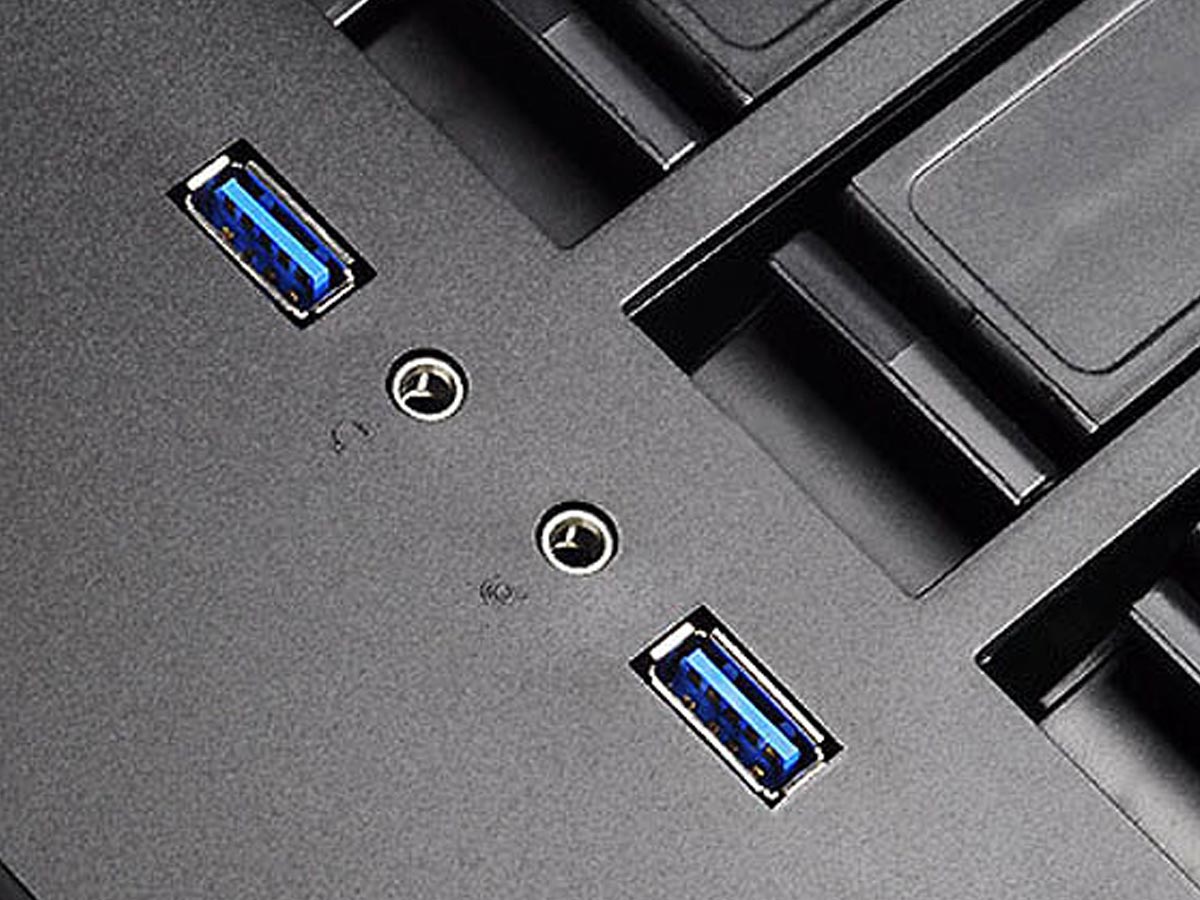

Internal Front Panel: 2x USB 3.0; 1x Audio; 1x Microphone; 8x Hot Swap drive bays.

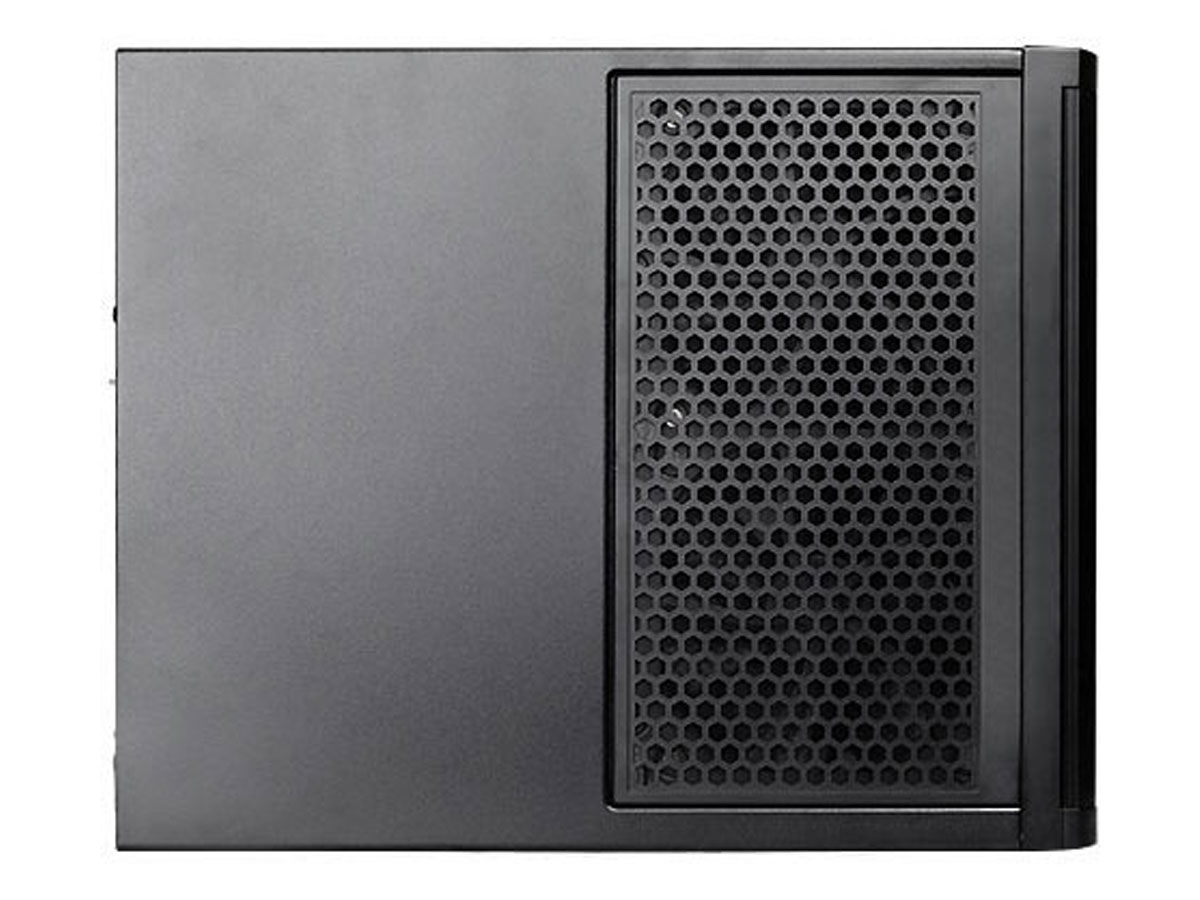

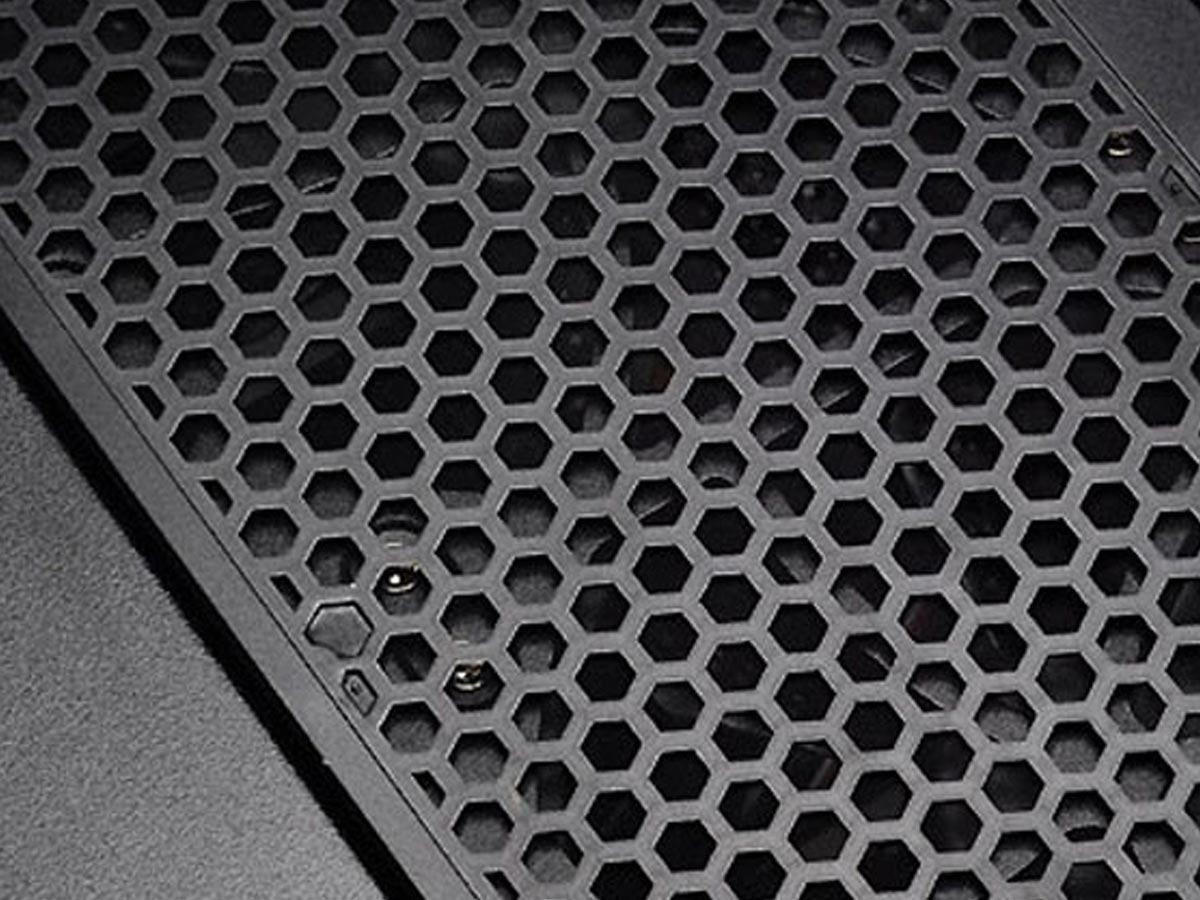

Side Panel: Vented Mesh Side Panel design for ventilation, filtering and heat dissipation.
Power supply: Not included - SFX and SFX-L Power Supplies up to 100mm deep supported.

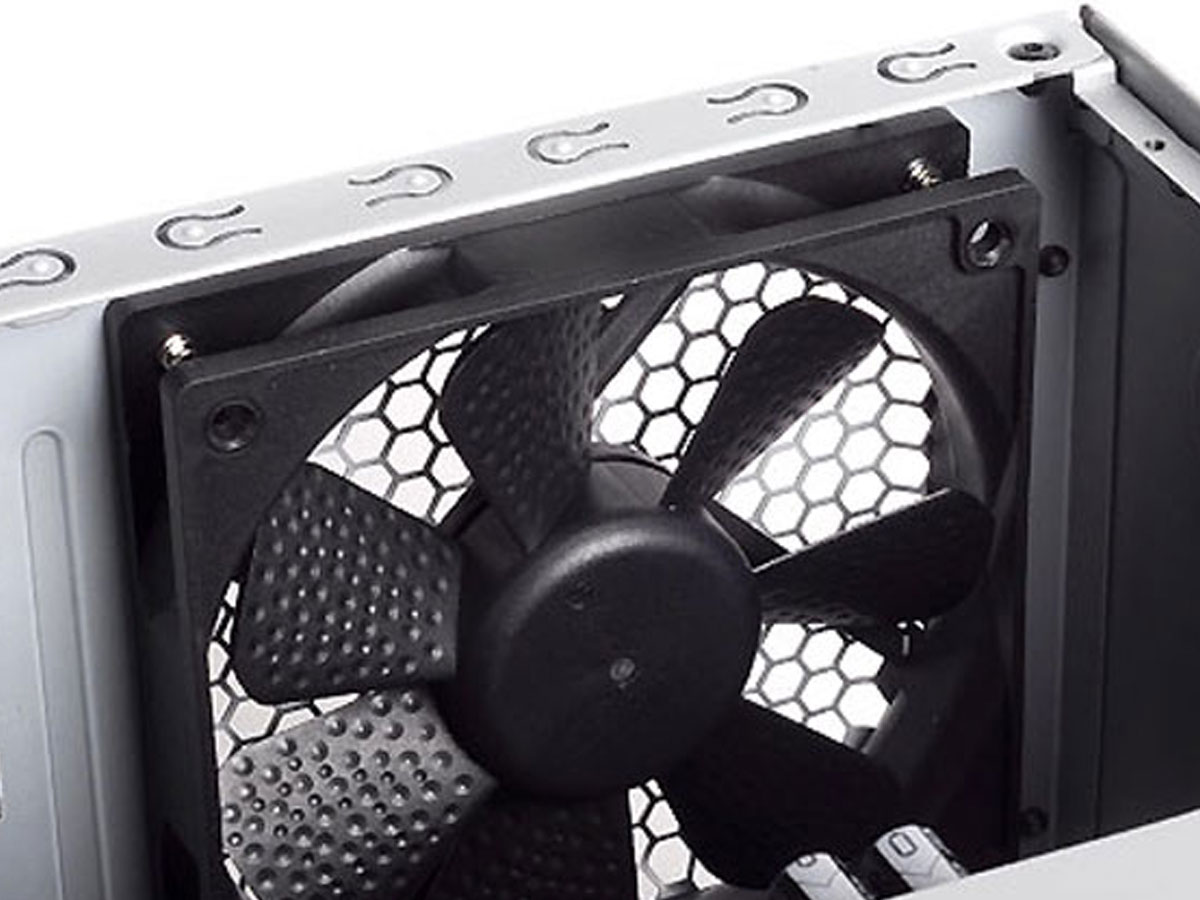

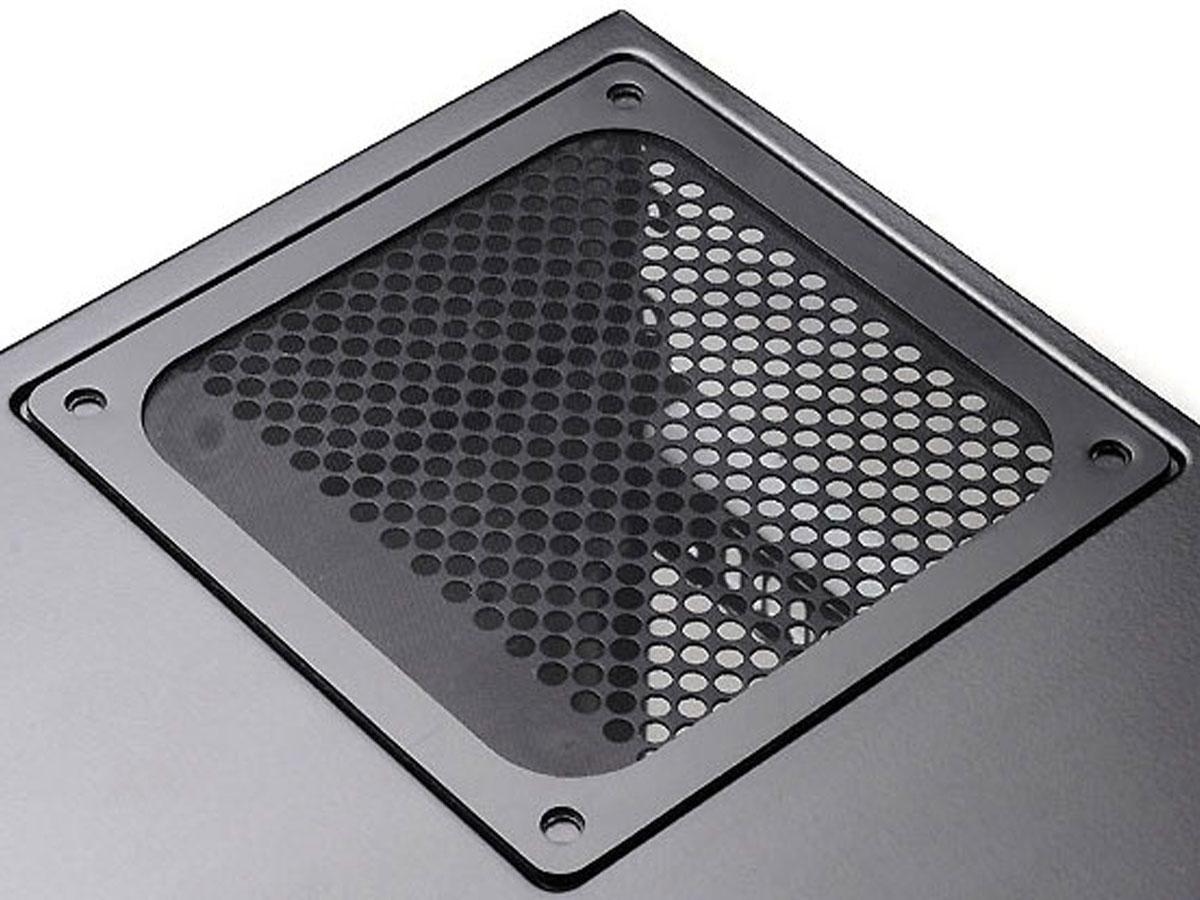

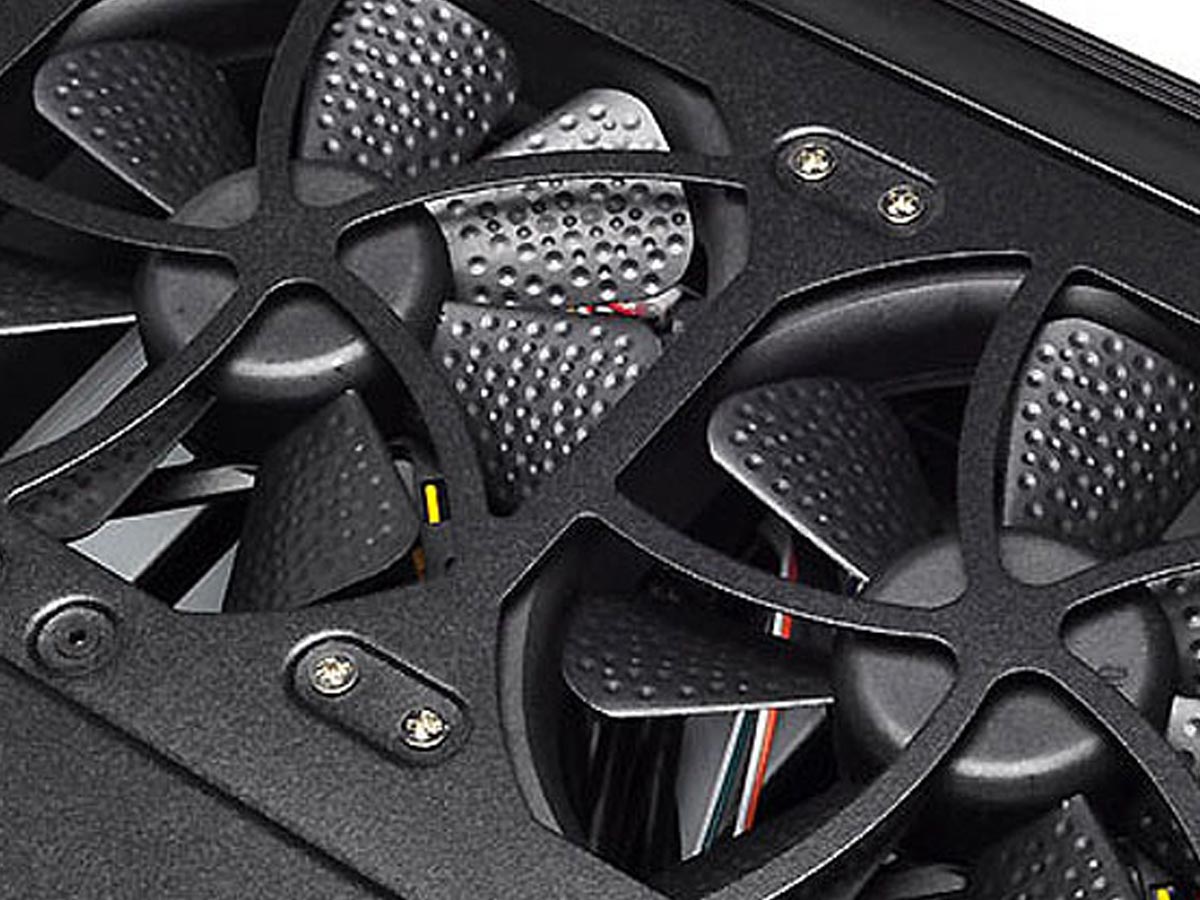

Cooling: 3x Internal 120mm 1200rpm 22dBA system fans are included (2x intake fans; 1x exhaust fan); Can accomodate an entry-level liquid CPU cooling system (can handle systems with CPU of 95W TDP or above); Externally removable (magnetic) filters on the top and side panels.

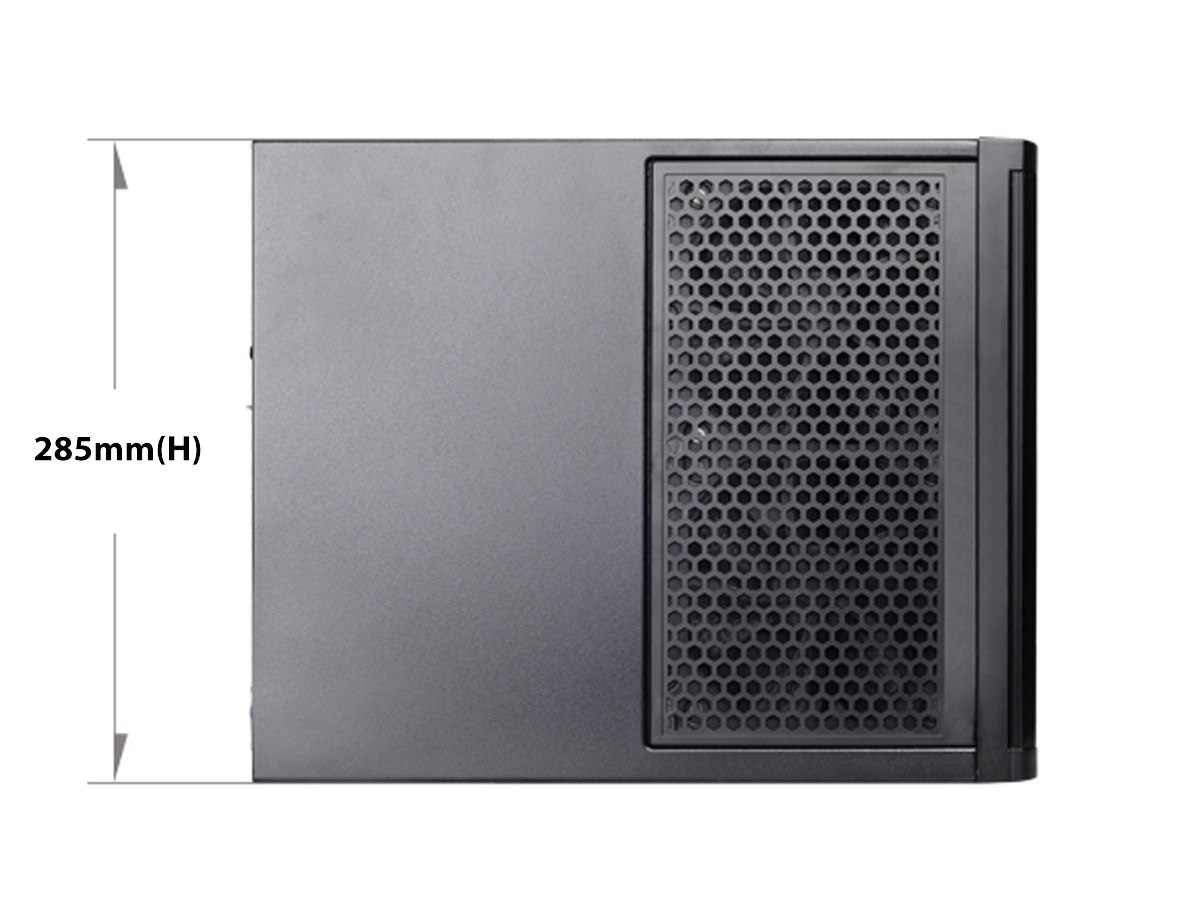

Measurements: 211mm(W) x 285mm (H) x 360mm (D) (8.31in x 11.22in x 21.6in). Volume: 21.6 litres.
Supported boards: All Mini-ITX boards (Embedded and Socket) will fit in this chassis. CPU coolers up to 57mm tall supported.
Alternative Heatsinks: CPU coolers up to 57mm in height are supported.
*Power supply not included: We have a selection of SFX power supplies available to use with this case, available in the 'you may also require' section to the left.
Specifications | ||
---|---|---|
Model | Silverstone DS380 | |
Case Type | NAS | |
Colour | Black | |
Expansion | ||
Slots | 2 | |
Max Length | 279mm | |
Max Width Card | Dual Slot | 111 |
Cooling | ||
Fans Supported | 1x 120mm | Rear |
2x 120mm | Side | |
CPU Cooler | 57mm | Max height |
I/O | ||
USB Connectors | 2 | |
2x USB 3.0 Type A | Front | |
Audio | 1x 3.5mm Mic
1x 3.5mm Headphone |
Front
Front |
Port Cut-Outs |
|
|
Power Supply | ||
Included | No | |
Form Factor | SFX SFX-L PSU supported | |
Dimensions | ||
W x D x H | 211 x 285 x 360 mm | |
Volume | 21.6 litres |
