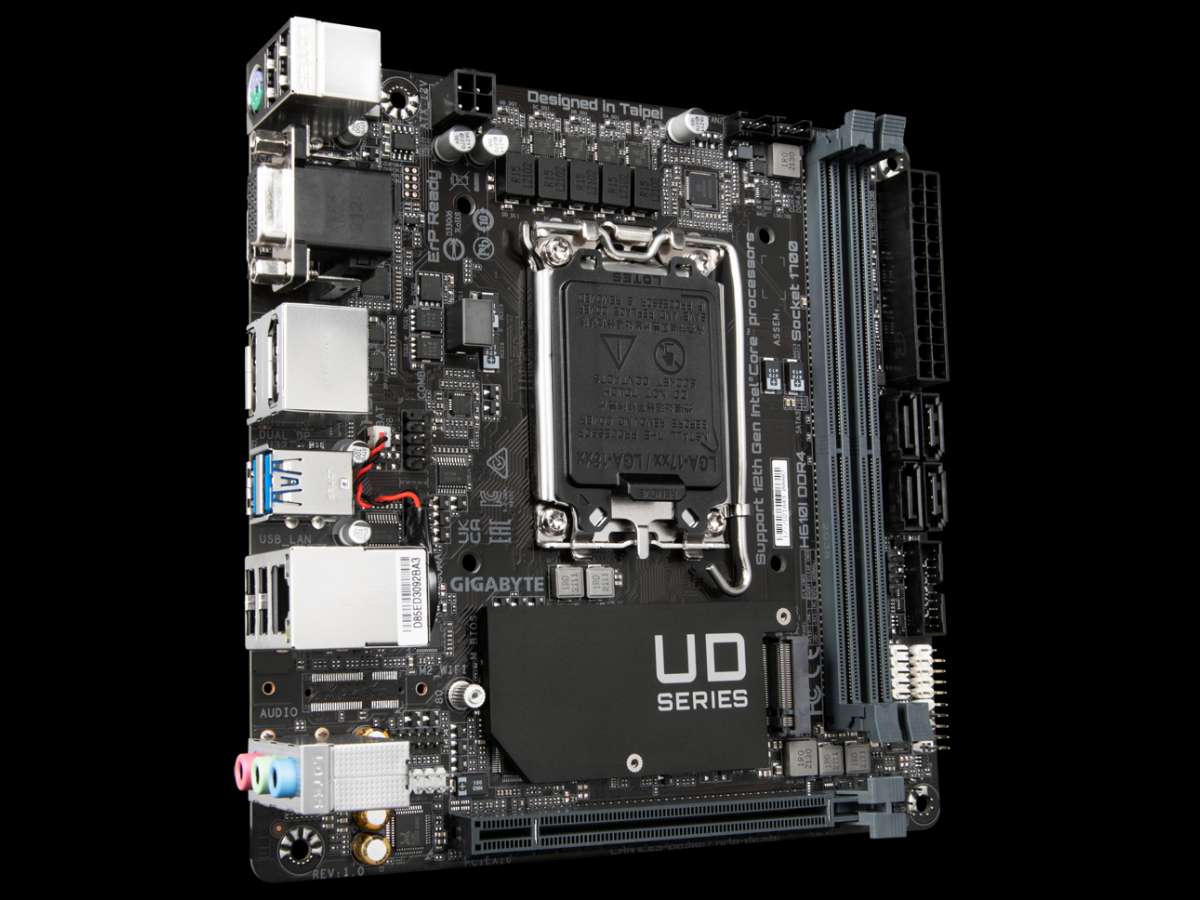

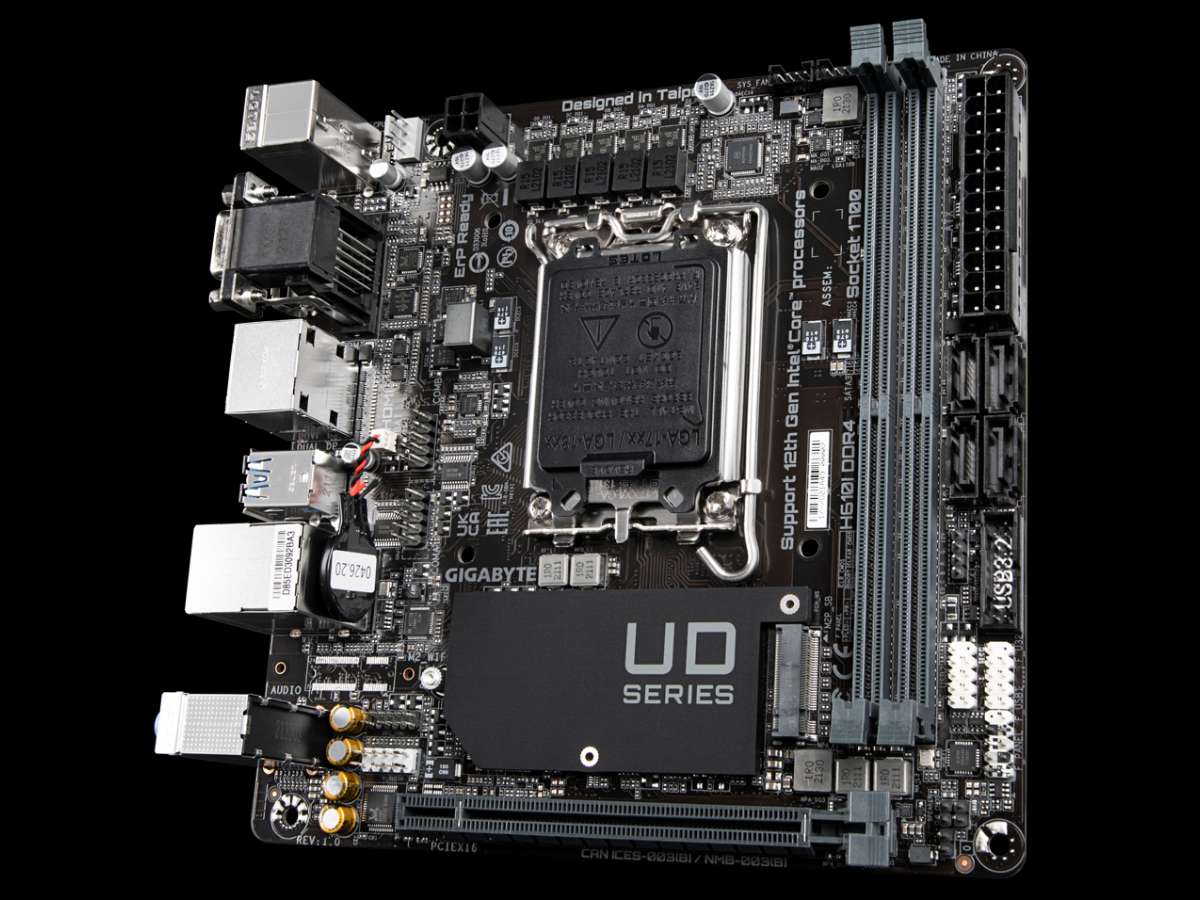

Gigabyte H610I DDR4 Mini-ITX board with 12th-14th* Gen Intel Core Support, Intel LAN, M.2, 4x SATA, HDMI, 2x DisplayPort, VGA, PCIe 4.0

Gigabyte H610I DDR4
£115.00
£138.00 inc. VAT
IN STOCK (Checked 10:50)
Lead time usually 3-5 days

Feature-packed Gigabyte H610I DDR4 Mini-ITX board with Intel H610 chipset supporting 12th-14th* Gen Intel Core processors (Socket 1700) and DDR4 memory up to 3200MHz.

Rear Panel Connectors: 4x USB 2.0 Type-A; 1x Combo PS/2 Keyboard/Mouse; 1x VGA (supports up to 1920x1080 @ 60Hz); 1x HDMI 2.0 (supports up to 4096x2160 @ 60Hz); 2x DisplayPort 1.2 (supports up to 4096x2304 @ 60Hz); 2x USB 3.2 Gen1 Type-A; 1x Intel Gigabit LAN Port (100/1000 Mb/s); 3x HD Audio Jacks: Line in, Front Speaker and Microphone.

Storage and Expansion: 4x SATA 6Gb/s; 1x Type 2280 M.2 slot (Supports PCI-E Gen3 x4 and x2); 1x PCI Express 4.0 x16 Slot.

Board Connectors: 24pin ATX Main Power connector; 1x 8pin 12V Power Connector (4pins can be used); 1x RGB LED strip Header; 3x Fan Connectors: 1x 4pin CPU, 2x 4pin System Fan; 1x Front Panel Audio Connector; 1x USB 2.0 Header (supports 2x USB 2.0 ports); 1x USB 3.2 Gen1 Header; 2x Serial (RS232) Headers.

Suitable Processors: The Gigabyte H610I DDR4 supports 12th-14th Gen Intel Core Socket LGA 1700 processors. The Gigabyte H610I DDR4 is not provided with a processor. Suitable processors are available in the 'you may also require' section to the left. If using an Intel processor without integrated graphics ('F' or 'KF' in model name) you will need a graphics card.

*14th Gen CPU Support: If using a 14th Gen processor, BIOS needs to be at version F28 or above. A 12th/13th Gen processor may be required to update the BIOS version, depending on the build date of your board.

Multiple Screens: This board Supports up to 3 displays simultaneously from its 2x DisplayPort, HDMI and VGA outputs.

Unique PCB Features: 4+1+1 Hybrid Phases Digital VRM Design, High Quality Audio Capacitors and Audio Noise Guard, Anti-Sulfur Resistors Design.

Suitable Cases: This board will fit in all our Mini-ITX chassis with an appropriate heatsink. Power Supply requirements will depend on the choice of processor, if Turbo mode is enabled in the BIOS, and if a PCI-E card is fitted.

1U Case compatibility: To use this board in a 1U case please use the Dynatron Q3 1U Side blower heatsink.

Windows Support: Windows 10 64-bit and Windows 11 64-bit are supported.

Downloads: BIOS, Documentation and Drivers.

Package Contents: 2x SATA Data Cables, 1x IO Shield; 1x Screw for M.2 Socket; 1x Quick Install Guide.

Unique Features: Software: Support for APP Center, Q-Flash and Xpress Install

Suitable Memory: The Gigabyte H610I DDR4 supports up to 3200MHz DDR4 memory up to 64GB in 2 slots (32GB per slot). The Gigabyte H610I DDR4 supports Intel Extreme Memory Profile (XMP). DDR4 is not compatible with other types of DDR memory. Fully tested DDR4 DIMMs are available in the 'you may also require' section to the left. ECC Memory is supported - but will run in non-ECC mode.

Specifications
Model ASRock H610I DDR4
Processor Socket Intel Socket 1700
Architecture Alder Lake
Chipset Intel H610
CPU Compatibility Intel 12th Gen, Intel 13th Gen, Intel 14th Gen
Cooling
Connectors 1x CPU Fan Connector 4-pin
2x System Fan Connector 4-pin
Graphics
Displays 3
Outputs 2x DisplayPort 1.2 4096x2304 @ 60Hz max res.
1x HDMI 2.0 4096x2160 @ 60Hz max res.
1x VGA 1920x1200 @ 60Hz max res.
Memory
Maximum 64GB
Sockets 2x DIMM
Type DDR4 2133MHz, 2400MHz, 2666MHz, 2933MHz, 3000MHz, 3200MHz
Storage
Ports 5
Type 1x M.2 (NVMe) 2280 Slot Board
4x SATA 6Gb/s
Network
LAN Ports 1
LAN 0: Intel i219-V 1Gbps
USB
Connectors 9
Types 4x USB 2.0 Type A Rear
2x USB 2.0 on pin header Board Pins
2x USB 3.2 Gen1 (5Gb/s) Type A Rear
1x USB 3.2 Gen1 (5Gb/s) on pin header Board Pins
Audio
Chipset Realtek Chipset Supports 8 Channel audio
Connectors 1x 3.5mm Mic
1x 3.5mm Front Speaker
1x 3.5mm Line In
Expansion
PCI-Express 1x PCI Express 4.0 x16
M.2 WiFi 1x M.2 Type-E 2230 slot for WiFi/BT Populated by Intel 802.11ac / BT 4.2 Module
Serial Ports
2x Serial Port on board header RS232
Other I/O Ports
PS/2 Keyboard/Mouse Port
Power
24-pin ATX power connector
8-pin ATX +12V power connector
Additional Board Headers
Audio Header
Front Panel Audio Connector
OS Support
Windows 10 64-bit
Windows 11 64-bit
