Jetway JBC368 Fanless Mini PC with Low Z-Height, Wide DC Input, Wide Temperature Operation, 3x 4K DisplayPort, 4x USB, 2x LAN, M.2 Storage, Optional WiFi and WWAN, Up to 32GB DDR4
| Jetway JBC368 Fanless Mini PC with Dual LAN, Wide DC, Wide Temperature Range | |
| £294.00 inc. VAT | |
| IN STOCK (Checked 20:32) |
Choose everything you need at once, or we can build and install for you:
Tiny and Fanless Jetway JBC368 Barebones Mini PC with Intel Celeron N6210 2C2T processor, 2x Gigabit LAN, 3x 4K DisplayPort, 4x USB, M.2 Type-E, M.2 WWAN with SIM Slot and Wall/DIN mounting bracket included. Barebones unit - simply add a stick of DDR4 SODIMM memory and a M.2 storage drive to complete the internals of the JBC368.
The JBC368 is powered by a 1.6GHz (2.6GHz Burst) 2C2T N6210 Celeron processor with Intel UHD Graphics. Stylish metal construction with external AC Adapter.
Storage & Expansion: 1x Type 2242/2280 PCIe 3.0 x2/SATA storage slot. For maximum storage performance, use a PCIe (NVMe) drive; 1x Type 2230 M.2 Slot for optional WiFi (4x antenna positions on side of chassis); 1x Type 3042 M.2 B-key USB3.0 WWAN interface and SIM Card Slot.
Memory: 1x 260-pin socket supports up to 32GB DDR43200MHz SODIMM.

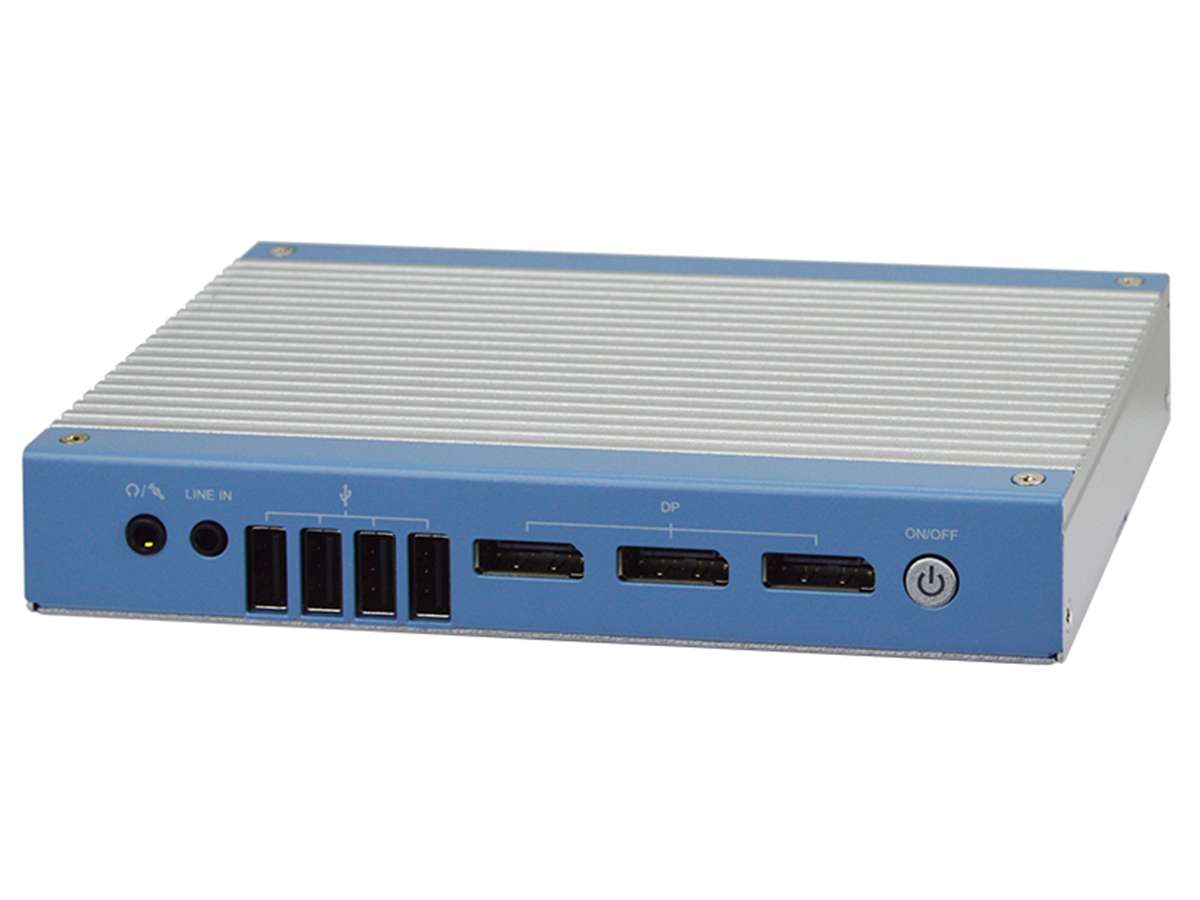

Front Panel: 3.5mm Line-out/MIC-in Jack; 3.5mm Line-in Jack; 4x USB 2.0 Type-A; 3x DisplayPort (up to 4096x2160 @ 60Hz); Combined Power switch & Power LED.

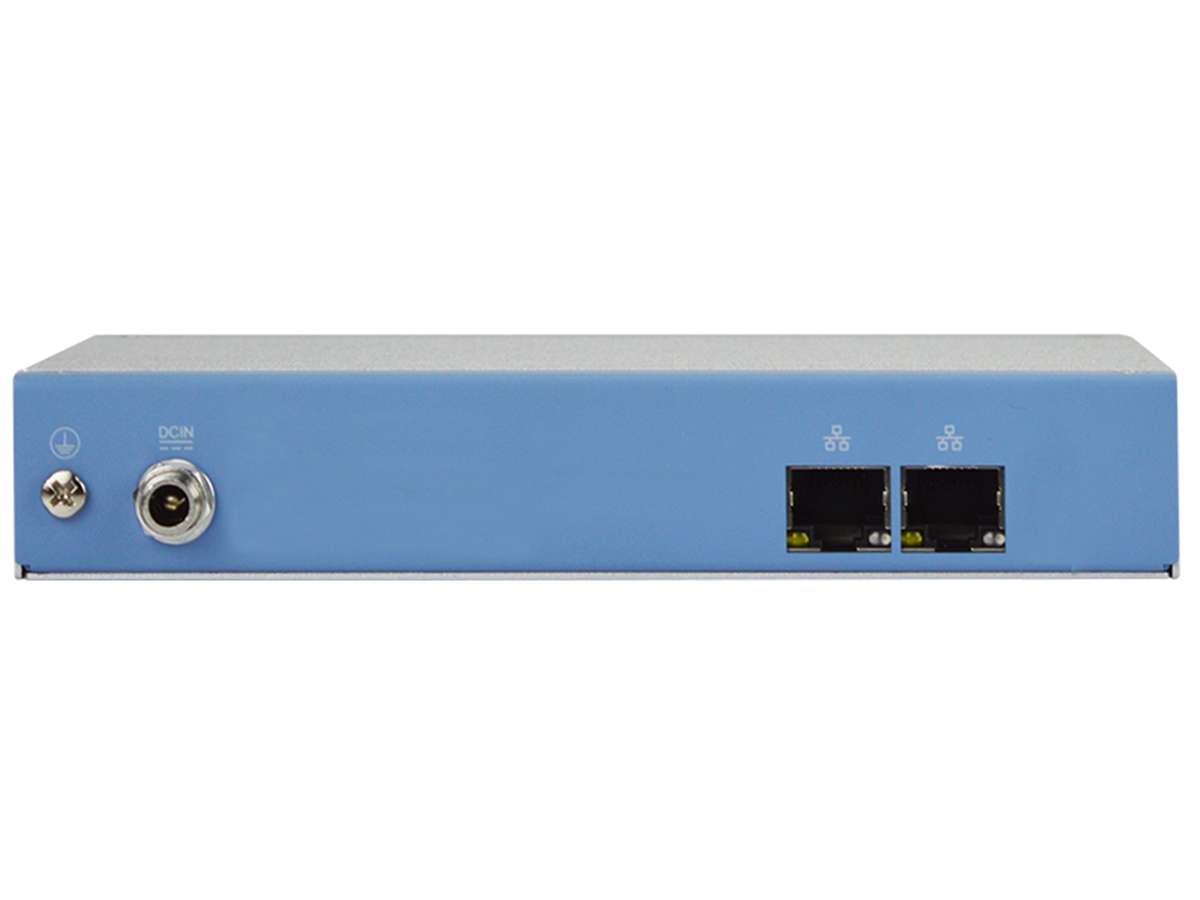

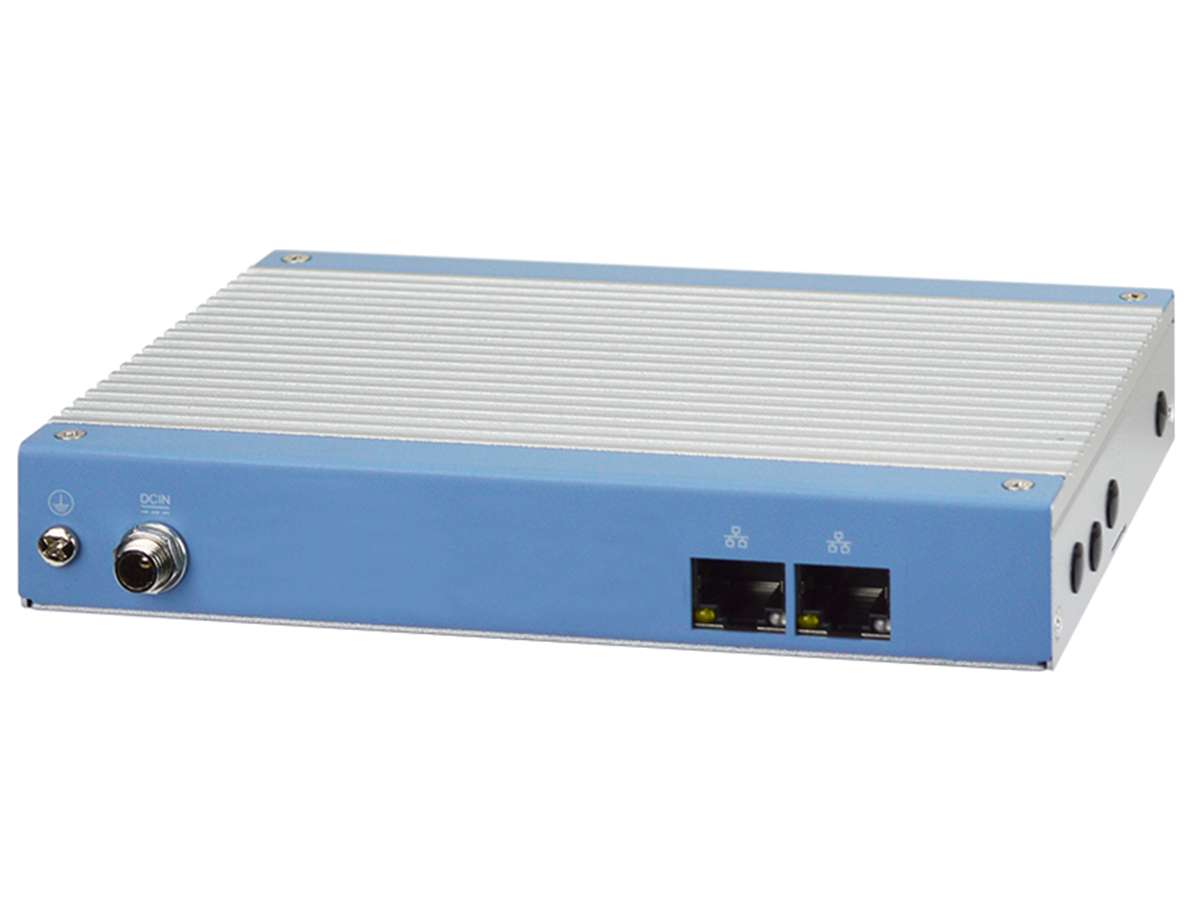

Rear Panel: 12-36V Wide Input DC power socket (connects to supplied 40W 12V AC Adapter); 2x Realtek RTL8119I Gigabit RJ45 Ethernet Ports.

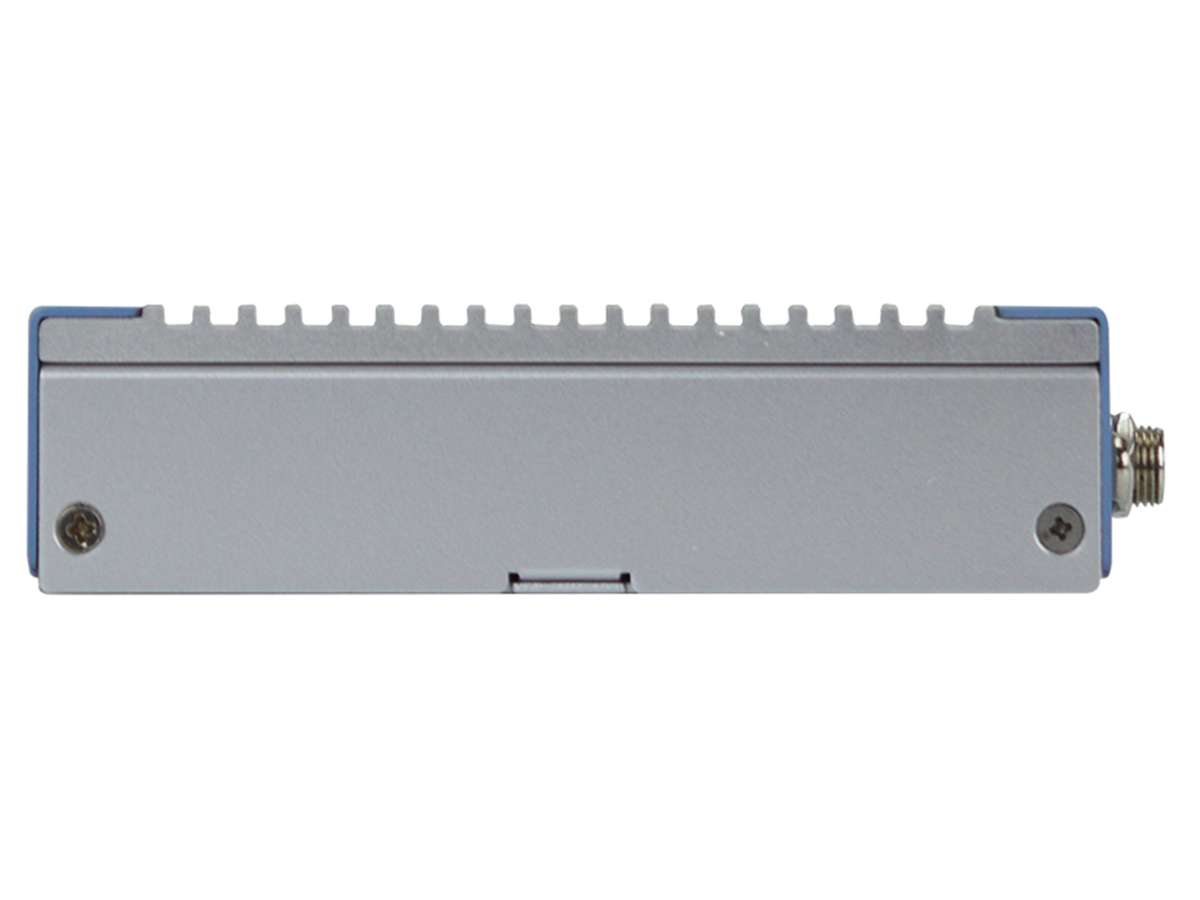

Side: Blanking plates for 4x Antenna connections.
Wide Temperature Operation: The JBC368 is a fanless device with integrated heatsink fins on the top of the chassis. The JBC368 can be operated in temperatures of -20C to 60C with appropriate airflow and can be stored in temperatures of -40C to 85C.
3 Graphics Outputs: The JBC368 has 3x 4K DisplayPort outputs, which can all display independently.
Power Supply: Universal 100-240V External 40W AC Adapter with UK power cord connects to 12-36V Wide Input DC power socket.
Accessories: AC Adapter; UK Power Cord (other power cords available); Screw pack; Wall Mount Kit; DIN Rail Mount Kit.
OS Compatibility: 64-bit drivers available for Windows 10 and 11. Modern Linux distributions run very well on the JBC368. Ideally suited for pfSense usage due to hardware AES-NI support.
WiFi: Wireless support can be added through an optional Type 2230 M.2 card, pigtails and antenna. Suitable kits are available in the related items section, or the configure system page.

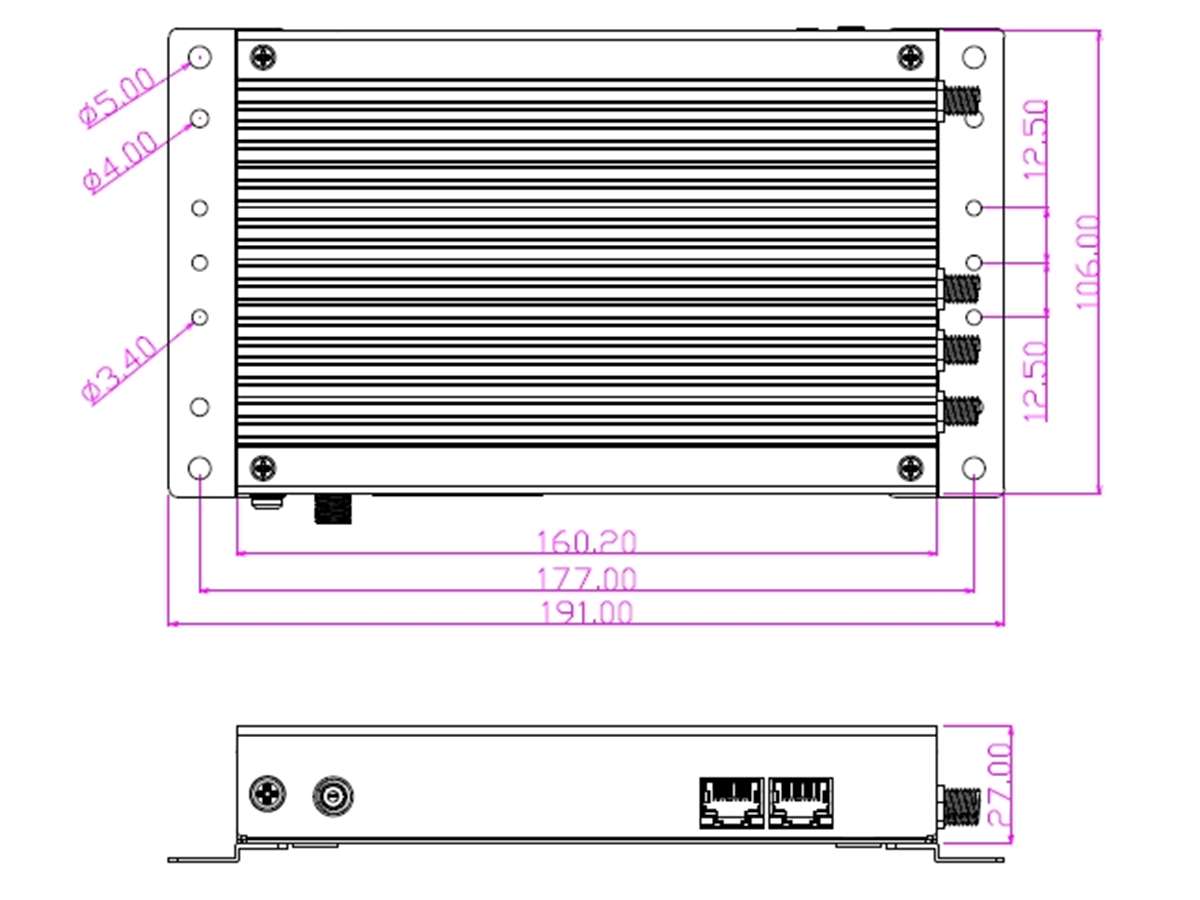

Measurements: 160.2 x 27 x 106 mm / 6.31 x 1.06 x 4.17in (W x H x D); Volume: 0.458 litres.
Drivers and Manual: Quick Install Guide; Motherboard Manual; Windows 10 Drivers: Chipset, Graphics, Audio, LAN, SIO; ME, WiFi (card required); Windows 11 Drivers: Chipset, Graphics, Audio, LAN, SIO; ME, WiFi (card required).
*Note: The JBC368 supports up to 32GB DDR4 memory on a DDR4 SODIMM. This is not compatible with DDR, DDR2 or DDR3 SODIMM memory.
| Specifications | ||
|---|---|---|
| Model | Jetway JBC368 | |
| Processor | Intel N6210 2C2T, 1.2GHz up to 2.6GHz | |
| Architecture | Elkhart Lake | |
| Cooling | ||
| Fanless | Yes | |
| Memory | ||
| Maximum | 32GB | |
| Socket | 1x SODIMM | |
| Type | DDR4 | 3200MHz |
| Graphics | ||
| Displays | 3 | |
| Outputs | 3x DisplayPort (1.4) | 4096 x2304 @ 60Hz max res. |
| Audio | ||
| Connectors | 1x 3.5mm Line In | (Front) (Front) |
| Storage | ||
| Bays | 1 | |
| Type | 1x M.2 (NVMe/SATA) 2242/2280 Slot | |
| Network | ||
| LAN Ports | 2 | |
| LAN 0: | Realtek RTL8119I 1Gbps | |
| LAN 1: | Realtek RTL8119I 1Gbps | |
| USB | ||
| Connectors | 4 | |
| Type | 4x USB 2.0 Type A | (Front) |
| Expansion | ||
| M.2 WiFi | 1x M.2 Type 3042/3052 B-key slot for 4G/5G WWAN | Unpopulated |
| 1x M.2 Type-E 2230 slot for WiFi/BT | Unpopulated | |
| Board Headers | ||
| SIM Card Slot, used in combination with WWAN card | ||
| Power Supply | ||
| Type | External | |
| Input | 100-240 AC | C14 Power Connector |
| Output | 12V DC | |
| Power | 40W | |
| Power Input Range | ||
| Minimum | 12 V | |
| Maximum | 36 V | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 10 64-bit
Windows 11 64-bit Linux |
|
| Dimensions | ||
| W x D x H | 160.2 x 106 x 27 mm | |
| Volume | 0.458 litres | |
