Jetway JBC420R Pico-ITX Form Factor PC with Intel J3455 Quad Core CPU with AES-NI, mSATA and Dual LAN
| Jetway JBC420R Fanless J3455 Dual LAN Pico-ITX PC | |
| £294.00 inc. VAT | |
| IN STOCK (Checked 01:11) |
Fully Assembled Systems and DIY Kits:

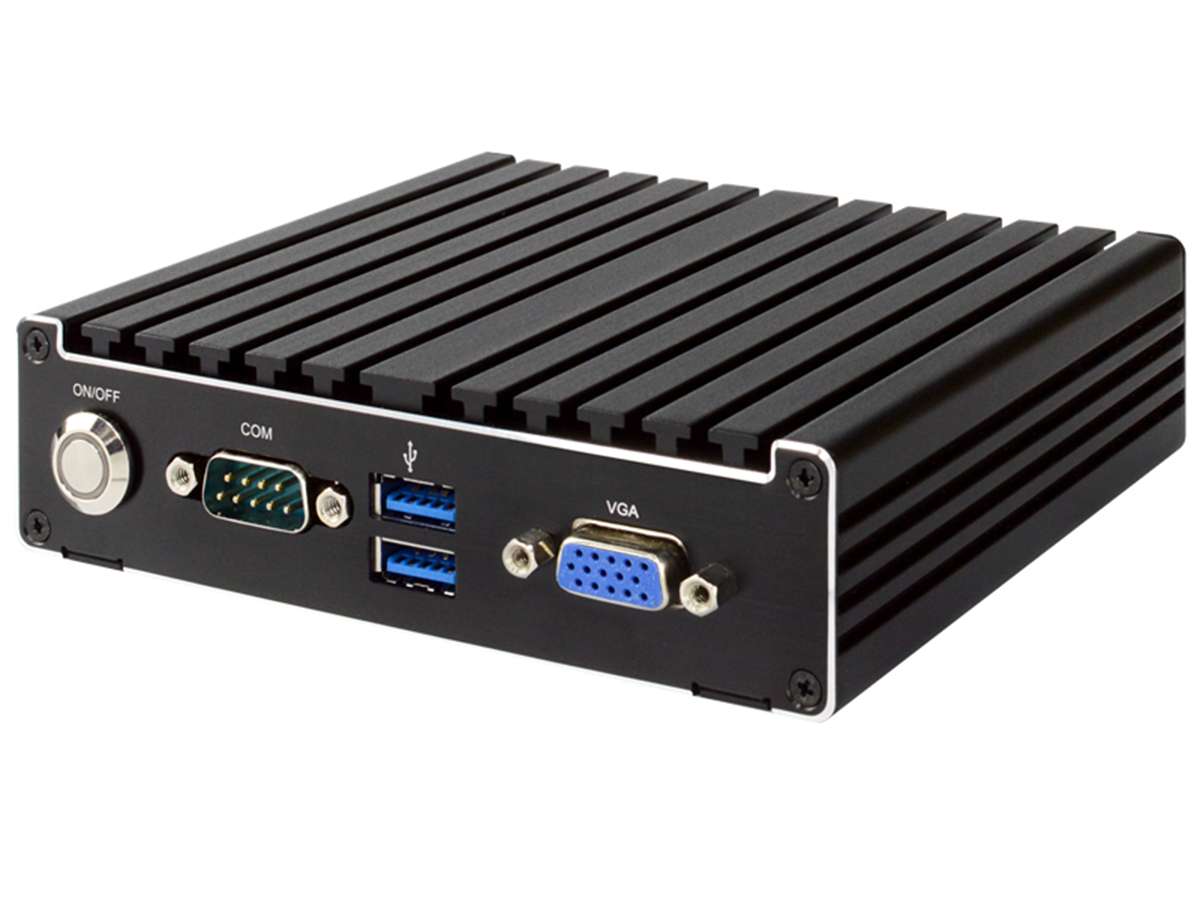

Tiny and Fanless Jetway JBC420R Barebones Pico-ITX Form Factor PC with Intel Celeron J3455 Quad Core processor with AES-NI, 2x Gigabit LAN, 2x HDMI, VGA, 4x USB 3.0, RS232/422/485 Serial Port, SIM Card Slot and Wall/VESA/DIN mounting bracket included. Barebones unit - simply add a stick of DDR3L SODIMM memory and an mSATA drive to complete the internals of the JBC420R.
The JBC420R is powered by a 1.5GHz (2.3GHz Burst) Quad Core J3455 Celeron processor with Intel HD Graphics 500 on a 100mm x 72mm Pico-ITX Form Factor motherboard. Stylish solid aluminium construction with external AC Adapter.
Bays: 1x Full Size mSATA drive slot; 1x Half Size Mini-PCI Express Slot; 1x Full Size SIM Card Slot. If you require 2.5in support, consider the JBC323-345.
Memory: 1x 204-pin socket supports up to 8GB DDR3L 1.35V SODIMM.

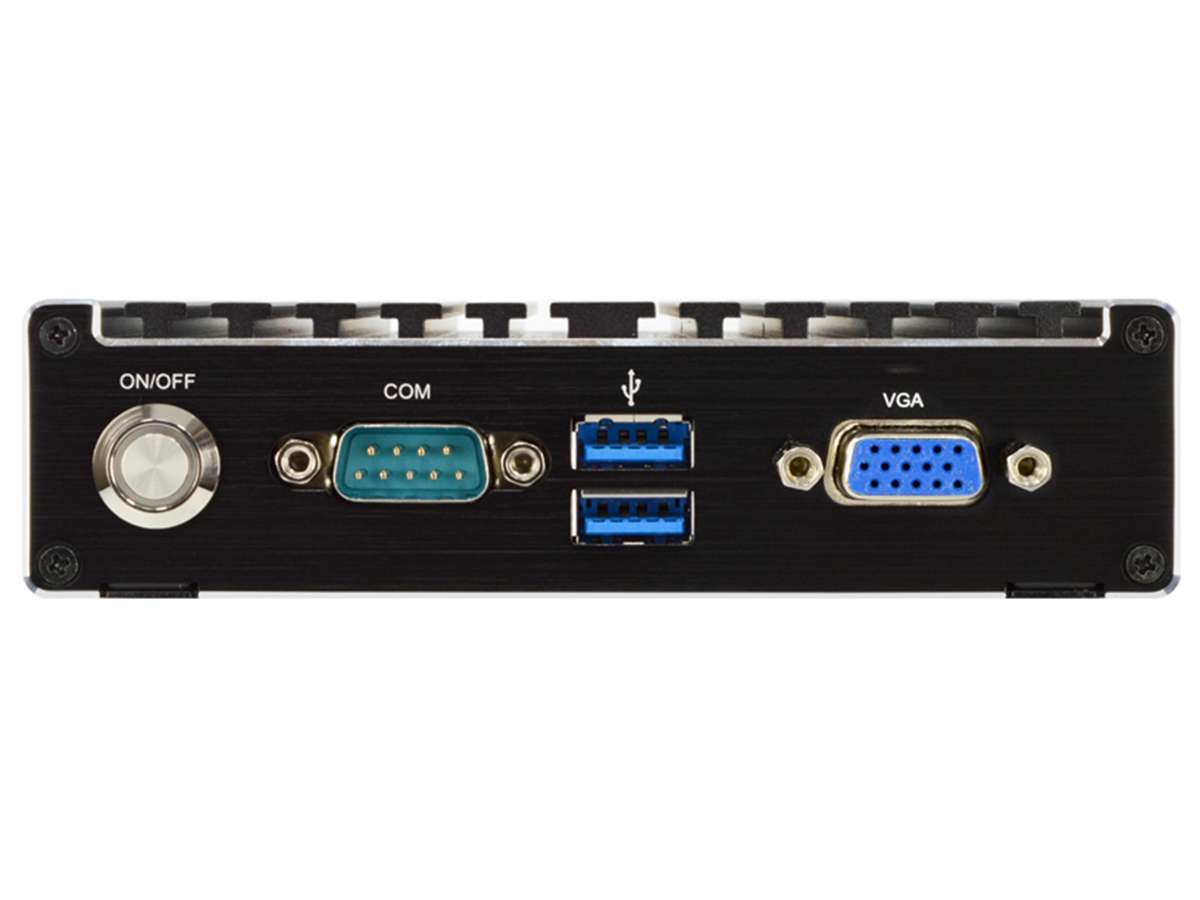

Front Panel: Combined Power switch & Power LED; RS232/422/485 Serial Port;2x USB 3.0 Type-A; 1x VGA (up to 1920x1080 @ 60Hz)

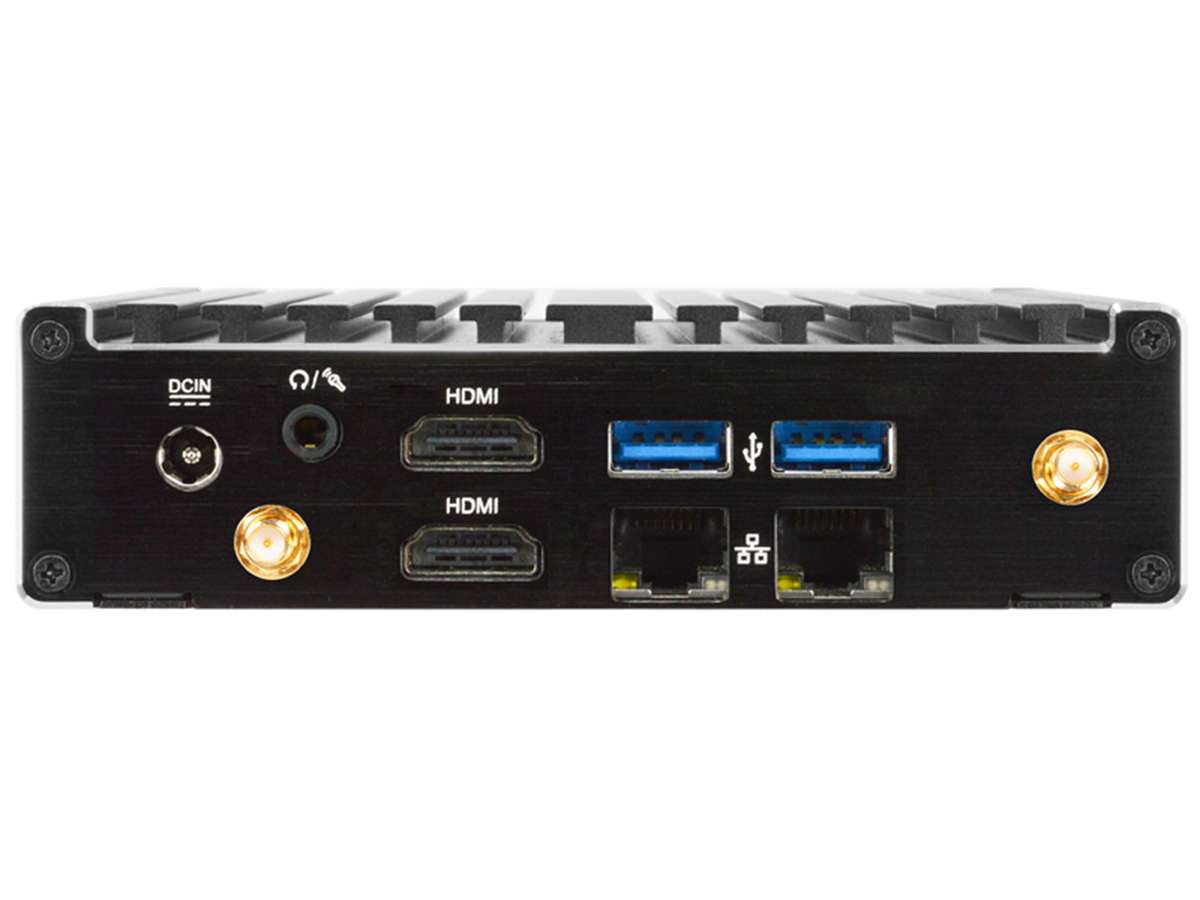

Rear Panel: 12V power socket (connects to supplied 40W AC Adapter); Combined 3.5mm Audio Line Out and Mic In; 2x HDMI (up to 3840x2160 @ 30Hz); 2x USB 3.0 Type-A; 2x Realtek RTL8111H Gigabit Ethernet; Blanking plates for 2x Antenna connections.
Cooling: The JBC420R is a fanless device with integrated heatsink fins on the top and sides of the chassis and optional cooling vents on the rear. The JBC420R can be operated in temperatures of 0C to 40C with appropriate airflow and can be stored in temperatures of -20C to 80C.
3 Graphics Outputs: The JBC420R has 2x HDMI and 1x VGA outputs, which can all display independently.
Power supply: Universal 100-240V External 36W AC Adapter with UK power cord connects to 12V power socket.
Accessories: AC Adapter; UK Power Cord (other power cords available); Screw pack; Wall & VESA & DIN Mounting kit; DIN Rail clip.
OS Compatibility: 64-bit drivers available for Windows 10. Modern Linux distributions run very well on the JBC420R. Ideally suited for pfSense usage due to hardware AES-NI support.
WiFi: Wireless support can be added through an optional Mini PCI-E card, pigtails and antenna. Suitable kits are available in the related items section, or the configure system page.
Measurements: 129 x 34 x 109 mm / 5.08 x 1.14 x 4.29in (W x H x D); Volume: 0.48 litres.
Drivers and Manual: Quick Install Guide; Manual; Windows 10 Drivers Chipset, Graphics, Audio, LAN, ISH; TXE, iRMT; Serial IO, WiFi (card required)
*Note: The JBC420R supports up to 8GB DDR3L memory on a 1.35V DDR3L SODIMM. This is not compatible with DDR, DDR2 or standard DDR3 SODIMM memory.
| Specifications | ||
|---|---|---|
| Model | Jetway JBC420R | |
| Processor | Intel J3455 Quad Core, 1.50GHz up to 2.30GHz | |
| Architecture | Braswell | |
| Cooling | ||
| Fanless | Yes | |
| Memory | ||
| Maximum | 8GB | |
| Socket | 1x SODIMM | |
| Type | DDR3L | 1866MHz, 1600MHz, 1333MHz |
| Graphics | ||
| Displays | 3 | |
| Outputs | 1x HDMI | 3840x2160 @ 30Hz max res. |
| 1x HDMI | 3840x2160 @ 30Hz max res. | |
| 1x VGA | 1920x1080 @ 60Hz max res. | |
| Audio | ||
| Connectors | 1x 3.5mm Mic/Headphone Jack | (Front) |
| Storage | ||
| Bays | 1 | |
| Type | 1x mSATA slot | Full Length |
| Network | ||
| LAN Ports | 2 | |
| LAN 0: | Realtek RTL8111H | |
| LAN 1: | Realtek RTL8111H | |
| USB | ||
| Connectors | 4 | |
| Type | 2x USB 3.0 Type A | (Front) |
| 2x USB 3.0 Type A | (Rear) | |
| Expansion | ||
| Mini PCI-Express | 1x Mini PCI-E | Half Length |
| Power Supply | ||
| Type | External | |
| Input | 100-240 AC | C14 Power Connector |
| Output | 12V DC | |
| Power | 40W | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 10 64-bit
Linux |
|
| Dimensions | ||
| W x D x H | 129 x 109 x 34 mm | |
| Volume | 0.48 litres | |
