Jetway JNF9HG-2930 Long Life Fanless 1.83GHz Quad Core Celeron Thin-ITX Board with 12V DC Input, SIM Slot and 4x Intel LAN

Jetway JNF9HG-2930
£169.00
£202.80 inc. VAT
IN STOCK (Checked 09:22)

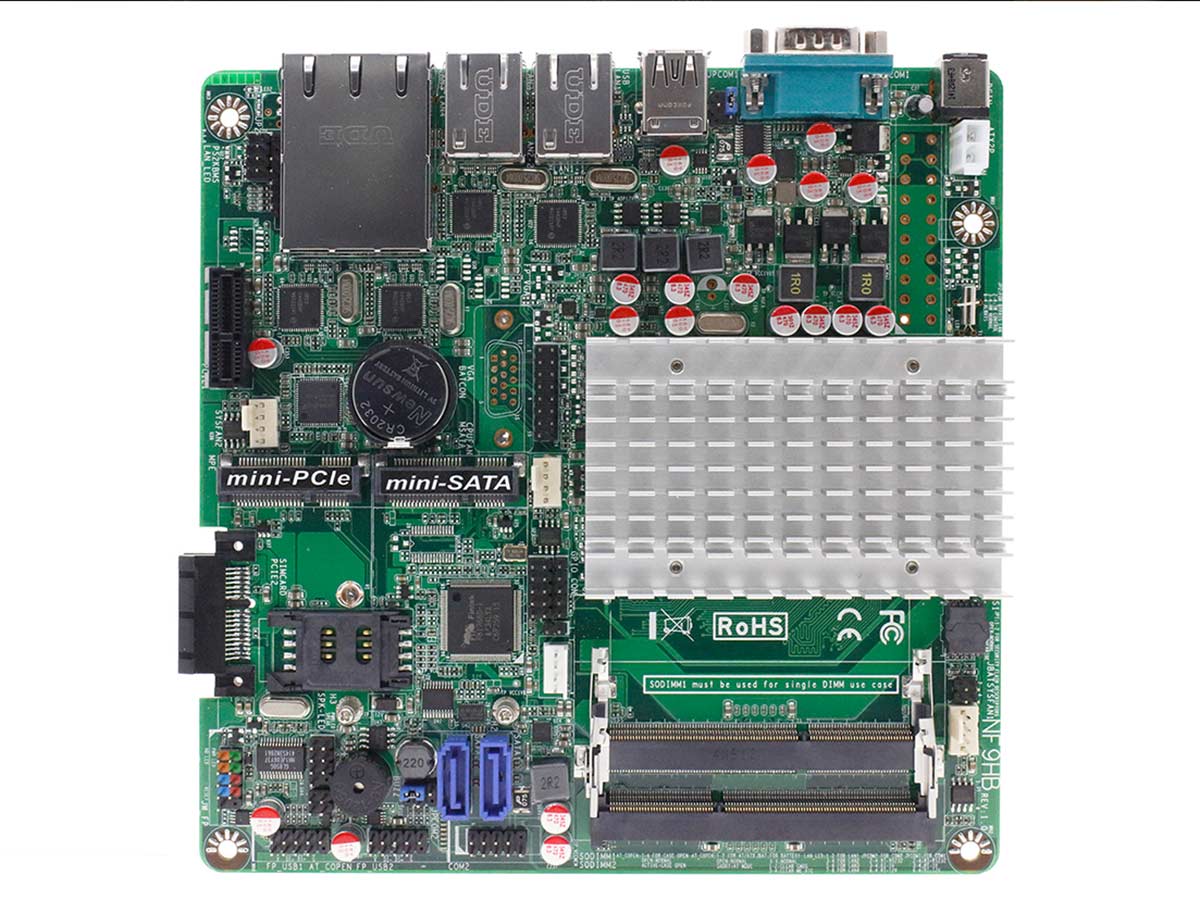

Long-life cycle board with ultra-low profile form factor (20mm high). Fanless 1.83GHz Intel Quad Core N2930 Bay Trail-M processor and integrated 313MHz - 854MHz Intel HD Graphics. 4x Intel i211AT Gigabit Ethernet Ports. Up to 16GB of system memory supported on 2x 8GB DDR3L SODIMMs. mSATA, PCI Express x1, SIM Card and Mini PCI-E Slots.

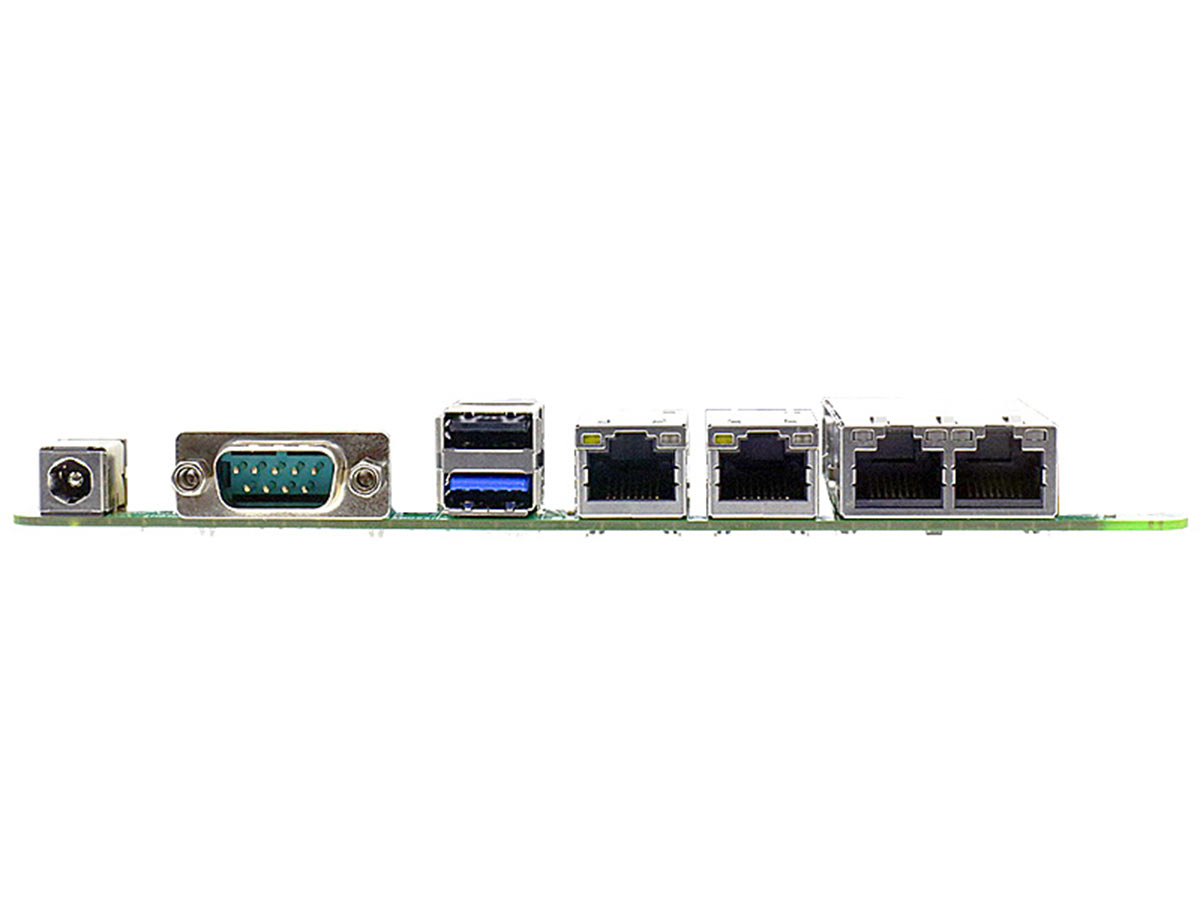

Rear Panel Connectors: 12V regulated DC Input, 1x Serial Port (RS232/422/485); 1 USB 2.0 Port; 1x USB 3.0 Port; 4x Intel i211AT Gigabit Ethernet.

Graphics and Audio: A standard DB9 VGA connector on a header cable is provided which can be connected to a cutout on the full size IO shield or to the case directly in some instances (e.g. M5X, M5XP, C146). There is no audio output on this motherboard.

Board Connectors: 1x VGA Header (VGA connector on cable provided); 1x 2pin 12V alternate power connector (cannot be used at the same time as the external DC input); 1x 4pin Power out (male, cable provided); 2x DDR3L SODIMM Sockets; 1x PCI-Express x1; 1x Full Mini PCI-Express (Full and Half Length, no adapter required); 2x SATA 3Gb/s; 1x Full mSATA (shared with 1x SATA port); 1x RS232 Serial header; 4x USB 2.0 headers on 2x 9pin connectors; 1x SIM Card Holder (suitable Mini PCI-E Card required); 1x 8-bit GPIO; 4x 2-pin LAN LED Headers; 3x 4-pin Fan Headers; 1x 2pin S/PDIF header; 1x 5pin SMBUS (i2C) header; 1x 9-pin Front Panel Header; 1x 9-pin Audio; 1x 7-pin PS/2 Keyboard/Mouse header. Edge connector at side of board for expansion (suitable enclosure required).

Important! This board has a 12V DC Power input and is not designed for use with a standard ATX PSU: The JNF9HG-2930 requires a 12V AC Adapter to power the board at the rear and feeds power to up to 2 other SATA devices through an on-board 4pin power output connector. There is an alternate 12V input on a 2pin Molex 5566-2 connector which can also be used (though not at the same time as the rear input). We sell several enclosures without power supplies, or you can bypass the PSU on any other compatible Mini-ITX case. 80W is enough to power 3x HDDs or Slimline Optical Drives, but we do not recommend powering a full size optical drive.

Powering devices: An internal 4pin power output cable is provided. Other devices (including SATA slimline optical drives and CF cards) may require additional cables. Please email before ordering. Don't forget you can install Linux and Windows 7 from a USB key very easily!

Suitable cases (without PSU): The following enclosures come without an internal PSU and are compatible with the JNF9HG-2930: M350 and M5X.

Suitable cases (with PSU): All Mini-ITX Chassis can be used with the JNF9HG-2930 if their PSU is bypassed and a 12V external AC Adapter is used (60W minimum).

Box contents: Motherboard, VGA cable, SATA cable, Product Manual, Short depth Thin-ITX IO Shield and Standard I/O Shield with VGA push-out, Driver and Software CD, Serial Cable, Half to Full Mini PCI-E bracket.

*Note: The JNF9HG supports up to 16GB DDR3L memory on 2x 8GB 1.35V DDR3L SODIMMs (16GB verified by Mini-ITX.com).This is not compatible with DDR, DDR2 or standard DDR3 SODIMM memory.

Specifications
Model Jetway JNF9HG-2930
Processor Intel N2930 Quad Core, 1.83 GHz up to 2.16GHz
Architecture Bay Trail
Chipset Intel HM65
Cooling
Type Fanless
Connectors 1x Fan Connector
1x System Connector
Graphics
Displays 1
Outputs 1x VGA
Memory
Maximum 16GB
Sockets 2x SODIMM
Types DDR3/DDR3L 1600MHz, 1333MHz
Storage
Ports 2
2x Serial ATA 3Gb/s
1x mSATA (Shared with SATA port)
Network
LAN Ports 4
LAN 0: Intel i211-AT 1Gbps
LAN 1: Intel i211-AT 1Gbps
LAN 2: Intel i211-AT 1Gbps
LAN 3: Intel i211-AT 1Gbps
USB
Connectors 6
Types 1x USB 2.0 Type A Rear
4x USB 2.0 on pin header Board Pins
1x USB 3.0 Type A Rear
Audio
Chipset Realtek ALC662 Supports 2 Channel audio
Expansion
PCI-Express 1x PCI Express x1
1x Jetway PCIe 2.0 x1 Side Port
Mini PCI-Express 1x Mini PCI-E Full Length
Serial Ports
1x DB9 Serial COM port RS232
1x Serial Port on board header RS232
Other I/O Ports
1x SIM Card Socket
Power
DC-Jack 2.5/5.5mm connector
2-pin +12V Alternate Power connector
Board Headers
SMBUS Header
Chassis Intrusion Header
Parallel Header
GPIO Header
System Front Panel Header
PS/2 Keyboard/Mouse
VGA Header
2-pin LAN LED header
2-pin LAN LED header
2-pin LAN LED header
2-pin LAN LED header
Windows Support
Windows 7
Windows 10
