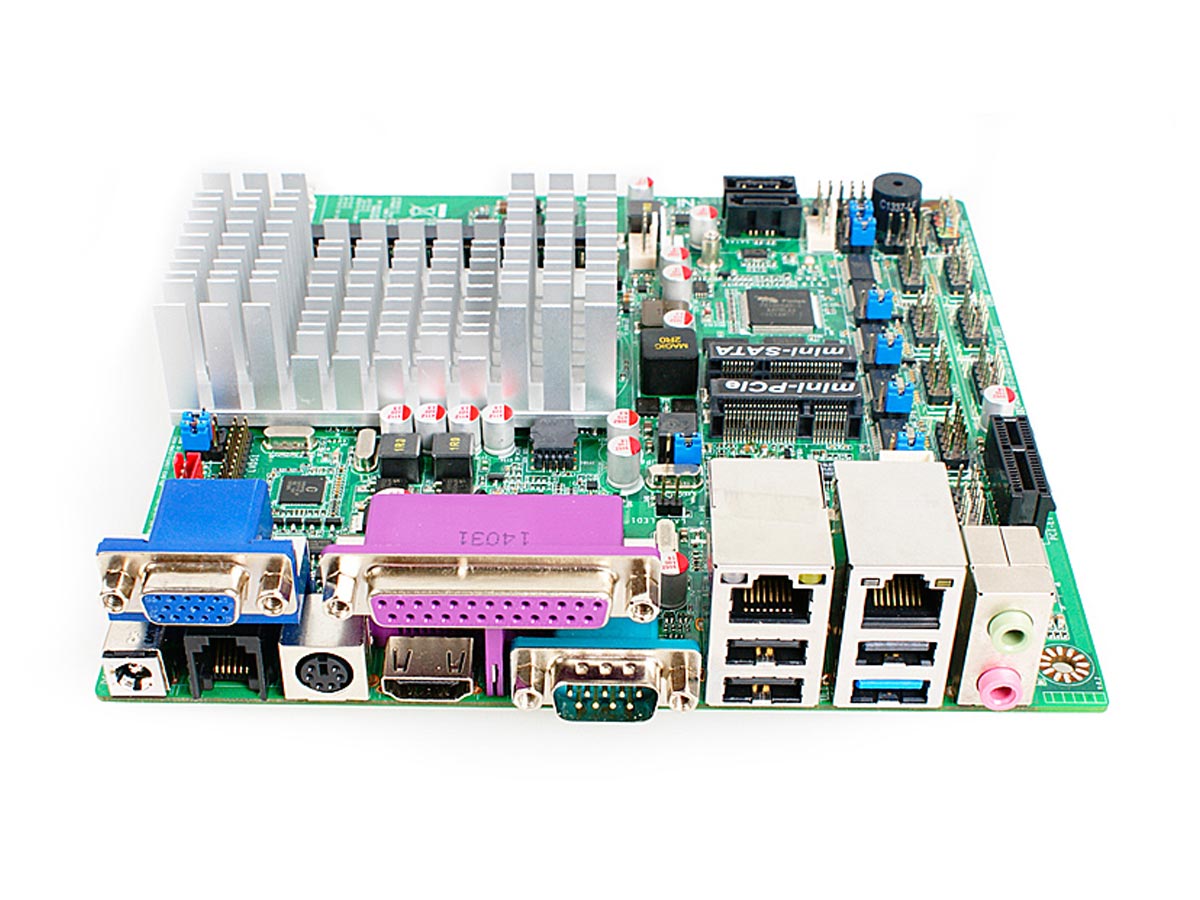

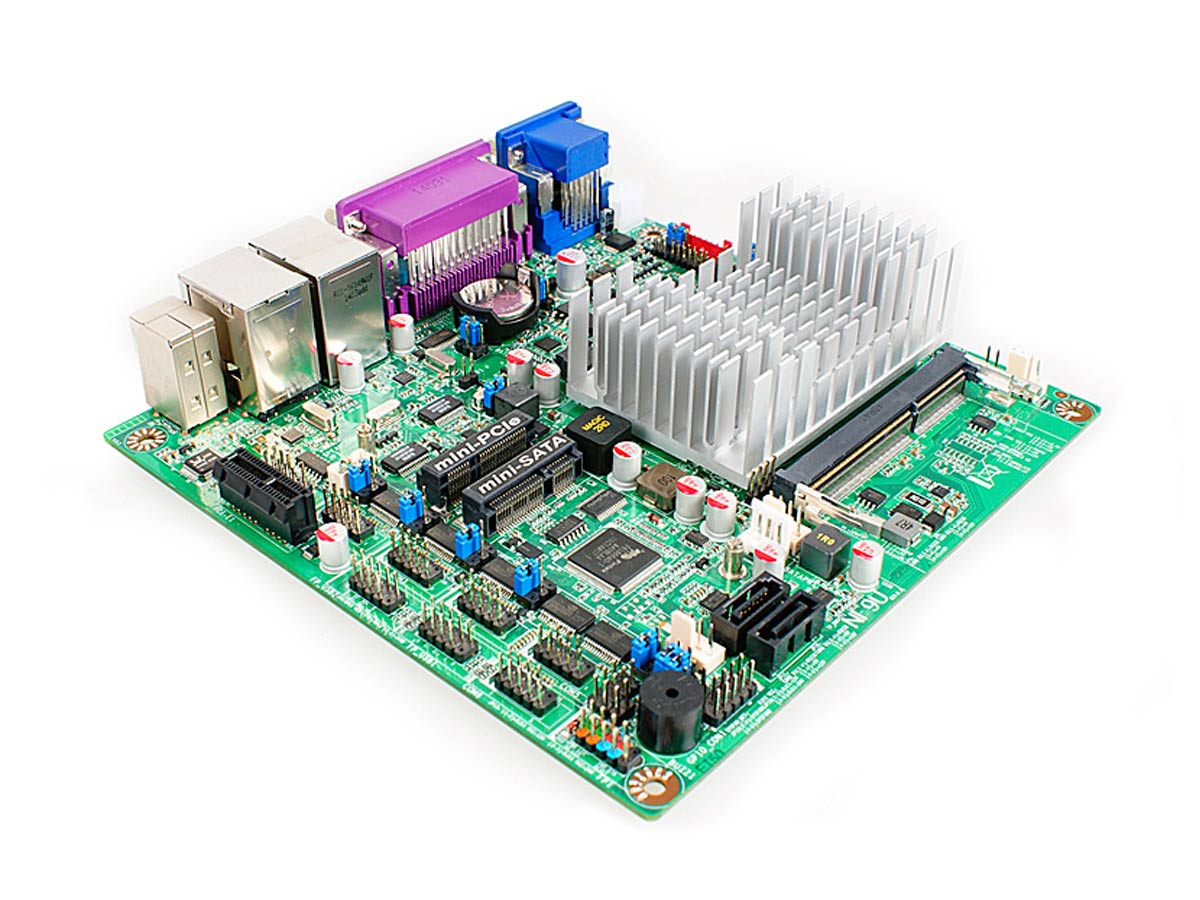

Jetway JNF9U-2930 Dual LAN Fanless Bay Trail Wide Input DC Thin-ITX Board

Jetway JNF9U-2930 Long-life board with passively Cooled Quad Core 64-bit 1.83GHz (2.16GHz Burst) Celeron N2930 BayTrail 22nm processor with VT-x support and integrated Intel HD Graphics. Up to 8GB of system memory; 2x SATA 3Gb/s; PCIe x1 and half size Mini-PCIe expansion, Full size mSata slot; Support for up to 6 Serial Ports; 2x Realtek Gigabit Ethernet; Realtek ALC662 High Definition 2.1 Channel Audio. Windows 7/8.1 64-bit and Windows 10 32/64-bit drivers available.

Full Specifications

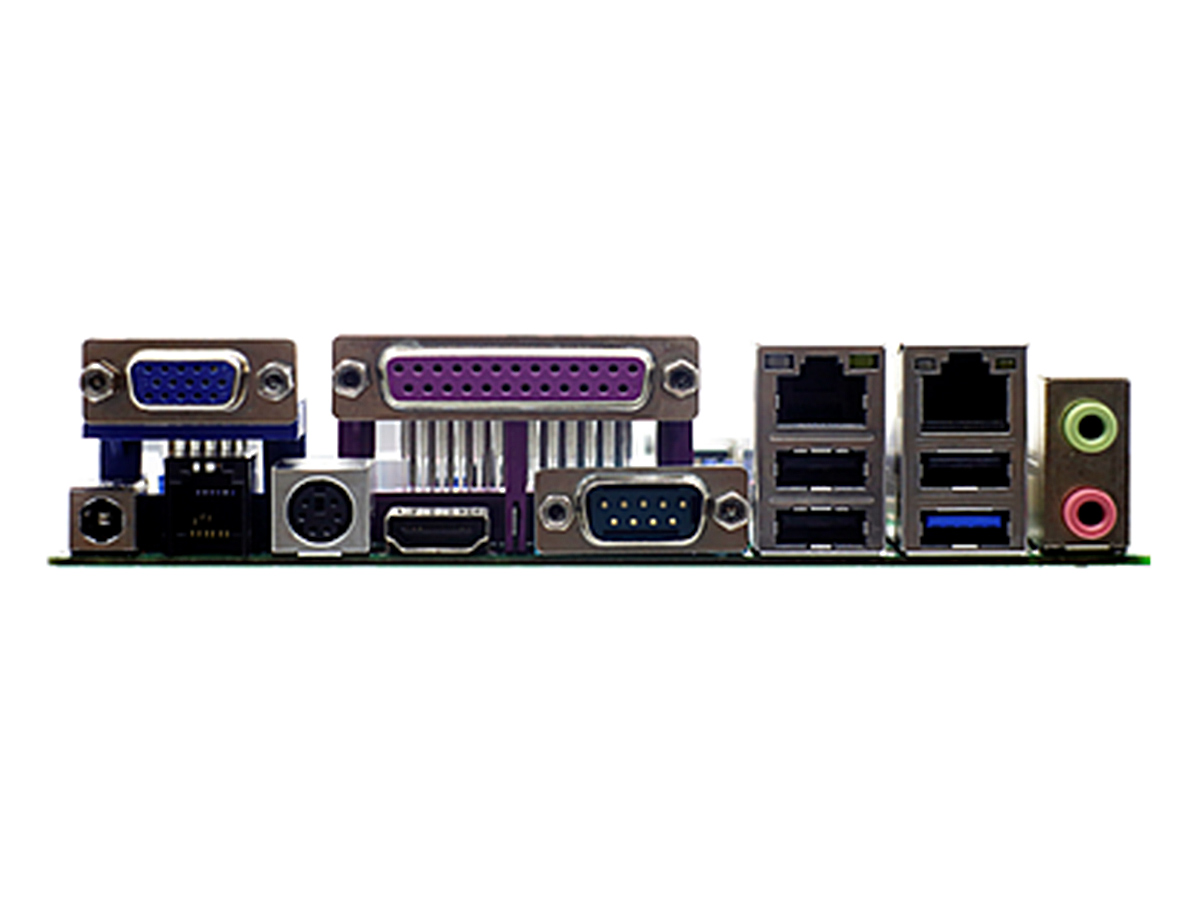

Rear Panel: 1x 9-24V DC Power Input; 1x VGA port; 1x RJ11 Jack with +12V/+24V Power for Cash Drawers; 1x PS/2 keyboard/mouse connector; 1x Parallel port; 1x HDMI; 1x RS232 Serial port; 2x Realtek RTL8111G Gigabit Ethernet ports; 3x USB 2.0; 1x USB 3.0; 2x 3.5mm Audio Jacks (Line Out, Mic In).

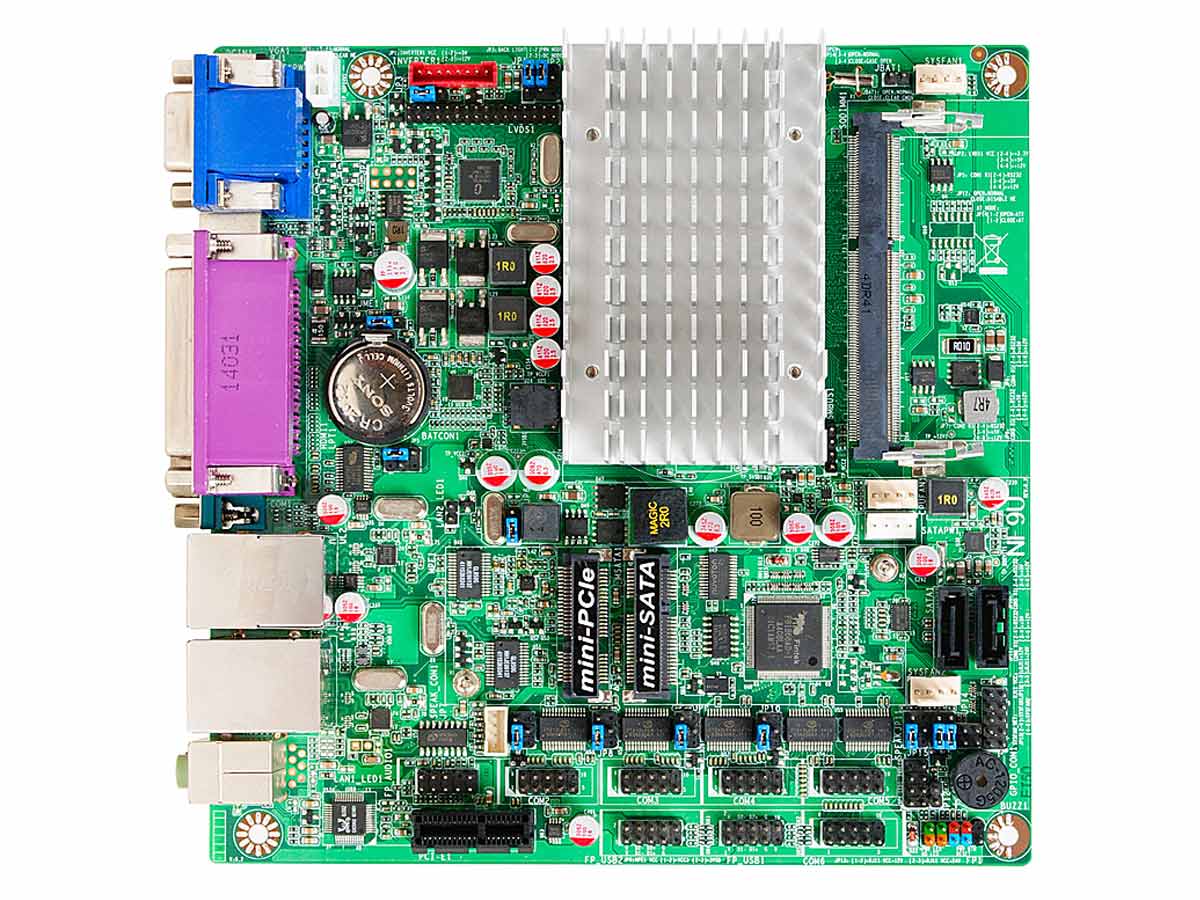

Board Connectors: 1x 2pin 9-24V alternate power connector (cannot be used at the same time as the external DC input); 2x SATA 3Gb/s ports; 4x USB 2.0 connectors on pin headers; 24-bits Dual Channel LVDS connector; 5x Serial Port Headers; 3x Fan Headers; 1x Front Panel Header; 1x 9pin Audio Header; 1x Chassis Intrusion Header; 1x 8bit GPIO Header.

Board Expansion: 1x PCI Express x1 Slot; 1x Half length Mini PCI-E slot; 1x Full length mSATA slot (shared with SATA port).

Important! This board has a Wide range 9-24V DC Power input and is not designed for use with a standard ATX PSU: The JNF9U-2930 requires a 12V AC Adapter to power the board at the rear and feeds power to up to 2 other SATA devices through an on-board 4pin power output connector. There is an alternate 9-24V input on a 2pin Molex 5566-2 connector which can also be used (though not at the same time as the rear input). This board is not designed for connection directly to a 12V battery output.

Powering devices: An internal 4pin power output cable is provided. Other devices (including SATA slimline optical drives and CF cards) may require additional cables. Please email before ordering. Don't forget you can install Linux and Windows 7 from a USB key very easily!

Suitable cases (without PSU): The 9-24V DC will work with the M350 or with the M5X (60W or 80W AC Adapter recommended).

Suitable cases (with PSU): All Mini-ITX Chassis can be used with the JNF9U-2930 if their PSU is bypassed and a 12V external AC Adapter is used (60W minimum).

Box contents: Motherboard, SATA Cable, Product Guide, DVD Drive Disk, Full Size I/O Shield, Thin-ITX I/O Shield, 30cm Serial to Header Cable.

Memory: The JNF9U-2930 supports up to 8GB DDR3L memory on 1x DDR3L SODIMM.
