Dynatron L34 All-in-one Liquid Cooler with 4x Fans suitable for 2U Chassis with Intel Socket LGA1851, 1700, 1200, 115x, 2011/2066 Square ILM, AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2

Dynatron L34 All-in-one Liquid Cooler suitable for cooling Intel Socket LGA 1851, LGA1700, LGA 1200, LGA 115x, LGA 2011/2066 Square ILM and AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2 motherboards in a 2U Chassis.

4x Dynatron long life two-ball bearing 80x80x38mm fans cool the radiator which extracts heat through water pumped from the copper 1100 based cold-plate attached to the CPU. Pre-applied high performance Shin-Etsu thermal grease ensures clean and easy installation.

Case Compatibility: 2U chassis with enough space inside to mount radiator and tubing. Please consult diagrams to determine fit. Radiator measures 383.5 (L) x 86.5 (W) x 85.4 (H) mm.

Fitting: Screws surrounded by compression springs attach the cold plate using the retention bracket to the backplate underneath the motherboard. Radiator is then positioned within chassis. Power connectors attach to motherboard's PUMP and CPU fan headers.

Box Contents: Pre-Assembled pre-filled L34 Liquid Cooler with Copper Base Cold Plate Module, Light Weight Radiator, Water Pump with 2.9 litre/minute flow rate; 30cm Black EPDM Tubes; 2x Power Connectors; Full Mounting Accessories: Intel Backplate; Intel Retention Bracket; AMD Retention Bracket; AMD Screws; 2 sets of Intel Screws.

Compatible Boards and CPUs: Intel Socket 1851, 1700, 1200, 115X, 2011/2066 Square ILM and AMD FM1/2, AM2,3,4,5 Motherboards fitted with a processor producing up to 205W (AMD) and 300W (Intel) CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.

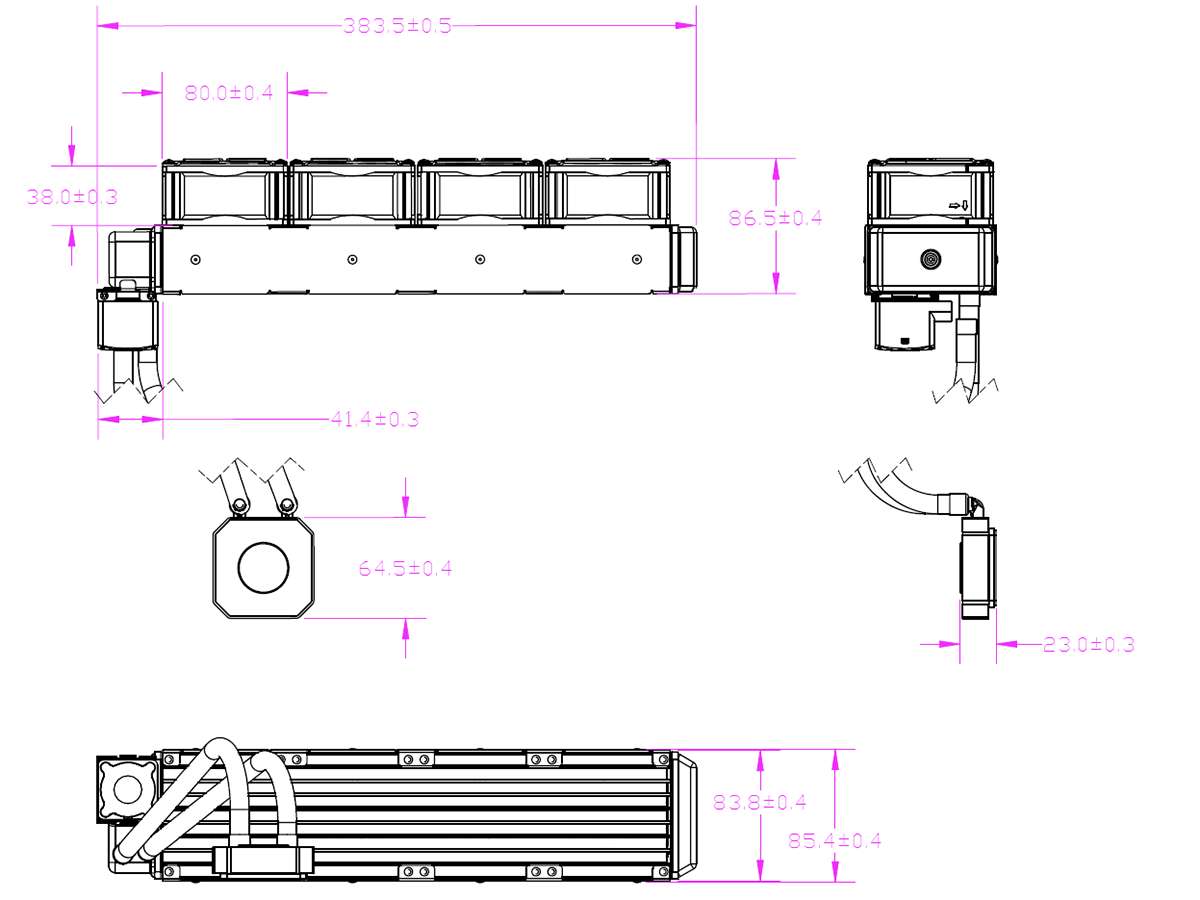

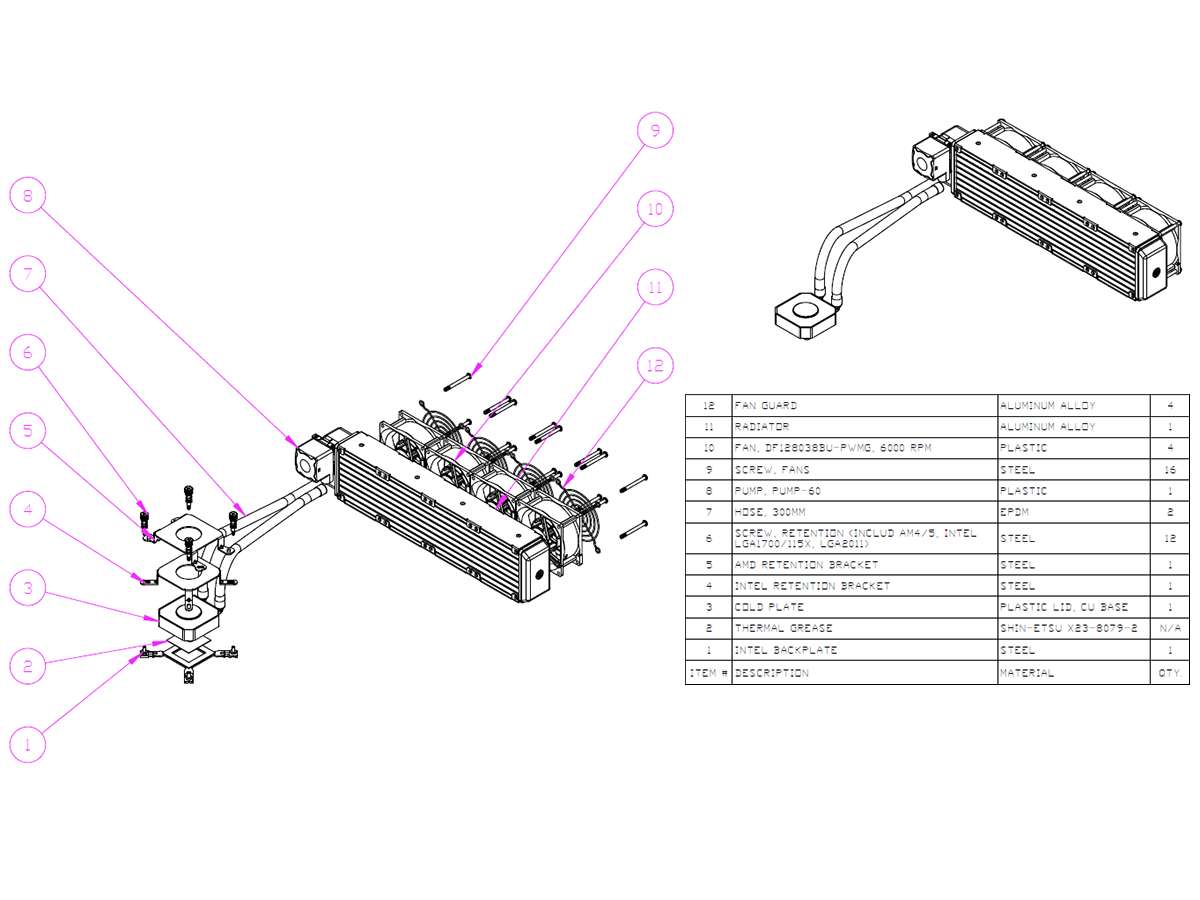

Product Specifications with Diagrams

Specifications: PWM controlled Fan speed: 1350 RPM (at 0-20% Duty Cycle);3100 RPM (at 50%); 6000 RPM (at 100%); Airflow: 23.085 CFM (at 0-20%);53.01 CFM (at 50%); 102.6 CFM (at 100%); Air Pressure: 1.152 mm-H2O (at 0-20%);6.074 mm-H2O (at 50%); 22.752 mm-H2O (at 100%); Noise level: 24.77 dBA (at 0-20%);42.82 dBA (at 50%); 57.16 dBA (at 100%); Power Consumption: 1.2 W (at 0-20%);3.84 W (at 50%); 22.8 W (at 100%); Fan Dimensions: 80 x 80 x 38mm; Overall Dimensions: 383.5 (L) x 86.5 (W) x 85.4 (H) mm.
