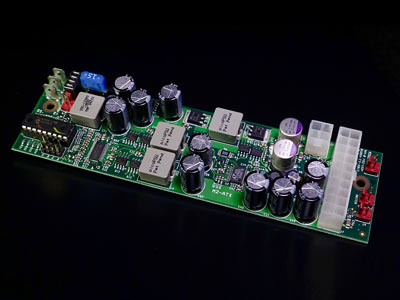

M2-ATX 160W Intelligent Wide Input 6-24V Vehicle/Battery DC-DC Power Supply
Designed to provide power and to control the ON/OFF switch of a motherboard (PC) based on ignition status, M2-ATX is a wide input (6-24V) vehicle or general purpose battery powered application DC-DC ATX power supply capable of surviving tough car engine cranks (down to 5.7V) as well as transient over-voltage situations.
Eight user selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown vehicle / car timing schemes. While in deep sleep mode, M2-ATX constantly monitors your car battery voltage levels, automatically shutting down until battery levels reach safe levels.

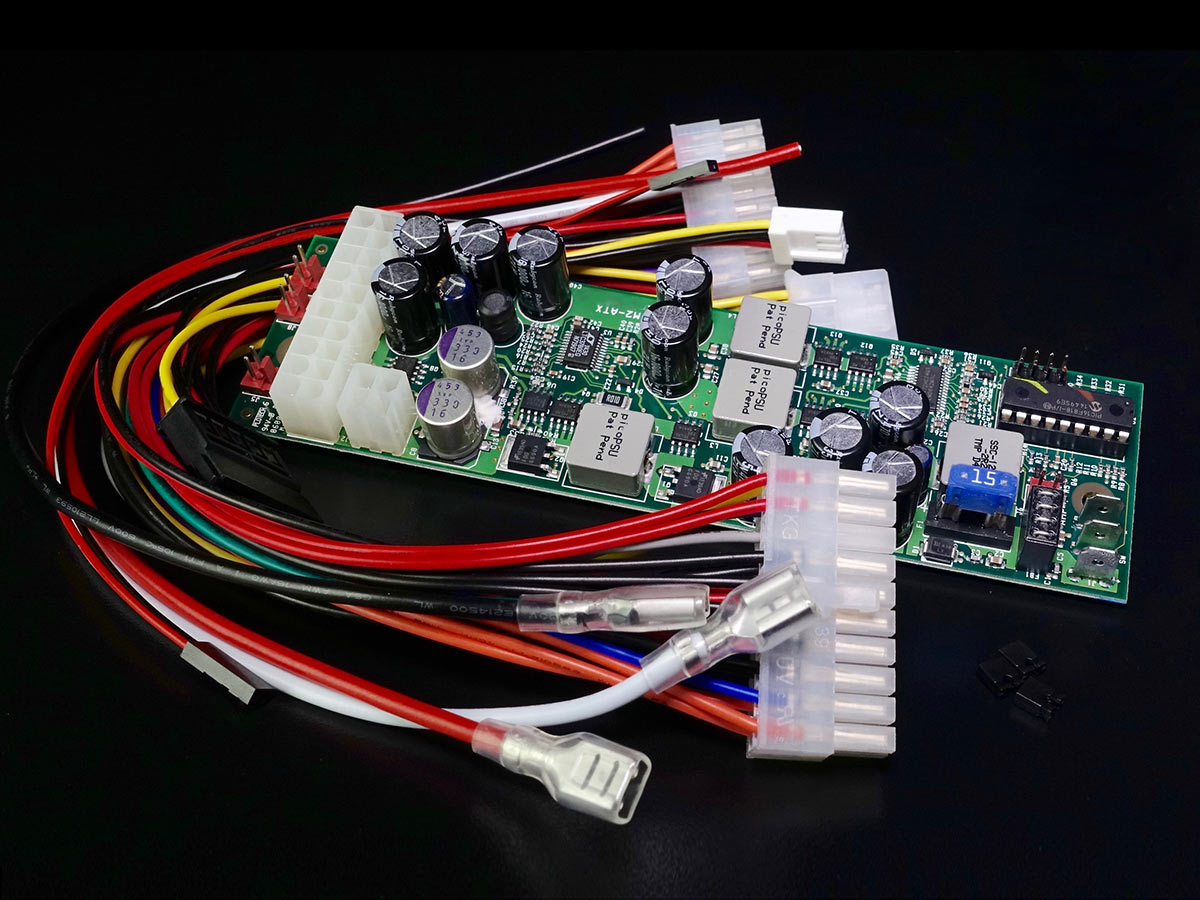

M2-ATX comes equipped with ATX, Molex HDD, SATA HDD and Floppy cable harness, jumpers, faston connectors and 2 pin cables for motherboard ON/OFF switch. Just connect it to your 12V or 24V car/boat/RV battery and power up your PC.
Designed to work with your own projects or the VoomPC and VoomPC 2, but is also a direct size compatible replacement with Morex 26xx, 27xx, 36xx, Travla C134, C150, C158, C159, Compact Wall Mount cases. Dimensions: 45mm x 160mm (1.77in x 6.31in). 160W Output - ideal for Socket Mini-ITX boards. Not compatible with EPIA PD boards.
Notes: If your board has a 4 pin 12V P4 power connector, you will need add a Molex to 12V P4 Power Cable or 12V P4 to 12V P4 Power Extension Cable.
Specifications | ||
---|---|---|
Model | M2-ATX 160W | |
Form Factor | PCB | |
Power Supply | ||
Output Power | 160W | |
Input | ||
Input Voltage | 6-24V | |
Connectors | 3x Spade | |
Output | ||
Connectors | 20-pin ATX | |
ATA HDD Power | 228.6mm | |
Floppy Power | ||
SATA Power | ||
Cooling | ||
Operating Temperature | -40℃ - 85℃ | |
Storage Temperature | -55℃ - 125℃ | |
Type | Fanless | |
Dimensions | ||
W x L x H | 160 x 45 x 22 mm | |
Weight | 200g | |
Manufacturer's Warranty | ||
Duration | 12 months | |
Features | ||
|
