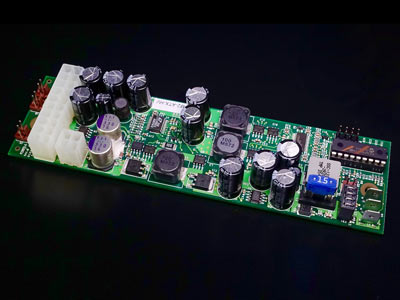

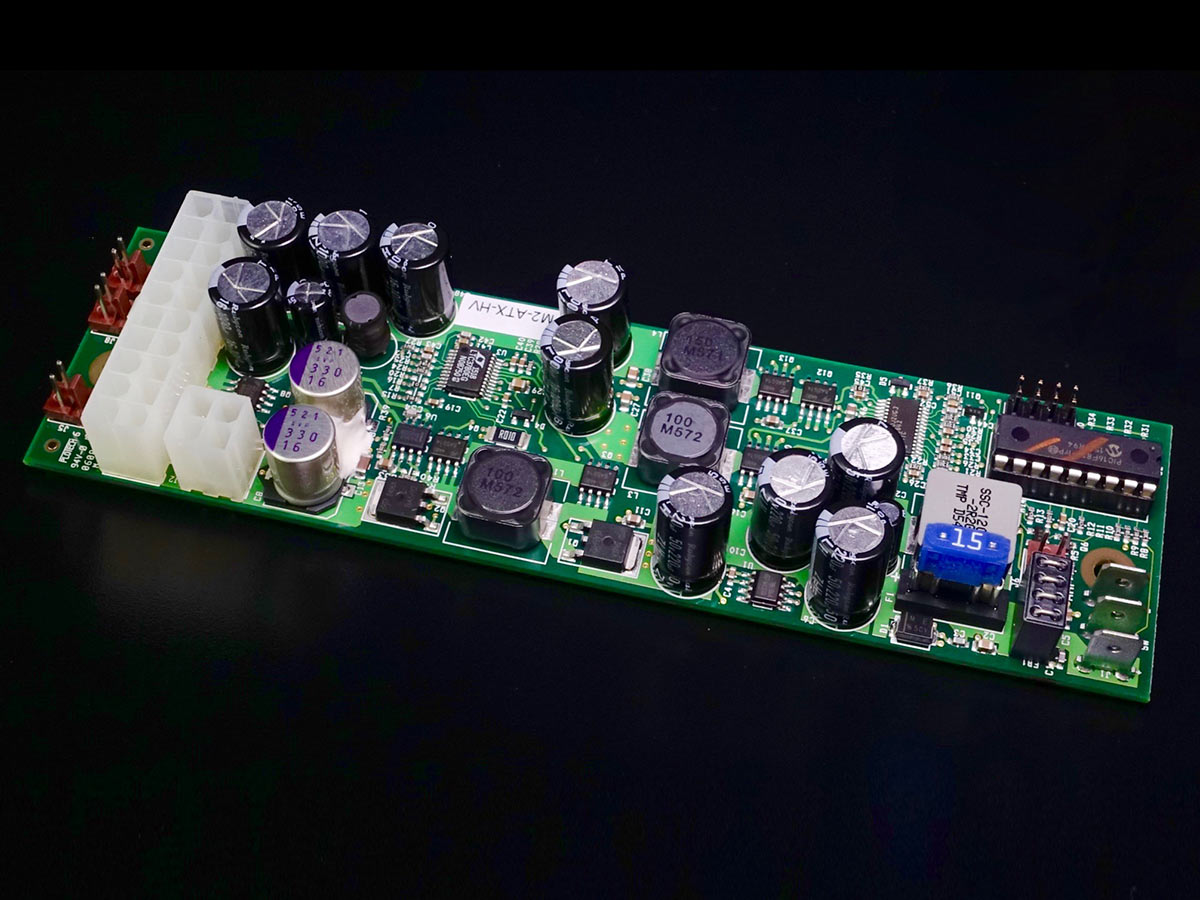

M2-ATX-HV 140W Intelligent Very Wide Input 6-32V Vehicle/Battery DC-DC Power Supply

M2-ATX-HV 140W
£48.00
£57.60 inc. VAT
IN STOCK (Checked 07:29)

Designed to provide power and to control the ON/OFF switch of a motherboard (PC) based on ignition status, M2-ATX-HV is a wide input (6-32V) vehicle or general purpose battery powered application DC-DC ATX power supply capable of surviving tough car engine cranks (down to 5.7V) as well as transient over-voltage situations.

Eight user selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown vehicle/car timing schemes. While in deep sleep mode, M2-ATX-HV constantly monitors your car battery voltage levels, automatically shutting down until battery levels reach safe levels.

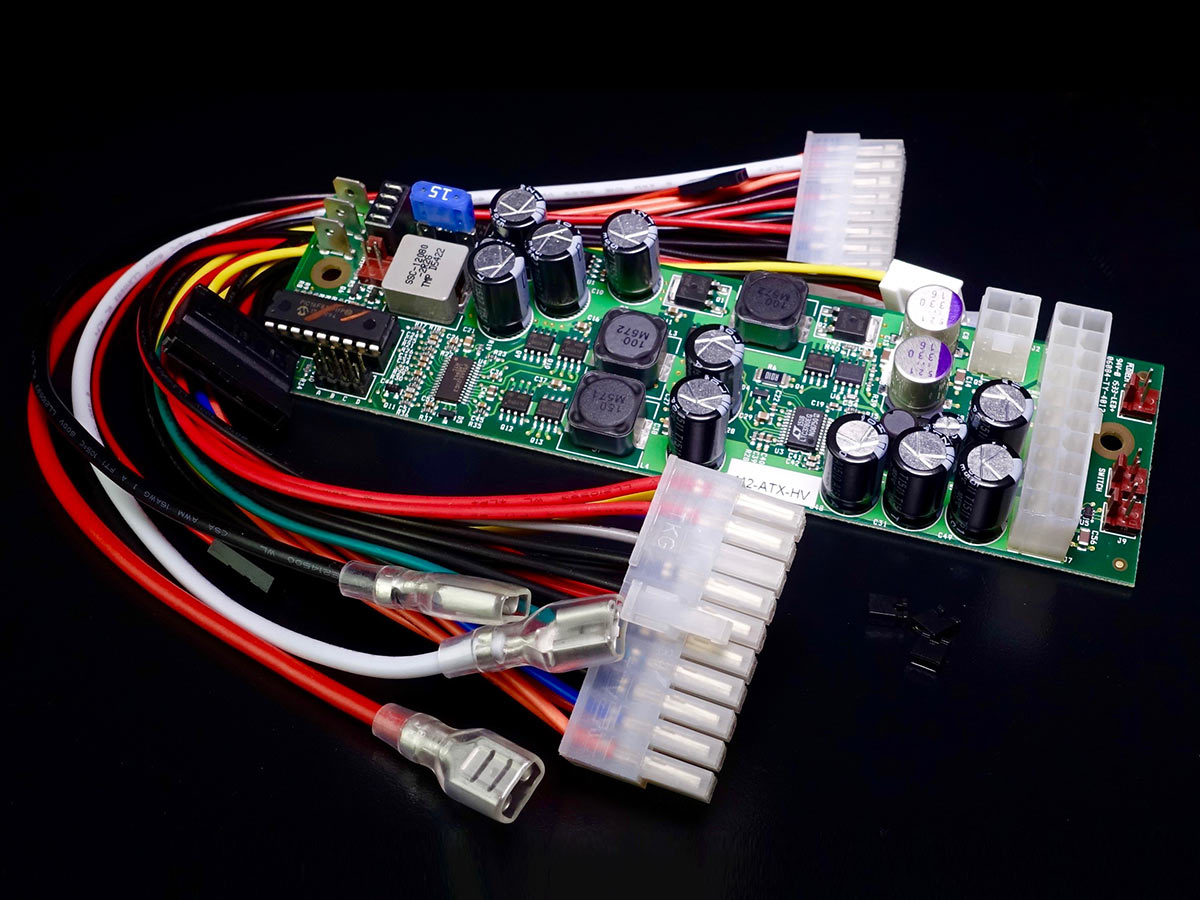

M2-ATX-HV comes equipped with ATX, Molex HDD, SATA HDD and Floppy cable harness, jumpers, faston connectors and 2 pin cables for motherboard ON/OFF switch. Just connect it to your 12V or 24V car/boat/RV battery and power up your PC.

Designed to work with your own projects or the VoomPC and VoomPC 2, but is also a direct size compatible replacement with Morex 26xx, 27xx, 36xx, Travla C134, C150, C158, C159, Compact Wall Mount cases. Dimensions: 45mm x 160mm (1.77in x 6.31in). 160W Output - ideal for Socket Mini-ITX boards. Not compatible with EPIA PD boards.

Notes: If your board has a 4 pin 12V P4 power connector, you will need add a Molex to 12V P4 Power Cable or 12V P4 to 12V P4 Power Cable.

Product Manual (PDF)
